Item |
Details |
|
|---|---|---|
|
Preliminary Check |
|
|
|
Name ID |
〇 |
Email address |
|
Custom attribute Note: For how to configure custom attributes, click here |
||
|
SP-Side Configuration |
〇 |
Configured by the administrator |
|
Request the SP to configure settings |
||
|
Provisioning |
Supports provisioning via API (account management possible from TrustLogin) |
|
|
Supports SAML JIT provisioning (account management possible from TrustLogin; user deletion not supported) |
||
|
〇 |
None (accounts are created in each system) |
|
|
Access Method |
〇 |
SP-Initiated SSO |
|
|
IdP-Initiated SSO |
|
|
Verified Operation Status by Device |
〇 |
PC - Browser |
|
ー |
PC - Desktop App |
|
|
〇 |
iOS - Standard Browser (Safari) |
|
|
〇 |
iOS - TrustLogin Mobile App In-App Browser |
|
|
ー |
iOS - Native App |
|
|
〇 |
Android - Standard Browser (Chrome) |
|
|
〇 |
Android - TrustLogin Mobile App In-App Browser |
|
|
ー |
Android - Native App |
|
|
SAML Authentication Scope |
ー |
Enabled for all users (SAML authentication only) |
| 〇 |
Other: Enabled only for users to whom SAML authentication has been applied on the SP side (both SAML authentication and password authentication are available) |
|
|
Notes |
None |
|
|
Table of Contents: TrustLogin Admin Page Configuration |
TrustLogin Admin Page Configuration
- Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

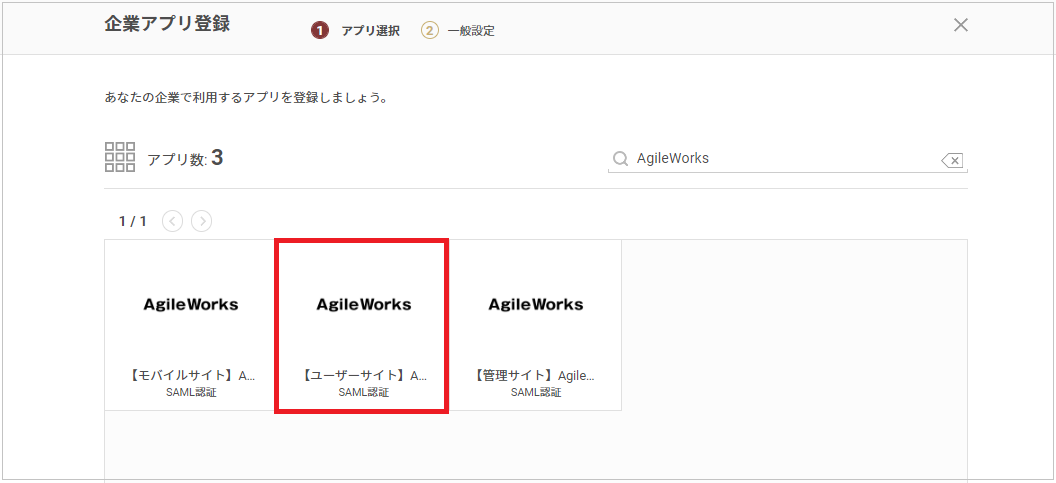

- On the "Register Corporate App" screen, search and select "[User Site] AgileWorks (SAML)".

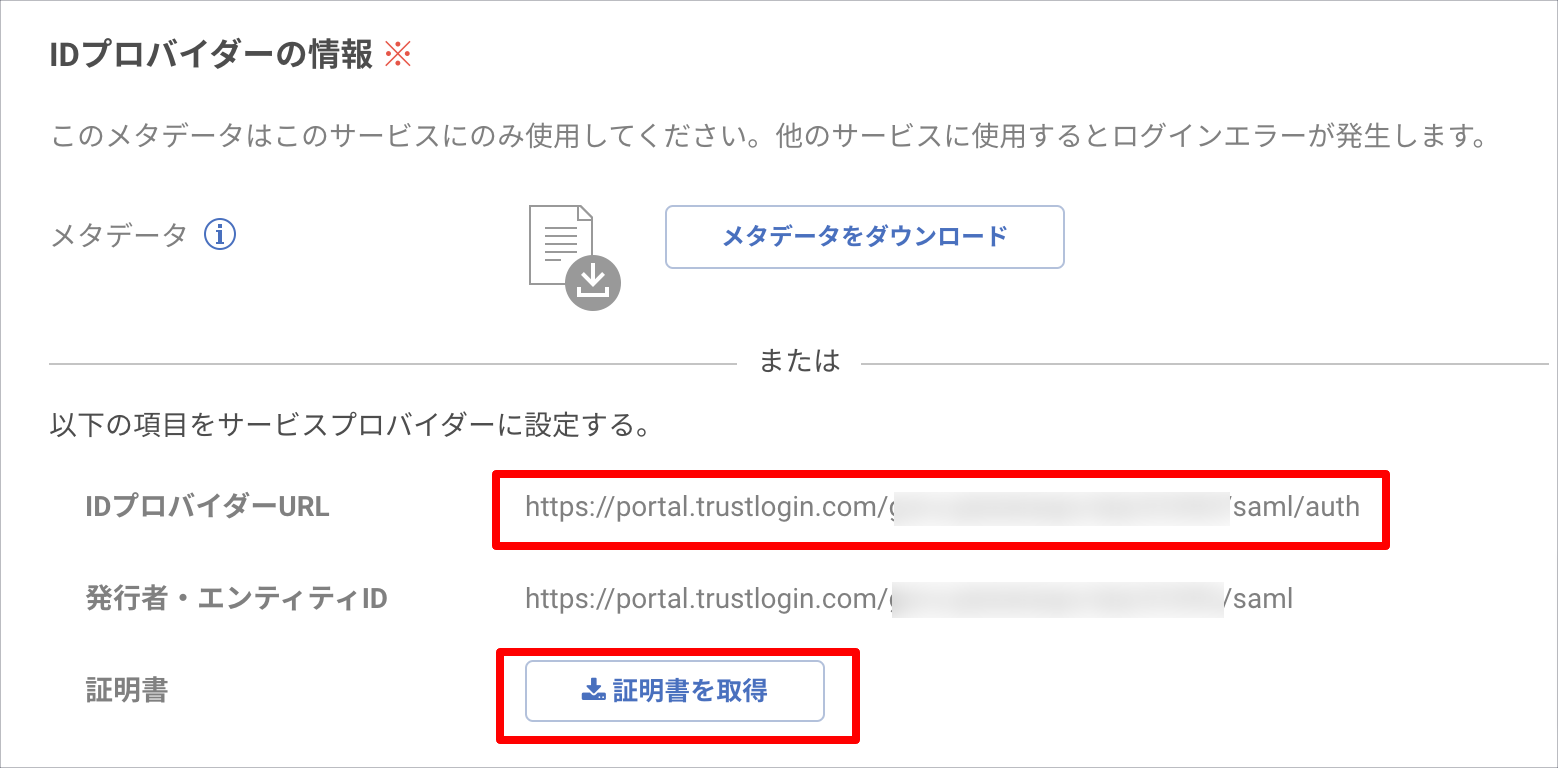

- Note down the "IdP URL" under "Identity Provider Information," and download the certificate from "Get Certificate."
Now, switch to configuring the AgileWorks side.
Do not click the "Register" button yet; open the AgileWorks admin page in a separate tab.
AgileWorks Configuration

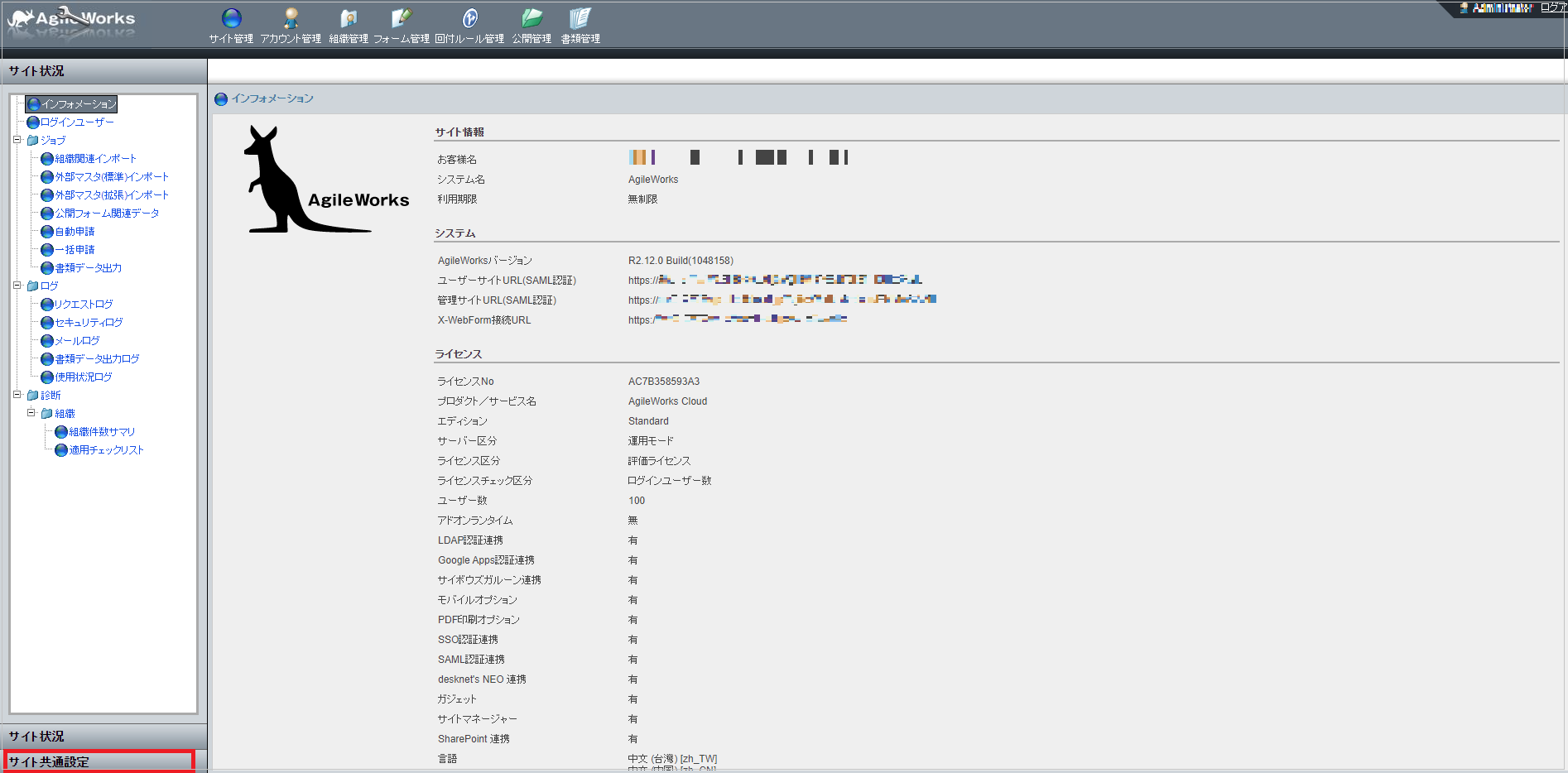

- Log in to the AgileWorks admin site with an administrator account and open "Site Common Settings."

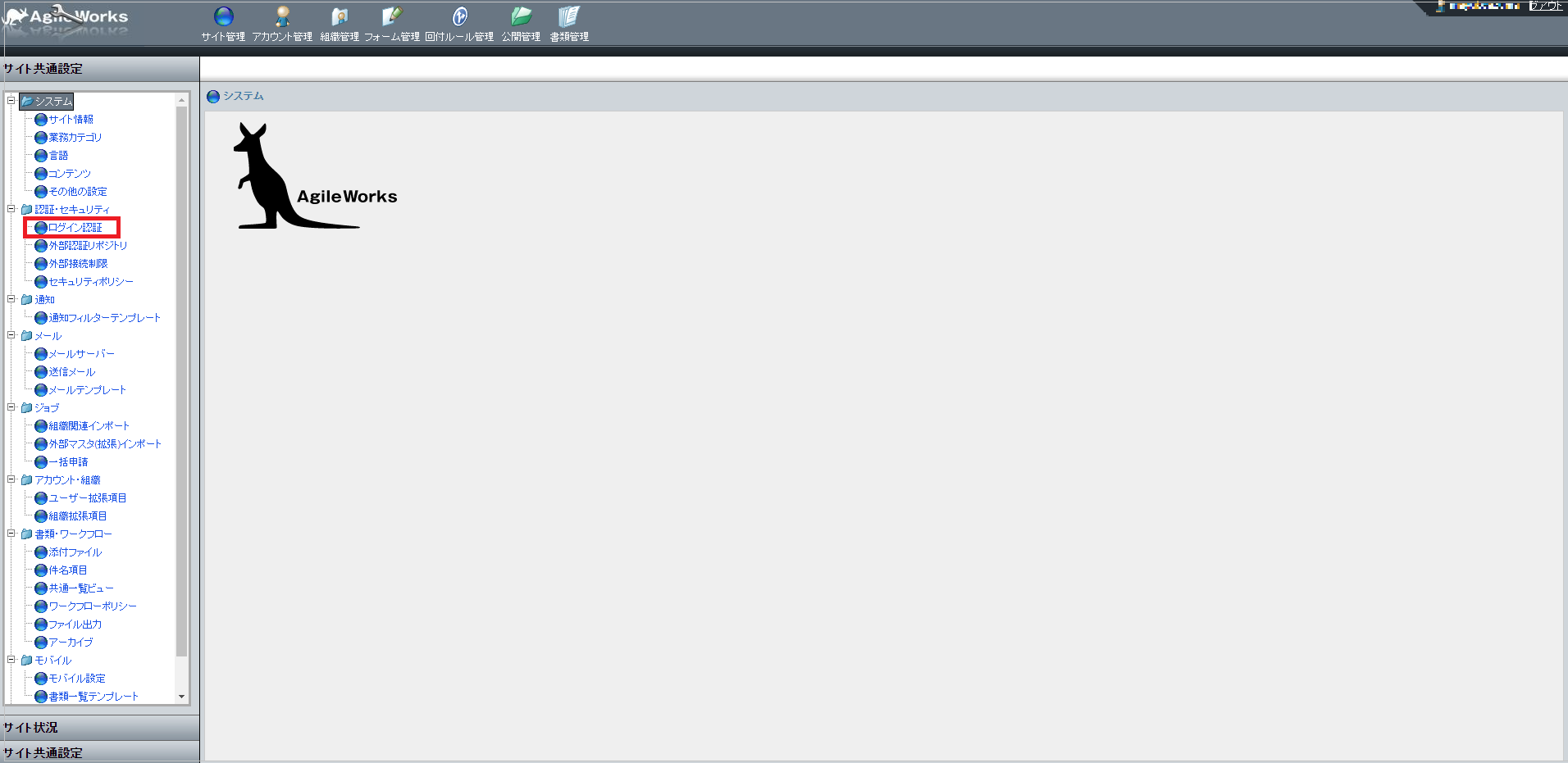

- Open "Login Authentication."

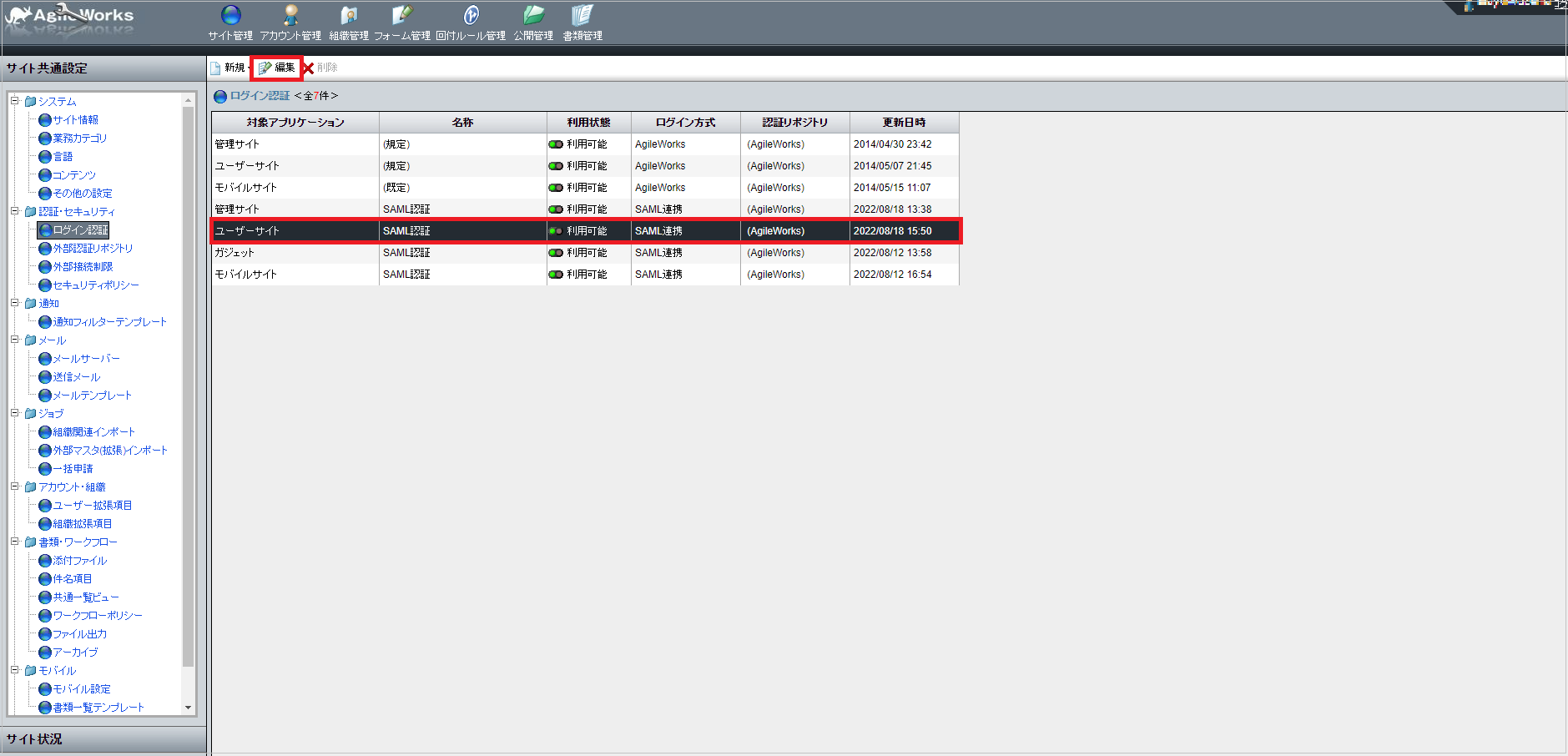

- Select "User Site" and click "Edit."

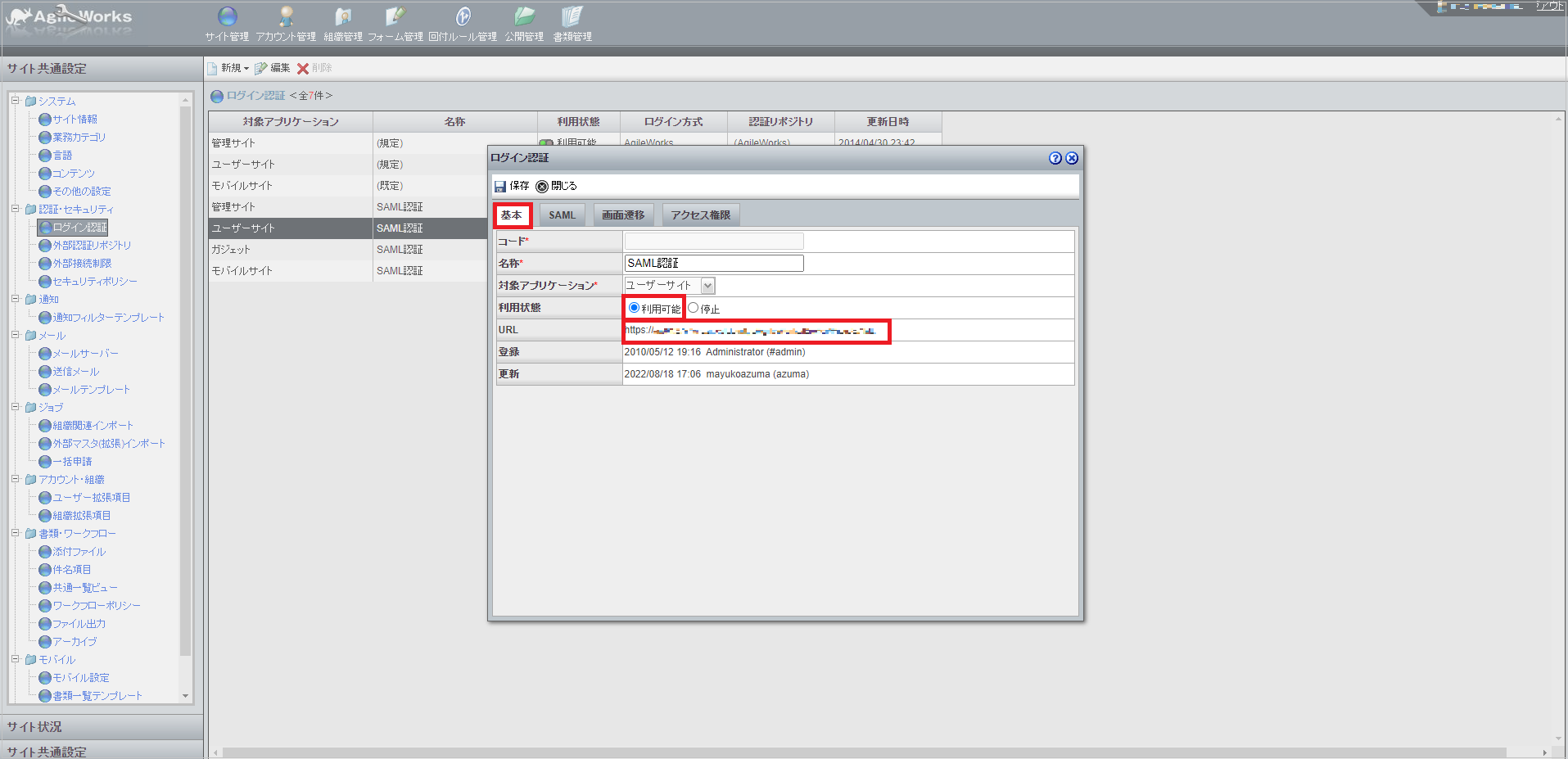

- Open the "Basic" tab, select "Available" under "Usage Status," and note down the "URL."

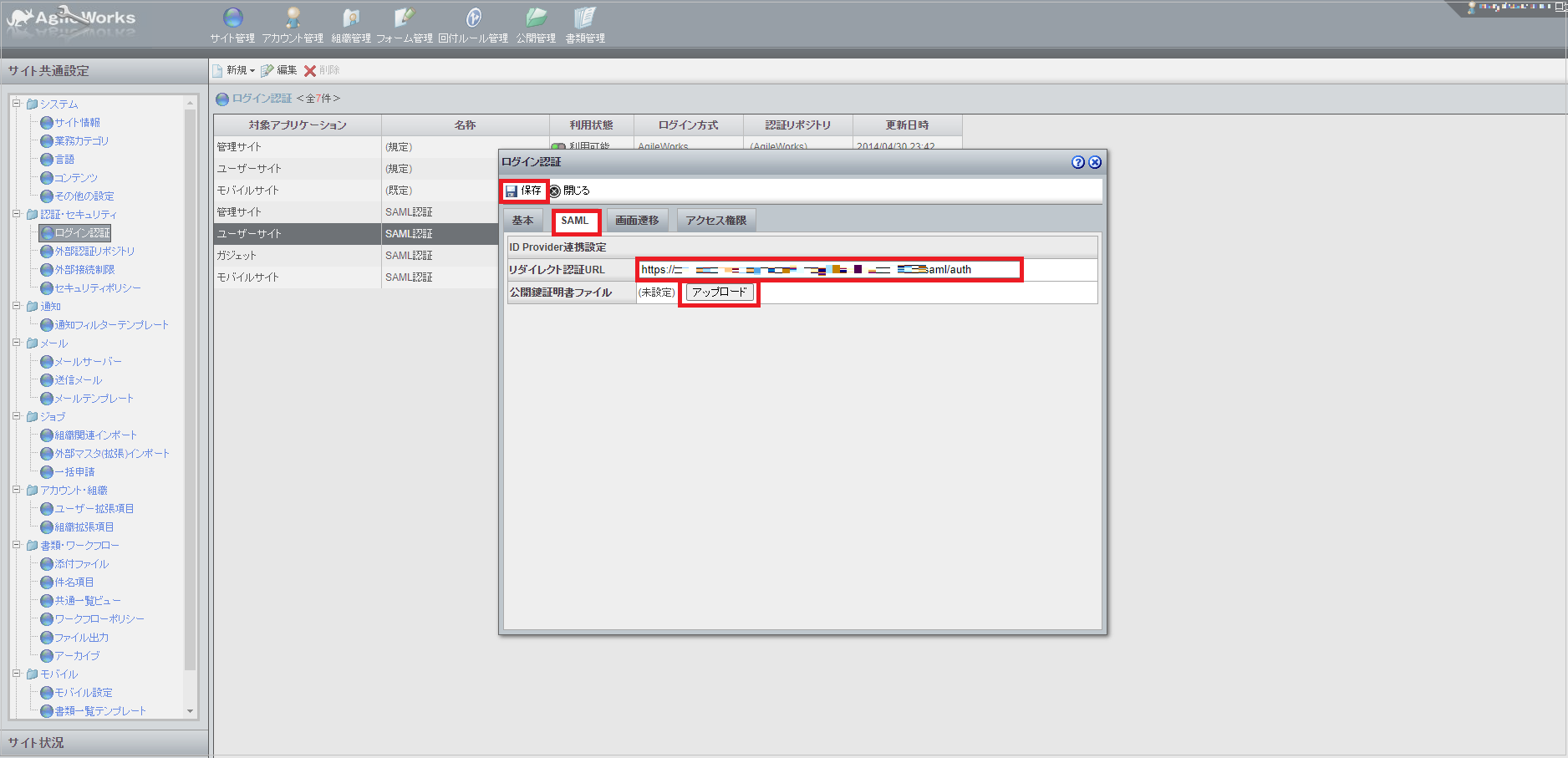

- Open the "SAML" tab and configure each item as follows
Redirect Authentication URL The "IdP URL" noted down from TrustLogin Public Key Certificate File Upload the certificate downloaded from TrustLogin
- For the "Screen Transition" and "Access Restriction" tabs, please configure the settings according to your operational policy. For details, refer to the AgileWorks manual.
- Click the "Save" button.
Return to the TrustLogin admin page.
TrustLogin Admin Page Configuration (Continued)

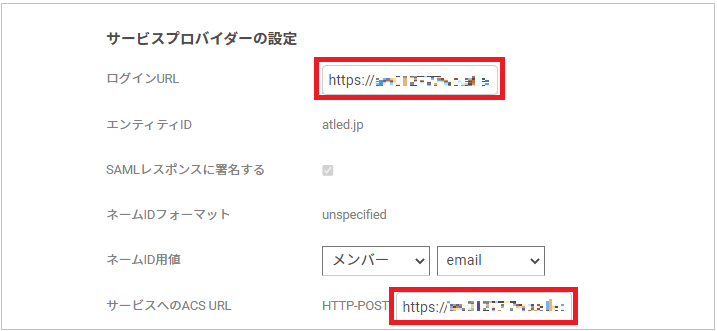

- Enter the URLs noted down from AgileWorks into the "Login URL" and "Service ACS URL" fields under "Service Provider Configuration."
- Save by clicking the "Register" button.
TrustLogin User Configuration
① When a User Adds the App from My Page
- On "My Page," click the "Add App" button.
- On the "Register App" screen, select "[User Site] AgileWorks (SAML)" and click the "Next" button in the upper right of the screen.
- If you want to change the "Display Name," enter it, then click the "Register" button.
- Click the app from "My Page" or the "browser extension" and verify that login succeeds.
② When an Administrator Adds Members
- In the "Admin Page > Apps" menu, search for and click the "[User Site] AgileWorks (SAML)" app.
- Click "Add Member," select the user to add from the member list, and click the "Register" button to add them.
