TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button at the top right of the screen.

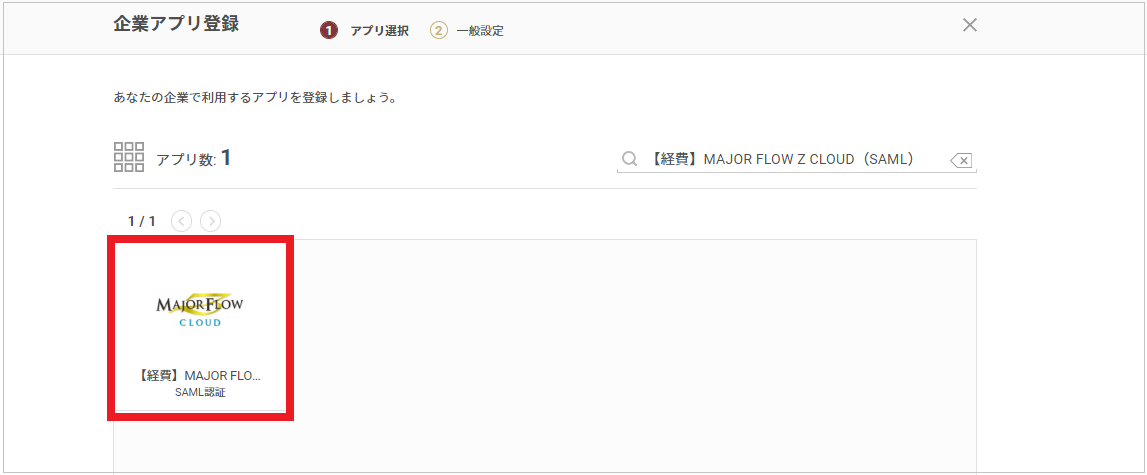

2. On the "Register Corporate App" screen, search for and select "[Expense] MAJOR FLOW Z CLOUD (SAML)".

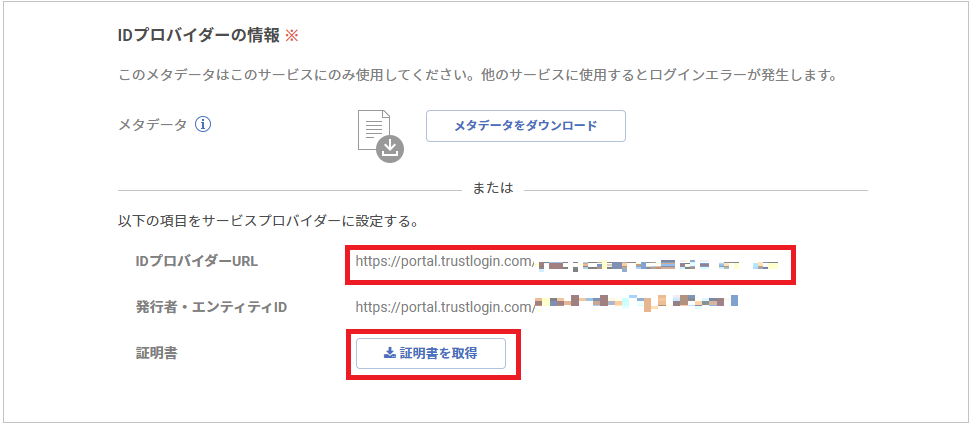

3. Note the "IdP URL" in the "Identity Provider Information" section, and download the certificate using the "Get Certificate" button.
   After downloading the certificate, change its file extension to ".crt".

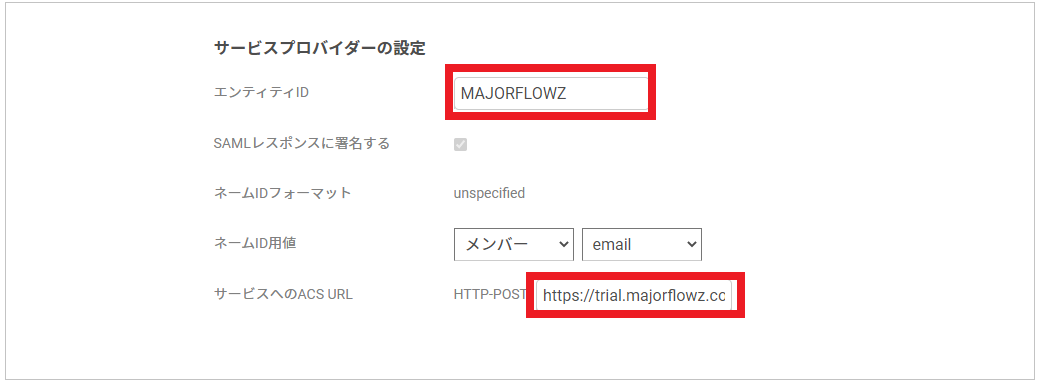

4. Configure each item under "Service Provider Settings" as follows.


   Entity ID	Any ID of your choosing (here, MAJORFLOWZ) Note: You will enter this later in MAJOR FLOW Z. Make a note of the entity ID you entered in TrustLogin.
   ACS URL for the service	Please check with your MAJOR FLOW Z service representative.





5. Save the configuration by clicking the "Register" button.

Now, switch to configuring MAJOR FLOW Z.

MAJOR FLOW Z CLOUD Configuration

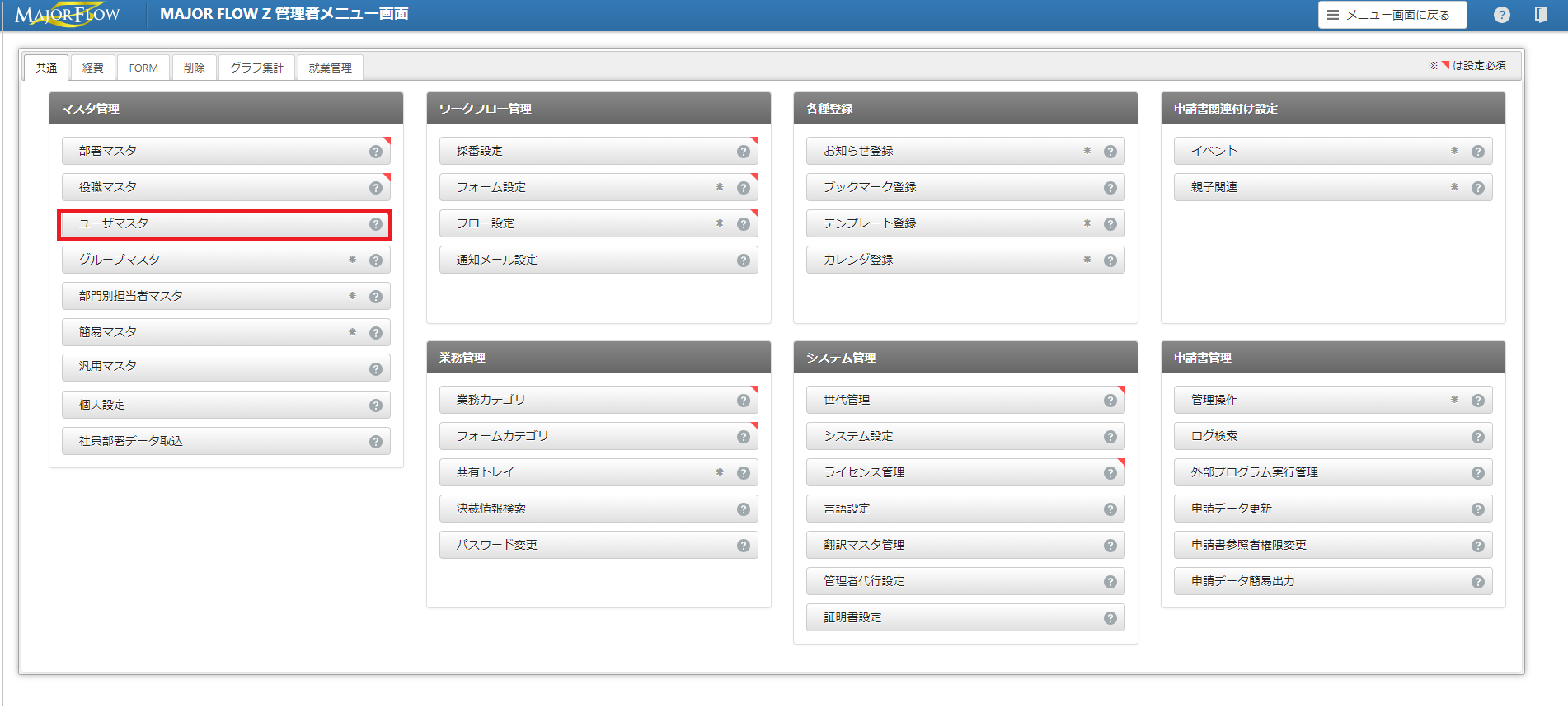

1. Check the user information registered in MAJOR FLOW Z. Log in to the MAJOR FLOW Z admin screen and open "User Master".

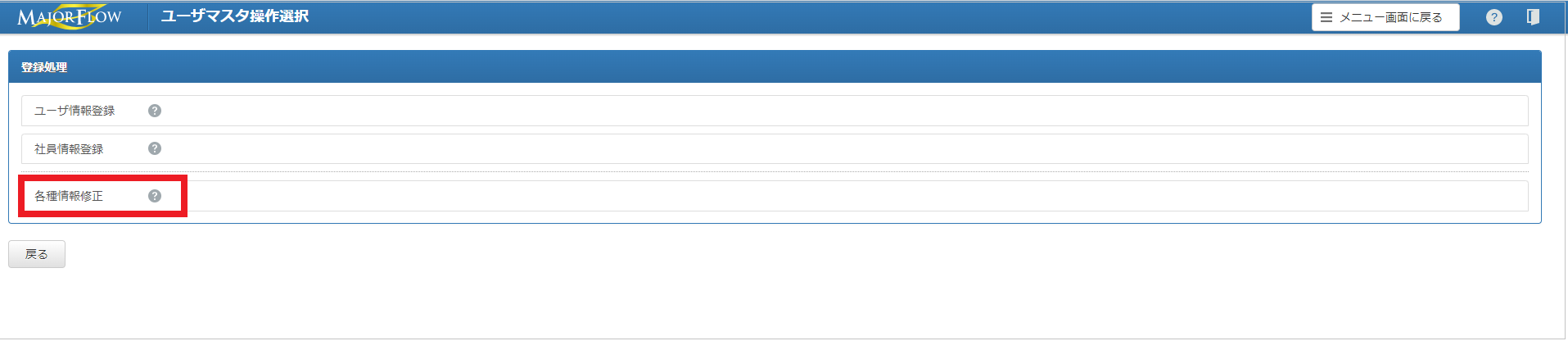

2. Select "Edit Various Information".

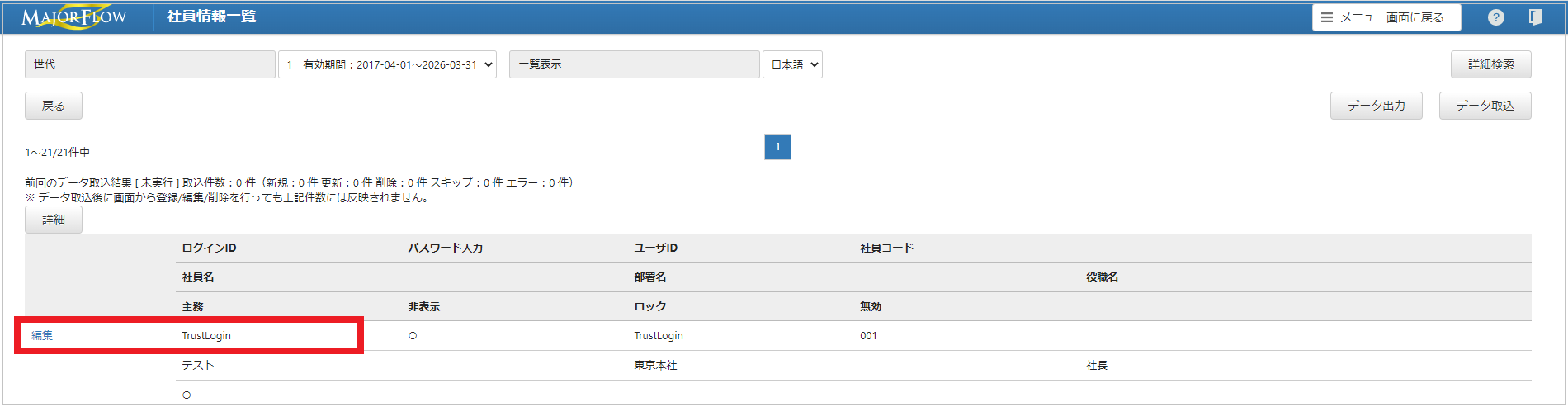

3. Select the user for whom you want to configure SAML authentication, and click "Edit".

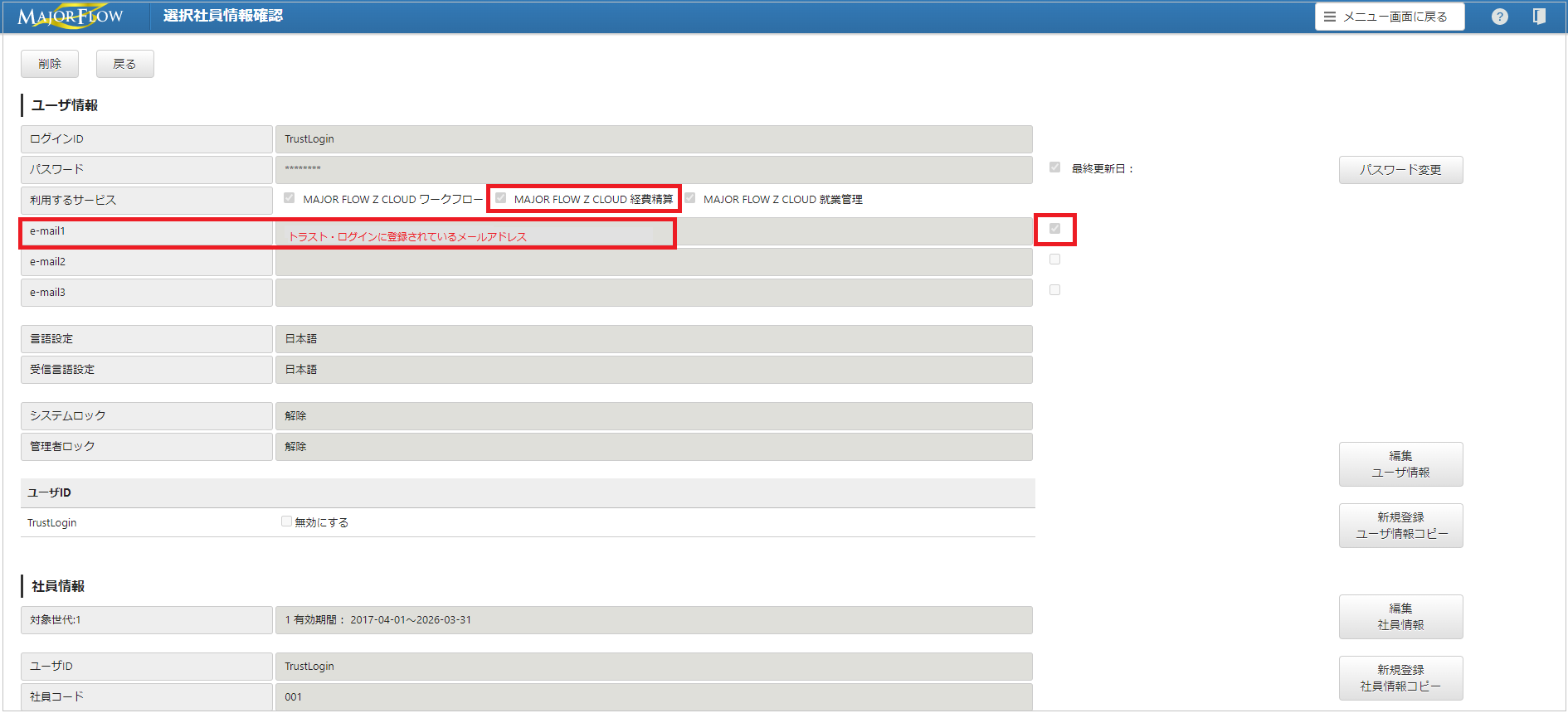

4. In "Services Used", confirm that "MAJOR FLOW Z CLOUD Expense Settlement" is checked.
   Confirm that the same email address as TrustLogin is registered, and that the checkbox next to the email address field is checked. Also make a note of the number of the registered email address field.
   (Example: In the case of the registration field shown below, since it is registered in "e-mail1", note down 1.)

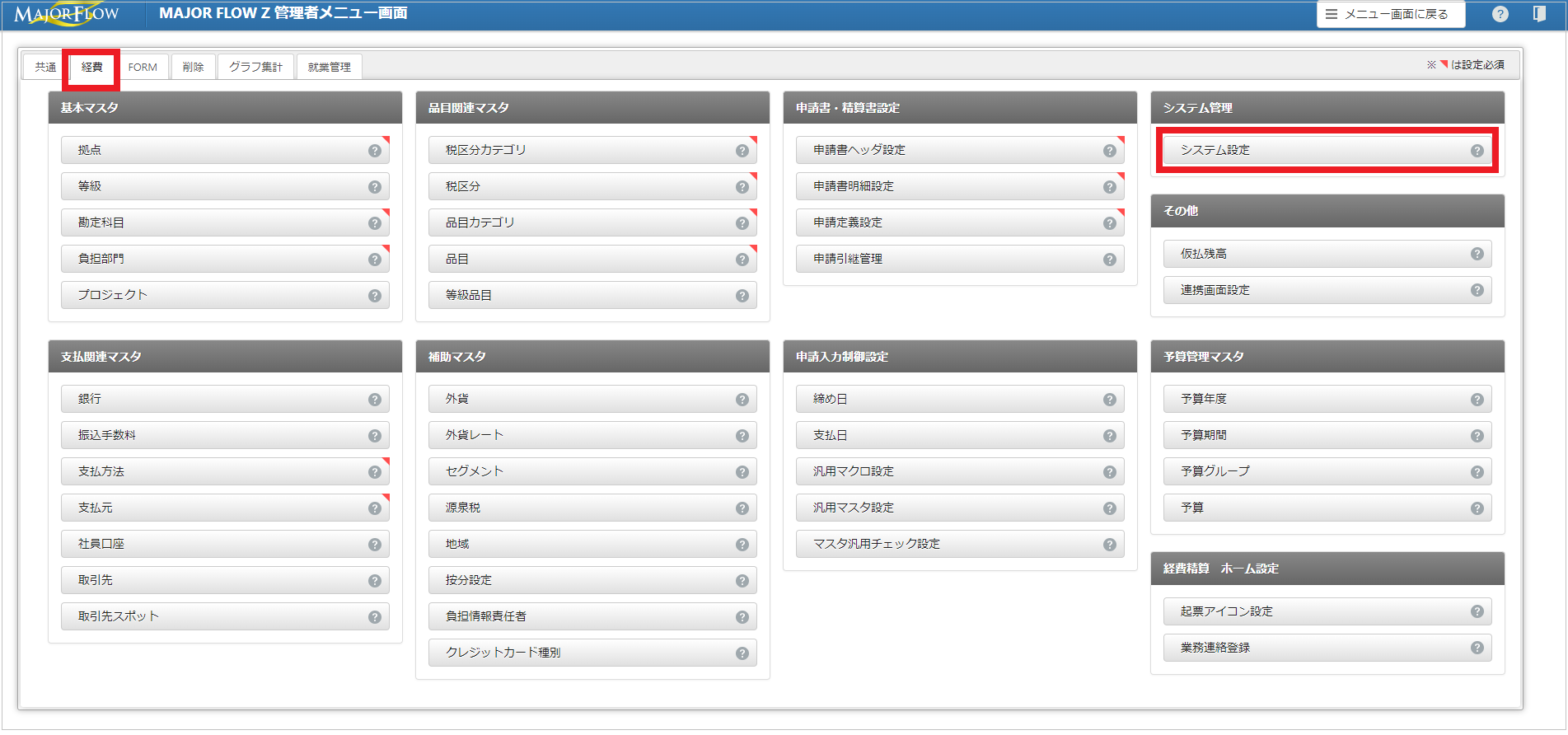

5. Return to the MAJOR FLOW Z admin screen and open "Expenses > System Settings".

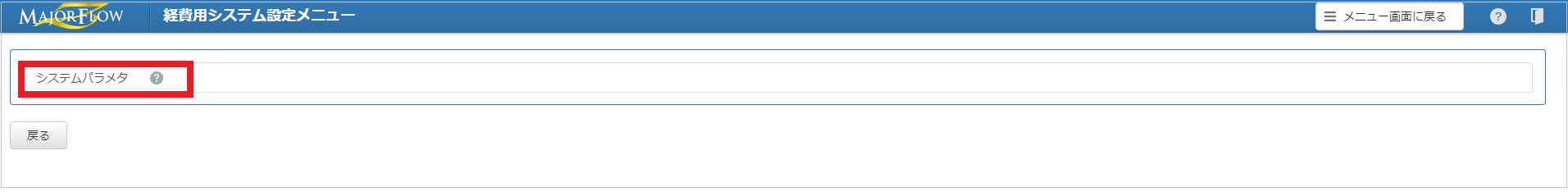

6. Click "System Parameters".

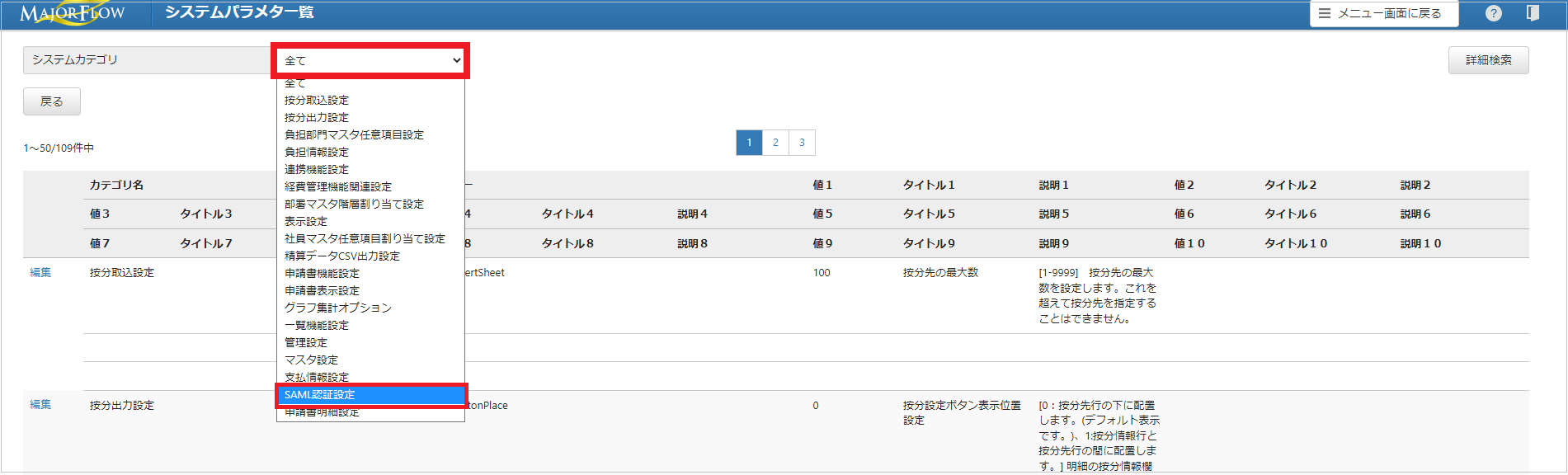

7. From the "All" dropdown, select "SAML Authentication Settings".
   　
   　　　　　　　　　

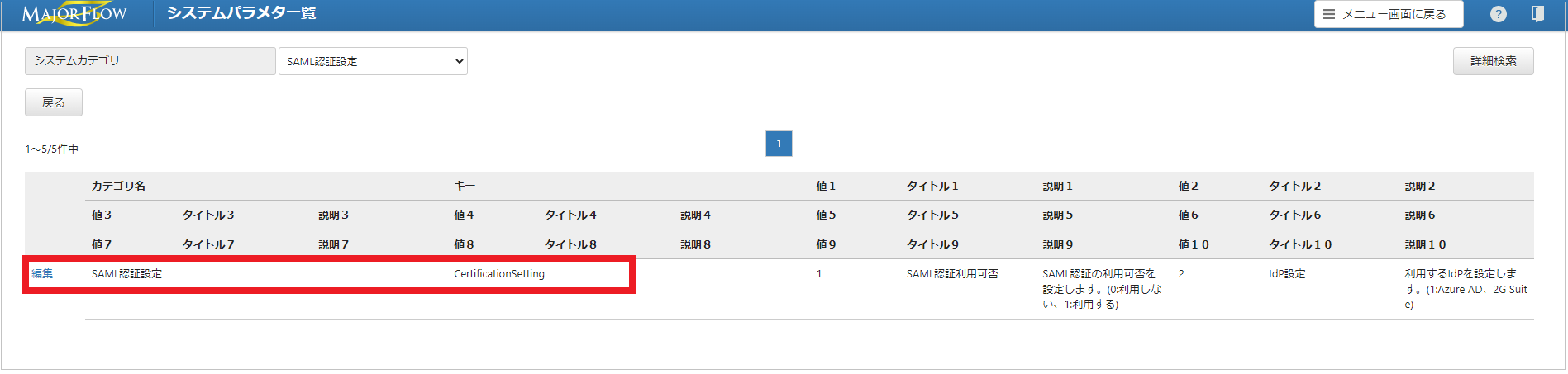

8. Click "Edit" in the row for "CertificationSetting".

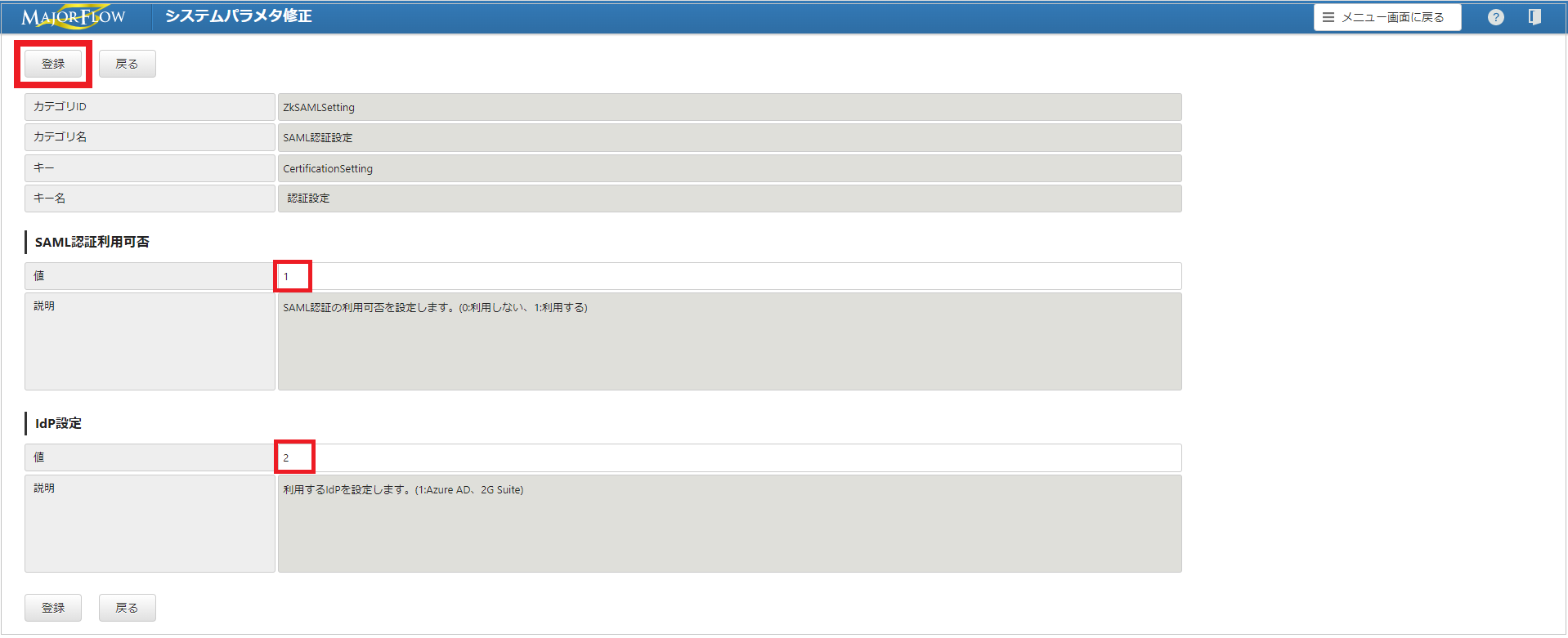

9. Enter the following information in the value field for each setting, and click the "Register" button.


   SAML Authentication Enabled	Enter 1
   IdP Settings	Enter 2

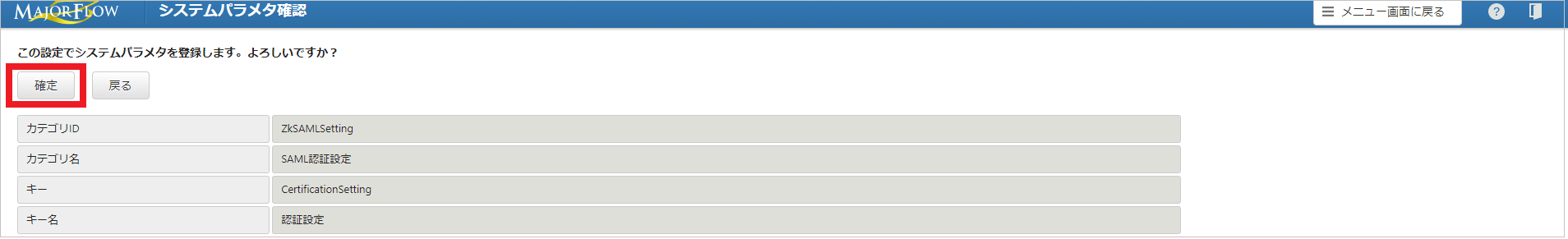

10. Click "Confirm".

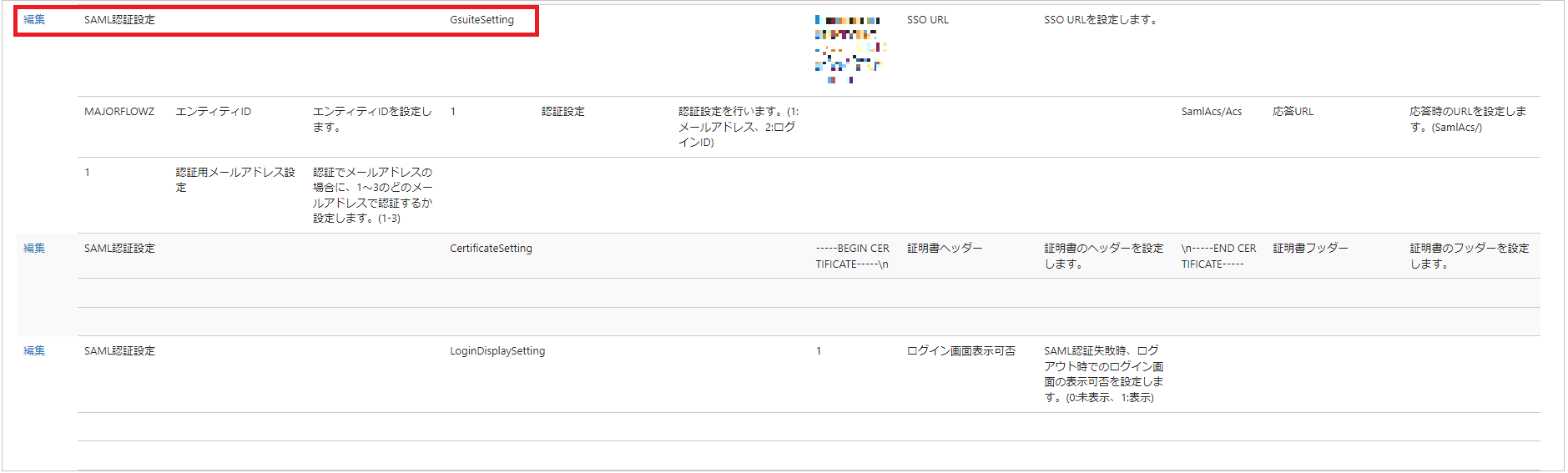

11. Return to the "SAML Authentication Settings" screen and click "Edit" in the row for "GsuiteSetting".

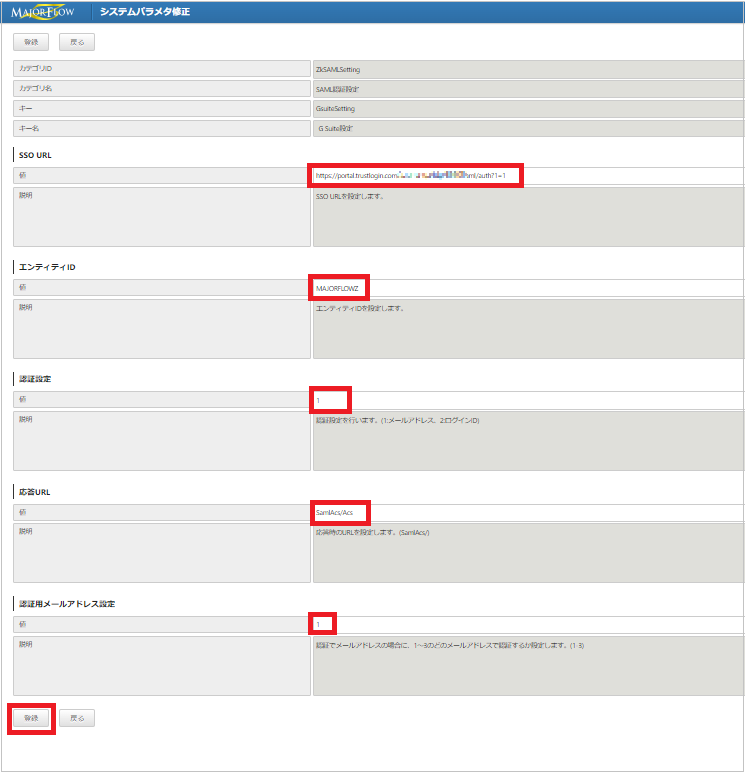

12. Enter the following information for each setting item, and click the "Register" button.


    SSO URL	Add "?1=1" to the end of the "IdP URL" you noted from TrustLogin. Example: https://portal.trustlogin.com/XXXX/idp/XXXX/saml/auth?1=1
    Entity ID	Enter the same ID as the one you entered in "Entity ID" under "Service Provider Settings" in TrustLogin. (Here, MAJORFLOWZ)
    Authentication Settings	Enter 1
    Response URL	SamlAcs/Acs
    Authentication Email Address Setting	Enter the email address registration number you noted in step 4 of the MAJOR FLOW Z configuration. (Here, enter 1 as an example)

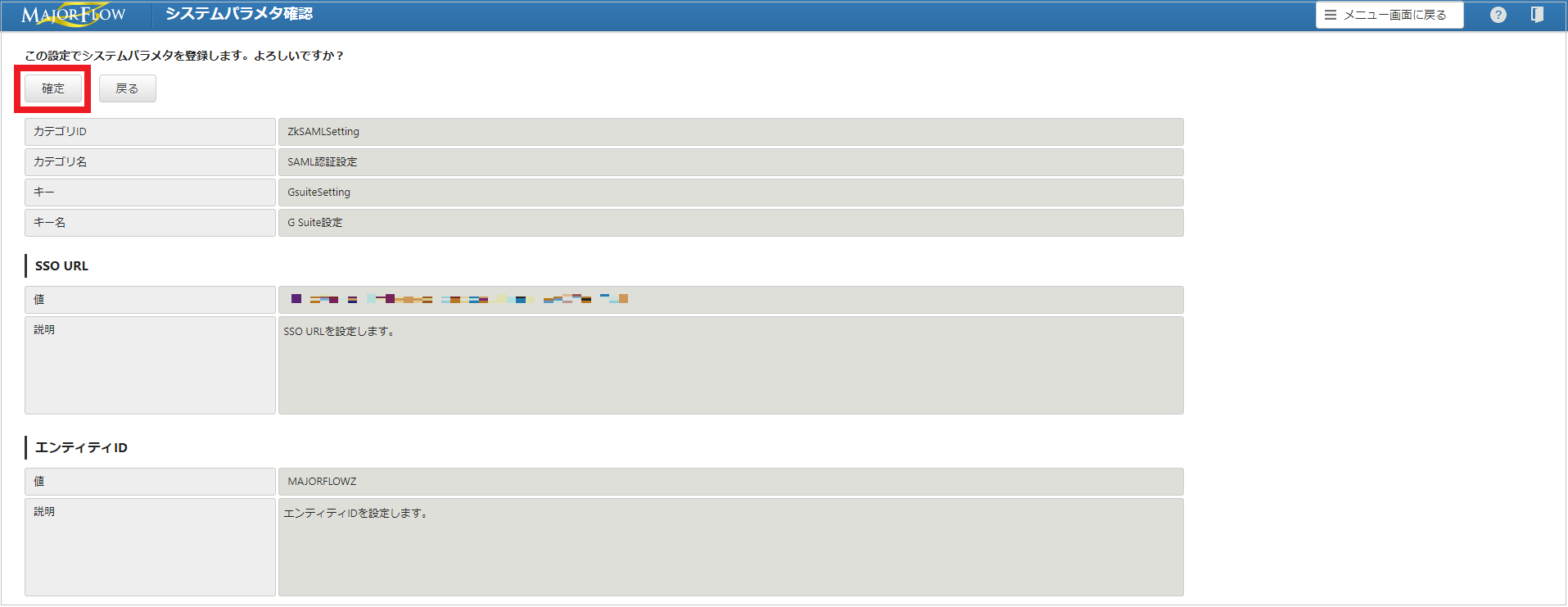

13. Click the "Confirm" button.

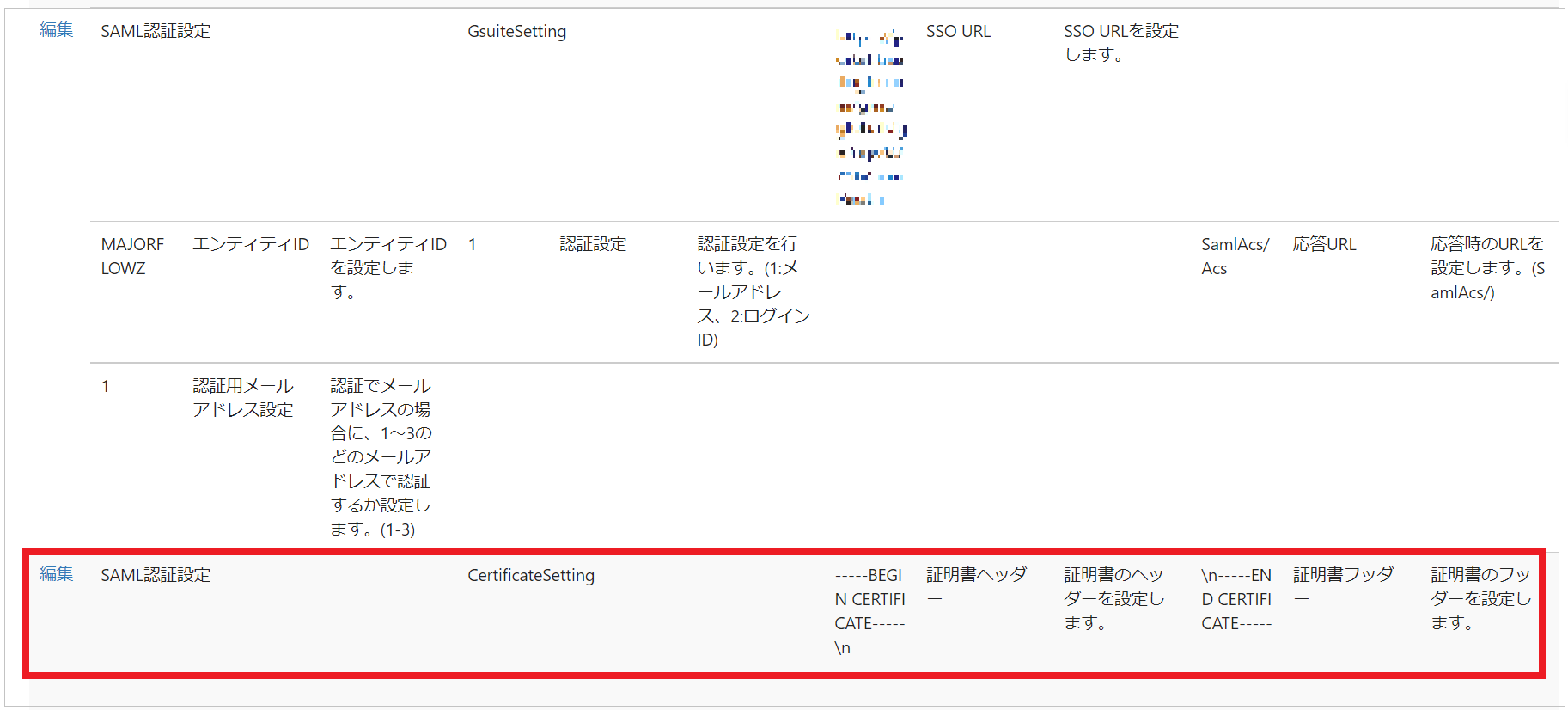

14. Return to the "SAML Authentication Settings" screen and click "Edit" in the "CertificateSetting" row for the certificate header and footer fields.

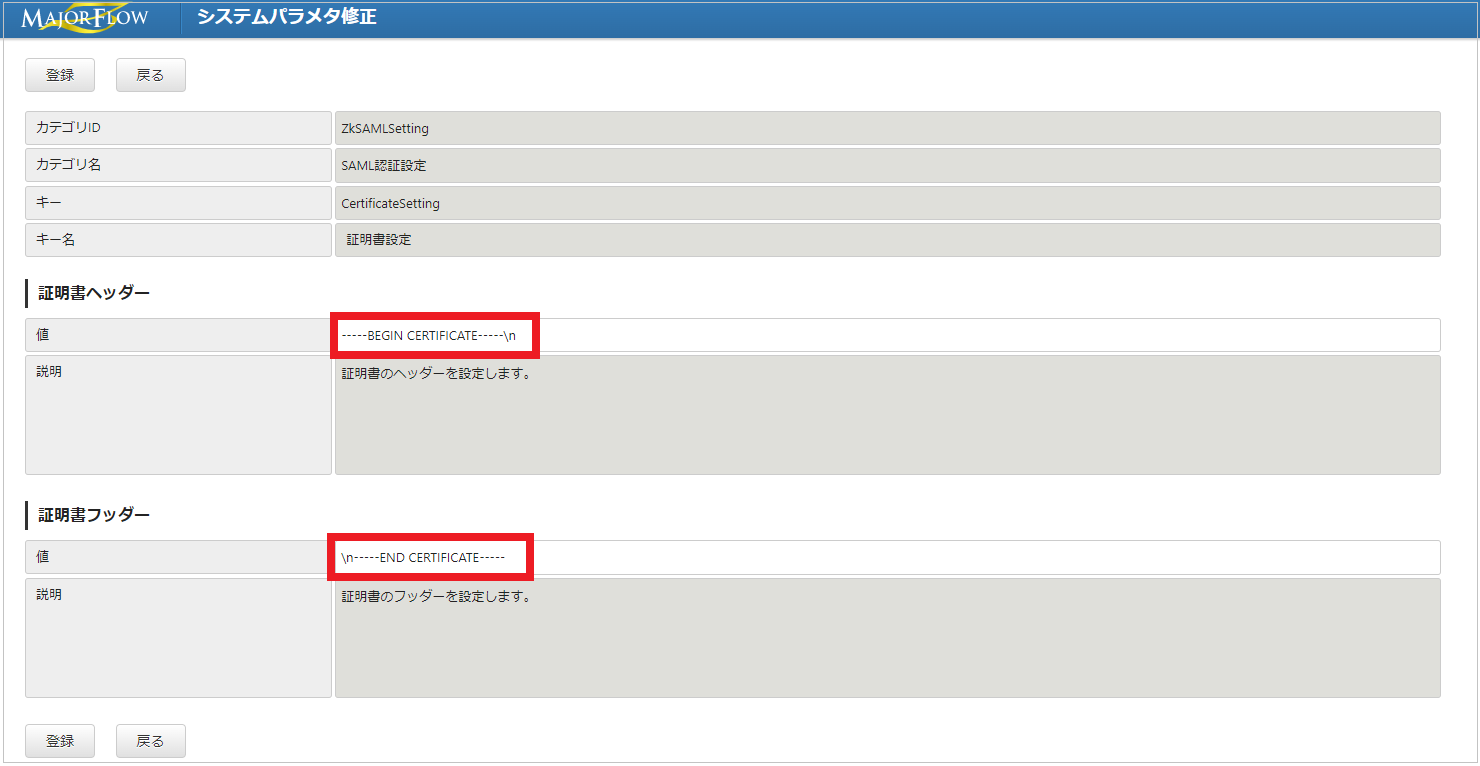

15. Confirm that both the "Certificate Header" and "Certificate Footer" fields contain "\n".
    Note: If "\n" is not entered, refer to the image below, enter "\n" in each of the "Certificate Header" and "Certificate Footer" input fields, click the "Register" button, and then click "Confirm".

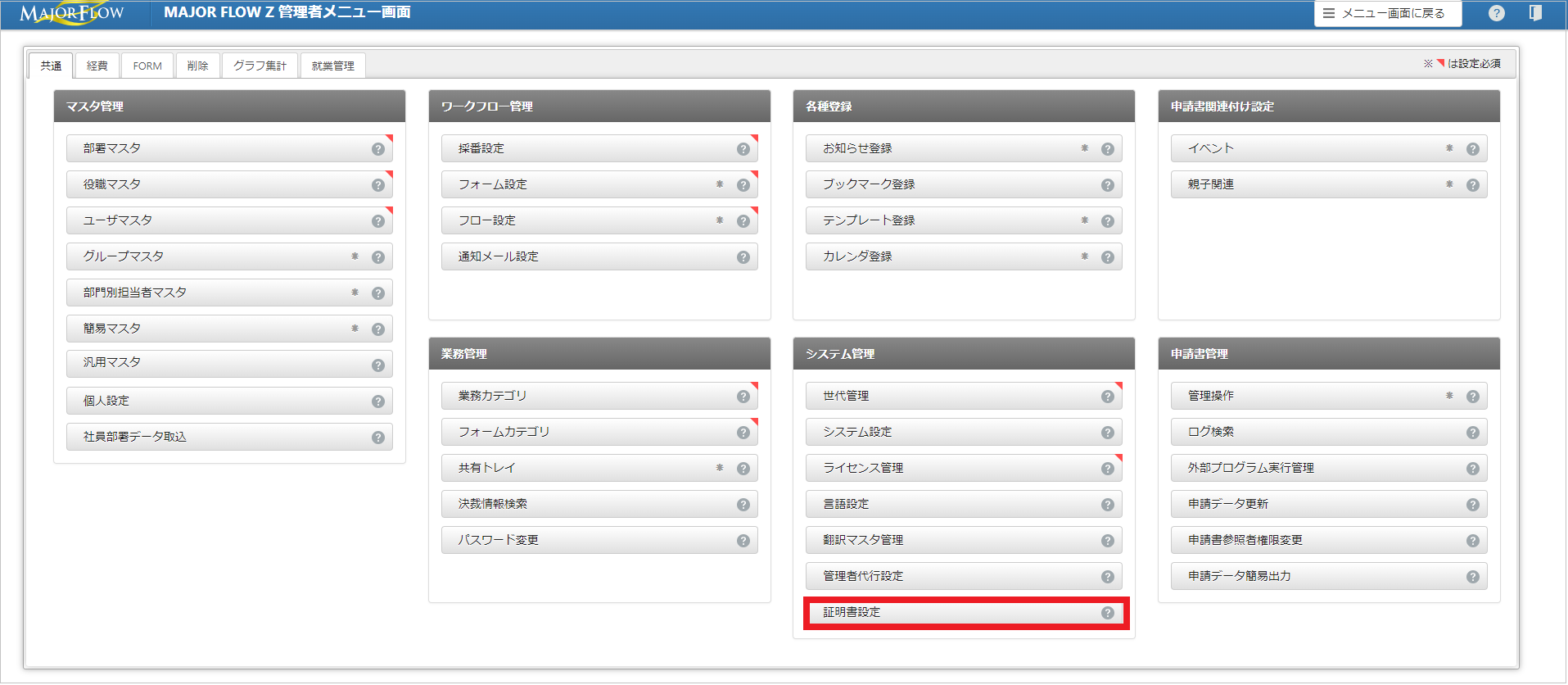

16. Return to the MAJOR FLOW Z admin screen and open "Common > Certificate Settings".

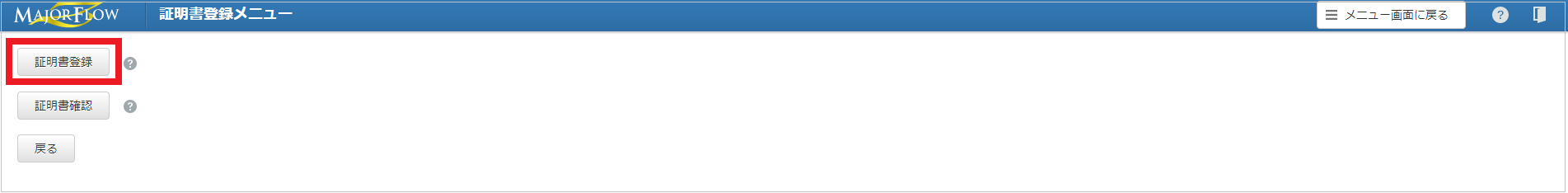

17. Click "Register Certificate".

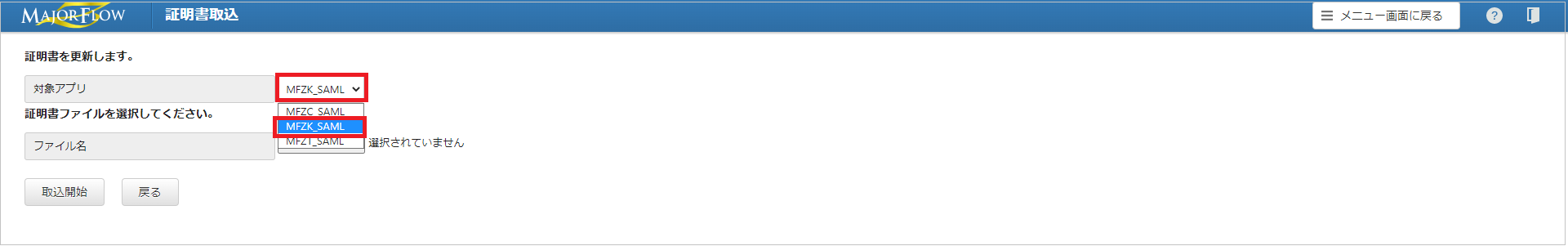

18. From the target app selection dropdown, select "MFZK_SAML".

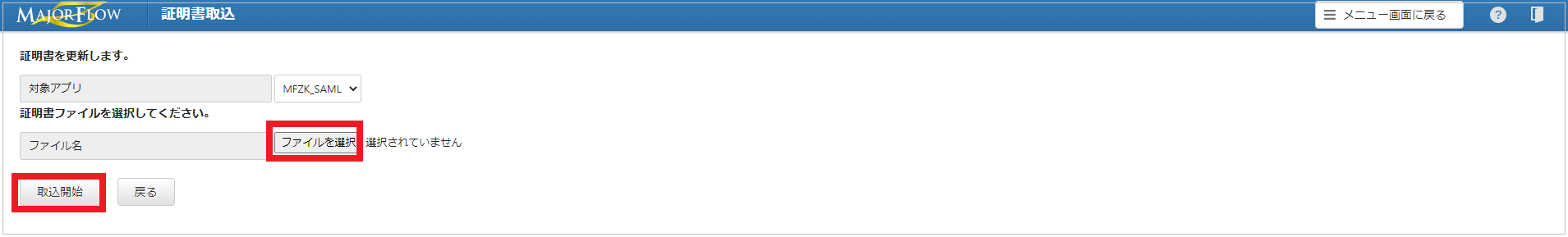

19. Upload the certificate downloaded from TrustLogin (with the file extension changed to .crt) using "Choose File", and click "Start Import".

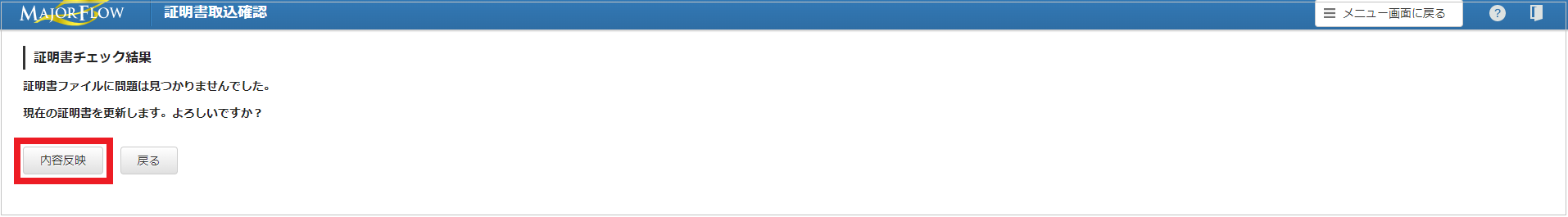

20. Confirm that the message "No issues were found with the certificate file." is displayed, then click "Apply Contents".

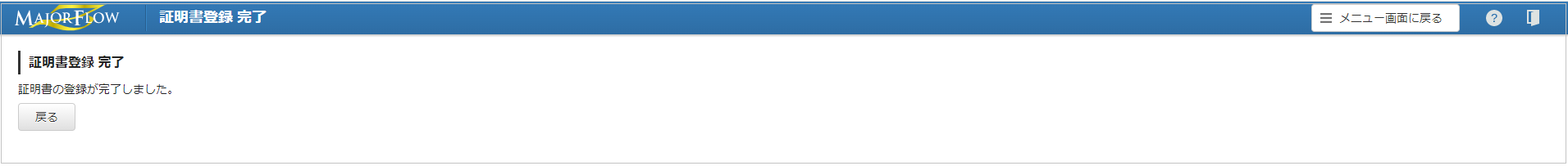

21. The certificate registration is now complete.


TrustLogin User Settings

① When a User Adds the App via My Page

1. Click the "Add App" button on "My Page".
2. On the "Register App" screen, select "[Expense] MAJOR FLOW Z CLOUD (SAML)" and click the "Next" button at the top right of the screen.
3. If you want to change the "Display Name", enter it, then click the "Register" button.
4. Click the app on "My Page" or in the "browser extension" and check that login succeeds.

② When an Administrator Adds Members

1. Search for and click the "[Expense] MAJOR FLOW Z CLOUD (SAML)" app in the "Admin Page > App" menu.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
