How to Configure SAML Authentication for Linkit

Note: You must submit a prior application to Linkit and request SAML configuration.

Note: You must create an account in Linkit using the same email address as your TrustLogin (formerly SKUID) account.

Configuring the TrustLogin Admin Page

  1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

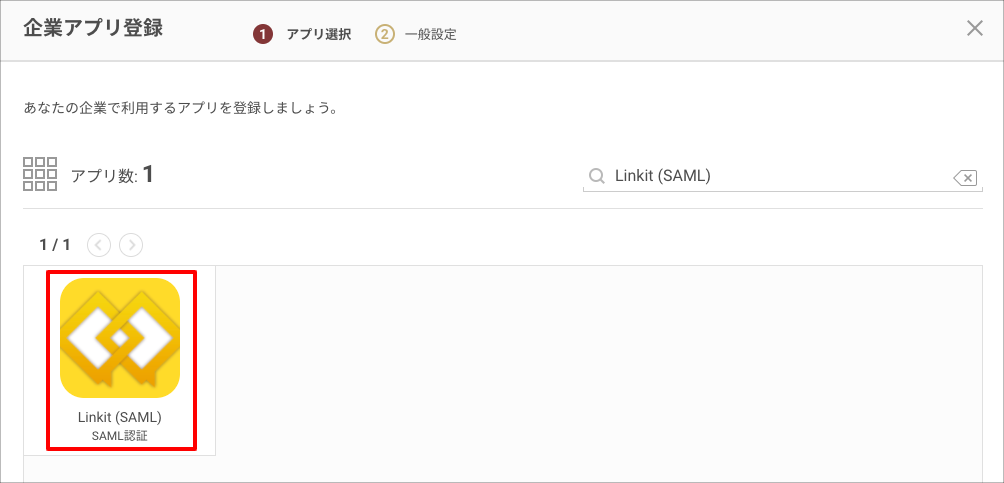

  2. Search on the "Register Corporate App" screen and select "Linkit (SAML)".

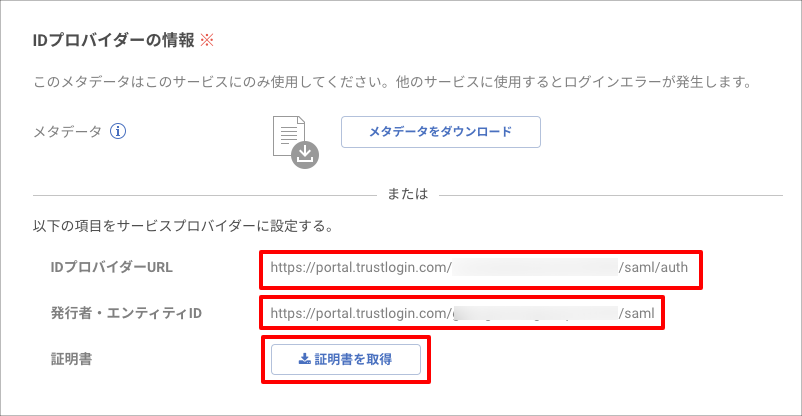

  3. Note the "Identity Provider URL" and "Issuer/Entity ID" under "Identity Provider Information", and download the "Certificate".

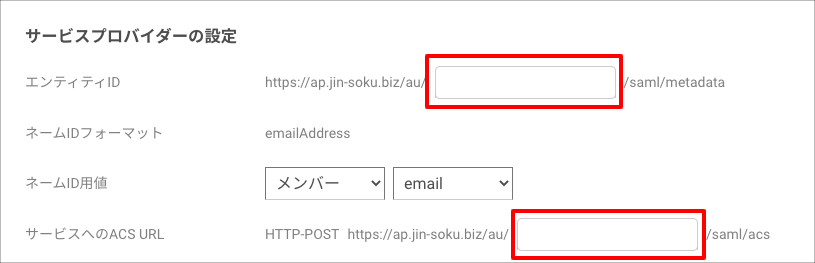

  4. In the "Service Provider Settings" section, enter Linkit's "Tenant ID" into the blank fields for "Entity ID" and "ACS URL for Service".


  5. Click "Register" to save the settings.

  6. Send Linkit the "Identity Provider Information", "Issuer/Entity ID", and "Certificate" you noted down, and request that they configure SAML.

  7. Once Linkit has completed the SAML configuration, you will be able to log in using SAML authentication.

Configuring TrustLogin User Settings

① When a user adds the app from My Page

  1. Click the "Add App" button on "My Page".
  2. On the "Register App" screen, select "Linkit (SAML)" and click the "Next" button in the upper right of the screen.
  3. If you want to change the "Display Name", enter a new one, then click the "Register" button.
  4. Click the app on "My Page" or in the "browser extension" and confirm that you can log in successfully.

② When an administrator adds a member

  1. On the "Admin Page > Apps" menu, search for and click the "Linkit (SAML)" app.
  2. Click "Add Member", select the user you want to add from the member list, and click the "Register" button to add them.
