Note: SAML authentication is available on web browsers, and the desktop and mobile apps.

Note: Advance registration with X-point is required.

Note: You need to add the "Login ID" that serves as the user identifier for X-point to the member information in TrustLogin and link them together. Please refer to the following pages for detailed instructions.
(This is not necessary if the X-point Login ID is set to the same email address registered in TrustLogin.)

How to Configure Custom Attributes (Individual Registration)
How to Configure Custom Attributes (Bulk Registration)

Note: For the latest configuration procedure, please refer to the manual provided by X-point.

TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Add App" button at the top right of the screen.

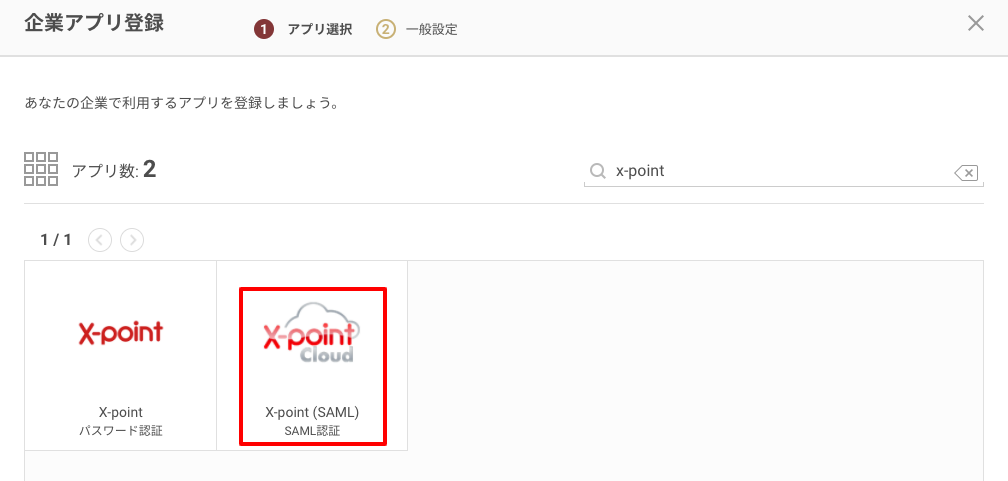

2. Search on the "Register Corporate App" screen and select "X-point (SAML)".

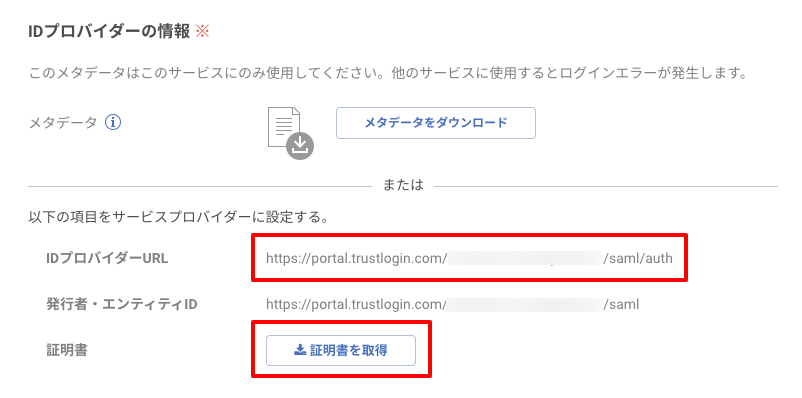

3. Note down the "Identity Provider URL" under "Identity Provider Information" and download the "Certificate".

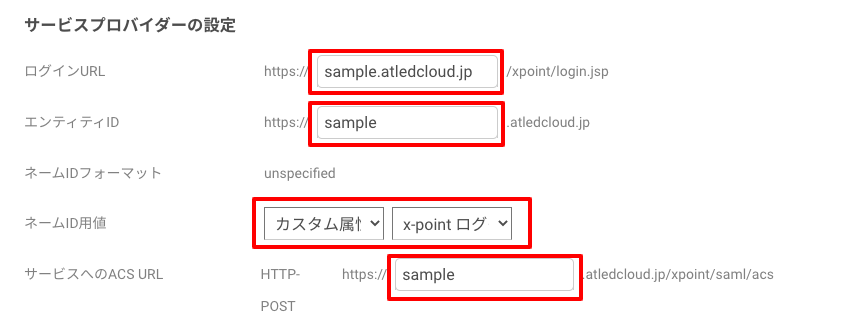

4. Enter the following into the three blank URL fields under "Service Provider Settings".
   Replace the "sample" portion of the system URL provided by X-point ( https://sample.atledcloud.jp/xpoint/ ) with the appropriate value for your environment.



   Login URL	・For the on-premises version [IP address or hostname of the X-point server] ・For the cloud version (Example) sample.atledcloud.jp
   Entity ID	(Example) sample
   ACS URL for the service	(Example) sample


   Value for Name ID


   If the X-point Login ID differs from the TrustLogin email address	Select the X-point Login ID attribute name that you previously added to the member information in TrustLogin from the dropdown. Custom Attributes > [the custom attribute name you configured]
   If the X-point Login ID is the same as the TrustLogin email address	Member > email

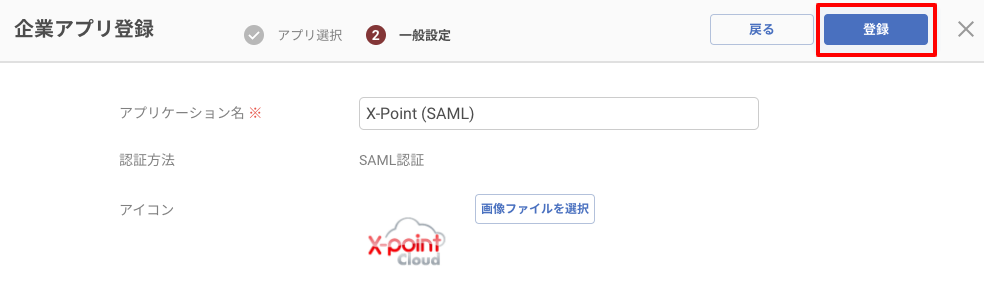

5. Click the "Register" button to save.



X-point Settings

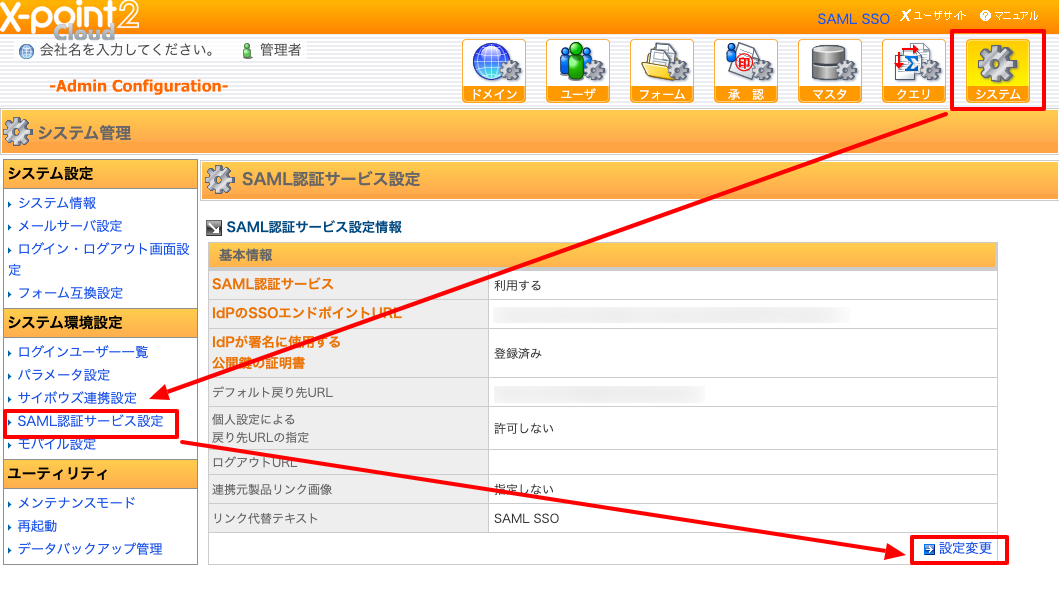

1. Open "System" at the top right, open "SAML Authentication Service Settings" from the left menu, and click "Change Settings" within the SAML Authentication Service Settings information box.

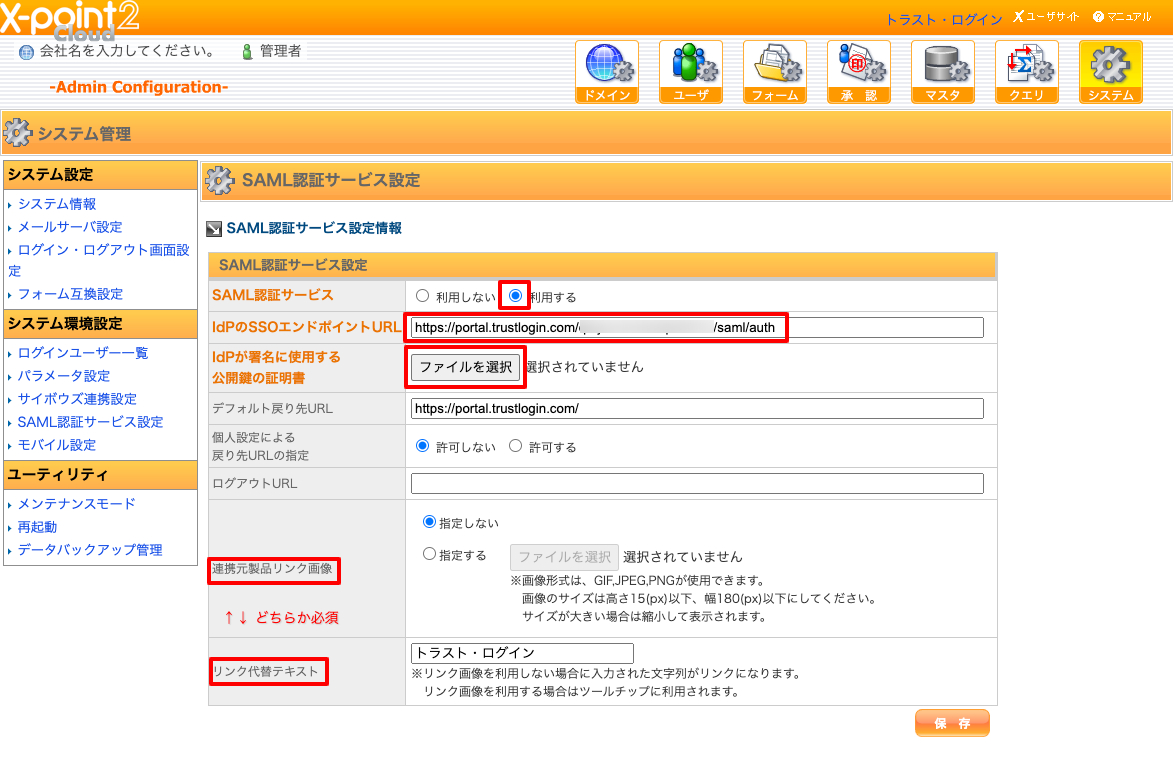

2. Enter / upload each item as follows.



   SAML Authentication Service	Select "Use"
   IdP SSO Endpoint URL	The "Identity Provider URL" you noted down from TrustLogin
   Public Key Certificate Used by the IdP for Signing	The "Certificate" you downloaded from TrustLogin
   Linked Product Link Image or Link Alt Text	Either the linked product link image or the link alt text must be configured

   For other items, please refer to the X-point manual.

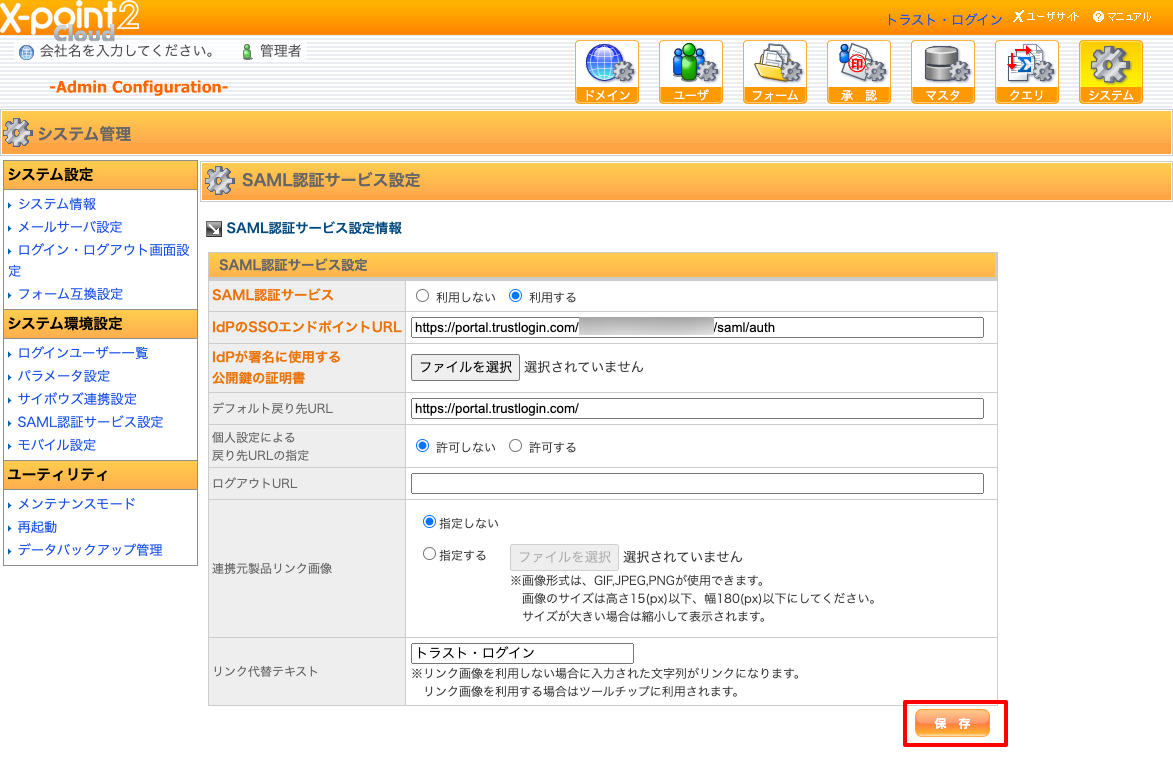

3. Click "Save".　





TrustLogin User Settings

① When a user adds the app from My Page

1. Click the "Add App" button on "My Page".
2. On the "Register App" screen, select "X-point (SAML)" and click the "Next" button at the top right of the screen.
3. If you want to change the "Display Name", enter it, then click the "Register" button.



② When an administrator adds a member

1. In the "Admin Page > Apps" menu, search for and click the "X-point (SAML)" app.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
