How to Configure SAML Authentication for WAN-Sign

Note: You need to submit an advance application to WAN-Sign and request SAML configuration.

Note: You need to create an account in WAN-Sign using the same email address as your TrustLogin (formerly SKUID) account.

Configuring the TrustLogin Admin Page

  1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

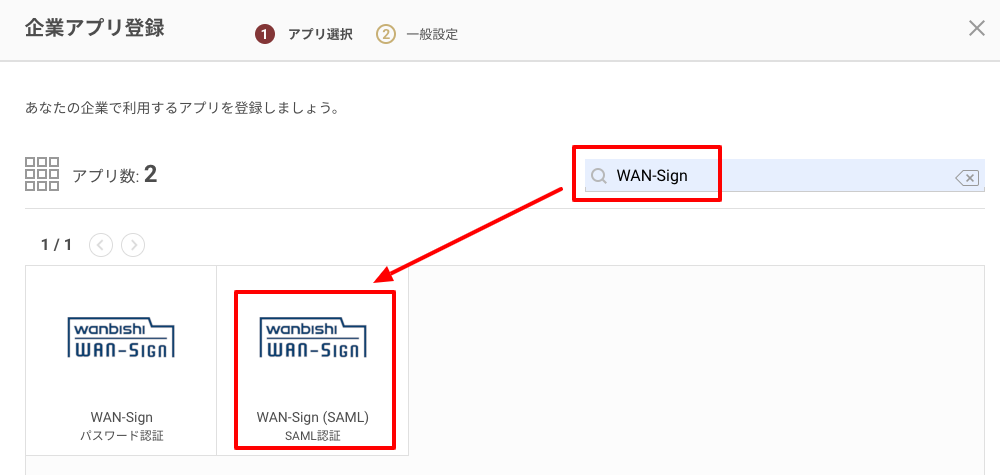

  2. Search on the "Register Corporate App" screen and select "WAN-Sign (SAML)."

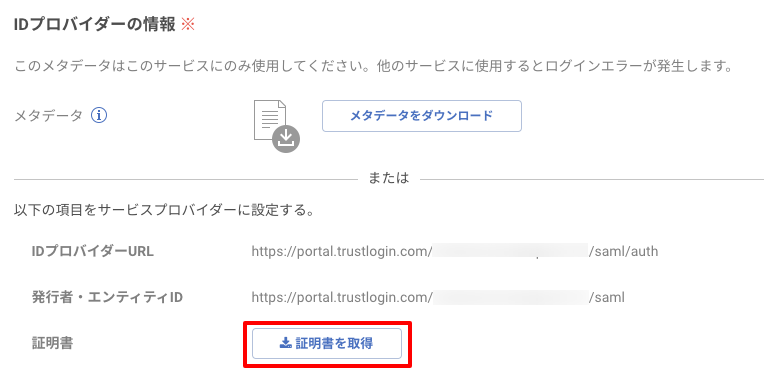

  3. Download the certificate from "Certificate" under "Identity Provider Information."

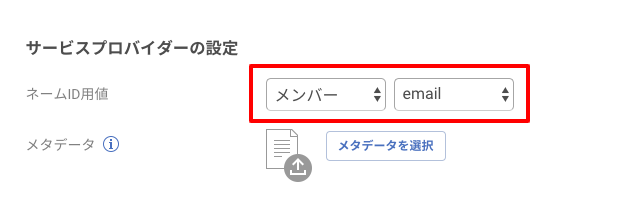

  4. Set the "Value for Name ID" under "Service Provider Settings" to "Member" and "email."

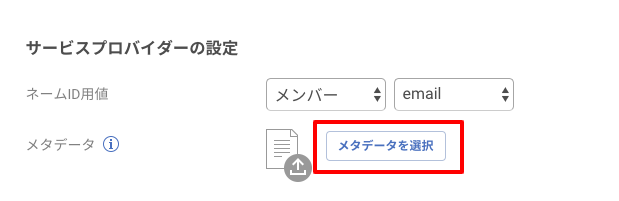

  5. Upload the metadata provided by WAN-Sign using "Select Metadata."

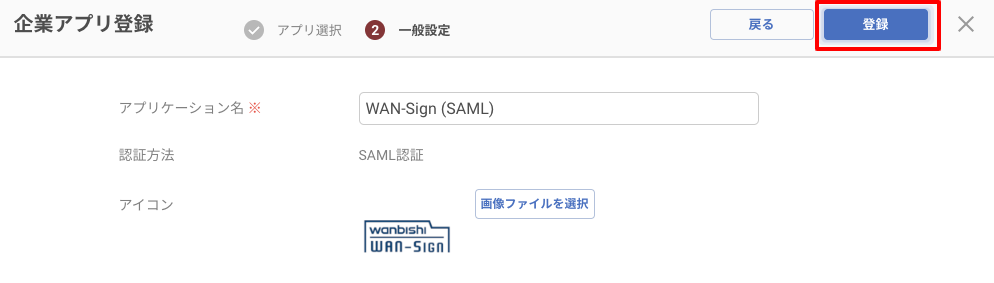

  6. Click "Register" to save the settings.


  7. Send the downloaded certificate to WAN-Sign and request the SAML configuration.

Configuring TrustLogin Users

① Adding the App as a User via My Page

  1. Click the "Add App" button on "My Page."
  2. On the "Register App" screen, select "WAN-Sign (SAML)" and click the "Next" button in the upper right of the screen.
  3. If you want to change the "Display Name," enter it, then click the "Register" button.
  4. Click the app in "My Page" or the browser extension and verify that the login succeeds.

② Adding a Member as an Administrator

  1. On the "Admin Page > Apps" menu, search for the "WAN-Sign (SAML)" app and click it.
  2. Click "Add Member," select the user to add from the member list, and click the "Register" button to add them.
