How to Configure SAML Authentication for GMO Passport (Administrator)

TrustLogin Admin Page Settings

  1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

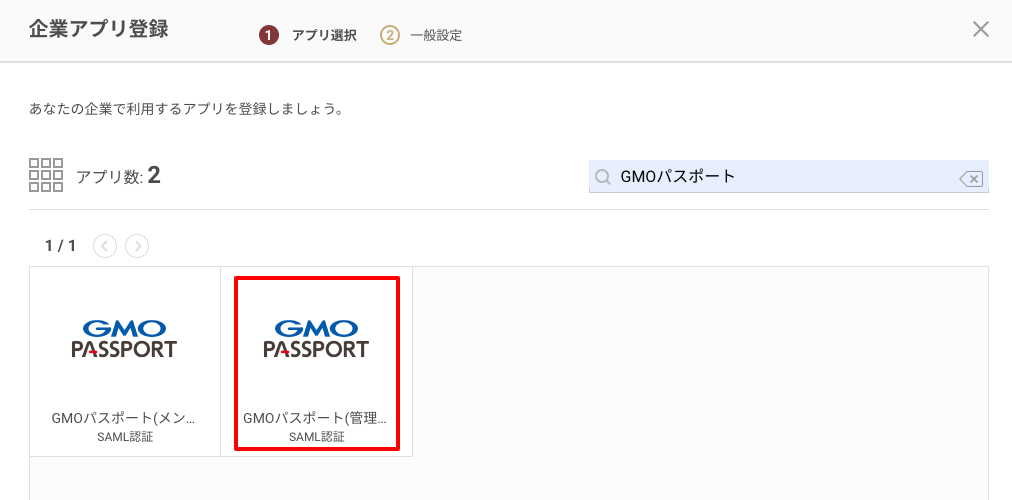

  2. Search on the "Register Corporate App" screen and select "GMO Passport (Administrator)."

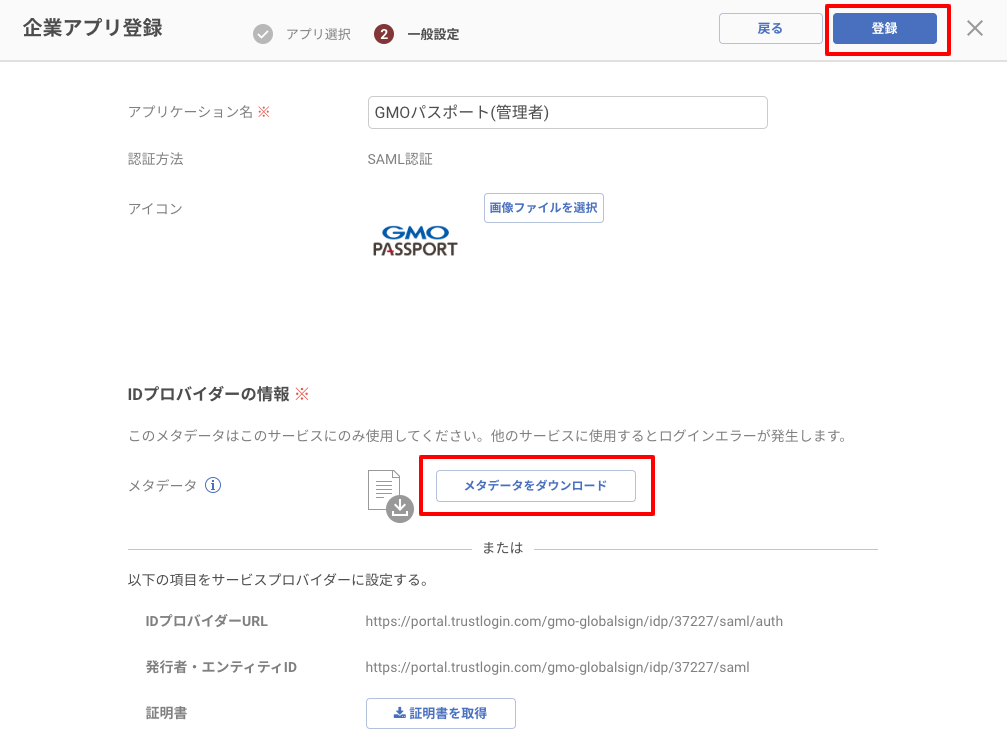

  3. Download the metadata from "Download Metadata" under "Identity Provider Information." First, click the "Register" button to register.


  4. Send the downloaded metadata to " yuka.nakayama@globalsign.com,yuri.sugimoto@globalsign.com ".
    Subject: GMO Passport ※Your Company Name※
    Body: Sending metadata (this alone is fine).

  5. Our representative will send you the "GMO Passport Company ID" assigned by the GMO Passport app.

  6. Configure the "GMO Passport Company ID." From the app list, click the name portion of "GMO Passport (Administrator)."

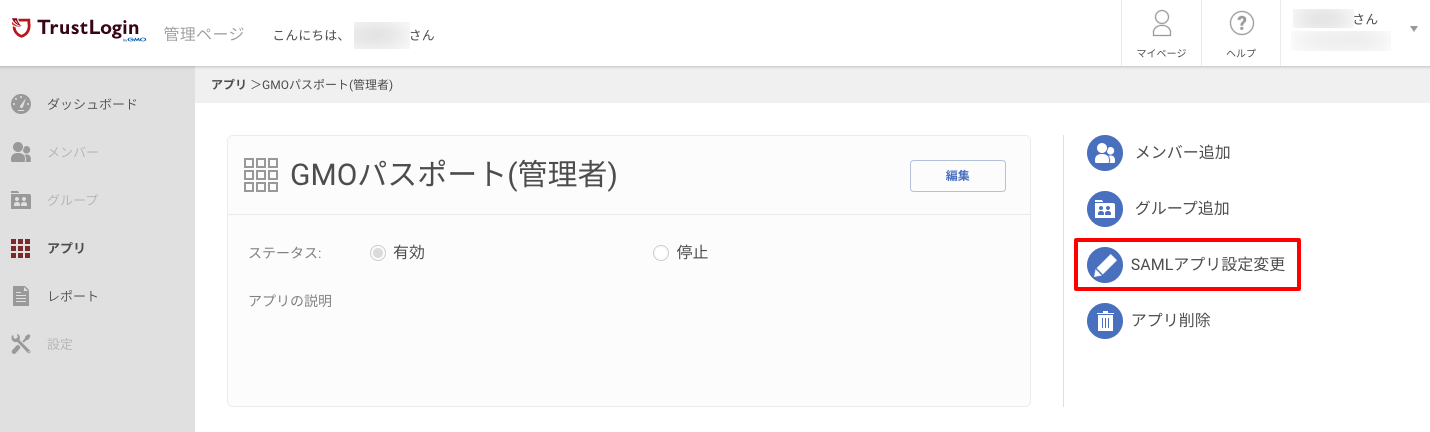

  7. Open "Change SAML App Settings."

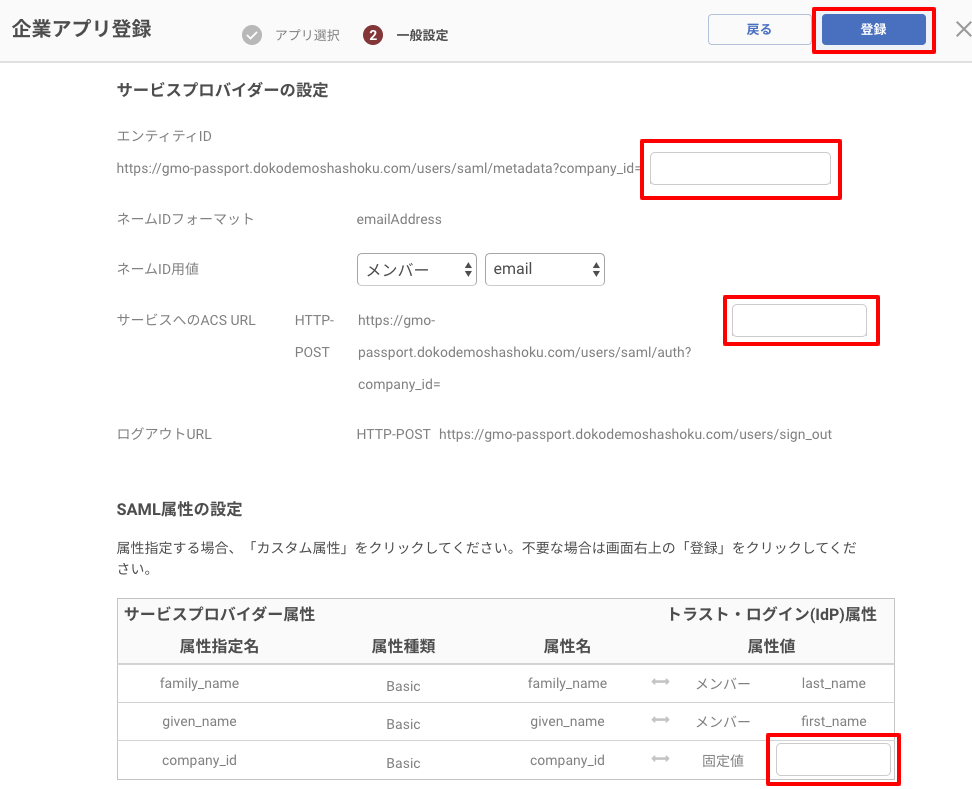

  8. Enter the notified "GMO Passport Company ID" in the 3 fields: "Entity ID" and "ACS URL for the Service" under Service Provider Settings,
    and "company_id" under SAML Attribute Settings, then click the "Register" button to register.


  9. This completes the SAML configuration. Next, assign the member who will act as the GMO Passport administrator to the app.

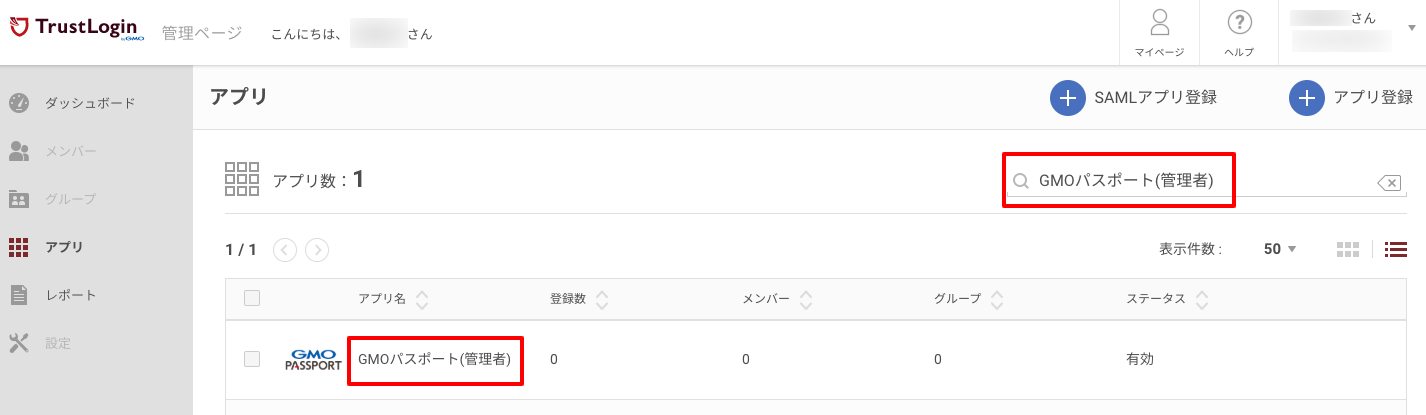

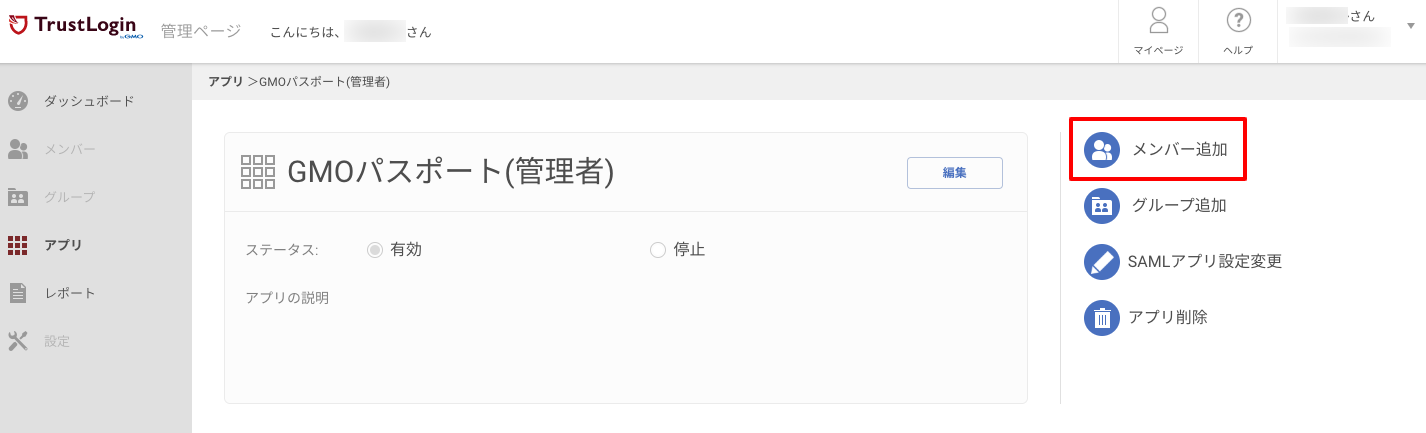

  10. From the "Admin Page > Apps" menu, search for the registered "GMO Passport (Administrator)" and click "Add Member."

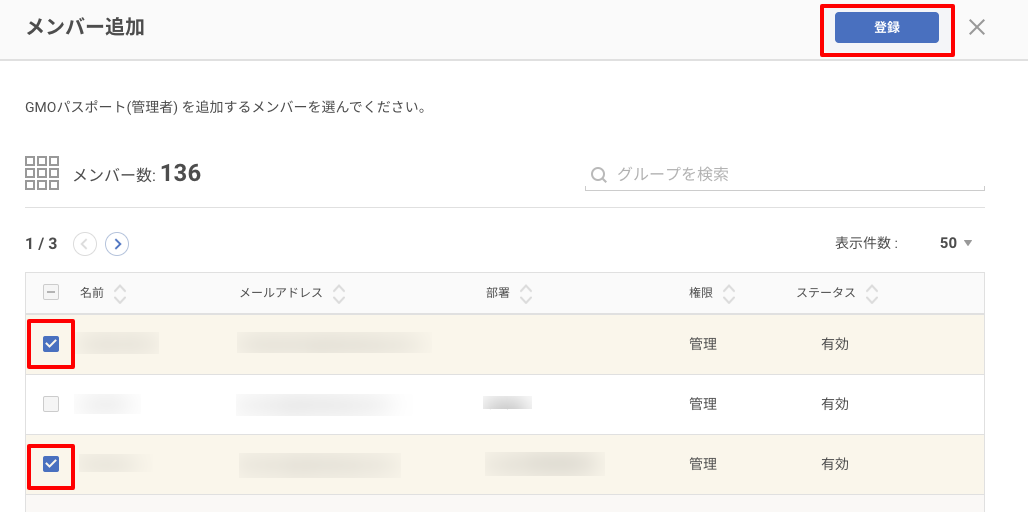

  11. Select the member who will act as the GMO Passport administrator and click "Register."

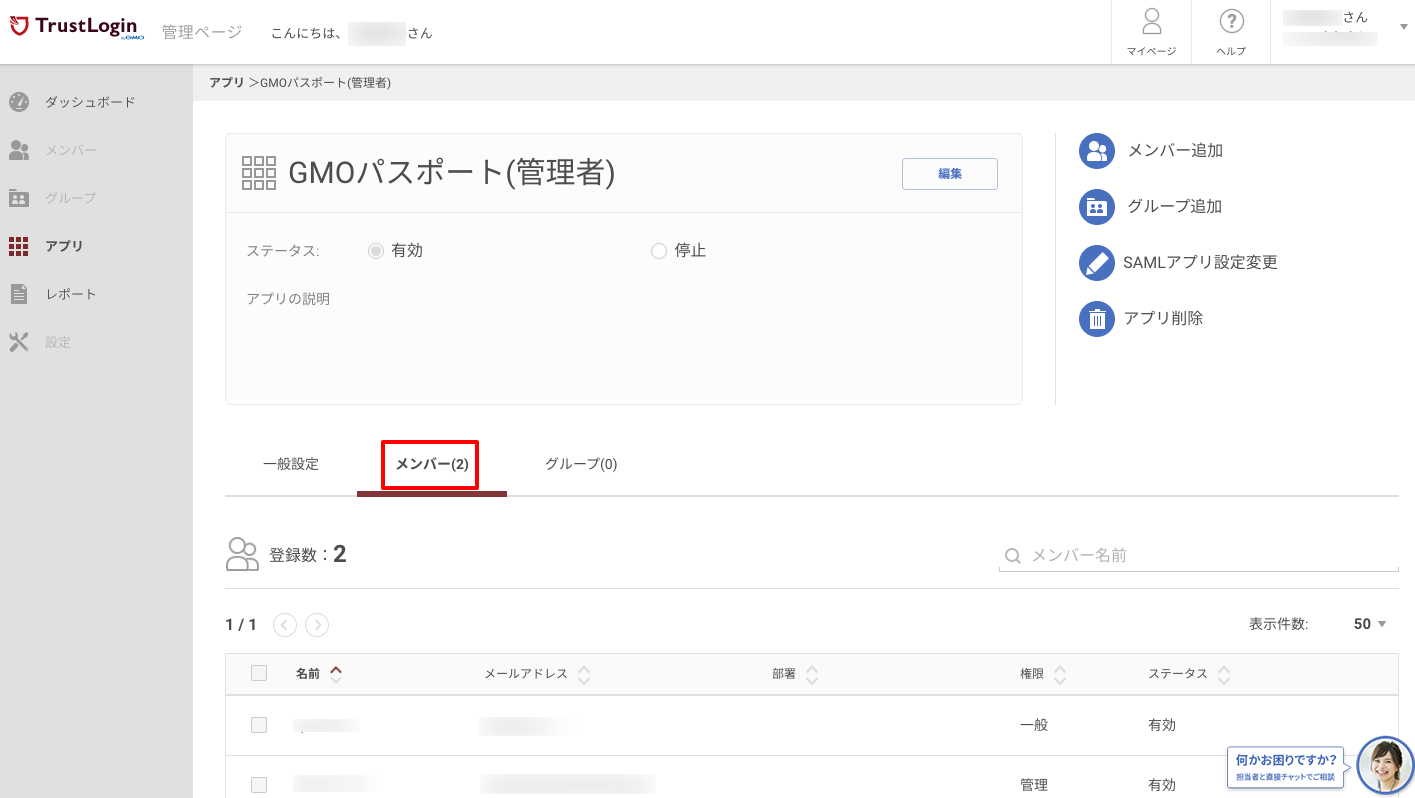

  12. This completes the member registration.
