TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

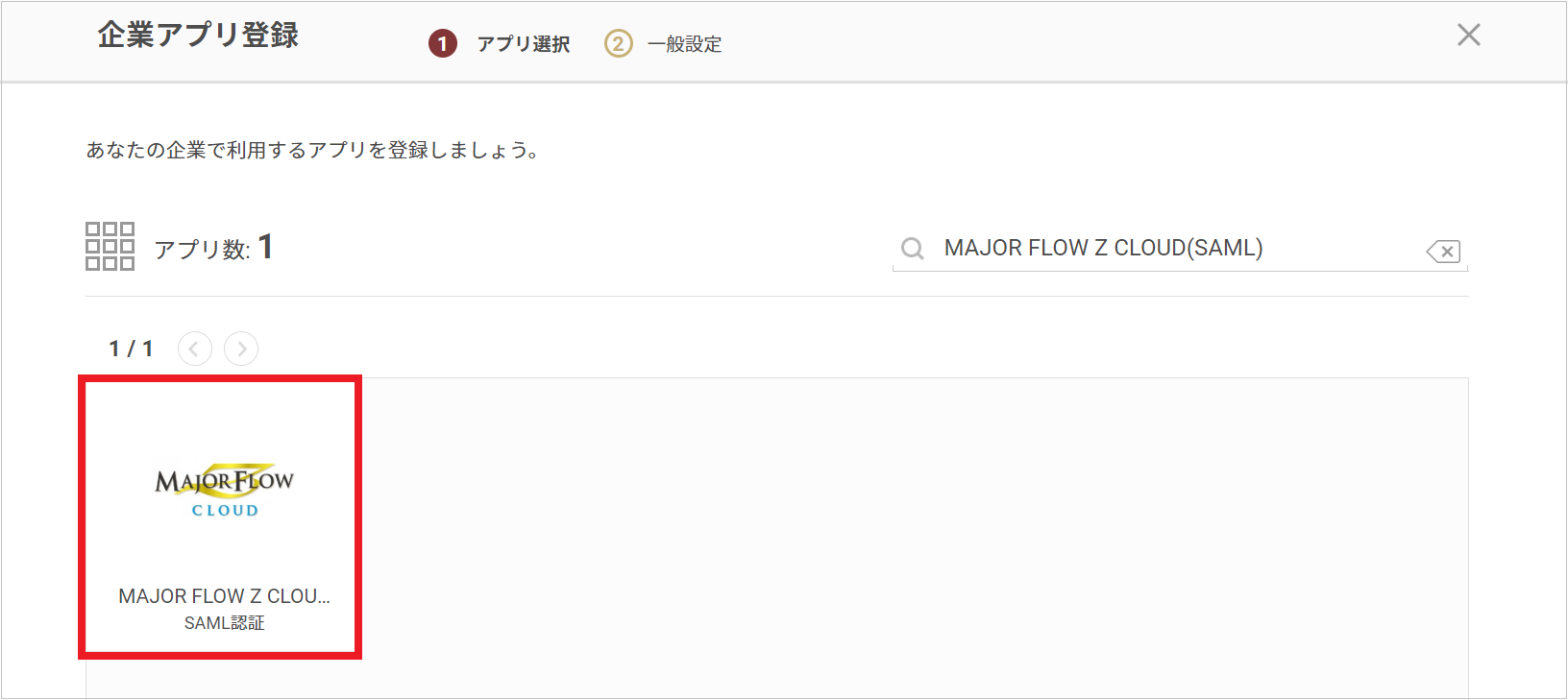

2. Search on the "Register Company App" screen and select "MAJOR FLOW Z CLOUD(SAML)".

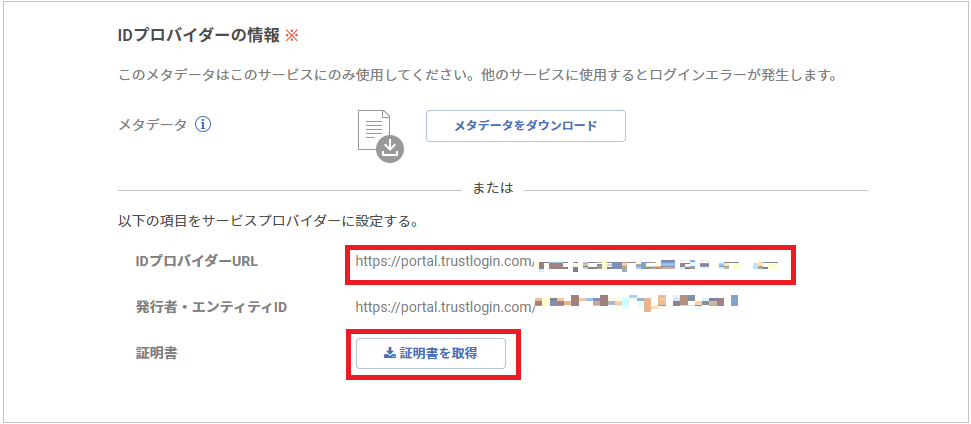

3. Make a note of the "Identity Provider URL" under "Identity Provider Information", and download the certificate from "Get Certificate".
4. After downloading the certificate, change its extension to ".crt".

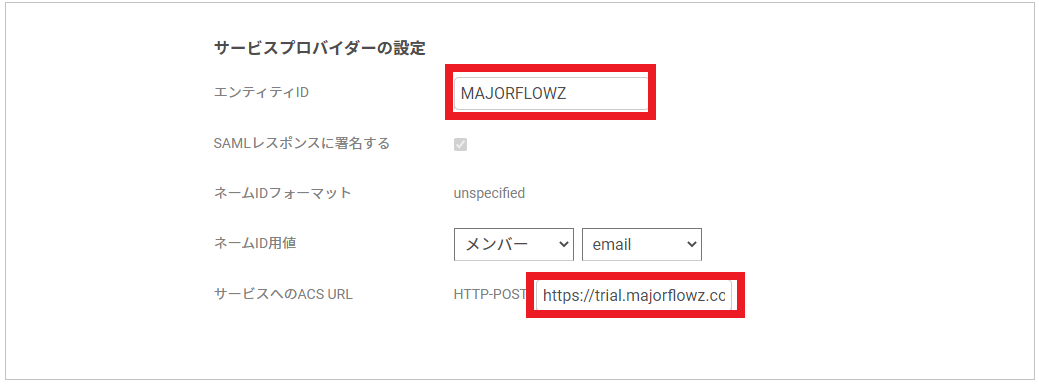

5. Configure each item under "Service Provider Settings" as follows.


   Entity ID	Any ID of your choice (here, MAJORFLOWZ) Note: You will enter this later in MAJOR FLOW Z. Make a note of the Entity ID you entered in TrustLogin.
   ACS URL for the Service	Please check with your MAJOR FLOW Z service representative.





6. Click "Register" to save the settings.

Now switch to the MAJOR FLOW Z side settings.

MAJOR FLOW Z CLOUD Configuration

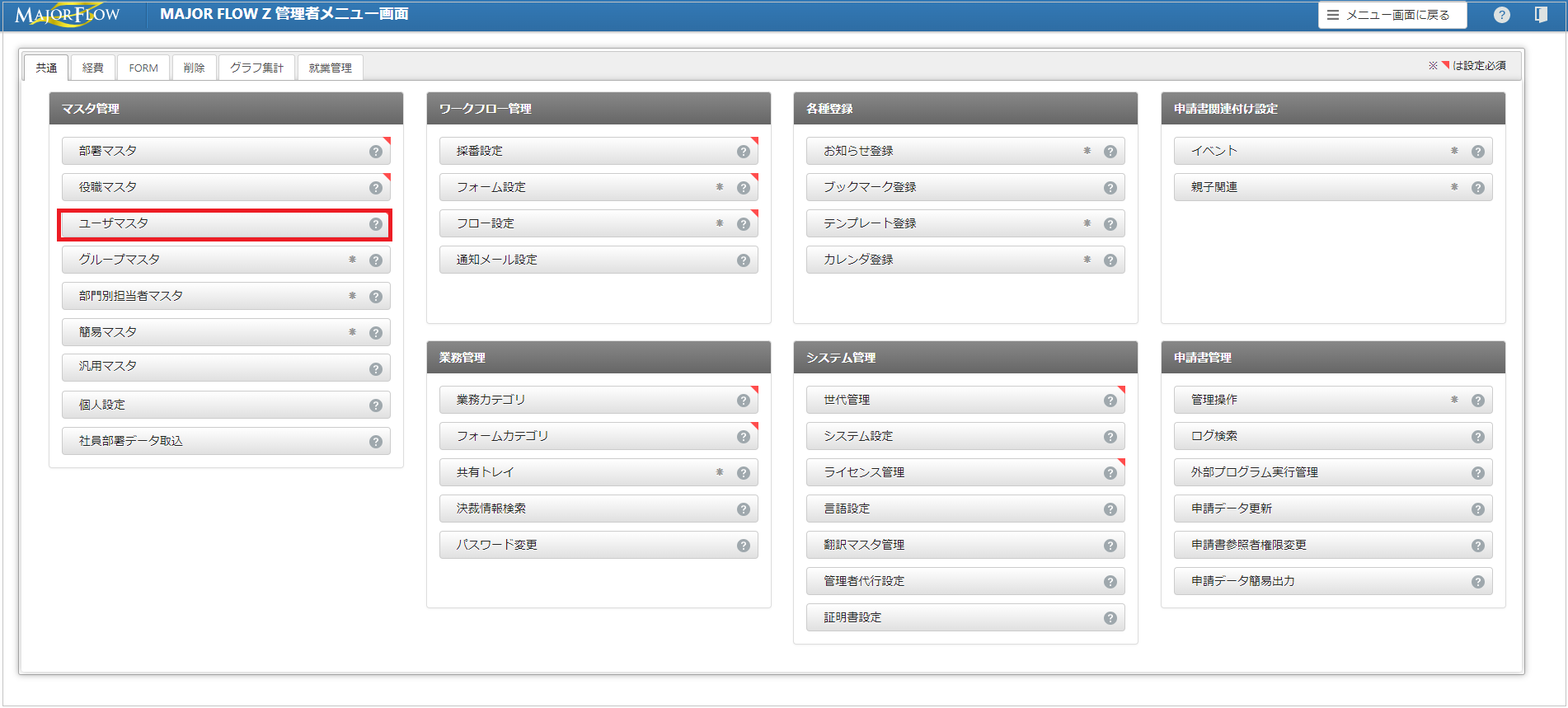

1. Check the user information registered in MAJOR FLOW Z. Log in to the MAJOR FLOW Z admin screen and open "User Master".

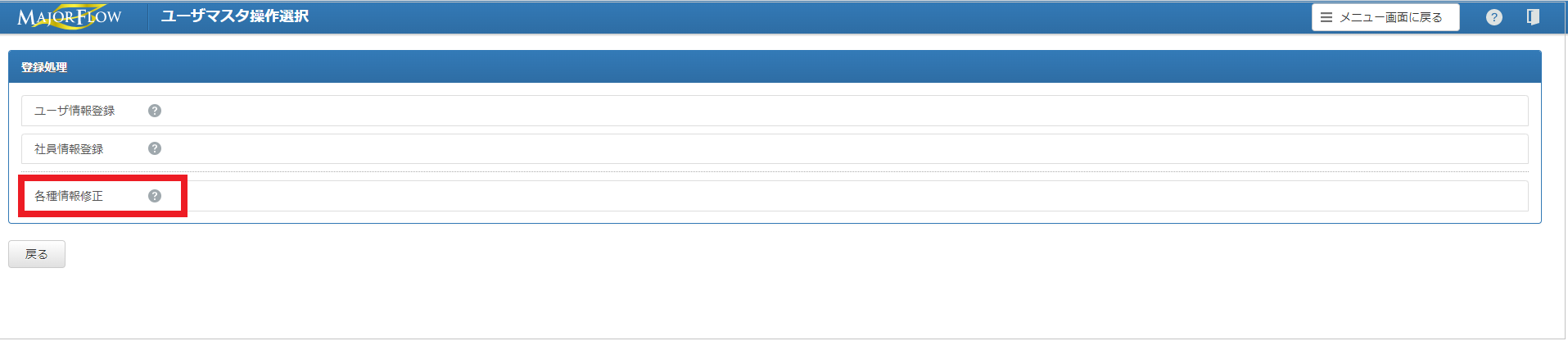

2. Select "Edit Various Information".

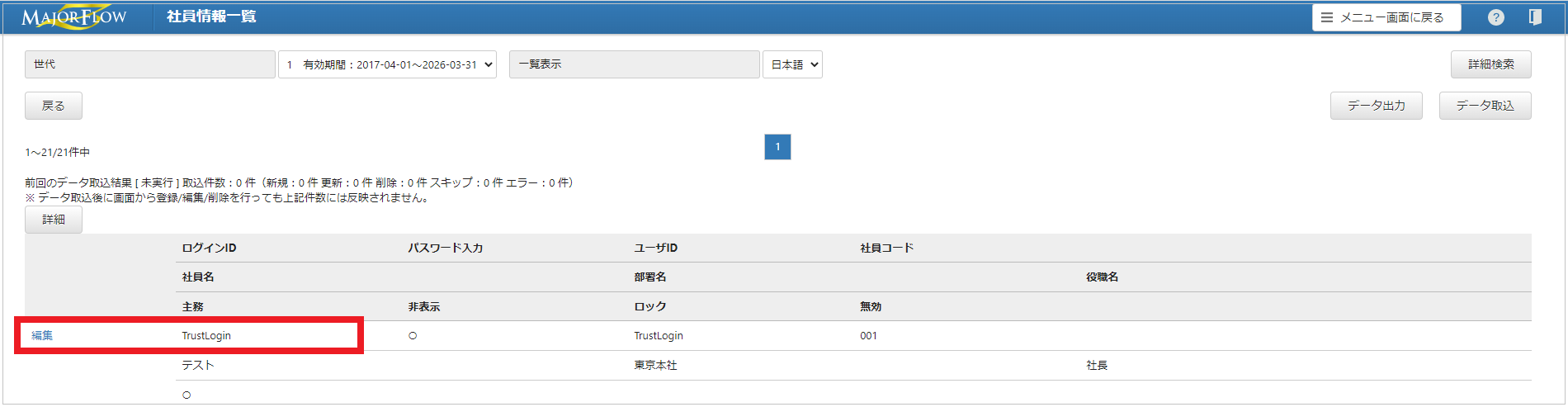

3. Select the user for whom you want to configure SAML authentication, and click "Edit".

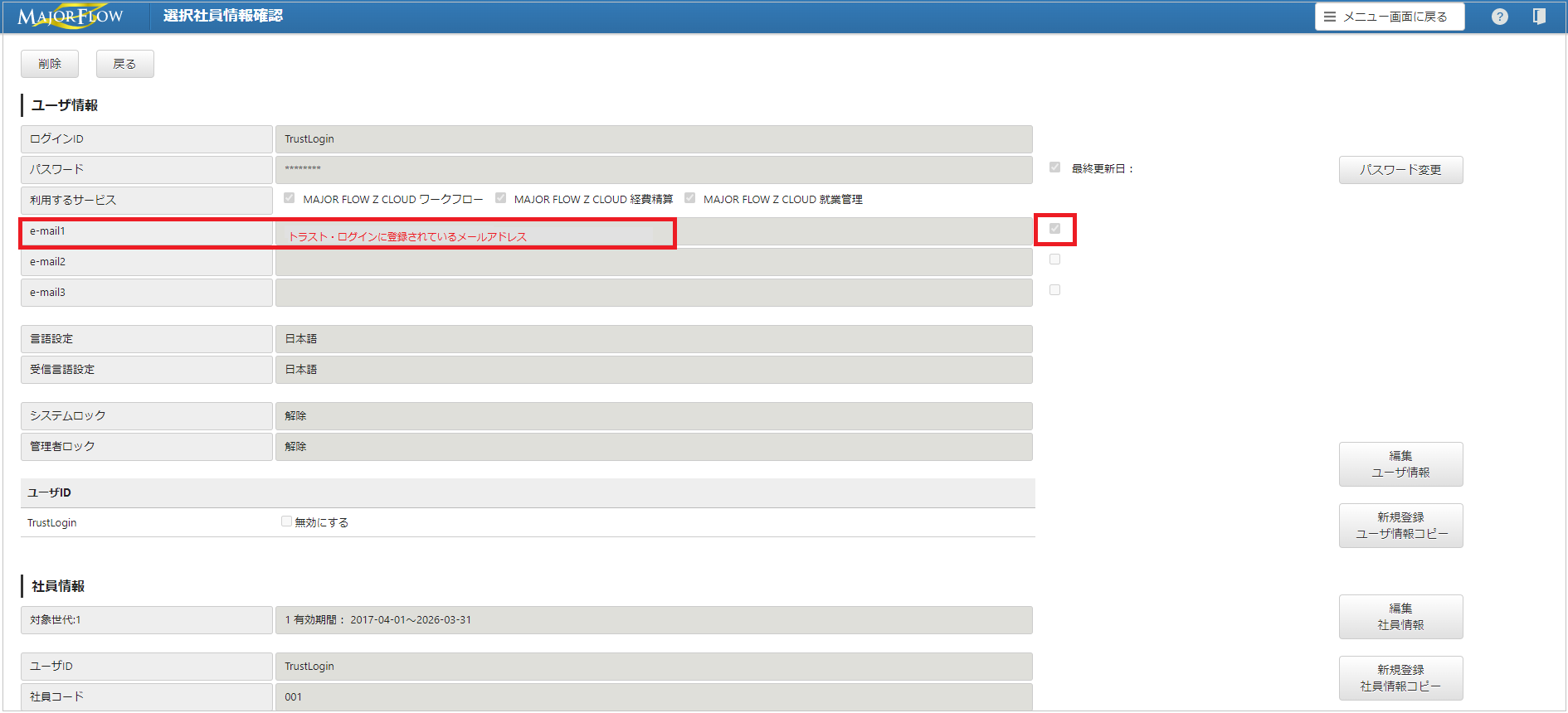

4. Confirm that the same email address as TrustLogin is registered, and that the checkbox next to the email address field is checked. Also make a note of the number of the registered email address field.
   (Example: In the registration field shown below, since it is registered in "e-mail1", note down 1.)

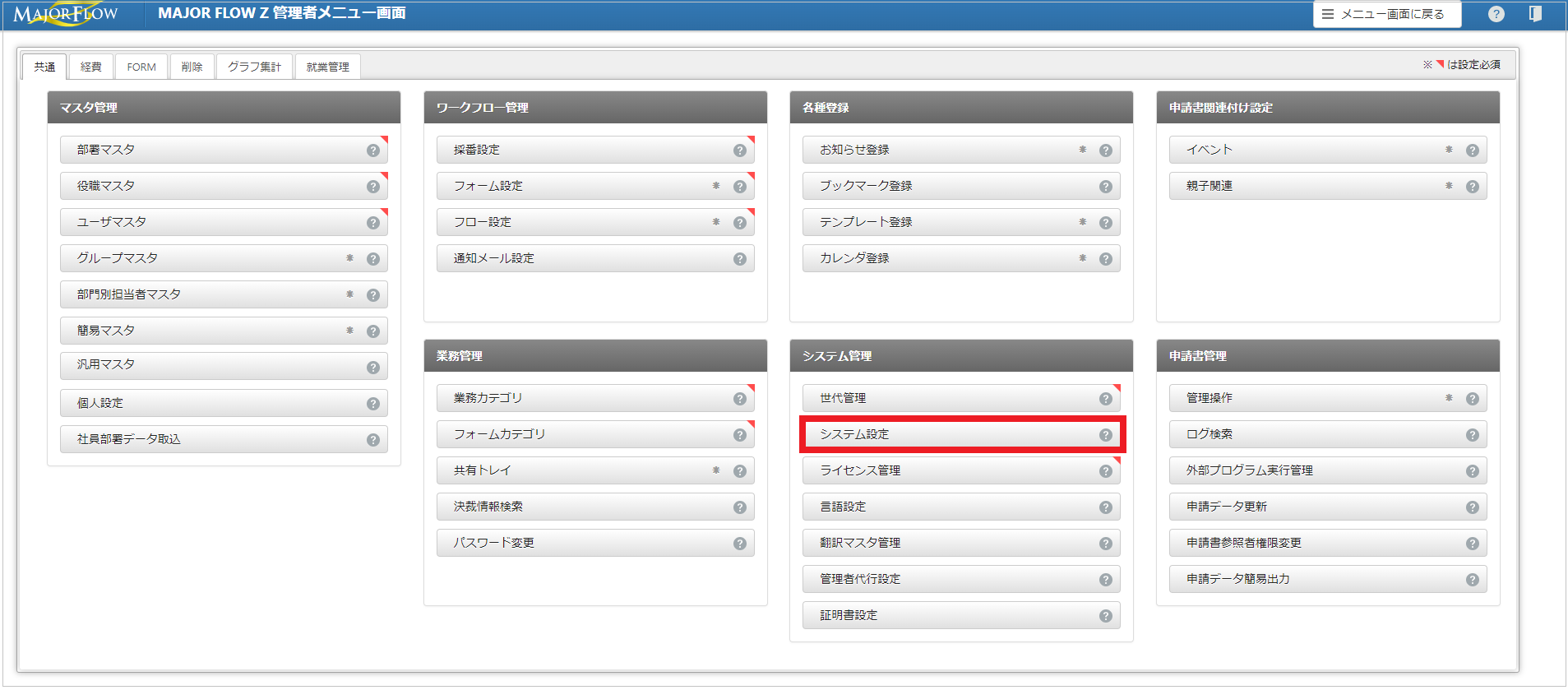

5. Return to the MAJOR FLOW Z admin screen and open "System Settings".

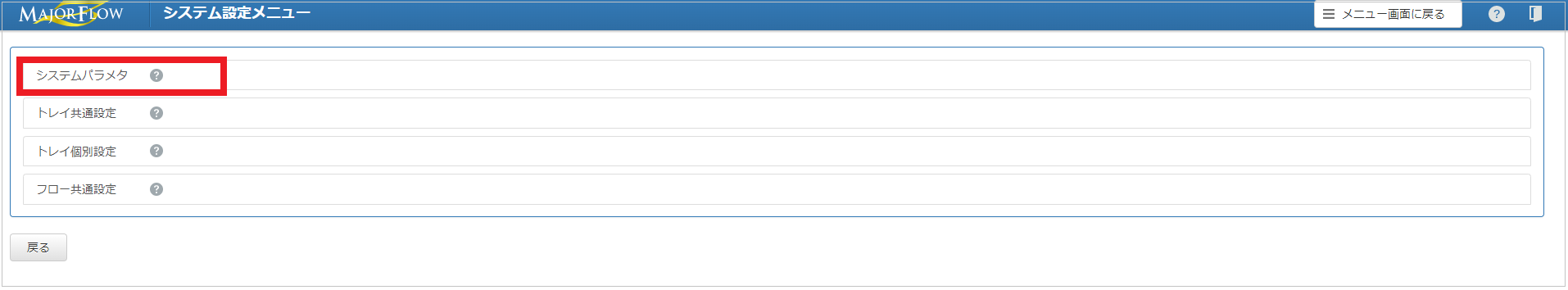

6. Select "System Parameters".

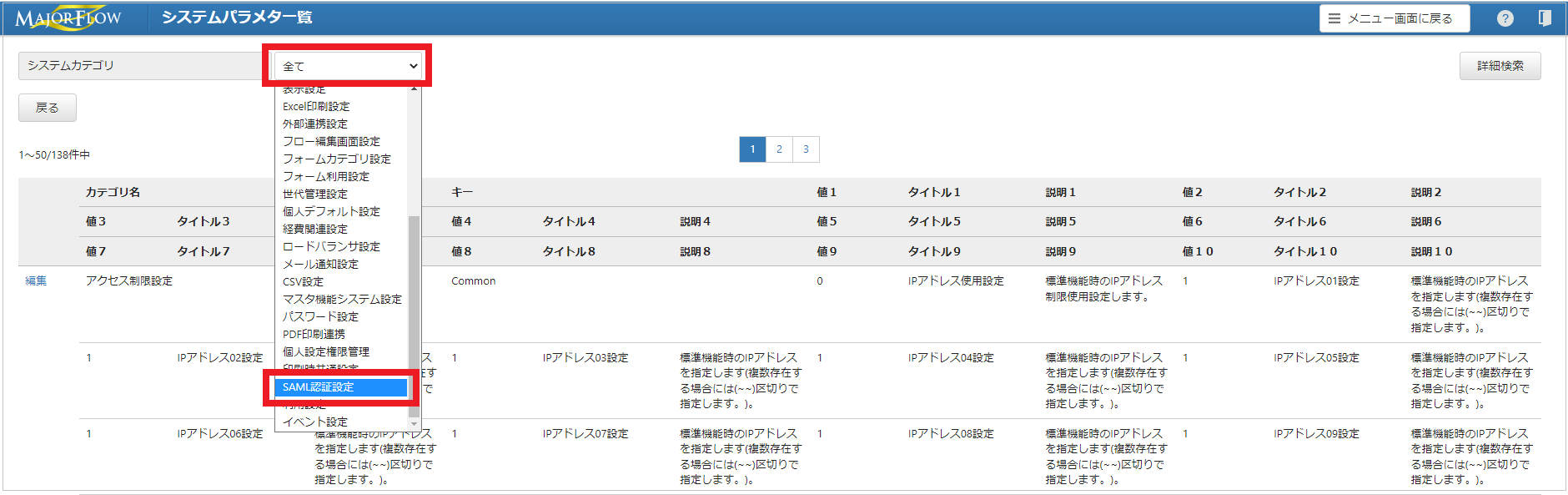

7. From the "All" pull-down, select "SAML Authentication Settings".
   　　　
   　　　　　　　

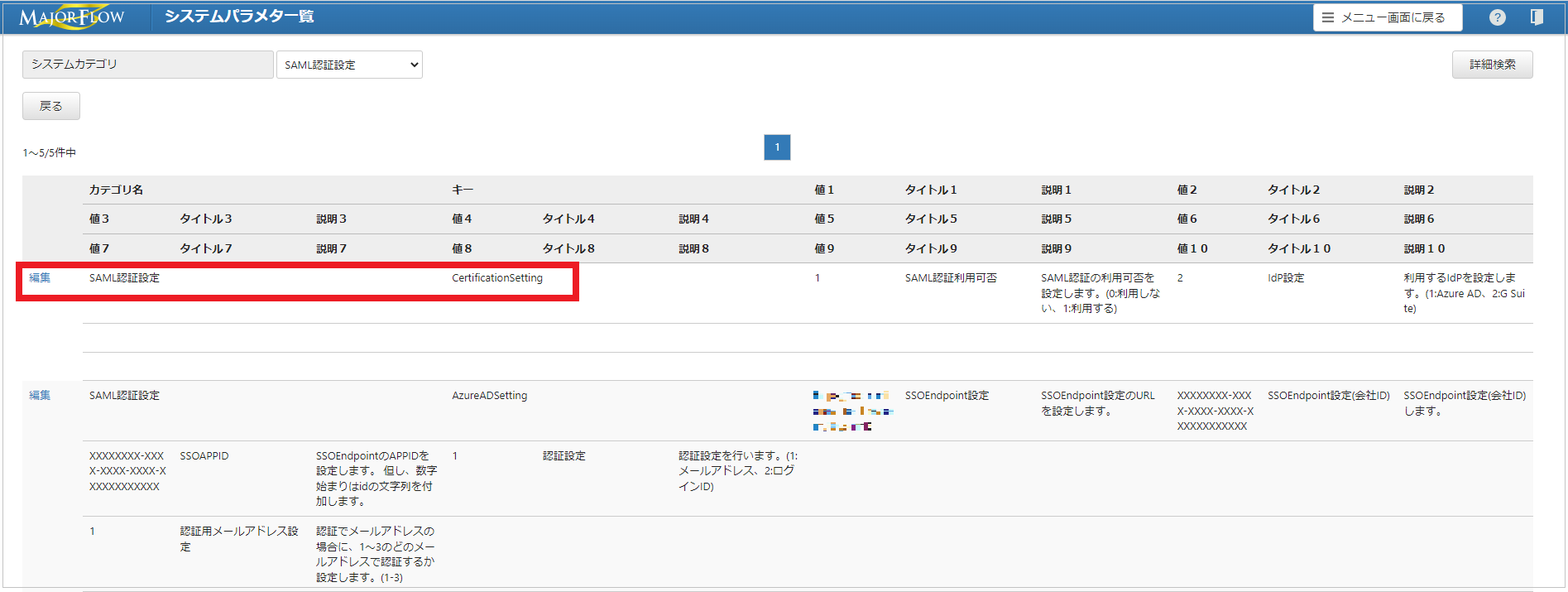

8. "Click "Edit" in the "CertificationSetting" field.

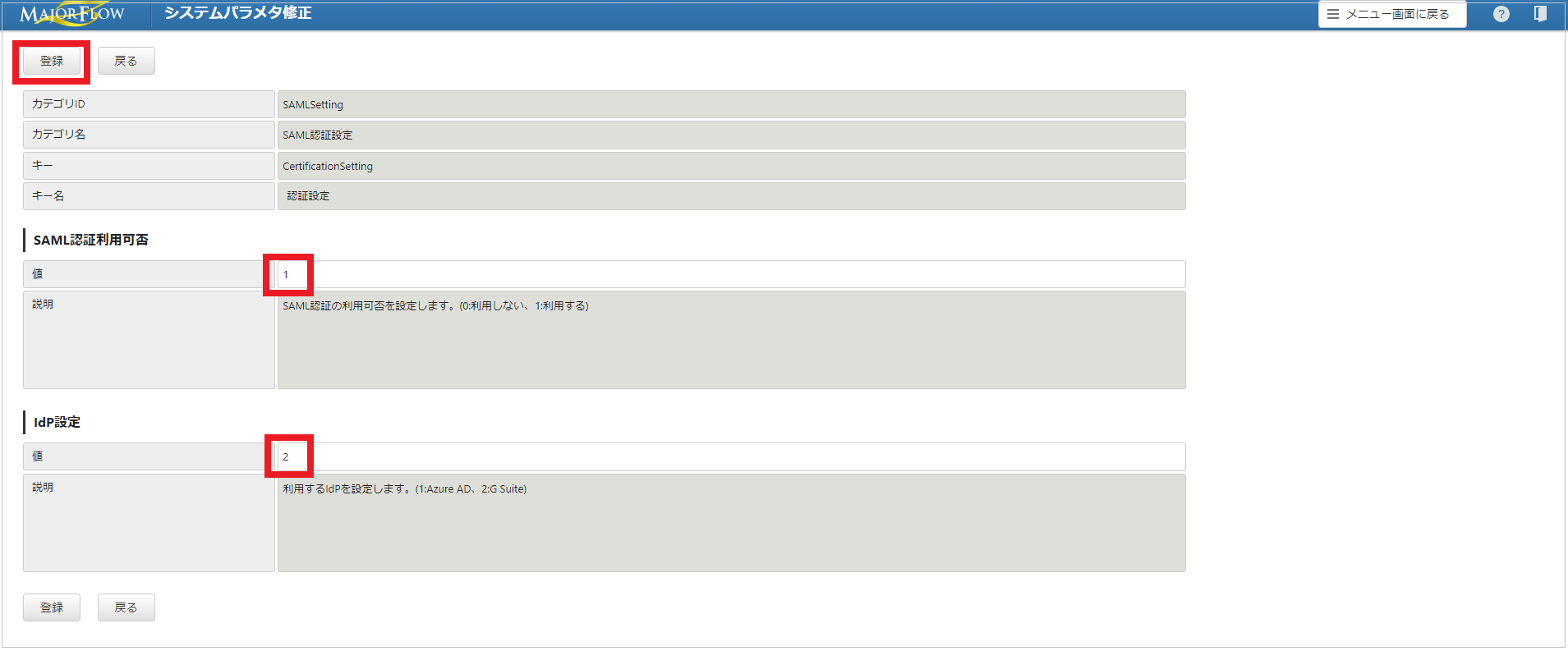

9. Enter the following information in the value field for each setting, and click the "Register" button.


   SAML Authentication Enabled	Enter 1
   IdP Settings	Enter 2

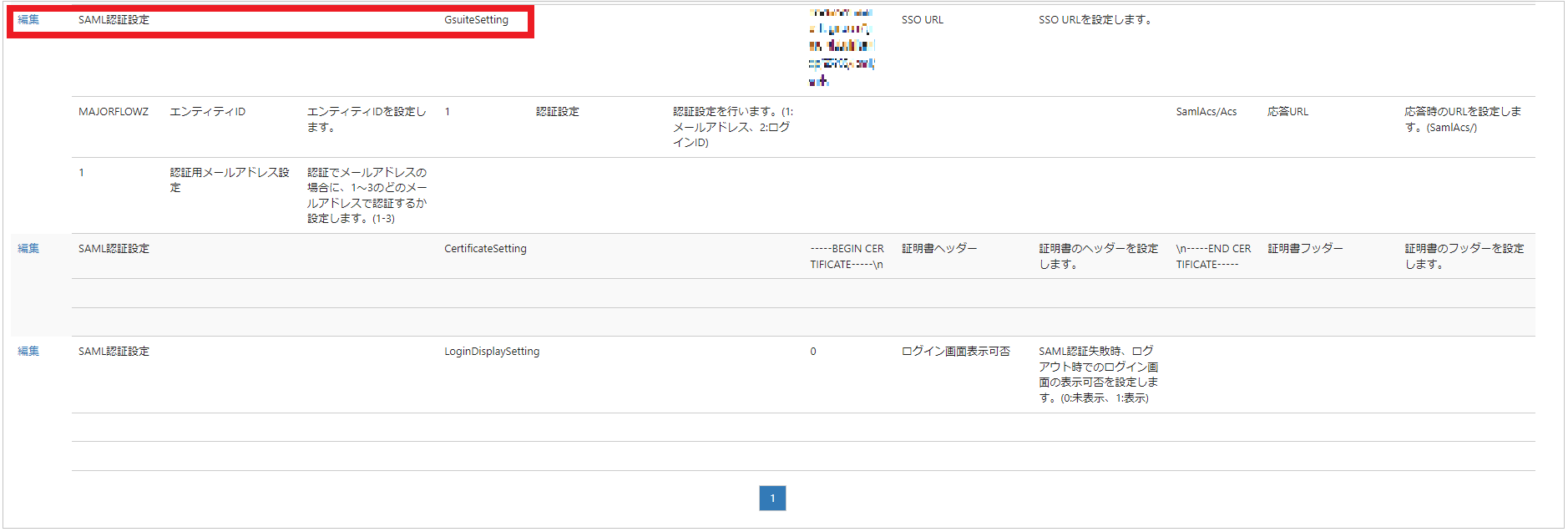

10. Return to the "SAML Authentication Settings" screen, and click "Edit" in the "GsuiteSetting" field.

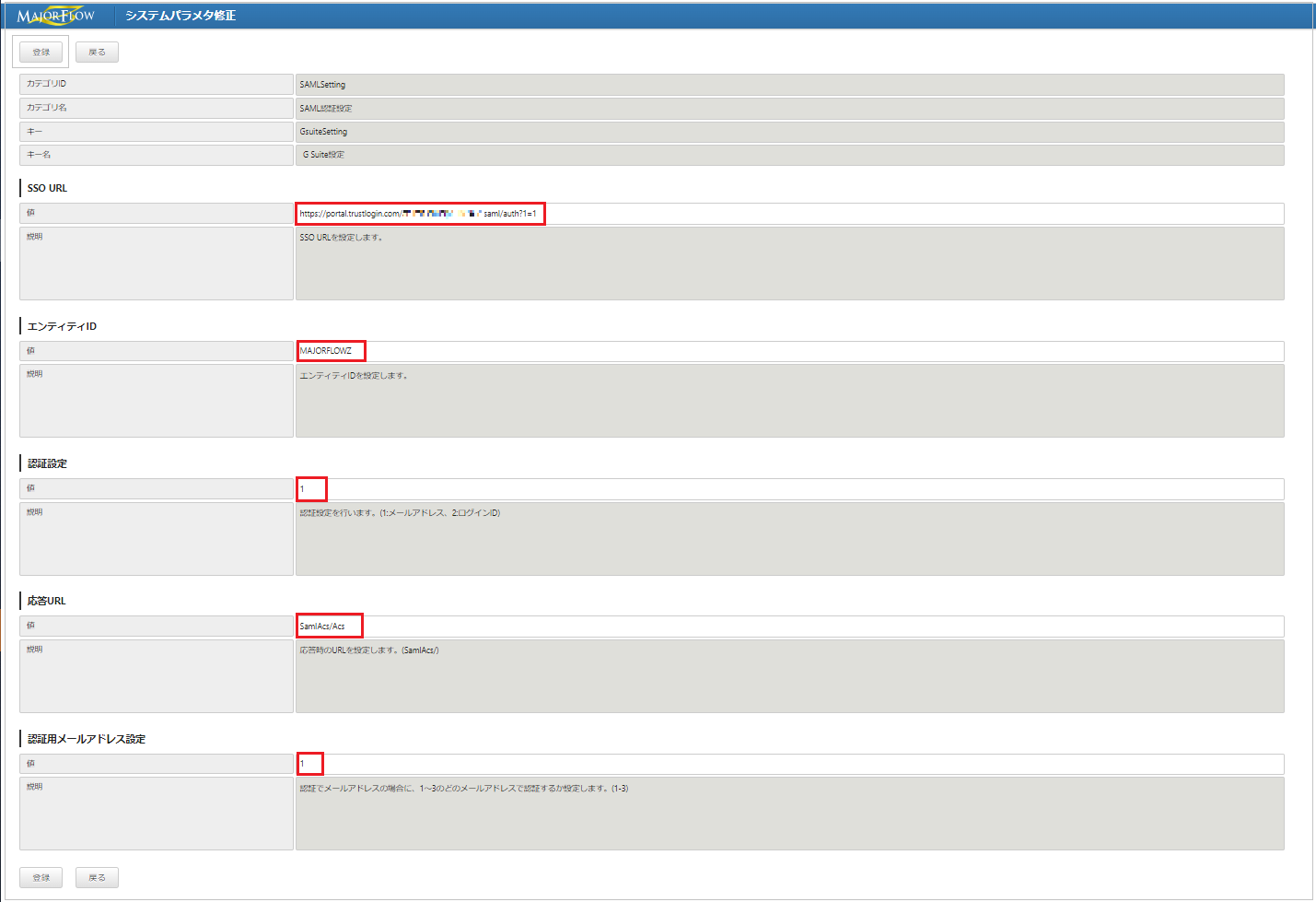

11. Enter the following information for each setting item, and click the "Register" button.


    SSO URL	Add "?1=1" to the end of the "Identity Provider URL" you noted from TrustLogin. Example: https://portal.trustlogin.com/XXXX/idp/XXXX/saml/auth?1=1
    Entity ID	Enter the same ID that you entered in the "Entity ID" field under TrustLogin's "Service Provider Settings". (Here, MAJORFLOWZ)
    Authentication Settings	Enter 1
    Response URL	SamlAcs/Acs
    Authentication Email Address Settings	Enter the registration number of the email address field you noted in step 4 of the MAJOR FLOW Z settings. (Here, enter 1 as an example)

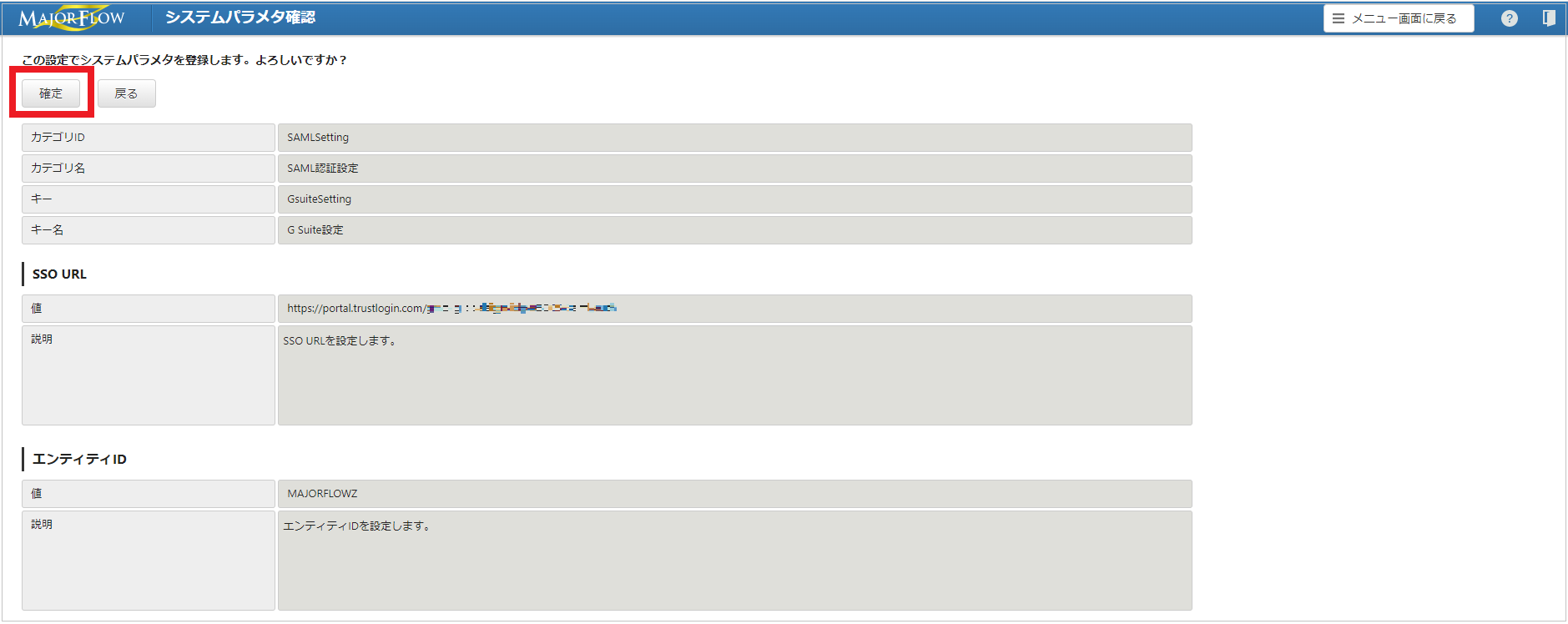

12. Click the "Confirm" button.

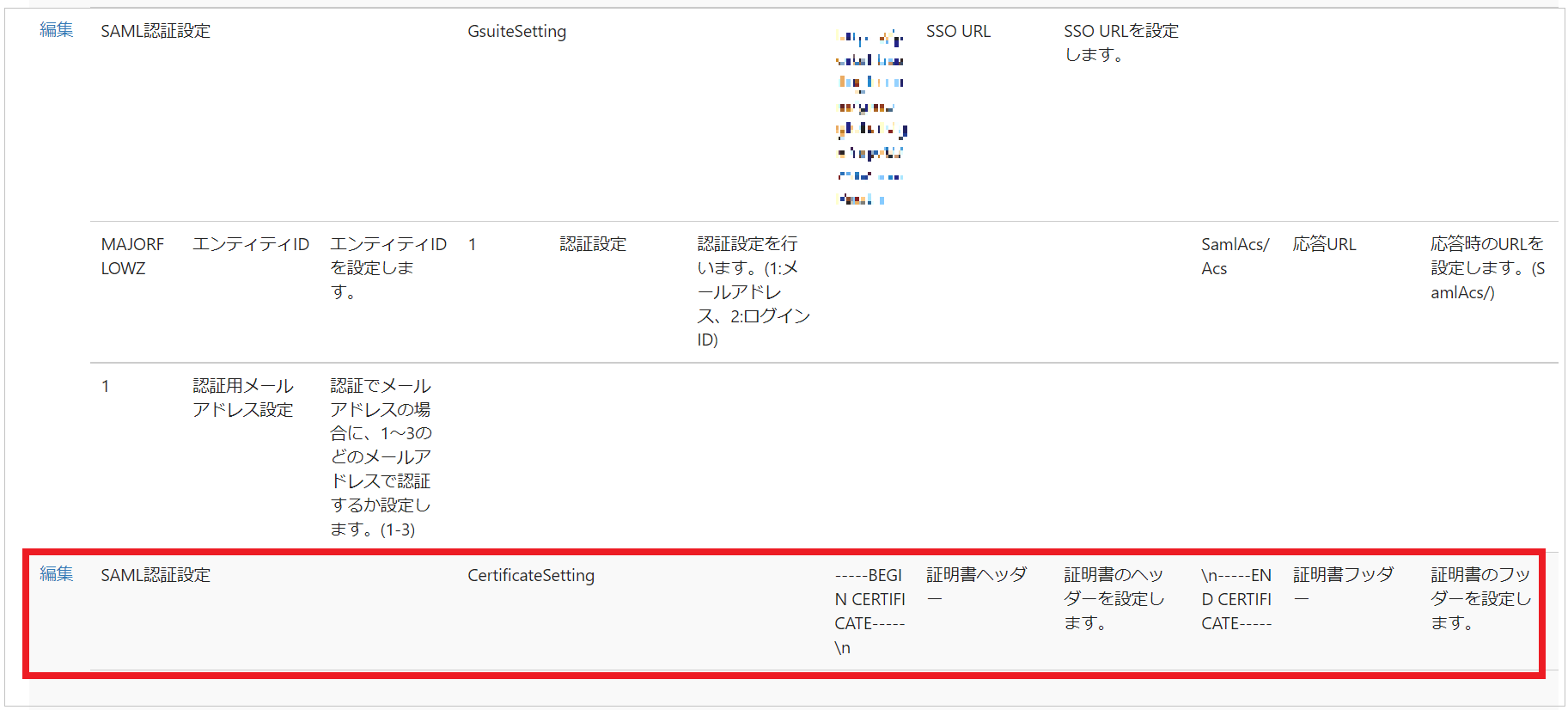

13. Return to the "SAML Authentication Settings" screen, and click "Edit" in the certificate header/footer fields of "CertificateSetting".

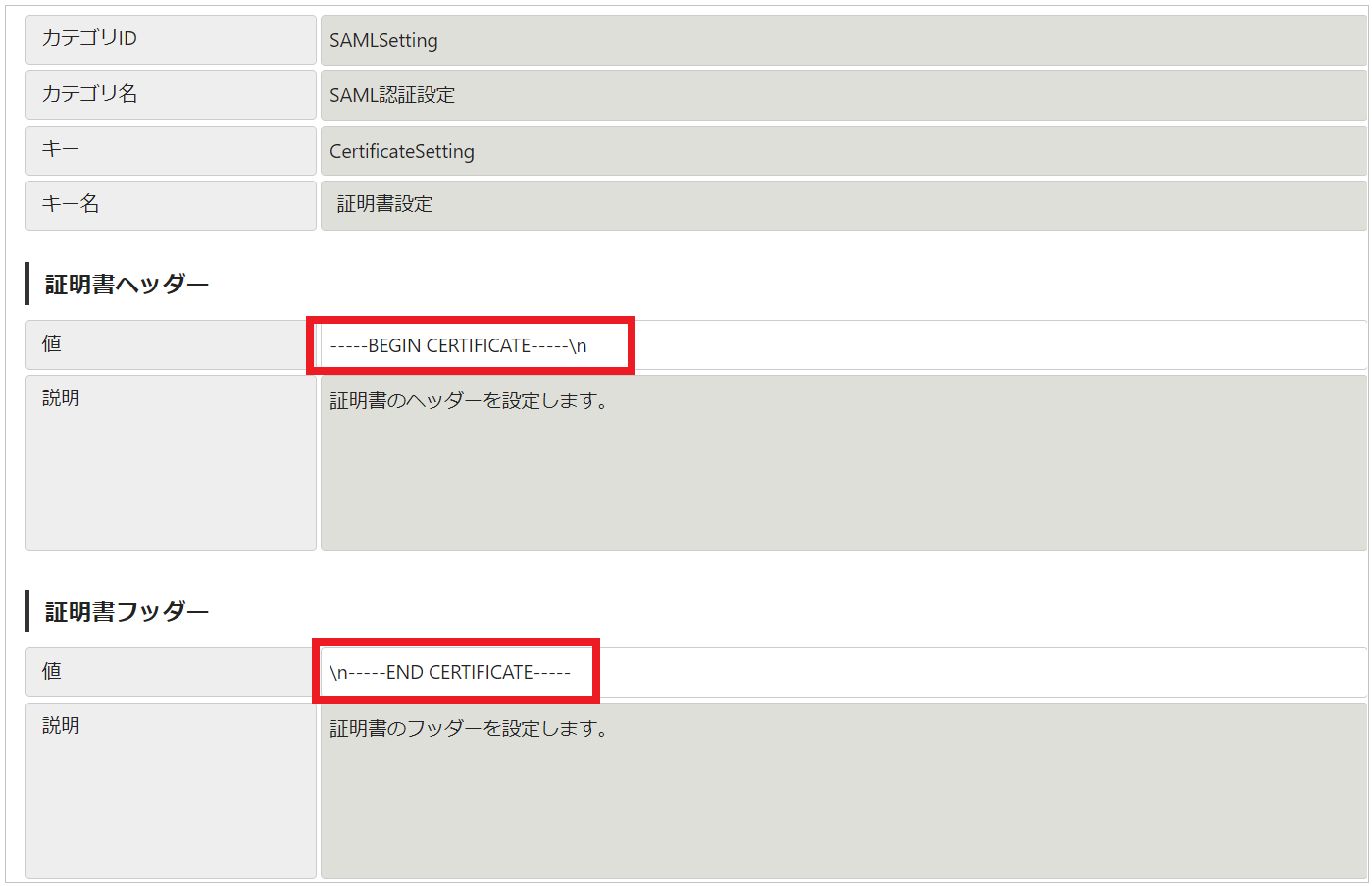

14. Confirm that "\n" is entered in both the "Certificate Header" and "Certificate Footer" fields.

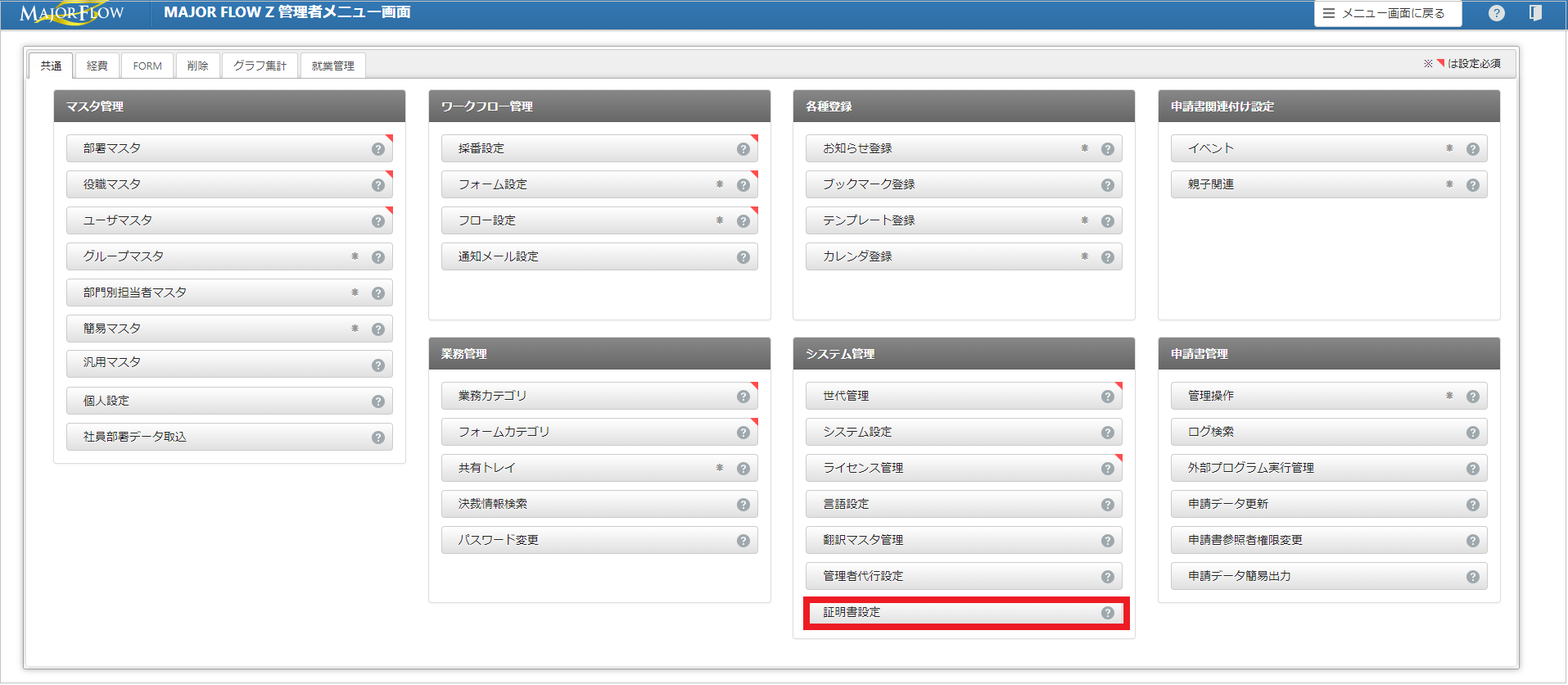

15. Return to the MAJOR FLOW Z admin screen and open "Certificate Settings".

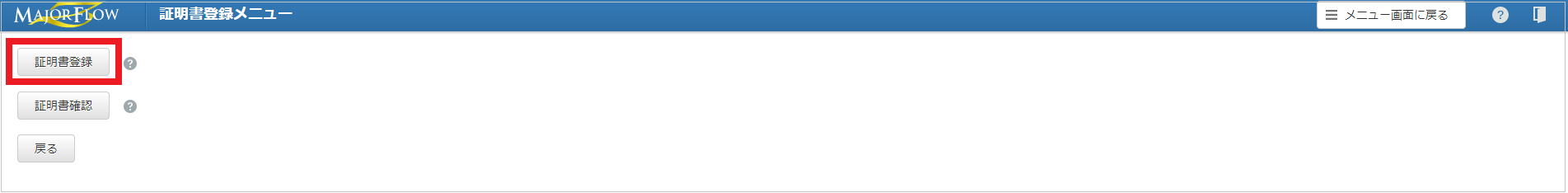

16. Click "Register Certificate".

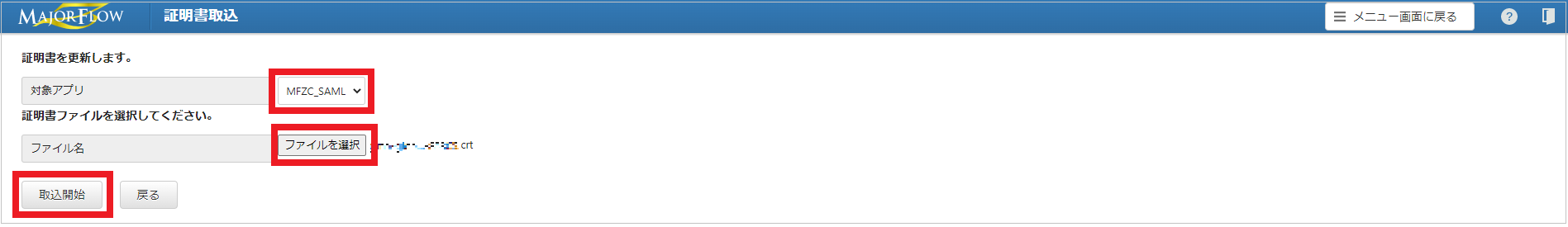

17. Select "MFZC_SAML" as the target app.
    Upload the certificate you downloaded from TrustLogin (with the extension changed to .crt) using "Choose File", and click "Start Import".

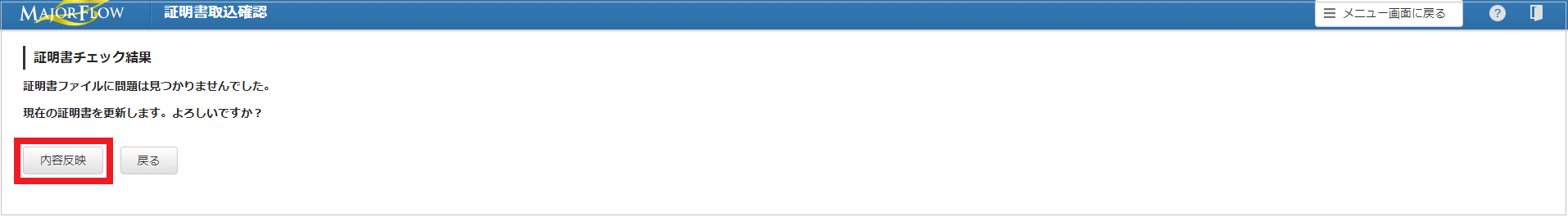

18. After confirming the message "No issues were found with the certificate file.", click "Apply".

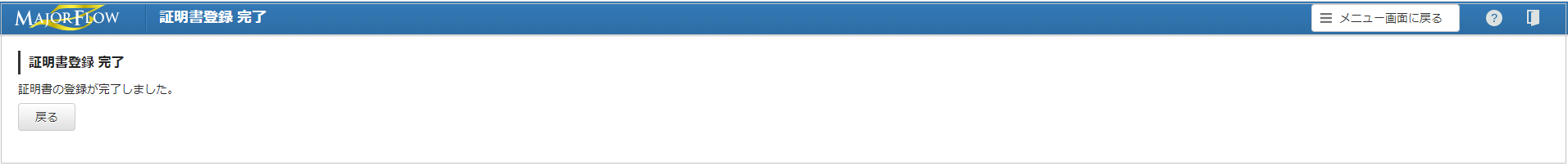

19. Certificate registration is complete.


TrustLogin User Settings

① When a User Adds the App via My Page

1. In "My Page", click the "Add App" button.
2. On the "Register App" screen, select "MAJOR FLOW Z(SAML)", and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it, and click the "Register" button.
4. Click the app in "My Page" or the browser extension, and check whether login succeeds.

② When an Administrator Adds Members

1. In the "Admin Page > Apps" menu, search for and click the "MAJOR FLOW Z CLOUD(SAML)" app.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
