ActionPassport Configuration

1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button at the top right of the screen.

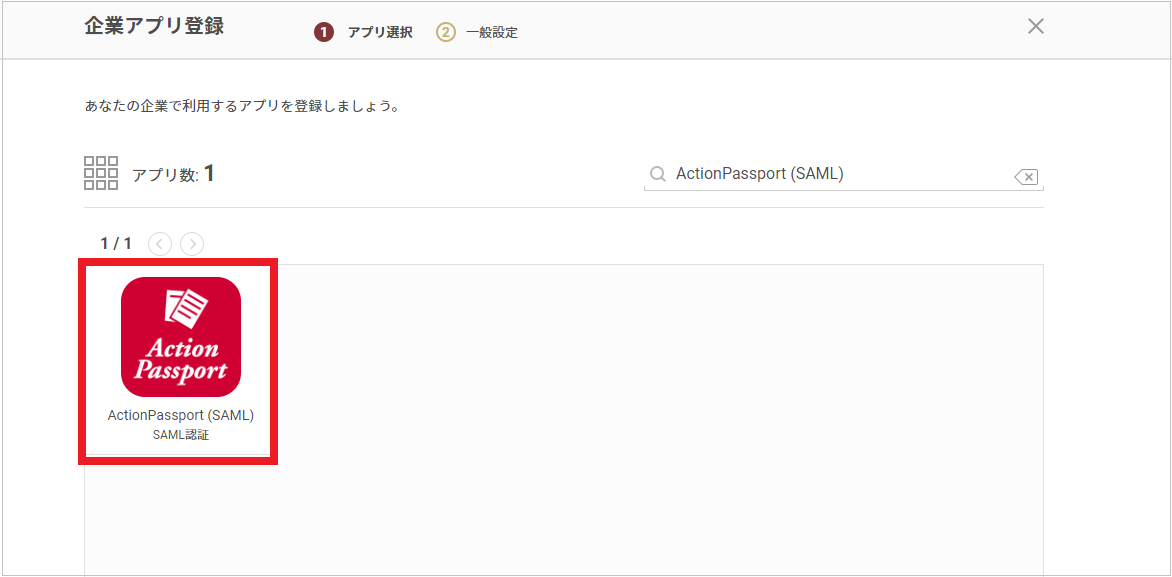

2. On the "Register Corporate App" screen, search for and select "ActionPassport (SAML)."

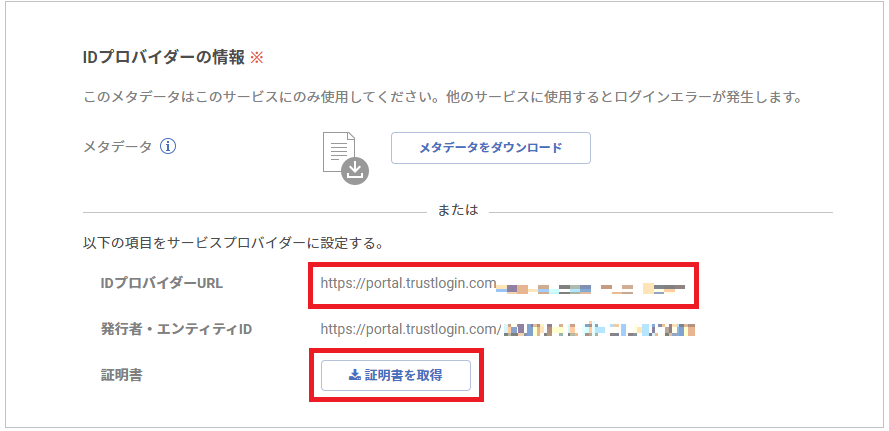

3. Make a note of the "IdP URL" under "Identity Provider Information," then download the "Certificate."


4. Send the following information to ActionPassport and request that they configure SAML.


   IdP login URL (HTTP Redirect)	IdP URL
   IdP logout URL	https://portal.trustlogin.com/user/
   IdP certificate	Change the extension of the certificate downloaded from TrustLogin to one of "CRT," "PEM," or "CER" and send it
   User identifier field on the connected system for the user you want to test	emailAdress

TrustLogin Admin Page Configuration

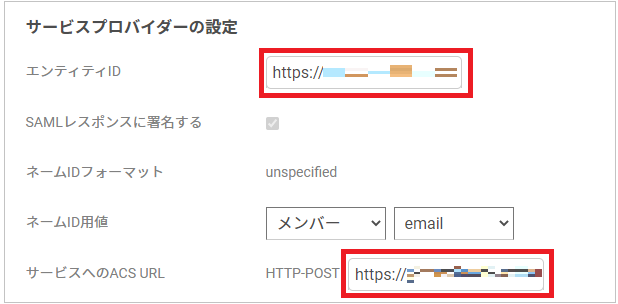

1. In "Service Provider Settings," enter the Entity ID and ACS URL provided by ActionPassport into the "Entity ID" and "ACS URL for the service" fields, respectively.



2. Click the "Register" button to save.



TrustLogin User Configuration

① When a user adds it from My Page

1. On "My Page," click the "Add App" button.
2. On the "Register App" screen, select "ActionPassport (SAML)," then click the "Next" button at the top right of the screen.
3. If you want to change the "Display Name," enter it, then click the "Register" button.
4. Click the app on "My Page" or in the "Extension," and confirm that login succeeds.

② When an administrator adds members

1. On the "Admin Page > Apps" menu, search for and click the "ActionPassport (SAML)" app.
2. Click "Add Member," select the users to add from the member list, and click the "Register" button to add them.
