TrustLogin Admin Page Configuration

1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button at the top right of the screen.

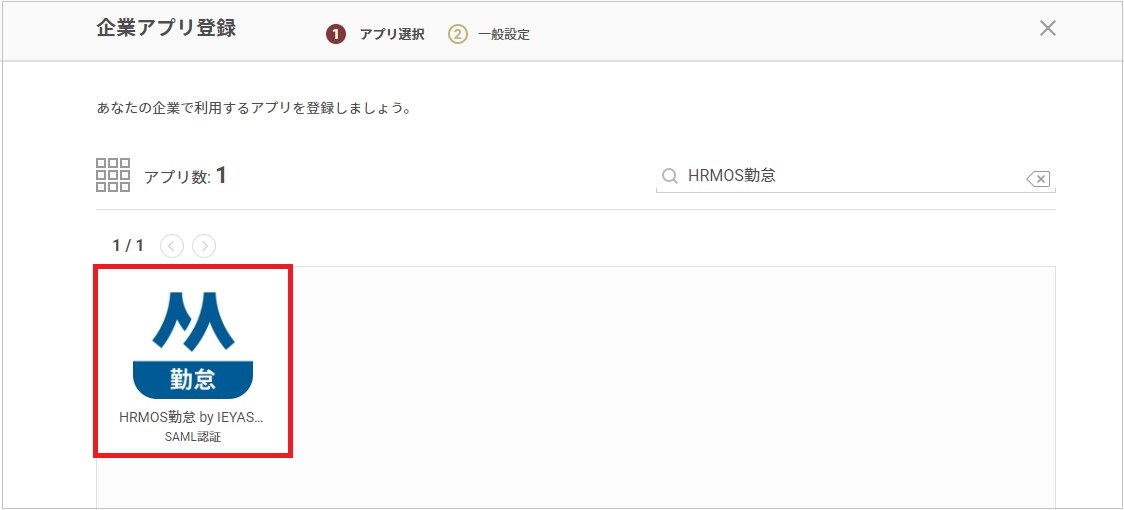

2. Search on the "Corporate App Registration" screen and select "HRMOS Attendance by IEYASU (SAML)".

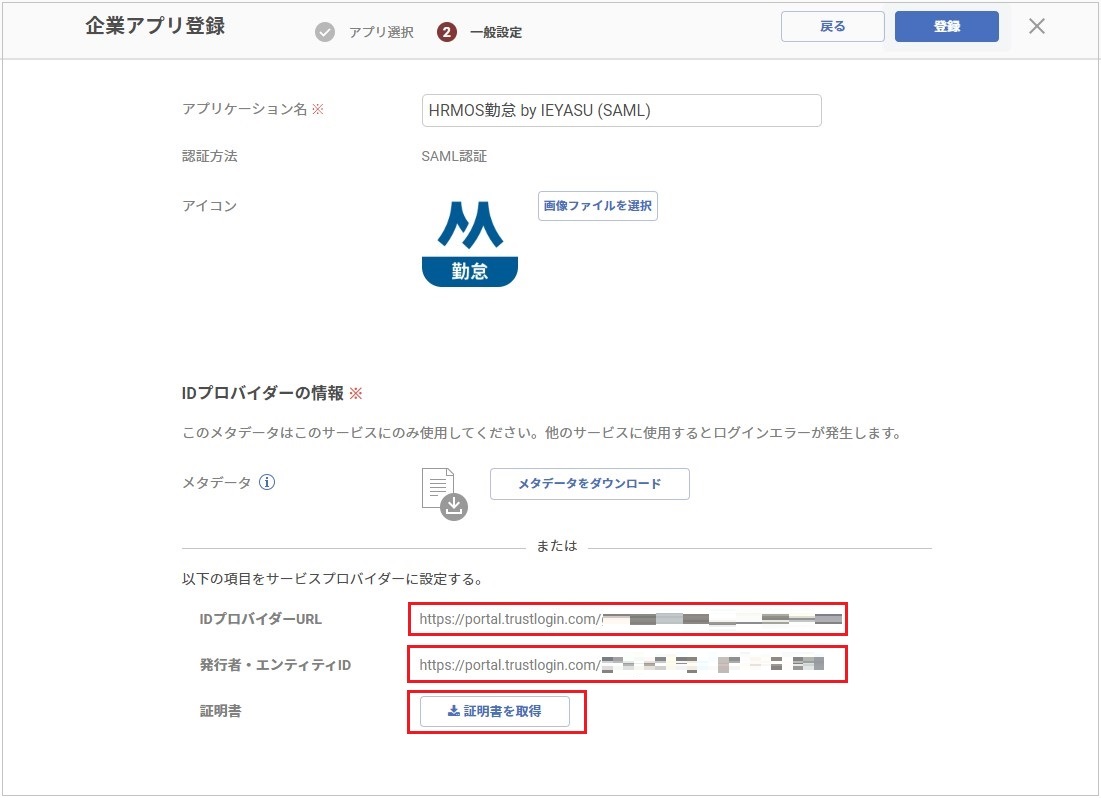

3. Note down the "IdP URL" and "Issuer/Entity ID" under "Identity Provider Information," and download the certificate from "Get Certificate."

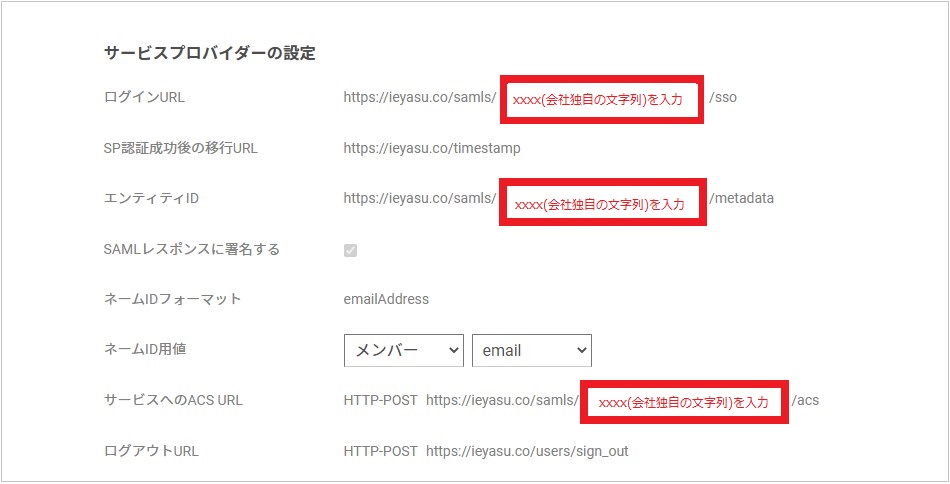

4. Fill in the three blank fields under "Service Provider Settings" — "Login URL," "Entity ID," and "ACS URL for the Service" — by extracting the company-specific string portion of your HRMOS Attendance URL and pasting it in. (Example) https://ieyasu.co/xxxx　
5. Click the "Register" button to save.

Now let's move on to the configuration in HRMOS Attendance. Please open HRMOS Attendance in a separate window.

HRMOS Attendance Configuration

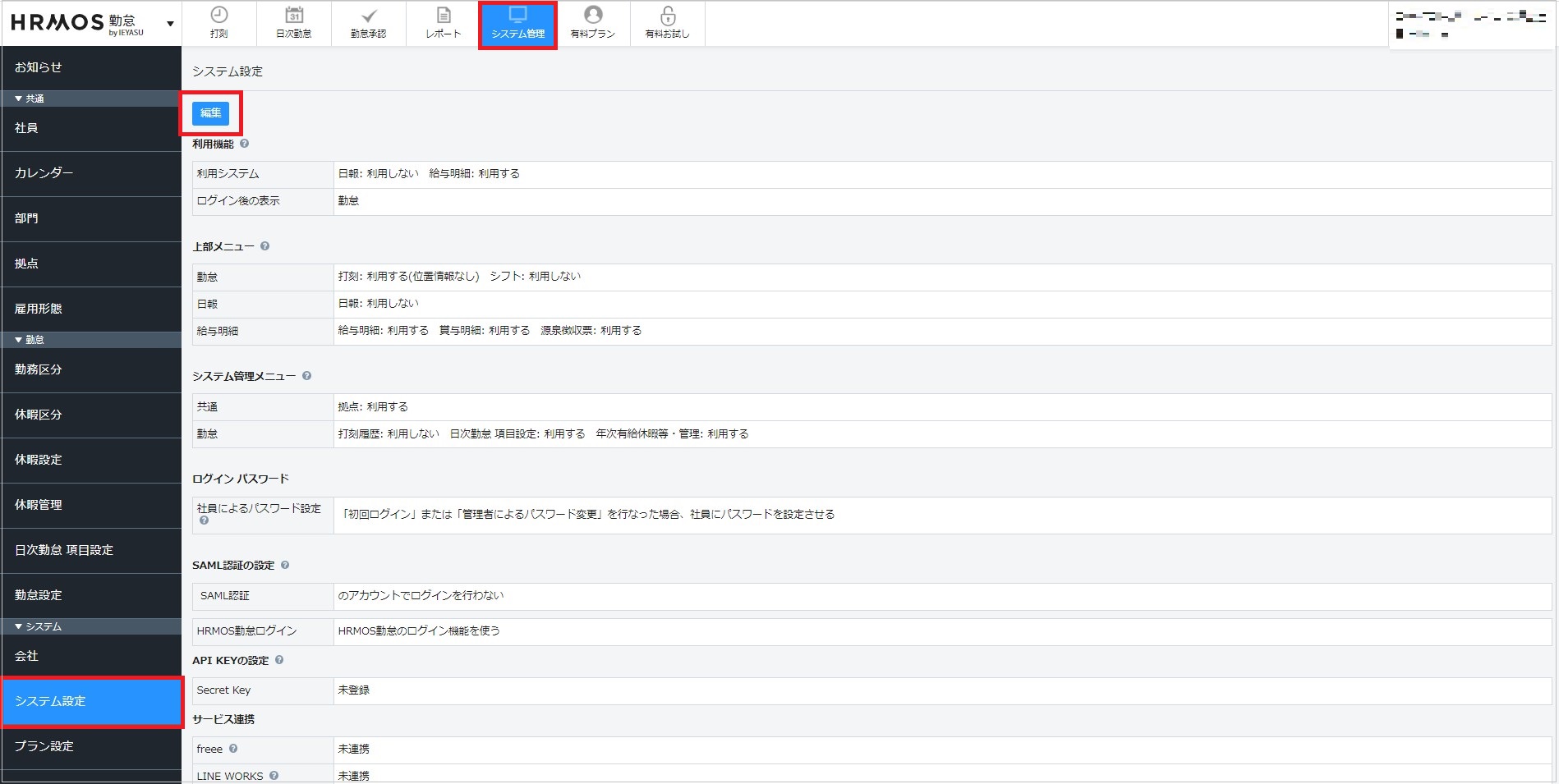

1. Log in with an administrator account, open "System Administration > System Settings," and click Edit.

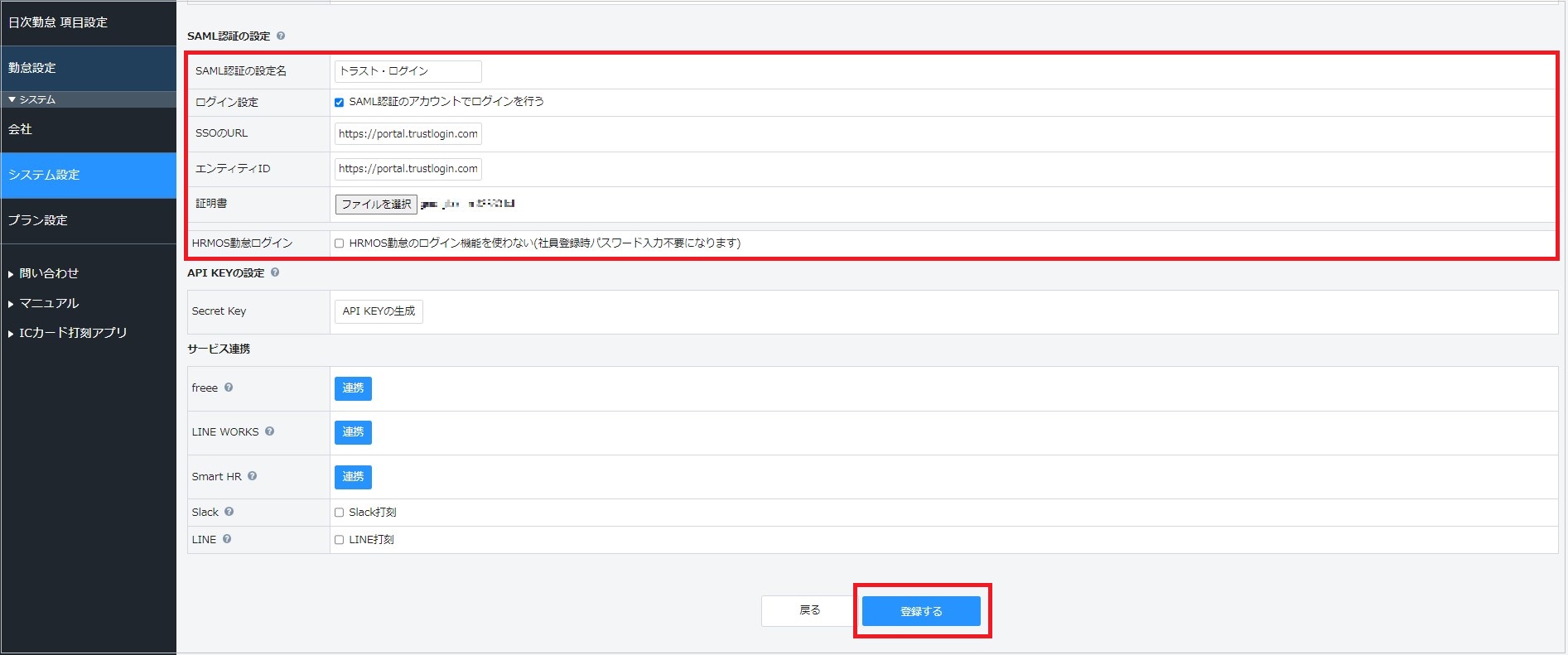

2. In "SAML Authentication Settings," register the information you noted in step 3 of "TrustLogin Admin Page Configuration" above, as follows, then click "Register."


   SAML Authentication Configuration Name	Any name (in this example, "TrustLogin")
   Login Settings	Check "Log in using SAML authentication account"
   SSO URL	The "IdP URL" you noted from TrustLogin
   Entity ID	The "Issuer/Entity ID" you noted from TrustLogin
   Certificate	The certificate file downloaded from TrustLogin (Browse)
   HRMOS Attendance Login	Check this if you want to disable the login feature for "HRMOS Attendance by IEYASU." Note: If you check this, when general employees attempt to log in to HRMOS Attendance by IEYASU with an ID and password, an error message "Login with account ID and password is not allowed" will be displayed.


   　　　
3. Click "Register."

TrustLogin User Configuration

① When a User Adds the App from My Page

1. Click the "Add App" button on "My Page."
2. On the "App Registration" screen, select "HRMOS Attendance by IEYASU (SAML)" and click the "Next" button at the top right of the screen.
3. If you want to change the "Display Name," enter it, then click the "Register" button.
4. Click the app on "My Page" or via the "browser extension" to confirm that login is successful.

② When an Administrator Adds Members

1. In the "Admin Page > Apps" menu, search for and click the "HRMOS Attendance by IEYASU (SAML)" app.
2. Click "Add Member," select the users to add from the member list, and click the "Register" button to add them.
