TrustLogin Admin Page Configuration

1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button at the top right of the screen.

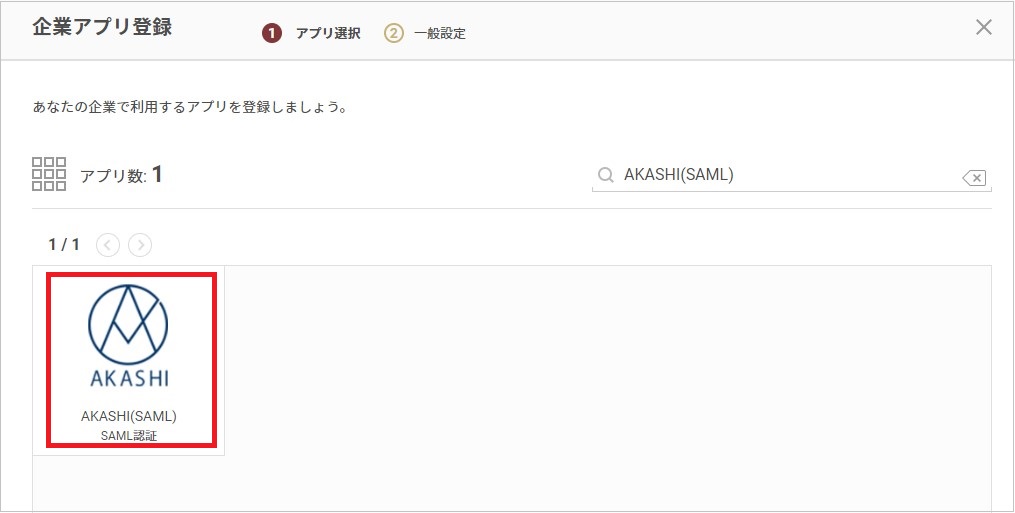

2. Search on the "Corporate App Registration" screen and select "AKASHI (SAML)".

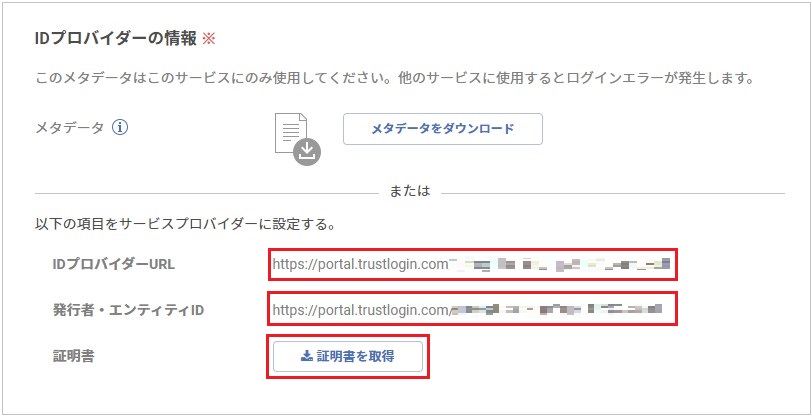

3. Note down the "IdP URL" and "Issuer/Entity ID" under "Identity Provider Information," and download the certificate from "Get Certificate."


Now let's move on to the configuration on the AKASHI side. Please open AKASHI in a separate window.

AKASHI Configuration

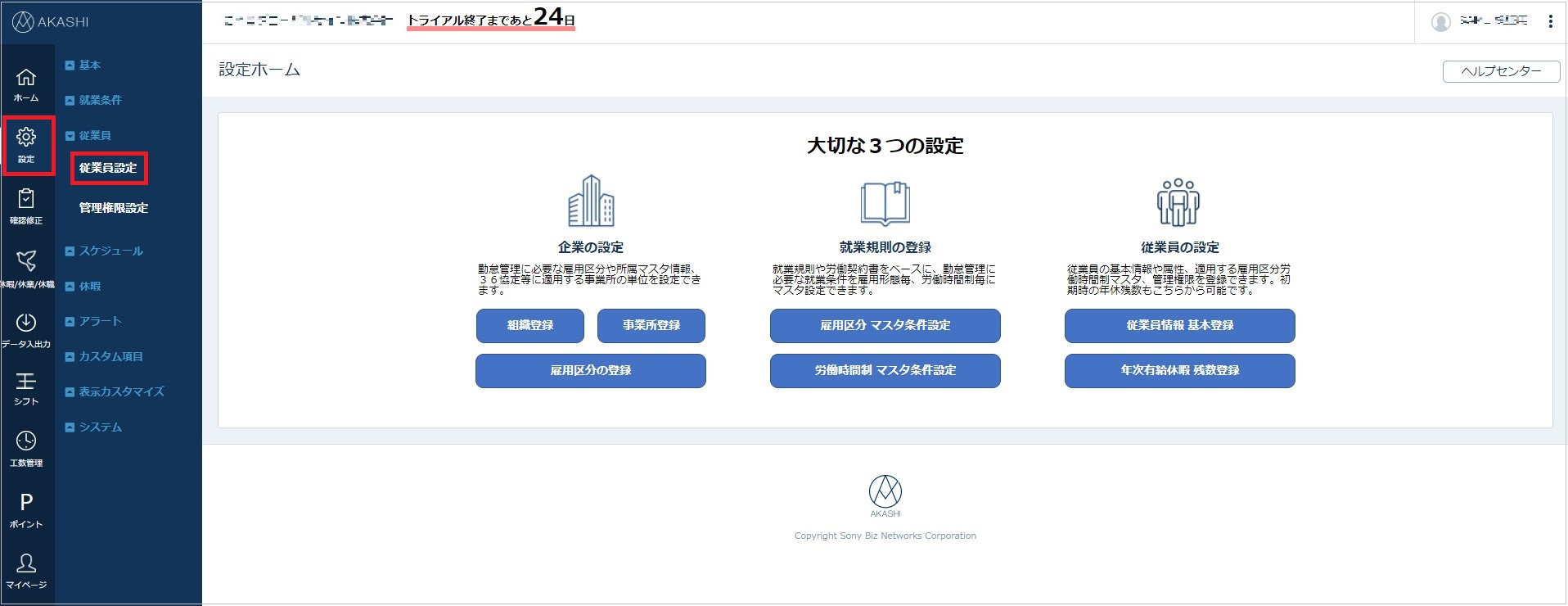

1. Log in with an AKASHI administrator account and open "Employee Settings."

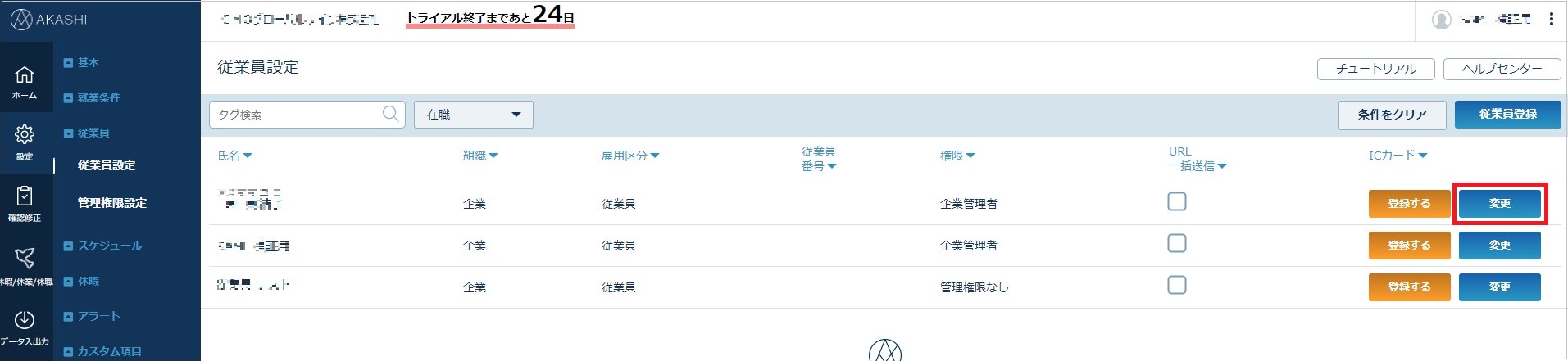

2. Select the employee to link with SAML and click "Change."　　　　　　　　　　　　　　　　　　　　　　　　　　　　

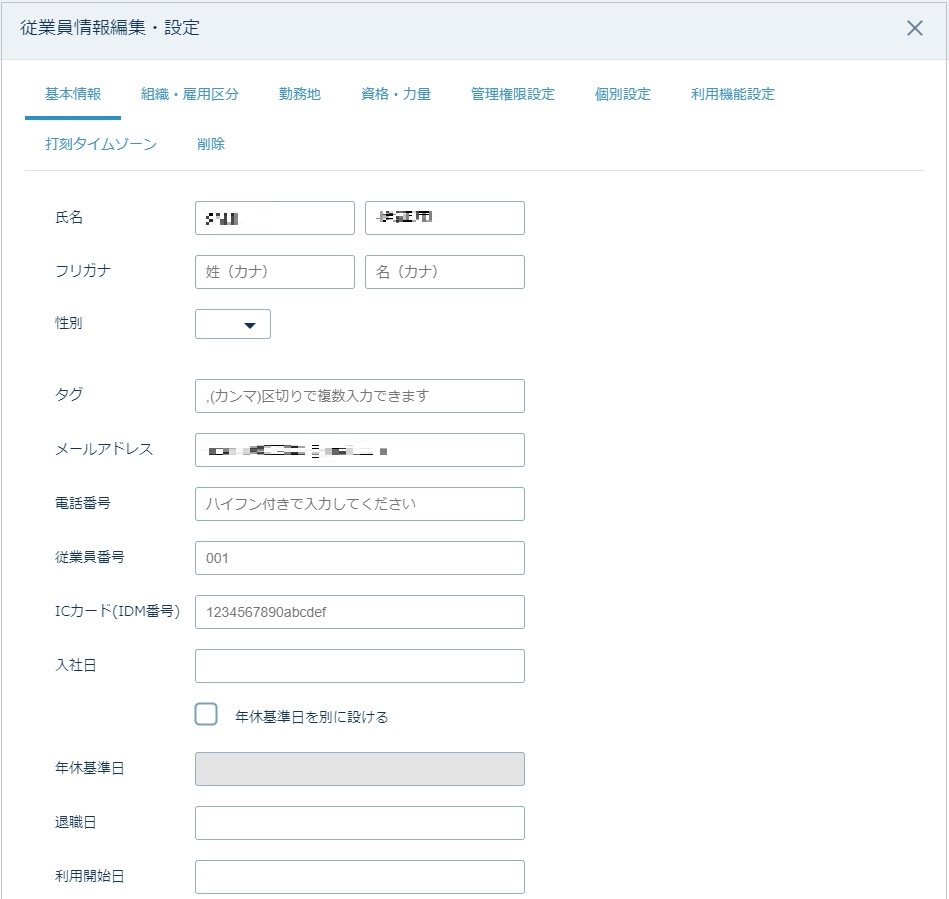

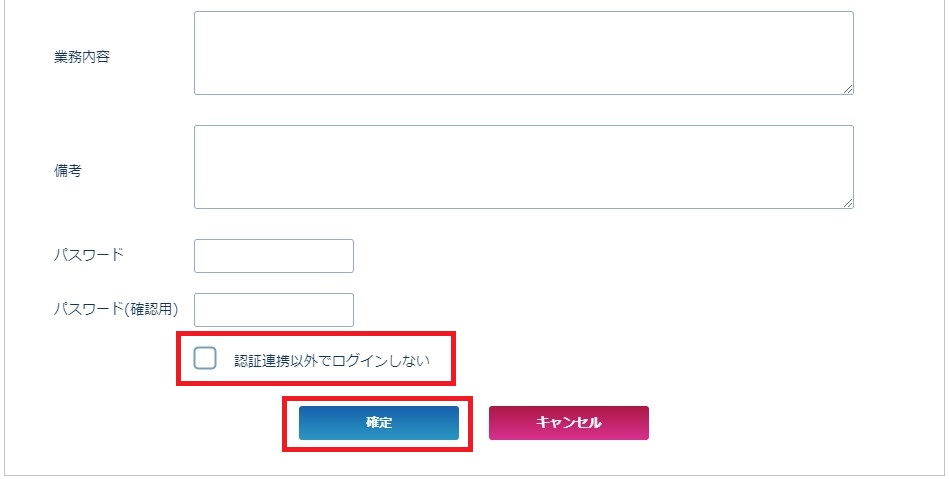

3. In the "Edit/Configure Employee Information" screen, check "Do not log in except via authentication integration" to prevent logins other than through the SAML environment.　　　　　　　　　　　　　　　　　　　　　　　Caution:　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　Note: If you check this box, authentication will be limited to SAML authentication only, and login with an ID/password will no longer be possible. We recommend enabling this checkbox once the SAML connection has been verified and you are ready to begin operation.　　　　　　　　　　

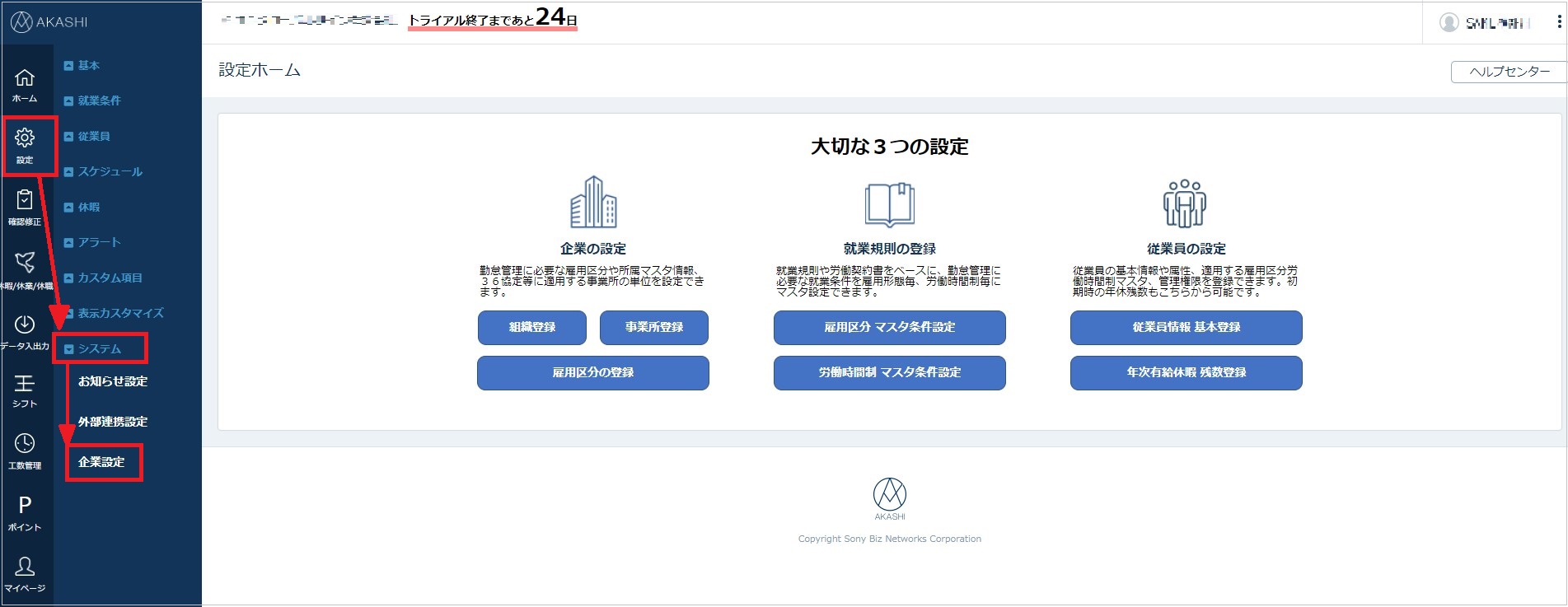

4. Click "Settings" and open "System > Company Settings."

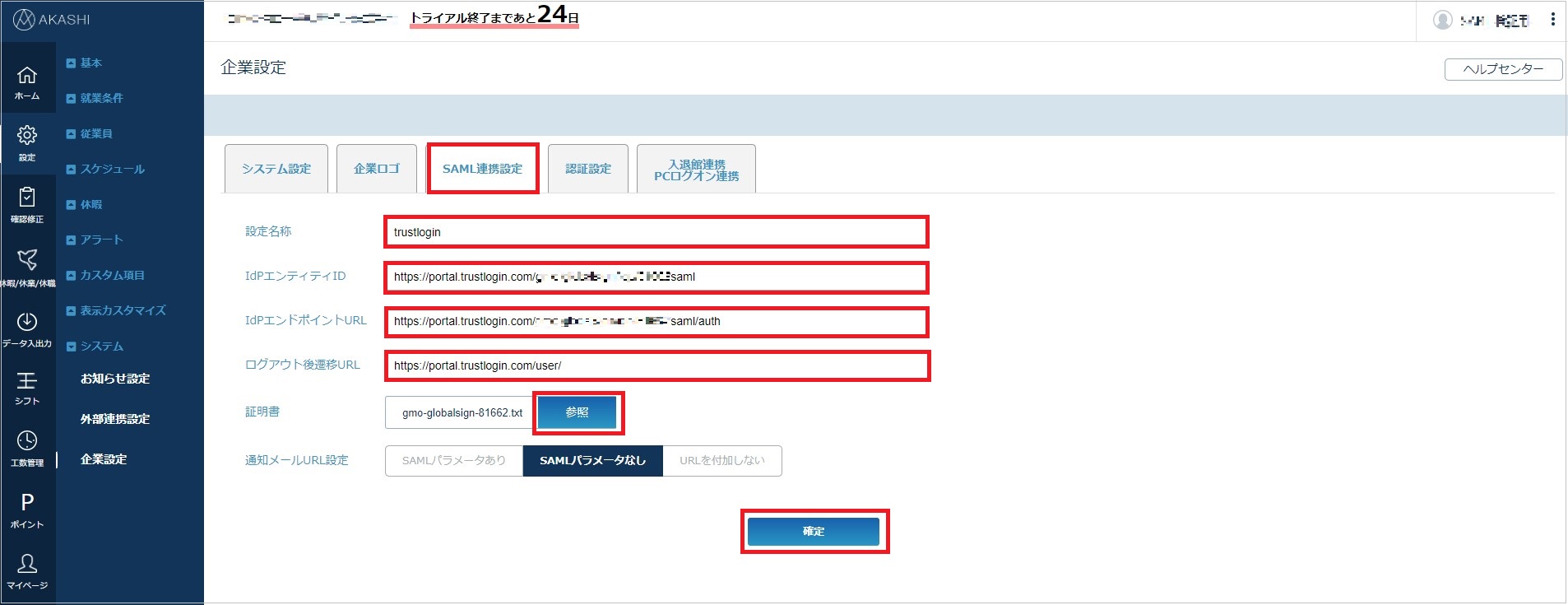

5. Open "SAML Integration Settings" and register the information you noted in step 3 of "TrustLogin Admin Page Configuration" above, as shown below. After registering, click the "Confirm" button.

   Configuration Name	Any name (in this example, "trustlogin")
   IdP Entity ID	The "Issuer/Entity ID" you noted from TrustLogin
   IdP Endpoint URL	The "IdP URL" you noted from TrustLogin
   Post-Logout Redirect URL	https://portal.trustlogin.com/user/
   Certificate	Browse to the certificate file downloaded from TrustLogin

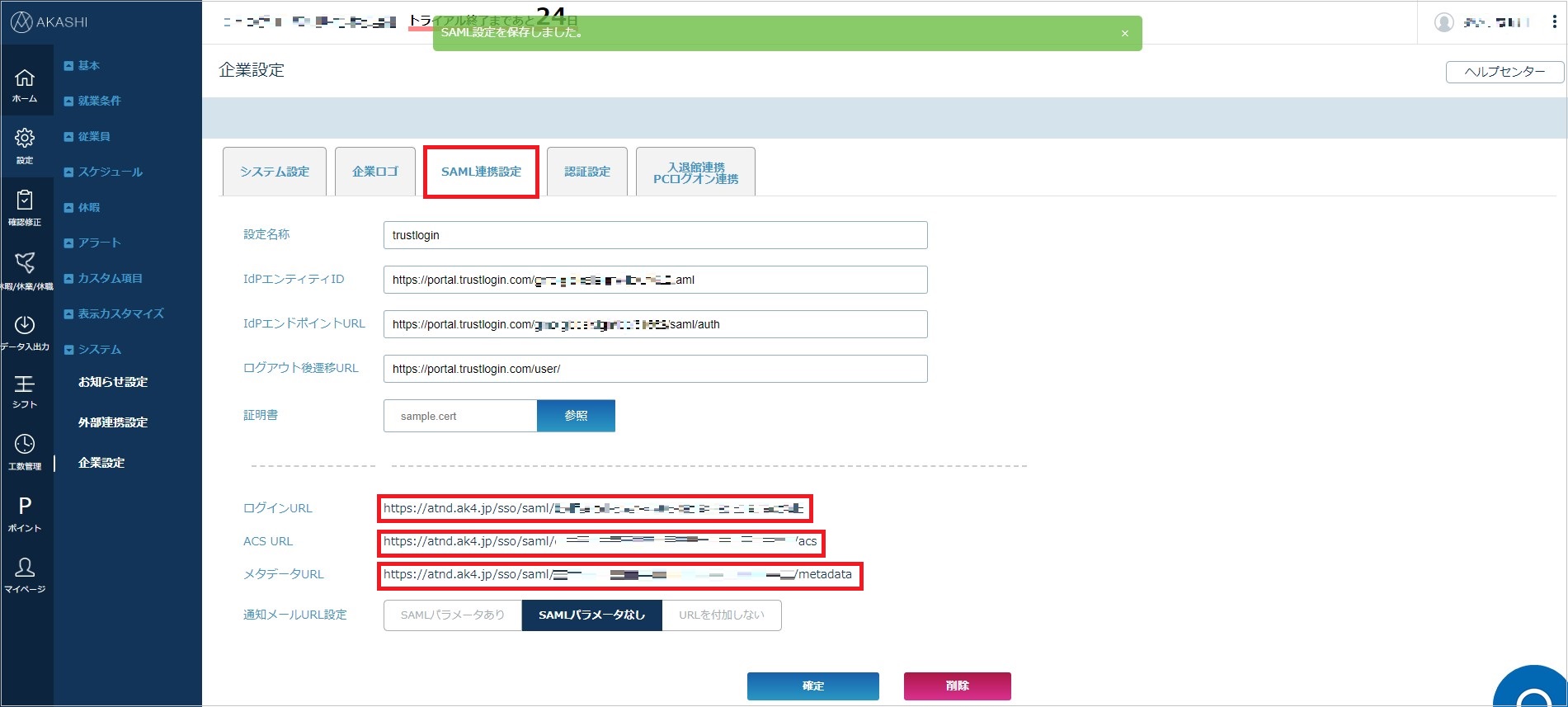

6. After clicking the Confirm button, open "SAML Integration Settings" again and note down AKASHI's "Login URL," "ACS URL," and "Metadata URL."



Now let's return to the TrustLogin configuration.

TrustLogin Admin Page Configuration (Continued)

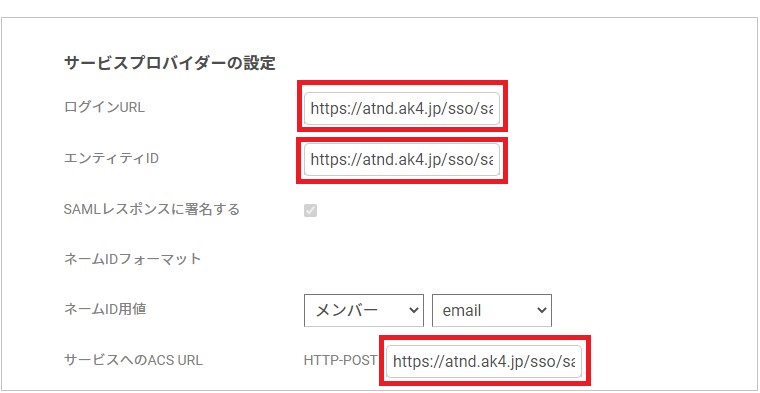

1. Configure each item under "Service Provider Settings" as follows.

   Login URL	The "Login URL" you noted from AKASHI
   Entity ID	The "Metadata URL" you noted from AKASHI
   ACS URL for the Service	The "ACS URL" you noted from AKASHI





2. Click the "Register" button to save the settings.

TrustLogin User Configuration

① When a User Adds the App from My Page

1. Click the "Add App" button on "My Page."
2. On the "App Registration" screen, select "AKASHI(SAML)" and click the "Next" button at the top right of the screen.
3. If you want to change the "Display Name," enter it, then click the "Register" button.
4. Click the app on "My Page" or via the "browser extension" to confirm that login is successful.

② When an Administrator Adds Members

1. In the "Admin Page > Apps" menu, search for and click the "AKASHI(SAML)" app.
2. Click "Add Member," select the users to add from the member list, and click the "Register" button to add them.
