How to Configure SAML Authentication for gamba!

Item

Description

Prerequisites

  • Advance configuration in gamba! is required.

  • You must create a gamba! account using the same email address as your TrustLogin account.

  • For the latest setup instructions, please refer to the manual provided by gamba!.

Name ID

Email address

Custom attribute Note: For instructions on how to configure custom attributes, see here

SP-side Configuration

Configured by the administrator

Request configuration from the SP

Provisioning

Supports provisioning via API (accounts can be managed from GMO TrustLogin)

Supports SAML JIT provisioning (accounts can be managed from GMO TrustLogin; user deletion is not supported)

None (accounts are created in each system)

Access Method

SP-Initiated SSO

IdP-Initiated SSO

Verified Operation by Device

PC - Browser

PC - Desktop App

iOS - Standard Browser (Safari)

iOS - TrustLogin Mobile App In-App Browser

iOS - Native App

Android - Standard Browser (Chrome)

Android - TrustLogin Mobile App In-App Browser

Android - Native App

TrustLogin Admin Page Configuration

  1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

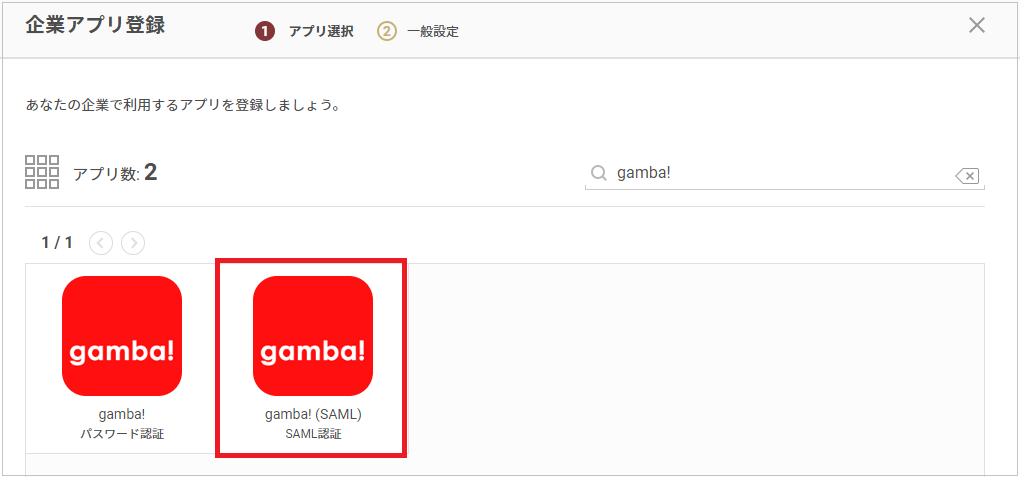

  2. On the "Register Corporate App" screen, search and select "gamba! (SAML)".

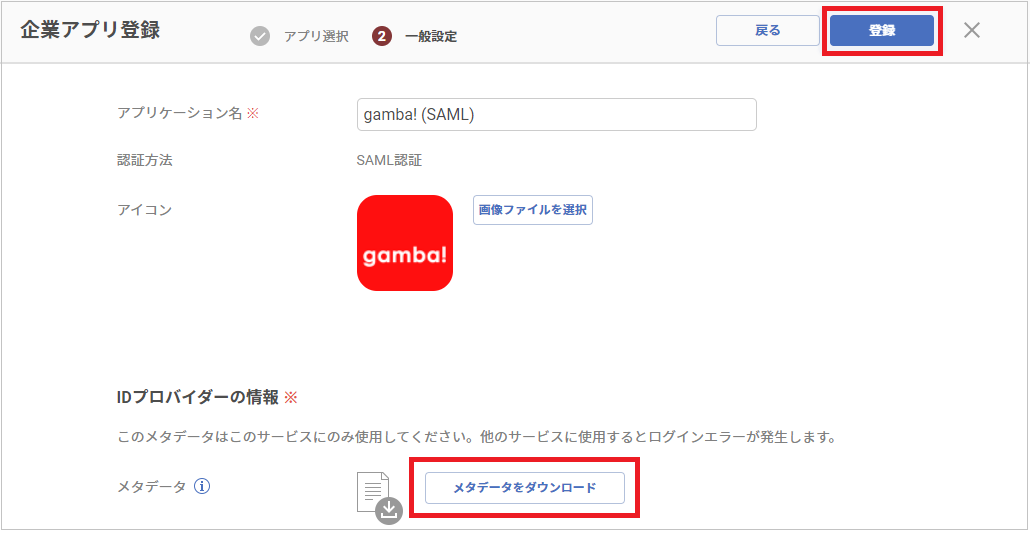

  3. Under "Identity Provider Information," download the metadata from "Download Metadata".gamba__03.png
  4. Save the settings by clicking the "Register" button.

Now, switch to the configuration on the gamba! side. Open gamba! in a separate window.

gamba! Configuration

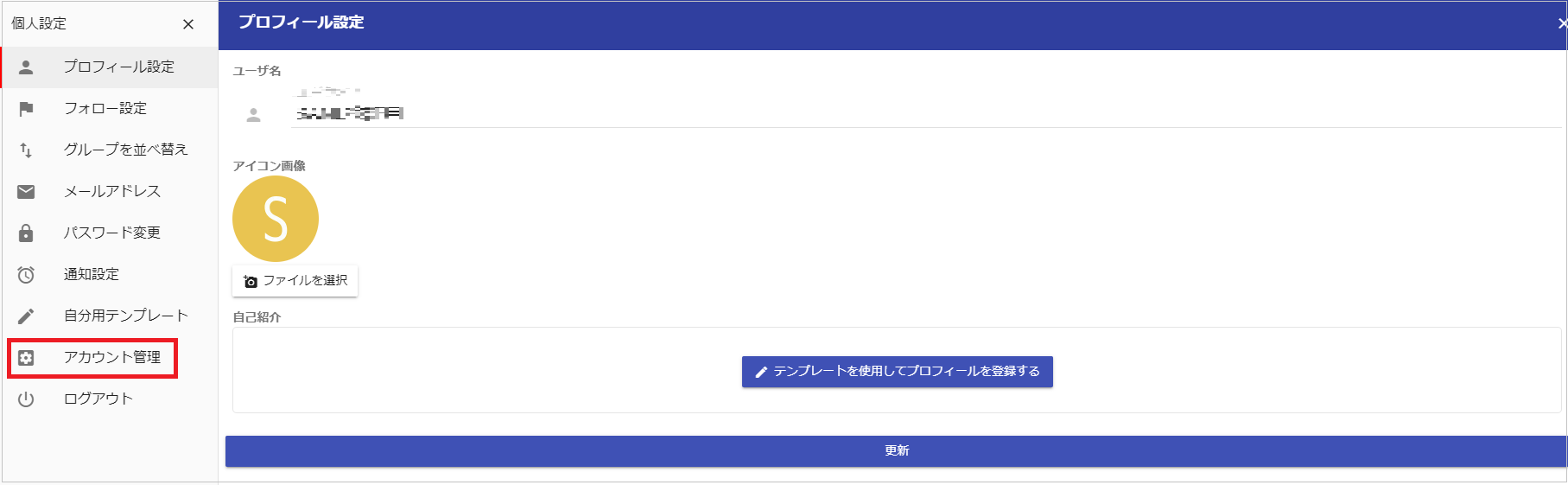

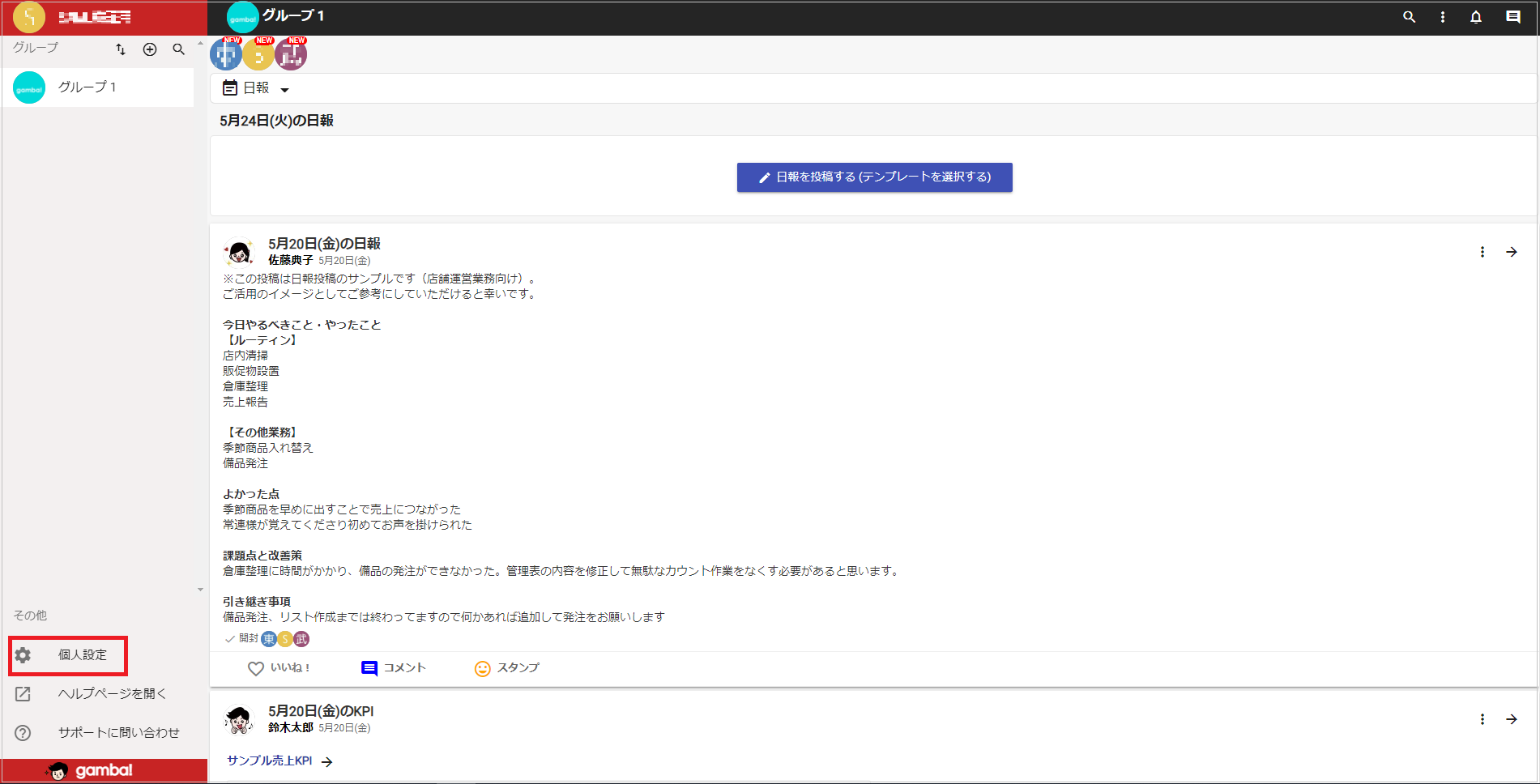

  1. Log in with an administrator account, and open "Other > Personal Settings".

  2. Open "Account Management".

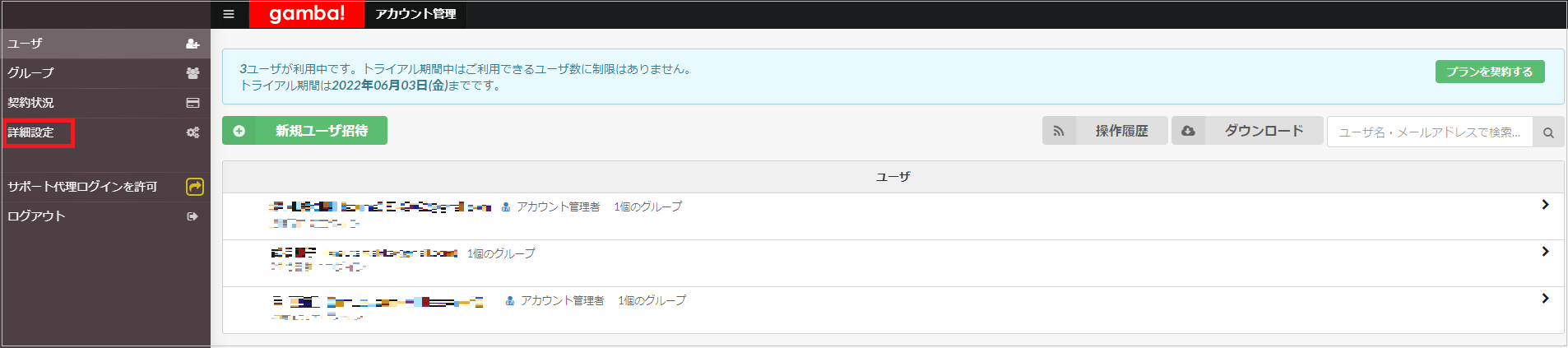

  3. Open "Advanced Settings".gamba__06.png

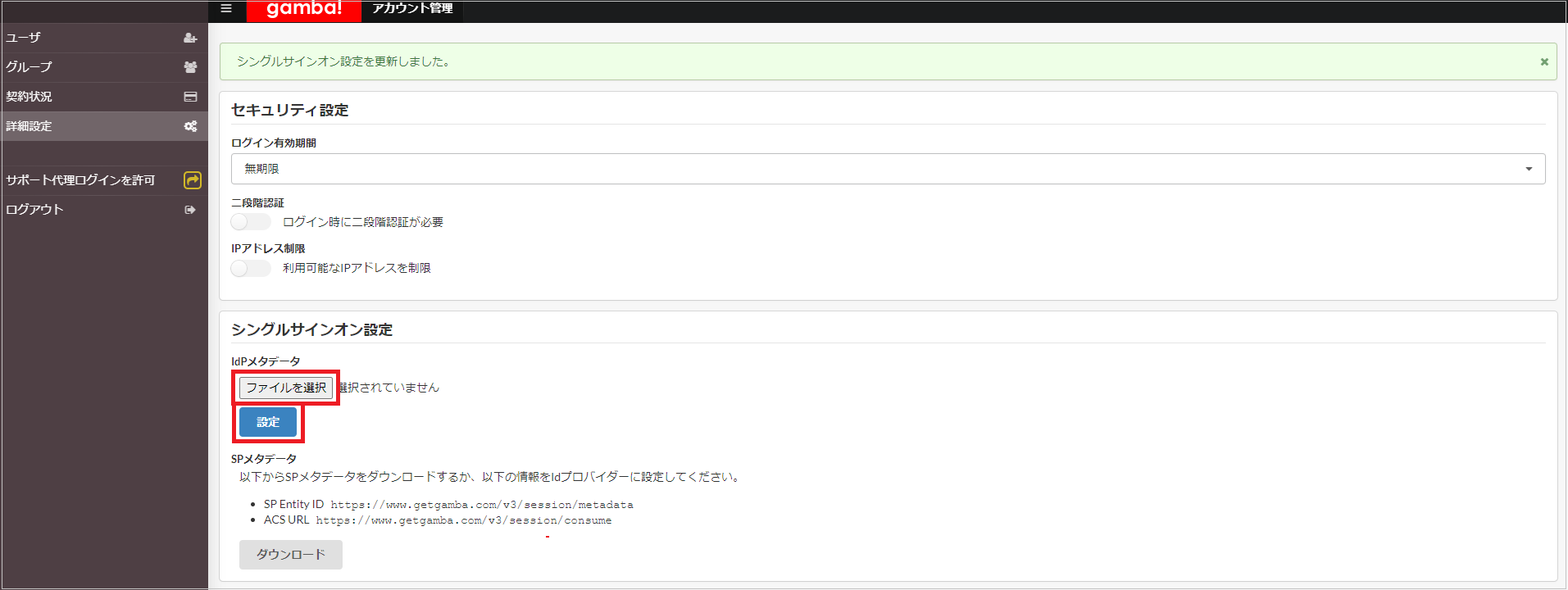

  4. In "Single Sign-On Settings," upload the metadata you downloaded from TrustLogin to "IdP Metadata," then click "Configure".
    Note: After you upload the metadata and click "Configure," single sign-on will be enabled and password-based login will no longer be possible. Please notify your users in advance before proceeding. gamba__07.png

TrustLogin User Configuration

① When a User Adds the App from My Page

  1. On "My Page," click the "Add App" button.
  2. On the "Register App" screen, select "gamba! (SAML)", then click the "Next" button in the upper right of the screen.
  3. If you want to change the "Display Name," enter it, then click the "Register" button.
  4. Click the app from "My Page" or the "Browser Extension" and check that login succeeds.

② When an Administrator Adds a Member

  1. In the "Admin Page > Apps" menu, search for and click the "gamba! (SAML)" app.
  2. Click "Add Member," select the user to add from the member list, then click the "Register" button to add them.
