Identity Provisioning Setup for Kisi

GMOトラスト・ログインチーム
  • Updated

This page describes the initial setup steps for using TrustLogin as the source of identity
to perform Identity Provisioning to Kisi.

Note: For detailed instructions on operating Kisi, please refer to the documentation provided by Kisi.

Item Details
Pre-check
  • Login with Kisi Organization Owner privileges is required.
  • SSO (SAML) settings must already be completed in advance.
Setup Flow / Manual

Note: After connecting TrustLogin and Kisi using the steps on this page,
　please proceed to configuring user synchronization.
Provisioning Target 〇 Supports user provisioning
〇 Supports group provisioning
SAML Authentication Setup Manual ー
Notes
  • None in particular

Setup Steps

Kisi Settings

  1. Log in to your Kisi organization account with Organization Owner privileges.

  2. From the left-hand menu, open "Settings" and then "SSO & SCIM".
    Note: The SCIM tab is only displayed if an SSO license is enabled.

  3. Turn on "Enable SCIM".

  4. Click "Generate Token" and copy the displayed token.
    Note: This token cannot be displayed again, so be sure to copy it on this screen.
    Note: A bug has been confirmed where generating a new token after configuring SSO can result in being unable to log in. If a token has already been issued, please use that existing token instead of generating a new one.


    This completes the preliminary preparation on the Kisi side. Next, configure the TrustLogin side.

TrustLogin Settings

  1. Log in to the TrustLogin Admin Page, and from the "Admin Page > Settings > Optional Features" menu,
    click "Settings" to the right of "Identity Provisioning" to open it.

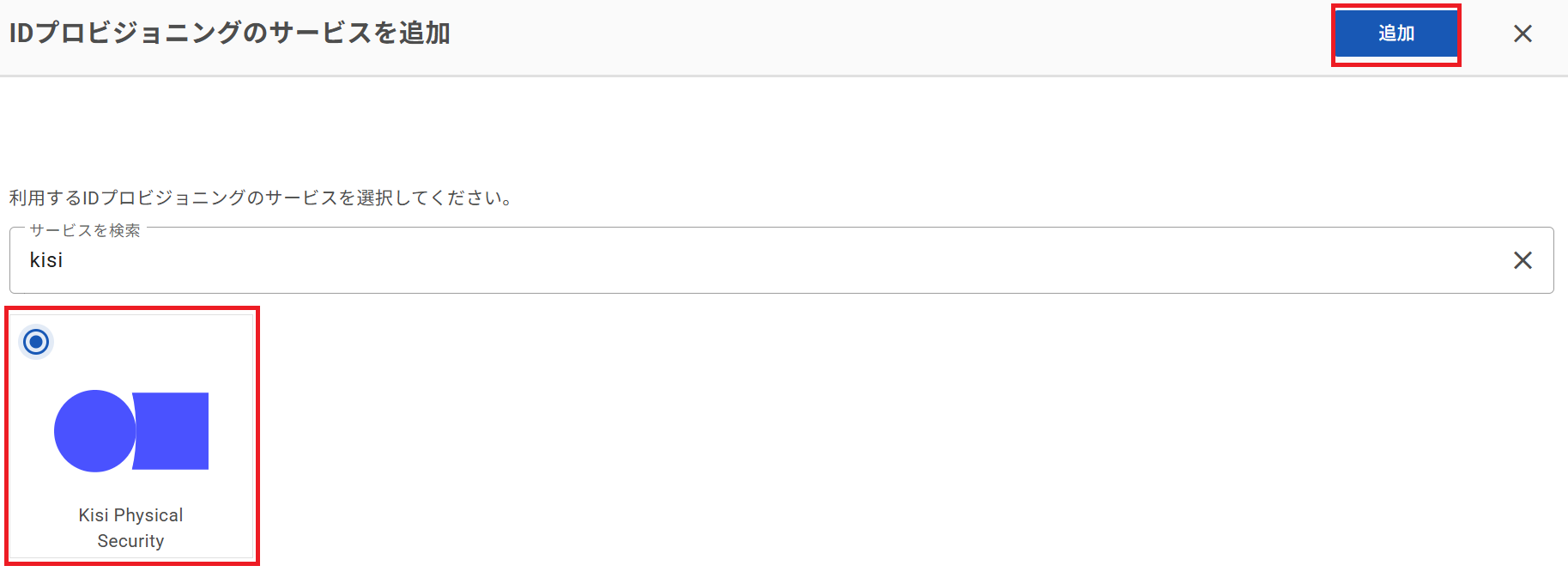

  2. Click "Add Service", enter "kisi" or similar in the search field, select "Kisi Physical Security", and click the "Add" button.

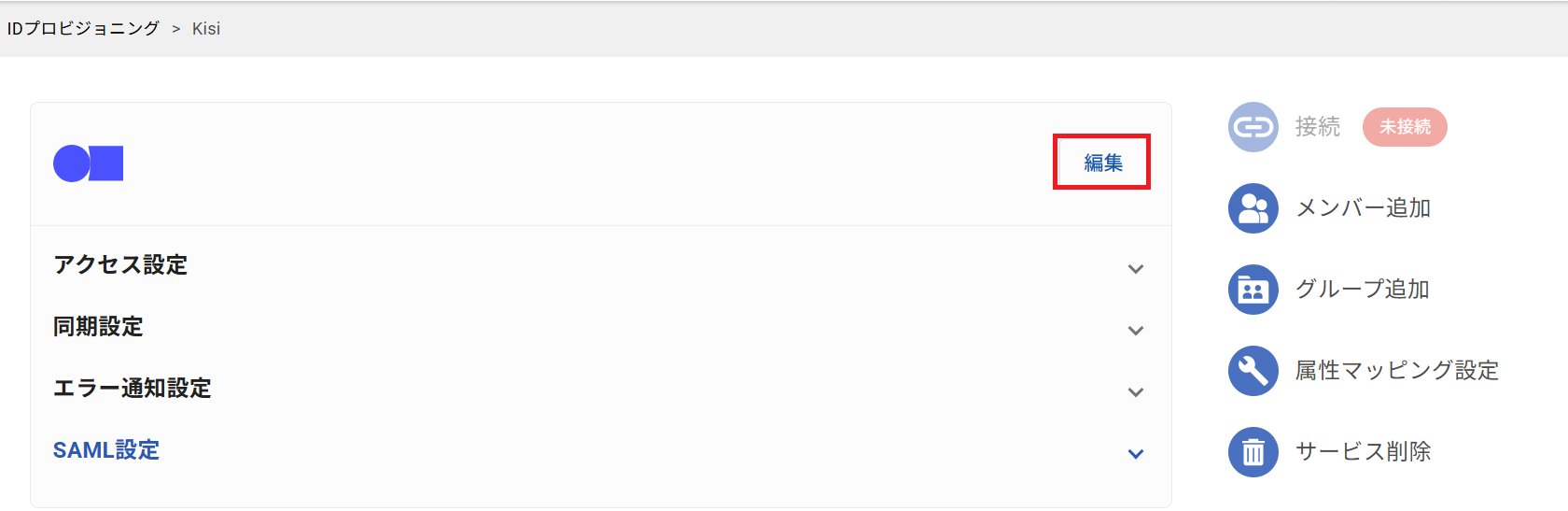

  3. You will be redirected to the "Identity Provisioning > Kisi" page.
    Click the "Edit" button.

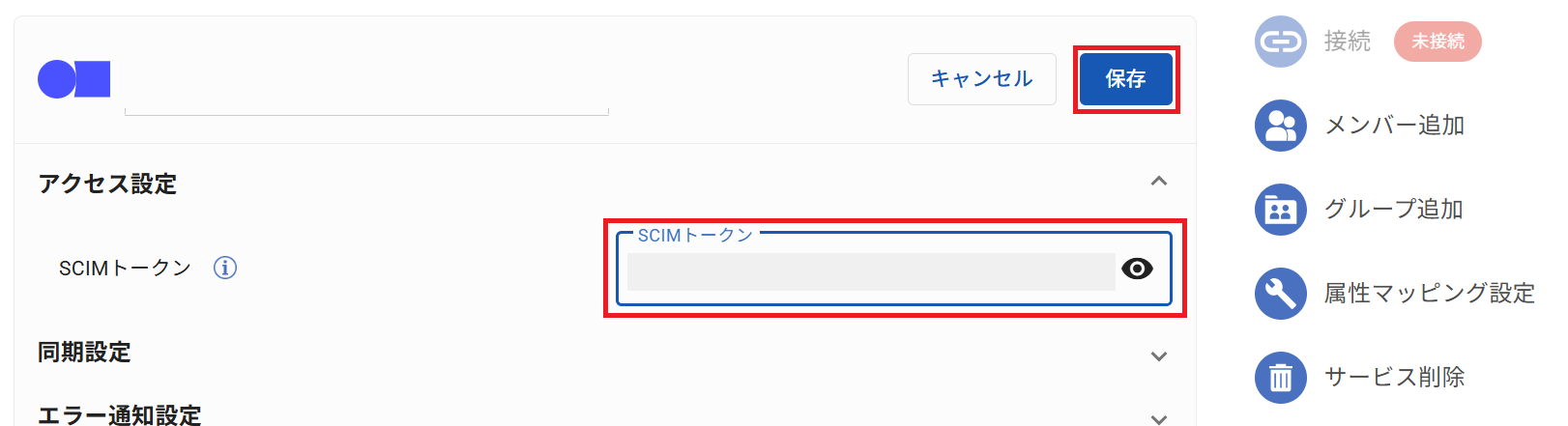

  4. Enter the following values in "Access Settings", and click the "Register" button.

    Access Token The value copied in step 4 of Kisi Settings


  5. Click the "Connect" button in the upper right of the screen.


  6. Once the button status updates to "Connected", the initial setup is complete.


Values You Can Configure in Attribute Mapping

You can link any attribute on the TrustLogin side with any attribute on the Kisi side.
For configuration instructions, see here

Available Default Functions

Next step: The manual for configuring user synchronization is available here
