Identity Provisioning Setup for miniOrange

GMOトラスト・ログインチーム
  • Updated

This page describes the initial setup procedure for provisioning identities to miniOrange
using TrustLogin as the identity source.

Note: For detailed operating instructions for miniOrange, please refer to the documentation provided by miniOrange.

Item Details
Pre-check
  • You must log in with miniOrange Administrator privileges.
  • SCIM configuration in miniOrange is required.
Setup Flow / Manual

Note: After connecting TrustLogin and miniOrange using the steps on this page,
　proceed to User Sync Settings.
Provisioning Target 〇 Supports user provisioning
〇 Supports group provisioning
SAML Authentication Setup Manual    ー
Notes
  • None in particular

Setup Steps

miniOrange Settings

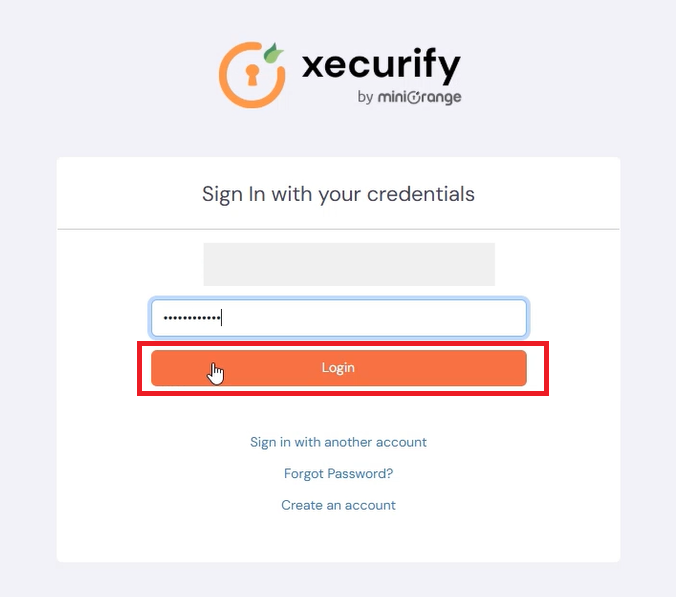

  1. Log in to miniOrange.

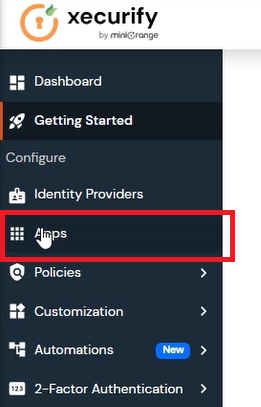

  2. Click "Apps" in the left-hand menu.

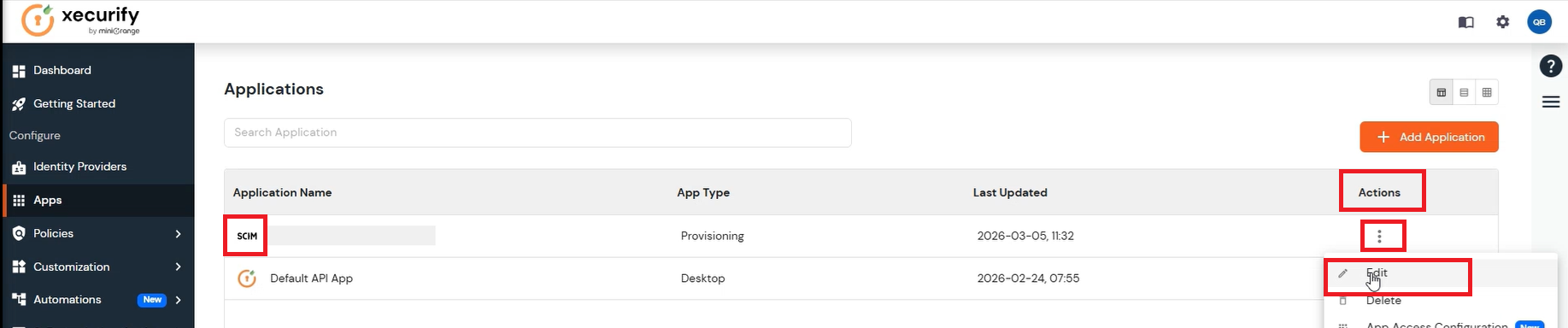

  3. From "Actions" for the already configured SCIM application, click "Edit".

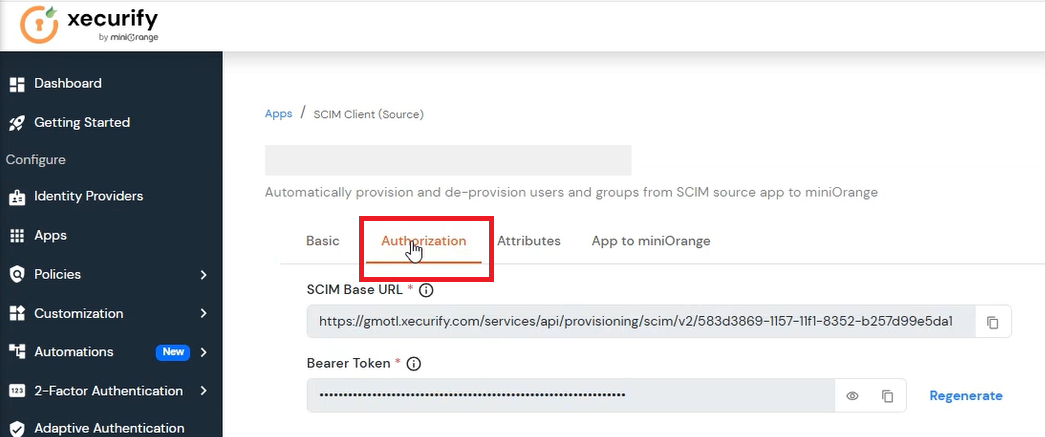

  4. Click the "Authorization" tab.


  5. The contents of the "Authorization" tab are displayed. Check the information for SCIM integration here.

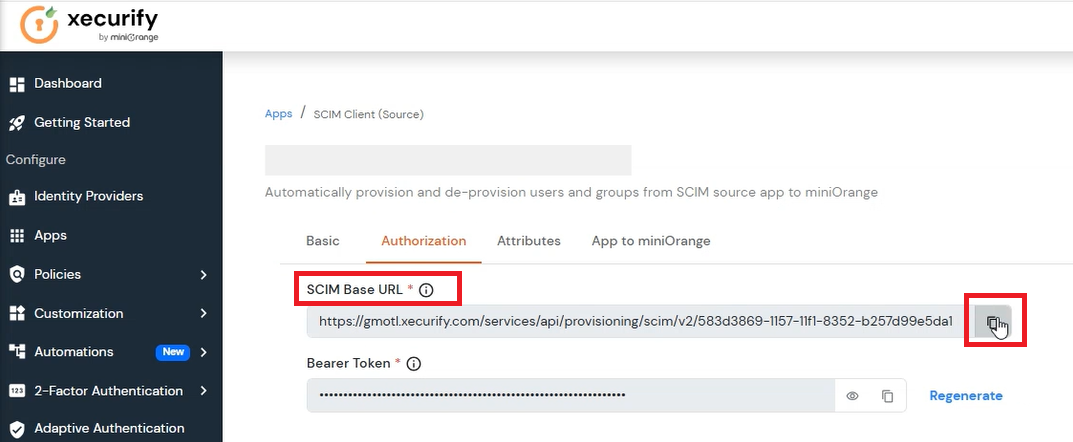

  6. Click the copy button for "SCIM Base URL" to copy it.

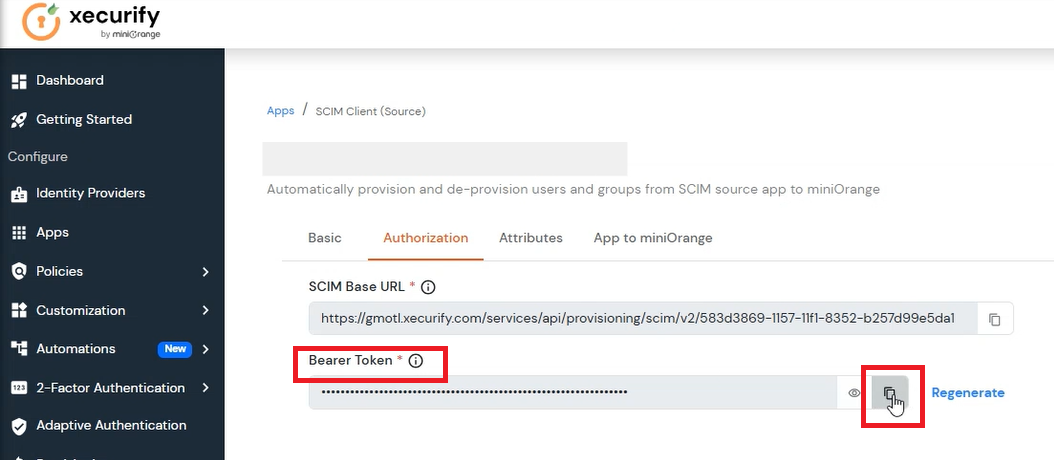

  7. Click the copy button for "Bearer Token" to copy it.
    Note: This token cannot be displayed again, so be sure to copy it on this screen.



    This completes the preliminary preparation on the miniOrange side. Next, configure the TrustLogin side.

TrustLogin Settings

  1. Log in to the TrustLogin Admin Page, and from the "Admin Page > Settings > Optional Features" menu,
    click "Settings" to the right of "Identity Provisioning" to open it.

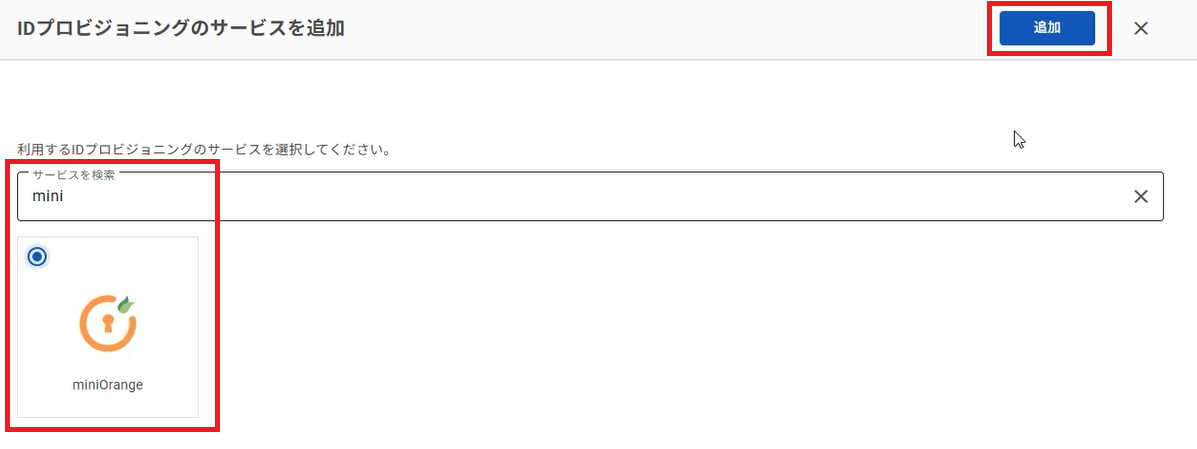

  2. Click "Add Service", enter "mini" or similar in the search field, select "miniOrange", and click the "Add" button.

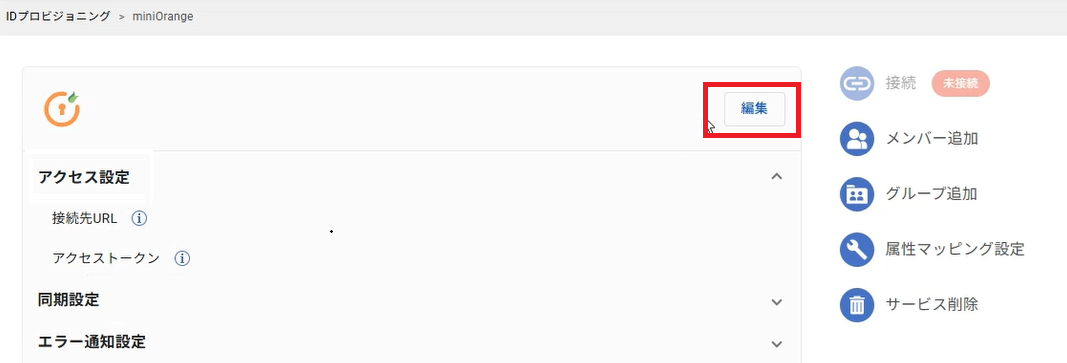

  3. You will be redirected to the "Identity Provisioning > miniOrange" page.
    Click the "Edit" button.

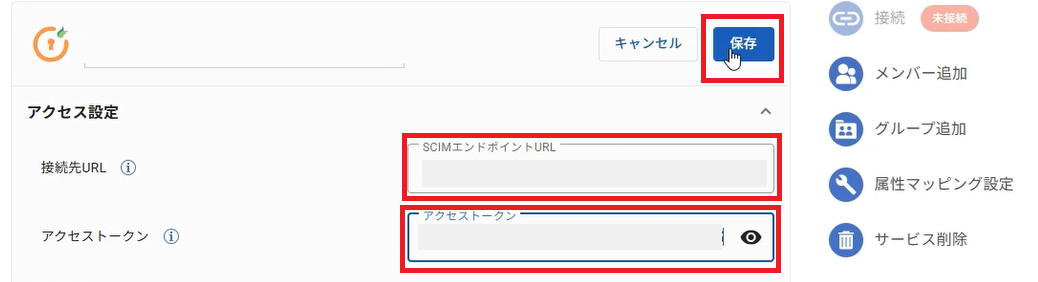

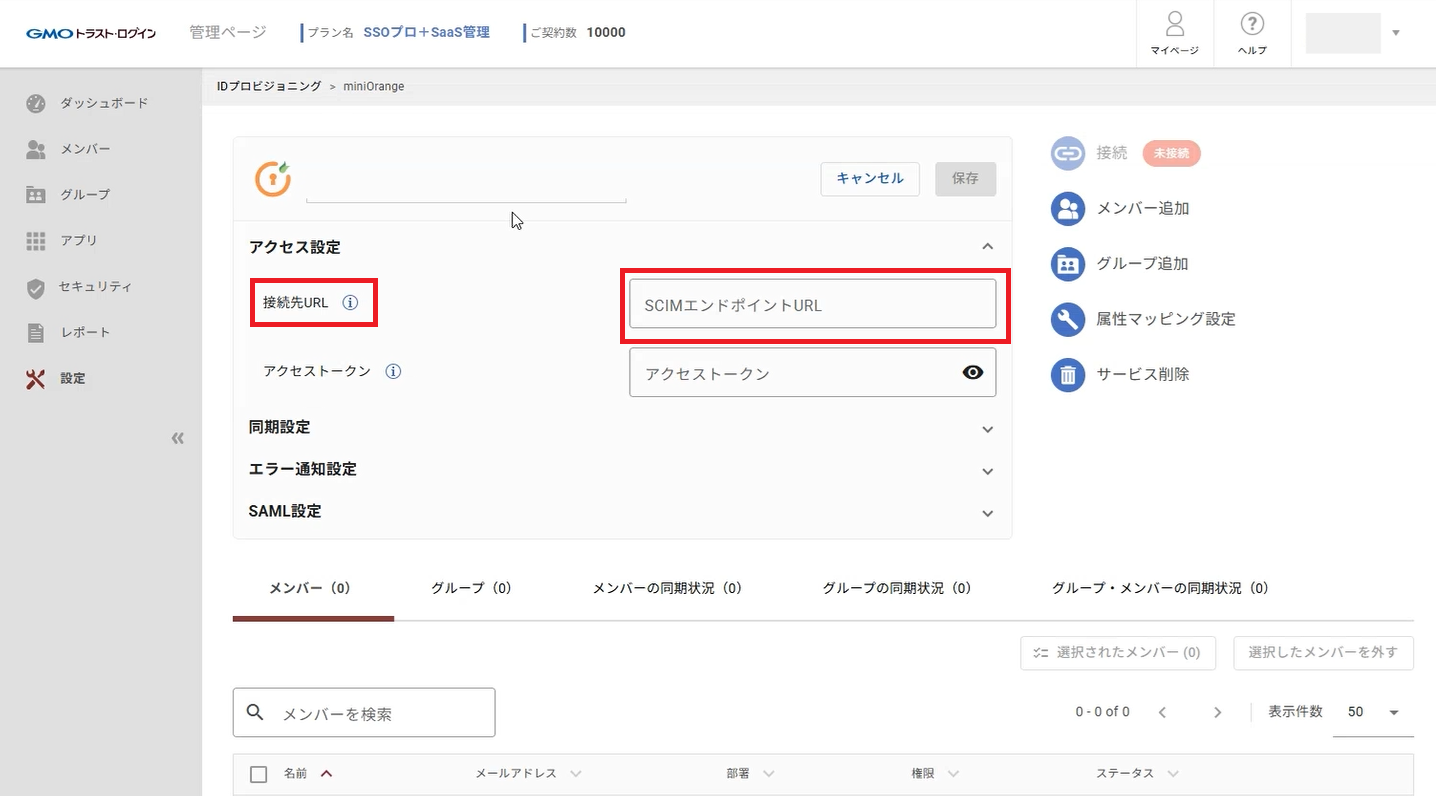

  4. Enter the following values in "Access Settings", and click the "Register" button.

    Connection URL The value of "SCIM Base URL" copied in Step 6 of miniOrange Settings
    Access Token The value of "Bearer Token" copied in Step 7 of miniOrange Settings

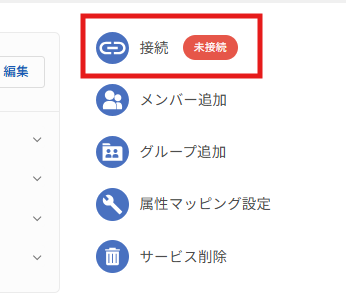

  5. Click the "Connect" button at the top right of the screen.

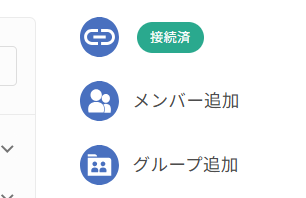

  6. Once the button status updates to "Connected", the initial setup is complete.


About Values Configurable in Attribute Mapping

You can link any attribute on the TrustLogin side with any attribute on the miniOrange side.
For configuration instructions, see here.

Available Default Functions

Next step: The manual for user sync settings is here
