Preparation

1. To use SSO login, you must set a "SAML Authentication Linked ID" for each user.

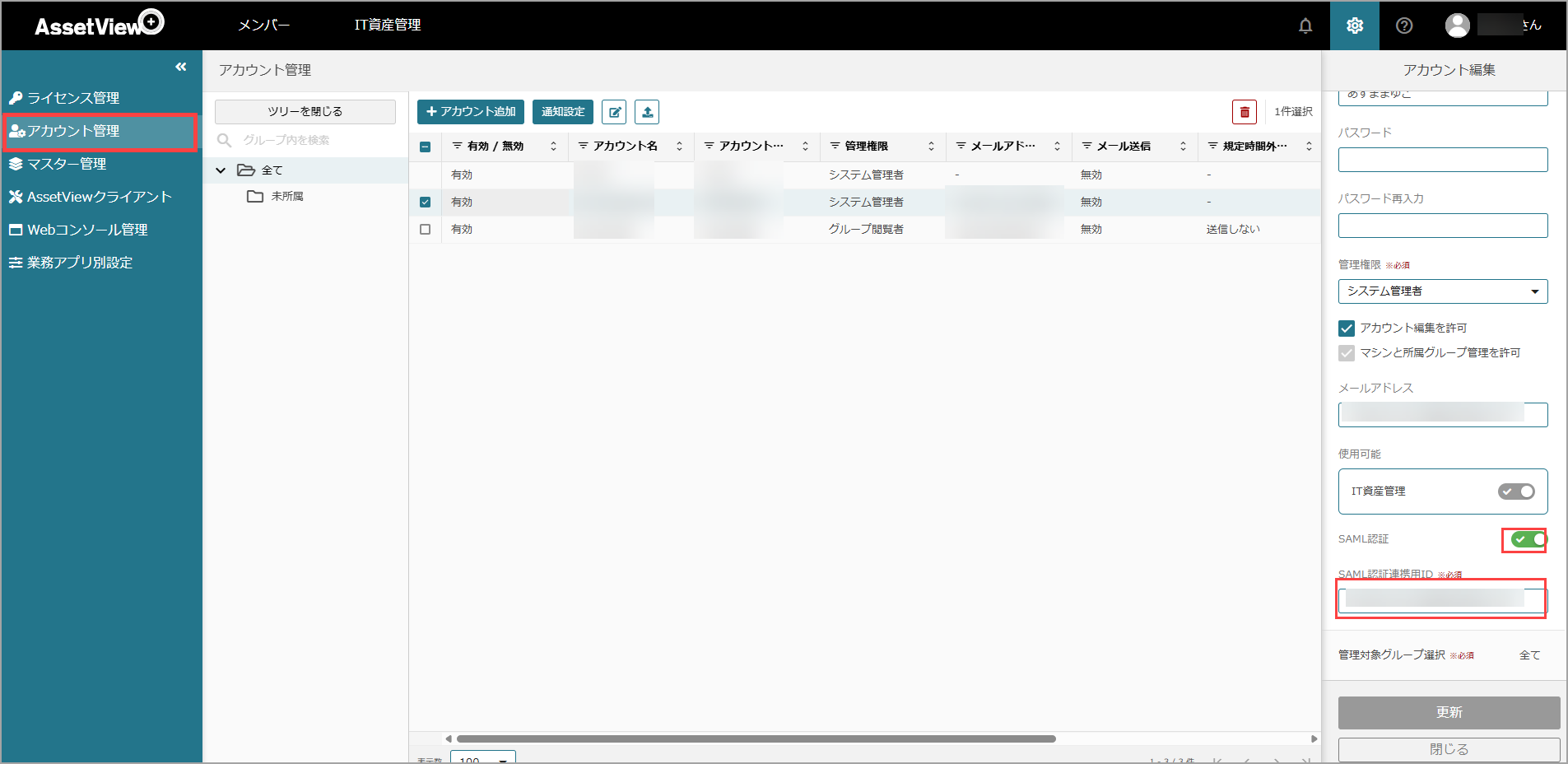

   From "Account Management" in AssetView Cloud+, select the user to whom SAML authentication will be applied, and click the edit button.
   Turn on the "SAML Authentication" toggle, and set the email address registered in TrustLogin as the "SAML Authentication Linked ID".
   Note: The "SAML Authentication Linked ID" can also be set when adding a new account.



TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button at the top right of the screen.

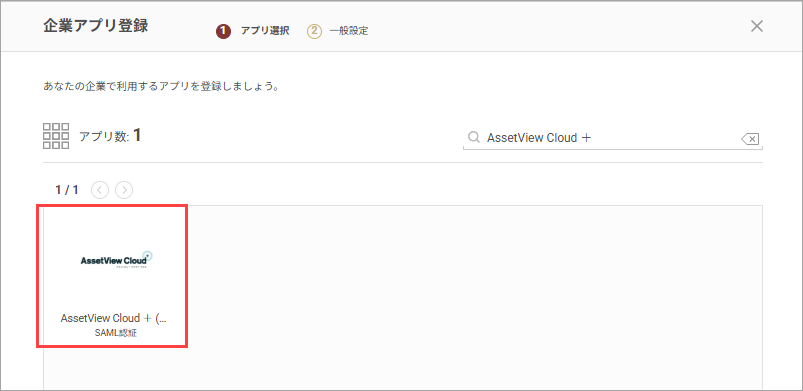

2. On the "Register Company App" screen, search and select "AssetView Cloud+ (SAML)".


3. Under "Identity Provider Information", note down the value of "Identity Provider URL", and download the certificate using the "Get Certificate" button.



4. Convert the file extension of the downloaded certificate to ".pem".


Now, switch to the settings on the AssetView Cloud+ side.
Do not click the "Register" button yet — open AssetView Cloud+ in a separate window.

AssetView Cloud+ Settings

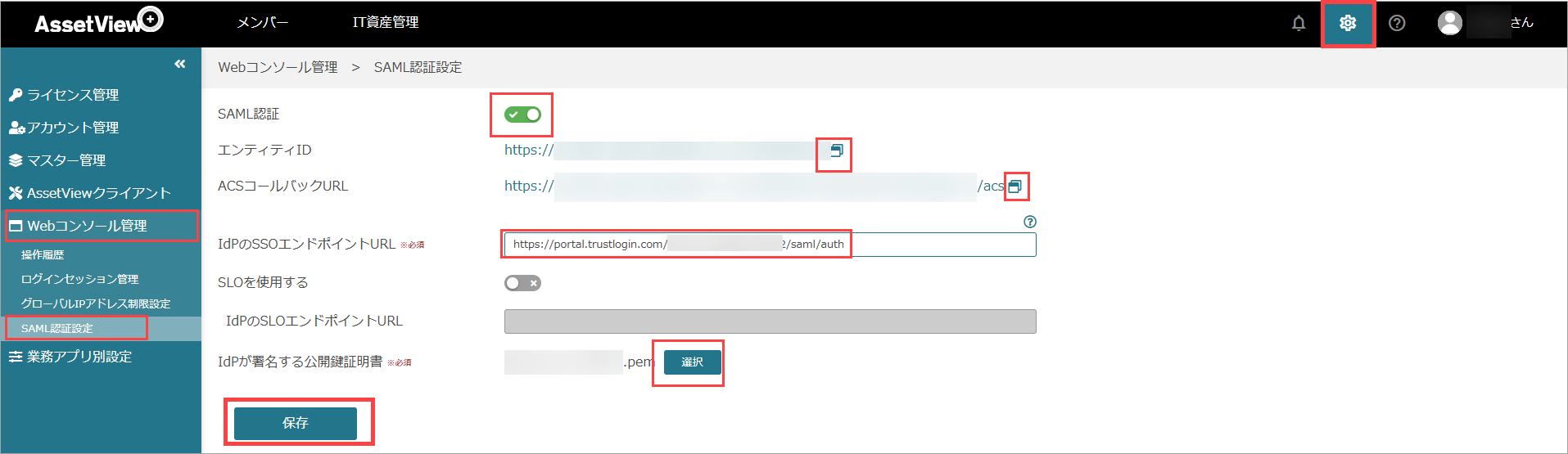

1. Log in to the AssetView Cloud+ web console and open "Settings > Web Console Management > SAML Authentication Settings".
   Configure the settings as shown below, then click "Save".
   Note: Once saved, SSO login will be applied to all users.

   SAML Authentication	Turn the toggle on
   Entity ID	Copy and note it down
   ACS Callback URL	Copy and note it down
   IdP SSO Endpoint URL	The "Identity Provider URL" noted down from TrustLogin
   Public Key Certificate Signed by IdP	Upload the "Certificate" noted down from TrustLogin Note: the one converted to .pem



Return to the TrustLogin Admin Page again.

TrustLogin Admin Page Settings (Continued)

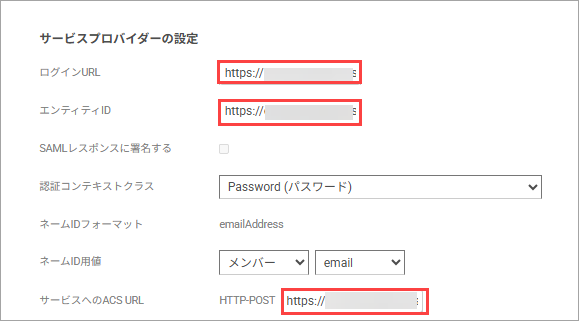

1. Configure "Service Provider Settings" as follows.

   Login URL	The "Entity ID" noted down from AssetView Cloud+
   Entity ID	The "Entity ID" noted down from AssetView Cloud+
   ACS URL for the Service	The "ACS Callback URL" noted down from AssetView Cloud+





2. Save by clicking the "Register" button.

TrustLogin User Settings

① When a User Adds the App via My Page

Note: The SAML app must be configured by the administrator in advance.

1. On "My Page", click the "Add App" button.
2. On the "Register App" screen, select "AssetView Cloud+ (SAML)" and click the "Next" button at the top right of the screen.
3. If you want to change the "Display Name", enter it, then click the "Register" button.

② When an Administrator Adds Members

1. In the "Admin Page > App" menu, search for and click the "AssetView Cloud+ (SAML)" app.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
