This page explains the initial setup steps for provisioning identities to Trio,
using TrustLogin as the identity source.
Note: For detailed instructions on using Trio, please refer to the documentation provided by Trio.
| Item | Details | |
| Pre-check |
|
|
| Setup Flow / Manual |
Note: After connecting TrustLogin and Trio using the steps on this page, |
|
| Provisioning Target | 〇 | Supports user provisioning |
| 〇 | Supports group provisioning | |
| SAML Authentication Setup Manual | ー | |
| Remarks |
|
|
Setup Steps
Trio-side Configuration
-

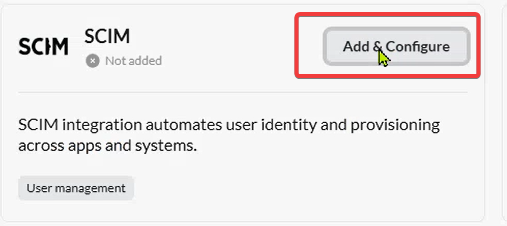

After logging in to Trio, open the "User Management" screen and click "Add & Configure" next to "SCIM".
-

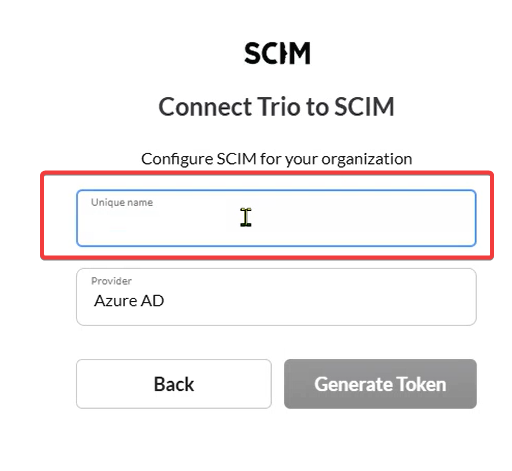

Enter any identifier name in the "Unique name" field.
-

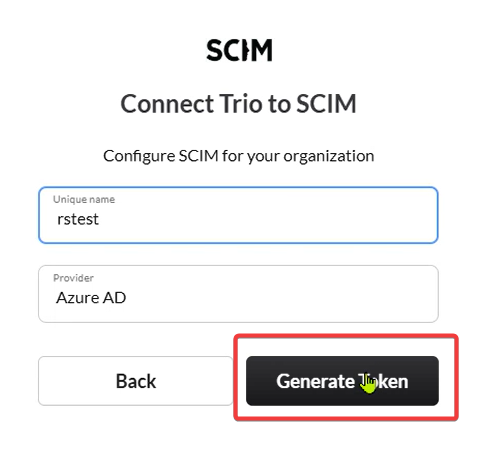

Click "Generate Token".
-

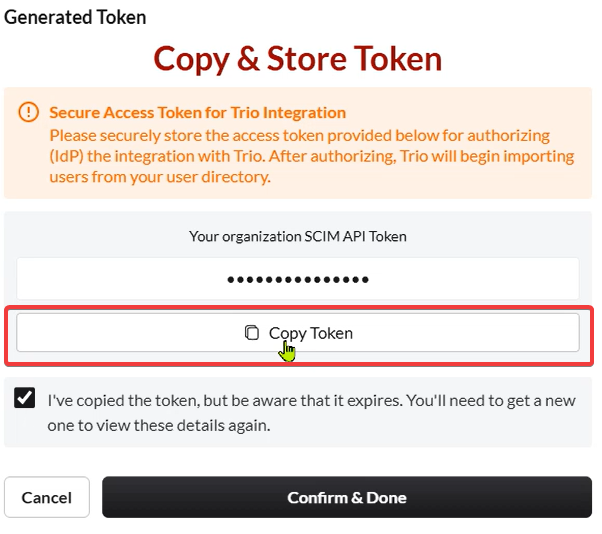

Click "Copy Token" to copy the displayed "Your organization SCIM API Token" value.
Note: This token cannot be displayed again, so be sure to copy it on this screen. -

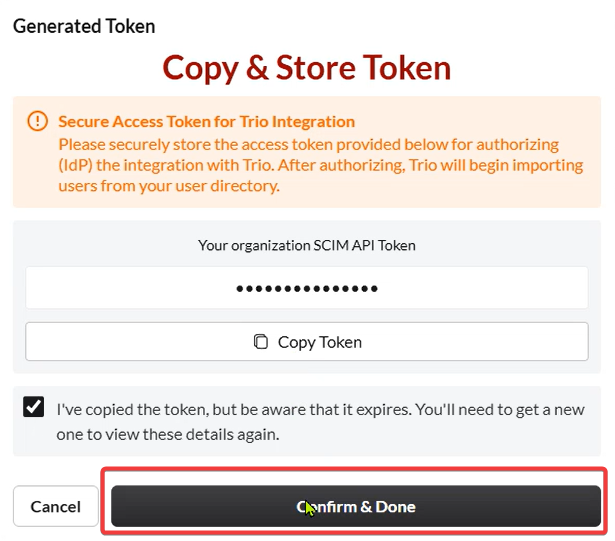

Check the box for the notice, then click "Confirm & Done".
-

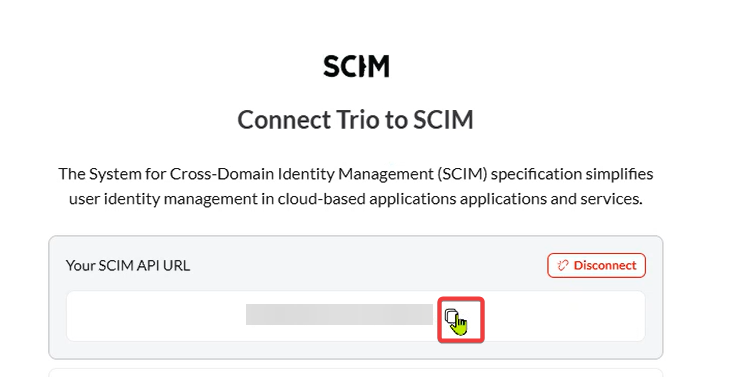

Copy the value of "Your SCIM API URL".
This completes the preliminary setup on the Trio side. Next, configure the TrustLogin side.
TrustLogin-side Configuration
Log in to the TrustLogin Admin Page, and from the "Admin Page > Settings > Optional Features" menu,
click "Settings" to the right of "Identity Provisioning" to open it.

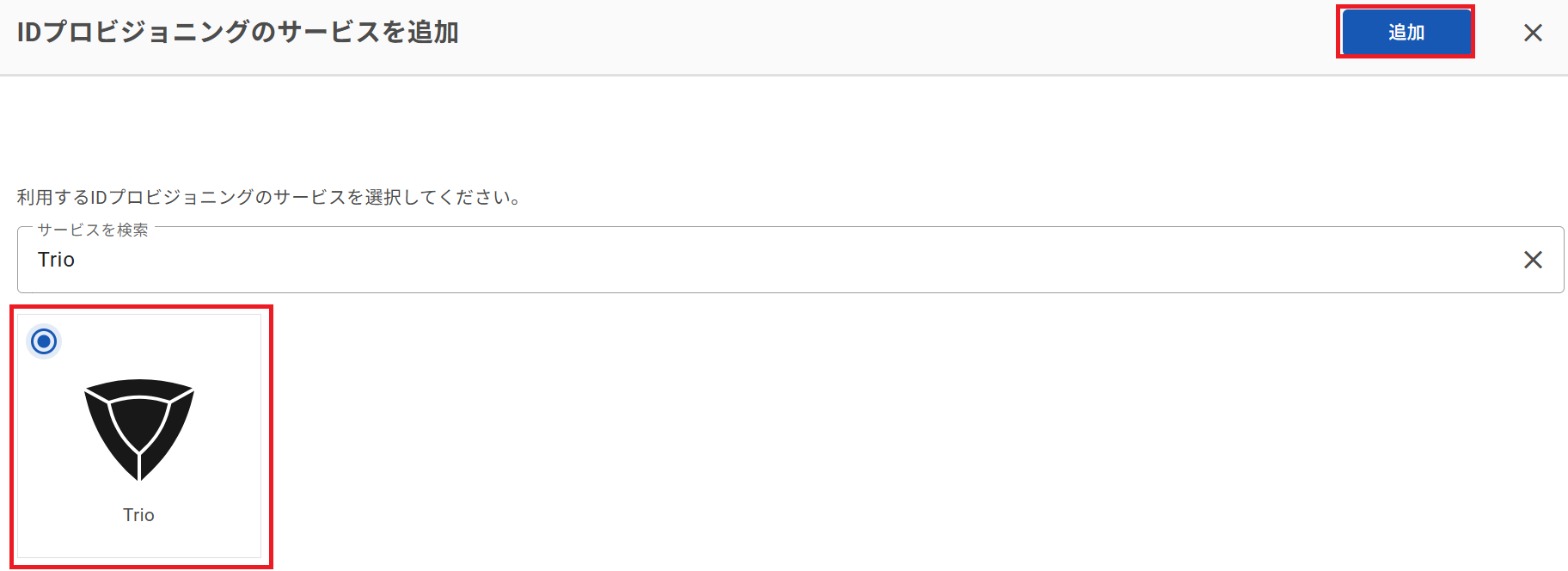

Click "Add Service," enter "Trio" or similar in the search field, select "Trio," and click the "Add" button.
-
You will be redirected to the "Identity Provisioning > Trio" page.

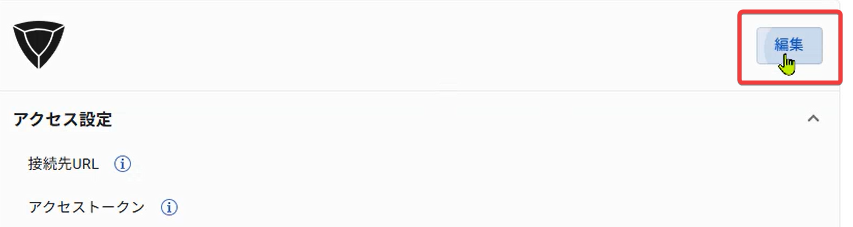

Click the "Edit" button. -

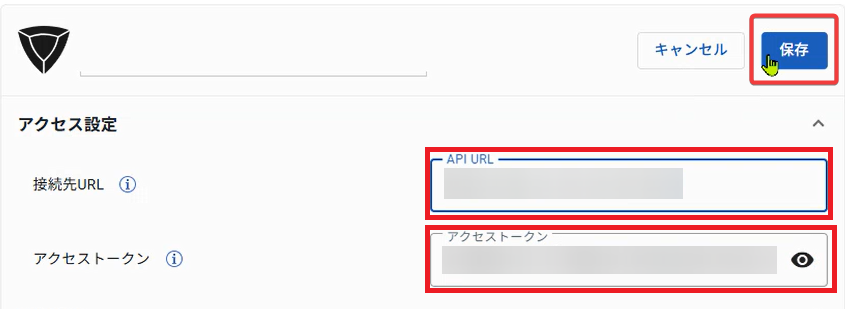

Enter the following values in "Access Settings" and click the "Register" button.
Connection URL The value of "Your SCIM API URL" copied in step 6 of Trio-side Configuration Access Token The value of "Your organization SCIM API Token" copied in step 4 of Trio-side Configuration -
Click the "Connect" button at the top right of the screen.
-
Once the button status updates to "Connected," the initial setup is complete.
About Values Configurable in Attribute Mapping
You can link any attribute on the TrustLogin side with any attribute on the Trio side.
For configuration instructions, see here
Available Default Functions
-
You can specify the Common Default Functions for Services.
Next step: The manual for User Sync Settings is here
