Identity Provisioning Setup for FireHydrant

GMOトラスト・ログインチーム
  • Updated

This page explains the initial setup steps for provisioning identities to FireHydrant,
using TrustLogin as the identity source.

Note: For detailed instructions on using FireHydrant, please refer to the documentation provided by FireHydrant.

Item Details
Pre-check
  • Login with FireHydrant Owner privileges is required.
Setup Flow / Manual

Note: After connecting TrustLogin and FireHydrant using the steps on this page,
　proceed to User Sync Settings.
Provisioning Target 〇 Supports user provisioning
ー Does not support group provisioning
SAML Authentication Setup Manual ー
Remarks
  • None in particular

Setup Steps

FireHydrant-side Configuration

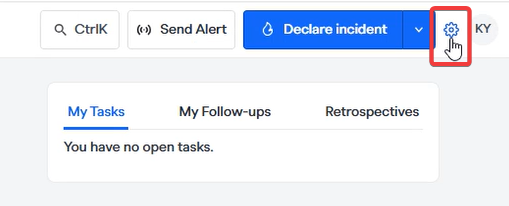

  1. After logging in to FireHydrant, click the settings icon next to the profile icon.


  2. Scroll down to the "Integrations" section and click "API Keys".


  3. Click "Create API key".

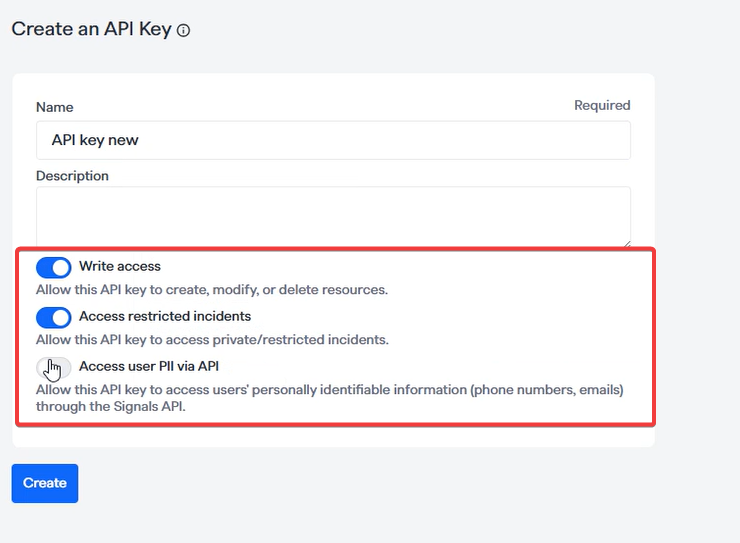

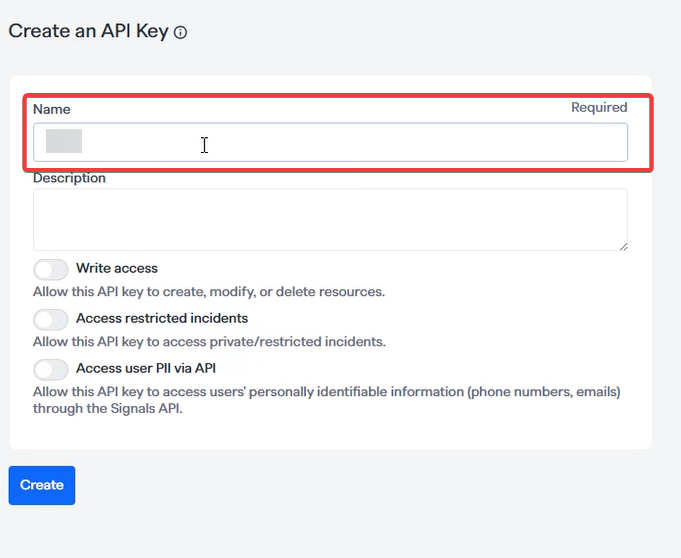

  4. Enter a "Name" and enable all the necessary permissions.

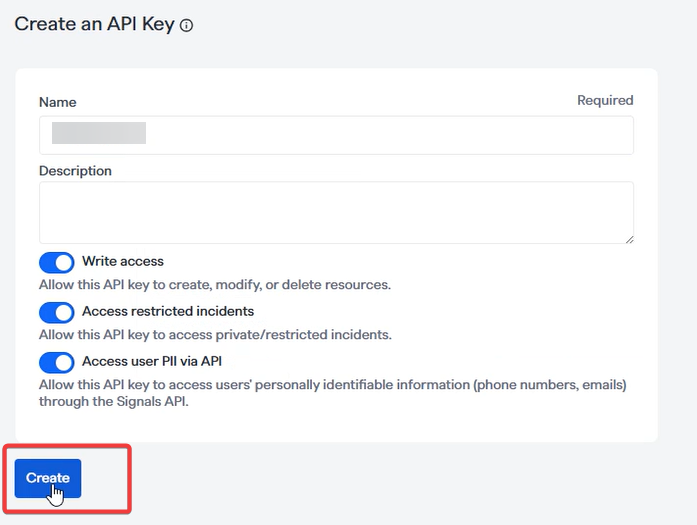

  5. Click "Create".

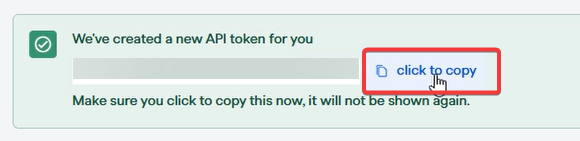

  6. Copy the generated token.
    Note: This token cannot be displayed again, so be sure to copy it on this screen.



    This completes the preliminary setup on the FireHydrant side. Next, configure the TrustLogin side.

TrustLogin-side Configuration

  1. Log in to the TrustLogin Admin Page, and from the "Admin Page > Settings > Optional Features" menu,
    click "Settings" to the right of "Identity Provisioning" to open it.

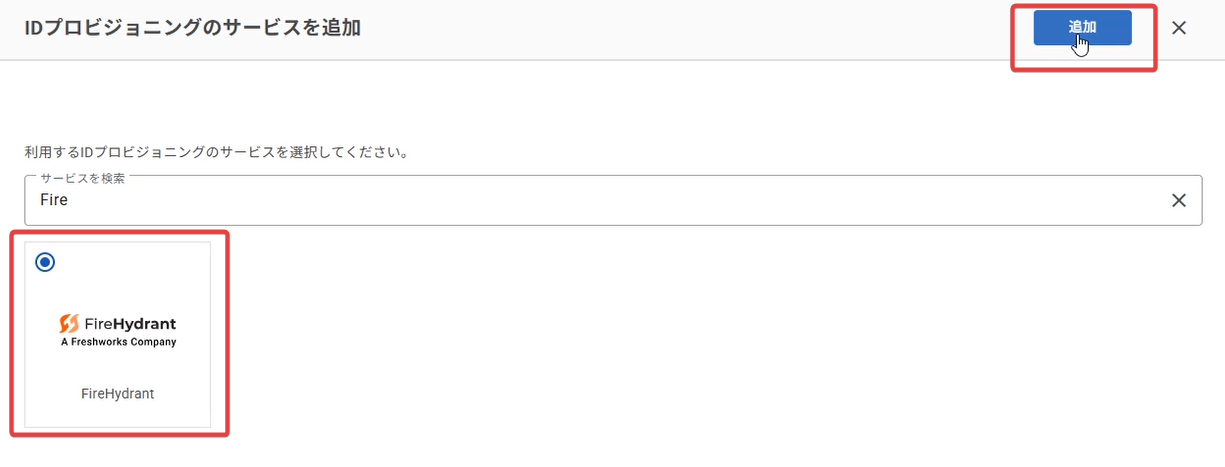

  2. Click "Add Service," enter "Fire" or similar in the search field, select "FireHydrant," and click the "Add" button.

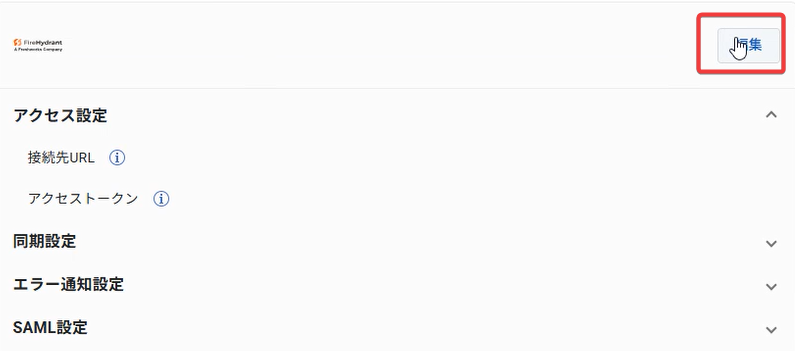

  3. You will be redirected to the "Identity Provisioning > FireHydrant" page.
    Click the "Edit" button.

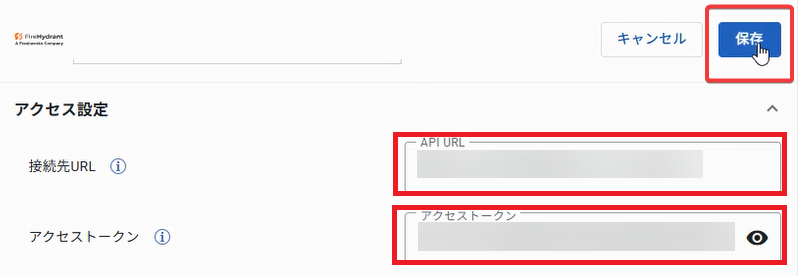

  4. Enter the following values in "Access Settings" and click the "Register" button.

    Connection URL Enter one of the following depending on your region of use
    US: https://api.firehydrant.io/v1/scim/v2
    EU: https://api.eu.firehydrant.io/v1/scim/v2
    Access Token The value copied in step 6 of FireHydrant-side Configuration


  5. Click the "Connect" button at the top right of the screen.


  6. Once the button status updates to "Connected," the initial setup is complete.


About Values Configurable in Attribute Mapping

You can link any attribute on the TrustLogin side with any attribute on the FireHydrant side.
For configuration instructions, see here

Available Default Functions

Next step: The manual for User Sync Settings is here
