Identity Provisioning Setup for CloudRepo

GMOトラスト・ログインチーム
  • Updated

This page describes the initial setup procedure for provisioning identities to CloudRepo
using TrustLogin as the identity source.

Note: For detailed operating instructions for CloudRepo, please refer to the documentation provided by CloudRepo.

Item Details
Pre-check
  • You must log in with CloudRepo Super Admin privileges.
  • SAML integration (SSO) or domain authentication must already be configured on the TrustLogin side.
Setup Flow / Manual

Note: After connecting TrustLogin and CloudRepo using the steps on this page,
　proceed to User Sync Settings.
Provisioning Target 〇 Supports user provisioning
ー Does not support group provisioning
SAML Authentication Setup Manual ー
Notes
  • Member name updates are reflected via the API but are not displayed in the CloudRepo service UI.
  • Status updates are supported.

Setup Steps

CloudRepo Settings

  1. After logging in to CloudRepo, click "Settings" in the left-hand menu.

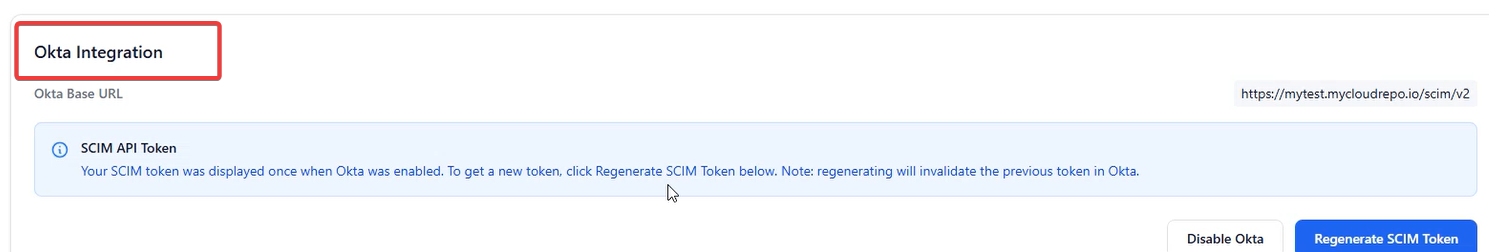

  2. The settings section for SCIM integration is displayed. Check the SCIM integration information here.

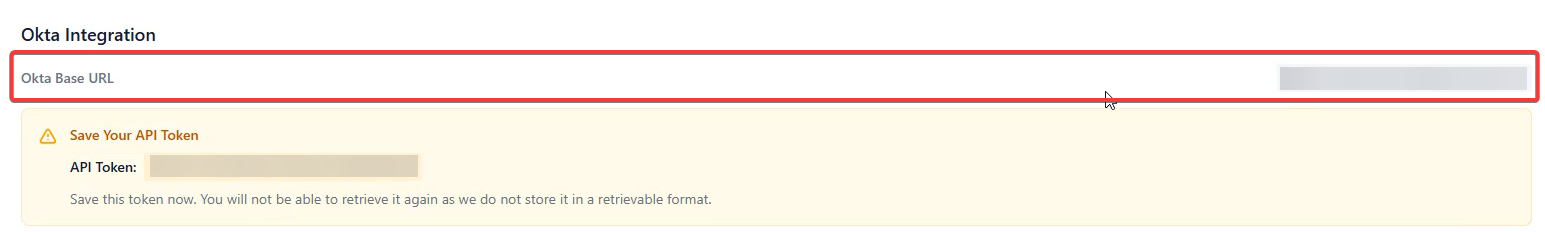

  3. Copy the value of the "Base URL".

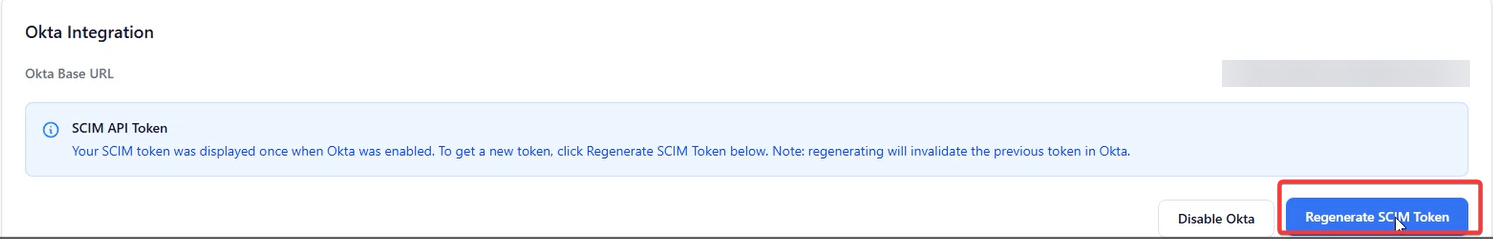

  4. Click the "Regenerate SCIM Token" button.
    Note: If a token has already been issued, please note that regenerating it will invalidate the old token.

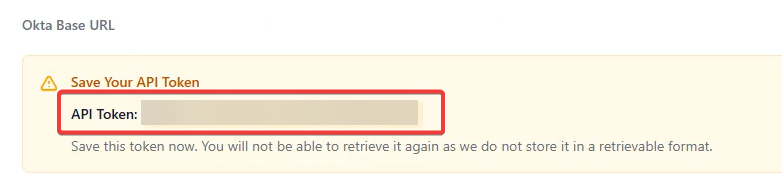

  5. The "API Token" is displayed, so copy and save it.
    Note: This token cannot be displayed again, so be sure to copy it on this screen.



    This completes the preliminary preparation on the CloudRepo side. Next, configure the settings on the TrustLogin side.

TrustLogin Settings

  1. Log in to the TrustLogin Admin Page, and from the "Admin Page > Settings > Optional Features" menu,
    click "Settings" to the right of "Identity Provisioning" to open it.

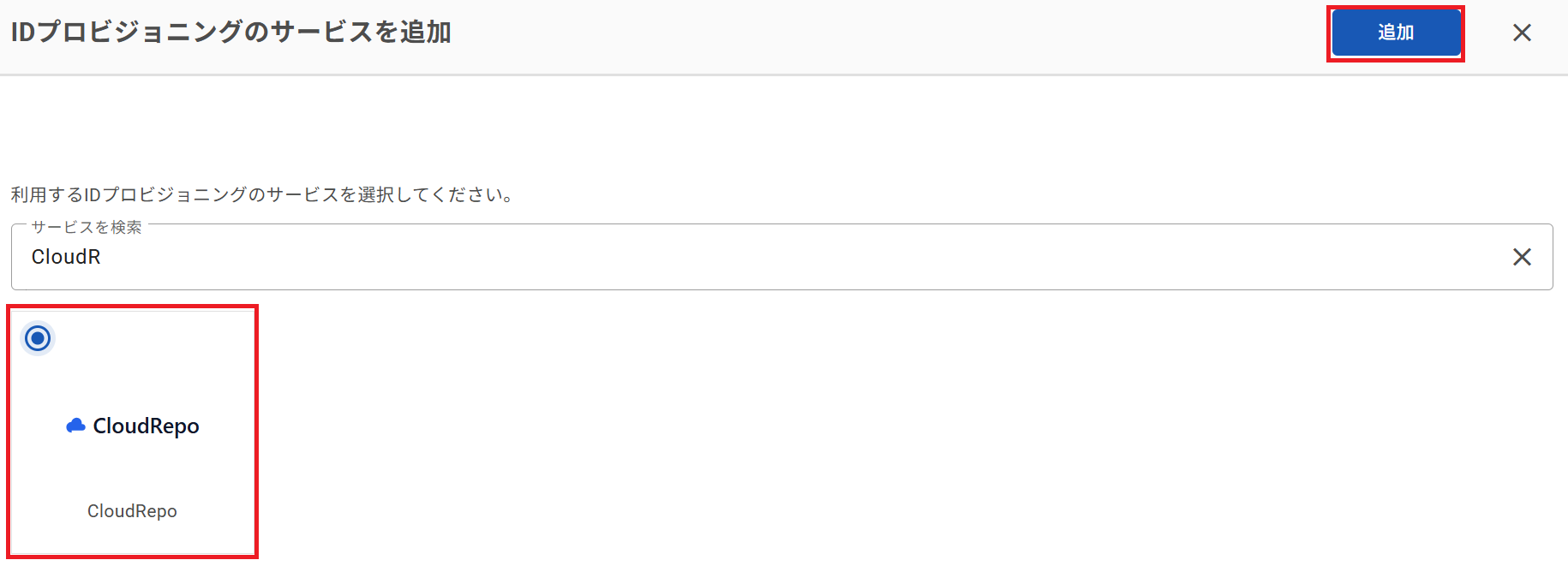

  2. Click "Add Service", enter something like "CloudR" in the search field to select "CloudRepo", and click the "Add" button.

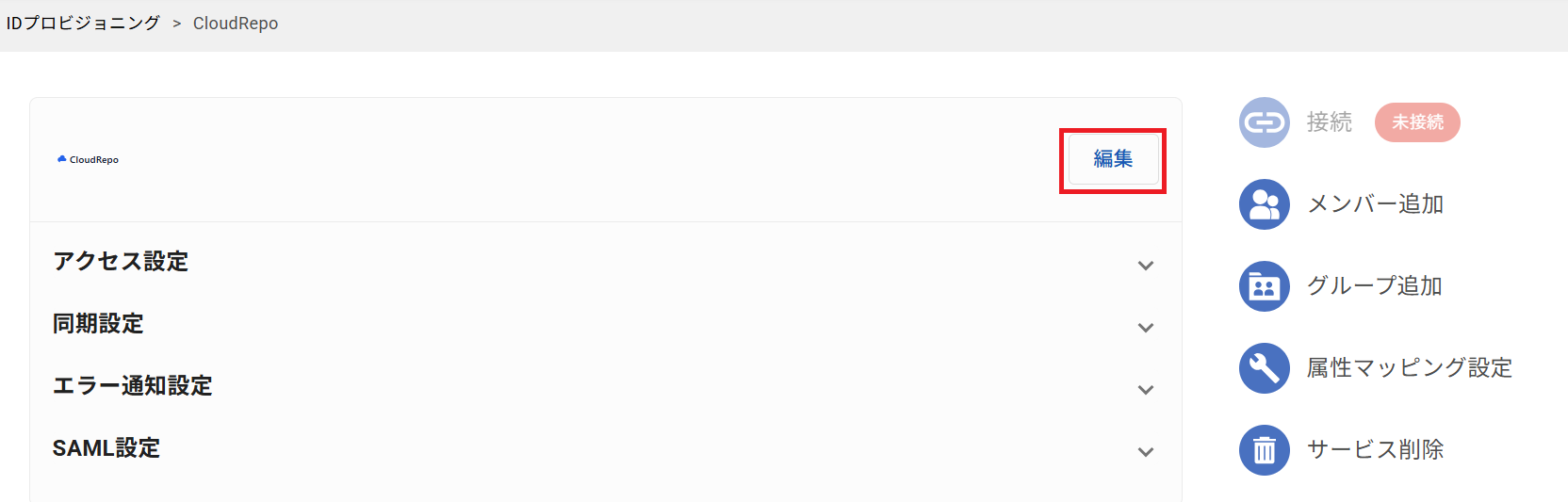

  3. You will be redirected to the "Identity Provisioning > CloudRepo" page.
    Click the "Edit" button.

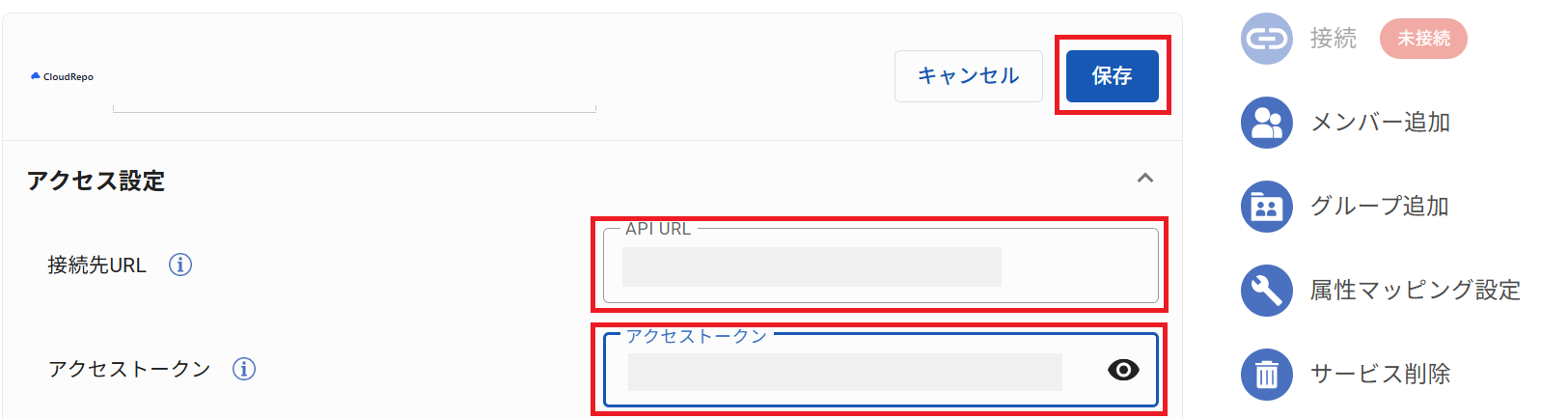

  4. Click "Access Settings" to expand it, enter the following values in the settings fields, and click the "Register" button.

    Connection URL The value of the "Base URL" copied in Step 3 of CloudRepo Settings
    Access Token The value of the "API Token" copied in Step 5 of CloudRepo Settings


  5. Click the "Connect" button at the top right of the screen.


  6. Once the button status updates to "Connected", the initial setup is complete.


About Values Configurable in Attribute Mapping

You can link any attribute on the TrustLogin side with any attribute on the CloudRepo side.
For configuration instructions, see here

Available Default Functions

Next step: The manual for user sync settings is here
