Identity Provisioning Setup for JFrog

GMOトラスト・ログインチーム
  • Updated

This page describes the initial setup procedure for Identity Provisioning to JFrog, using TrustLogin as the source of identity information.

Note: For detailed instructions on operating JFrog, please refer to the documentation provided by JFrog.

Item Details
Prerequisites
  • JFrog Admin privileges are required.
  • A plan that supports SCIM functionality (Enterprise or higher) is required.
Setup Flow & Manuals

Note: After connecting TrustLogin and JFrog using the steps on this page,
　please proceed to User Synchronization Settings.
Provisioning Targets 〇 Supports user provisioning
〇 Supports group provisioning
SAML Authentication Setup Manual    ー
Remarks
  • None in particular

Setup Procedure

Settings on the JFrog Side

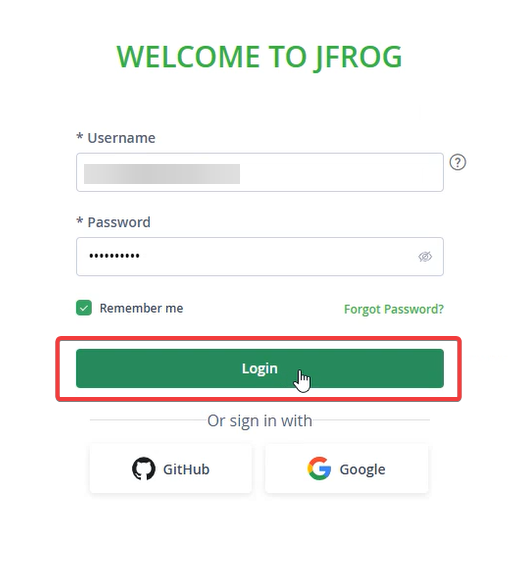

  1. Log in to JFrog with administrator privileges.


  2. Click "Administration."


  3. Click "Authentication" > "SCIM."

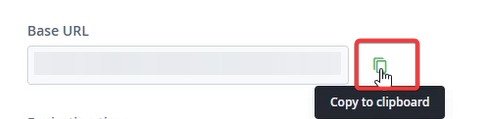

  4. Copy the "Base URL" to your clipboard.

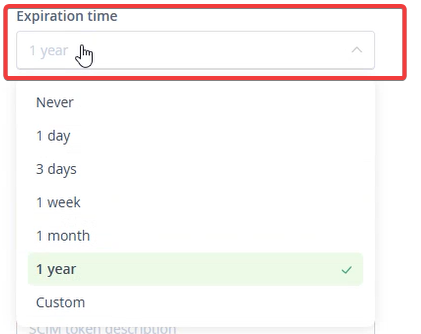

  5. Select the token’s expiration time.


  6. Click "Generate Token."


  7. Copy the generated token to your clipboard.
    Note: Once you close this screen, you will not be able to view the token again. Please make sure to copy it before proceeding.



    This completes the preparation on the JFrog side. Next, configure the settings on the TrustLogin side.

Settings on the TrustLogin Side

  1. Log in to the TrustLogin Admin Page, then from the "Admin Page > Settings > Optional Features" menu,
    click "Settings" to the right of "Identity Provisioning" to open it.

  2. Click "Add Service."

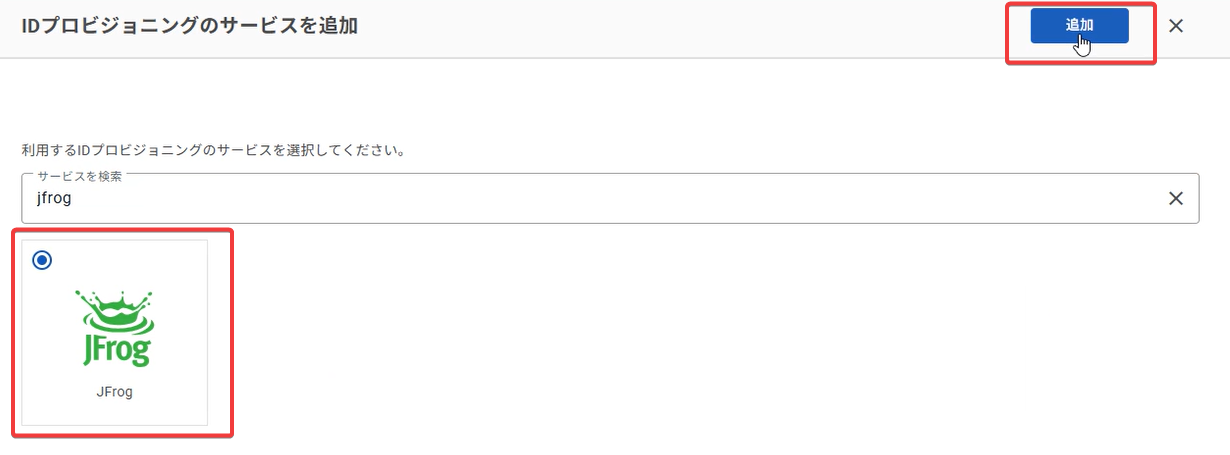

  3. On the Add Service screen, search for and select "JFrog," then click the "Add" button.

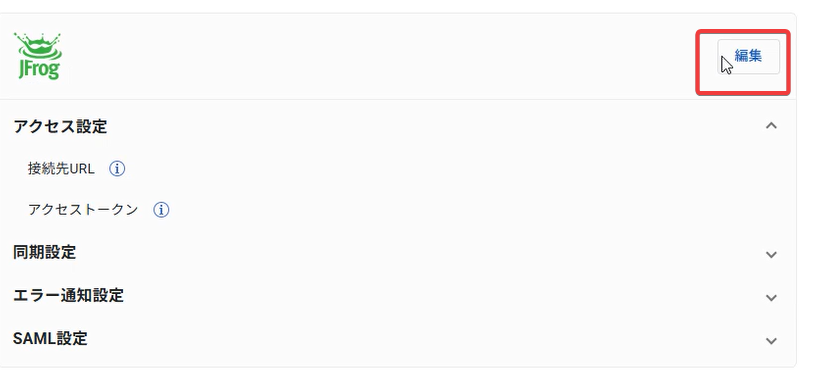

  4. You will be redirected to the "Identity Provisioning > JFrog" page.
    Click the "Edit" button.


  5. Click "Access Settings" to expand it, and enter the following values into the configuration fields.

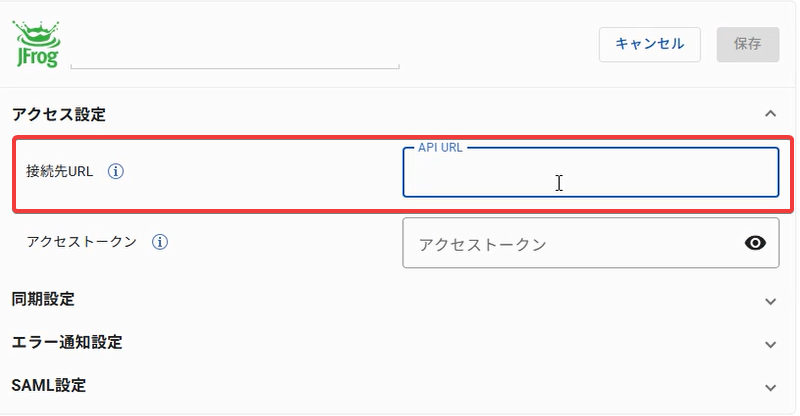

    Connection URL The value of "Base URL" copied in step 4 of Settings on the JFrog Side

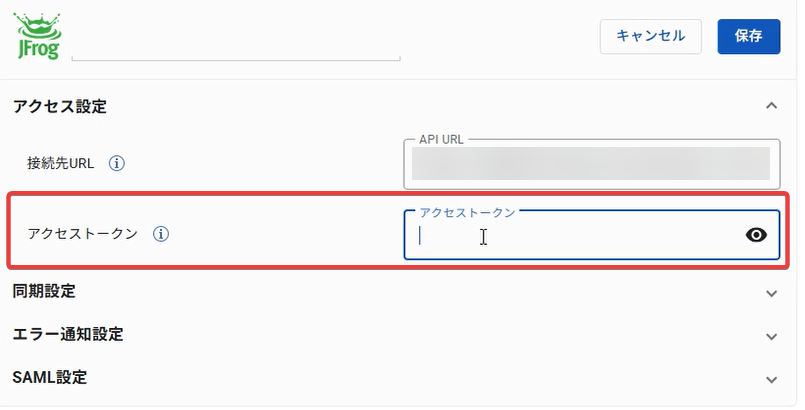

    Access Token The value of "Token" copied in step 7 of Settings on the JFrog Side

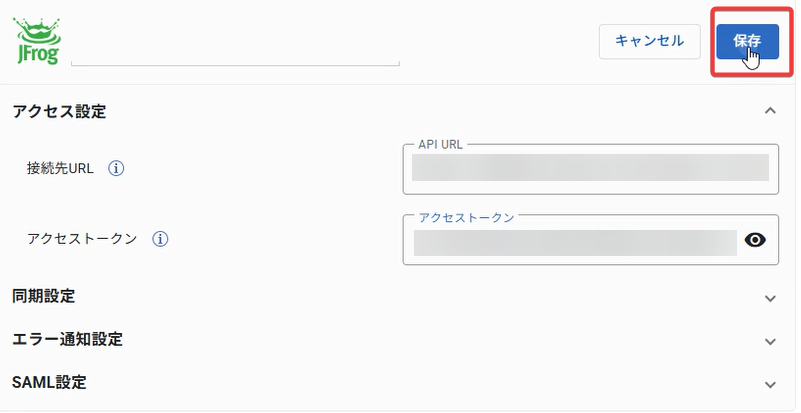

  6. Click "Register." When "Settings have been saved" is displayed, the registration is complete.



  7. Click the "Connect" button at the top right of the screen.

  8. Once the button status updates to "Connected," the initial setup is complete.

Next step: The manual for user synchronization settings is here

Values That Can Be Configured in Attribute Mapping

You can link any attribute on the TrustLogin side to any attribute on the JFrog side.
For setup instructions, see here

Available Built-in Functions
