Prerequisites

Create Groups and Assign Members

Note: If synchronization between Sigma teams and TrustLogin groups is not needed, this setting is not required. Proceed to the next item.

Create groups in TrustLogin to map to Sigma teams, and assign members. The team names in Sigma and the group names in TrustLogin must match.

For how to create groups and assign members, please refer to the following page.
Register a Group

[Example Configuration]

If the team names in Sigma are "Team1" "Team2", create groups with the same names "Team1" "Team2" in TrustLogin and assign members.

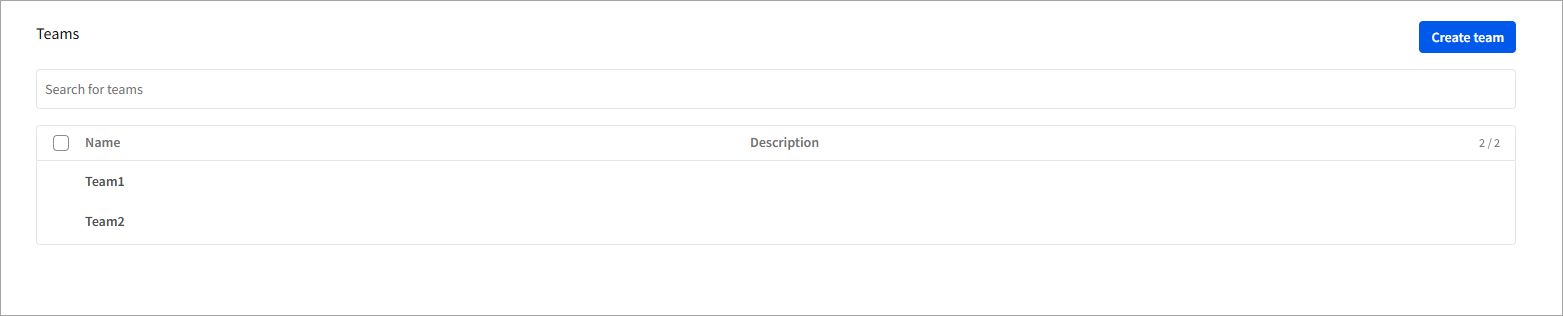

• Sigma team settings

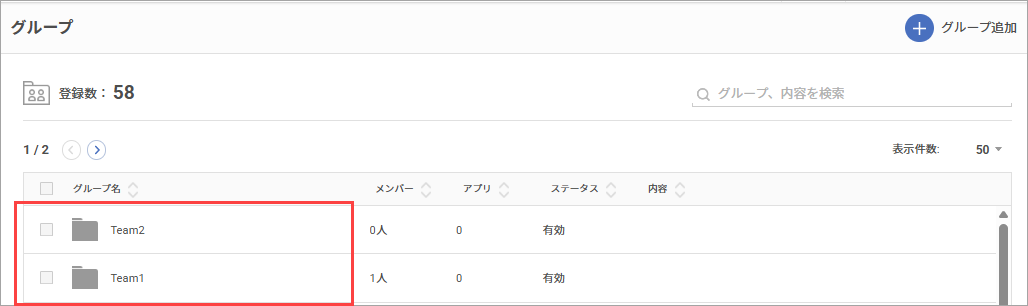

• TrustLogin group settings


This way, when users in the "Team1" "Team2" groups in TrustLogin perform SAML SSO to Sigma, they are automatically added to the respective "Team1" "Team2" teams in Sigma.
If a member is removed or moved from a group in TrustLogin, they will also be removed or moved from the team in Sigma after SAML SSO.

Custom Attribute Settings

Set custom attributes in TrustLogin member information to specify the role to assign to Sigma users.

Note: The attribute name is optional.
Note: If not configured, the "View" role will be assigned on the Sigma side.
Note: For Sigma roles, please refer to here.

[TrustLogin Custom Attribute Configuration Example]

For configuration methods, please refer to the following pages.

Custom Attribute Configuration Method (Individual Registration)
Custom Attribute Configuration Method (Bulk Registration)

TrustLogin Admin Page Settings

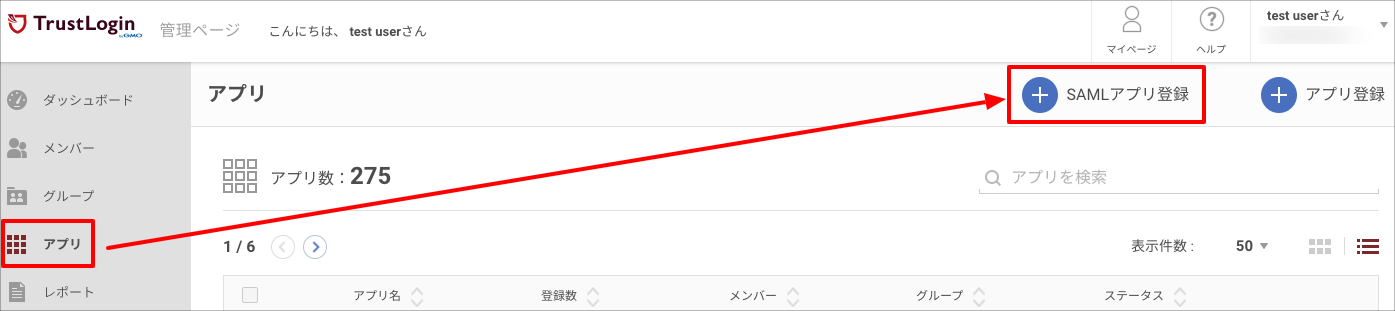

1. Log in to TrustLogin and open the "Admin Page > App" menu, then click the "Register SAML App" button at the top right of the screen.

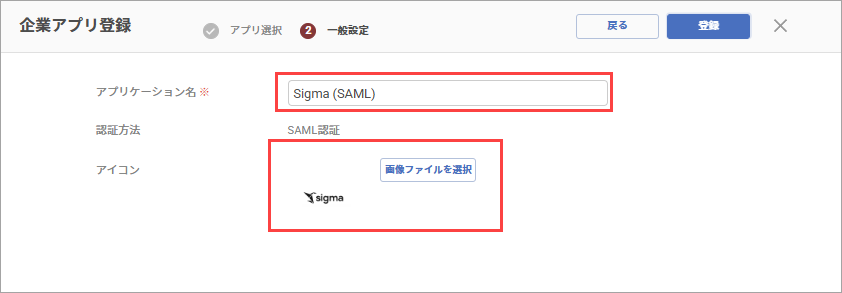

2. Register the "Application Name" and "Icon" (optional).

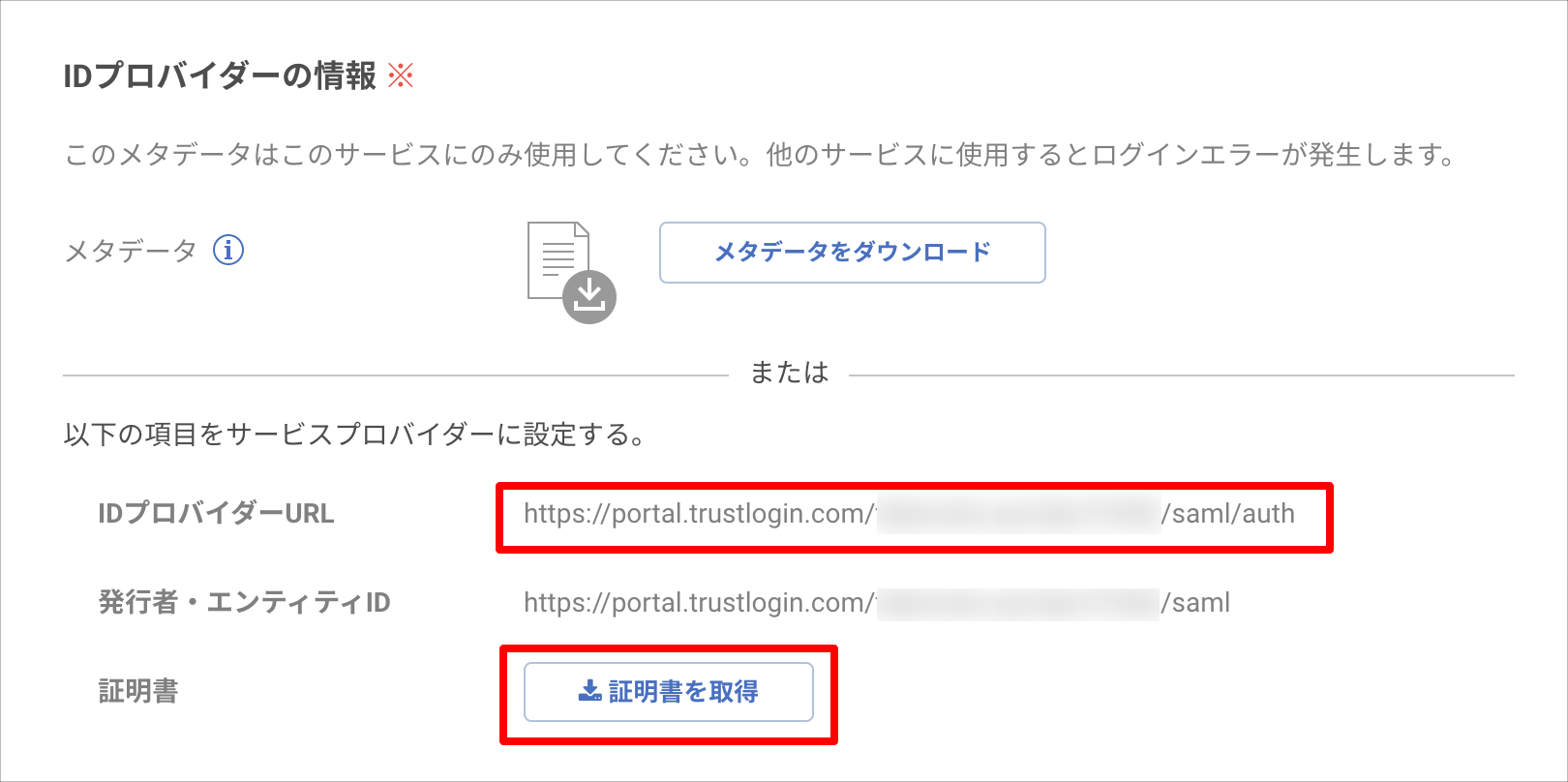

3. Copy and note down the "Identity Provider URL" value under "Identity Provider Information", and download the certificate using the "Get Certificate" button.


Now, proceed to the Sigma settings.
Do not click the "Save" button yet; open Sigma in a separate window.

Sigma Settings

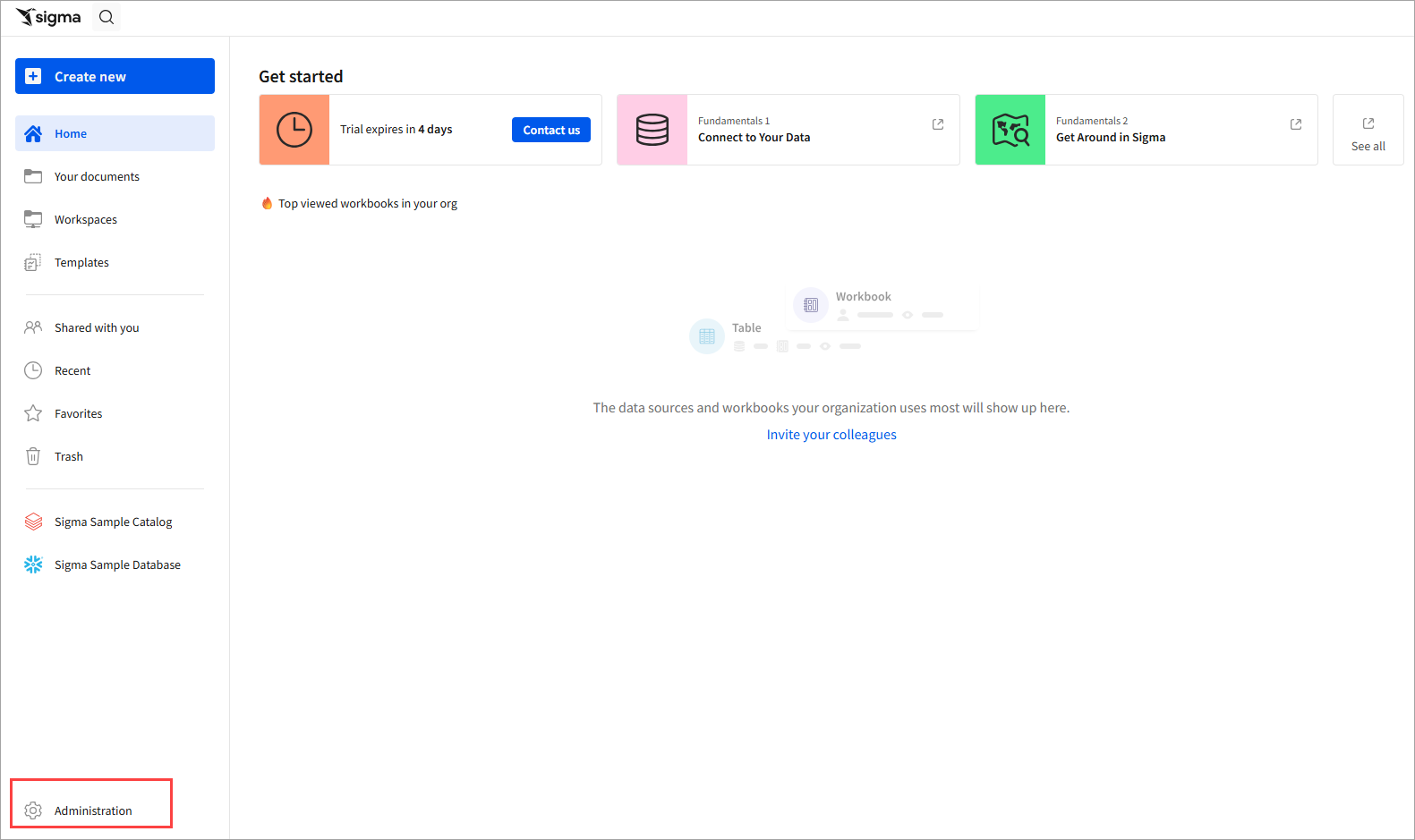

1. Log in to Sigma and click "Administration".

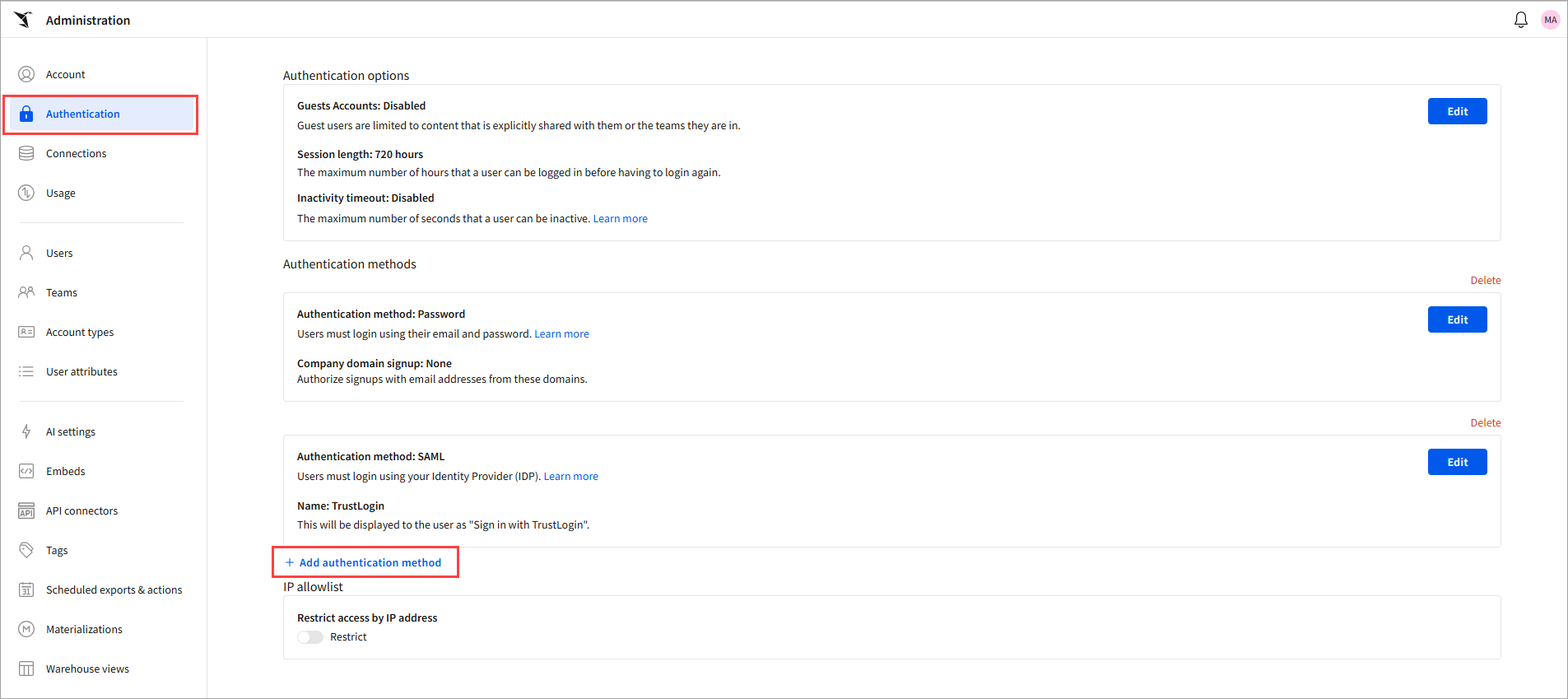

2. Open "Authentication" and click "+Add authentication methods".

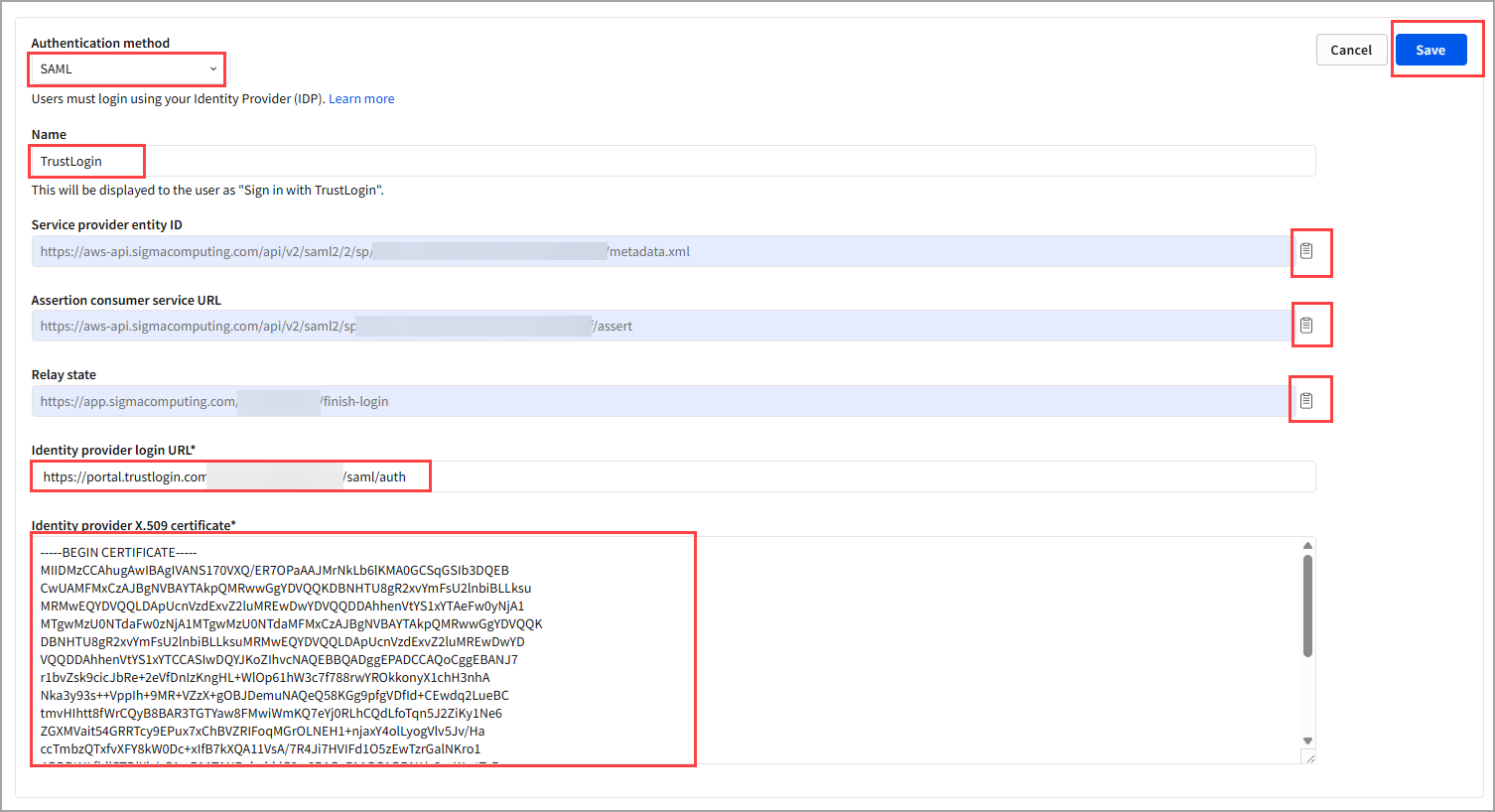

3. Configure "Authentication methods" as follows and save with "Save".

   Authentication method	SAML
   Name	Any name of your choice, e.g.: TrustLogin Note: The name set here will be displayed on the SSO login button when using SP-initiated SSO.
   Service provider entity ID	copy and note down
   Assertion consumer service URL	copy and note down
   Relay state	copy and note down
   Identity provider login URL*	Enter the "Identity Provider URL" copied from TrustLogin
   Identity provider X.509 certificate*	Paste the content of the "Certificate" copied from TrustLogin

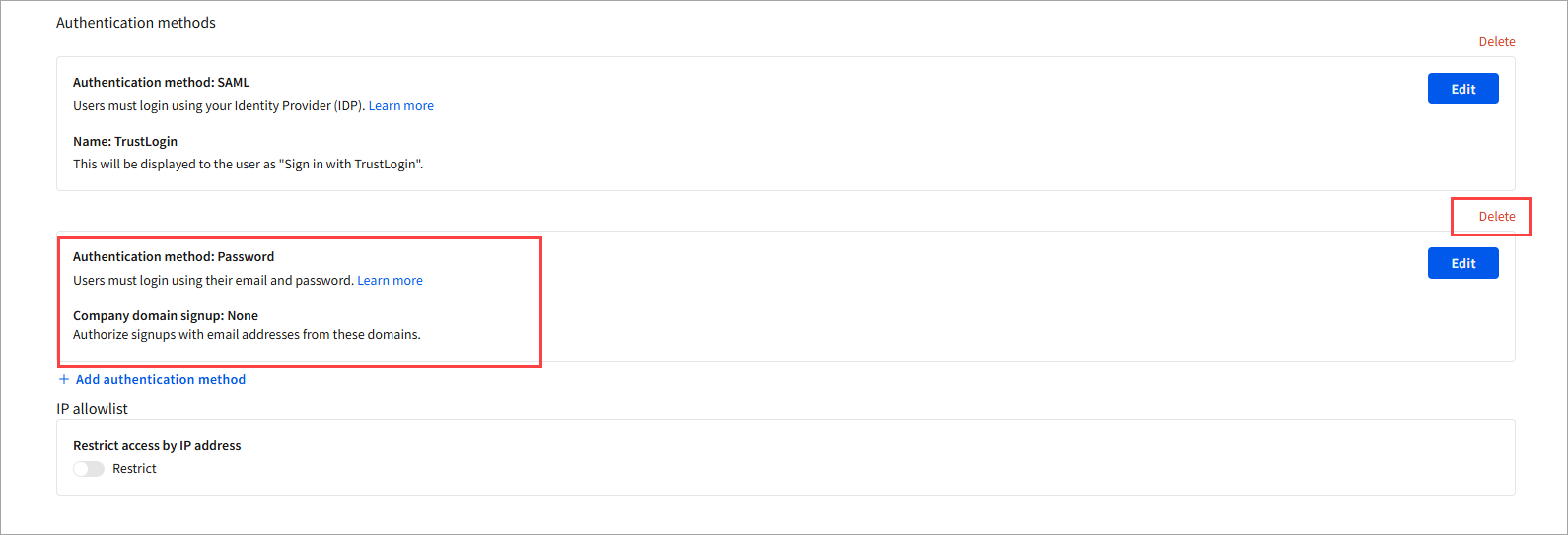

   Note: If you want to restrict login to SSO only, you can disable password-based login by clicking "Delete" for "Authentication method: Password". It is recommended to disable it after completing the SSO configuration and verifying the connection.

Return to the TrustLogin Admin Page.

TrustLogin Admin Page Settings (Continued)

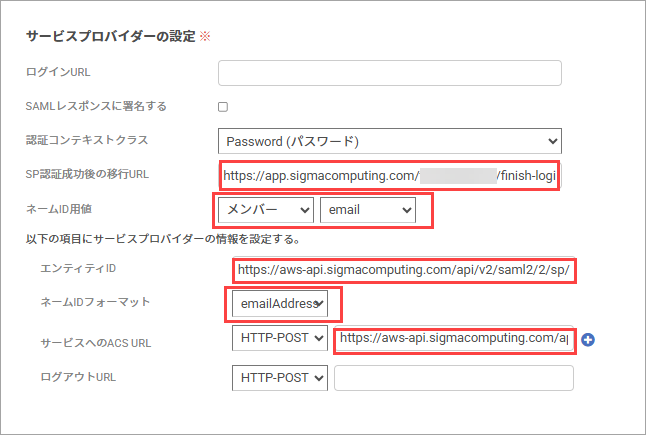

1. Configure the "Service Provider Settings" as follows.

   Redirect URL after SP authentication success	Enter the "Relay state" copied from Sigma
   Name ID value	Member - email
   Entity ID	Enter the "Service provider entity ID" copied from Sigma
   Name ID Format	emailAddress
   ACS URL	Enter the "Assertion consumer service URL" copied from Sigma

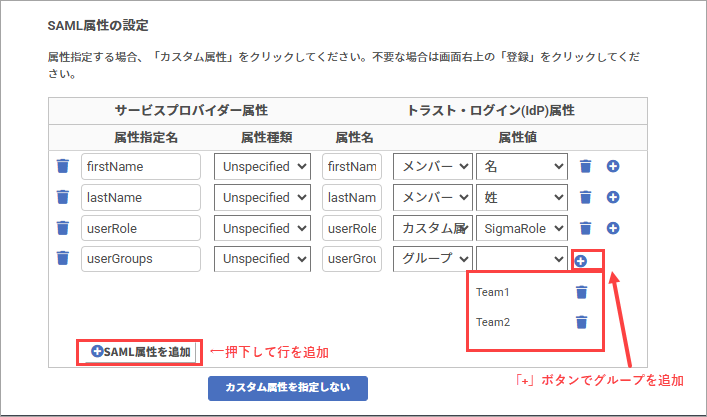

2. Click the "Specify Custom Attributes" button in "SAML Attribute Settings", then click "Add SAML Attribute" to add rows (attributes) and configure as follows.

   Service Provider Attributes			TrustLogin (IdP) Attributes
   Attribute Name	Attribute Type	Attribute Name		Attribute Value
   firstName	Unspecified	firstName	Member	First Name
   lastName	Unspecified	lastName	Member	Last Name
   userRole	Unspecified	userRole	Custom attribute	Attribute name with Sigma role configured
   userGroups	Unspecified	userGroups	Group	Select the configured group names and add all with the "+" button




3. Save by clicking the "Save" button.


TrustLogin User Settings

① When a user adds the app from My Page

Note: The SAML app must be configured by the Administrator in advance.

1. Click the "Add App" button on "My Page".
2. On the "App Registration" screen, select the custom SAML app you created and click the "Next" button at the top right of the screen.
3. If you want to change the "Display Name", enter it and click the "Save" button.

② When an administrator adds members

1. In the "Admin Page > App" menu, search for the custom SAML app you created and click it.
2. Click "Add Member", select the user to add from the member list, and click the "Save" button to add them.

How to Log in via SP-Initiated SSO

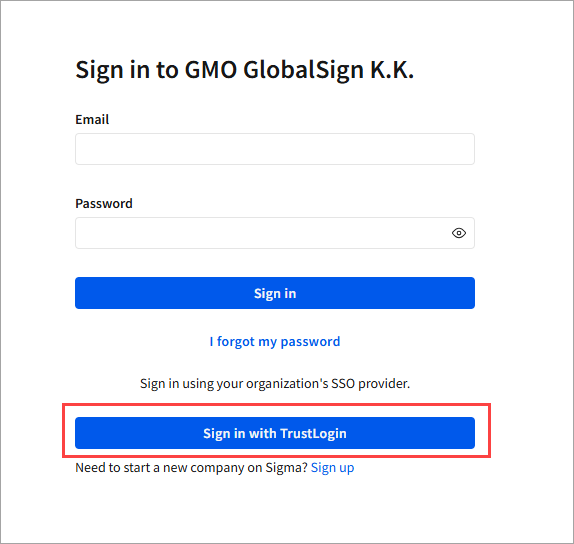

Open the Sigma login URL and click "Sign in with ○○" (the "Name" configured in Sigma's SSO settings) to start the SSO login.
