Item |
Details |
|
|---|---|---|
Pre-check |
|
|
| Name ID | 〇 | Email address |
| Custom attribute Note: For how to configure custom attributes, seehere | ||
| SP Configuration | 〇 | Configured by the Administrator |
| Request SP to configure | ||
| Provisioning | API-based Provisioning supported (Account management available in TrustLogin) | |
| SAML JIT Provisioning supported (Account management available in TrustLogin; user deletion not available) | ||
| 〇 | None (accounts created in each system) | |
| Access Method | 〇 | SP-Initiated SSO |
| 〇 | IdP-Initiated SSO | |
| Device Compatibility | 〇 | PC - Browser |
| ー | PC - Desktop App | |
| ー | iOS - Default Browser (Safari) | |
| ー | iOS - TrustLogin Mobile App In-App Browser | |
| 〇 | iOS - Native App | |
| ー | Android - Default Browser (Chrome) | |
| ー | Android - TrustLogin Mobile App In-App Browser | |
| 〇 | Android - Native App | |
| SAML Authentication Scope | 〇 | Enabled for all users (SAML authentication only) |
| ー | Other: | |
Notes |
Regarding the environment query parameter included in the SP's ACS URL configured on the TrustLogin side, please check with e-Sales Manager support in advance and have it ready. | |
|
Table of Contents: |
TrustLogin Admin Page Settings
-
Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button at the top right of the screen.

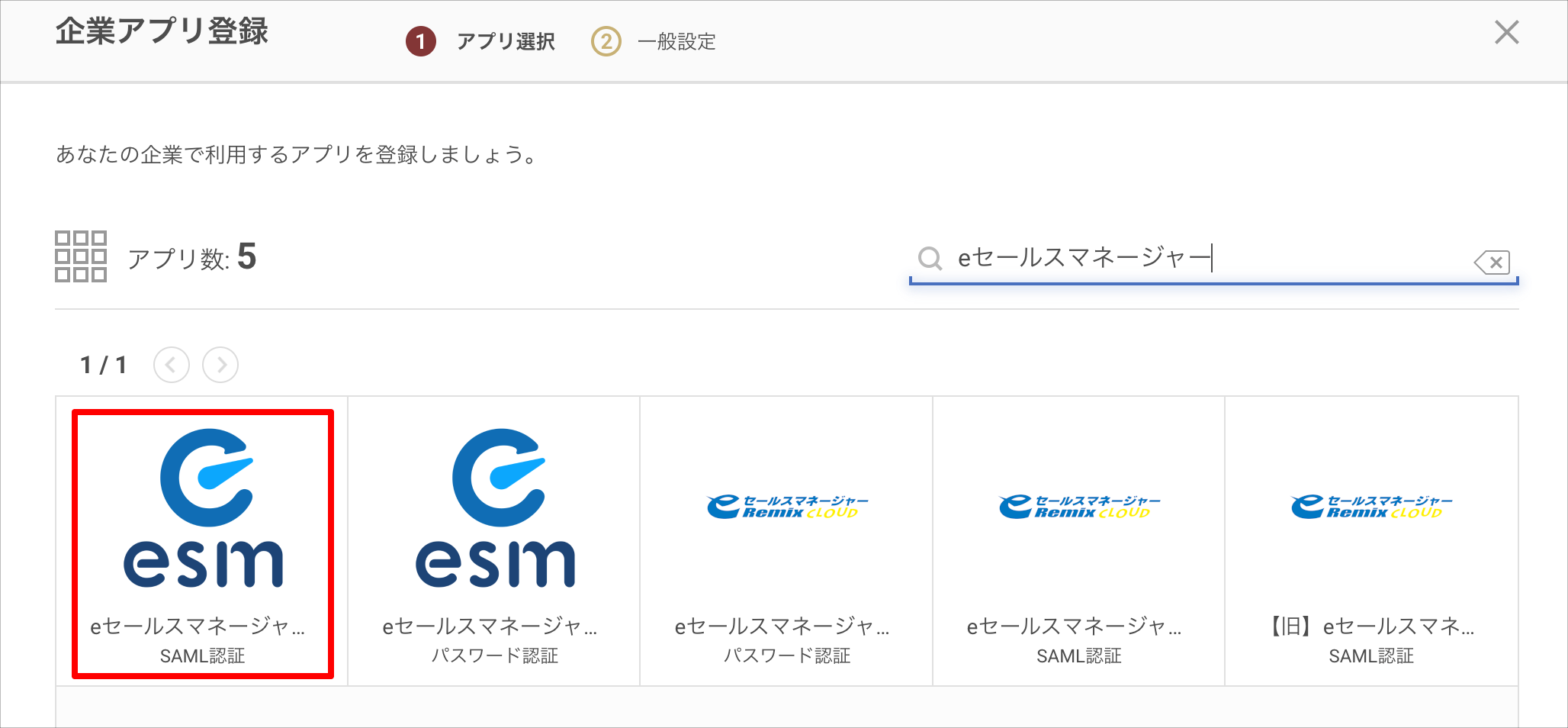

- On the "Register Company App" screen, search and select "e-Sales Manager (SAML)".
- Under "Identity Provider Information", note down the values of "Identity Provider URL" and "Issuer / Entity ID", and download the certificate using the "Get Certificate" button.
- Convert the file extension of the downloaded certificate to ".cer".
-

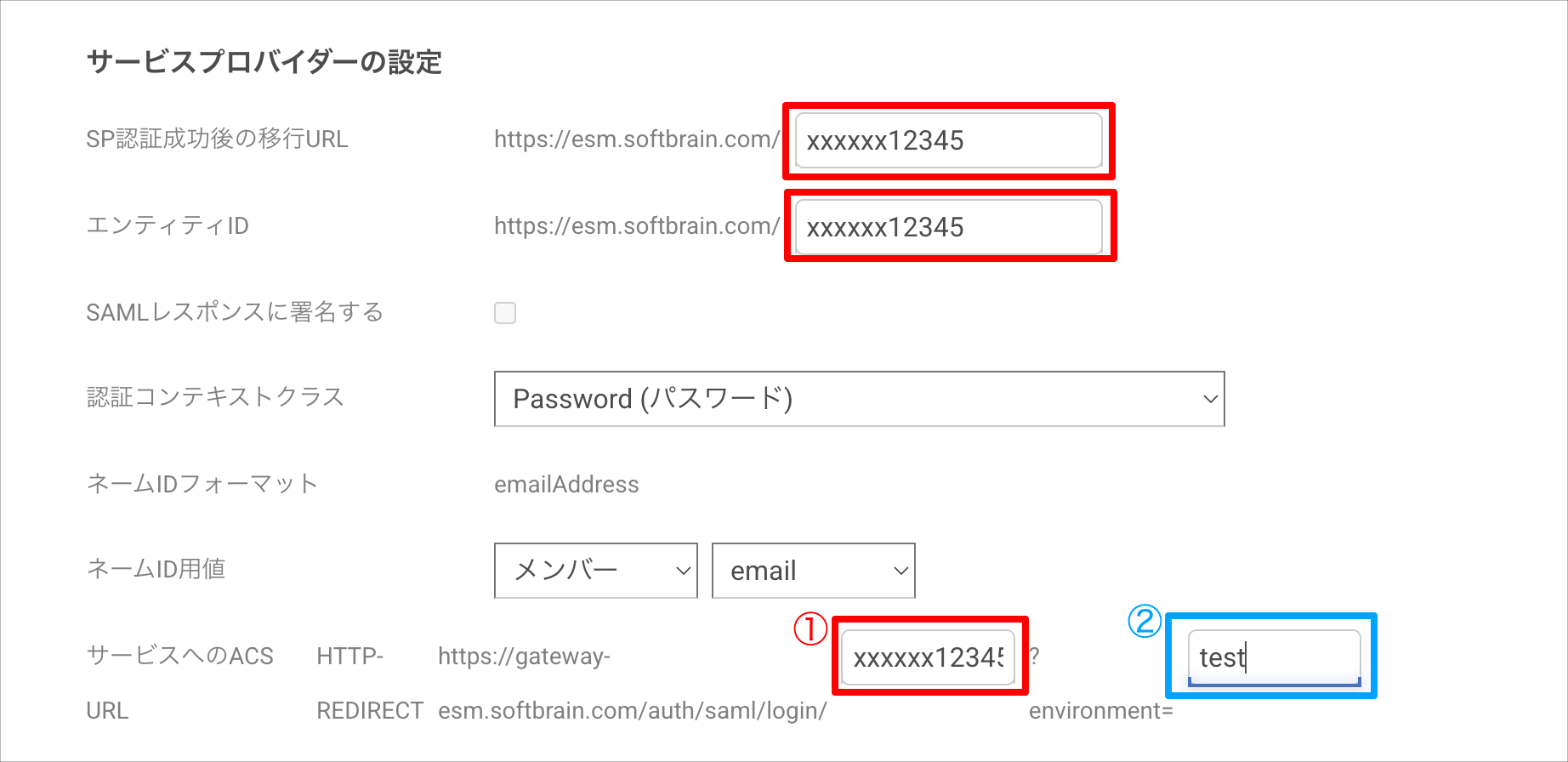

Configure each field under "Service Provider Settings" as follows.
Redirect URL after SP authentication success The unique portion of your e-Sales Manager environment URL ※1 Entity ID The unique portion of your e-Sales Manager environment URL ACS URL for the Service ① The unique portion of your e-Sales Manager environment URL
② The environment query parameter ※2※1 (Example) If your e-Sales Manager environment URL is https://esm.softbrain.com/xxxxxx12345/,
enter [xxxxxx12345].
※2 The environment query parameter varies by customer, so please check with e-Sales Manager support.
- Save by clicking the "Save" button.
e-Sales Manager Settings
-

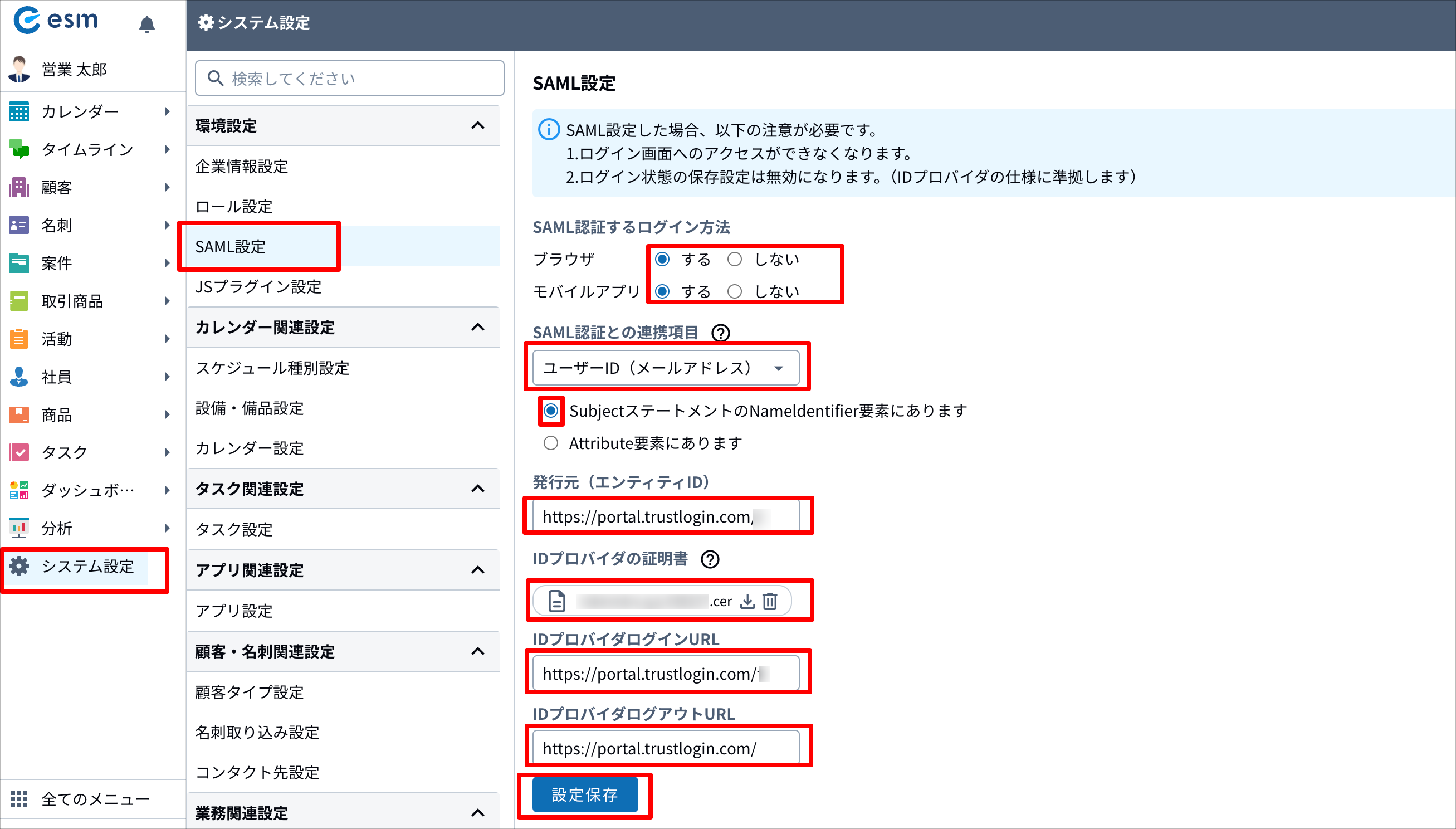

Log in with an administrator account and open "System Settings > SAML Settings".
Configure each item as follows and save by clicking the "Save Settings" button.
Note: Please note that once you save the settings, login via password will no longer be possible.Login method for SAML authentication Enable SAML authentication login by setting it to "Enable" separately for browser and mobile app Field linked with SAML authentication "User ID (email address)"
Select "Found in the NameIdentifier element of the Subject statement"Issuer (Entity ID) The "Issuer / Entity ID" obtained from TrustLogin Identity Provider Certificate Upload the "Certificate" obtained from TrustLogin after converting it to a .cer file Identity Provider Login URL The "Identity Provider URL" obtained from TrustLogin Identity Provider Logout URL https://portal.trustlogin.com/
Note: Single logout is not currently supported
TrustLogin User Settings
① When a User Adds the App from My Page
Note: The SAML app must be configured by the Administrator in advance.
- On "My Page", click the "Add App" button.
- On the "Register App" screen, select "e-Sales Manager (SAML)" and click the "Next" button at the top right of the screen.
- If you want to change the "Display Name", enter it and click the "Save" button.
② When an Administrator Adds Members
- In the "Admin Page > App" menu, search for and click the "e-Sales Manager (SAML)" app.
- Click "Add Member", select the user to add from the member list, and click the "Save" button to add them.
How to Log In via the Mobile App

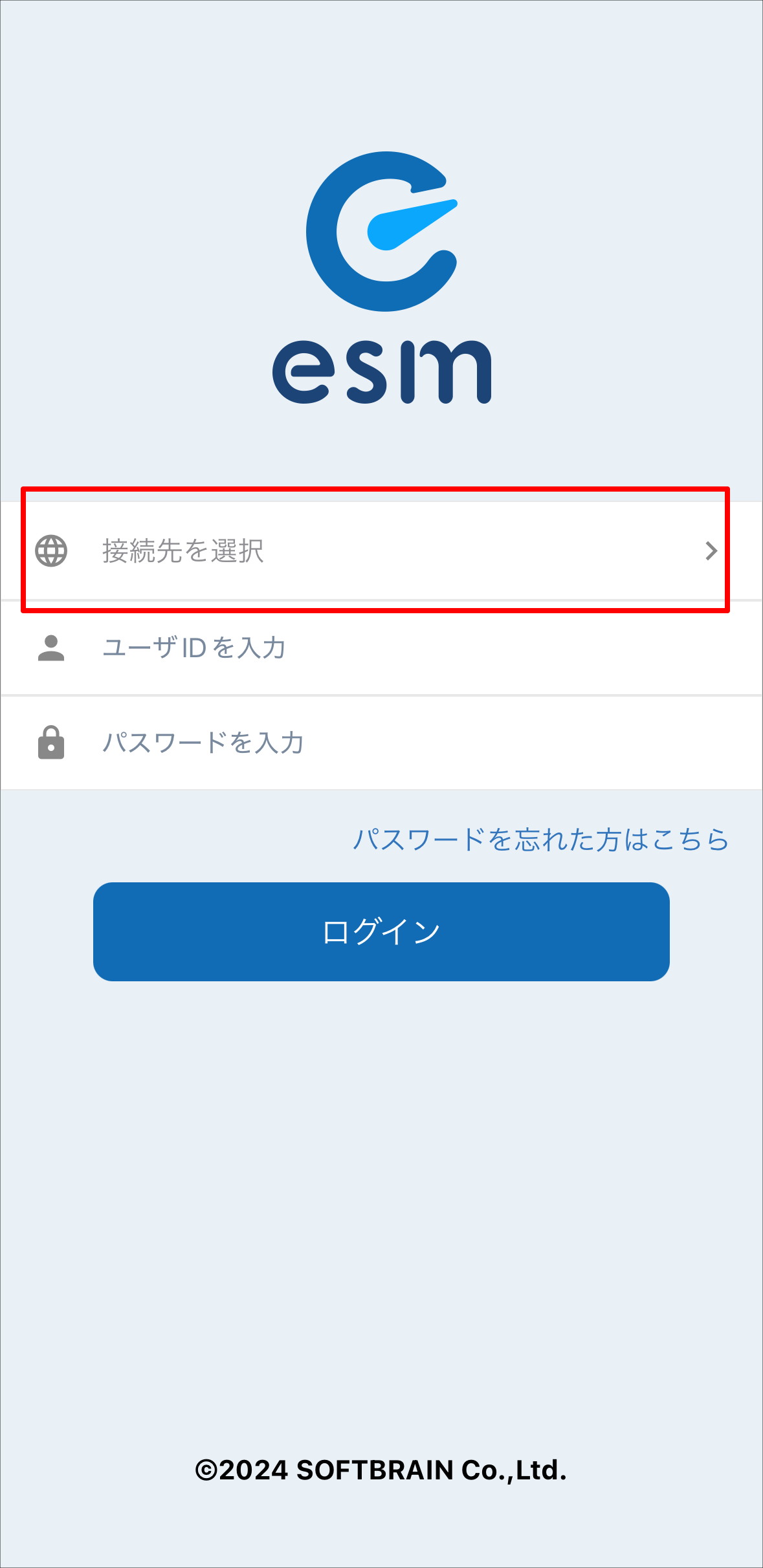

- Open "Select Connection Destination" and configure your e-Sales Manager environment.
-

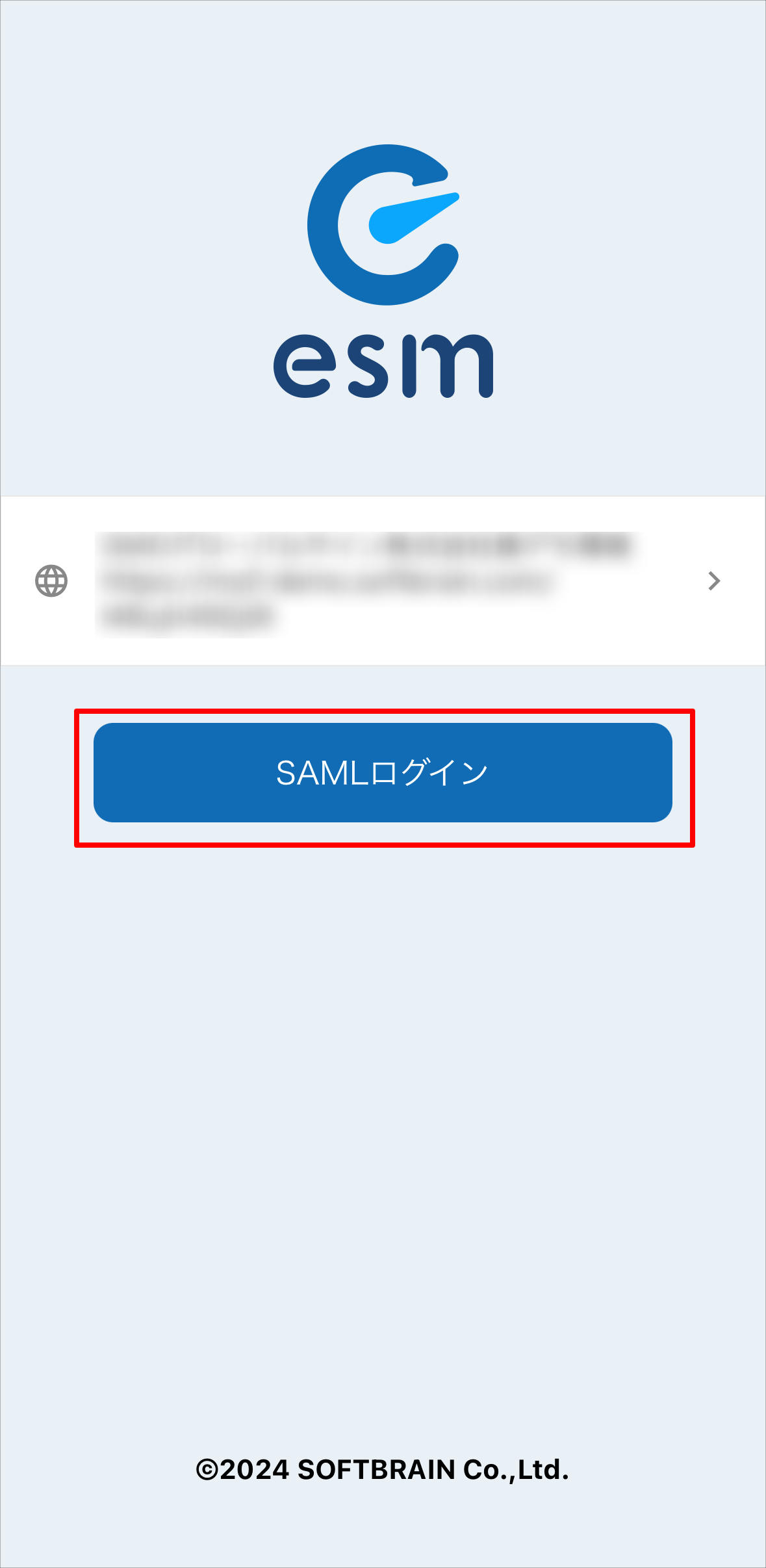

Tap "SAML Login" to log in via SAML SSO.
