This page describes the initial setup steps for using TrustLogin as the source of identity
to perform Identity Provisioning to Xurrent IMR.

Note: For detailed instructions on operating Xurrent IMR, please refer to the documentation provided by Xurrent IMR.

Setup Steps

Xurrent IMR Settings

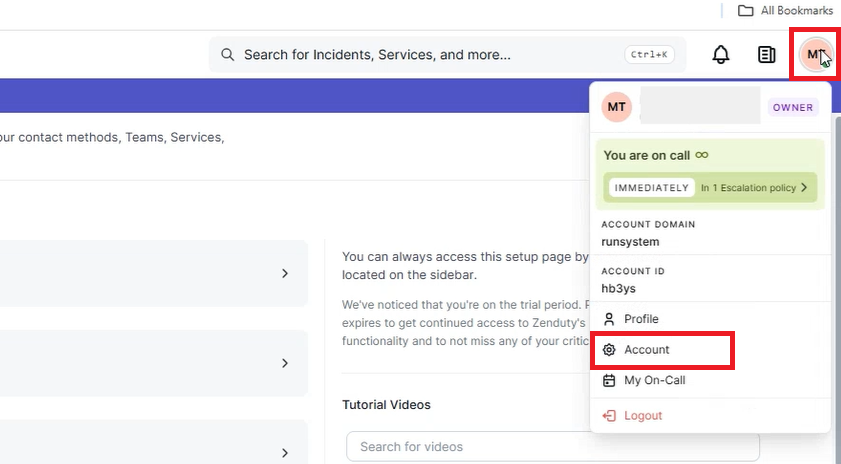

1. Log in to Xurrent IMR with administrator privileges, and click "Profile Icon > Account" in the upper right.

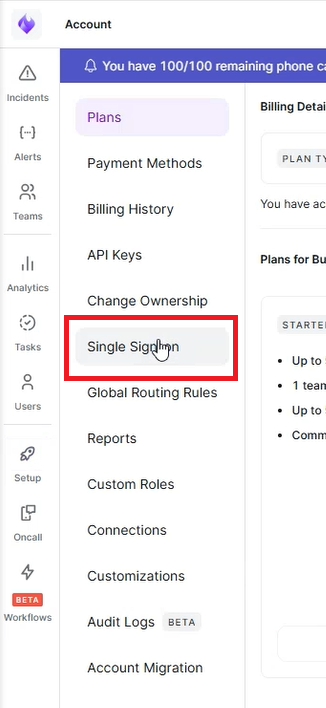

2. Click the "Single Sign-On" button.

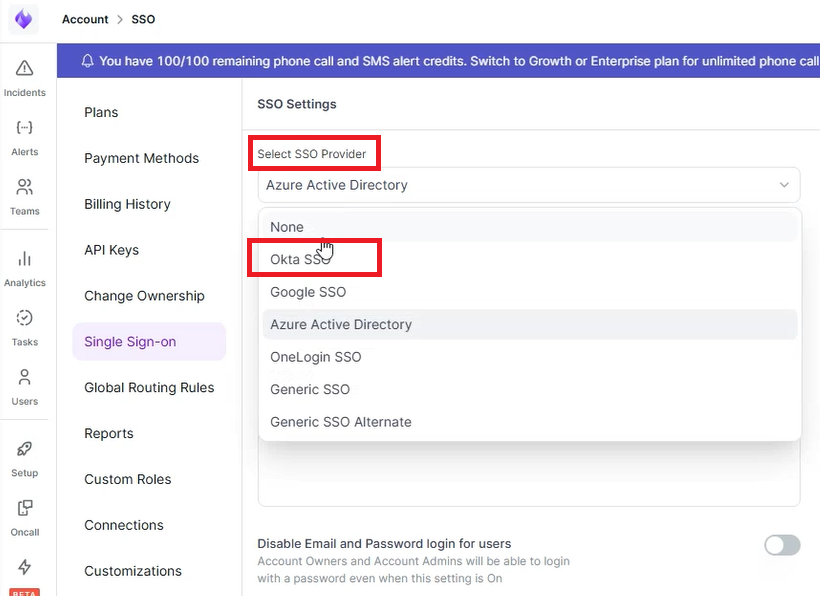

3. Select the provider displayed under "Select SSO Provider".

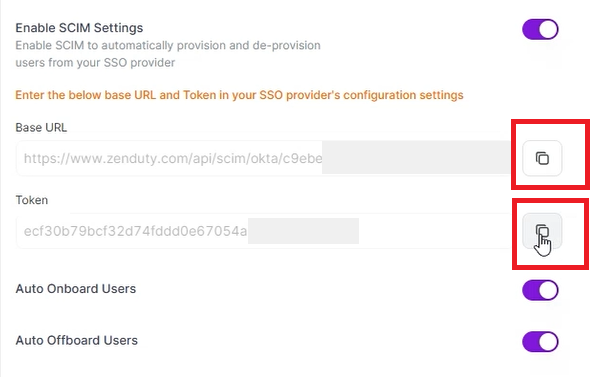

4. Copy the displayed Base URL and Token to your clipboard.
   Note: The token cannot be viewed again after you "Save". Please make sure you have copied it before proceeding.




   This completes the preparation on the Xurrent IMR side. Next, configure the settings on the TrustLogin side.


TrustLogin Settings

1. Log in to the TrustLogin Admin Page, and from the "Admin Page > Settings > Optional Features" menu,
   open "Settings" next to "Identity Provisioning".



2. Click "Add Service".

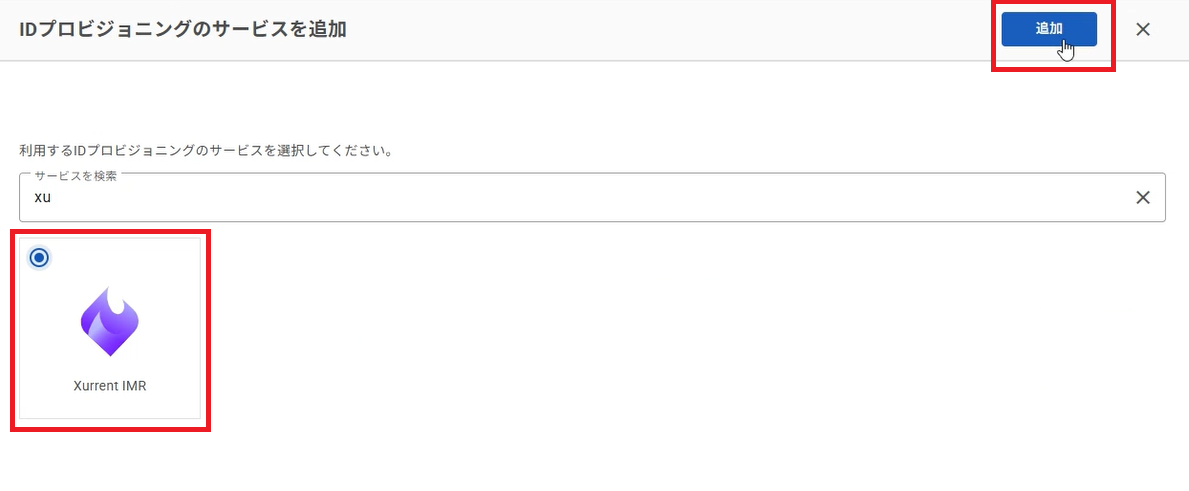

3. On the Add Service screen, search for and select "Xurrent IMR", then click the "Add" button.

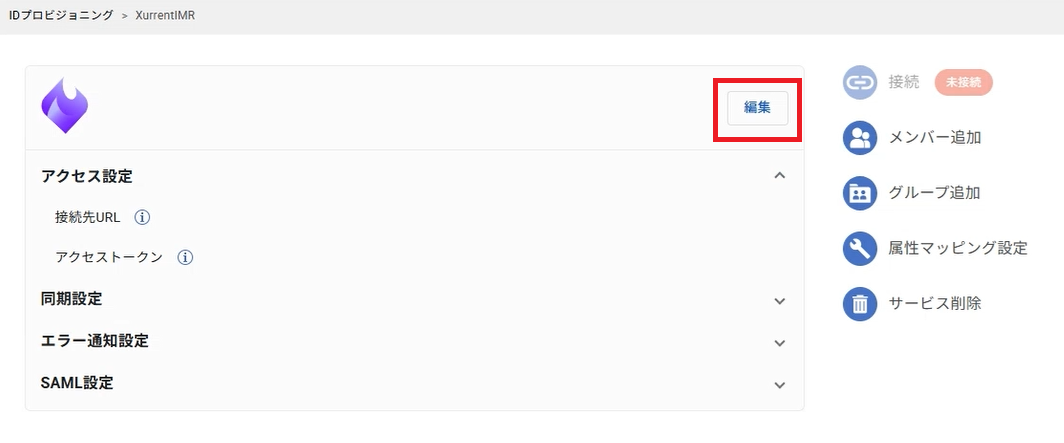

4. You will be redirected to the "Identity Provisioning > Xurrent IMR" page.
   Click the "Edit" button.

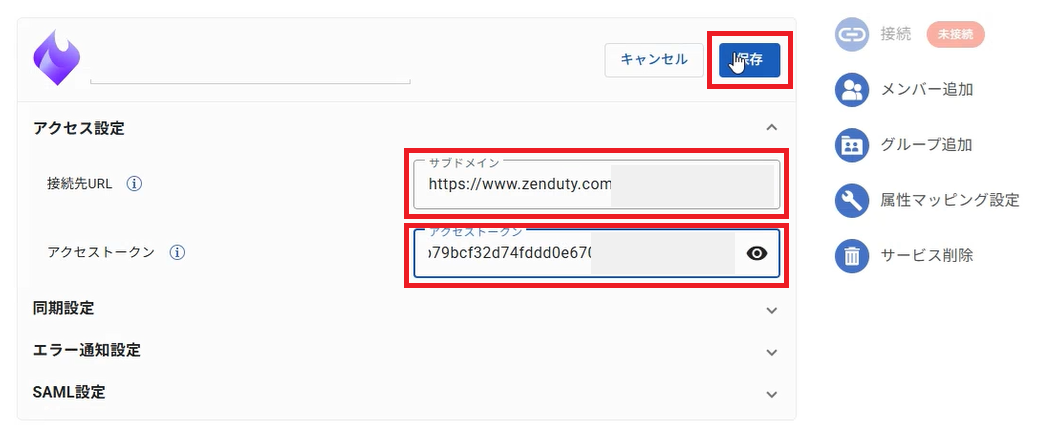

5. Open "Access Settings", enter the following values for the settings items, and click "Save".

   Connection URL	The value of "Base URL" you copied in step 4 of Xurrent IMR Settings
   Access Token	The value of "Token" you copied in step 4 of Xurrent IMR Settings




6. Click the "Connect" button in the upper right of the screen.



7. Once the button status updates to "Connected", the initial setup is complete.



Next step: The manual for configuring user synchronization is available here

Values You Can Configure in Attribute Mapping

You can map any attribute on the TrustLogin side to any attribute on the Xurrent IMR side.
For configuration instructions, see here

Available Default Functions

• default functions common to all services can be specified.
