This page describes the initial setup steps for using TrustLogin as the source of identity
to perform Identity Provisioning to Cisco Secure Access.

Note: For detailed instructions on operating Cisco Secure Access, please refer to the documentation provided by Cisco Secure Access.

Setup Steps

Cisco Secure Access Settings

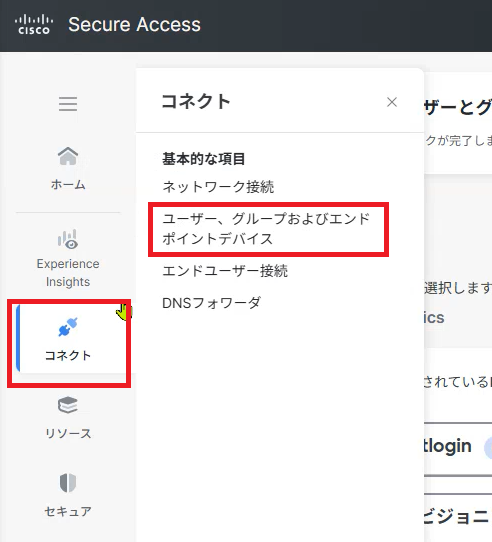

1. Log in to Cisco Secure Access with administrator privileges, and click "Connect > Users, Groups, and Endpoint Devices" from the menu on the left.

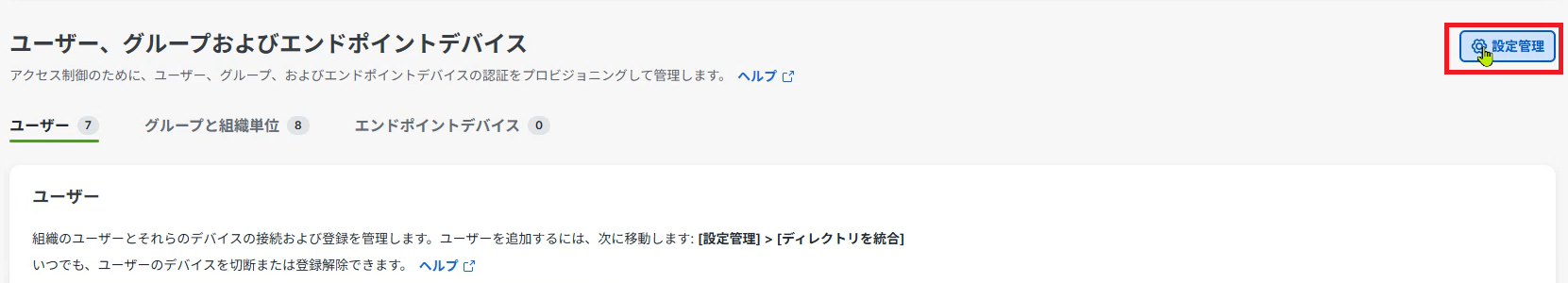

2. Click "Configuration Management".

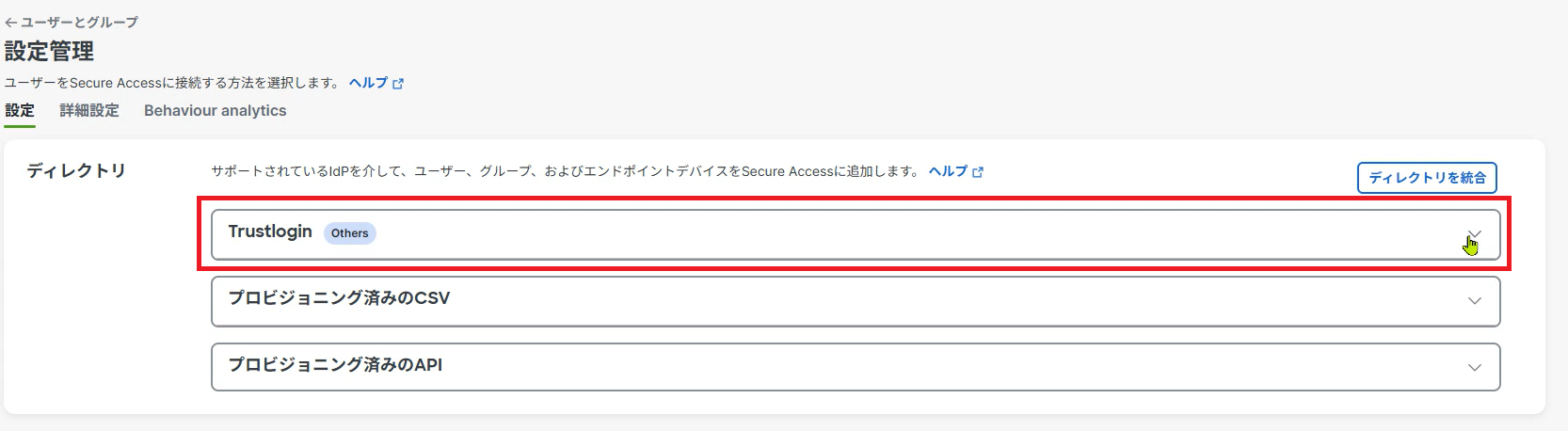

3. From "Directory", click the identity provider configuration you already added (e.g., Trustlogin).

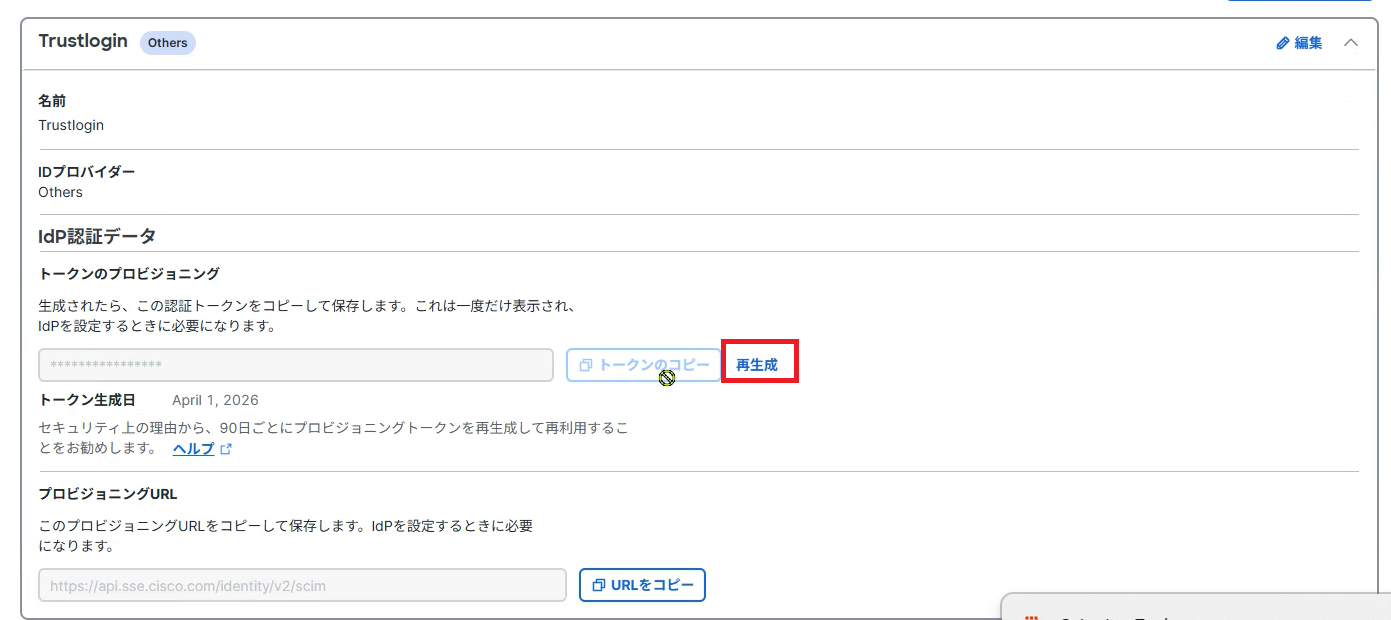

4. Click the "Regenerate" button.

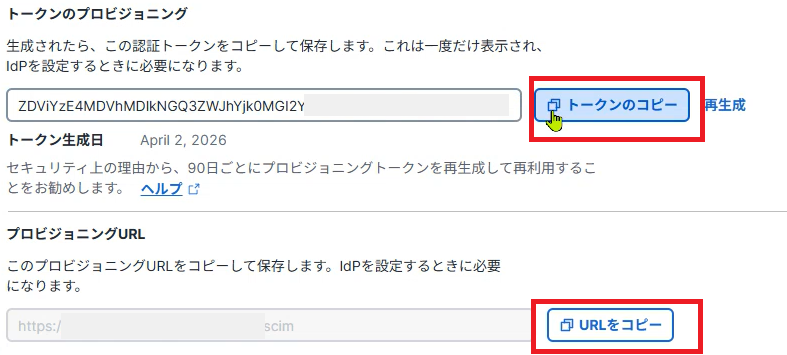

5. Copy the "Authentication Token" and "Provisioning URL" to your clipboard.
   Note: The token cannot be viewed again after you "Save". Please make sure you have copied it before proceeding.



   This completes the preparation on the Cisco Secure Access side. Next, configure the settings on the TrustLogin side.


TrustLogin Settings

1. Log in to the TrustLogin Admin Page, and from the "Admin Page > Settings > Optional Features" menu,
   open "Settings" next to "Identity Provisioning".



2. Click "Add Service".

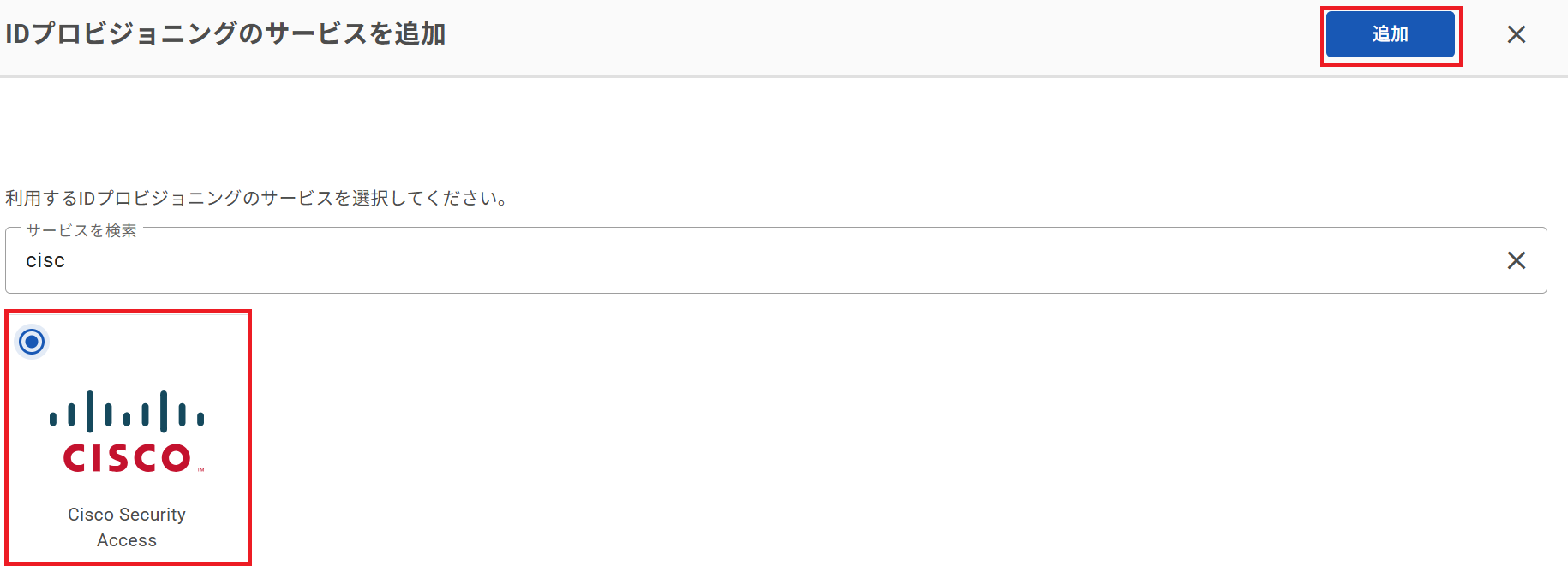

3. On the Add Service screen, search for and select "Cisco Secure Access", then click the "Add" button.

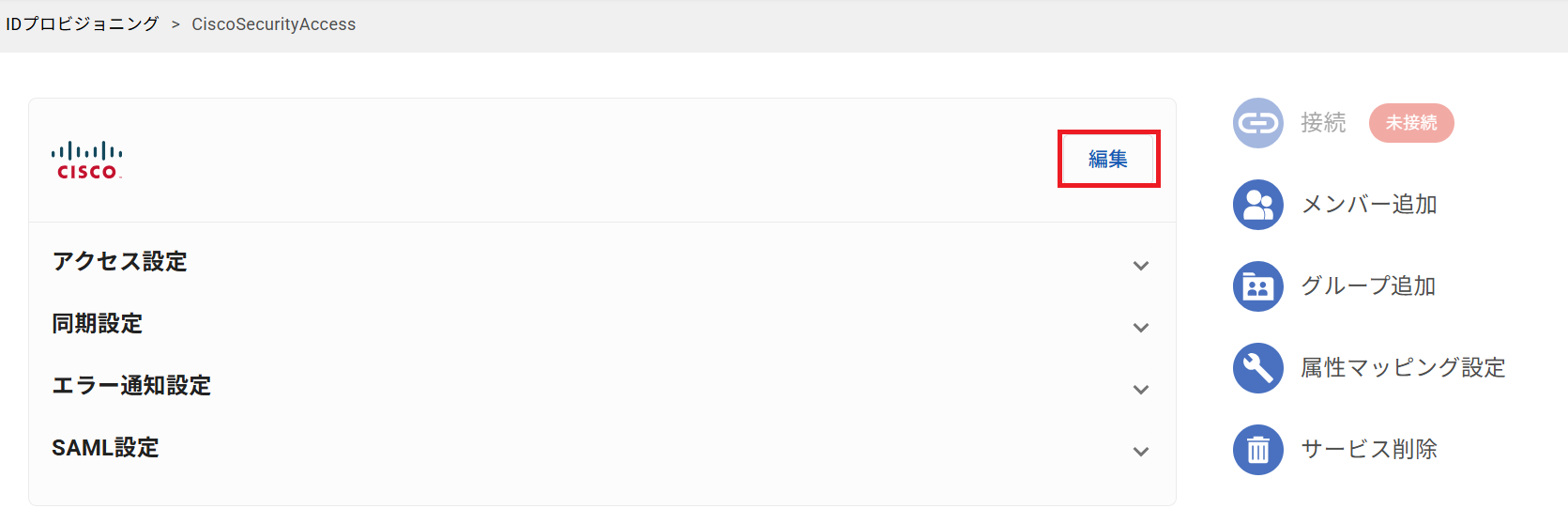

4. You will be redirected to the "Identity Provisioning > Cisco Secure Access" page.
   Click the "Edit" button.

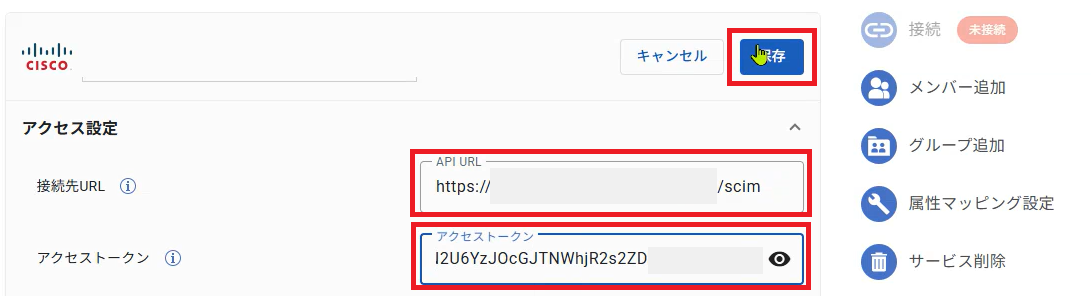

5. Open "Access Settings", enter the following values for the settings items, and click "Save".

   Connection URL	Cisco Secure Access Settings The value of "Provisioning URL" you copied in step 5
   Access Token	Cisco Secure Access Settings The value of "Authentication Token" you copied in step 5

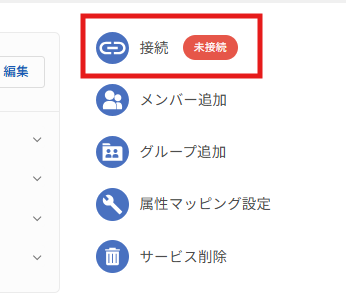

6. Click the "Connect" button in the upper right of the screen.

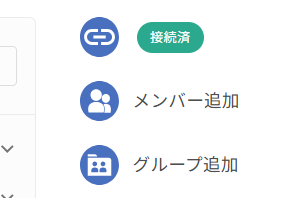

7. Once the button status updates to "Connected", the initial setup is complete.



Next step: The manual for configuring user synchronization is available here

Values You Can Configure in Attribute Mapping

You can map any attribute on the TrustLogin side to any attribute on the Cisco Secure Access side.
For configuration instructions, see here

Available Default Functions

• default functions common to all services can be specified.
