Initial Setup Steps for Identity Provisioning with EXIUM

This page describes the initial setup steps for using TrustLogin as the source of identity
to perform Identity Provisioning to EXIUM.

Note: For detailed instructions on operating EXIUM, please refer to the documentation provided by EXIUM.

Item Details
Pre-check
  • EXIUM administrator privileges are required.
Setup Flow / Manual

Note: After connecting TrustLogin and EXIUM using the steps on this page,
 please proceed to configuring user synchronization.

Provisioning Target Supports user provisioning
Supports group provisioning
SAML Authentication Setup Manual
Notes
  • None in particular

Setup Steps

EXIUM Settings

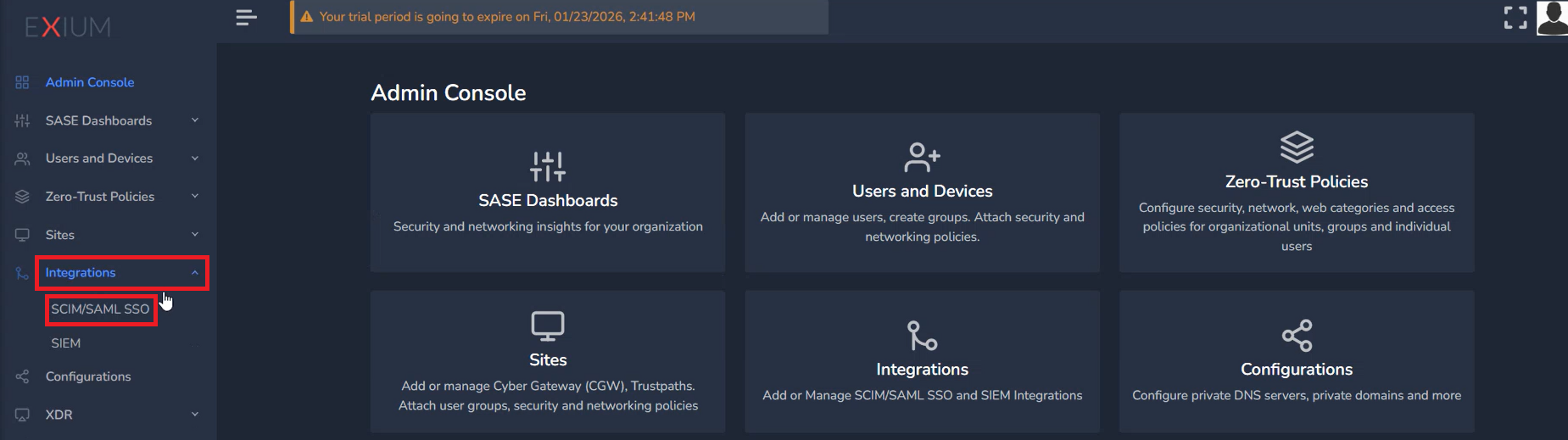

  1. Log in to EXIUM with administrator privileges and click "Integrations > SCIM/SAML SSO".

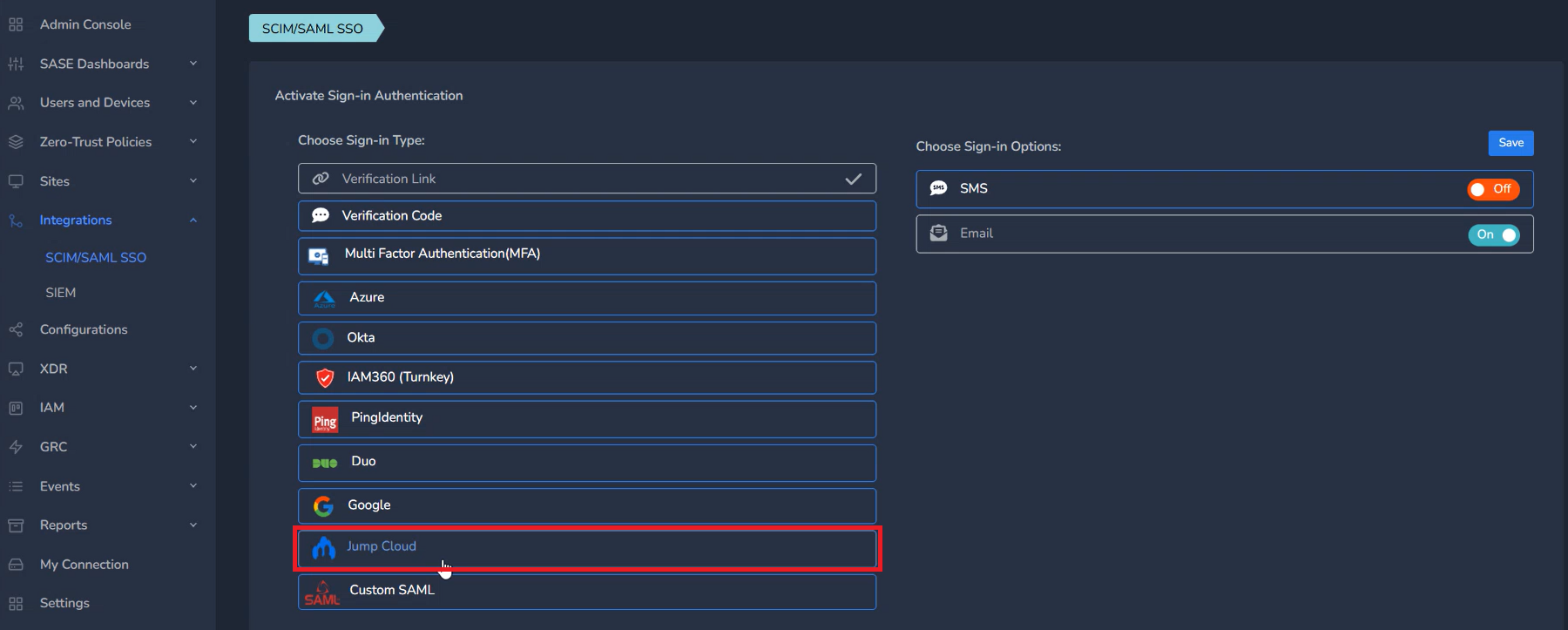

  2. Click "Jump Cloud".

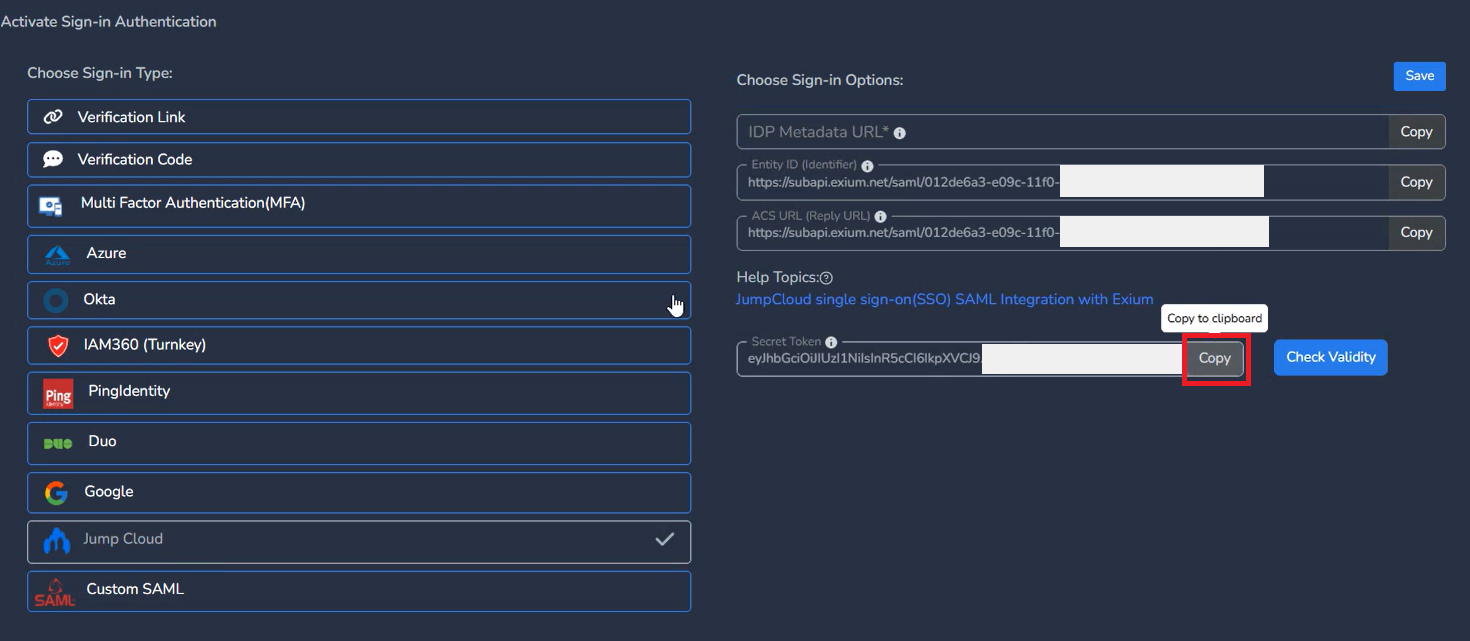

  3. Copy the "Secret Token" to your clipboard.
    Note: The token cannot be viewed again after "Save". Please make sure you have copied it before proceeding.



    This completes the preparation on the EXIUM side. Next, configure the settings on the TrustLogin side.

TrustLogin Settings

  1. Log in to the TrustLogin Admin Page, and from the "Admin Page > Settings > Optional Features" menu,
    open "Settings" next to "Identity Provisioning".

  2. Click "Add Service".

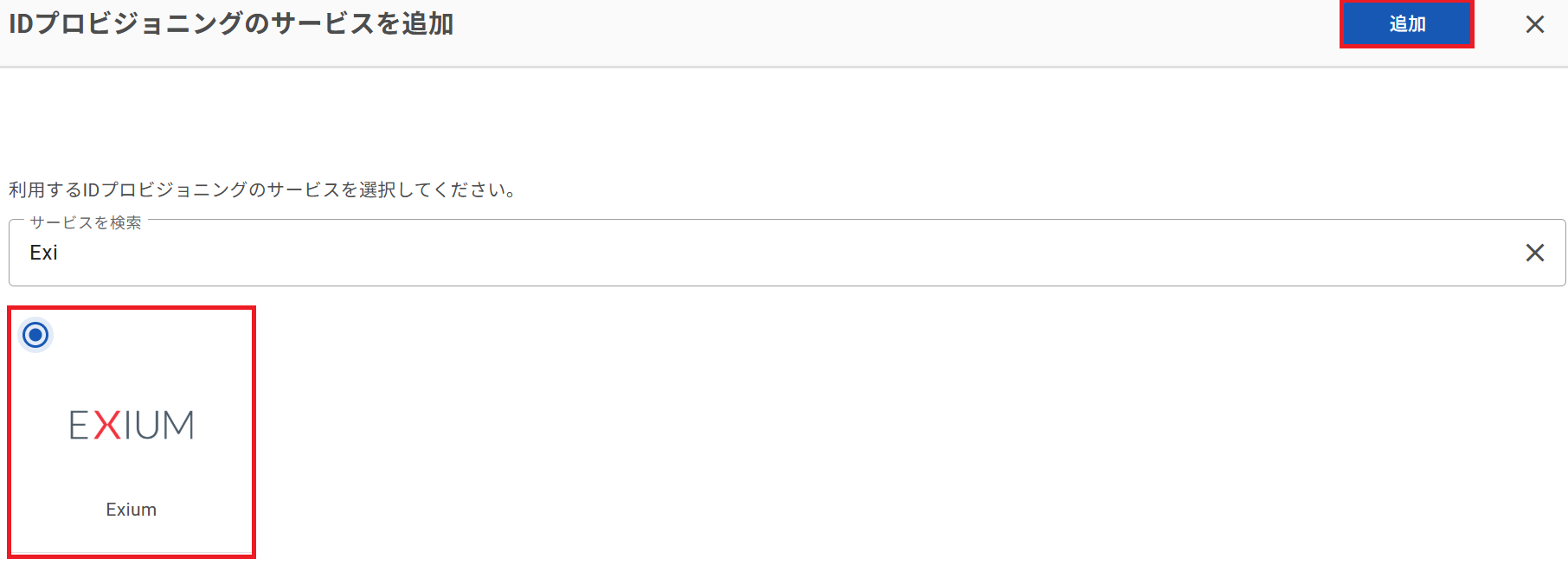

  3. On the Add Service screen, search for and select "EXIUM", then click the "Add" button.

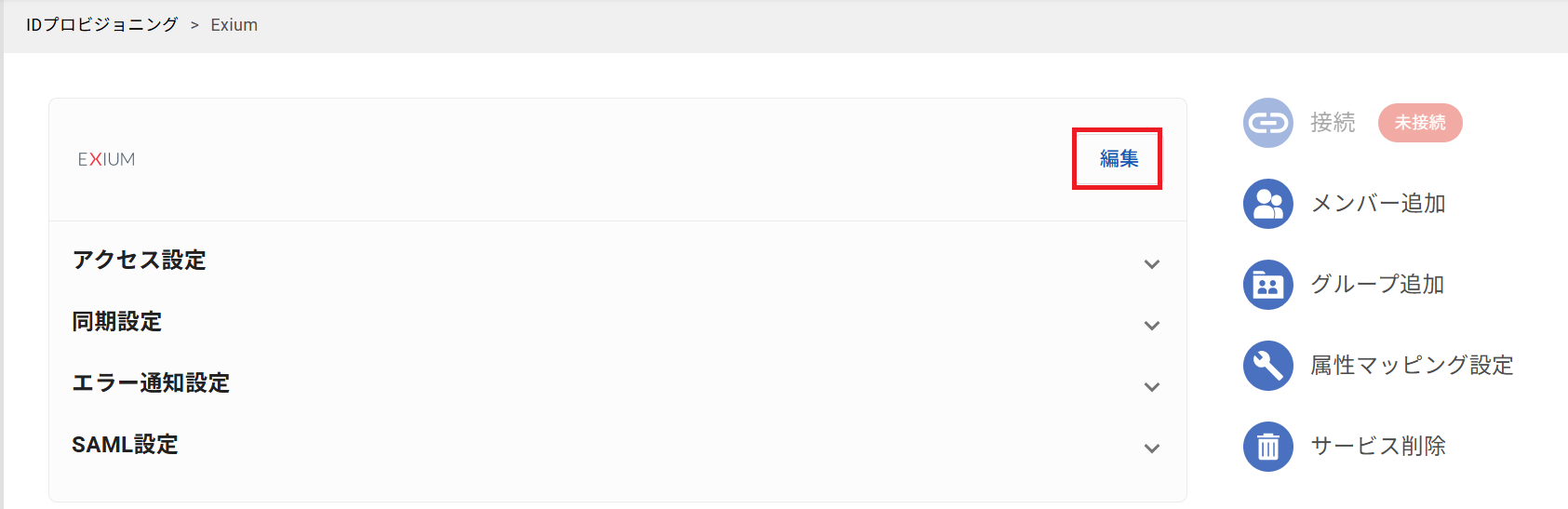

  4. You will be redirected to the "Identity Provisioning > EXIUM" page.
    Click the "Edit" button.

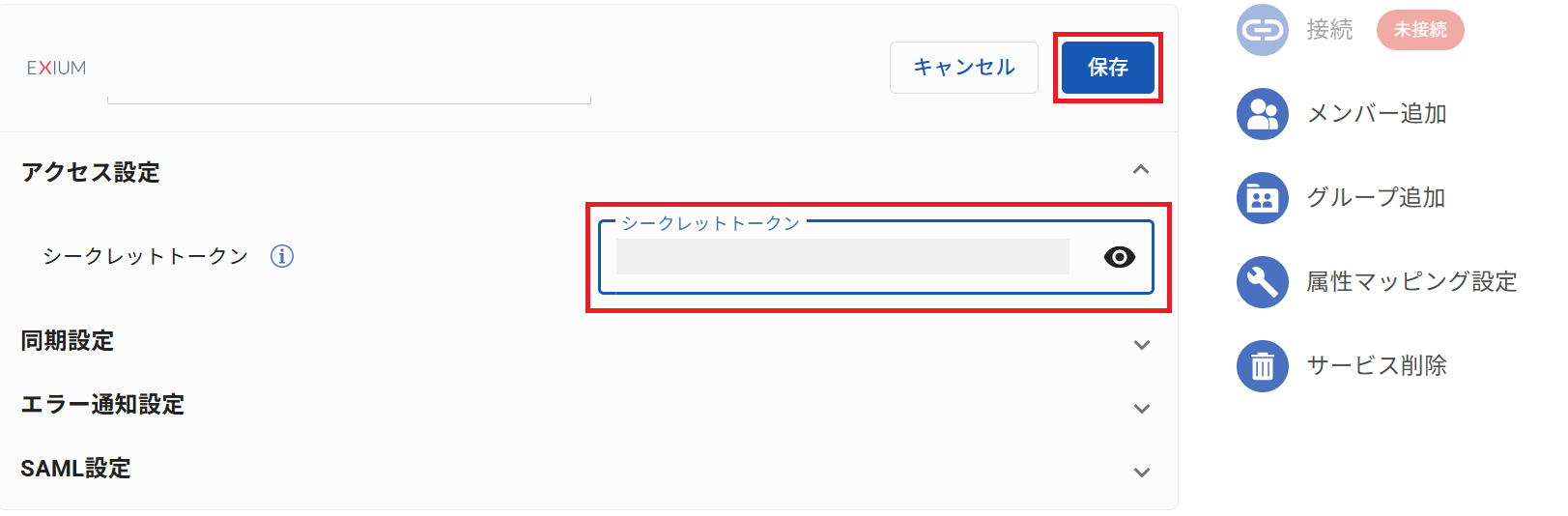

  5. Open "Access Settings", enter the following values for the settings items, and click "Save".

    Secret Token The value of the "Secret Token" you copied in step 3 of EXIUM Settings


  6. Click the "Connect" button in the upper right of the screen.
  7. Once the button status updates to "Connected", the initial setup is complete.

Next step: The manual for configuring user synchronization is available here

Values You Can Configure in Attribute Mapping

You can map any attribute on the TrustLogin side to any attribute on the EXIUM side.
For configuration instructions, see here

Available Default Functions
