Initial Setup Steps for Identity Provisioning with Coralogix

This page describes the initial setup steps for using TrustLogin as the source of identity
to perform Identity Provisioning to Coralogix.

Note: For detailed instructions on operating Coralogix, please refer to the documentation provided by Coralogix.

Item	Details
Pre-check	Coralogix administrator privileges are required.
Setup Flow / Manual	Coralogix Settings TrustLogin Settings Values You Can Configure in Attribute Mapping Note: After connecting TrustLogin and Coralogix using the steps on this page, 　please proceed to configuring user synchronization.
Provisioning Target	〇	Supports user provisioning
	〇	Supports group provisioning
SAML Authentication Setup Manual	－
Notes	None in particular

Setup Steps

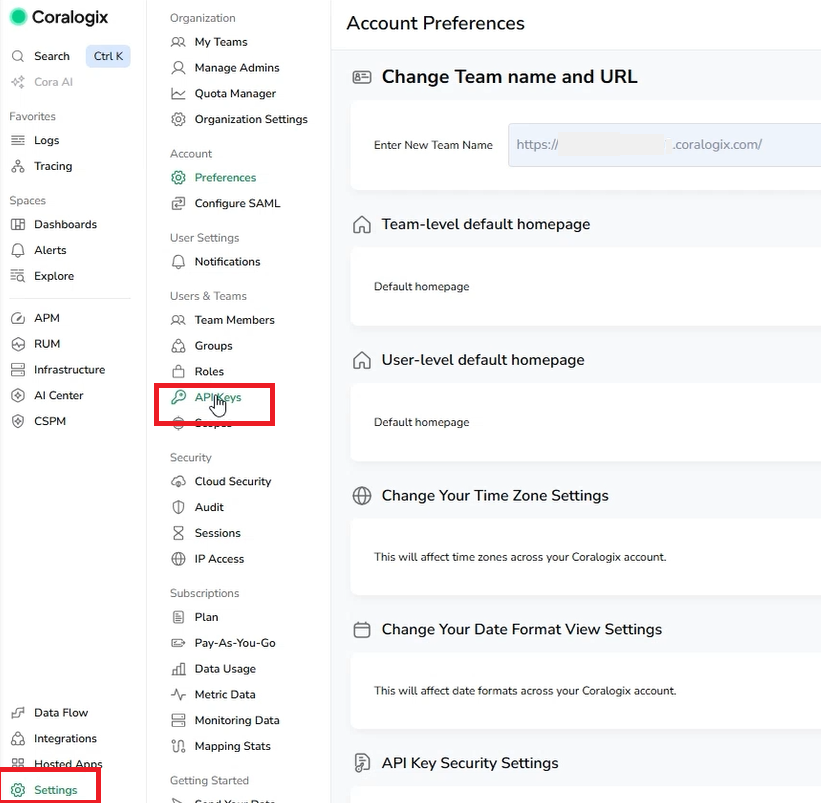

Log in to Coralogix with administrator privileges and click "Settings > API Keys".

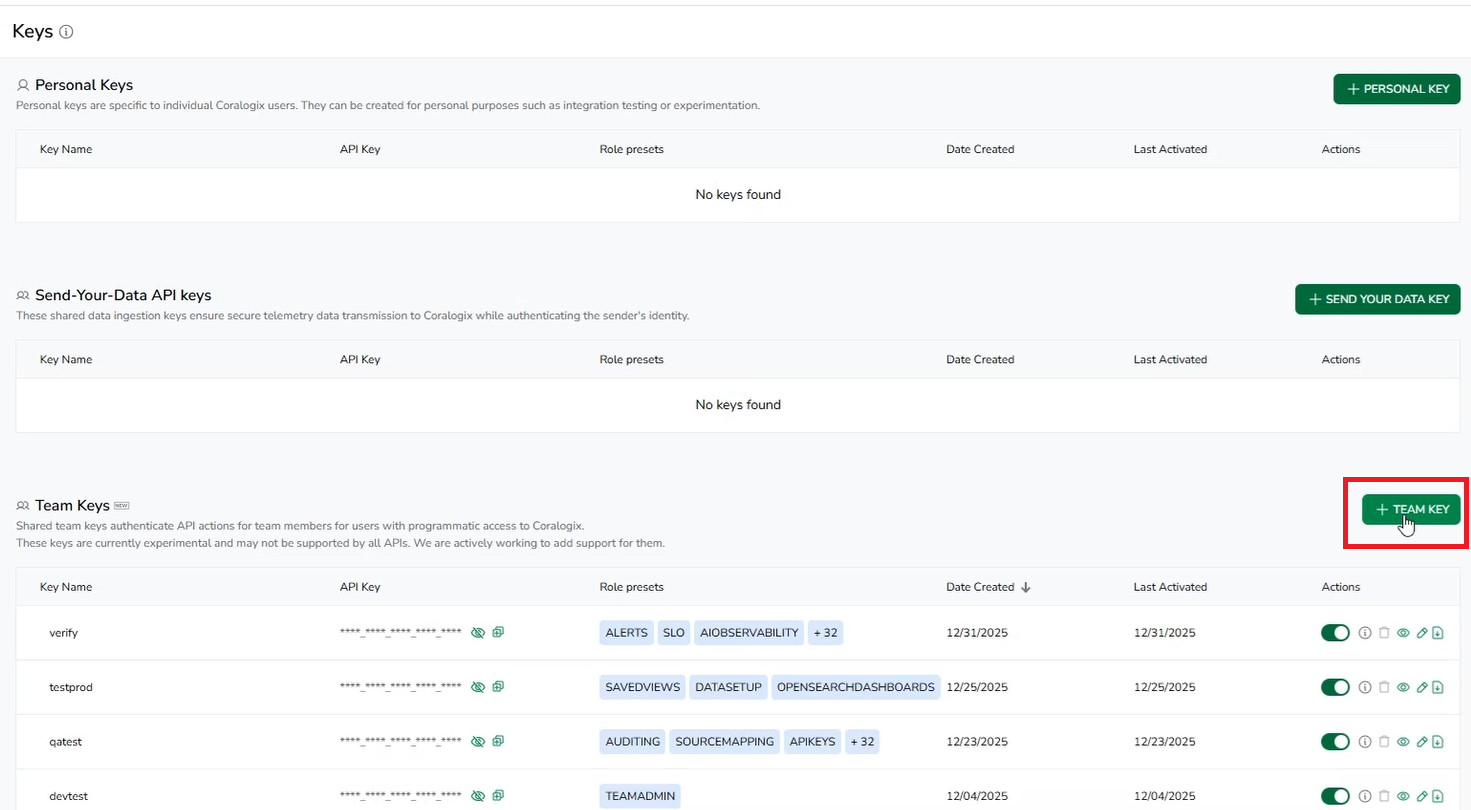

Click "+Team Key".

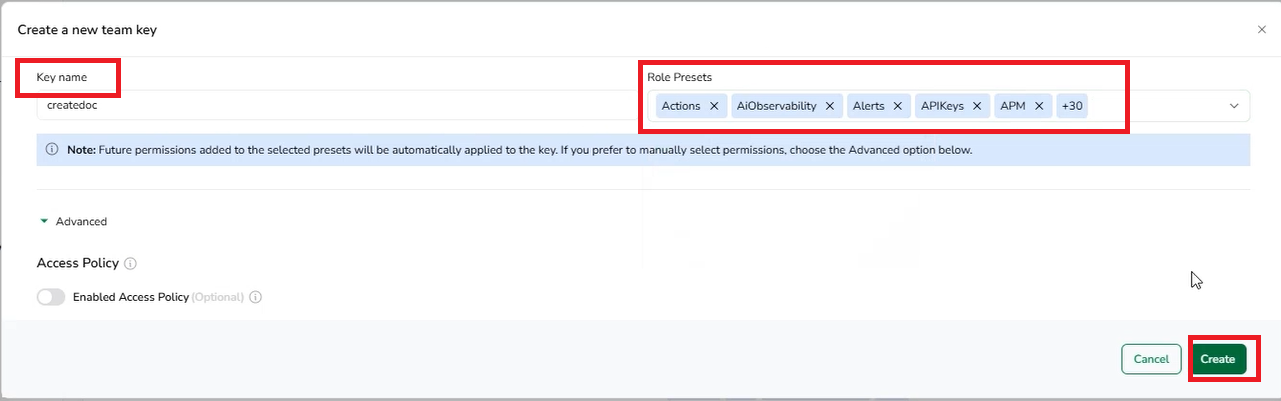

Enter any name in "Key name", select "Select All" or the required permissions from the "Role Presets" dropdown, and click "Create".

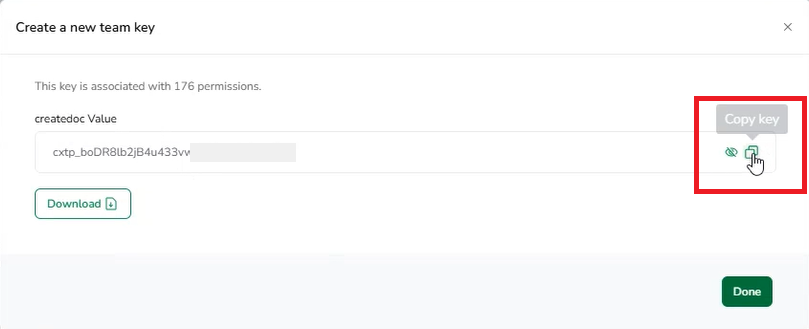

Copy the displayed "team key".
Note: The token cannot be viewed again after "Save". Please make sure you have copied it before proceeding.

This completes the preparation on the Coralogix side. Next, configure the settings on the TrustLogin side.

Log in to the TrustLogin Admin Page, and from the "Admin Page > Settings > Optional Features" menu,
open "Settings" next to "Identity Provisioning".
Click "Add Service".

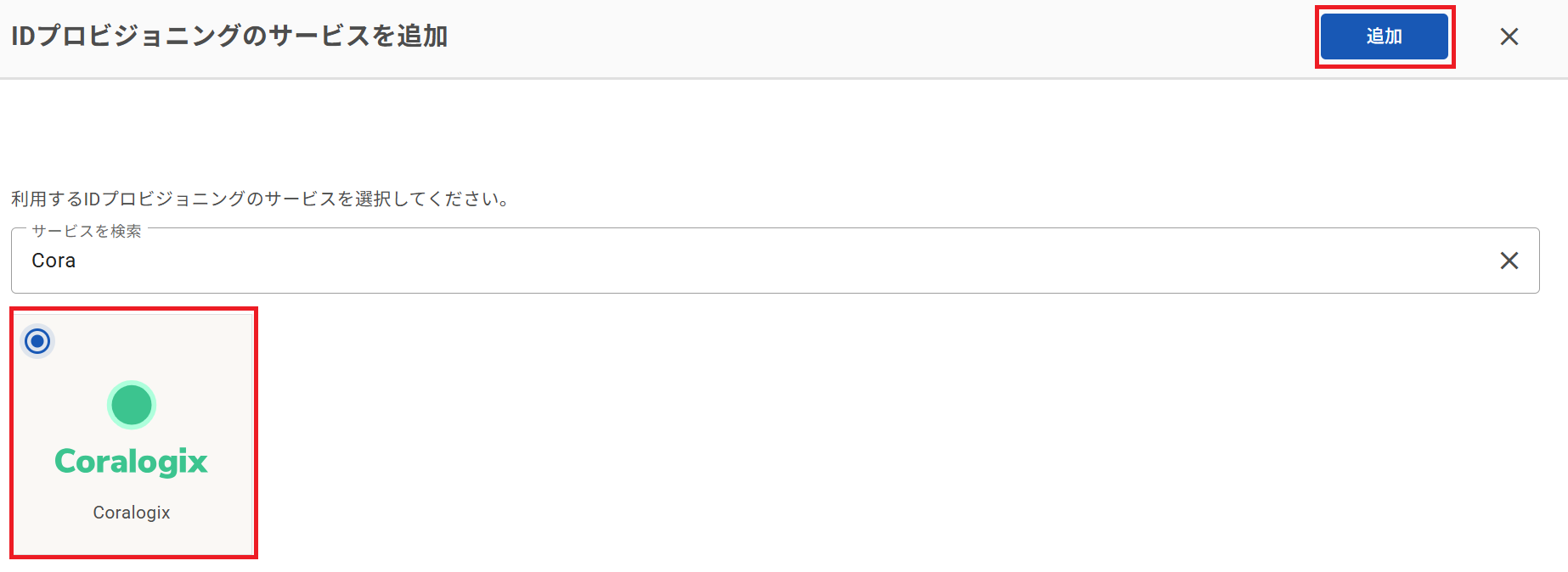

On the Add Service screen, search for and select "Coralogix", then click the "Add" button.
You will be redirected to the "Identity Provisioning > Coralogix" page.

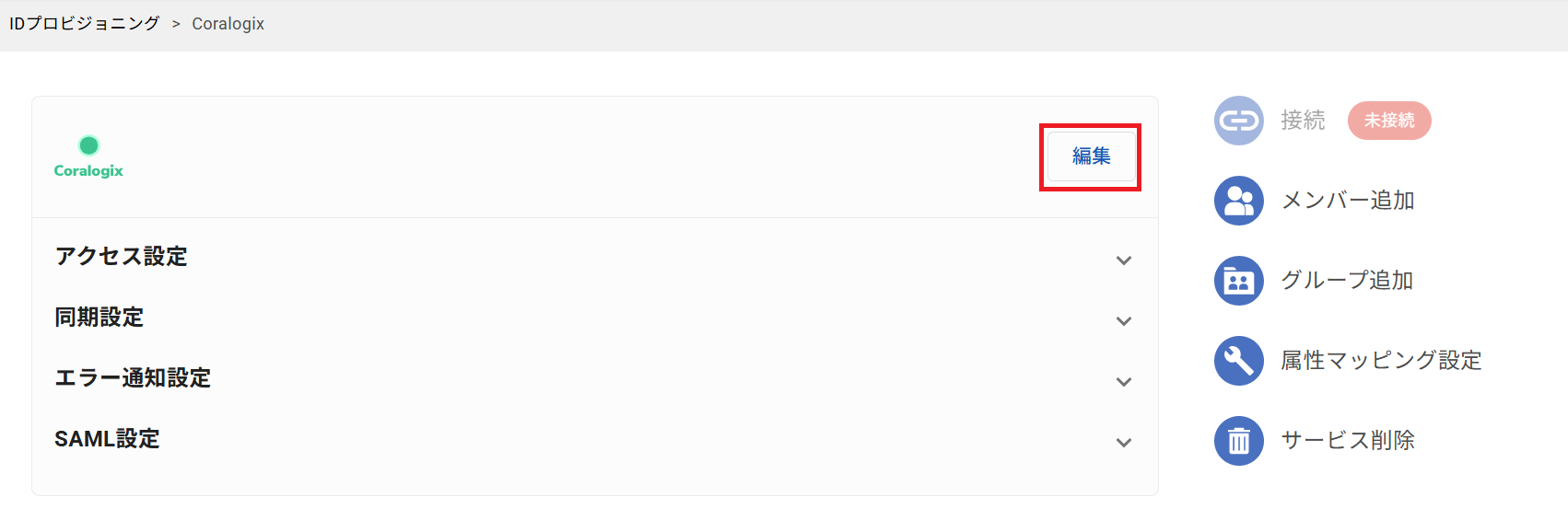

Click the "Edit" button.

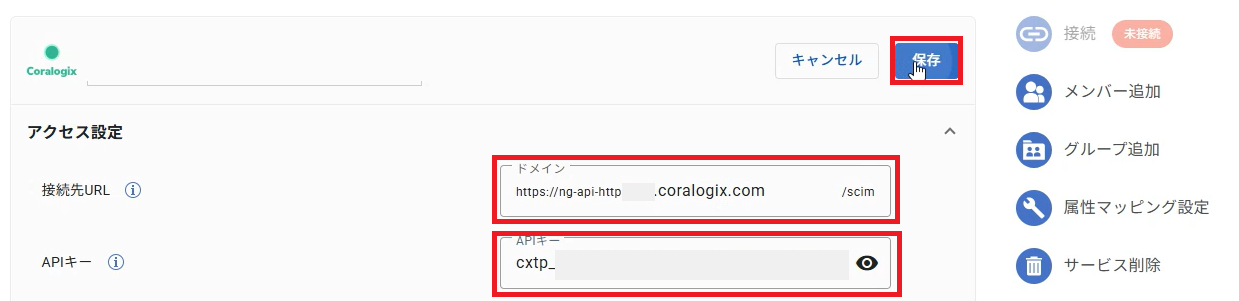

Open "Access Settings", enter the following values for the settings items, and click "Save".

Connection URL	The domain of the Coralogix instance to connect to Note: Please specify the domain of the Coralogix environment you are using.
API Key	The value of the "team key" you copied in step 4 of Coralogix Settings


Next step: The manual for configuring user synchronization is available here

You can map any attribute on the TrustLogin side to any attribute on the Coralogix side.
For configuration instructions, see here

Setup Steps

Coralogix Settings

Click "+Team Key".

Enter any name in "Key name", select "Select All" or the required permissions from the "Role Presets" dropdown, and click "Create".

Copy the displayed "team key".
Note: The token cannot be viewed again after "Save". Please make sure you have copied it before proceeding.

This completes the preparation on the Coralogix side. Next, configure the settings on the TrustLogin side.

TrustLogin Settings

Log in to the TrustLogin Admin Page, and from the "Admin Page > Settings > Optional Features" menu,
open "Settings" next to "Identity Provisioning".

Click "Add Service".

On the Add Service screen, search for and select "Coralogix", then click the "Add" button.

You will be redirected to the "Identity Provisioning > Coralogix" page.
Click the "Edit" button.

Open "Access Settings", enter the following values for the settings items, and click "Save".

Connection URL	The domain of the Coralogix instance to connect to Note: Please specify the domain of the Coralogix environment you are using.
API Key	The value of the "team key" you copied in step 4 of Coralogix Settings


Click the "Connect" button in the upper right of the screen.

Once the button status updates to "Connected", the initial setup is complete.

Next step: The manual for configuring user synchronization is available here
