Initial Setup Steps for Identity Provisioning with Databricks

GMOトラスト・ログインチーム
  • Updated

This page describes the initial setup steps for using TrustLogin as the source of identity
to perform Identity Provisioning to Databricks.

Note: For detailed instructions on operating Databricks, please refer to the documentation provided by Databricks.

Item Details
Pre-check
  • Databricks administrator privileges are required.
Setup Flow / Manual

Note: After connecting TrustLogin and Databricks using the steps on this page,
　please proceed to configuring user synchronization.
Provisioning Target 〇 Supports user provisioning
〇 Supports group provisioning
SAML Authentication Setup Manual   －
Notes
  • None in particular



Setup Steps

Databricks Settings

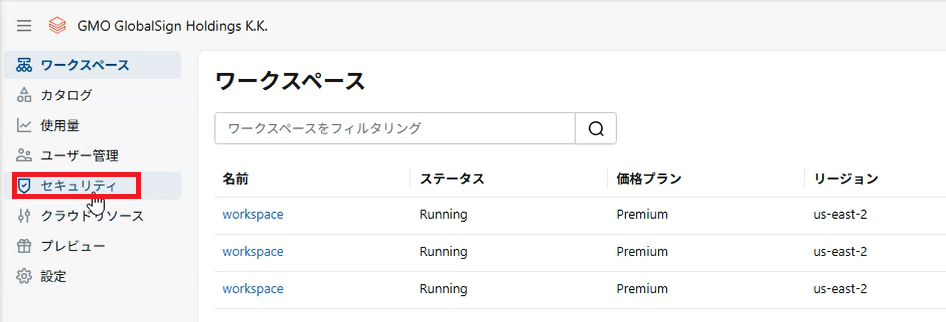

  1. Log in to Databricks with administrator privileges, and click "Security".

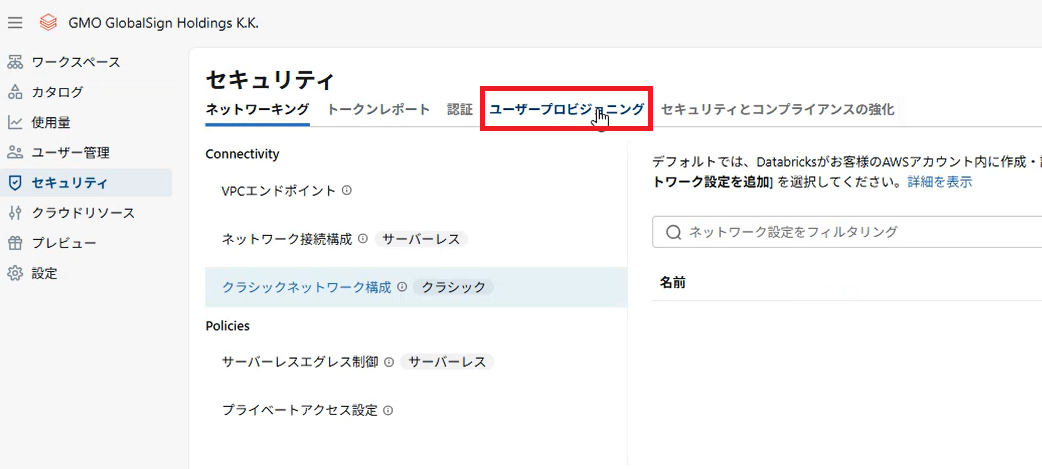

  2. Click the "User Provisioning" tab.

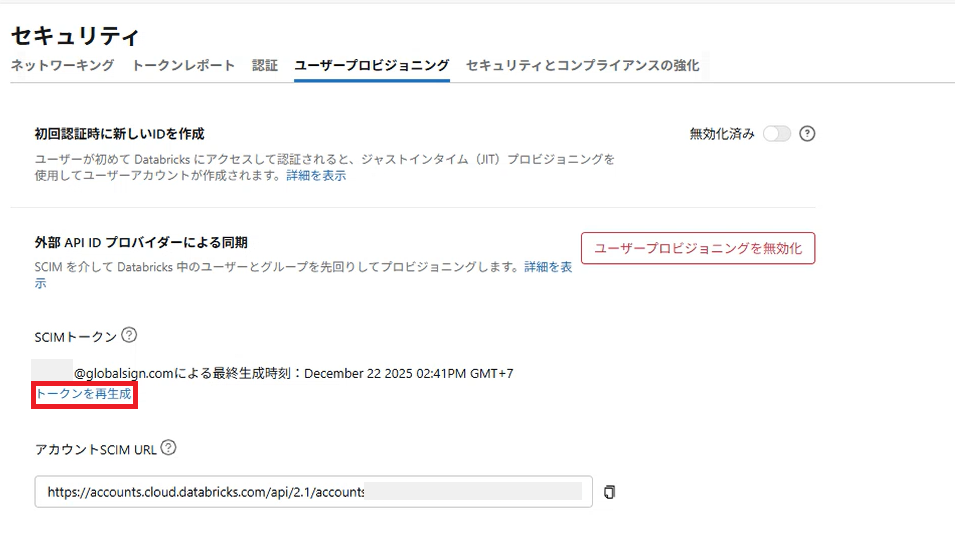

  3. Click "Regenerate token".

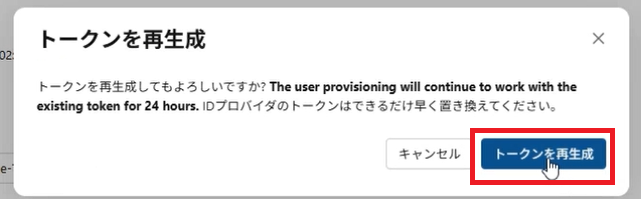

  4. In the dialog that appears, click "Regenerate token".

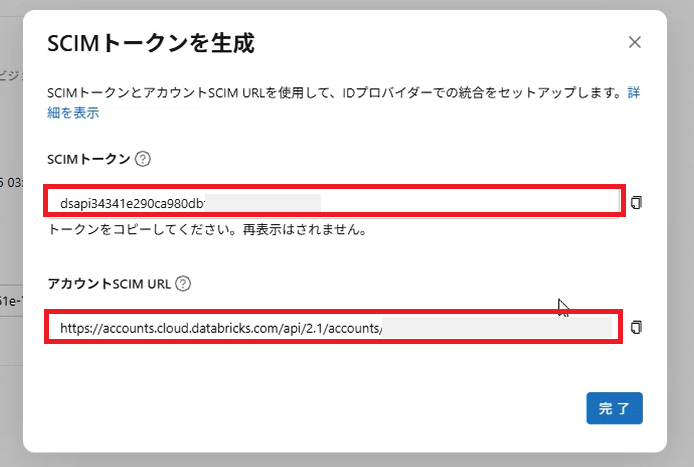

  5. Copy the displayed "SCIM Token" and "Account SCIM URL".
    Note: The token cannot be viewed again after clicking "Done". Please make sure you have copied it before proceeding.




    This completes the preparation on the Databricks side. Next, configure the settings on the TrustLogin side.


TrustLogin Settings

  1. Log in to the TrustLogin Admin Page, and from the "Admin Page > Settings > Optional Features" menu,
    open "Settings" next to "Identity Provisioning".


  2. Click "Add Service".

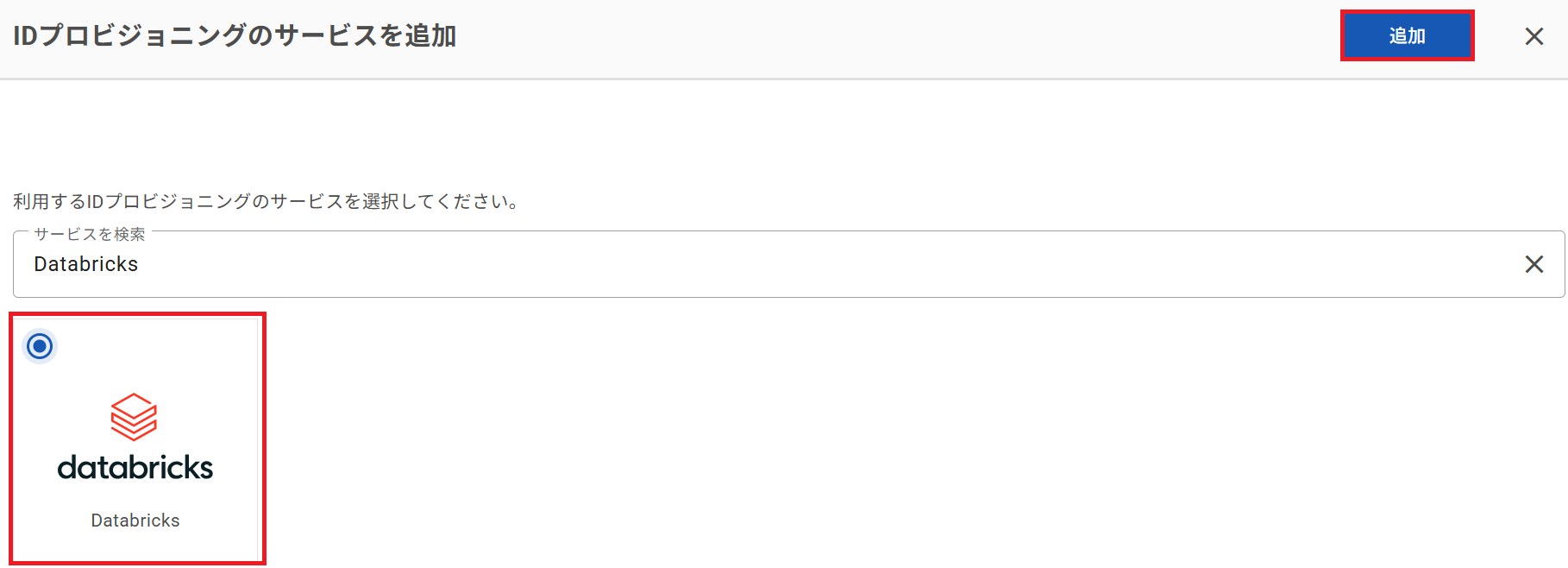

  3. On the Add Service screen, search for and select "Databricks", then click the "Add" button.

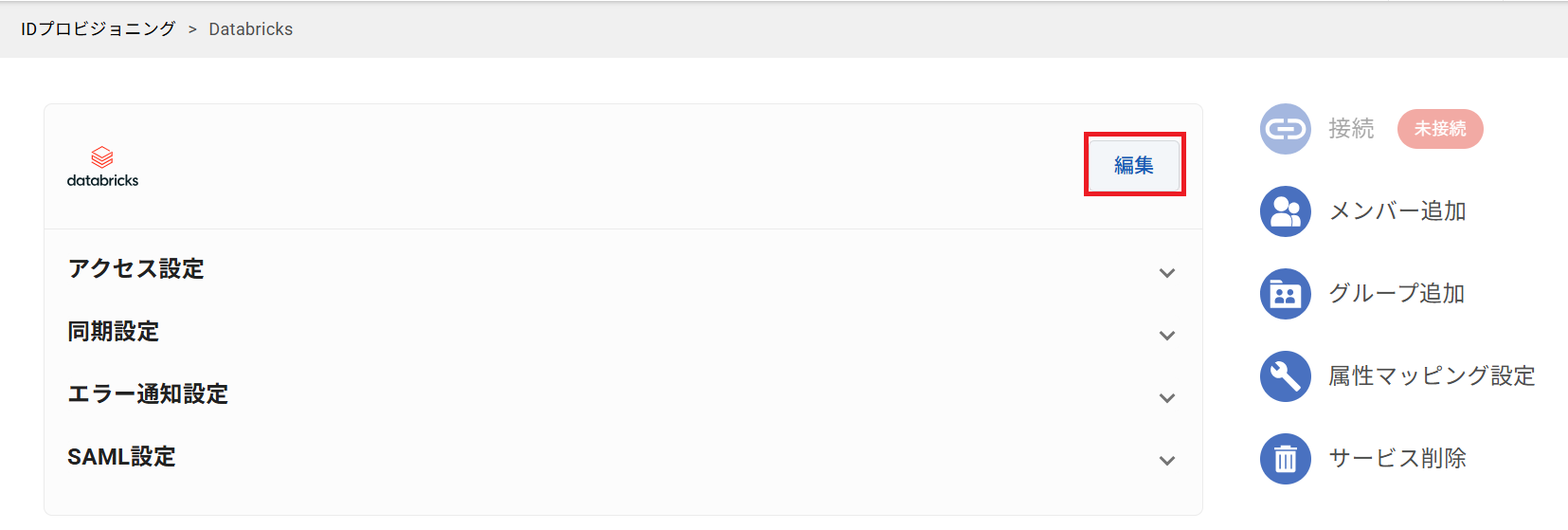

  4. You will be redirected to the "Identity Provisioning > Databricks" page.
    Click the "Edit" button.

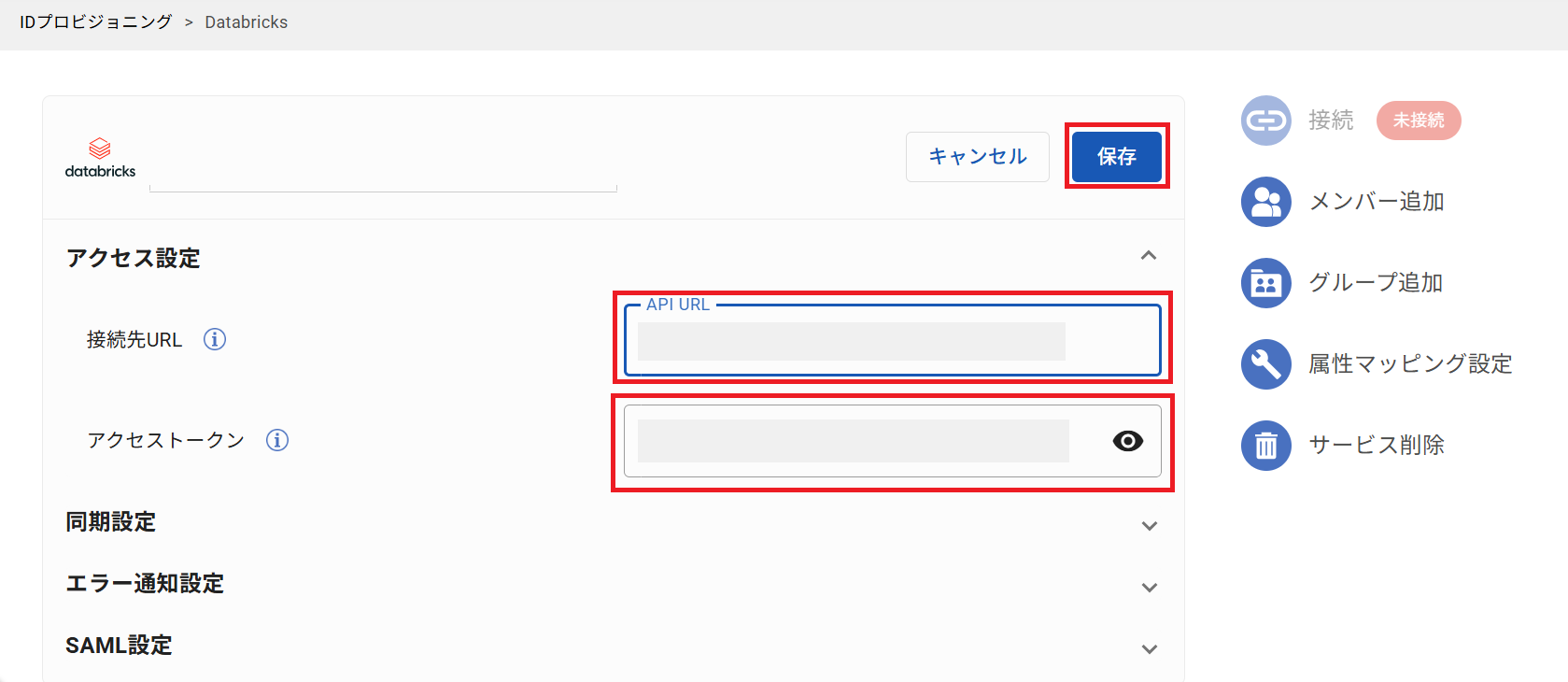

  5. Open "Access Settings", enter the following values for the settings items, and click "Save".

    Connection URL Databricks Settings The value of "Account SCIM URL" you copied in step 4
    Access Token Databricks Settings The value of "SCIM Token" you copied in step 4

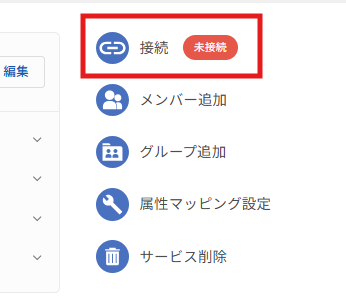

  6. Click the "Connect" button in the upper right of the screen.

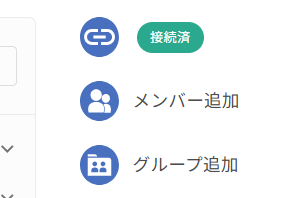

  7. Once the button status updates to "Connected", the initial setup is complete.


Next step: The manual for configuring user synchronization is available here



Values You Can Configure in Attribute Mapping

You can map any attribute on the TrustLogin side to any attribute on the Databricks side.
For configuration instructions, see here


Available Default Functions
