Initial Setup Steps for Identity Provisioning with Front Egg

GMOトラスト・ログインチーム
  • Updated

This page describes the initial setup steps for using TrustLogin as the source of identity
to perform Identity Provisioning to Front Egg.

Note: For detailed instructions on operating Front Egg, please refer to the documentation provided by Front Egg.

Item Details
Pre-check
  • Front Egg administrator privileges are required.
Setup Flow / Manual

Note: After connecting TrustLogin and Front Egg using the steps on this page,
　please proceed to configuring user synchronization.
Provisioning Target 〇 Supports user provisioning
〇 Supports group provisioning
SAML Authentication Setup Manual －
Notes
  • None in particular

Setup Steps

Front Egg Settings

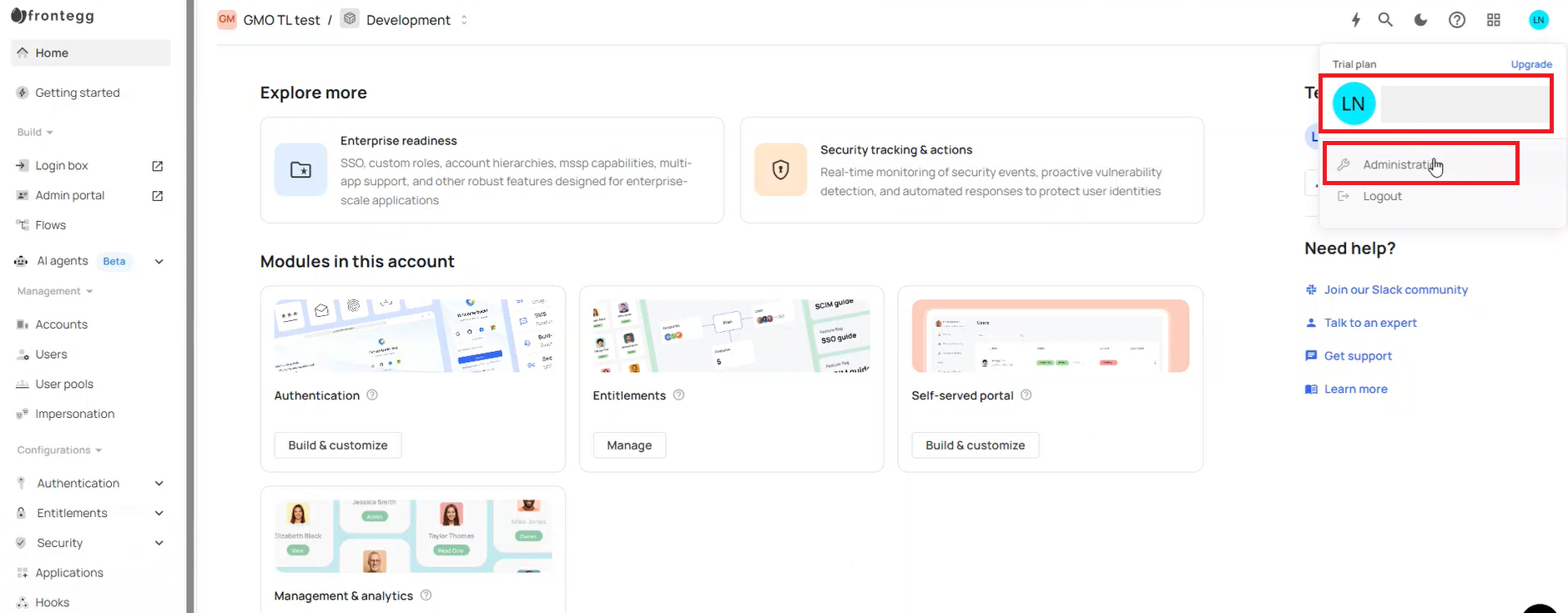

  1. Log in to Front Egg with administrator privileges and click "Profile Icon > Administration".

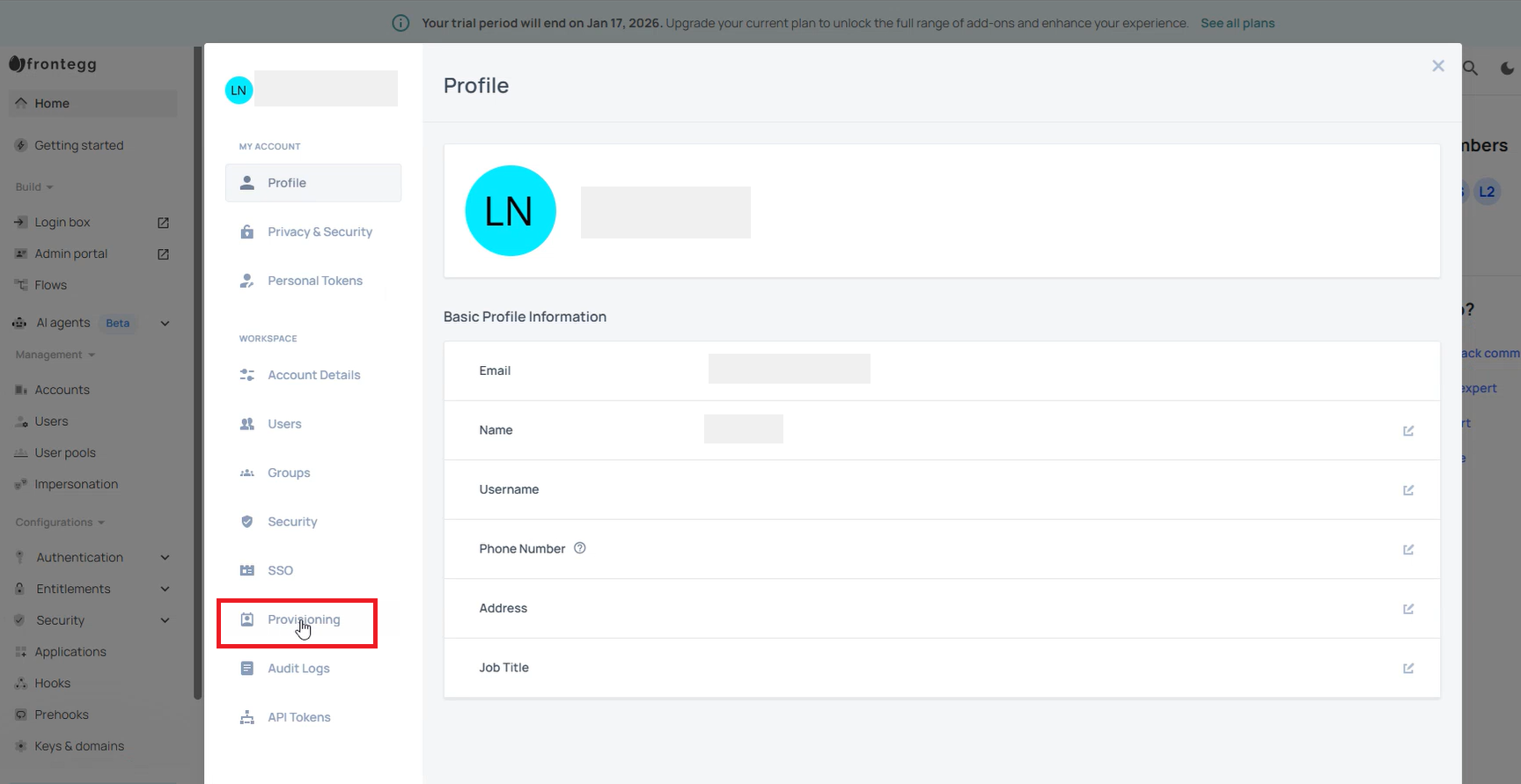

  2. Click "Provisioning".

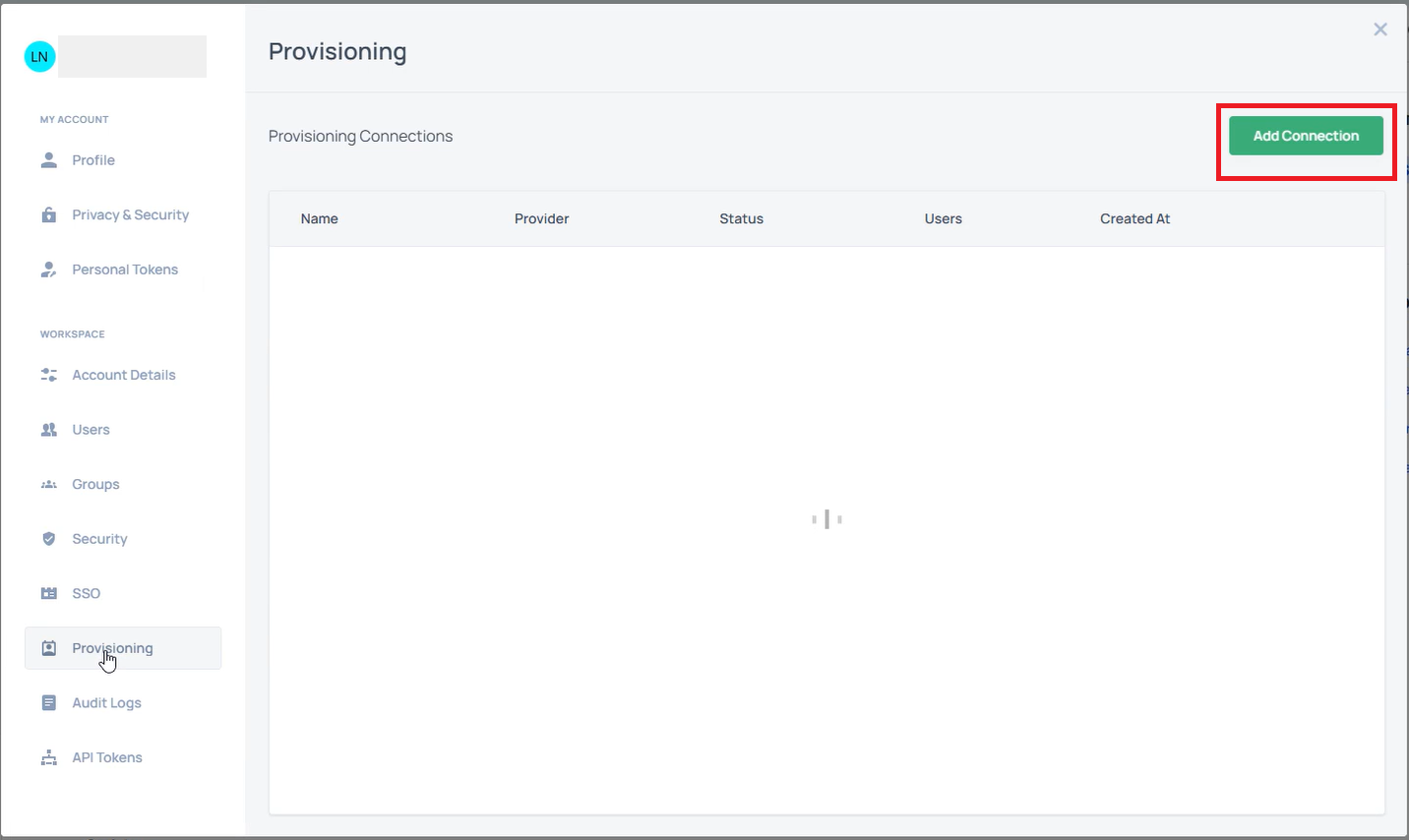

  3. Click "Add Connection".

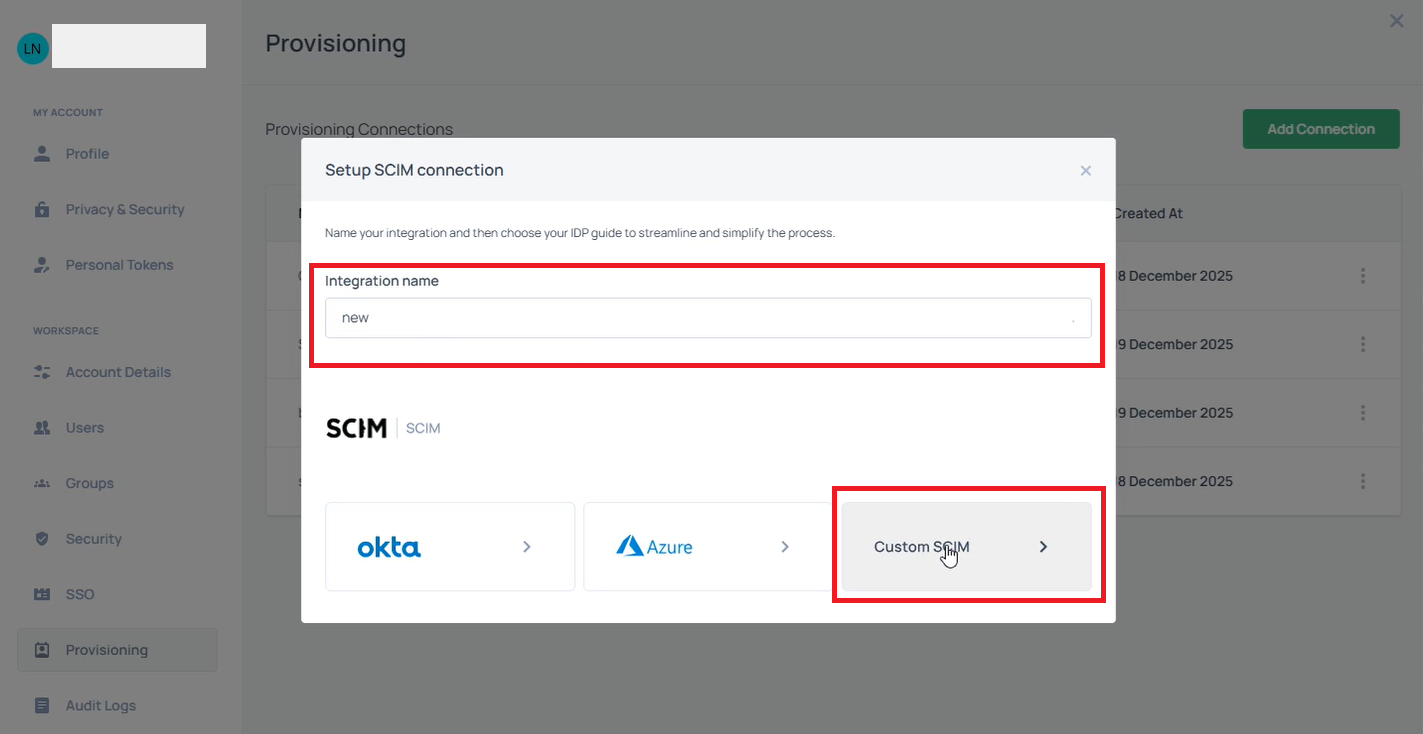

  4. Enter any name in "Integration name" and click "Custom SCIM".

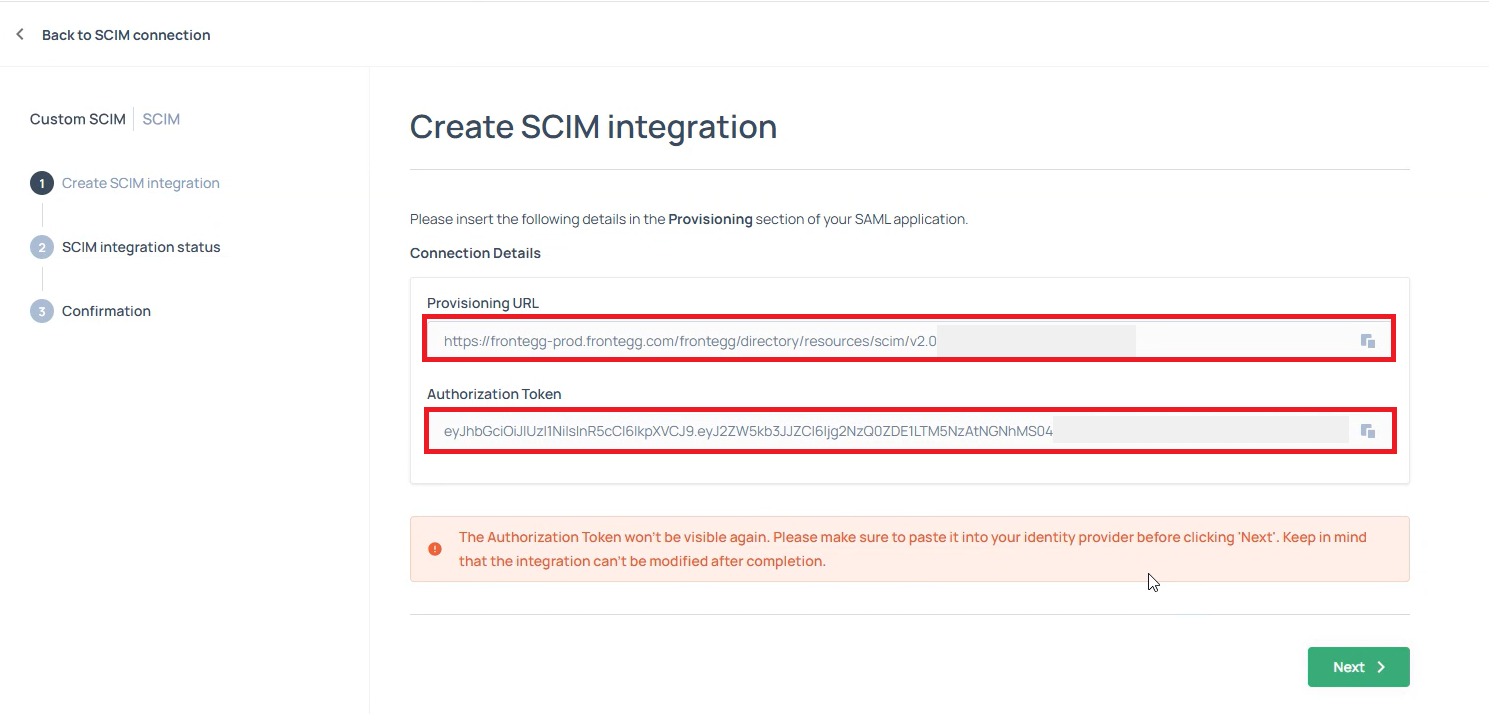

  5. Copy the "Provisioning URL" and "Authorization Token" values to your clipboard.
    Note: You cannot view the token again after clicking "Next". Please make sure you have copied it before proceeding.



    This completes the preparation on the Front Egg side. Next, configure the settings on the TrustLogin side.

TrustLogin Settings

  1. Log in to the TrustLogin Admin Page, and from the "Admin Page > Settings > Optional Features" menu,
    open "Settings" next to "Identity Provisioning".

  2. Click "Add Service".

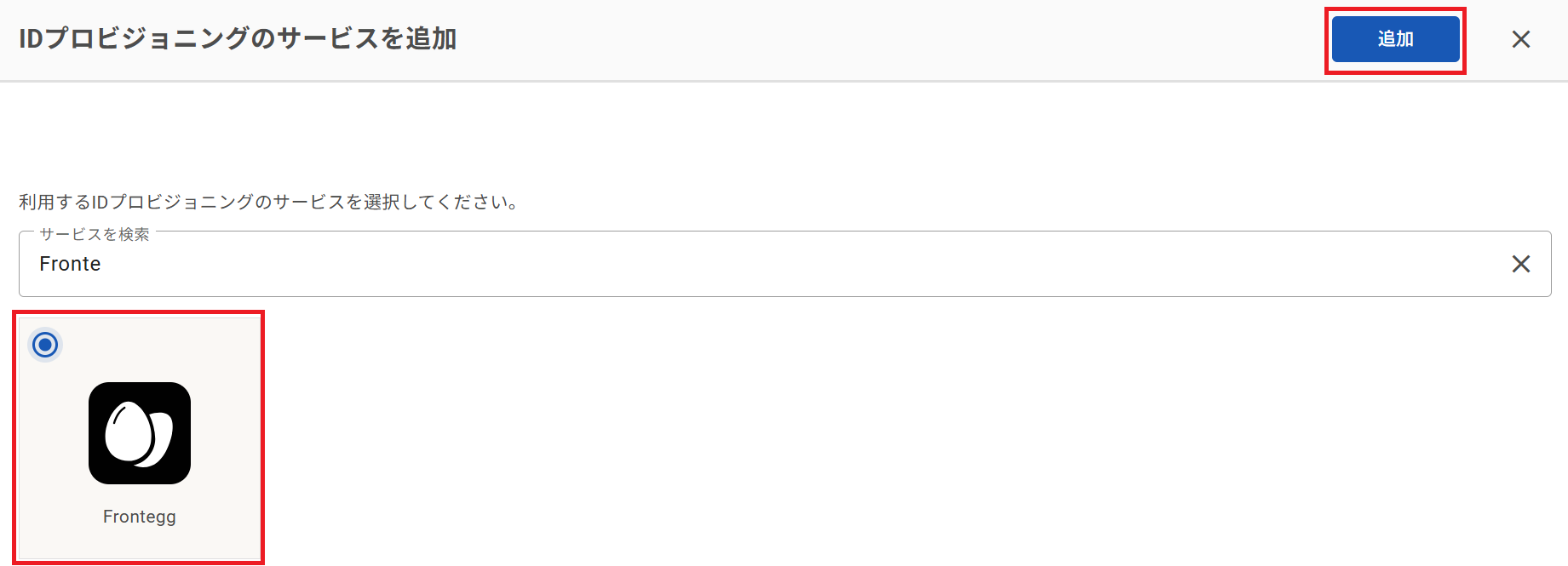

  3. On the Add Service screen, search for and select "Front Egg", then click the "Add" button.
    [Front Egg]_ID_11.png

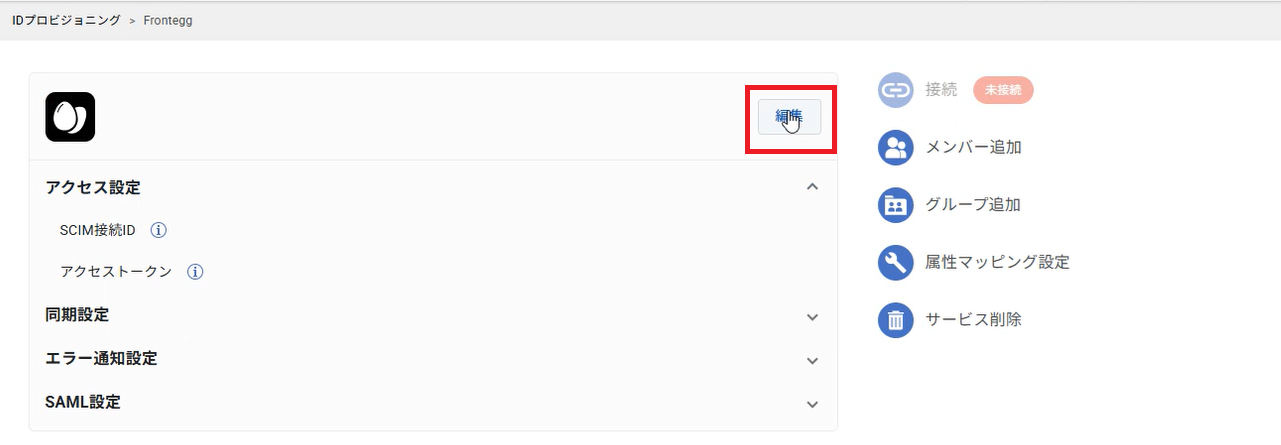

  4. You will be redirected to the "Identity Provisioning > Front Egg" page.
    Click the "Edit" button.

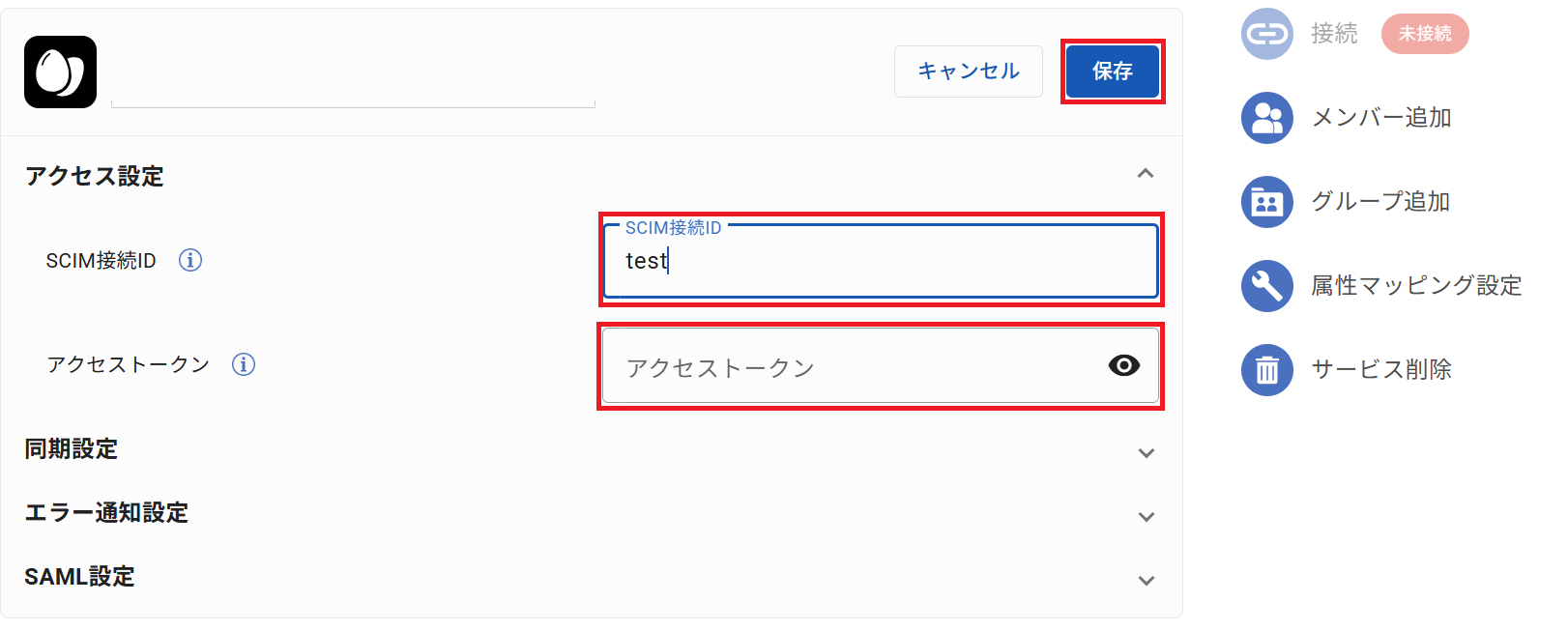

  5. Open "Access Settings", enter the following values for the settings items, and click "Save".

    SCIM Connection ID The value of "Provisioning URL" you copied in step 5 of Front Egg Settings
    Access Token The value of "Authorization Token" you copied in step 5 of Front Egg Settings


  6. Click the "Connect" button in the upper right of the screen.

  7. Once the button status updates to "Connected", the initial setup is complete.

Next step: The manual for configuring user synchronization is available here

Values You Can Configure in Attribute Mapping

You can map any attribute on the TrustLogin side to any attribute on the Front Egg side.
For configuration instructions, see here

Available Default Functions
