This page describes the initial setup steps for using TrustLogin as the source of identity
to perform Identity Provisioning to Embed Signage.

Note: For detailed instructions on operating Embed Signage, please refer to the documentation provided by Embed Signage.

Setup Steps

Embed Signage Settings

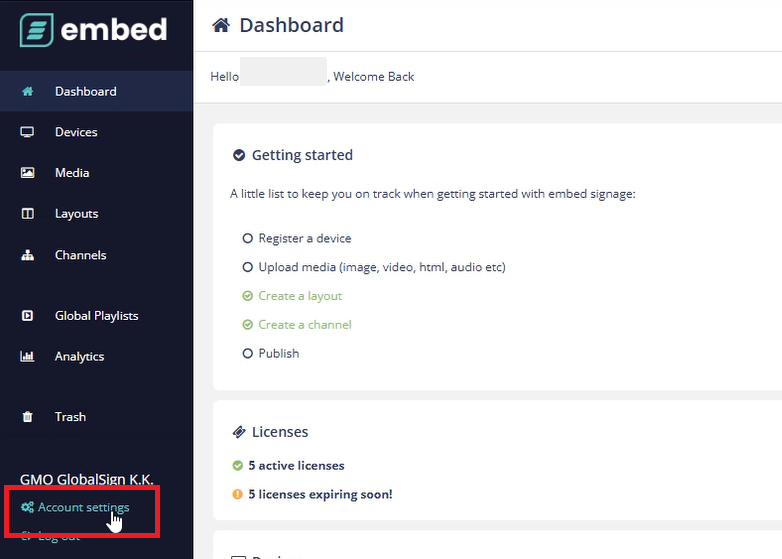

1. Log in to Embed Signage with administrator privileges and click "Account settings".

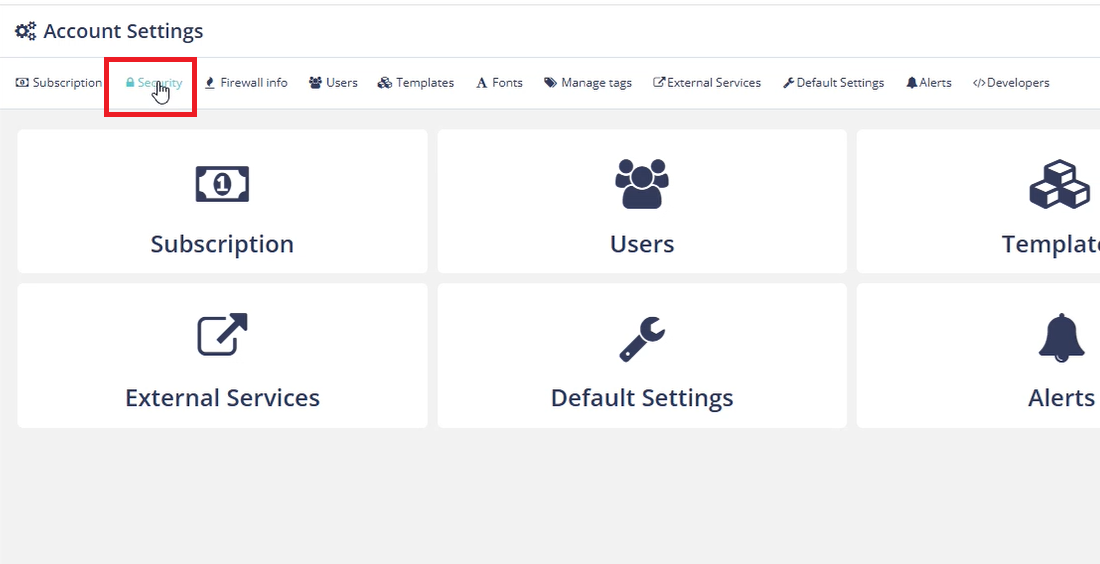

2. Click "Security".

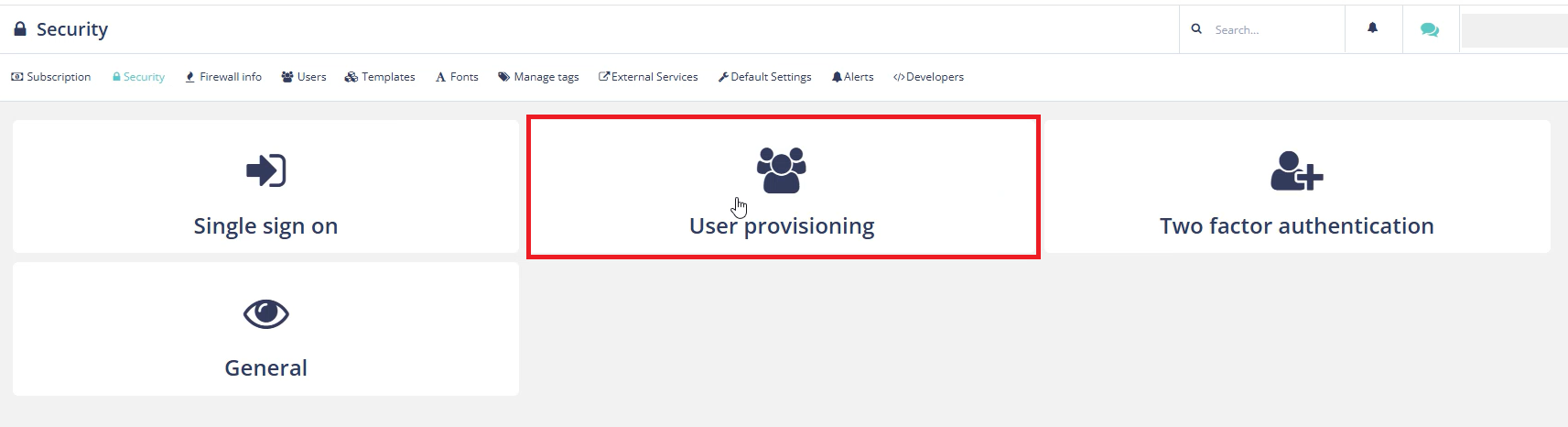

3. Click "User provisioning".

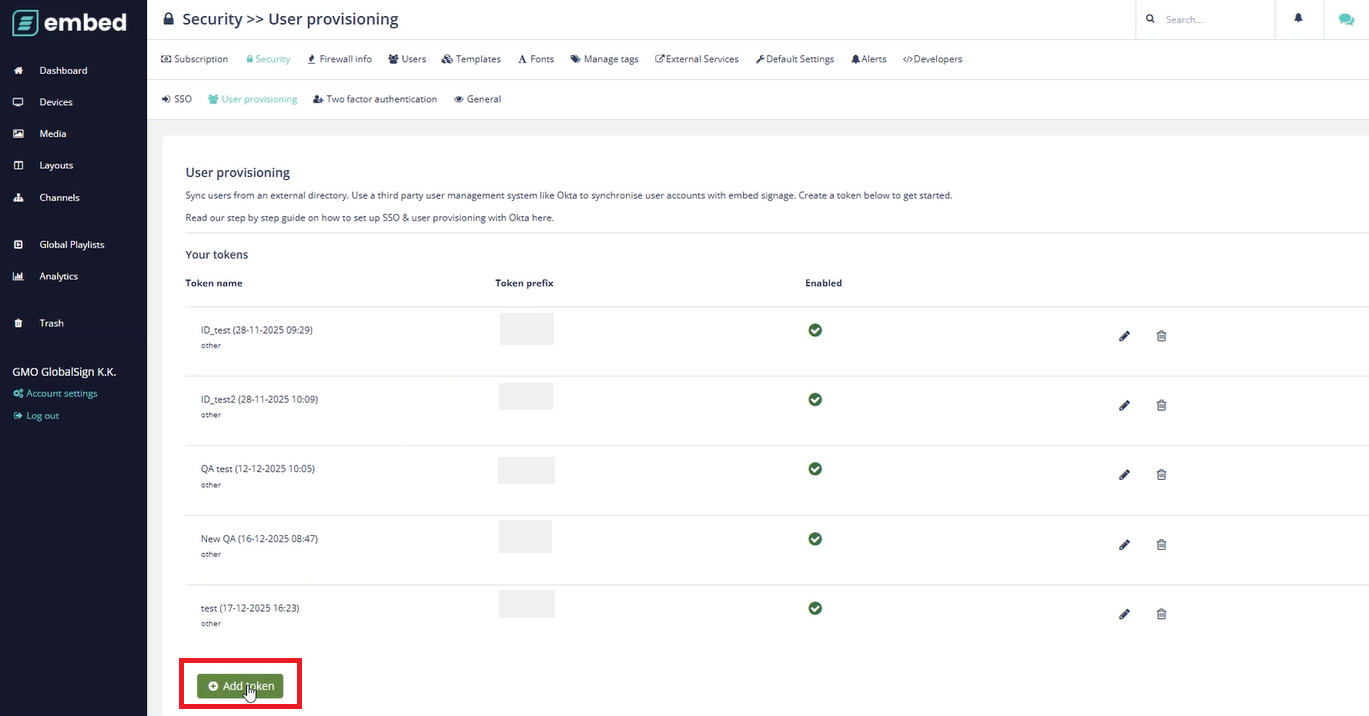

4. Click "Add token".

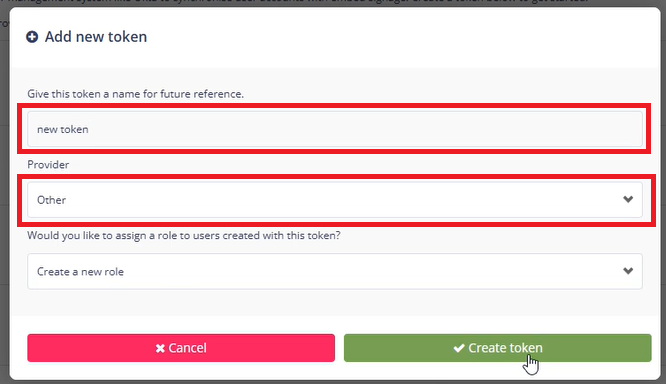

5. Enter any token name, and select "Other" for "Provider".

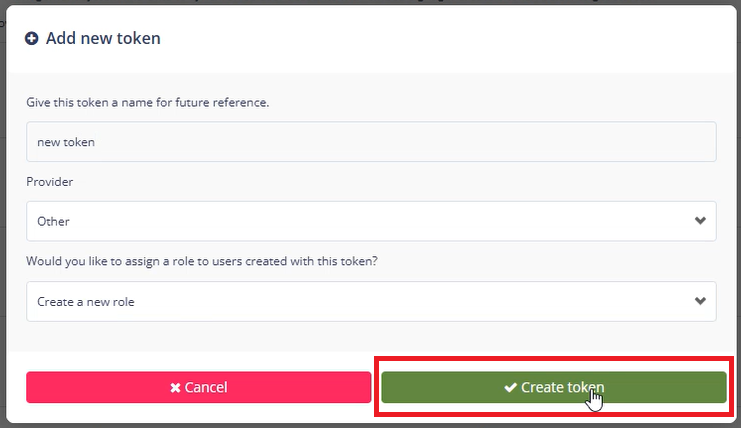

6. Click "Create token".

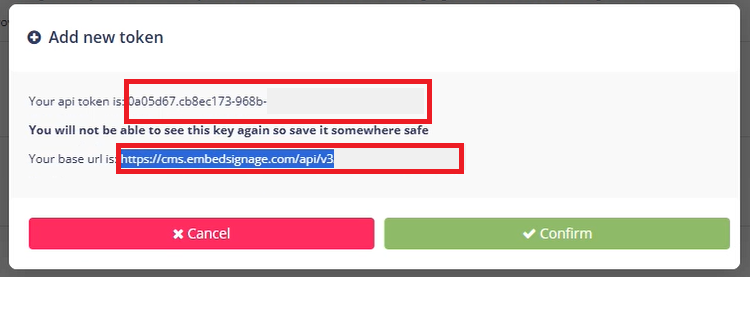

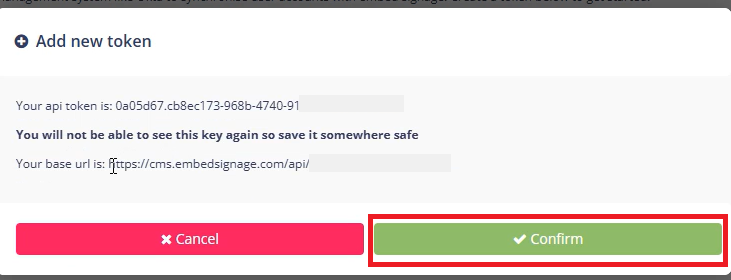

7. Copy the "base url" and "api token" to your clipboard.
   Note: You will not be able to view the token again after clicking "Confirm". Please make sure not to miss copying it.



8. Click "Confirm".



   This completes the preparation on the Embed Signage side. Next, configure the settings on the TrustLogin side.


TrustLogin Settings

1. Log in to the TrustLogin Admin Page, and from the "Admin Page > Settings > Optional Features" menu,
   open "Settings" next to "Identity Provisioning".



2. Click "Add Service".

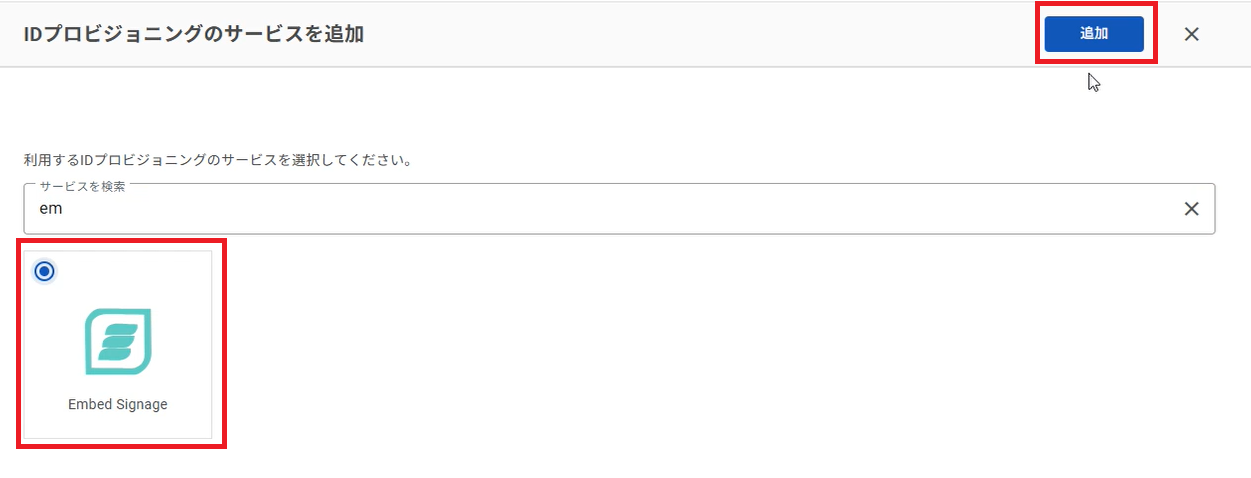

3. On the Add Service screen, search for and select "Embed Signage", then click the "Add" button.

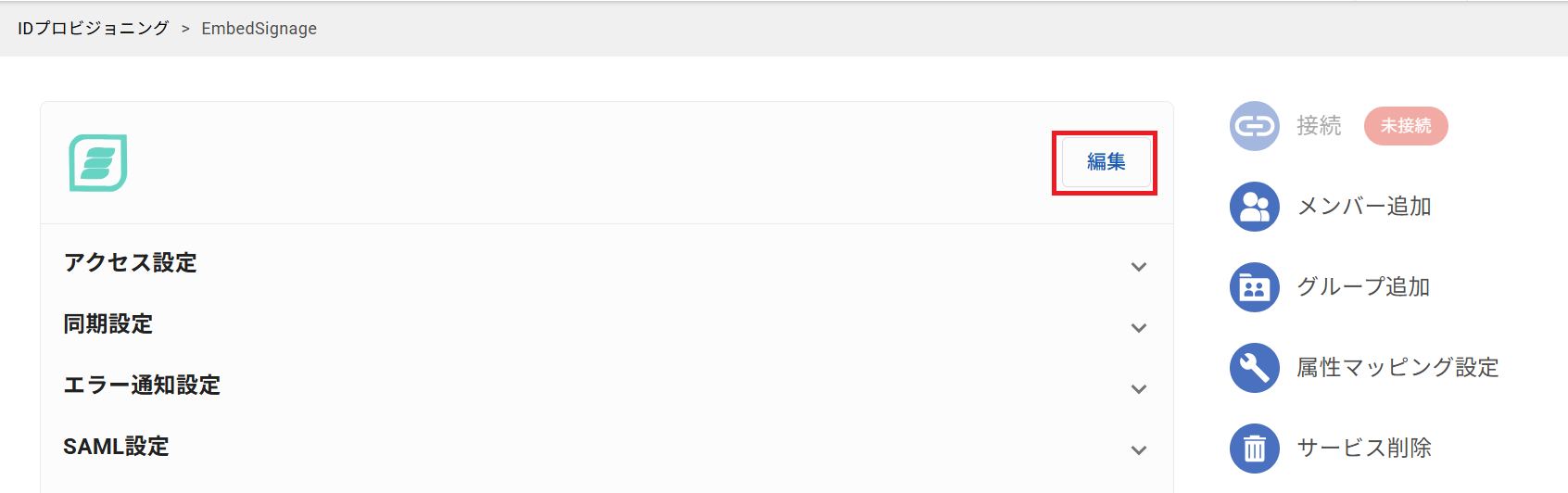

4. You will be redirected to the "Identity Provisioning > Embed Signage" page.
   Click the "Edit" button.

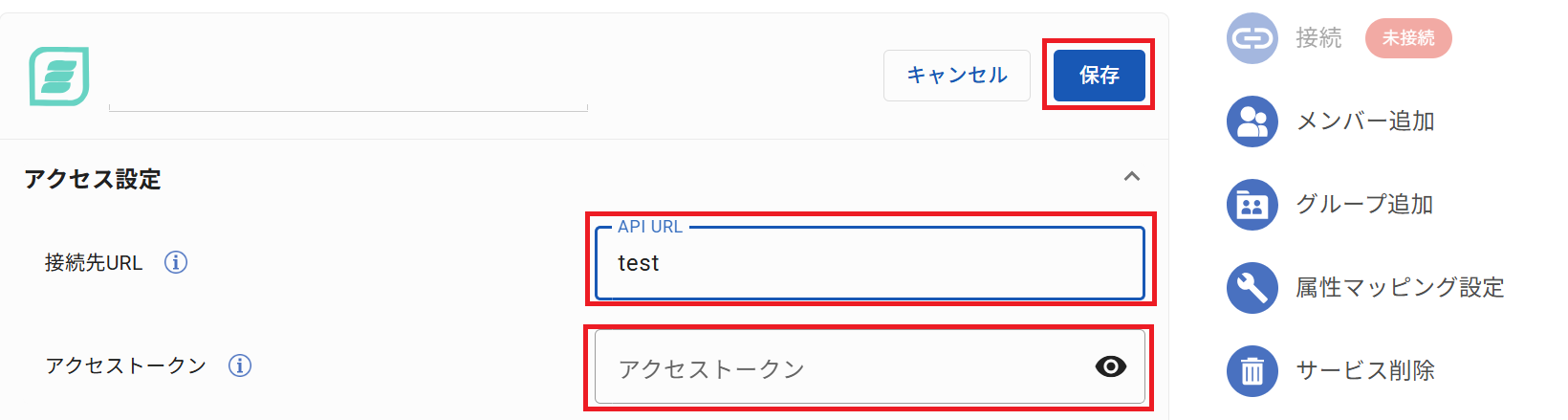

5. Open "Access Settings", enter the following values for the settings items, and click "Save".

   Connection URL	Embed Signage Settings The value of the base url you copied in step 7
   Access Token	Embed Signage Settings The value of the api token you copied in step 7

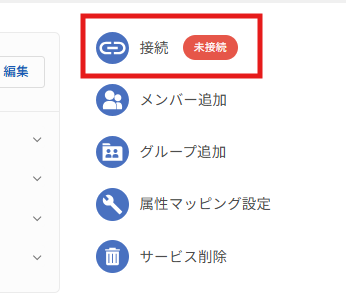

6. Click the "Connect" button in the upper right of the screen.

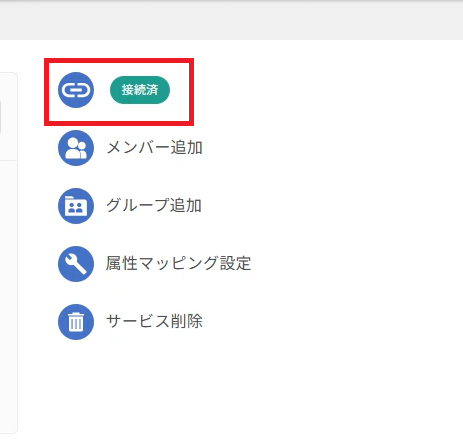

7. Once the button status updates to "Connected", the initial setup is complete.



Next step: The manual for configuring user synchronization is available here

Values You Can Configure in Attribute Mapping

You can map any attribute on the TrustLogin side to any attribute on the Embed Signage side.
For configuration instructions, see here

Available Default Functions

• default functions common to all services can be specified.
