This page describes the initial setup steps for using TrustLogin as the source of identity
to perform Identity Provisioning to KARTE.

Note: For detailed instructions on operating KARTE, please refer to the documentation provided by KARTE.

Setup Steps

KARTE Settings

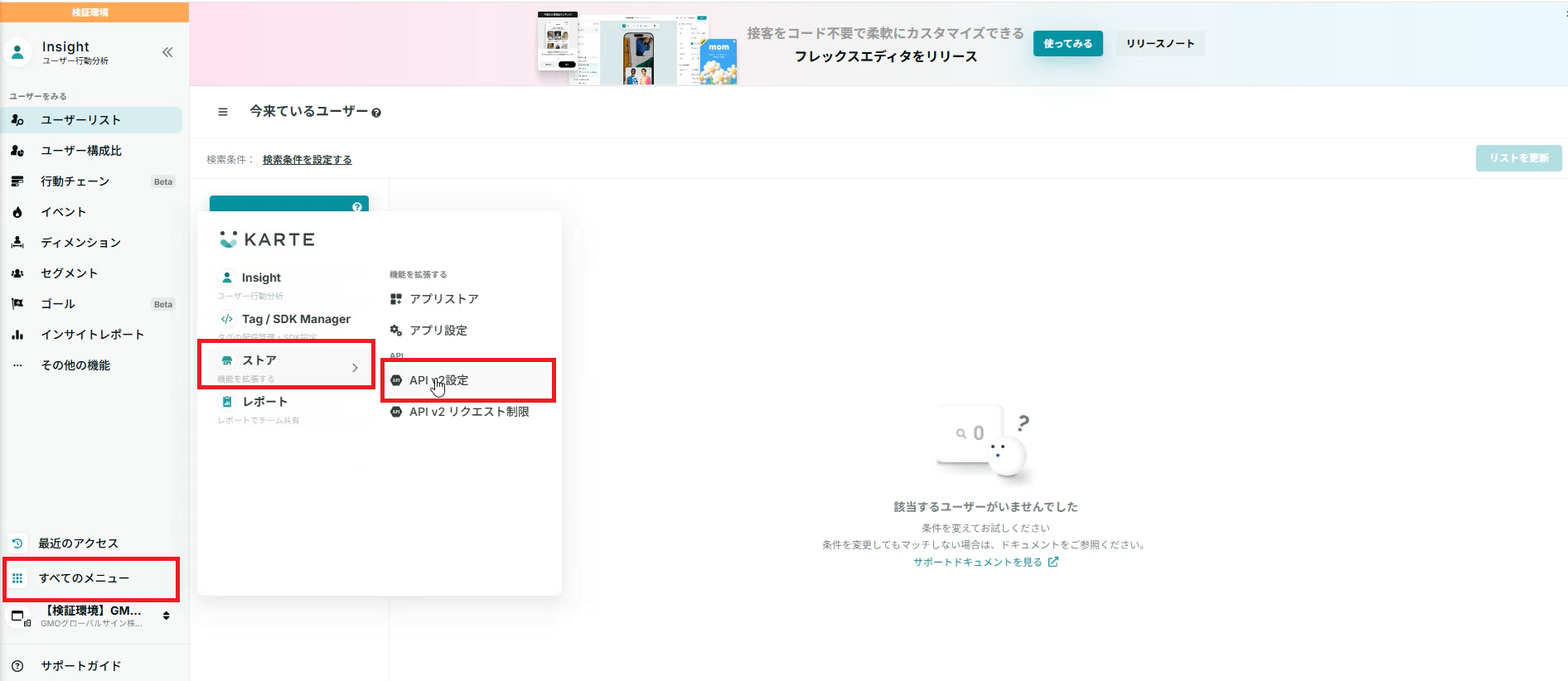

1. Log in to KARTE with administrator privileges and click "All Menu > Store > API v2 Settings".

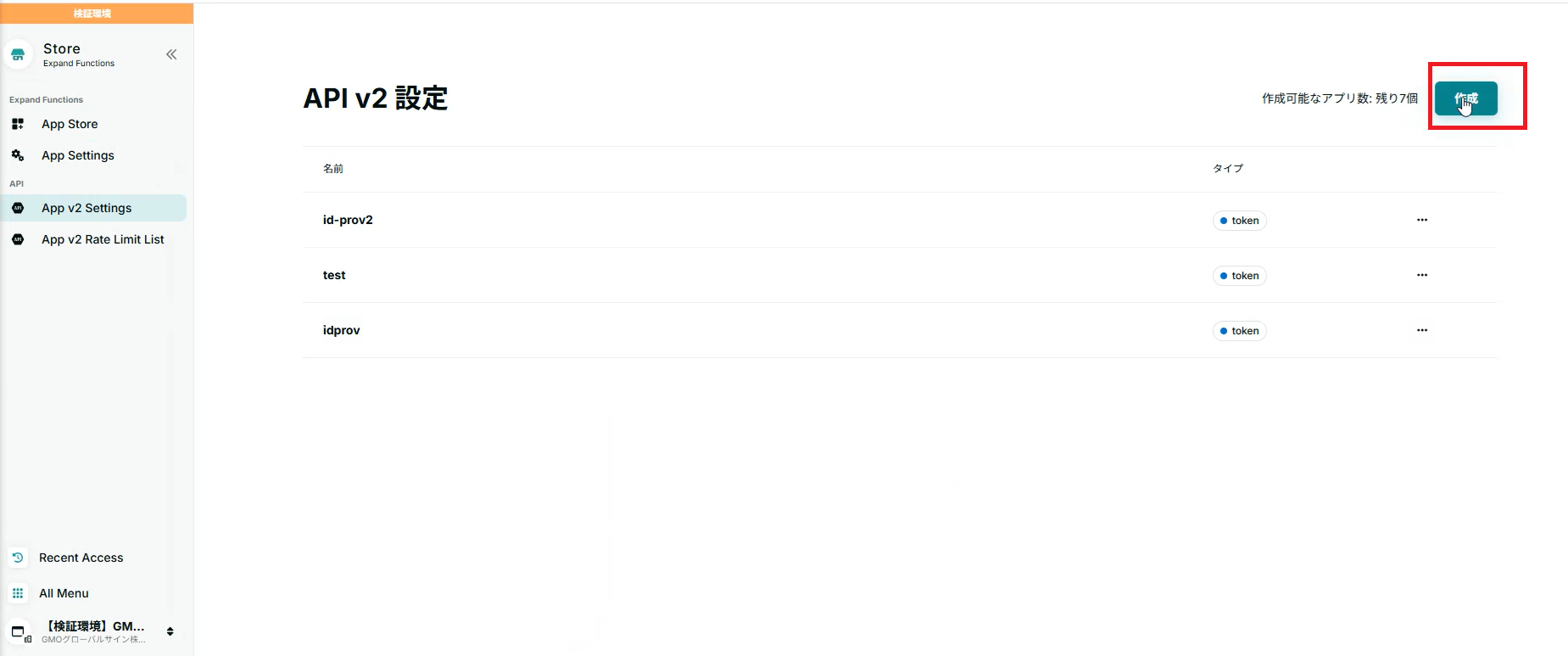

2. Click the "Create" button.

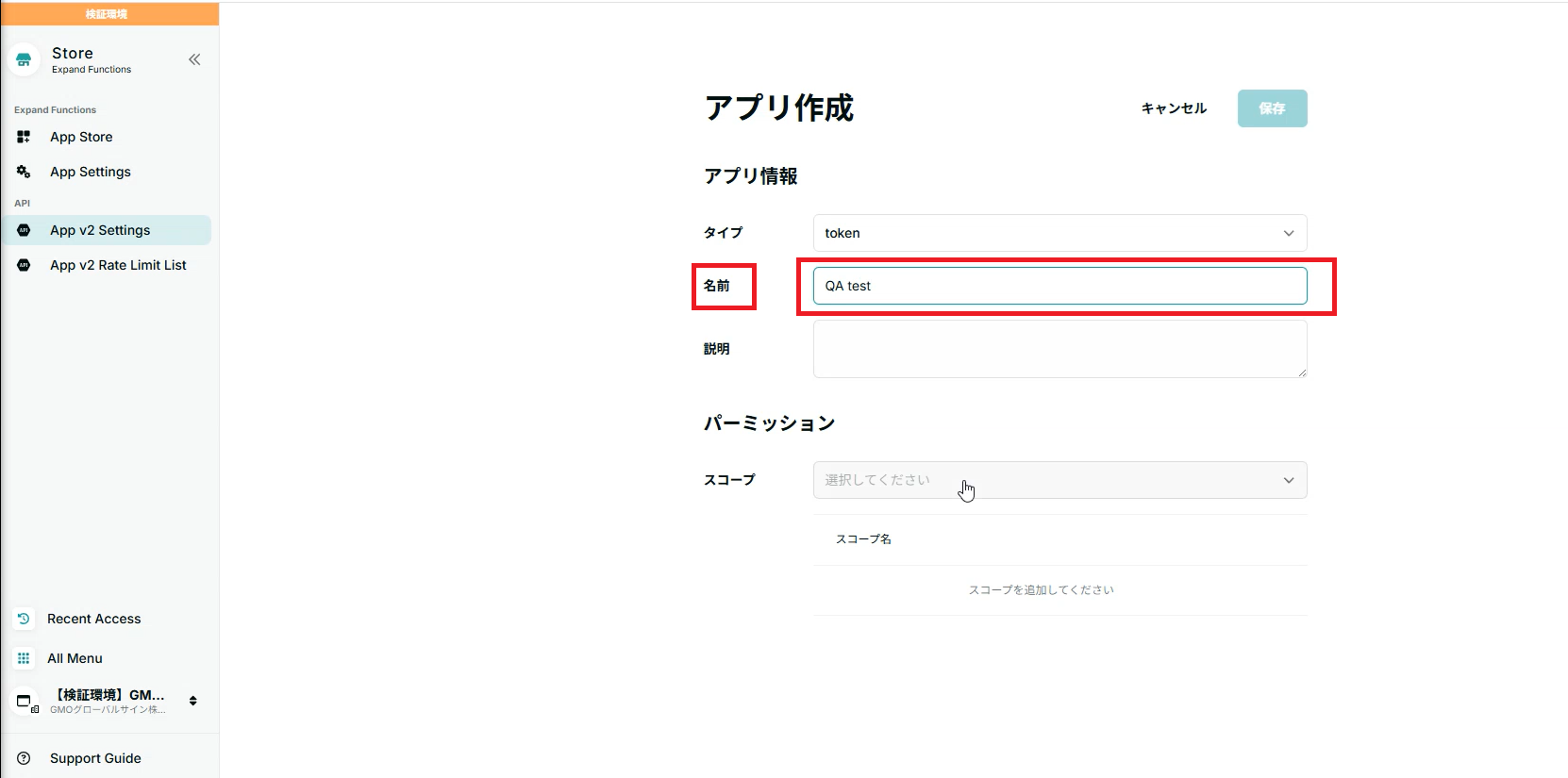

3. Enter any name in the "Name" field.

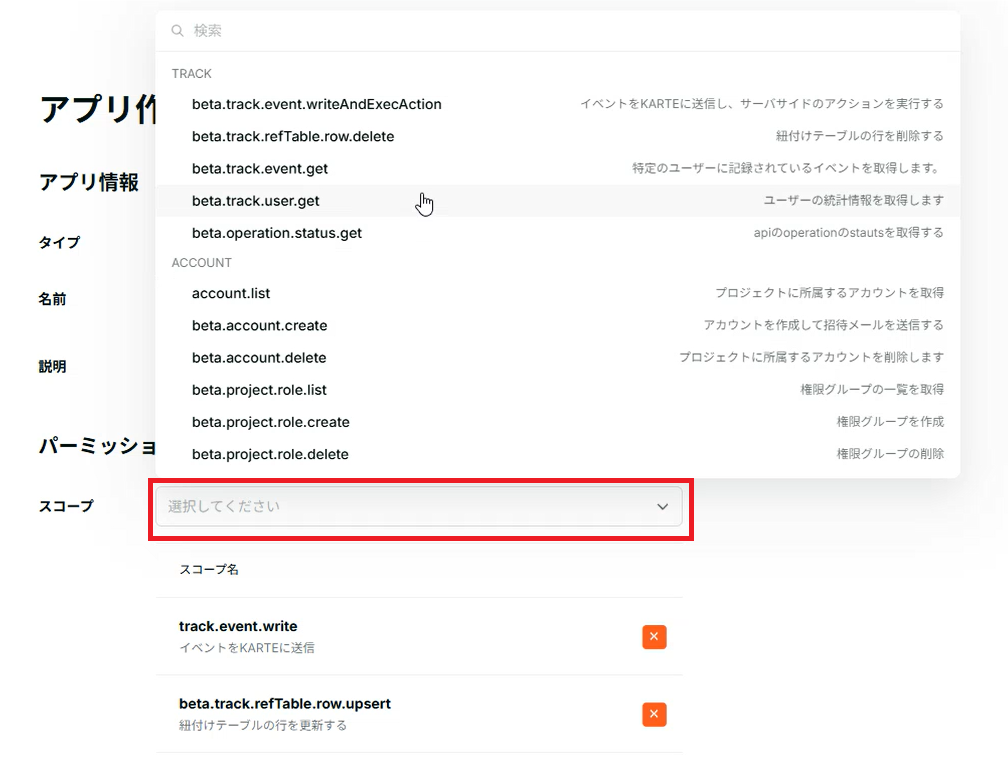

4. Select the scopes according to your usage.

   【TRACK】

   ・track.event.write (Sends an event to KARTE)

   ・beta.track.event.writeAndExecAction(Sends an event to KARTE and executes a server-side action)

   ・beta.track.refTable.row.upsert (Updates a row in the linked table)

   ・beta.track.refTable.row.delete (Deletes a row in the linked table)

   ・beta.track.event.get (Retrieves events recorded for a specific user.)

   ・beta.track.user.get (Retrieves user statistics.)

   ・beta.operation.status.get (Retrieves the status of an API operation)

   【ACCOUNT】

   ・account.list (Retrieves accounts belonging to the project)

   ・beta.account.create (Creates an account and sends an invitation email)

   ・beta.account.delete (Deletes an account belonging to the project)

   ・beta.project.role.list (Retrieves the list of permission groups)

   ・beta.project.role.create (Creates a permission group)

   ・beta.project.role.delete (Deletes a permission group)

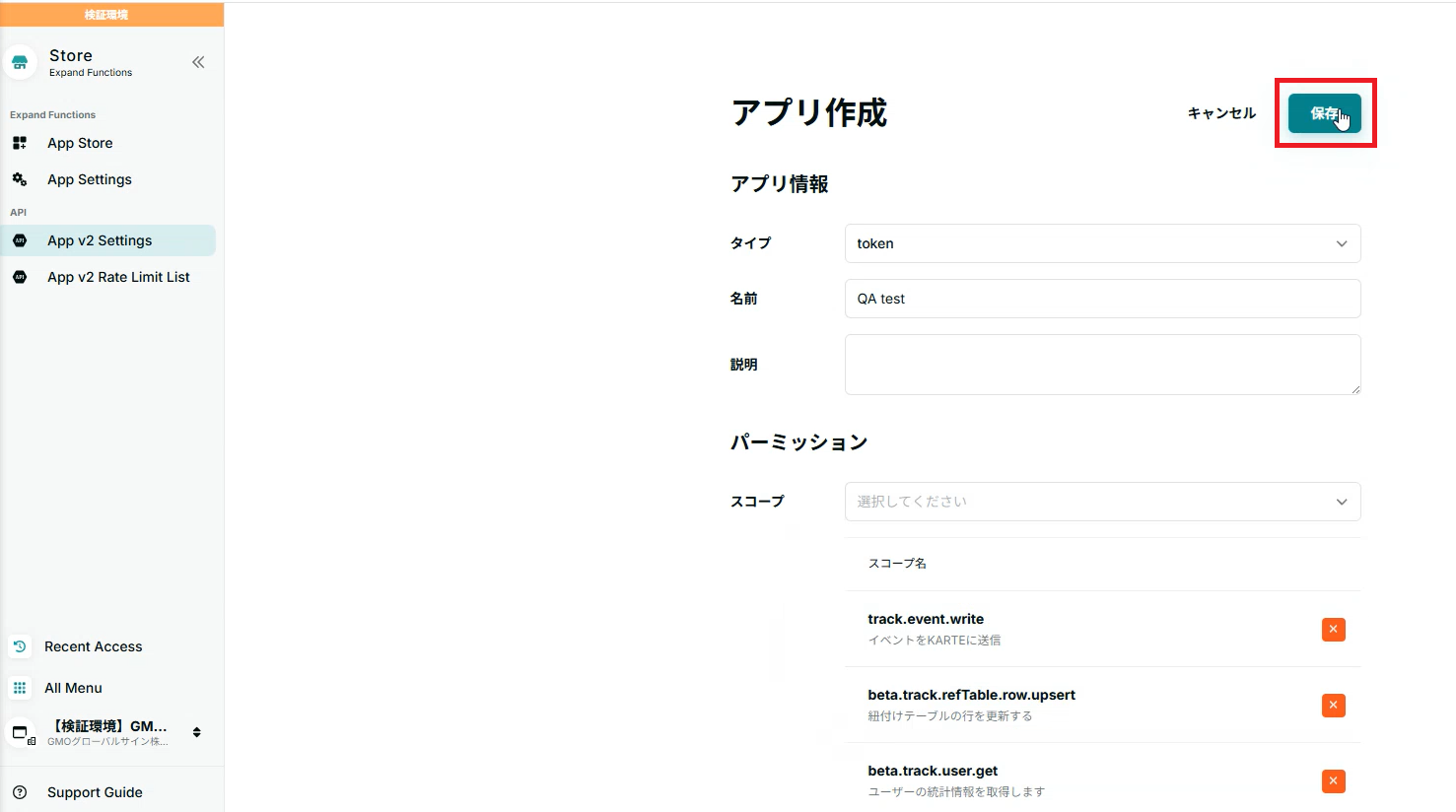

5. Click "Save".

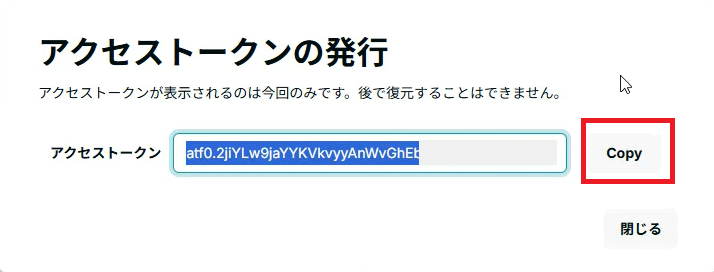

6. Copy the displayed access token.
   Note: You will not be able to view the token again after clicking "Close". Please make sure not to miss copying it.




   This completes the preparation on the KARTE side. Next, configure the settings on the TrustLogin side.


TrustLogin Settings

1. Log in to the TrustLogin Admin Page, and from the "Admin Page > Settings > Optional Features" menu,
   open "Settings" next to "Identity Provisioning".



2. Click "Add Service".

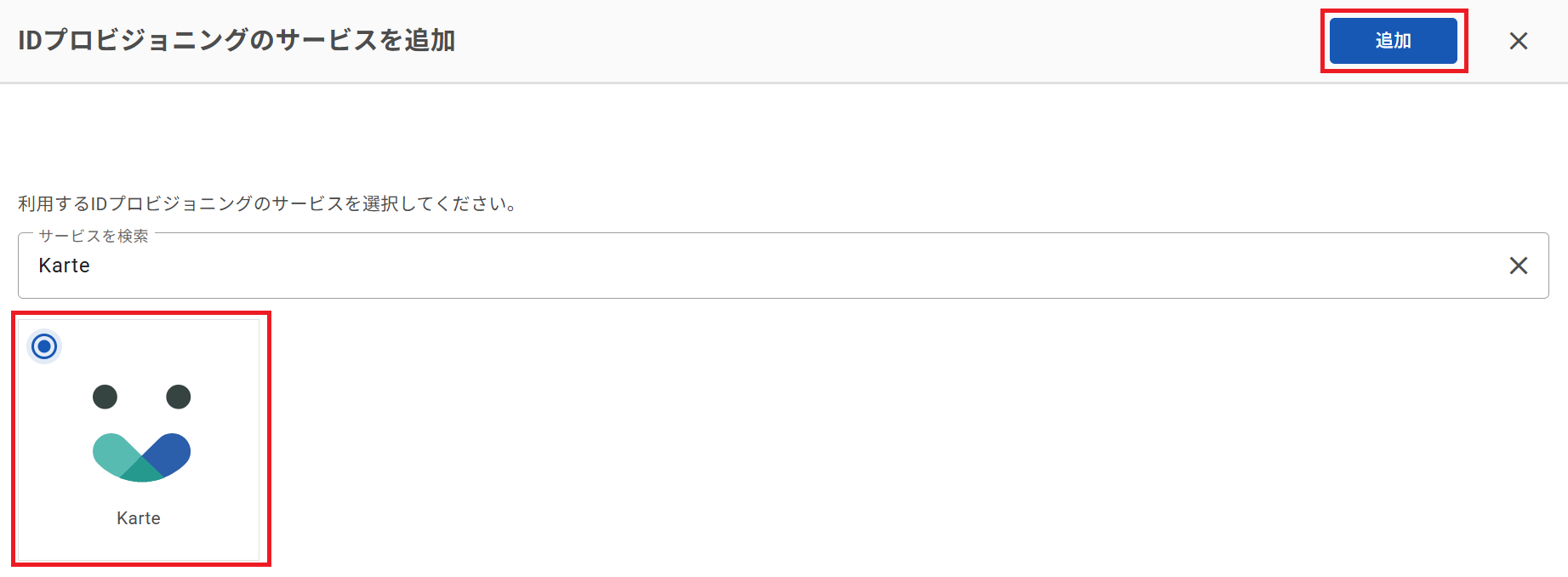

3. On the Add Service screen, search for and select "KARTE", then click the "Add" button.

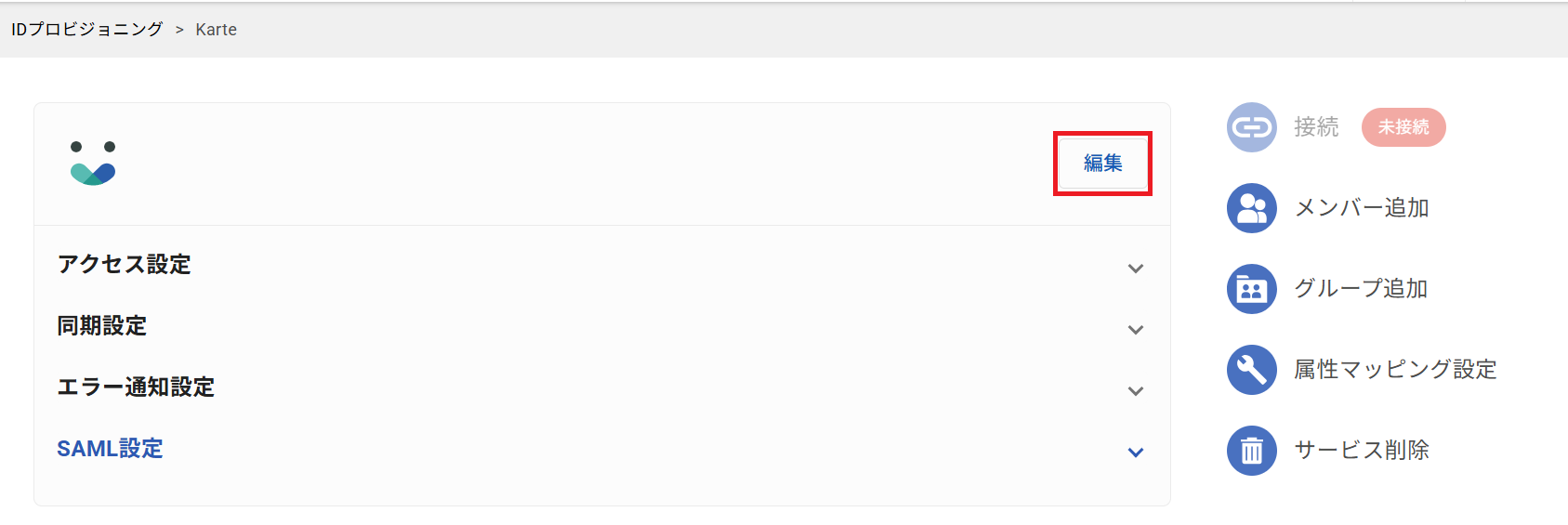

4. You will be redirected to the "Identity Provisioning > KARTE" page.
   Click the "Edit" button.

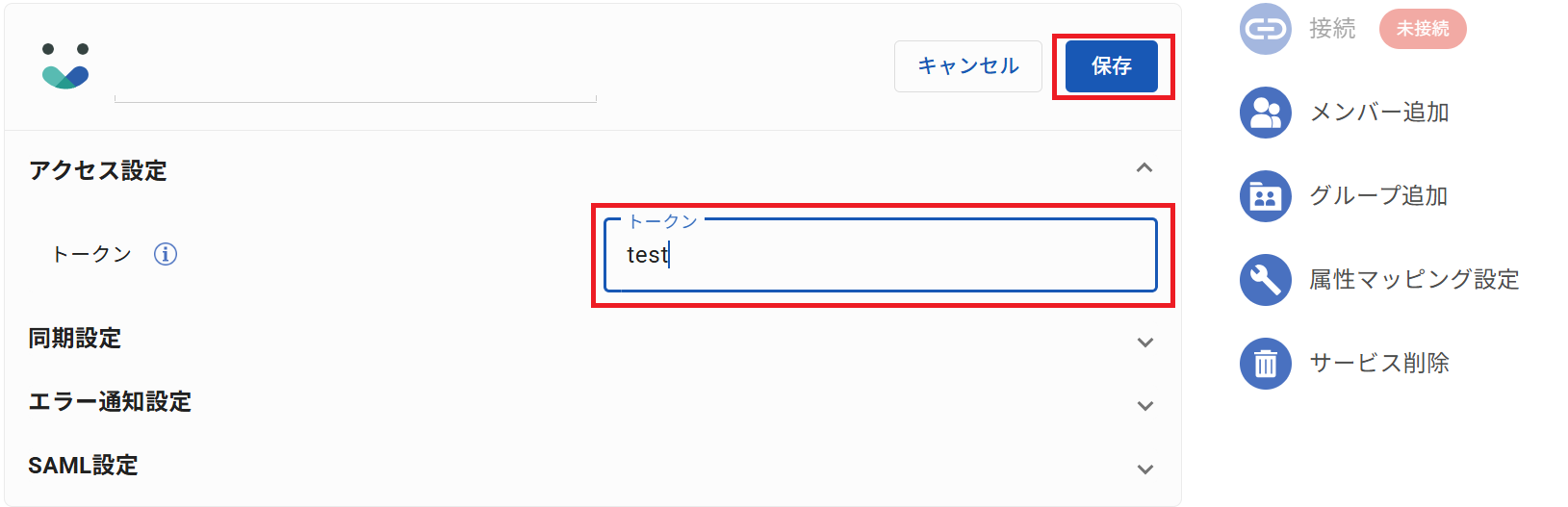

5. Open "Access Settings", enter the following values for the settings items, and click "Save".

   Access Token

   KARTE Settings The value of the access token you copied in step 6




6. Click the "Connect" button in the upper right of the screen.

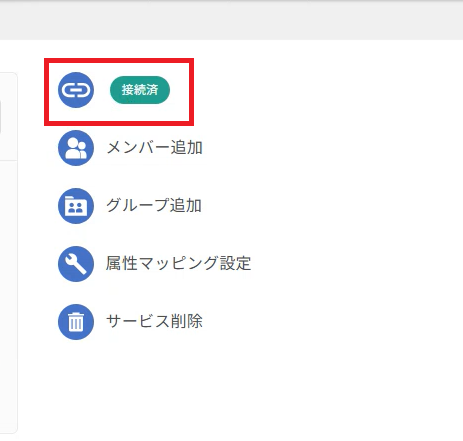

7. Once the button status updates to "Connected", the initial setup is complete.



Next step: The manual for configuring user synchronization is available here

Values You Can Configure in Attribute Mapping

You can map any attribute on the TrustLogin side to any attribute on the KARTE side.
For configuration instructions, see here

Available Default Functions

• default functions common to all services can be specified.
