Initial Setup Steps for Identity Provisioning with TestRail

GMOトラスト・ログインチーム
  • Updated

This page describes the initial setup steps for using TrustLogin as the source of identity
to perform Identity Provisioning to TestRail.

Note: For detailed instructions on operating TestRail, please refer to the documentation provided by TestRail.

Item Details
Pre-check
  • TestRail administrator privileges are required.
Setup Flow / Manual

Note: After connecting TrustLogin and TestRail using the steps on this page,
　please proceed to configuring user synchronization.
Provisioning Target 〇 Supports user provisioning
〇 Supports group provisioning
SAML Authentication Setup Manual －
Notes
  • None in particular

Setup Steps

TestRail Settings

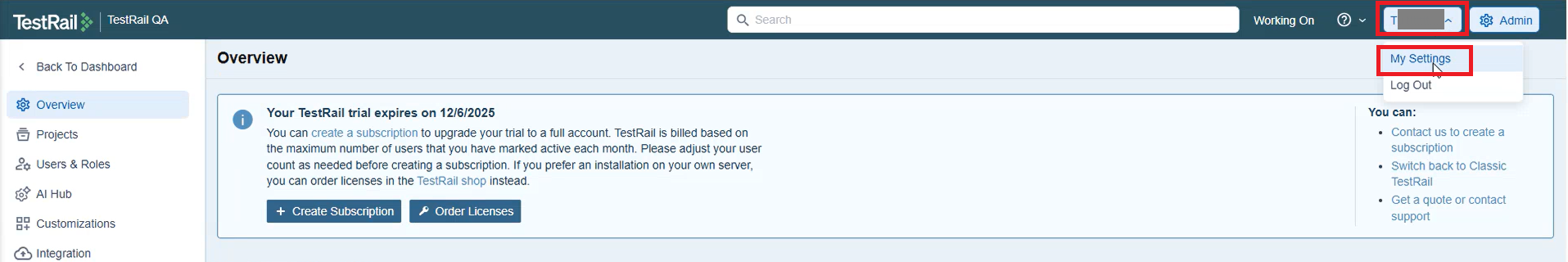

  1. Log in to TestRail with administrator privileges, and click "Account Name ＞ My Settings" in the upper right of the screen.

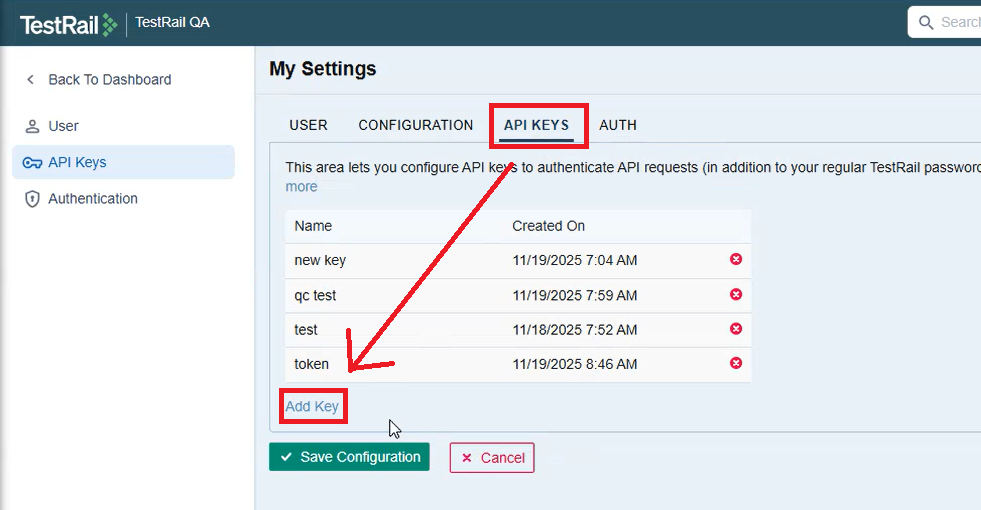

  2. Click the "API KEYS" tab ＞ "Add Key".

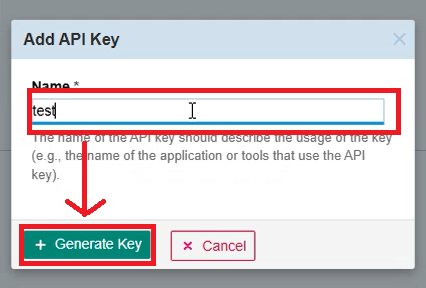

  3. Enter a name of your choice, then click the "Generate Key" button.

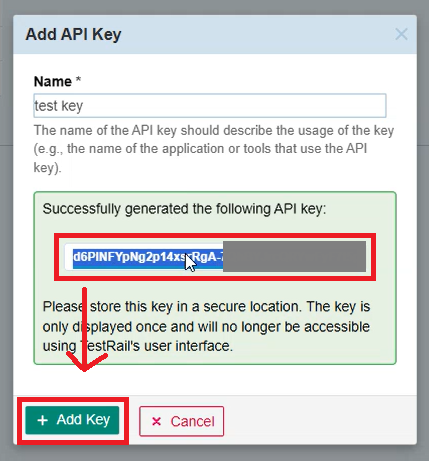

  4. Copy the displayed API Key, then click "Add Key".
    Note: You cannot view the token again after clicking "Save". Please make sure you have copied it.

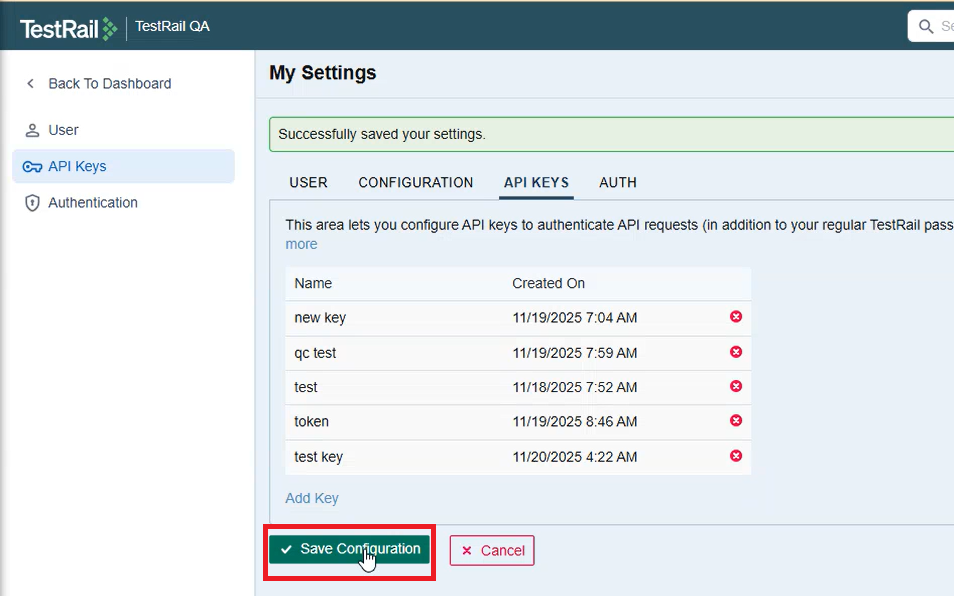

  5. Click "Save Configuration".


    This completes the preparation on the TestRail side. Next, configure the settings on the TrustLogin side.

TrustLogin Settings

  1. Log in to the TrustLogin Admin Page, and from the "Admin Page > Settings > Optional Features" menu,
    open "Settings" next to "Identity Provisioning".

  2. Click "Add Service".

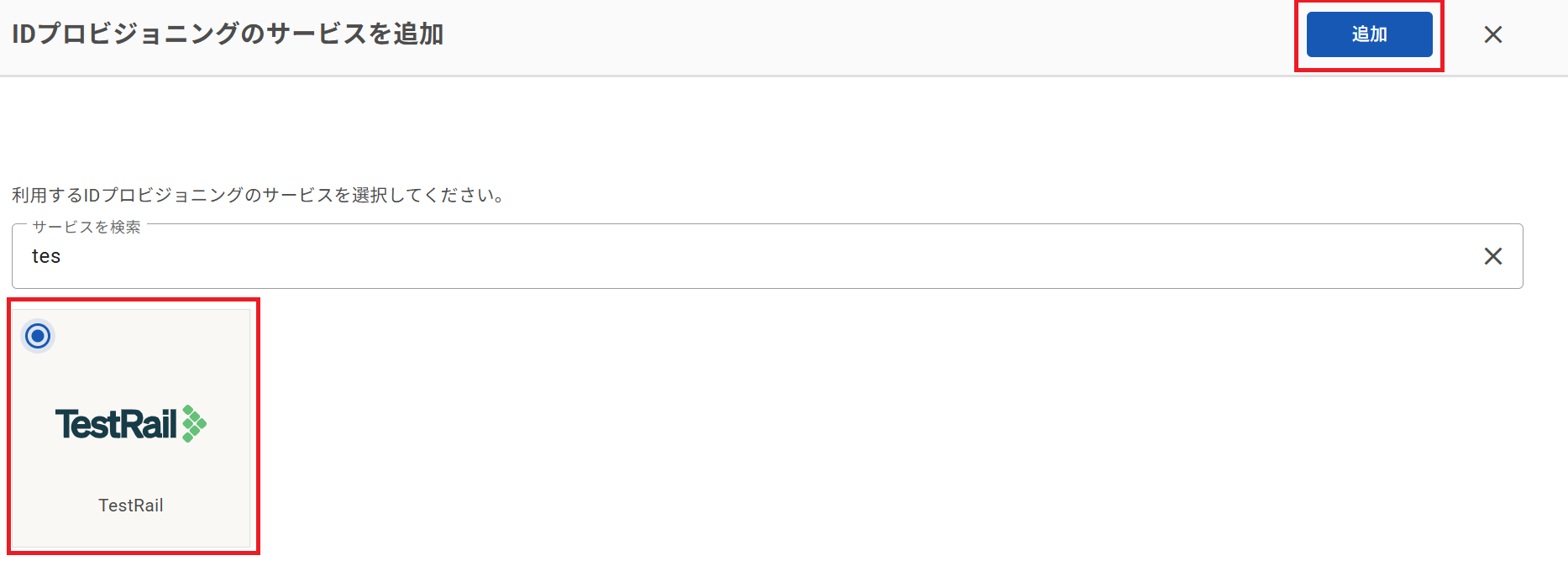

  3. On the Add Service screen, search for and select "TestRail", then click the "Add" button.

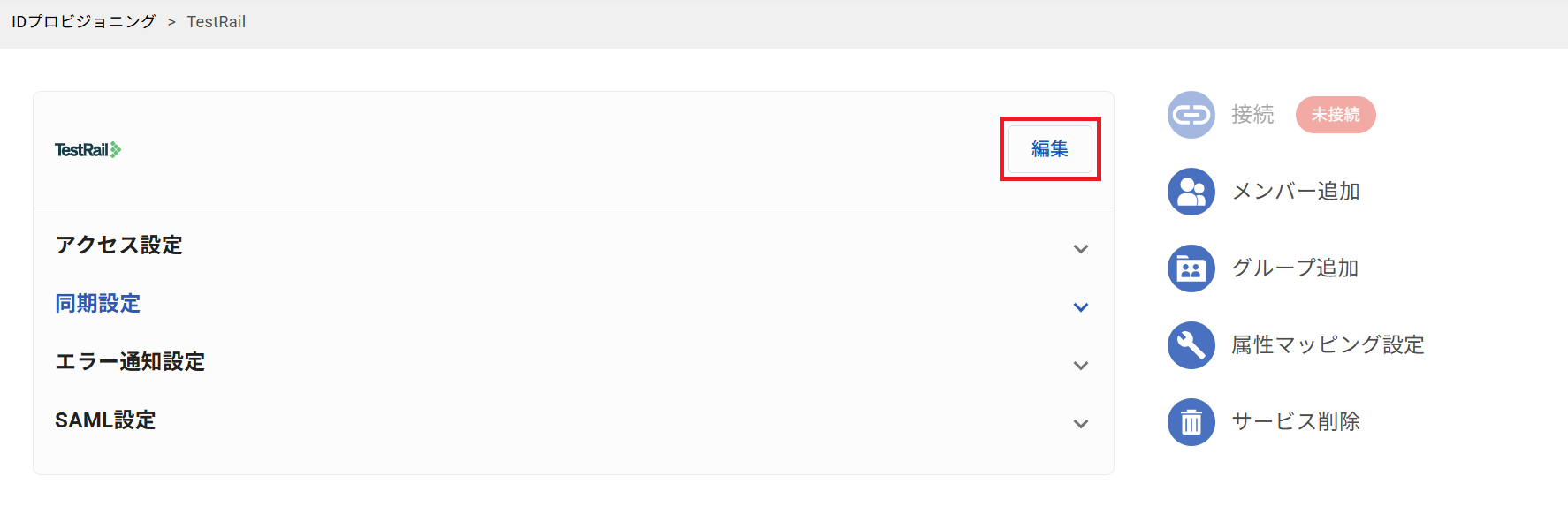

  4. You will be redirected to the "Identity Provisioning ＞ TestRail" page.
    Click the "Edit" button.

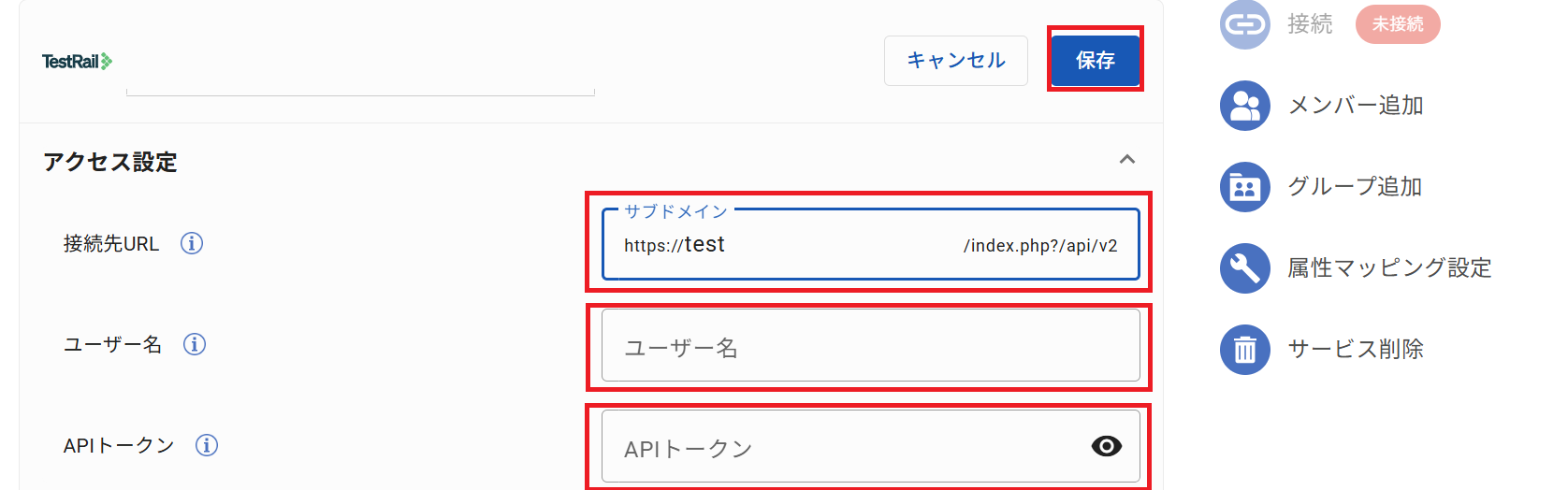

  5. Open "Access Settings", enter the following values for the settings items, and click "Save".

    Connection URL The subdomain of the TestRail instance you are connecting to
    Note: Please specify the environment (subdomain) of TestRail that you are using.
    Username The username used to log in to TestRail
    Note: This is usually your email address.
    API Token TestRail Settings The value of "API Key" copied in step 4

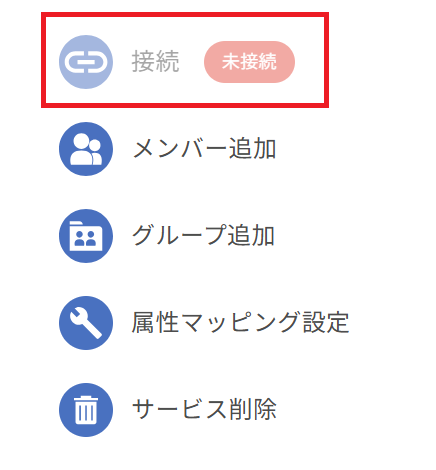

  6. Click the "Connect" button in the upper right of the screen.

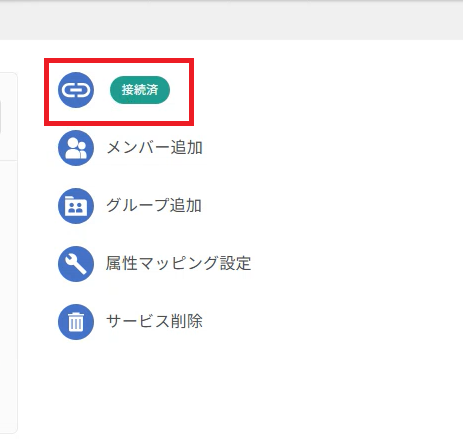

  7. Once the button status updates to "Connected", the initial setup is complete.

Next step: The manual for configuring user synchronization is available here

Values You Can Configure in Attribute Mapping

You can map any attribute on the TrustLogin side to any attribute on the TestRail side.
For configuration instructions, see here

Available Default Functions
