This page describes the initial setup steps for using TrustLogin as the source of identity to perform
Identity Provisioning to X-point.
Note: For detailed instructions on operating X-point, please refer to the documentation provided by X-point.
| Item | Details | |
| Pre-check |
|
|
| Setup Flow / Manual |
Note: After connecting TrustLogin and X-point using the steps on this page, |
|
| Provisioning Target | 〇 | Supports user provisioning |
| 〇 | Supports group provisioning | |
| SAML Authentication Setup Manual |
How to Configure SAML Authentication for X-point
|
|
| Notes |
|
|
Setup Steps
X-point-Side Configuration

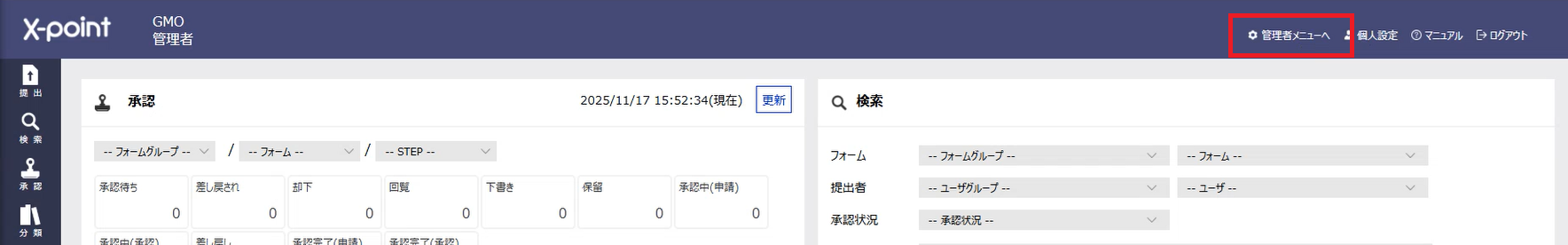

- Log in to X-point with administrator privileges and click "Go to Admin Menu" in the upper right of the screen.

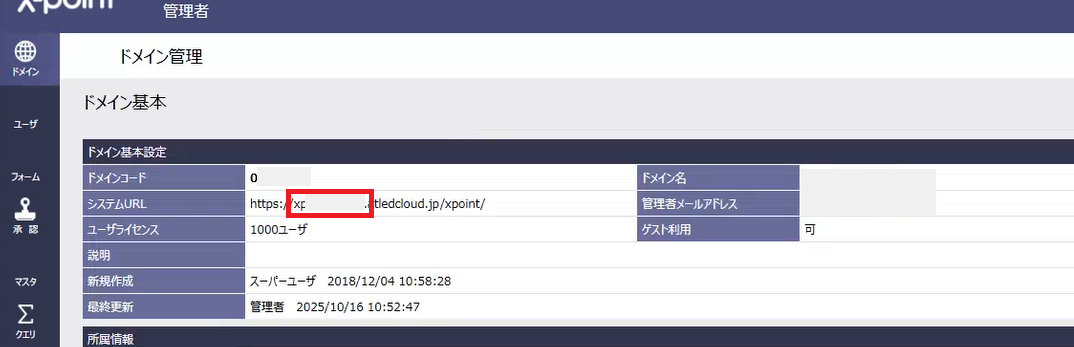

- On the "Domain Management" screen, check the subdomain portion in the "System URL" field and copy it.

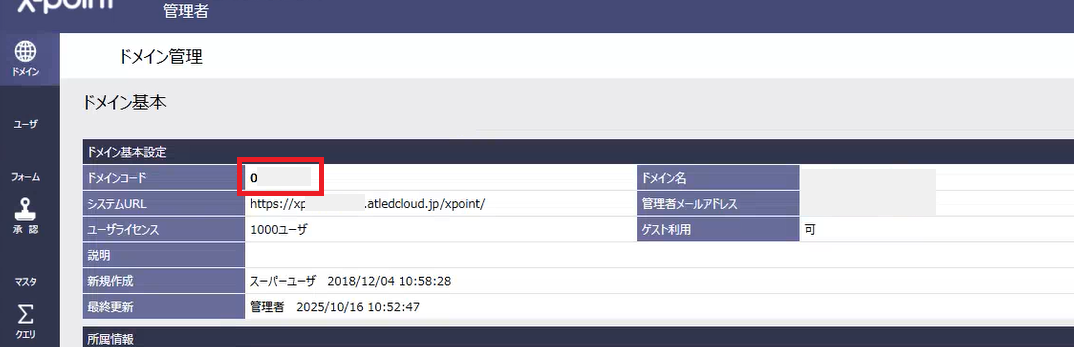

- Check the domain code in the "Domain Code" field and copy it.

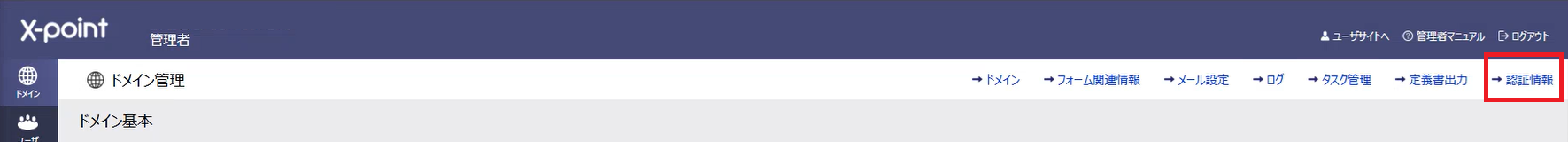

- Click "Credentials" in the upper right of the screen.

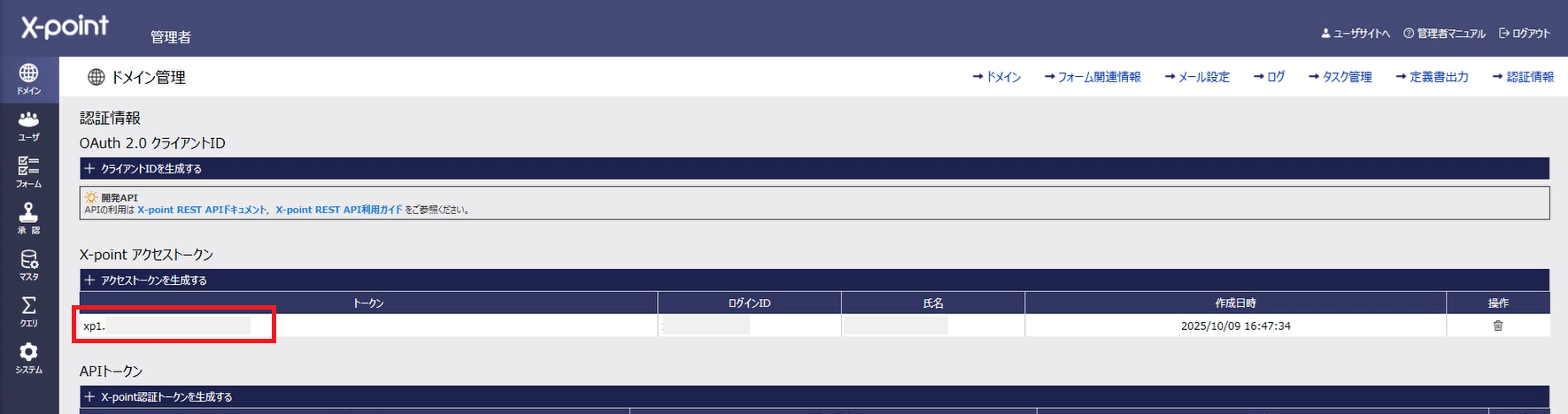

- On the "Domain Management" screen, check the access token value in the "X-point Access Token" field and copy it.
This completes the preparation on the X-point side. Next, configure the settings on the TrustLogin side.
TrustLogin-Side Configuration

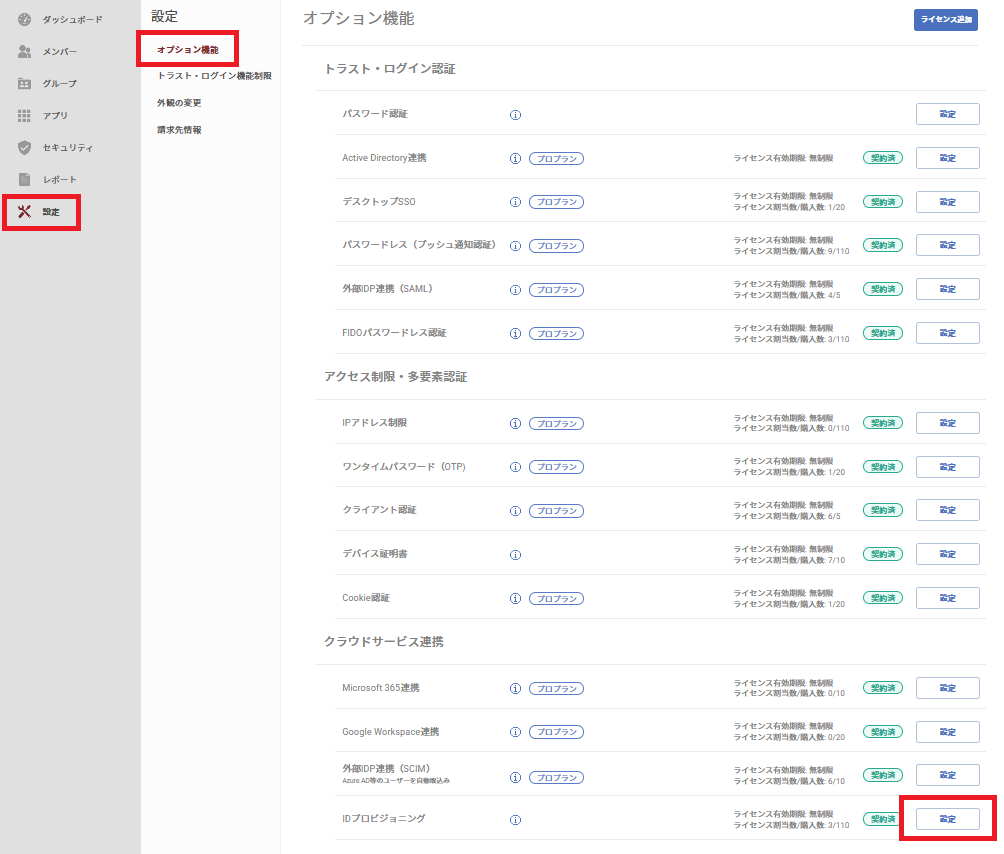

Log in to the TrustLogin admin screen, and from the "Admin Page > Settings > Optional Features" menu,
open "Settings" next to "Identity Provisioning."

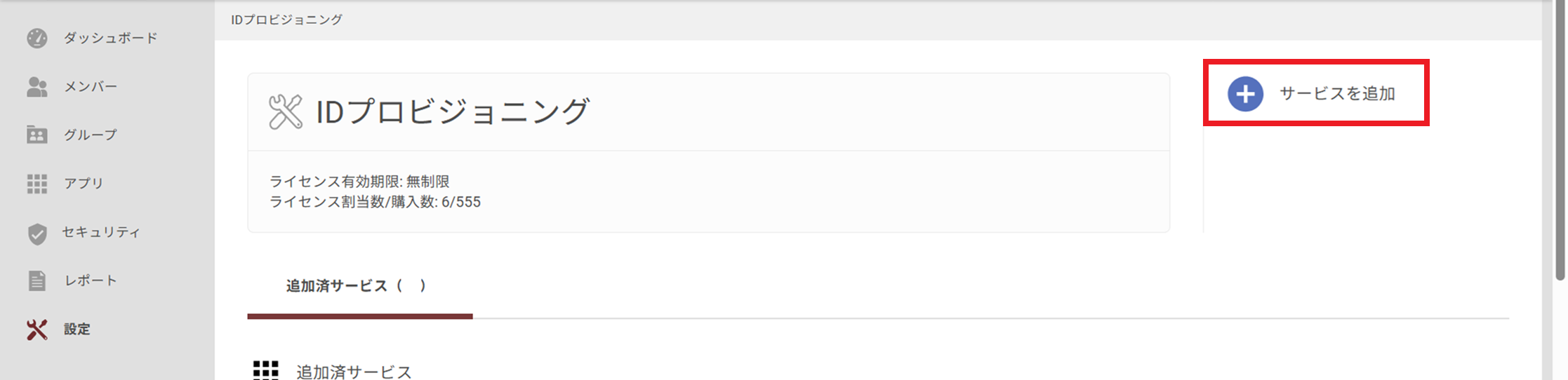

- Click "Add Service."

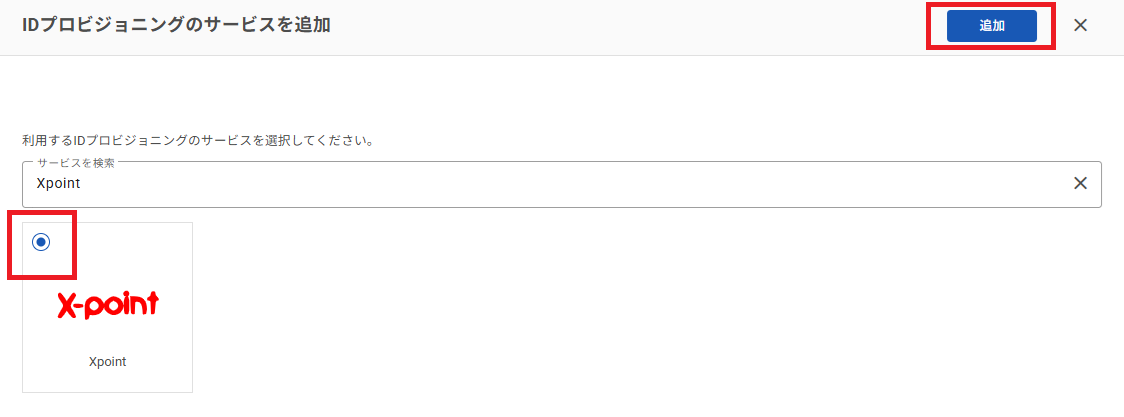

- On the Add Service screen, search for and select "Xpoint," then click the "Add" button.
- You will be redirected to the "Identity Provisioning > Xpoint" page.

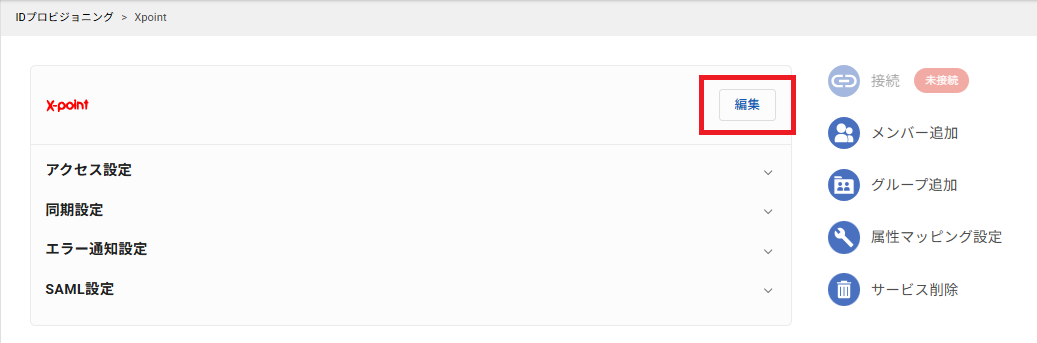

Click the "Edit" button.
-

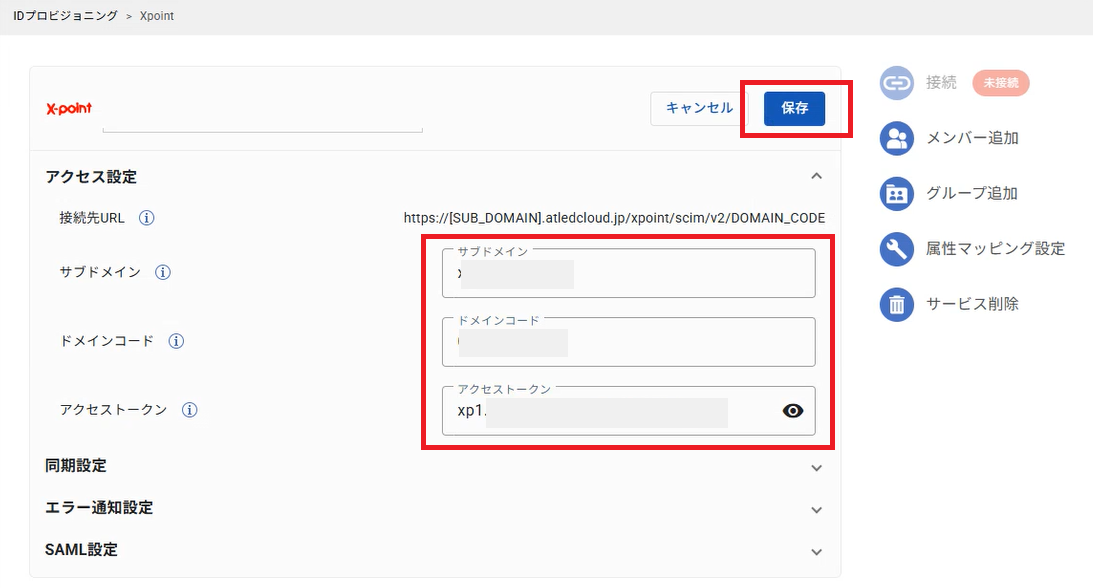

Open "Access Settings," enter the following values into the settings fields, and click "Save."
Subdomain The subdomain portion of the "System URL" copied in step 2 of X-point-Side Configuration Domain Code The value of the "Domain Code" copied in step 3 of X-point-Side Configuration Access Token The value of the "Access Token" copied in step 5 of X-point-Side Configuration

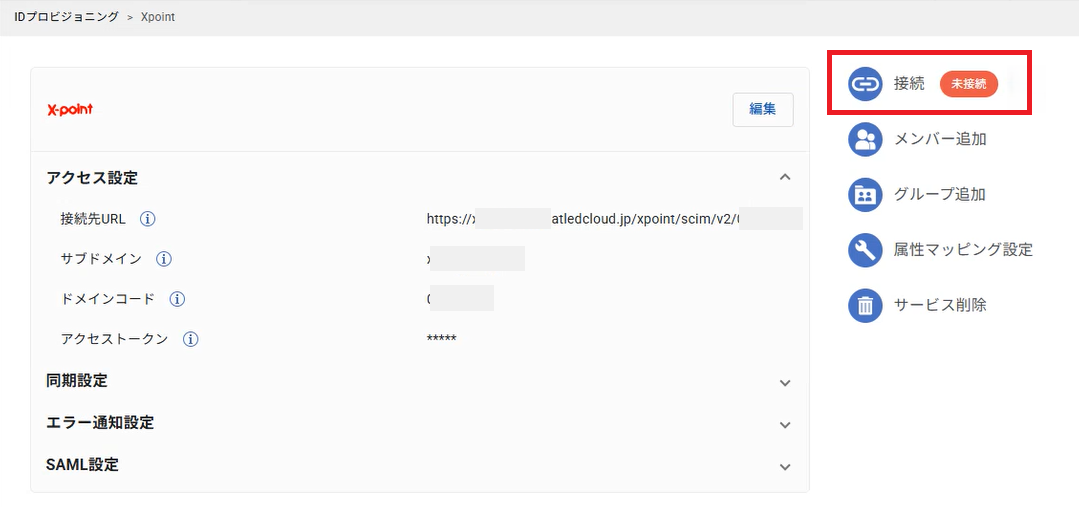

- Click the "Connect" button in the upper right of the screen.

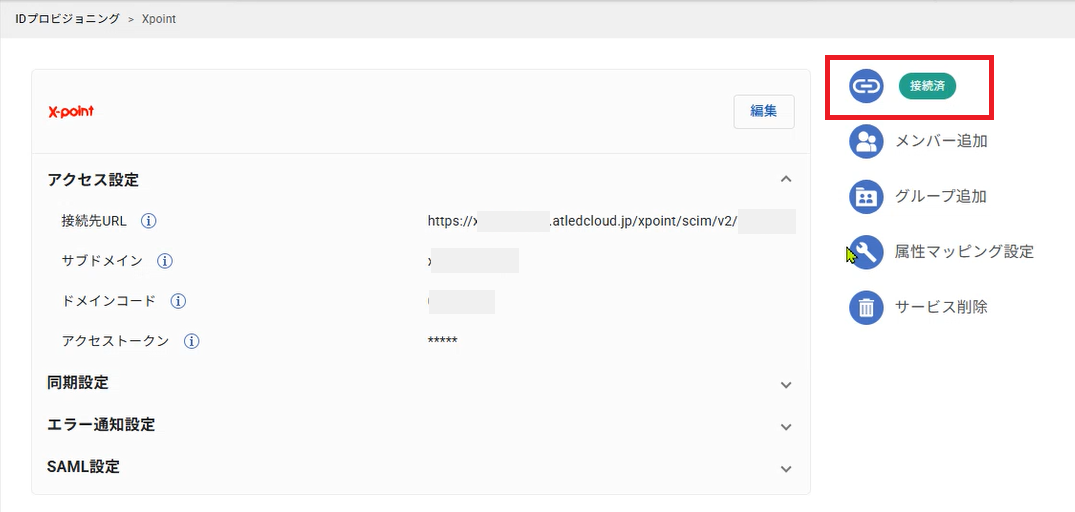

Once the button's status updates to "Connected," the initial setup is complete.
Next step: The manual for configuring user synchronization is available here
Values That Can Be Configured for Attribute Mapping
You can link any attribute on the TrustLogin side with any attribute on the X-point side.
For instructions on how to configure this, see here
Default Functions You Can Specify
- common default functions, you can also specify the following values.
| Value | Description |
| Generates a unique user code from the primary email address. |
Generates a user code based on the email address. Removes invalid special characters, keeps valid characters (- _ . @ *), and appends a 3-digit number to ensure uniqueness. The maximum length is 100 characters. |
| Generate a password | Generates a random, secure password containing uppercase letters, lowercase letters, numbers, and special characters (- _ . @ *). The default length is 12 characters. |
