Initial Setup Steps for Identity Provisioning with SORACOM

GMOトラスト・ログインチーム
  • Updated

This page describes the initial setup steps for using TrustLogin as the source of identity to perform
Identity Provisioning to SORACOM.

Note: For detailed instructions on operating SORACOM, please refer to the documentation provided by SORACOM.

Item Details
Pre-check
  • SORACOM administrator privileges are required.
Setup Flow / Manual

Note: After connecting TrustLogin and SORACOM using the steps on this page,
　please proceed to configuring user synchronization.
Provisioning Target 〇 Supports user provisioning
〇 Supports group provisioning
SAML Authentication Setup Manual ー
Notes
  • None in particular

Setup Steps

SORACOM Settings

  1. Log in to SORACOM with administrator privileges, and click your username in the upper right of the screen > "Security".

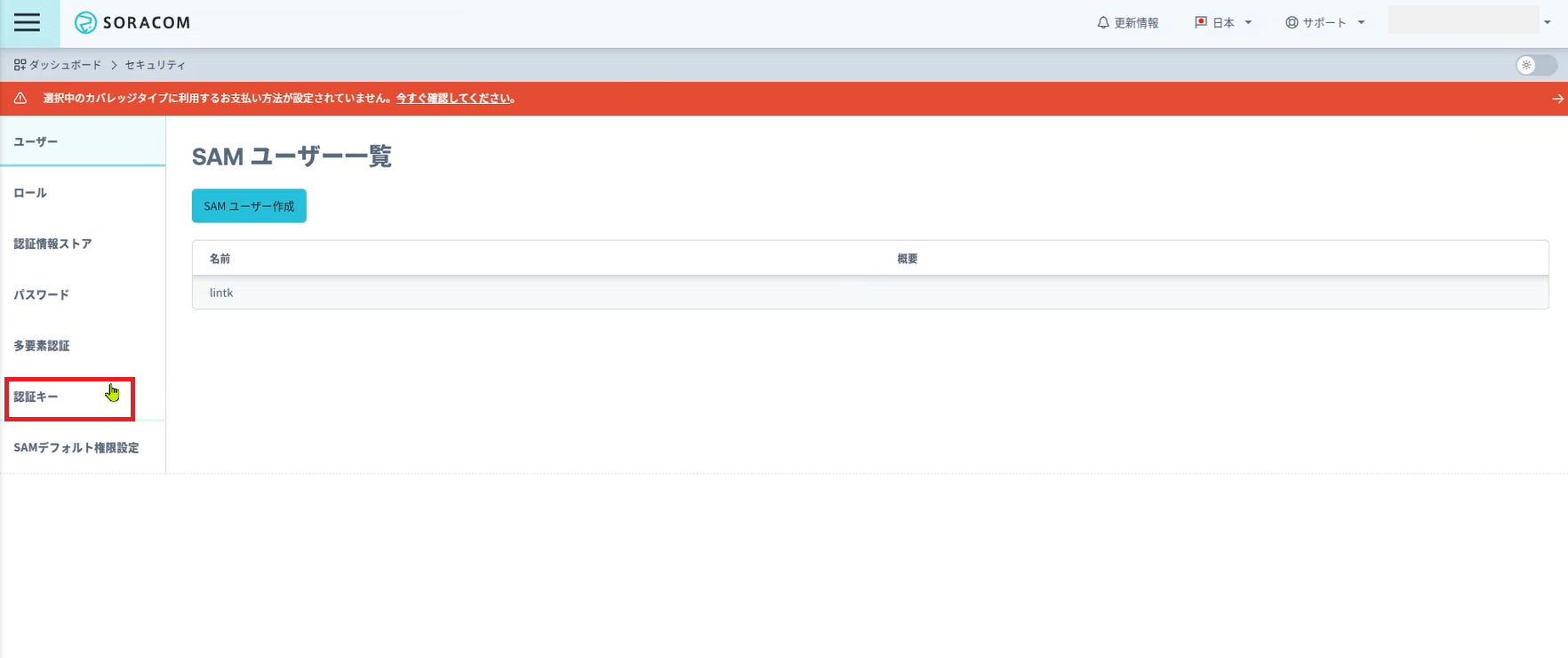

  2. Click the "Authentication Key" tab.

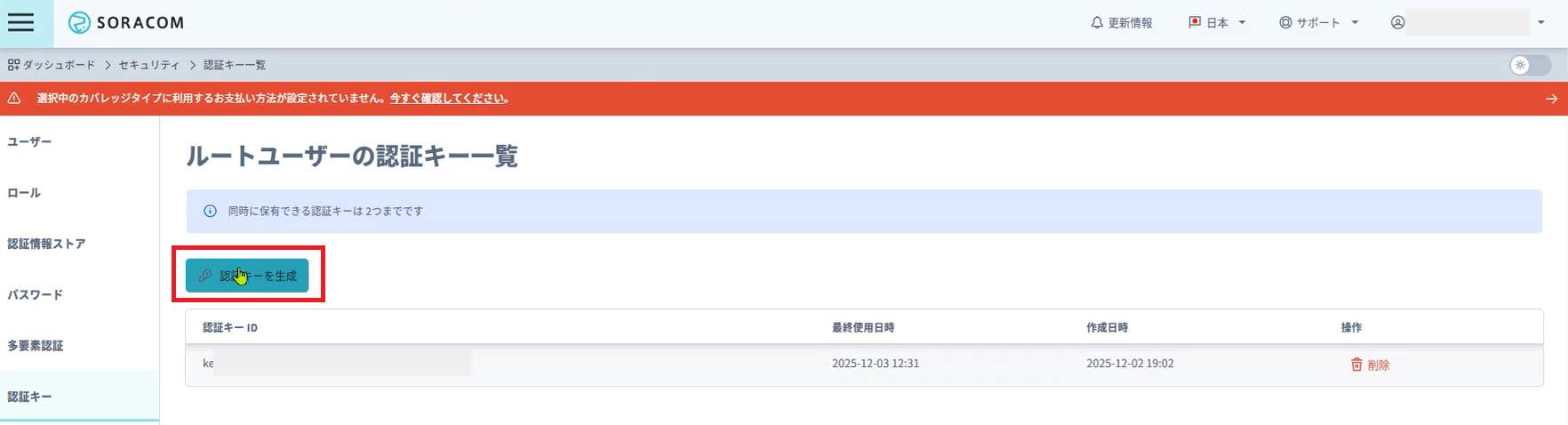

  3. Click the "Generate Authentication Key" button.

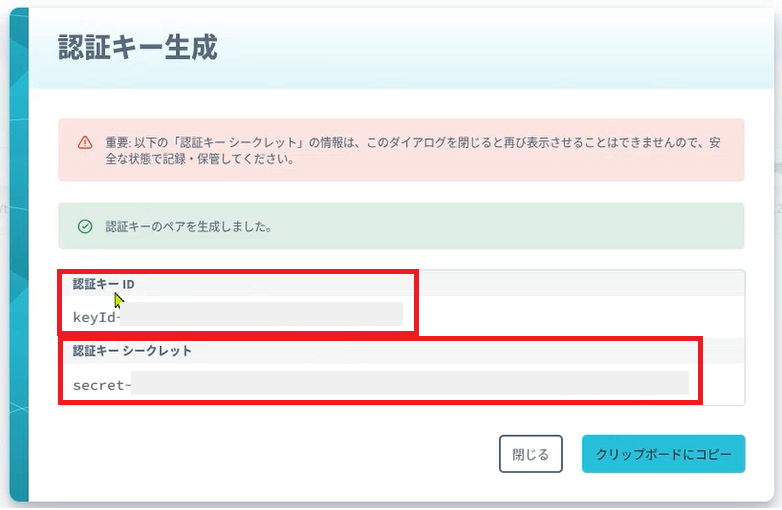

  4. Copy the "Authentication Key ID" and "Authentication Key Secret" displayed on the screen.
    Note: After clicking "Save", you will not be able to view the "Authentication Key Secret" again. Please make sure you have copied it before proceeding.

    This completes the preparation on the SORACOM side. Next, configure the settings on the TrustLogin side.

TrustLogin Settings

  1. Log in to the TrustLogin Admin Page, and from the "Admin Page > Settings > Optional Features" menu,
    open "Settings" next to "Identity Provisioning".

  2. Click "Add Service".

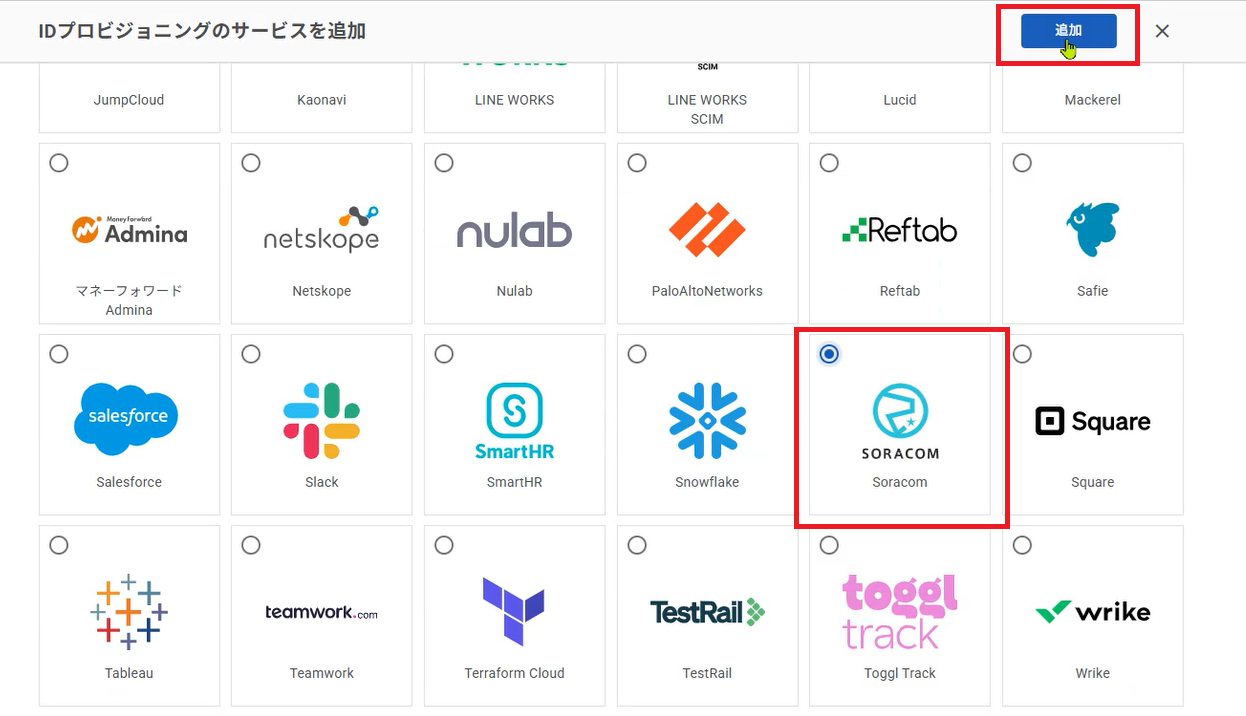

  3. On the Add Service screen, search for and select "SORACOM", then click the "Add" button.

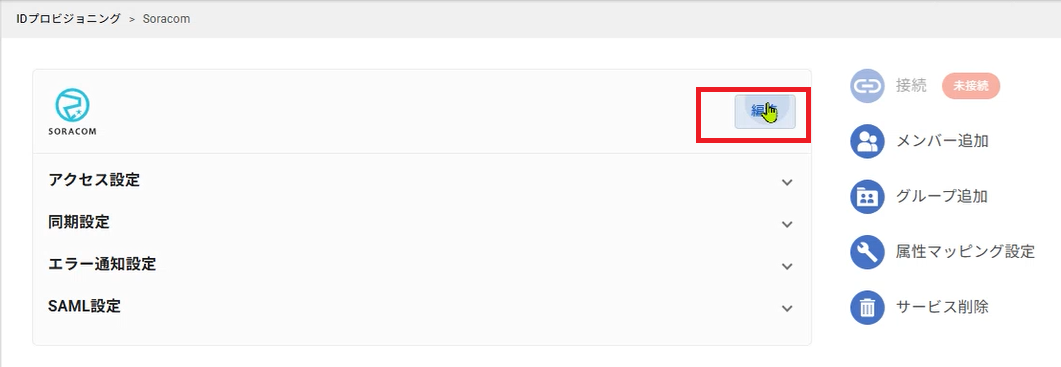

  4. You will be redirected to the "Identity Provisioning > SORACOM" page.
    Click the "Edit" button.

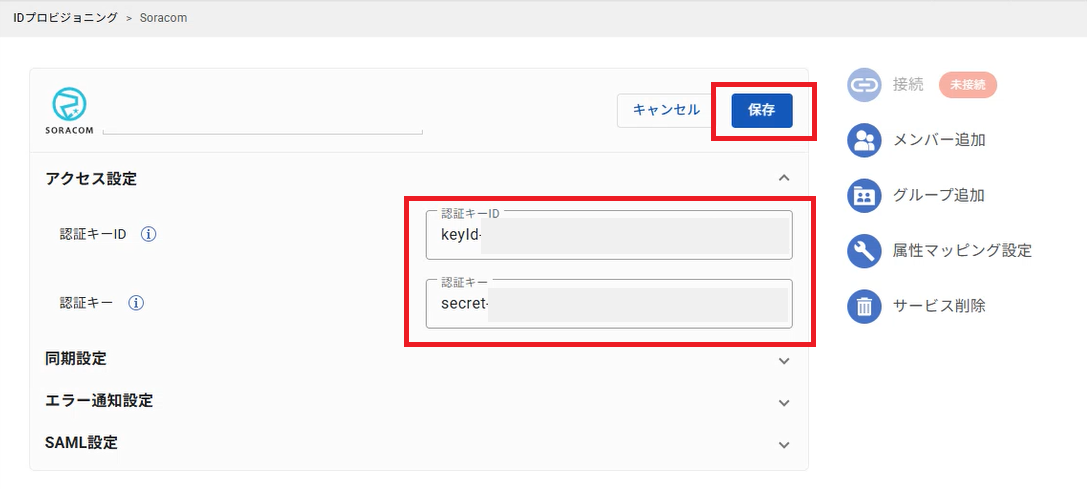

  5. Open "Access Settings", enter the following values for the settings items, and click "Save".

    Authentication Key ID SORACOM Settings The value of "Authentication Key ID" copied in step 4
    Authentication Key SORACOM Settings The value of "Authentication Key Secret" copied in step 4

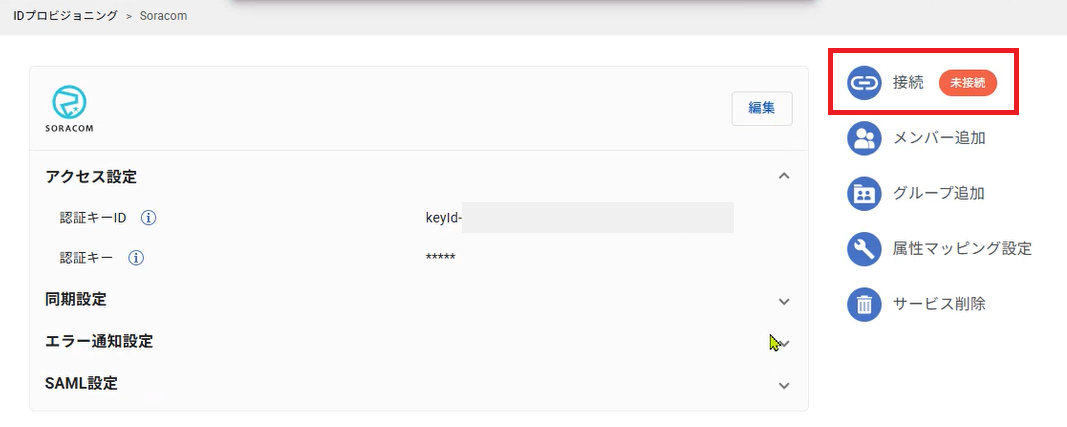

  6. Click the "Connect" button in the upper right of the screen.

  7. Once the button status updates to "Connected", the initial setup is complete.

Next step: The manual for configuring user synchronization is available here

Values You Can Configure in Attribute Mapping

You can map any attribute on the TrustLogin side to any attribute on the SORACOM side.
For configuration instructions, see here

Available Default Functions
