TrustLogin Admin Page Configuration

1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

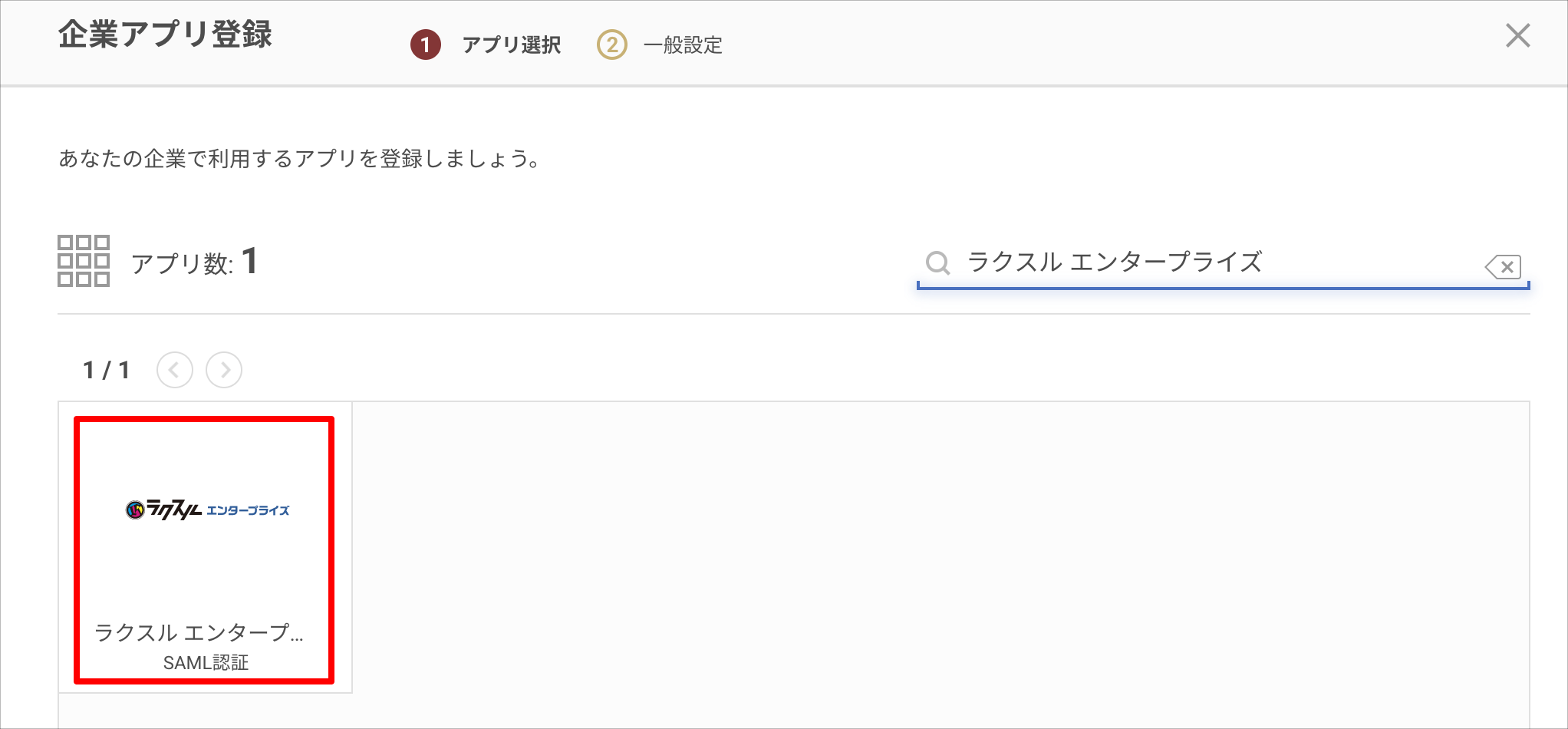

2. On the "Register Corporate App" screen, search for and select "Raksul Enterprise (SAML)".


3. Download the metadata from the "Download Metadata" button under "Identity Provider Information".



Now, move on to the configuration on the Raksul Enterprise side.
Do not click the "Register" button yet — open Raksul Enterprise in a separate window.

Raksul Enterprise Configuration

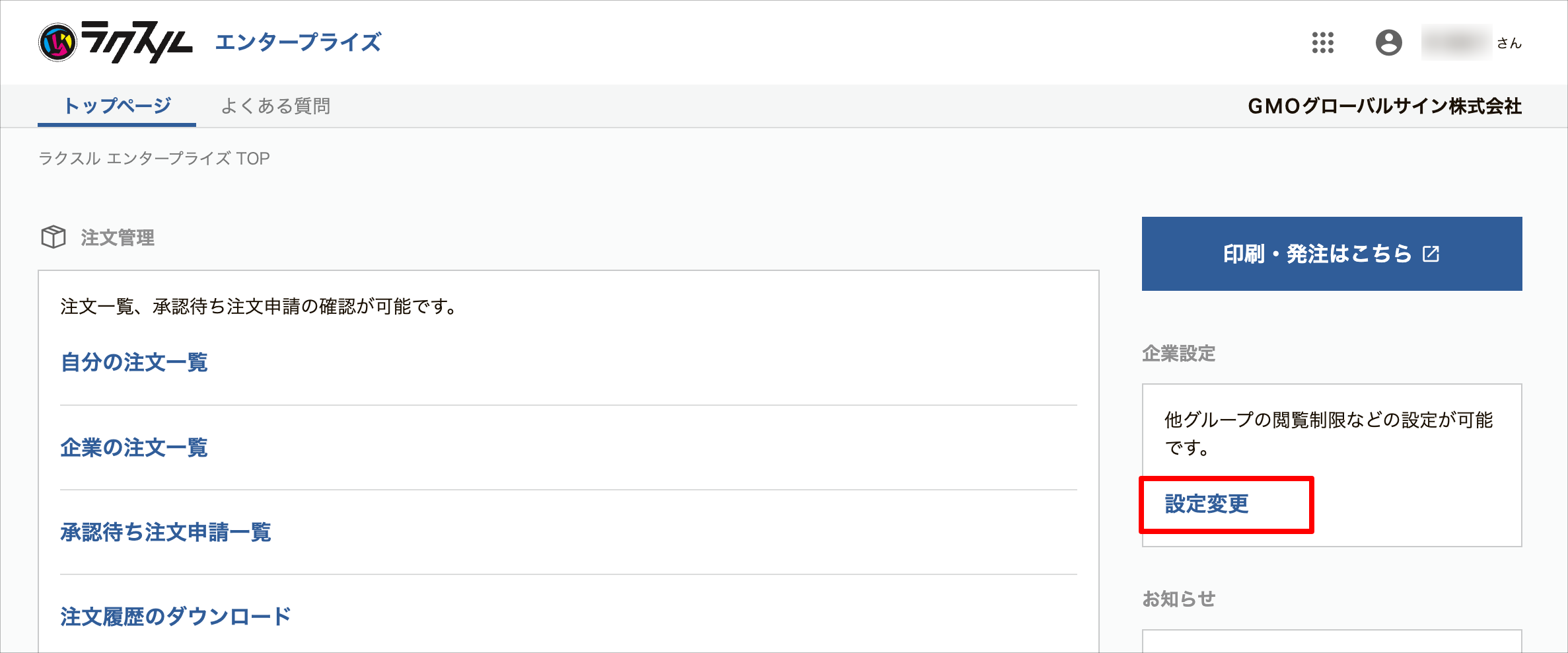

1. Log in with an administrator account and open "Company Settings > Change Settings".

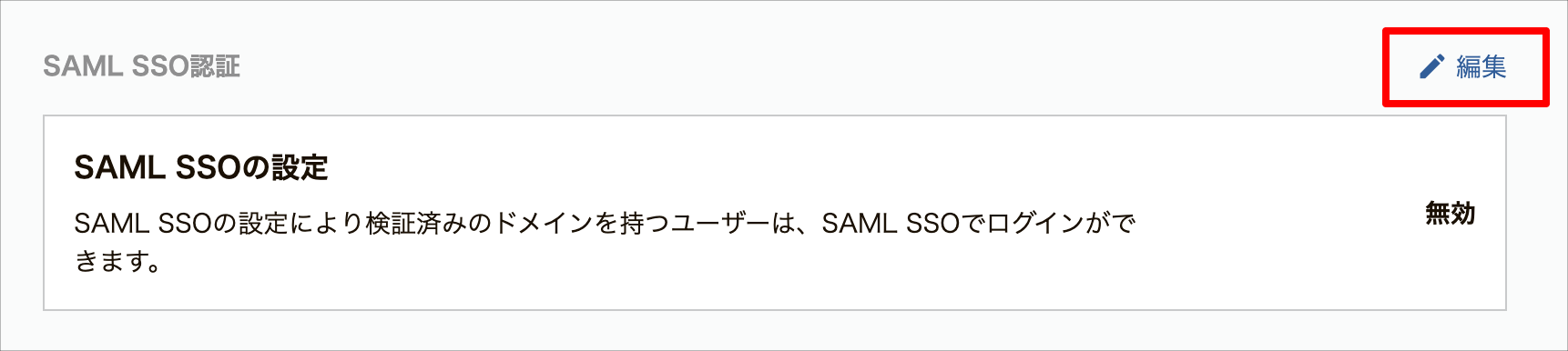

2. Open "Edit" for "SAML SSO Authentication".

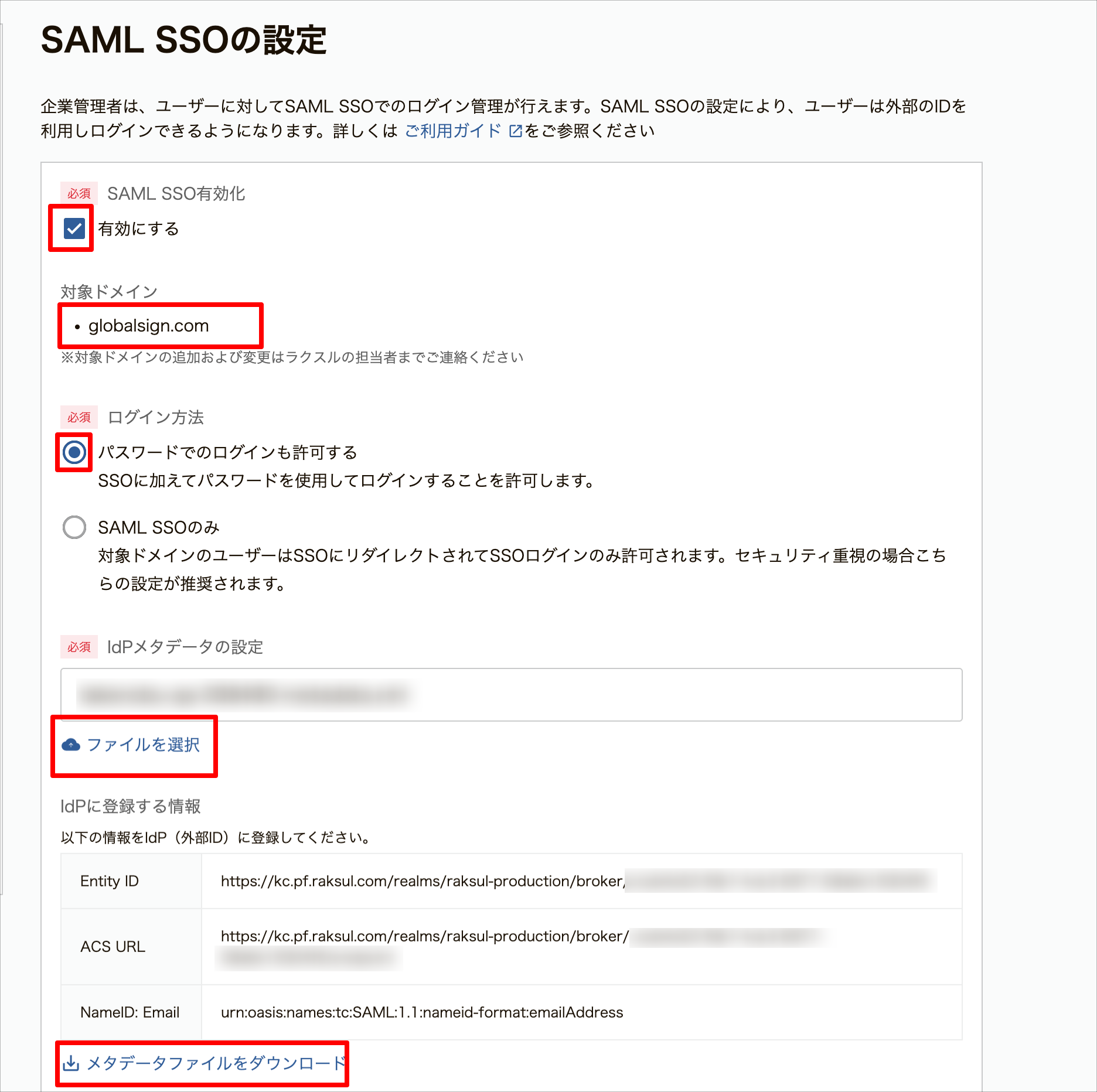

3. Check "Enable" under "Enable SAML SSO" and configure each item.

   Target Domain	Only users with an email address in the domain shown under Target Domain can use SAML SSO. To add or change a domain, please contact your Raksul representative.
   Login Method	We recommend selecting "Also allow login with password" here. If you want to restrict the login method to SAML SSO only, make this change after you have completed testing SAML SSO and notifying your users.
   IdP Metadata Configuration	Upload the metadata obtained from TrustLogin via "Choose File"
   Information to Register with the IdP	Click "Download Metadata File" to download the metadata

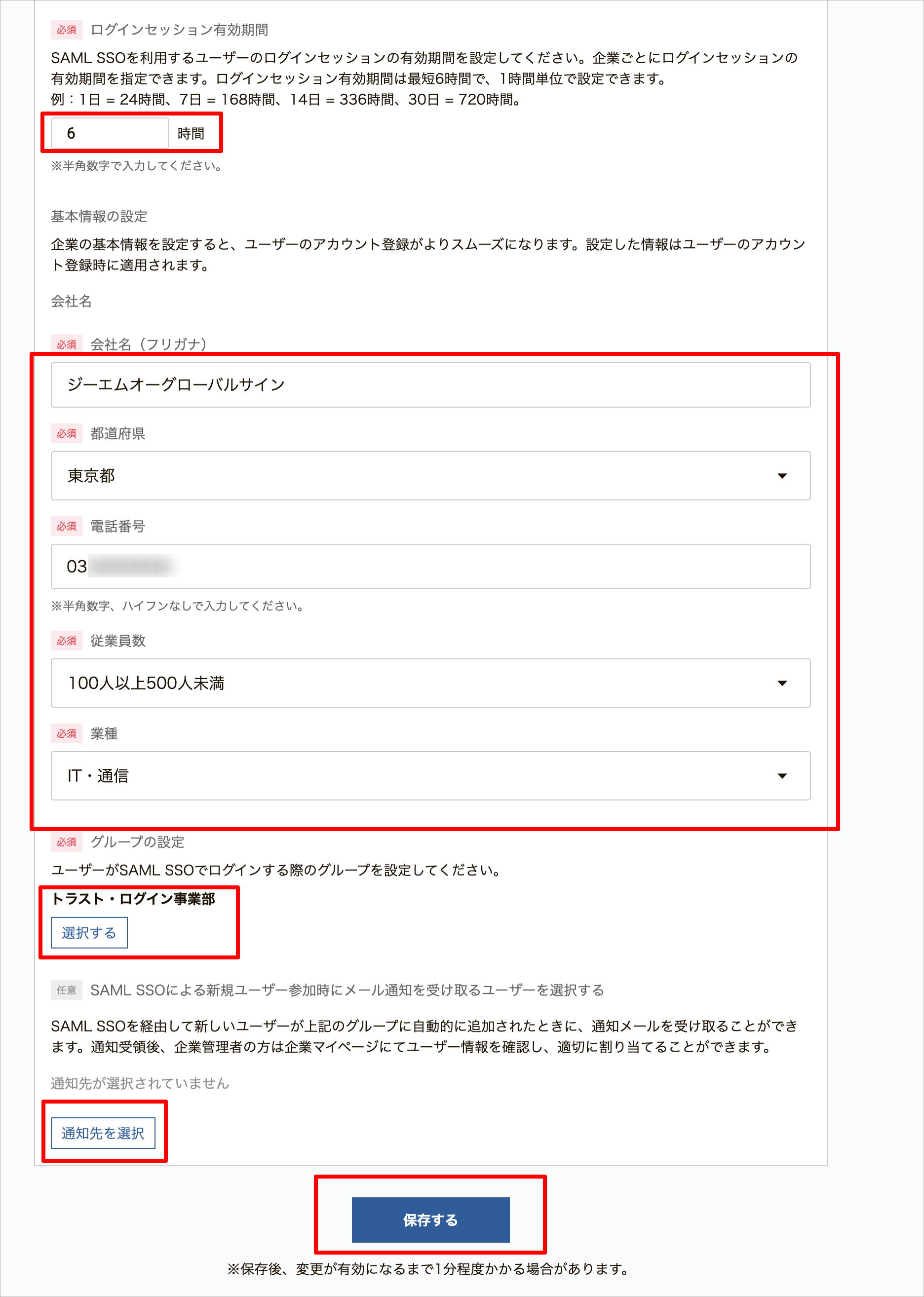

4. Next, configure the following items, and finally save by clicking the "Save" button.

   Login Session Duration	Configure according to your operational needs
   Basic Company Information	The configured company information is set as account information when new users register their accounts.
   Group Settings	Select the group to which users belong when they log in via SAML SSO
   Notification Recipient Settings (Optional)	Set the notification recipients to receive an email when a new user registers




Return to the TrustLogin Admin Page again.

TrustLogin Admin Page Configuration (Continued)

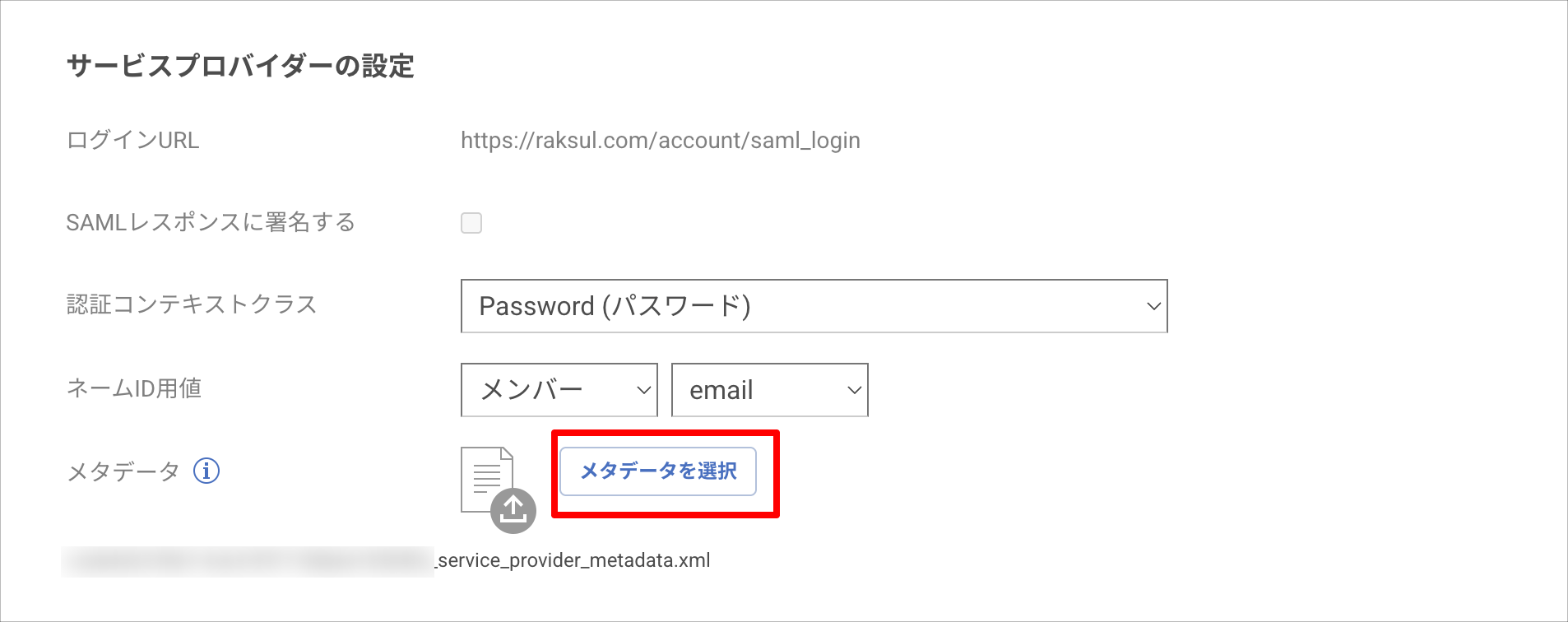

1. Upload the metadata obtained from Raksul Enterprise to the metadata field under "Service Provider Settings".


2. Save by clicking the "Register" button.


TrustLogin User Configuration

① When Users Add the App from My Page

Note: The administrator must have already configured the SAML app in advance.

1. On "My Page," click the "Add App" button.
2. On the "Register App" screen, select "Raksul Enterprise (SAML)" and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name," enter it, then click the "Register" button.

② When an Administrator Adds Members

1. In the "Admin Page > Apps" menu, search for and click the "Raksul Enterprise (SAML)" app.

2. Click "Add Member," select the users to add from the member list, and click the "Register" button to add them.




Login Method

① Logging In with "Raksul Enterprise (SAML)"

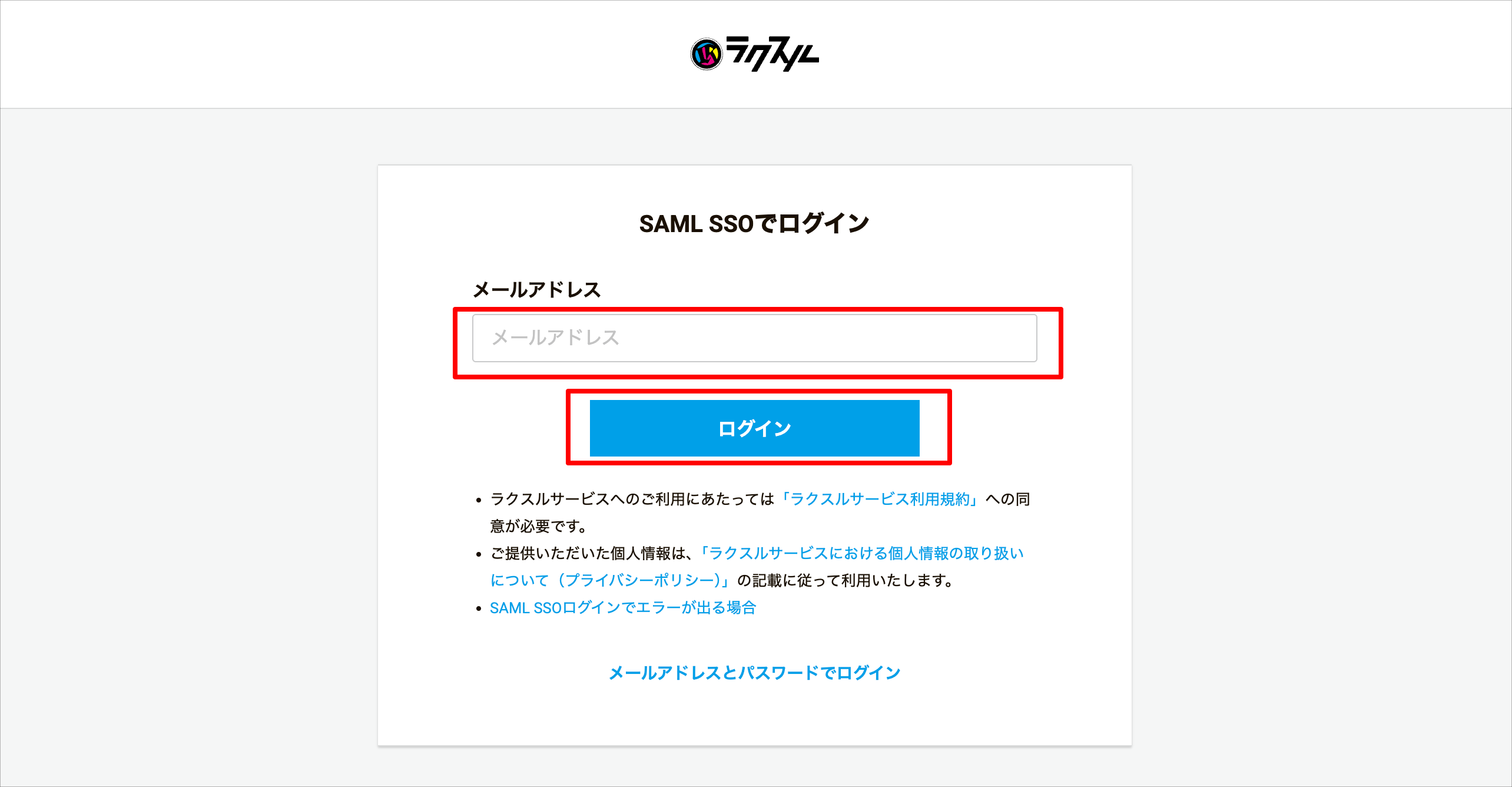

When you run "Raksul Enterprise (SAML)" from TrustLogin's My Page or the browser extension, you will be redirected to Raksul's SAML SSO login screen.
Enter your email address and click the "Login" button to complete the login.

② Using the Auxiliary App

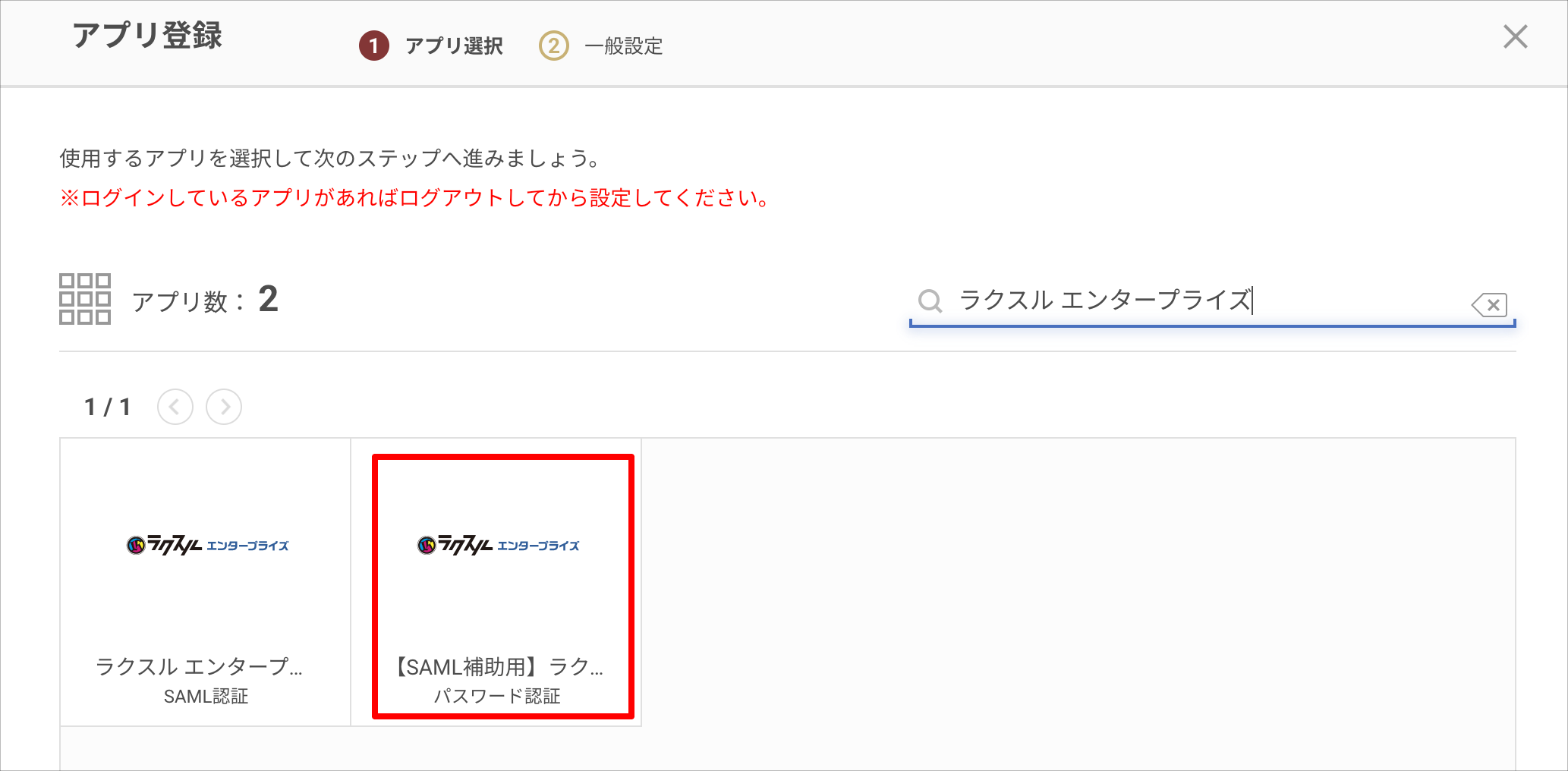

We also provide an auxiliary app that lets you skip entering your email address and clicking the login button described in the login process in ①. Register the app "[SAML Auxiliary] Raksul Enterprise" to use it.
Note: The auxiliary app is intended for use with a PC browser. On mobile devices, you may need to re-authenticate with TrustLogin or manually enter your email address.

Add the app using the same procedure as a regular app registration, either as an administrator or by the user themselves.

New User Account Registration

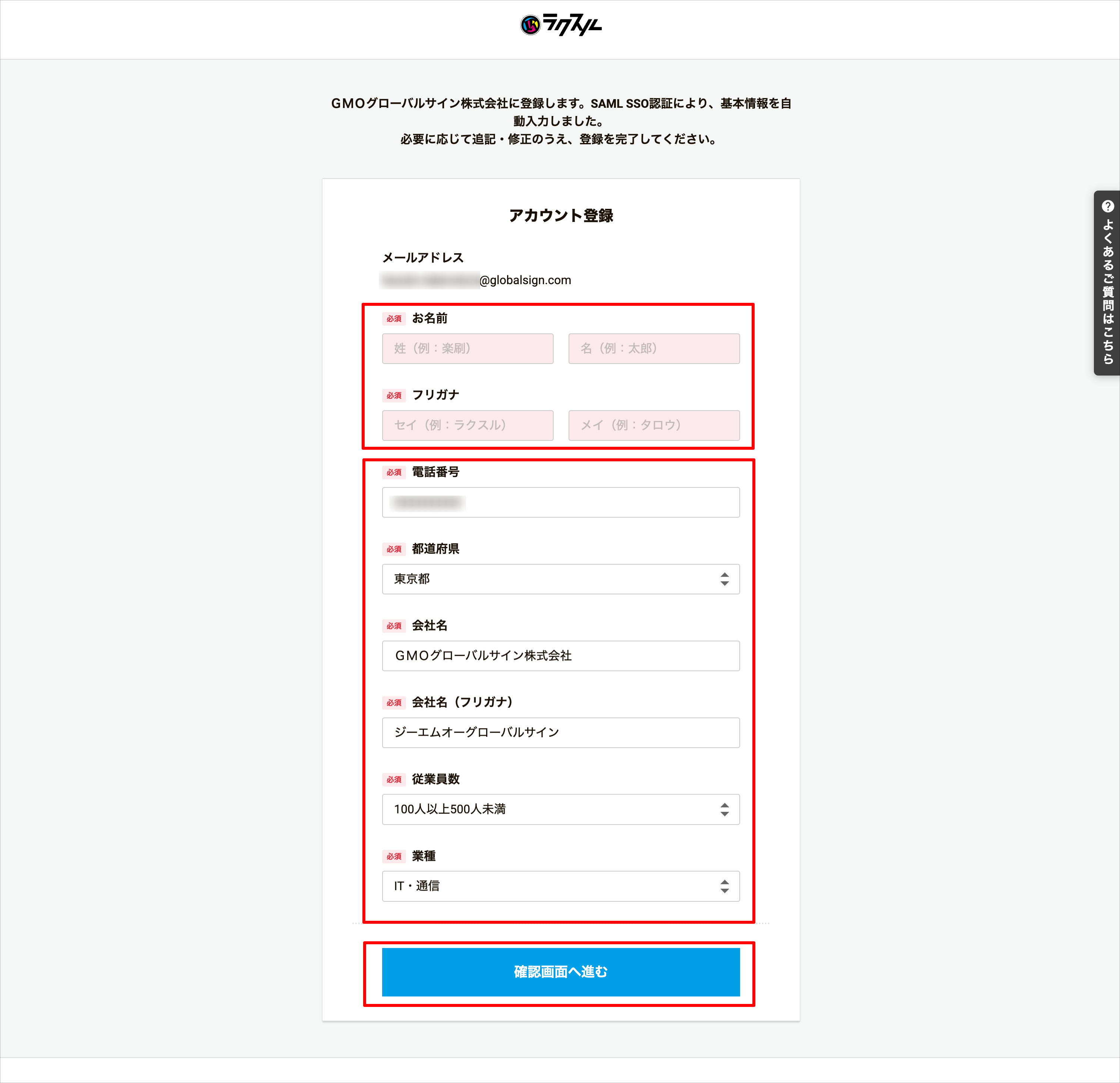

When a new user logs in via SAML SSO for the first time, the account registration screen is displayed.
Enter your "Name" and "Furigana," then proceed by clicking the "Proceed to Confirmation Screen" button. After confirming on the next screen, account registration and login will be completed.

(The company information at the bottom is automatically filled in based on the settings configured on the Raksul Enterprise SAML configuration screen)
