| Item | Details | |
|---|---|---|
| Pre-check |
|
|
| Name ID | 〇 | Email address |
| Custom attribute Note: For how to configure custom attributes, see here | ||
| SP Configuration | 〇 | Configured by the Administrator |
| Request SP to configure | ||
| Provisioning | API-based Provisioning supported (Account management available in TrustLogin) | |
| SAML JIT Provisioning supported (Account management available in TrustLogin; user deletion not available) | ||
| 〇 | None (accounts created in each system) | |
| Access Method | 〇 | SP-Initiated SSO |
| 〇 | IdP-Initiated SSO | |
| Device Compatibility | 〇 | PC - Browser |
| ー | PC - Desktop App | |
| 〇 | iOS - Default Browser (Safari) | |
| 〇 | iOS - TrustLogin Mobile App In-App Browser | |
| 〇 | iOS - Native App | |
| 〇 | Android - Default Browser (Chrome) | |
| 〇 | Android - TrustLogin Mobile App In-App Browser | |
| 〇 | Android - Native App | |
| SAML Authentication Scope | ー | Enabled for all users (SAML authentication only) |
| 〇 |
Other: Enabled only for users for whom SAML authentication has been applied on the SP side (i.e., whose email address has been registered by the Administrator) (password authentication can also be used together) |
|
| Notes |
|
|
|
Table of Contents: TrustLogin Admin Page Settings |
TrustLogin Admin Page Settings
-
Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button at the top right of the screen.

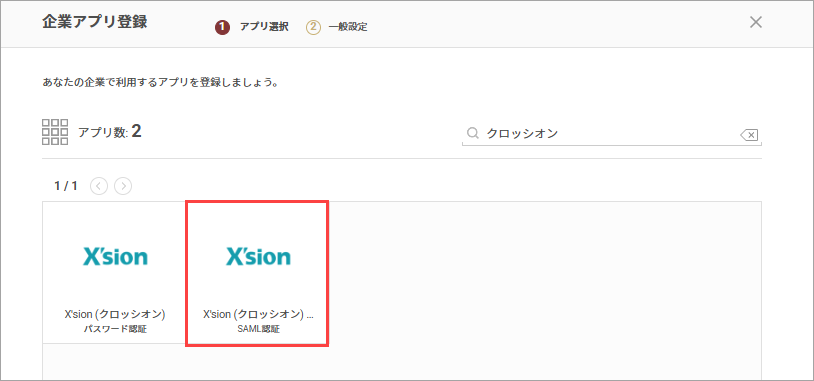

- On the "Company App Registration" screen, search for and select "X'sion (SAML)".
- Download the metadata using the "Download Metadata" button under "Identity Provider Information".
Now, proceed to the X'sion settings.
Do not click the "Register" button yet; open X'sion in a separate window.
X'sion Settings
-

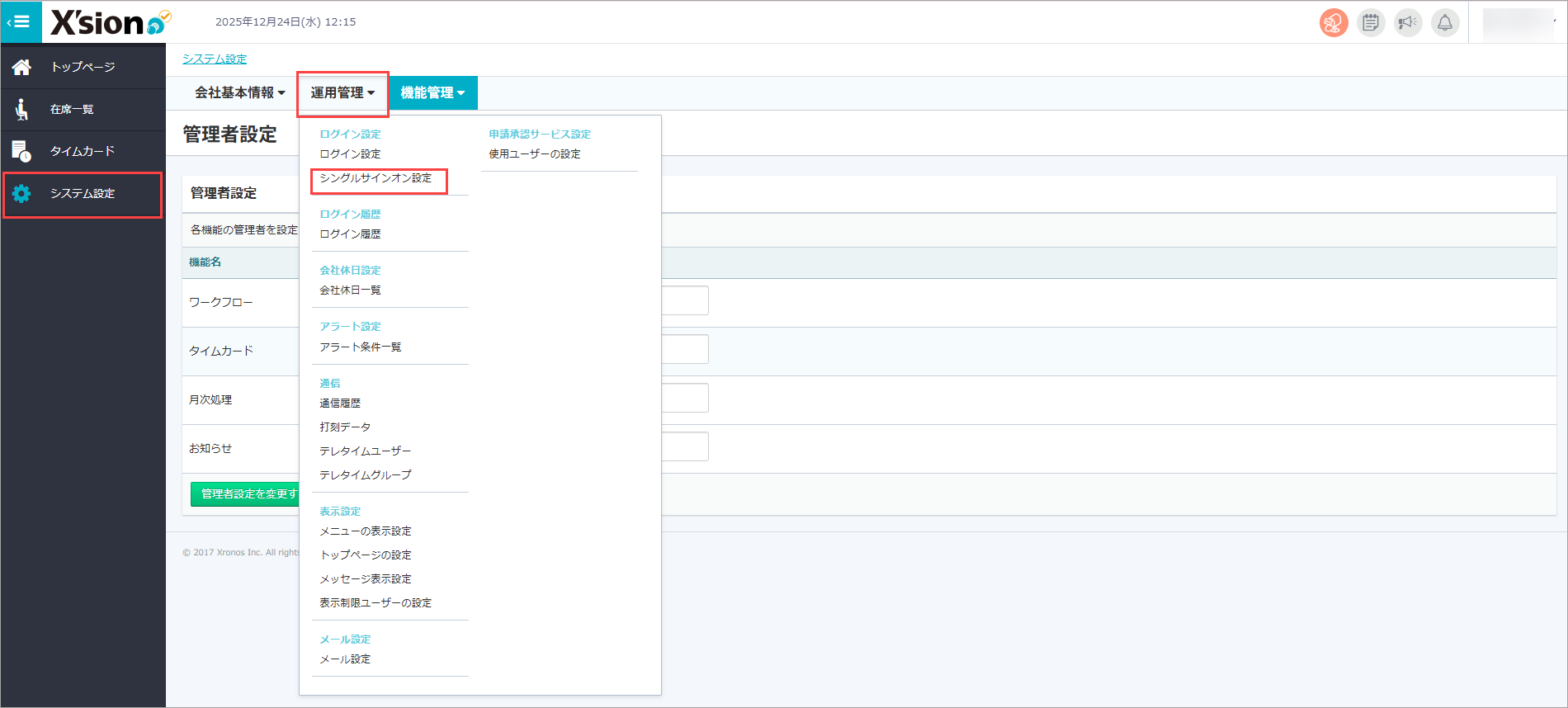

Log in with an administrator account and open "System Settings > Operation Management > Single Sign-On Settings".
-

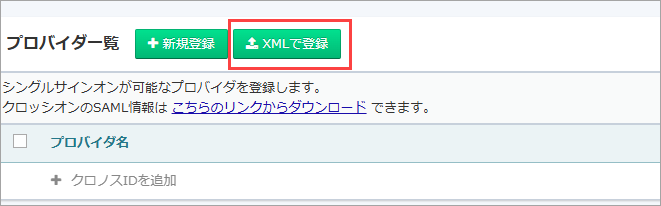

Click "Register with XML" and upload the metadata you downloaded from TrustLogin.

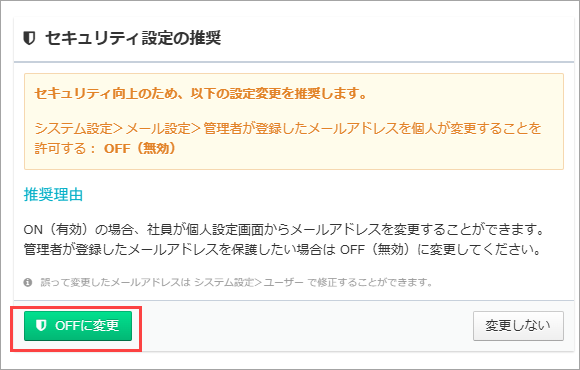

- Under "Recommended Security Settings", click "Change to OFF".
-

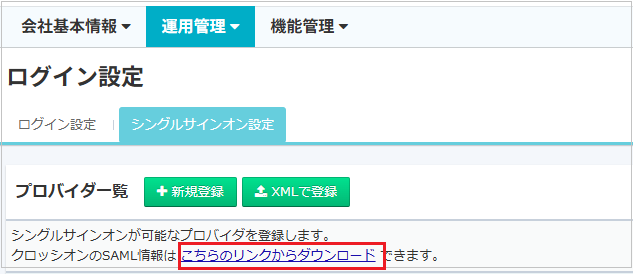

Click the link in "You can download X'sion's SAML information from this link."

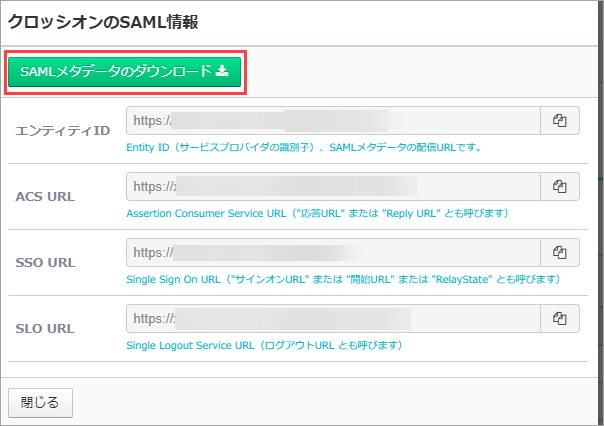

- Download the metadata from "Download SAML Metadata".
Return to the TrustLogin Admin Page.
TrustLogin Admin Page Settings (Continued)

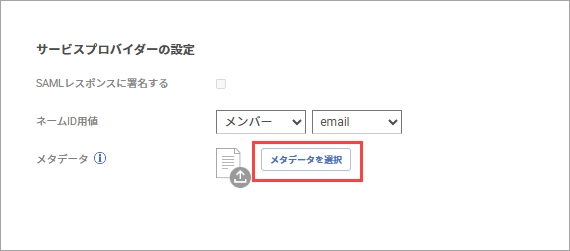

- Upload the metadata you downloaded from X'sion under "Service Provider Settings".
- Save by clicking the "Register" button.
TrustLogin User Settings
① When a User Adds the App from My Page
Note: The SAML app must be configured by the Administrator in advance.
- Click the "Add App" button on "My Page".
- On the "App Registration" screen, select "X'sion (SAML)" and click the "Next" button at the top right of the screen.
- If you want to change the "Display Name", enter it and click the "Register" button.
② When an Administrator Adds Members
- In the "Admin Page > App" menu, search for the "X'sion (SAML)" app and click it.
- Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
How to Log In
How to Log In via the Smartphone App
The "Web Recorder X" app supports SSO login.
-

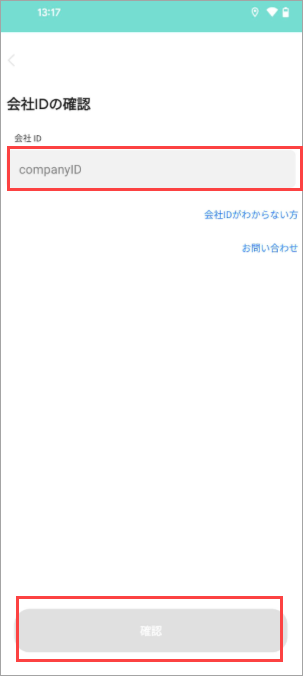

Open the app, enter your "Company ID", and tap "Confirm".
-

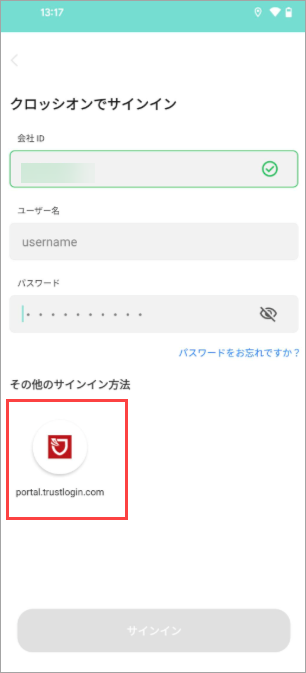

Tap the TrustLogin icon under "Other Sign-In Methods".
- Log in to TrustLogin, and SSO login will be complete.
