Initial Setup Steps for Identity Provisioning with edenLMS

GMOトラスト・ログインチーム
  • Updated

This page describes the initial setup steps for using TrustLogin as the source of identity
to perform Identity Provisioning to edenLMS.

Note: For detailed instructions on operating edenLMS, please refer to the documentation provided by edenLMS.

Item Details
Pre-check
  • edenLMS administrator privileges are required.
Setup Flow / Manual

Note: After connecting TrustLogin and edenLMS using the steps on this page,
　please proceed to configuring user synchronization.
Provisioning Target 〇 Supports user provisioning
ー Supports group provisioning
SAML Authentication Setup Manual

How to Configure SAML Authentication for eden LMS

  • Note: The Identity Provisioning configuration created in this procedure can be linked to an existing SAML app.
    For details on the SAML app configuration, seehere.
Notes
  • None in particular

Setup Steps

edenLMS Settings

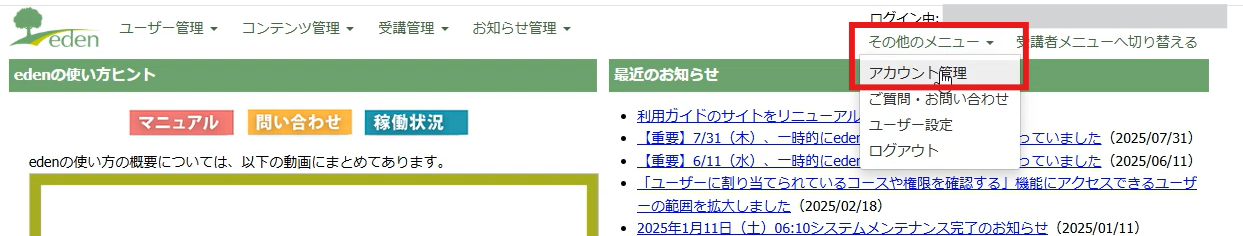

  1. Log in to edenLMS with administrator privileges, and go to "Other Menu ＞ Account Management".

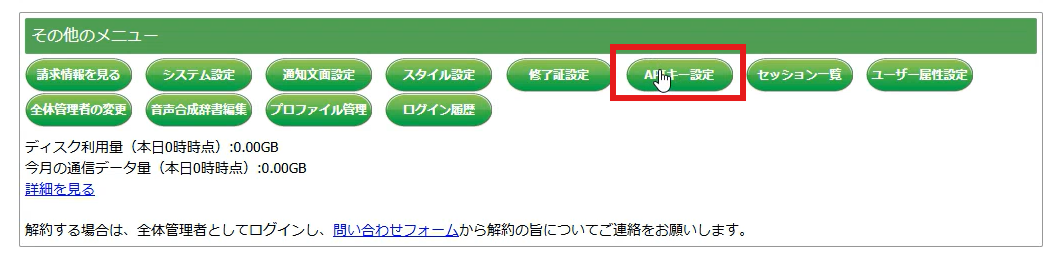

  2. Click "API Key Settings" in the "Other Menu" section.

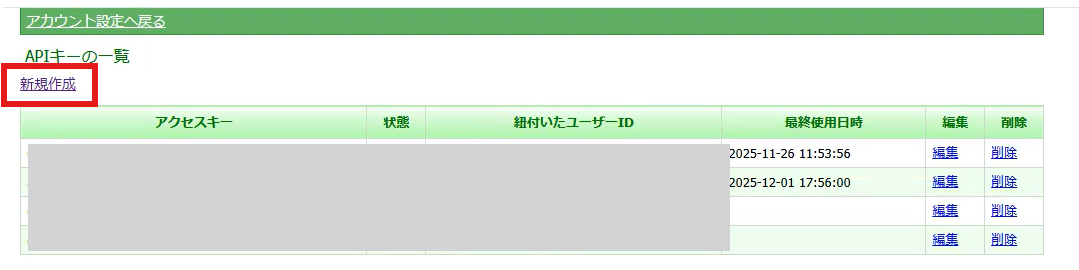

  3. The API key list screen is displayed. Click "New".

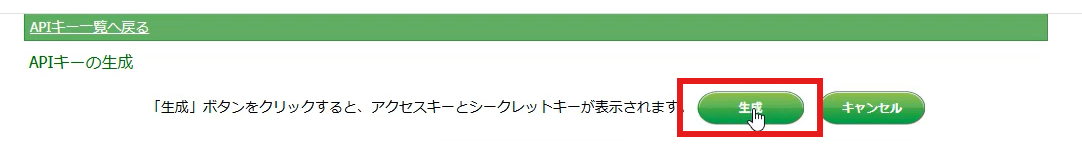

  4. On the confirmation screen, click the "Generate" button.

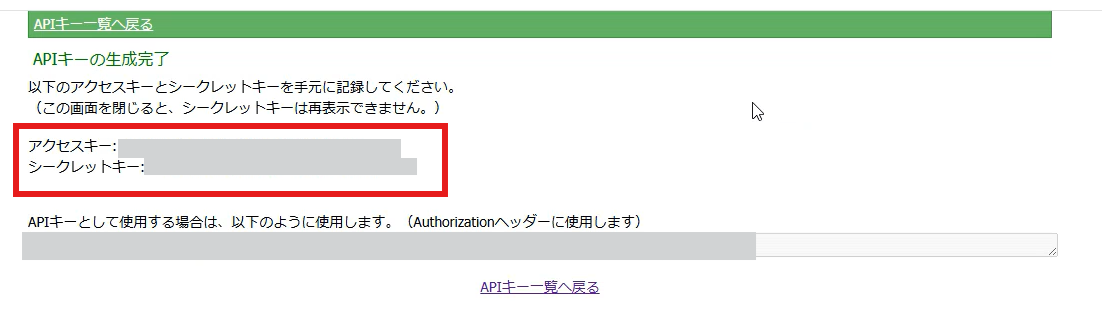

  5. Make a note of the following values that are displayed.
    • "Access Key"
    • "Secret Key"
      Note: The "Secret Key" cannot be viewed again. Please make sure you have copied it before proceeding.

      This completes the preliminary preparation on the edenLMS side. Next, configure the settings on the TrustLogin side.

TrustLogin Settings

  1. Log in to the TrustLogin Admin Page, and from the "Admin Page > Settings > Optional Features" menu,
    open "Settings" next to "Identity Provisioning".

  2. Click "Add Service".

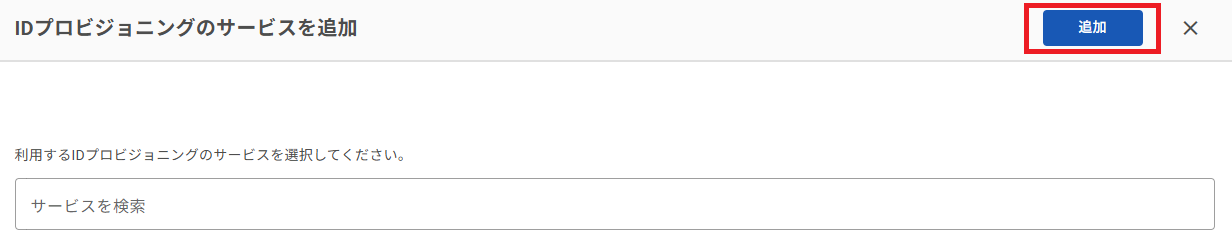

  3. On the Add Service screen, search for and select "edenLMS", then click the "Add" button.
  4. You will be redirected to the "Identity Provisioning ＞ edenLMS" page.

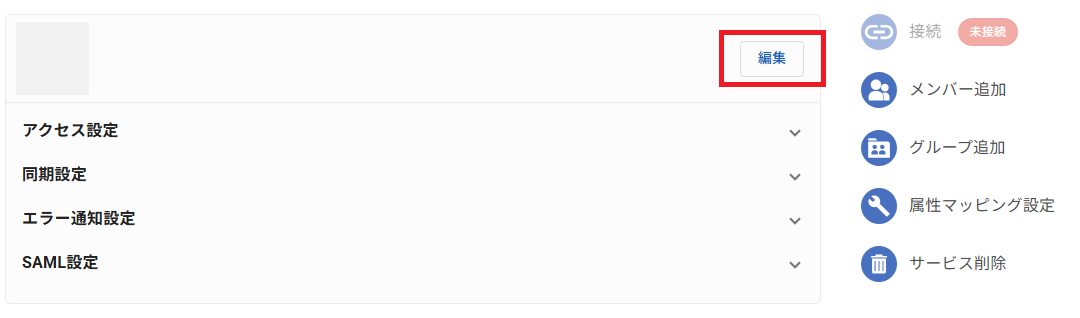

    Click the "Edit" button.

  5. Open "Access Settings", enter the following values for the settings items, and click "Save".

    Access Key edenLMS Settings The value of "Access Key" you copied in step 5
    Secret Key edenLMS Settings The value of "Secret Key"you copied in step 5


  6. Click the "Connect" button at the top right of the screen.

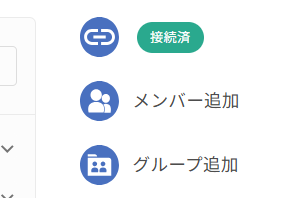

  7. Once the button status updates to "Connected", the initial setup is complete.

Next step: The manual for configuring user synchronization is available here

Values You Can Configure in Attribute Mapping

You can map any attribute on the TrustLogin side to any attribute on the edenLMS side.
For configuration instructions, see here

Available Default Functions
