Initial Setup Steps for Identity Provisioning with DeployGate

GMOトラスト・ログインチーム
  • Updated

This page describes the initial setup steps for using TrustLogin as the source of identity
to perform Identity Provisioning to DeployGate.

Note: For detailed instructions on operating DeployGate, please refer to the documentation provided by DeployGate.

Item Details
Pre-check
  • DeployGate administrator privileges are required.
  • DeployGate requires an Enterprise plan subscription.
  • DeployGate SAML configuration is required.
Setup Flow / Manual

Note: After connecting TrustLogin and DeployGate using the steps on this page,
　please proceed to configuring user synchronization.
Provisioning Target 〇 Supports user provisioning
ー Supports group provisioning
SAML Authentication Setup Manual

How to Configure SAML Authentication for DeployGate

  • The Identity Provisioning configuration created in this procedure can be linked to an existing SAML app.
    For details on the SAML app configuration, seehere.
Notes
  • User information cannot be updated after the user is created.

Setup Steps

DeployGate Settings

  1. Log in to DeployGate with administrator privileges.

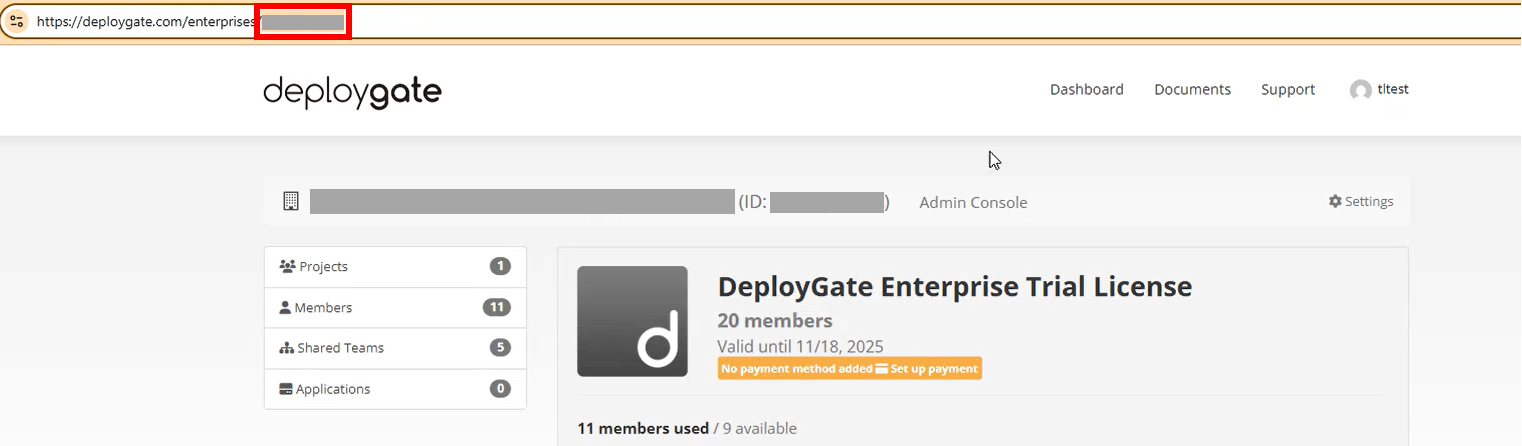

    Open the admin screen, and from the browser's address bar, select and copy the workspace name at the end of the URL (the part after "enterprises/").

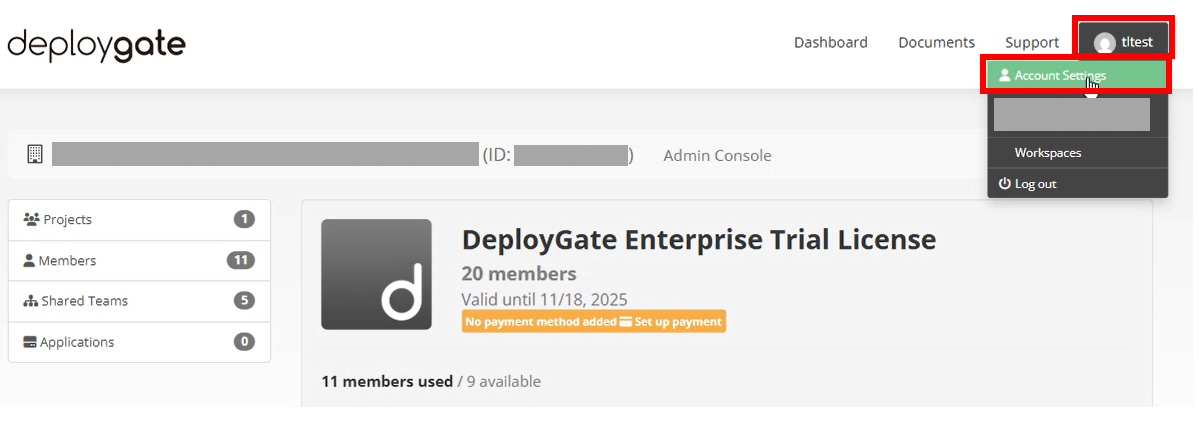

  2. Hover over the profile icon in the upper right, and click "Account Settings".

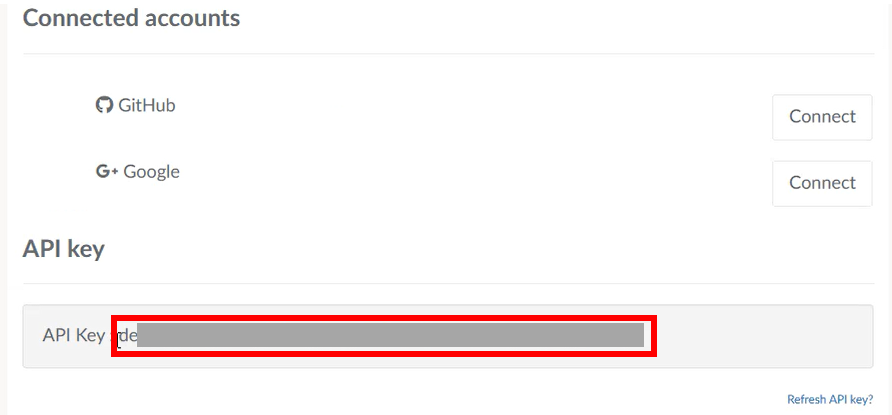

  3. Scroll down the page and copy the "API key".



    This completes the preparation on the DeployGate side. Next, configure the settings on the TrustLogin side.

TrustLogin Settings

  1. Log in to the TrustLogin Admin Page, and from the "Admin Page > Settings > Optional Features" menu,
    open "Settings" next to "Identity Provisioning".

  2. Click "Add Service".

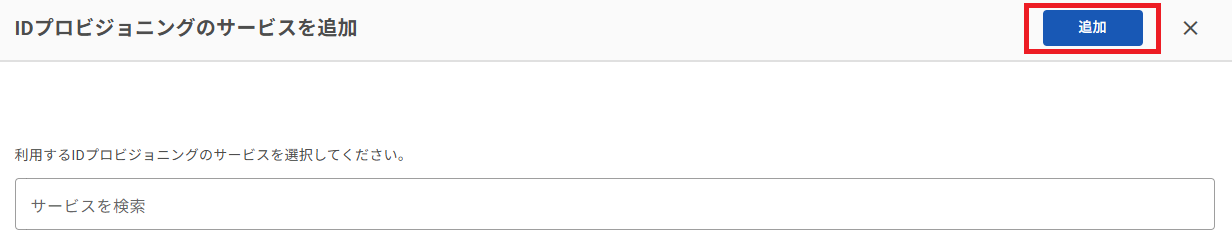

  3. On the Add Service screen, search for and select "DeployGate", then click the "Add" button.

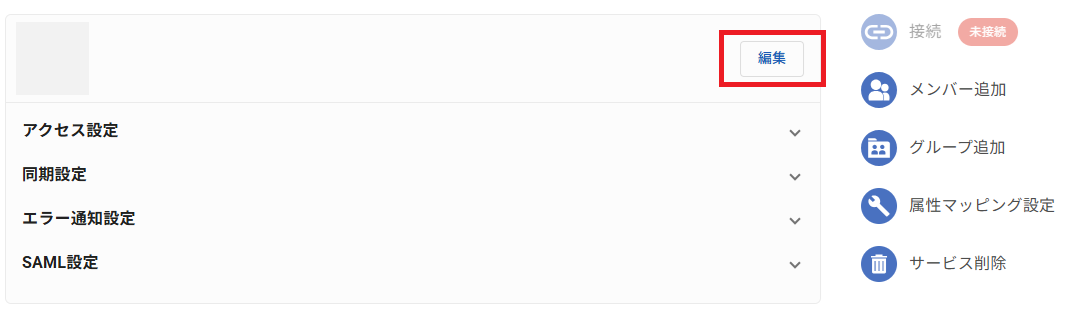

  4. You will be redirected to the "Identity Provisioning > DeployGate" page.
    Click the "Edit" button.

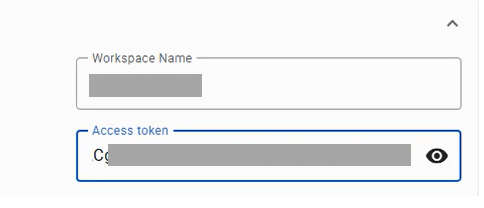

  5. Open "Access Settings", enter the following values for the settings items, and click "Save".

    Connection URL DeployGate Settings the workspace name you copied in step 1
    Access Token DeployGate Settings the value of the API Key you copied in step 3



  6. Click the "Connect" button in the upper right of the screen.

  7. Once the button status updates to "Connected", the initial setup is complete.

Next step: The manual for configuring user synchronization is available here

Values You Can Configure in Attribute Mapping

You can map any attribute on the TrustLogin side to any attribute on the DeployGate side.
For configuration instructions, see here

Available Default Functions

Note: If there are no service-specific default functions
