Initial Setup Steps for Identity Provisioning with HRBrain

GMOトラスト・ログインチーム
  • Updated

This page describes the initial setup steps for using TrustLogin as the source of information
to perform Identity Provisioning to HRBrain.

Note: For detailed instructions on operating HRBrain, please refer to the documentation provided by HRBrain.

Item Details
Pre-check
  • HRBrain administrator privileges are required.
Setup Flow / Manual

Note: After connecting TrustLogin and HRBrain using the steps on this page,
　please proceed to configuring user synchronization.
Provisioning Target 〇 Supports user provisioning
〇 Supports group provisioning
SAML Authentication Setup Manual

How to Configure SAML Authentication for HRBrain

  • Note: The Identity Provisioning configuration created in this procedure can be linked to an existing SAML app.
    For details on the SAML app configuration, seehere.
Notes
  • None in particular

Setup Steps

HRBrain Settings

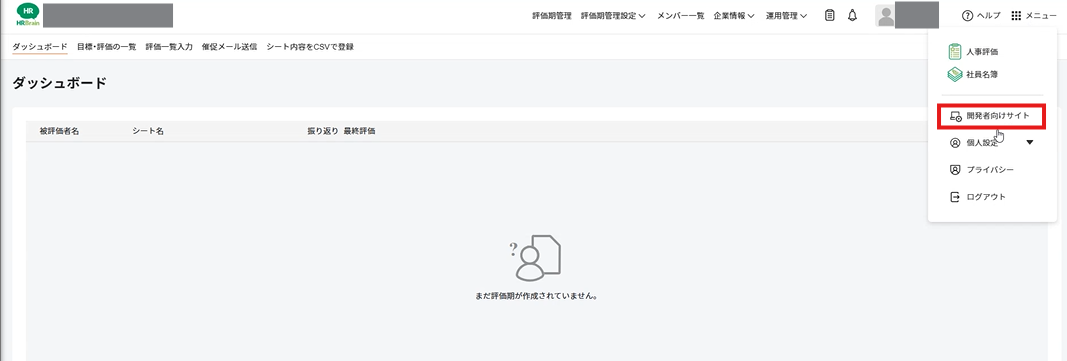

  1. Log in to HRBrain with administrator privileges, and click "Developer Site" from the menu in the upper right of the screen.

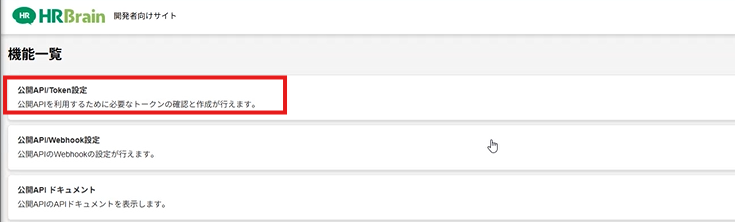

  2. Click "Public API/Token Settings".

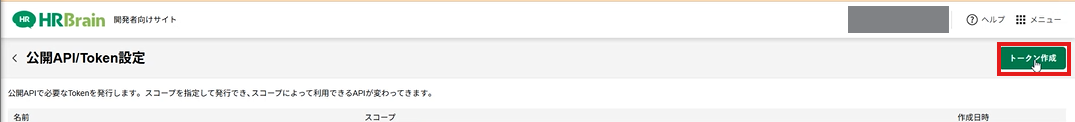

  3. Click "Create Token".

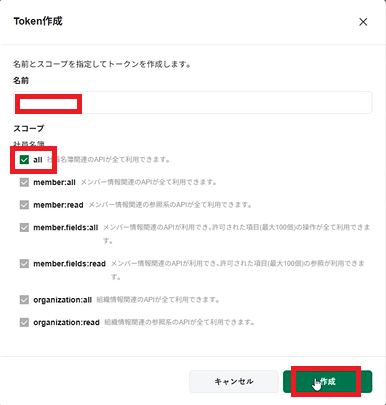

  4. Enter any name you like, check the "all" checkbox for the "Scope" item, and click "Create".

  5. Copy and save the displayed token.
    Note: You cannot view the token again after it has been saved. Please make sure you have copied it before proceeding.



    This completes the preliminary preparation on the HRBrain side. Next, configure the settings on the TrustLogin side.

TrustLogin Settings

  1. Log in to the TrustLogin Admin Page, and from the "Admin Page > Settings > Optional Features" menu,
    open "Settings" next to "Identity Provisioning".

  2. Click "Add Service".

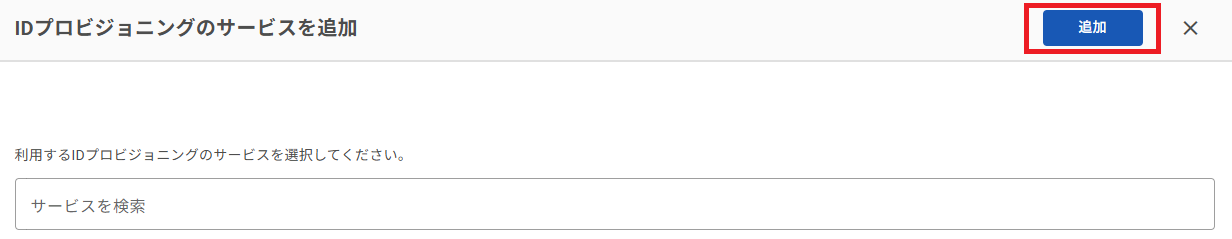

  3. On the Add Service screen, search for and select "HRBrain", then click the "Add" button.
  4. You will be redirected to the "Identity Provisioning ＞ HRBrain" page.

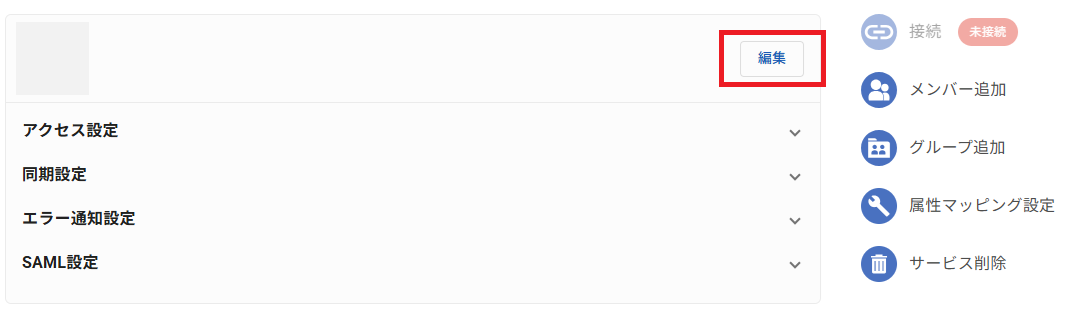

    Click the "Edit" button.

  5. Open "Access Settings", enter the following values for the settings items, and click "Save".

    Connection URL

    https://xxxxxxxx.oapi.hrbrain.jp.members/v1

    Note: Please replace the "x" portion of the above URL with your environment's subdomain before entering it.
    Client ID Your environment's subdomain
    Access Token HRBrain Settings The value of the token you copied in step 5


  6. Click the "Connect" button at the top right of the screen.

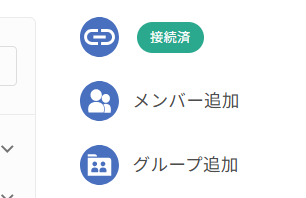

  7. Once the button status updates to "Connected", the initial setup is complete.

Next step: The manual for configuring user synchronization is available here

Values You Can Configure in Attribute Mapping

You can map any attribute on the TrustLogin side to any attribute on the HRBrain side.
For configuration instructions, see here

Available Default Functions
