This page describes the initial setup steps for using TrustLogin as the source of identity
to perform Identity Provisioning to Lucid.

Note: For detailed instructions on operating Lucid, please refer to the documentation provided by Lucid.

Setup Steps

Lucid Settings

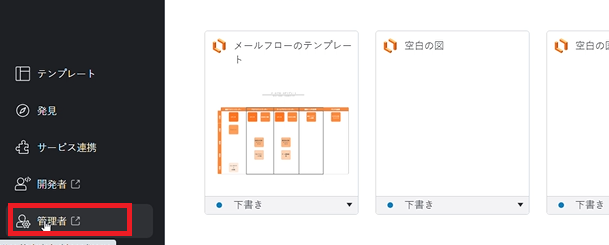

1. Log in to Lucid with administrator privileges and click "Admin" in the lower left of the screen.

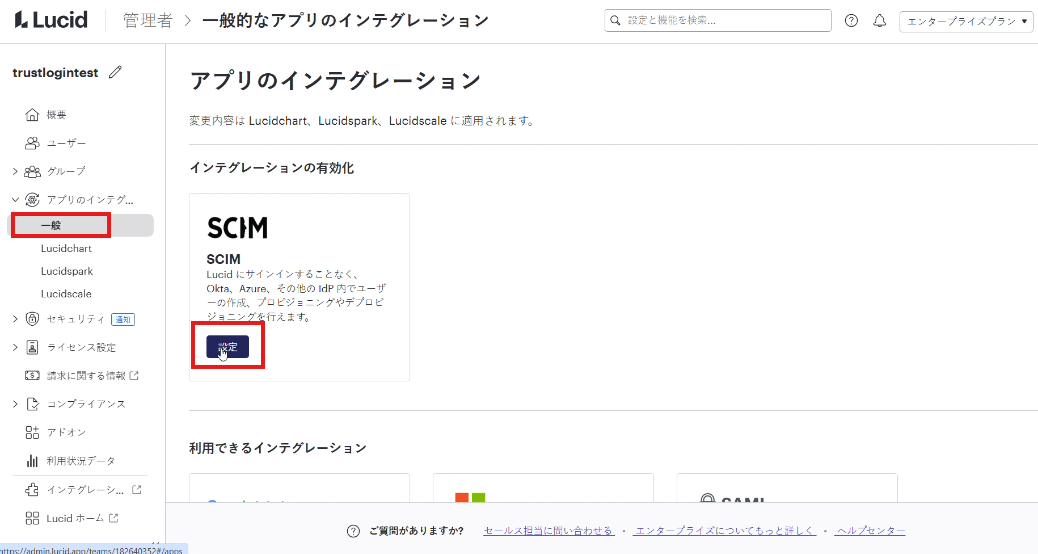

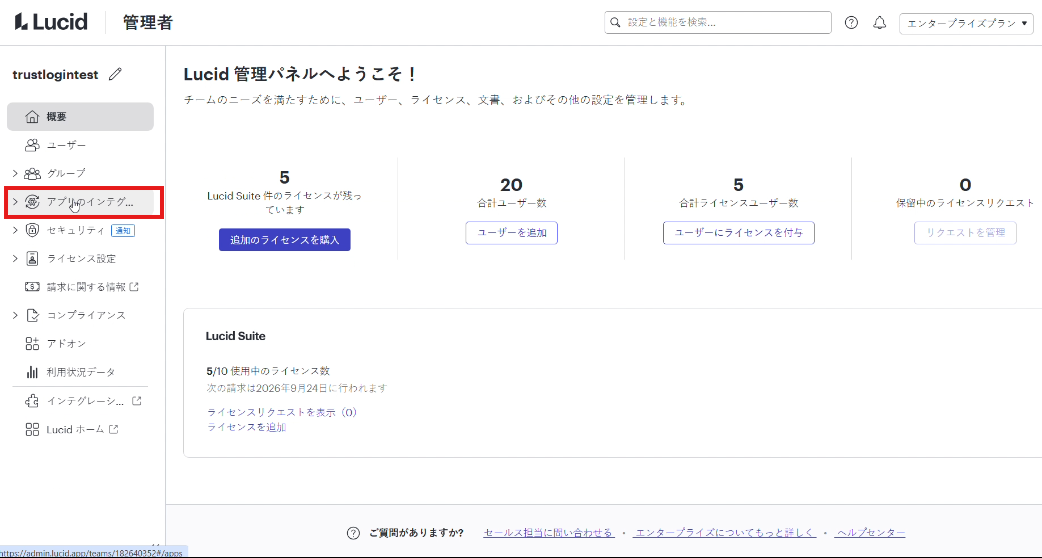

2. From the menu on the left side of the Lucid admin screen, select "App Integrations".


3. Click the "Settings" button under the "SCIM" item.

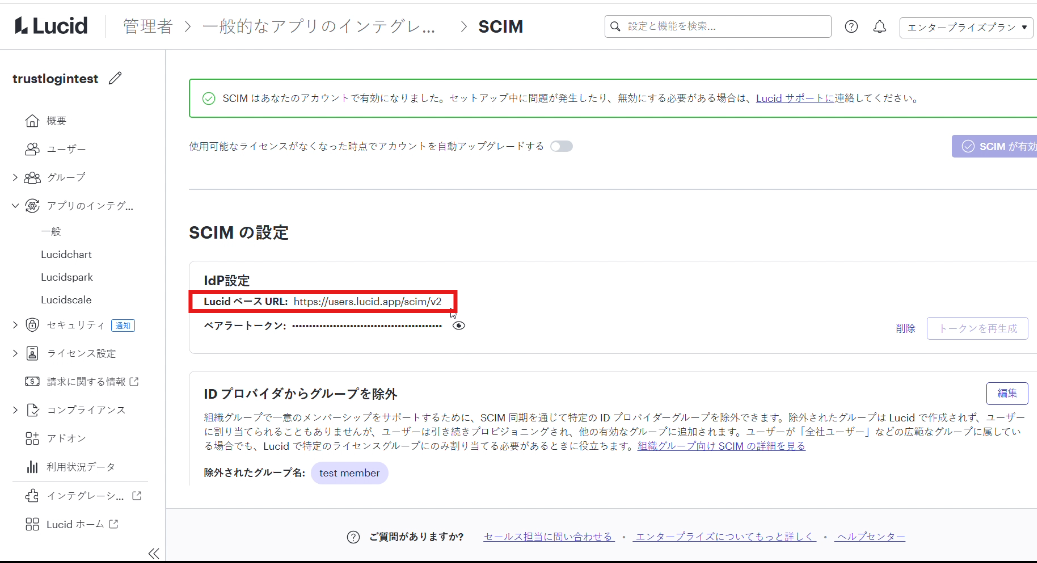

4. In the "SCIM Settings" section, copy the URL shown in "Lucid Base URL".

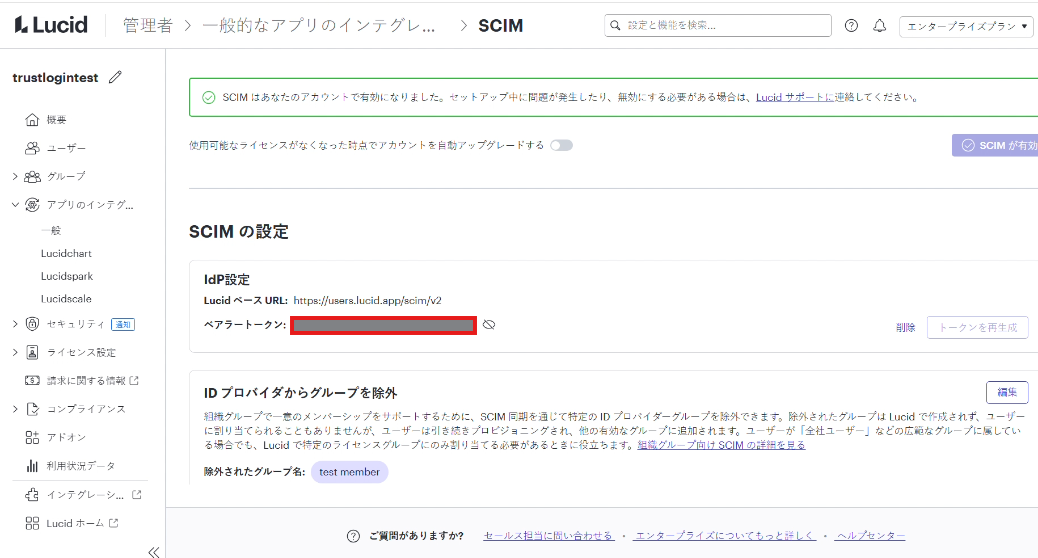

5. Copy the token shown in "Bearer Token". (If it is hidden, click the eye icon to display it.)


   This completes the preparation on the Lucid side. Next, configure the settings on the TrustLogin side.


TrustLogin Settings

1. Log in to the TrustLogin Admin Page, and from the "Admin Page > Settings > Optional Features" menu,
   open "Settings" next to "Identity Provisioning".



2. Click "Add Service".

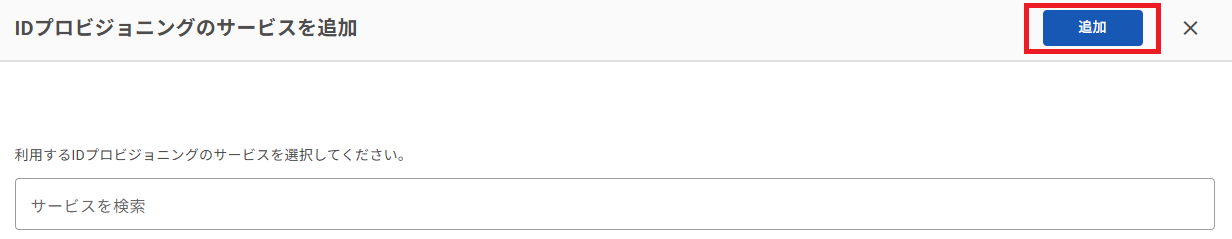

3. On the Add Service screen, search for and select "Lucid", then click the "Add" button.


4. You will be redirected to the "Identity Provisioning > Lucid" page.

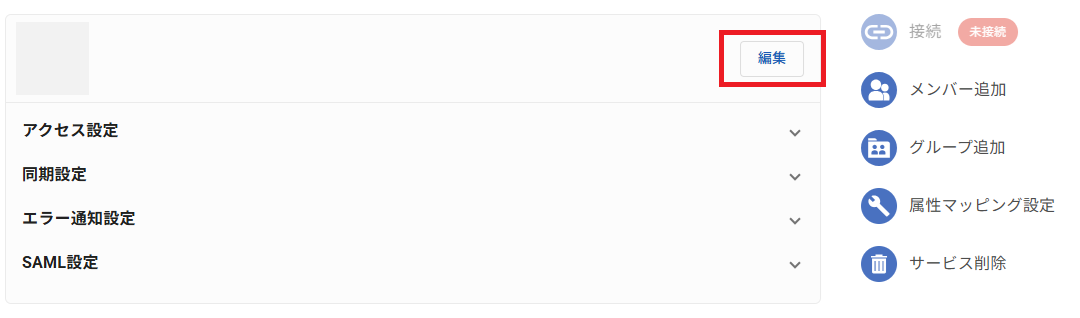

   Click the "Edit" button.



5. Open "Access Settings", enter the following values for the settings items, and click "Save".


   Tenant URL	Lucid Settings The value of "Lucid Base URL" you copied in step 4
   Secret Token	Lucid Settings The "Bearer Token" value you copied in step 5





6. Click the "Connect" button in the upper right of the screen.



7. Once the button status updates to "Connected", the initial setup is complete.



Next step: The manual for configuring user synchronization is available here

Values You Can Configure in Attribute Mapping

You can map any attribute on the TrustLogin side to any attribute on the Lucid side.
For configuration instructions, see here

Available Default Functions

• default functions common to all services can be specified.
