Initial Setup Steps for Identity Provisioning with Re:lation

GMOトラスト・ログインチーム
  • Updated

This page describes the initial setup steps for using TrustLogin as the source of identity
to perform Identity Provisioning to Re:lation.

Note: For detailed instructions on operating Re:lation, please refer to the documentation provided by Re:lation.

Item Details
Pre-check Re:lation administrator privileges are required.
Setup Flow / Manual

Note: After connecting TrustLogin and Re:lation using the steps on this page,
　please proceed to configuring user synchronization.
Provisioning Target 〇 Supports user provisioning
〇 Supports group provisioning
SAML Authentication Setup Manual

Re:lation SAML JIT Setup Guide

  • The Identity Provisioning configuration created in this procedure can be linked to an existing SAML app.
    For details on the SAML app configuration, please see here.
  • To prevent conflicts in updating user attributes caused by using Identity Provisioning together with SAML JIT,
    we recommend not configuring the "SAML Attribute Settings" for duplicate user attributes when creating a SAML app.
    Note: Behavior depends on the service specifications, so please check with each SP for details.
Notes None in particular

Setup Steps

Re:lation Settings

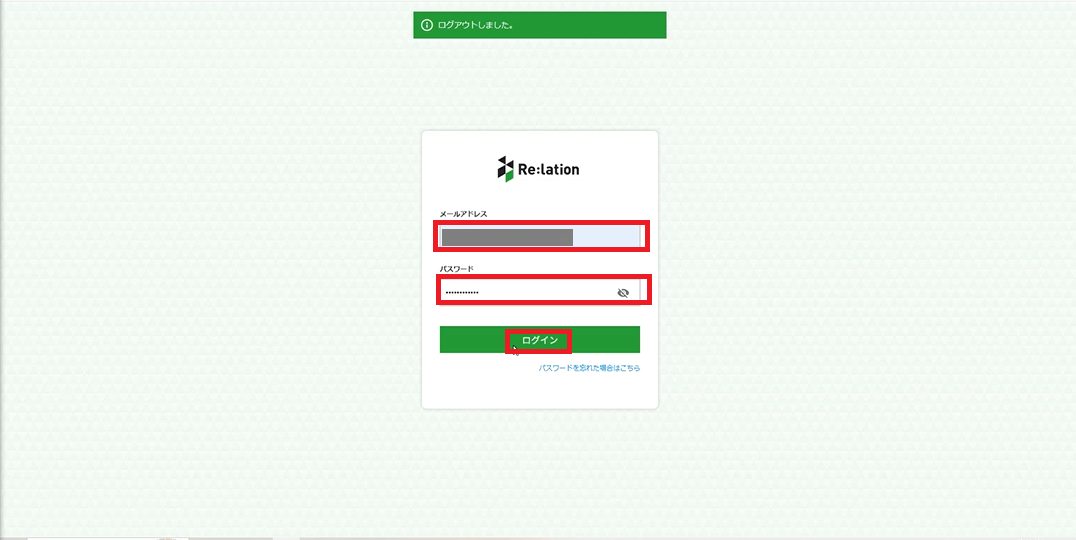

  1. Log in to Re:lation with an account that has administrator privileges.

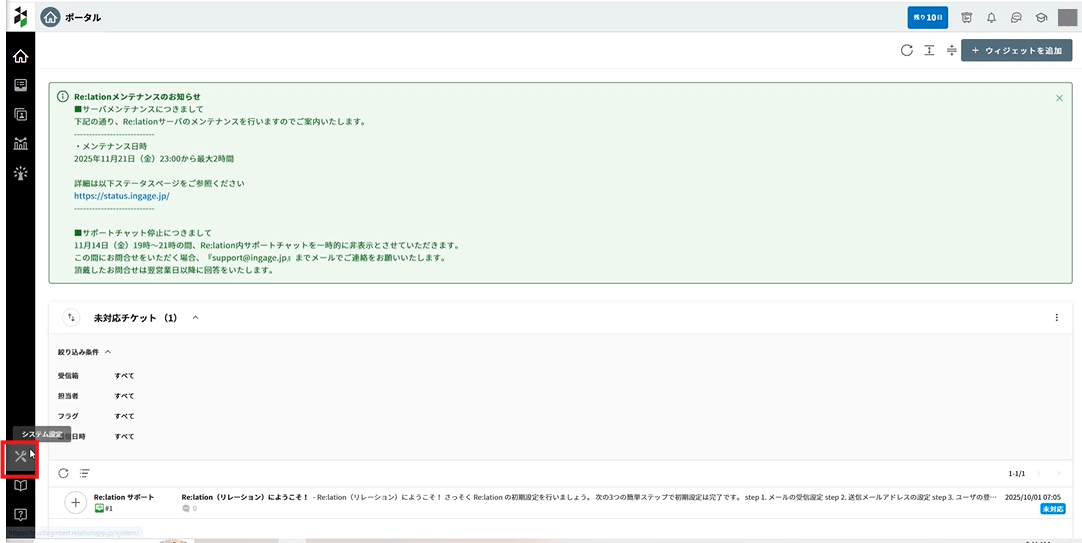

  2. Click the "System Settings" icon in the lower left of the screen.

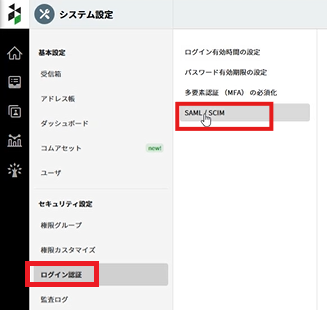

  3. From the "Security Settings" category in the left-side menu, click "Login Authentication" > "SAML / SCIM".

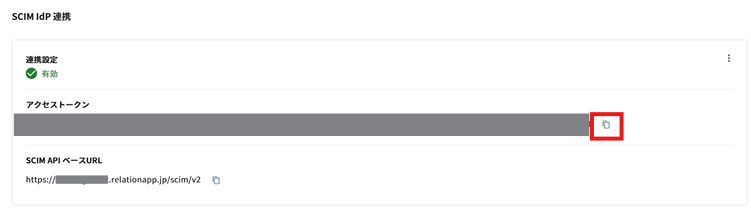

  4. Scroll down to display the "SCIM IdP Integration" section,
    click the copy icon to the right of "Access Token", and make a note of the value.

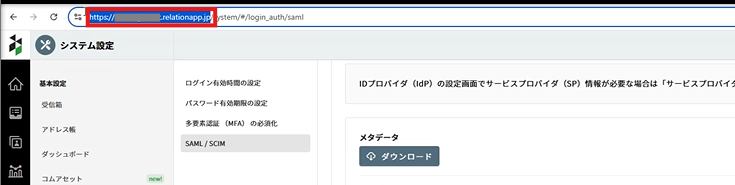

  5. Make a note of the page URL portion shown in the image【https://★★★relationapp.jp/】.


    This completes the preparation on the Re:lation side. Next, configure the settings on the TrustLogin side.

TrustLogin Settings

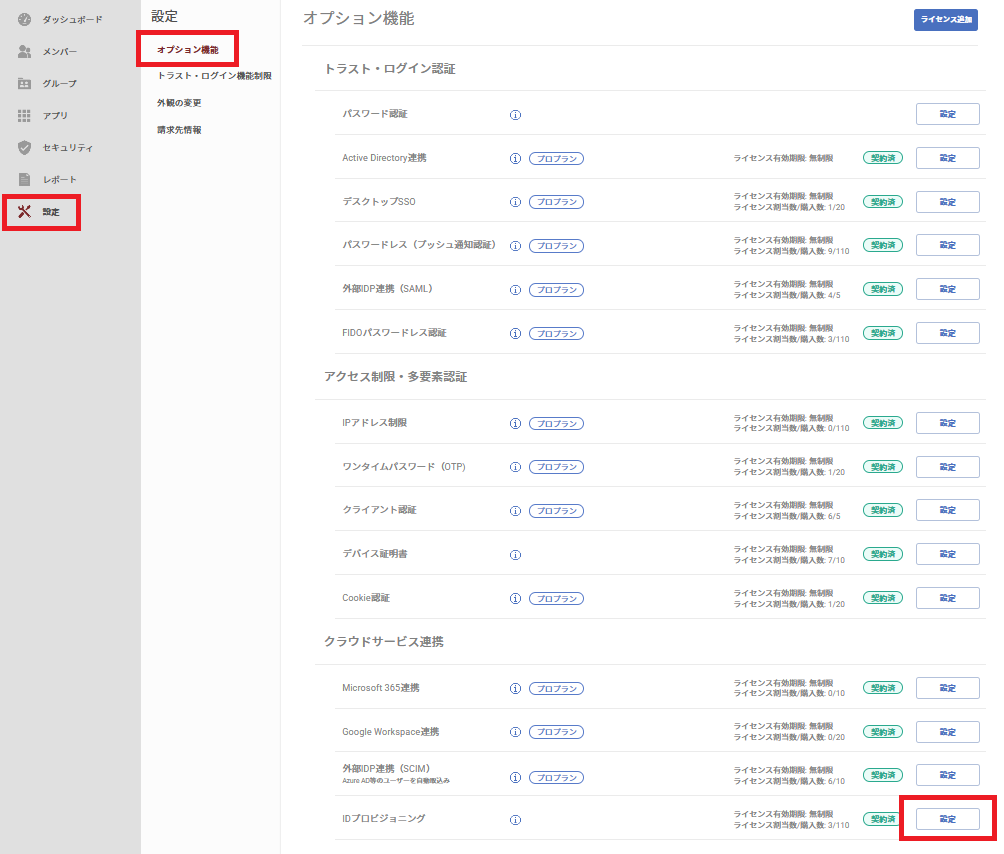

  1. Log in to the TrustLogin Admin Page, and from the "Admin Page > Settings > Optional Features" menu,
    open "Settings" next to "Identity Provisioning".

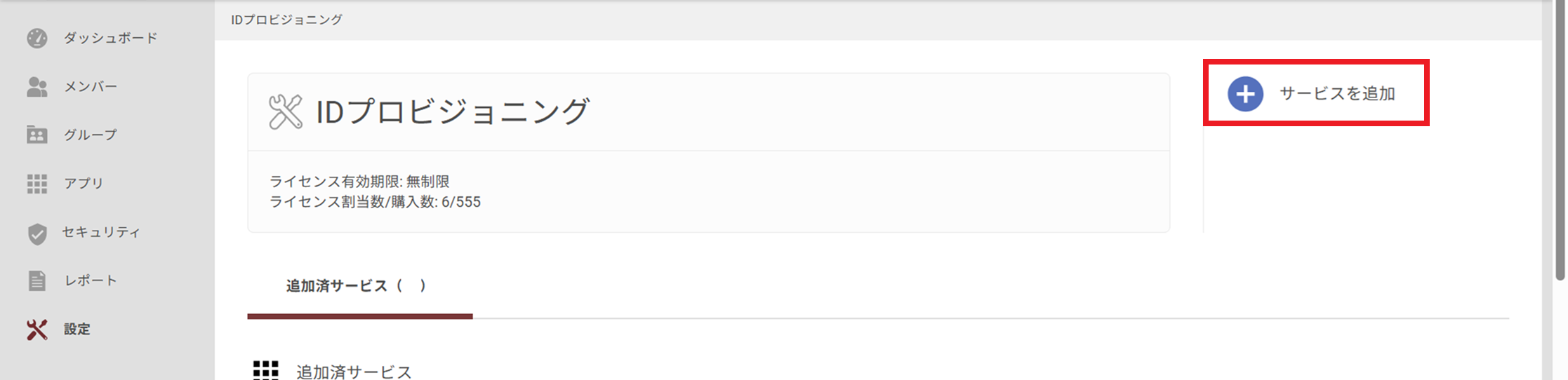

  2. Click "Add Service".

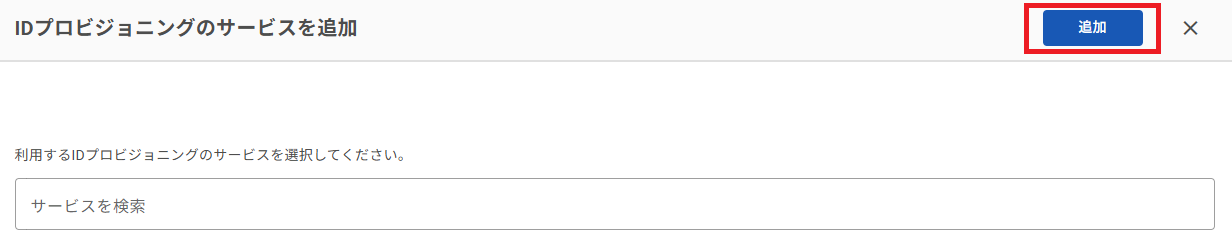

  3. On the Add Service screen, search for and select "Re:lation", then click the "Add" button.

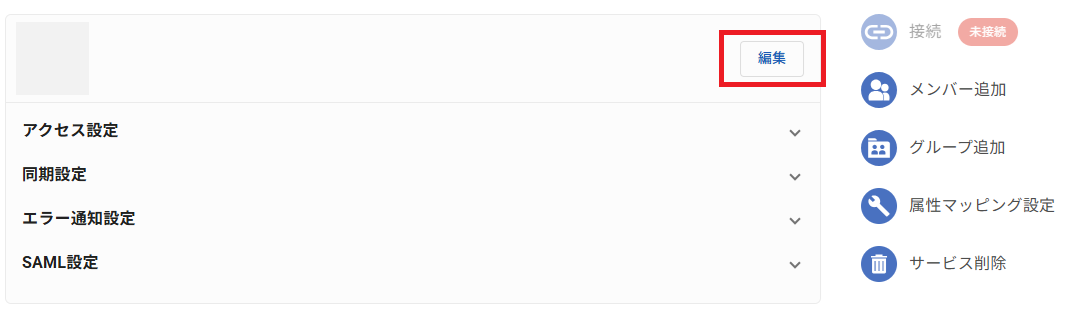

  4. You will be redirected to the "Identity Provisioning > Re:lation" page.
    Click the "Edit" button.

  5. Open "Access Settings", enter the following values for the settings items, and click "Save".

    Connection URL Re:lation Settings The value of the URL copied in step 5
    Access Token Re:lation Settings The value of the token copied in step 4


  6. Click the "Connect" button in the upper right of the screen.

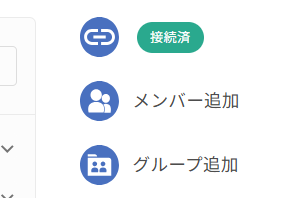

  7. Once the button status updates to "Connected", the initial setup is complete.

Next step: The manual for configuring user synchronization is available here

Values You Can Configure in Attribute Mapping

You can map any attribute on the TrustLogin side to any attribute on the Re:lation side.
For configuration instructions, see here

Available Default Functions
