| Item | Details | |
|---|---|---|
| Pre-check |
|
|
| Name ID | 〇 | Email address |
| Custom attribute Note: For how to configure a custom attribute, see here | ||
| SP Configuration | Configured by the Administrator | |
| 〇 | Request SP to configure | |
| Provisioning | API-based Provisioning supported (account management available in TrustLogin) | |
| SAML JIT Provisioning supported (account management available in TrustLogin; user deletion not supported) | ||
| 〇 | None (accounts created in each system) | |
| Access Method | 〇 | SP-Initiated SSO |
| 〇 | IdP-Initiated SSO | |
| Device Compatibility | 〇 | PC - Browser |
| ー | PC - Desktop App | |
| 〇 | iOS - Default Browser (Safari) | |
| 〇 | iOS - TrustLogin Mobile App In-App Browser | |
| ー | iOS - Native App | |
| 〇 | Android - Default Browser (Chrome) | |
| 〇 | Android - TrustLogin Mobile App In-App Browser | |
| ー | Android - Native App | |
| SAML Authentication Scope | ー | Enabled for all users (SAML authentication only) |
| 〇 | Enabled only for users (IP addresses) for which SAML authentication has been applied on the SP side | |
| Notes | NAVI Express SAML authenticates based on the source IP address of the connection. If you connect from an IP address other than the one configured, SAML login will not occur. | |
|
Table of Contents: TrustLogin Admin Page Settings |
TrustLogin Admin Page Settings
-
Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.
Note: If you are using the "SSO Pro + SaaS Management Plan" or "SSO Free + SaaS Management Plan", select "Register SSO App" instead.

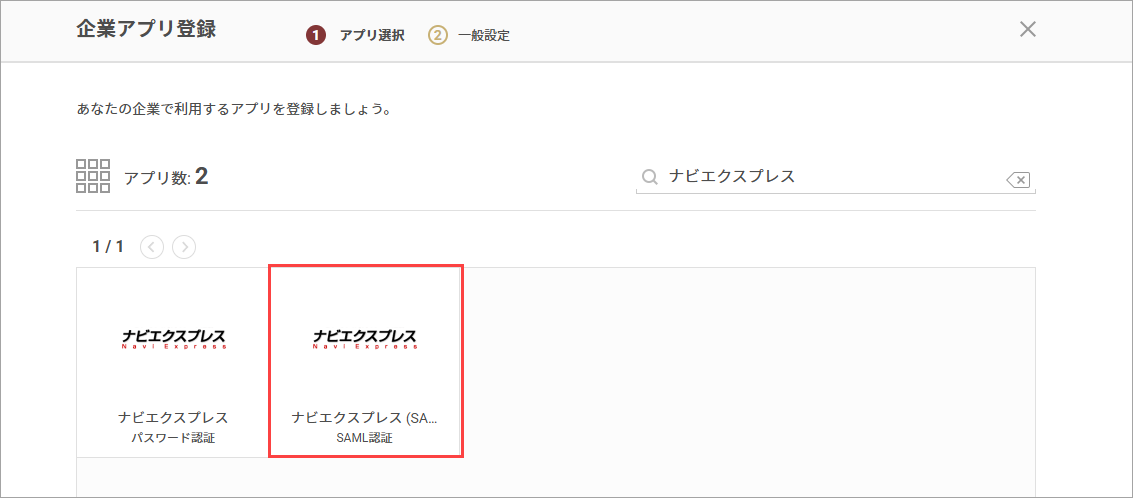

- Search in the "Register Company App" screen and select "NAVI Express (SAML)".
-

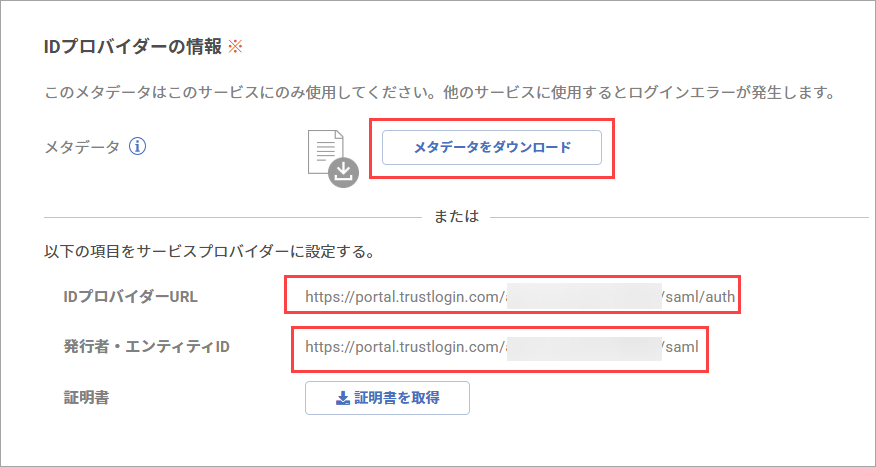

Download the "Metadata" from "Identity Provider Information", and note down the values of "Identity Provider URL" and "Issuer/Entity ID".
-
Send the obtained "Metadata", "Identity Provider URL", and "Issuer/Entity ID", along with the IP address, to your contact at NTT DOCOMO Business X Corporation, and request them to configure the settings.
- Click the "Register" button to save.
TrustLogin Admin Page Settings (Continued)
-

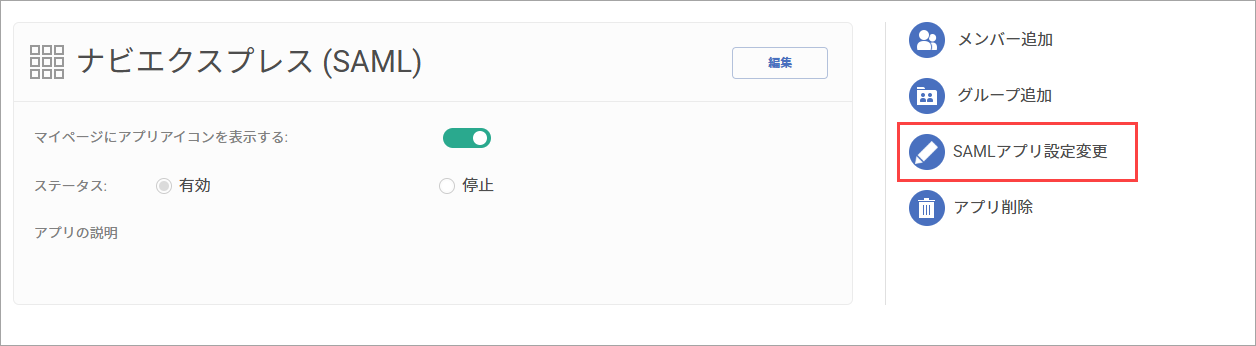

Once you receive notification of configuration completion and the SSO information from your contact at NTT DOCOMO Business X Corporation, open "Change SAML App Settings" for the "NAVI Express (SAML)" app on the TrustLogin app management screen.
-

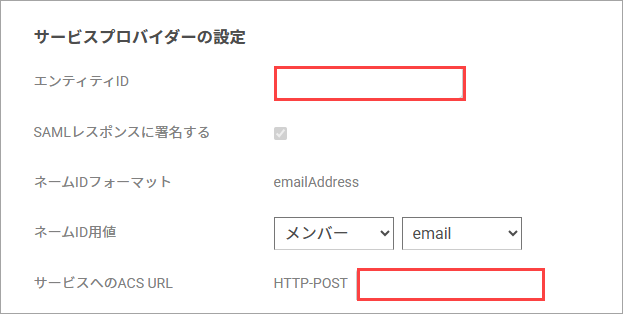

Configure the "Service Provider Settings" as follows.
Entity ID NAVI Express's "Entity ID" ACS URL for Service NAVI Express's "ACS URL"
- Click the "Register" button to save.
TrustLogin User Settings
① When a User Adds the App from My Page
Note: The SAML app must be configured by an administrator in advance.
- On "My Page", click the "Add App" button.
- On the "Register App" screen, select "NAVI Express (SAML)" and click the "Next" button in the upper right of the screen.
-
If you want to change the "Display Name", enter it and click the "Register" button.
② When an Administrator Adds Members
- Search for the "NAVI Express (SAML)" app in the "Admin Page > App" menu and click on it.
- Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
