Initial Setup Steps for Identity Provisioning with Akamai

GMOトラスト・ログインチーム
  • Updated

This page describes the initial setup steps for using TrustLogin as the source of identity
to perform Identity Provisioning to Akamai.

Note: For detailed instructions on operating Akamai, please refer to the manual provided by Akamai.

Item

Details

Pre-check
  • Akamai administrator privileges are required.

Setup Flow / Manual

Note: After connecting TrustLogin and Akamai using the steps on this page,
　please proceed to user synchronization settings.

Provisioning Target

〇

 Supports user provisioning

〇

 Supports group provisioning

SAML Authentication Setup Manual

How to Configure SAML JIT for Akamai Enterprise Application Access

  • The Identity Provisioning configuration created in this procedure can be linked to an existing SAML app.
    For details on the SAML app configuration, please see here.
  • To prevent conflicts in user attribute updates caused by using Identity Provisioning together with SAML JIT,
    we recommend not configuring the "SAML Attribute Settings" for duplicate user attributes when creating a SAML app.
    Note: Behavior depends on the service specifications, so please check with each SP for details.

Notes
  • None in particular

Setup Steps

Akamai Settings

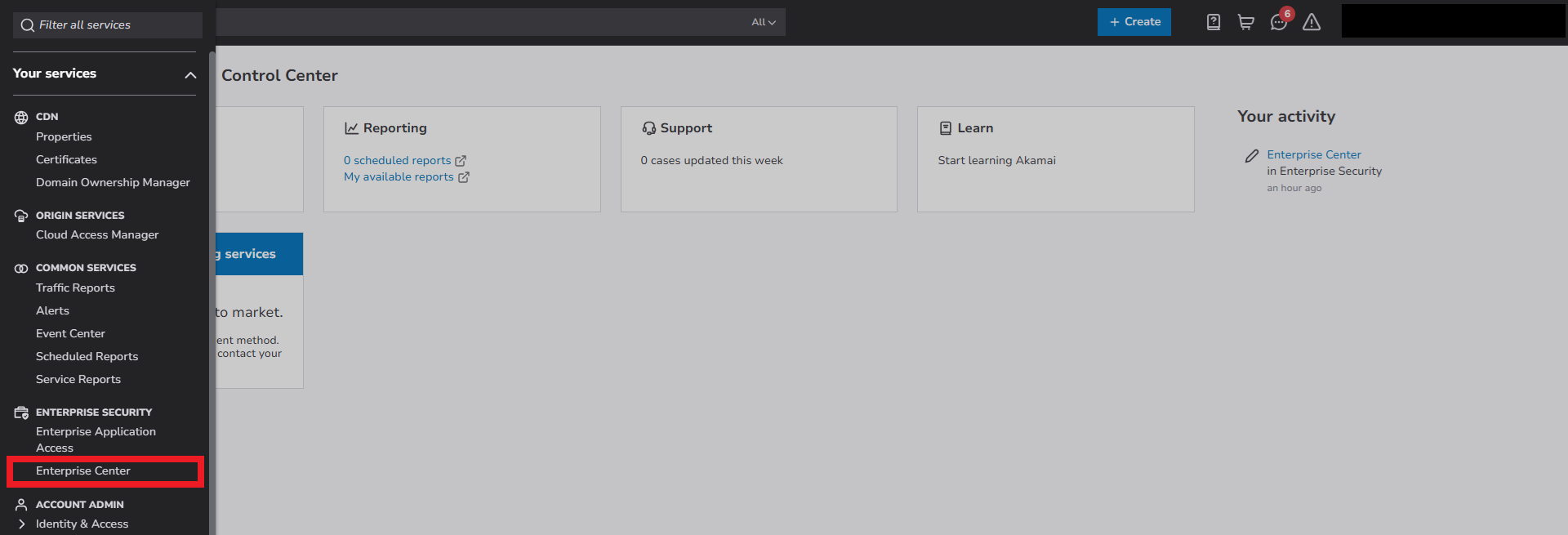

  1. Log in to Akamai with administrator privileges, and click "Enterprise Center" from the left-side menu.

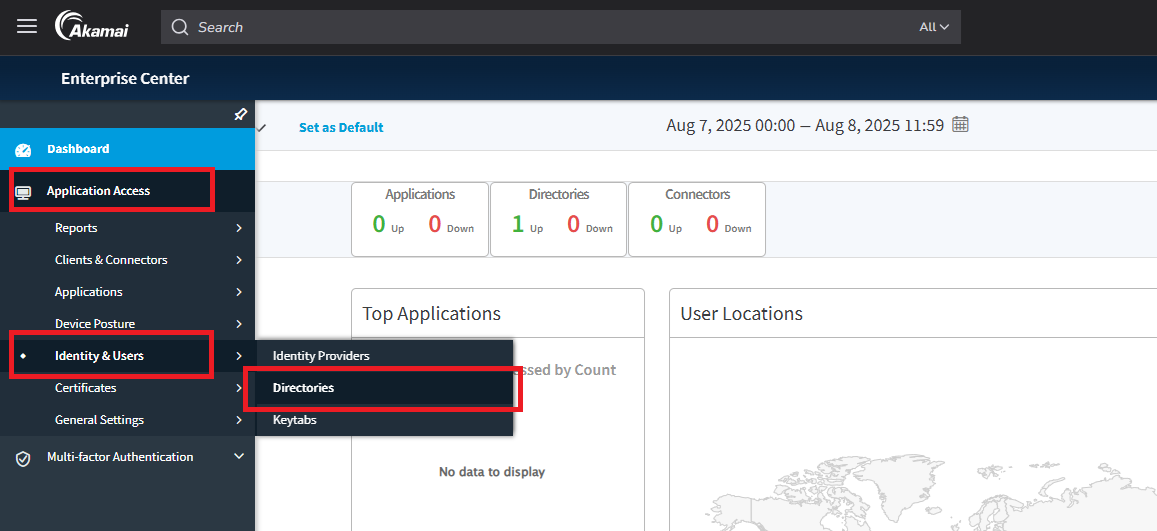

  2. Click "Application Access > Identity & Users > Directories".

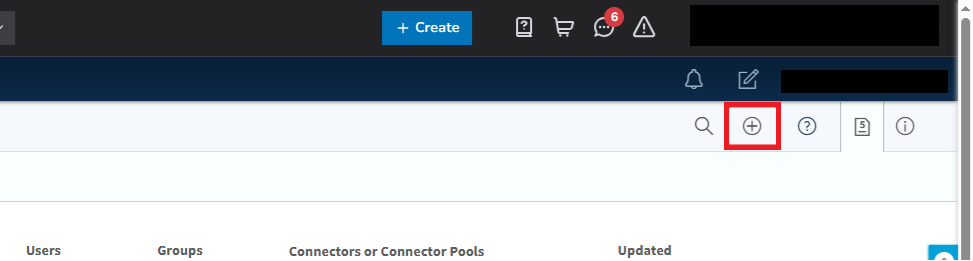

  3. Click the "＋ (add a new directory)" button in the upper right of the screen.

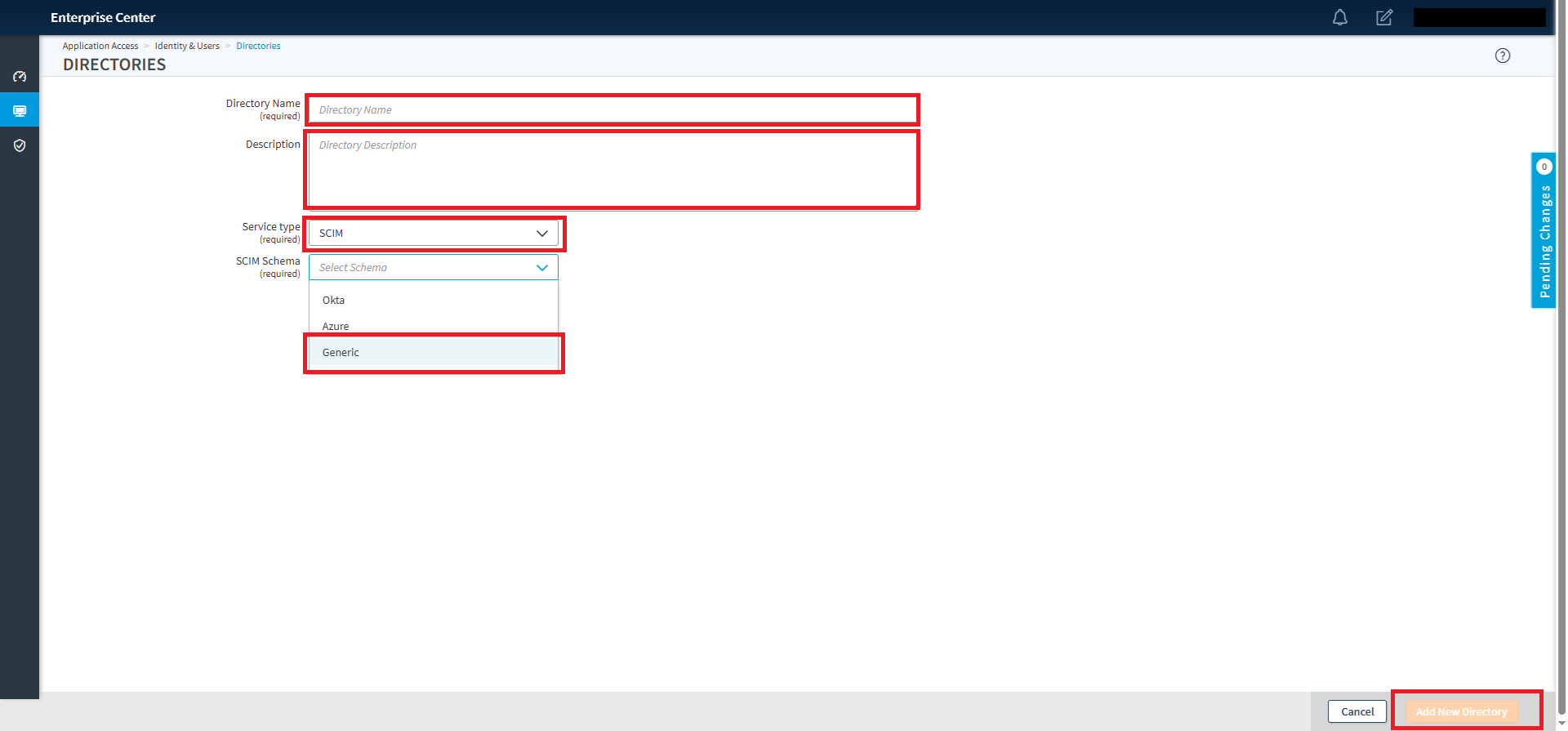

  4. On the "Directory" screen, configure the following settings, and click the "Add New Directory" button.

    Directory Name Enter any directory name
    Description Enter any description
    Service type Select "SCIM" from the dropdown
    SCIM Schema Select "Generic" from the dropdown

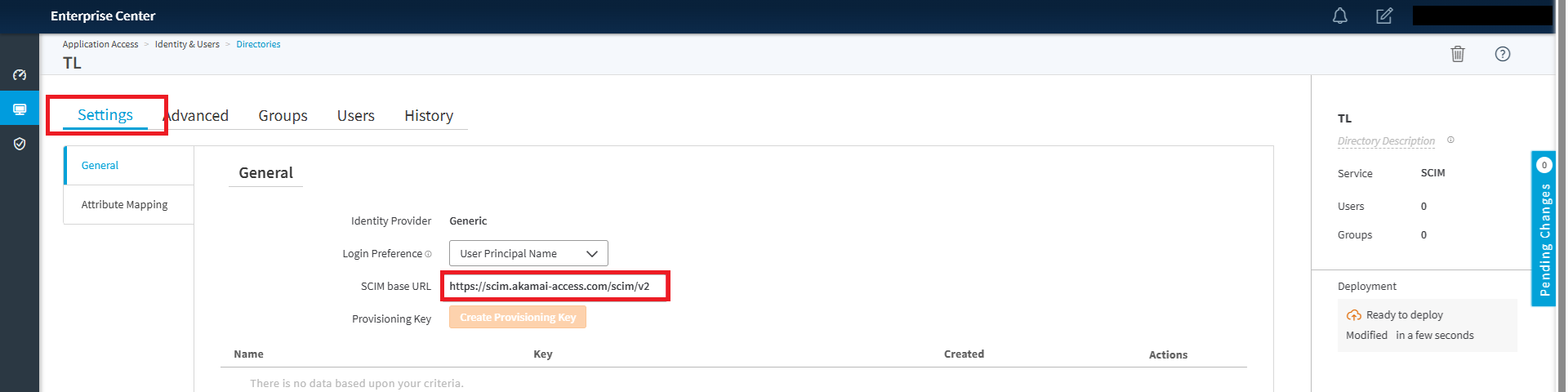

  5. Open the "Setting" tab of the directory you created, and make a note of the "SCIM base URL".

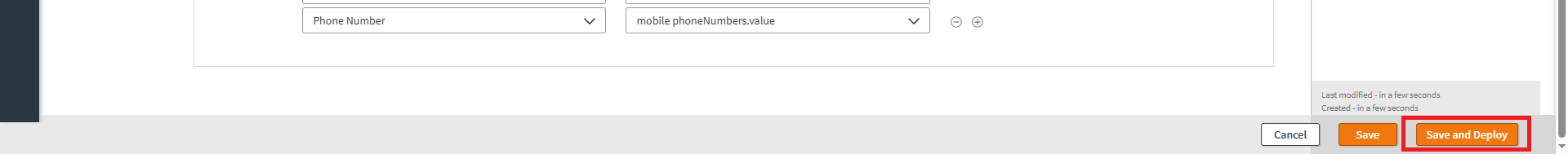

  6. Click the "Save and Deploy" button in the lower right of the screen.

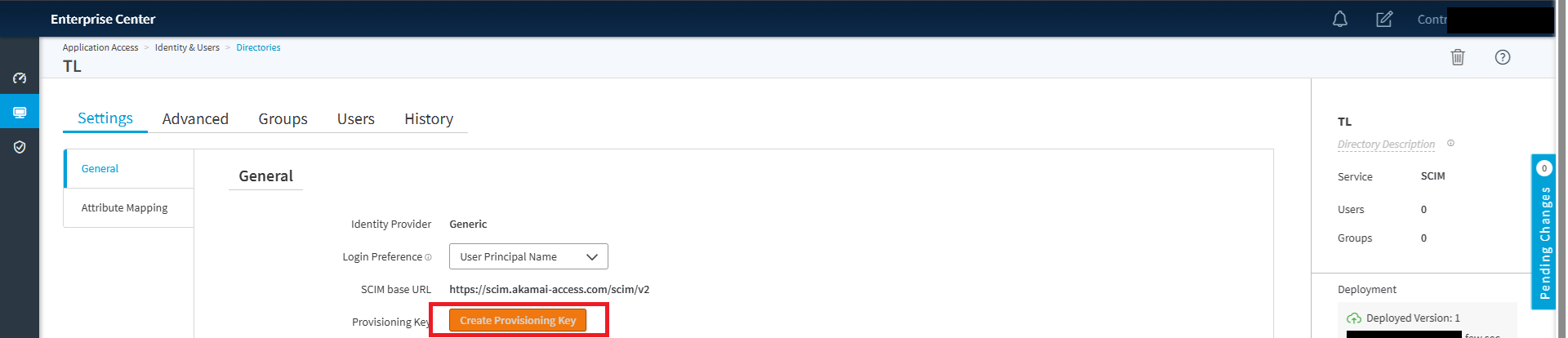

  7. Click the "Create Provisioning Key" button.

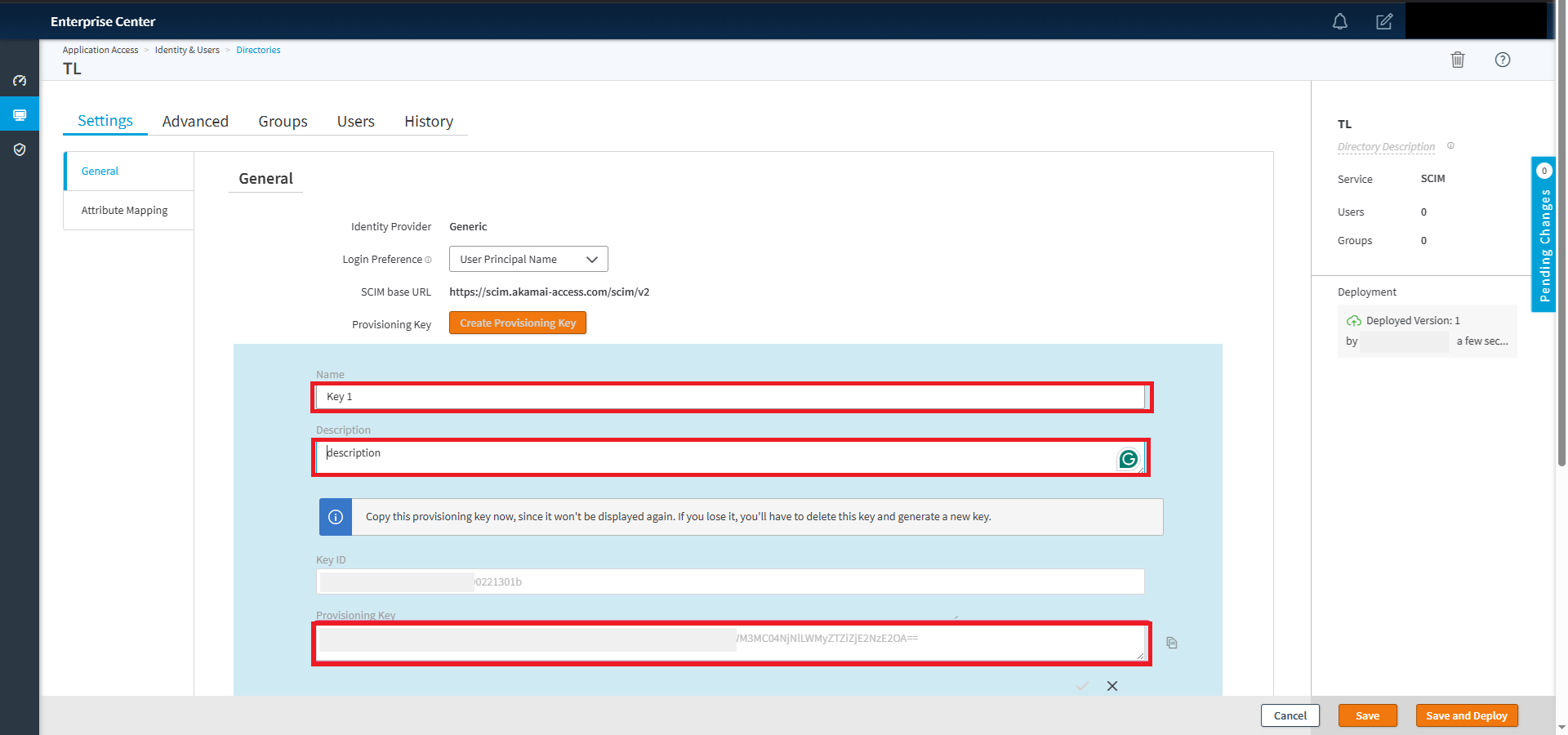

  8. Enter any values for "Name" and "Description", and click the checkmark icon.
    The "Provisioning Key" value will be displayed, so make a note of it.
    Note: The provisioning key cannot be viewed again. Please make sure you have copied it completely.
  9. Click "Save" in the lower right of the screen.

    This completes the preparation on the Akamai side. Next, configure the settings on the TrustLogin side.

TrustLogin Settings

  1. Log in to the TrustLogin Admin Page, and from the "Admin Page > Settings > Optional Features" menu,
    open "Settings" next to "Identity Provisioning".

  2. Click "Add Service".

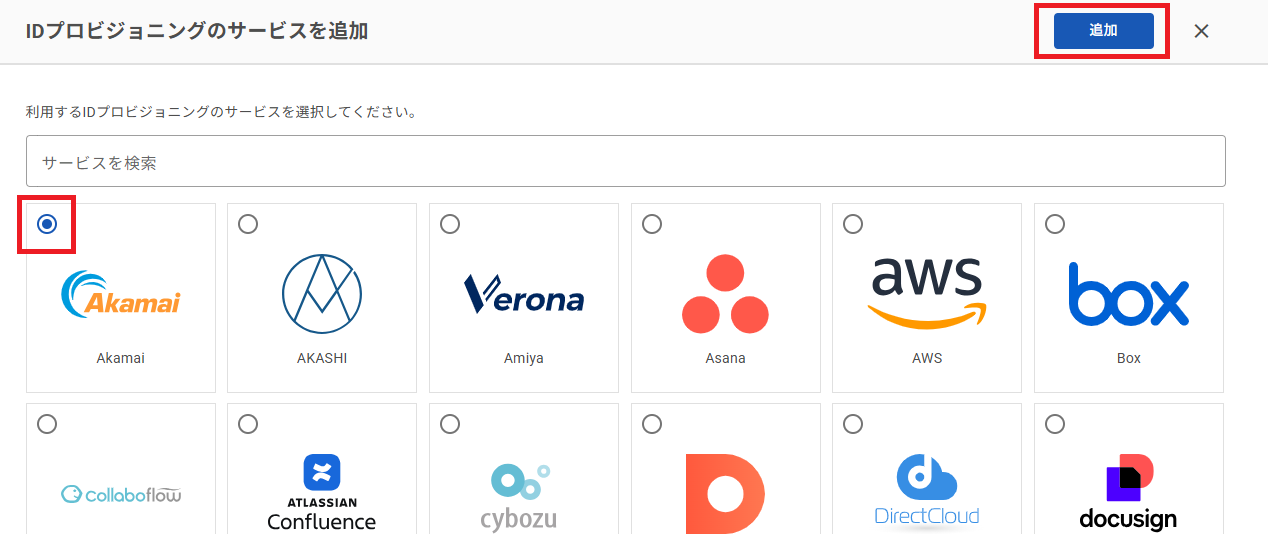

  3. Search for "Akamai", select it, and click the "Add" button.

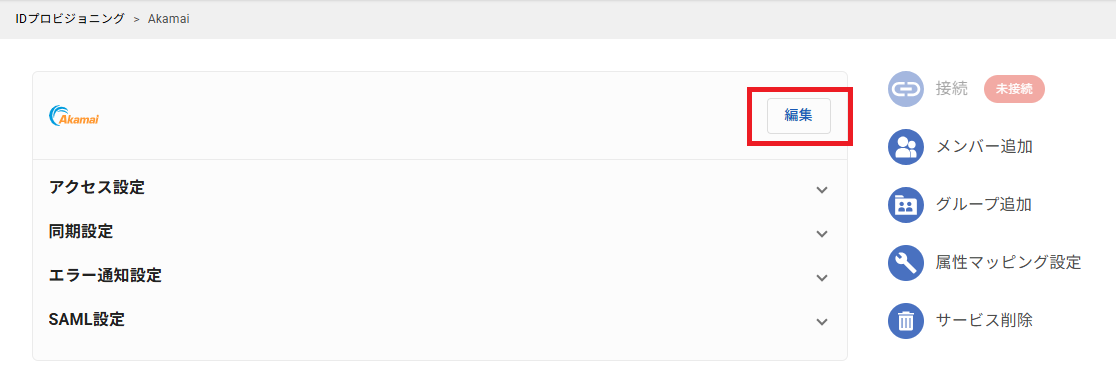

  4. You will be redirected to the "Identity Provisioning > Akamai" page.
    Click the "Edit" button.

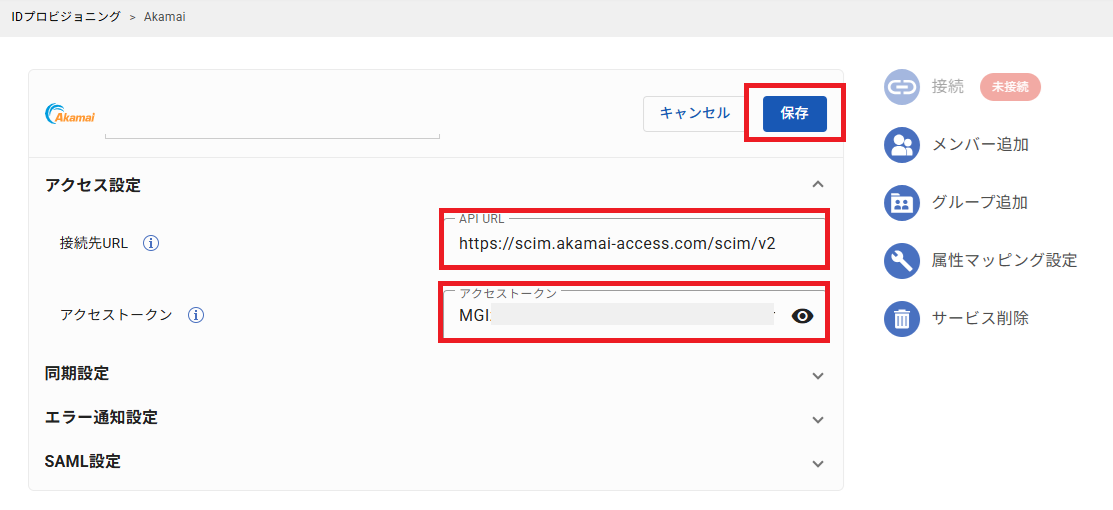

  5. Open "Access Settings", enter the following values for each setting item, and click "Save".

    Connection URL The value of "SCIM base URL" copied in step 5 of Akamai Settings
    Access Token The value of "Provisioning Key" copied in step 8 of Akamai Settings

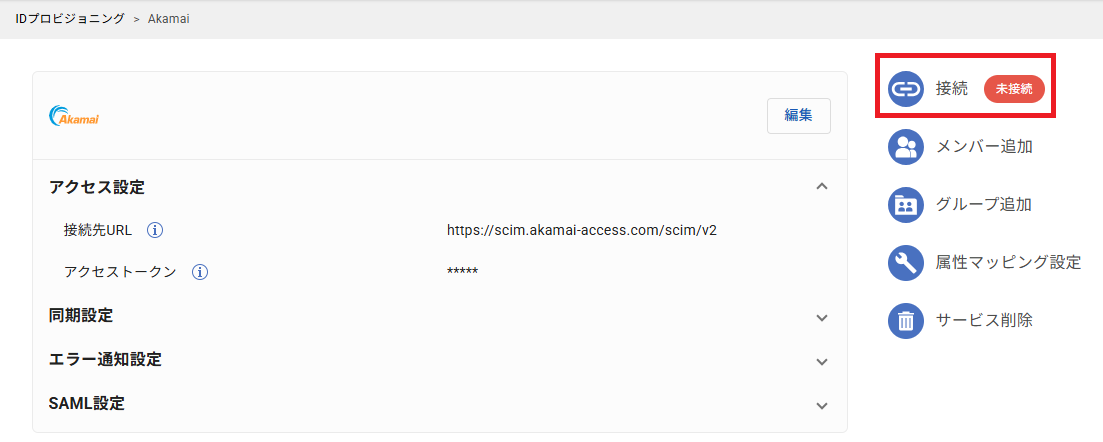

  6. Click the "Connect" button.

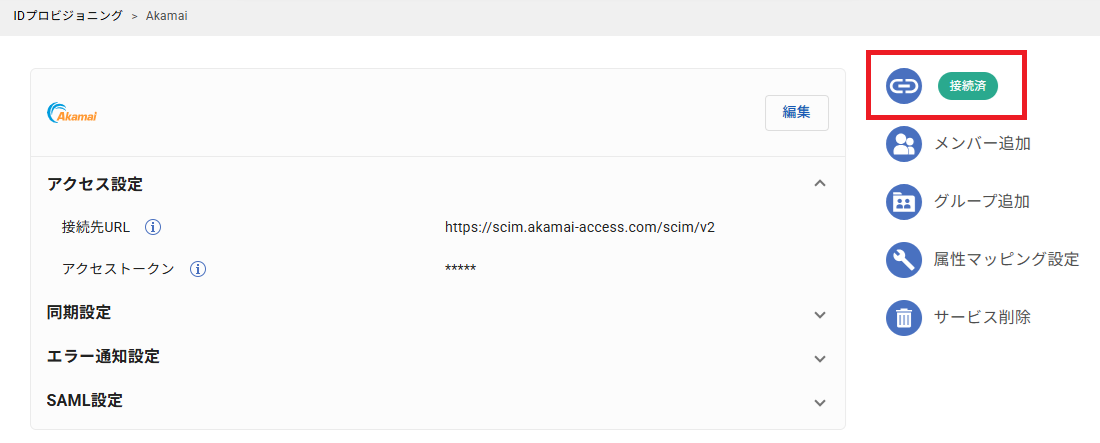

  7. Once the button status updates to "Connected", the initial setup is complete.

Next step: The manual for configuring user synchronization is available here

Values You Can Configure in Attribute Mapping

The values that can be specified as default functions for Akamai are as follows.

Value Description
Full Name The full name with the last name first.
Full Name with First Name First The full name with the first name first.
Username from Email Address Takes the part of the email address before the @ and limits it to a maximum of 21 characters.

Note: For an overview and configuration instructions for the attribute mapping feature, please see here.
