This page describes the initial setup steps for using TrustLogin as the source of identity
to perform Identity Provisioning to Google Workspace.

Note: For detailed instructions on operating Google Workspace , please refer to the manual provided by Google .

Setup Steps

Google Settings

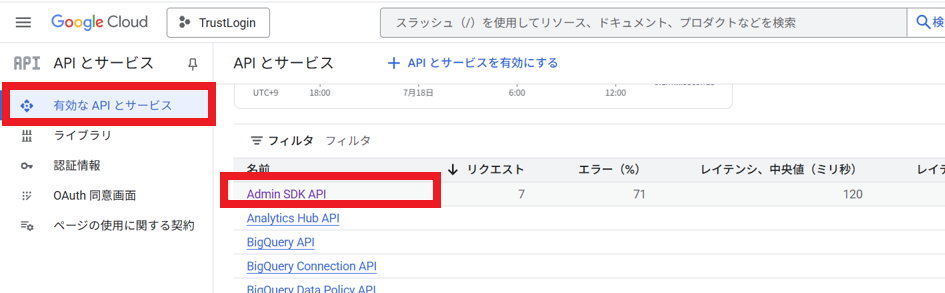

1. Log in to Google Cloud APIs (external site: https://console.cloud.google.com/apis) with administrator privileges,
   and click "Admin SDK API" from the "Enabled APIs & services" tab.

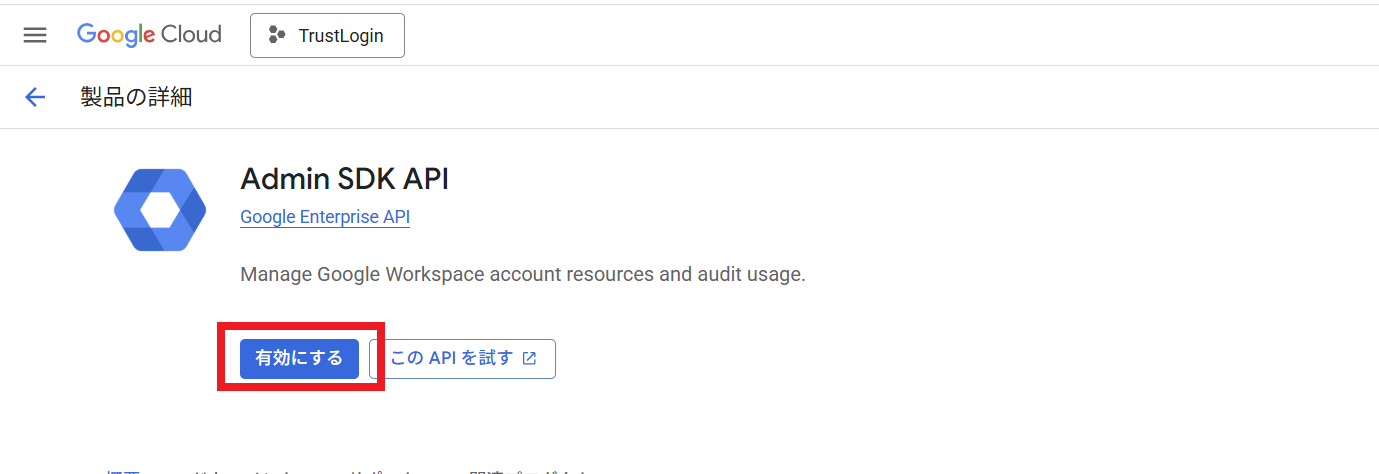

2. Click "Enable".　

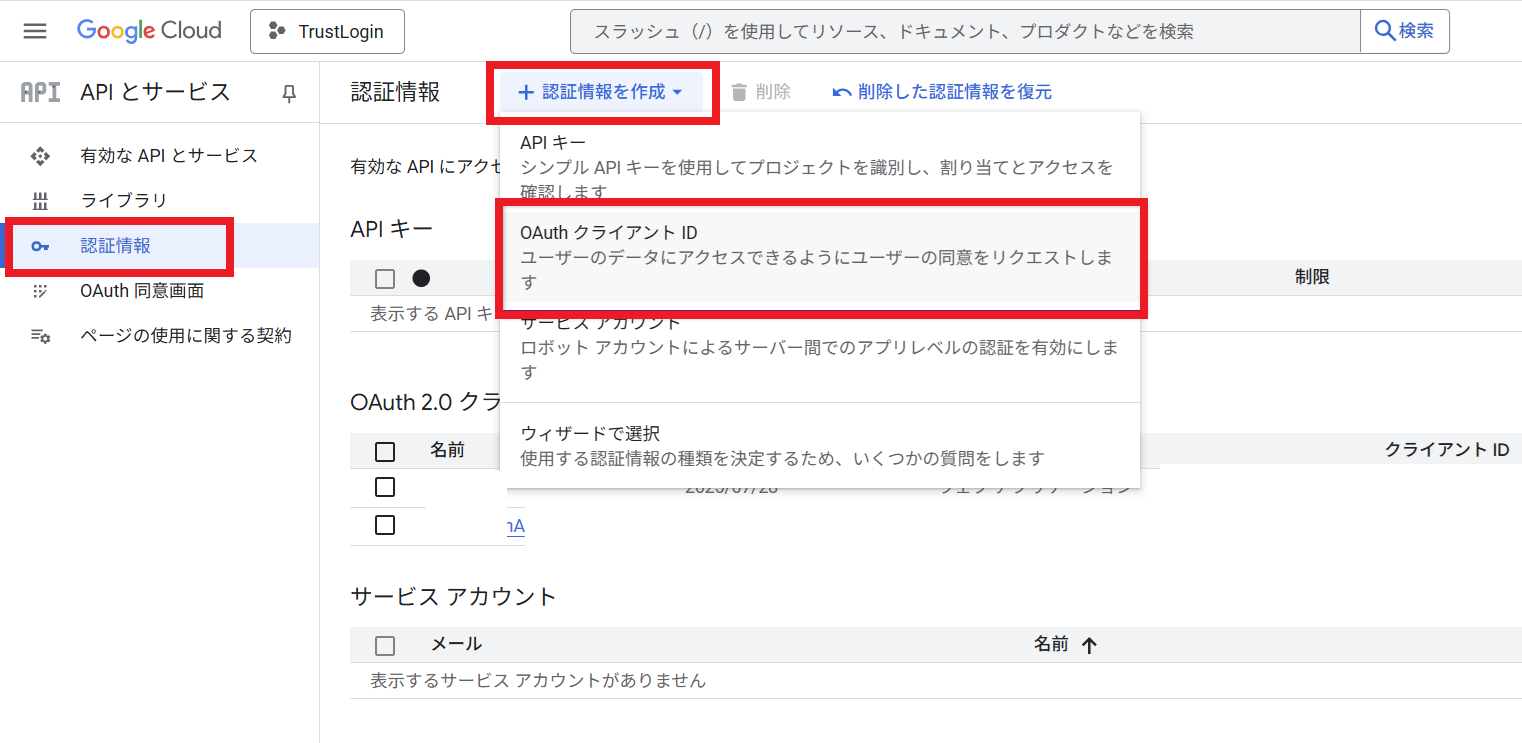

3. Open the "Credentials" tab, and select "OAuth client ID" from the "Create Credentials" button.

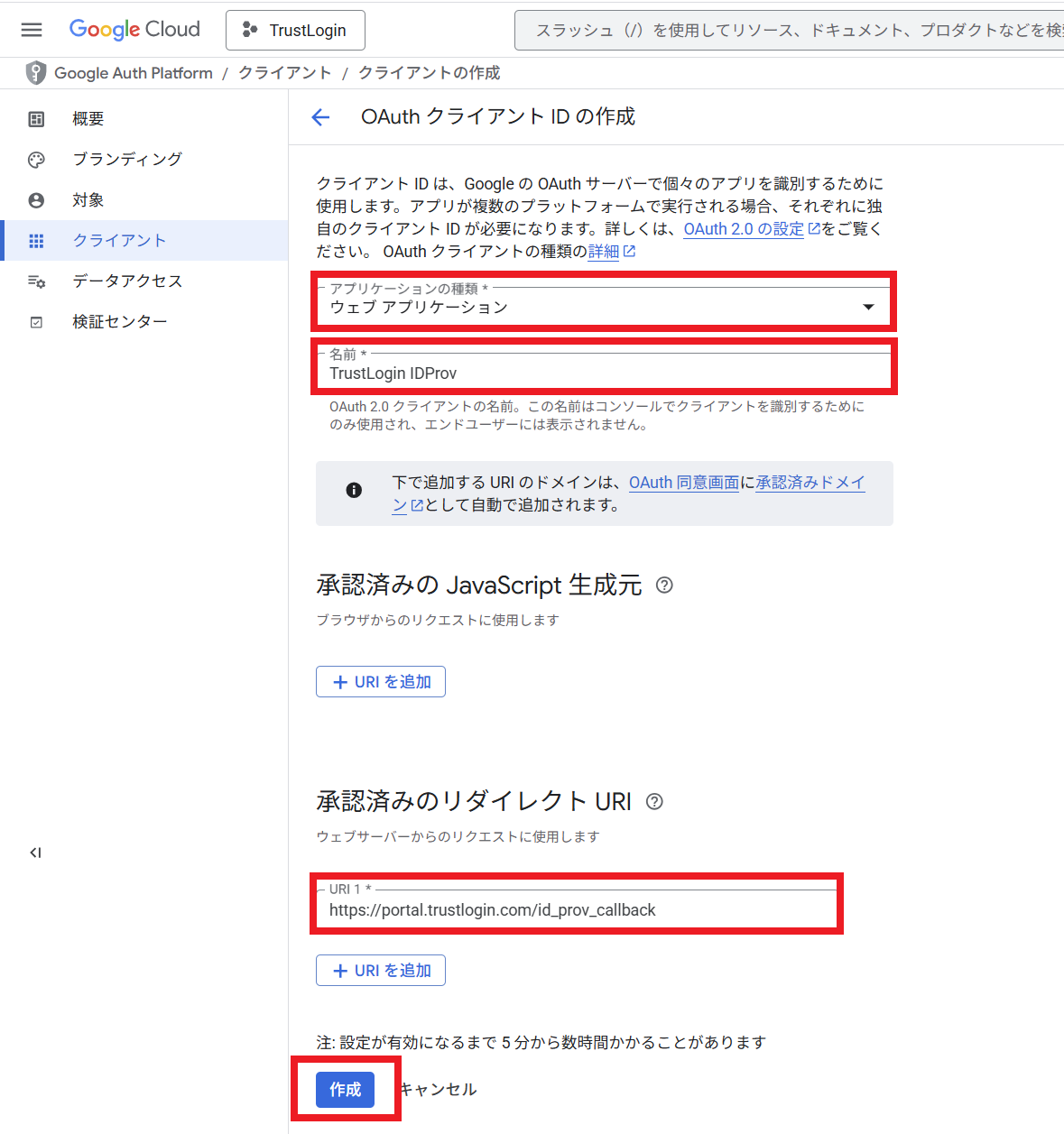

4. On the "Create OAuth client ID" screen, configure the following settings, and click the "Create" button.

   Application type	Select "Web application"
   Name	Set any name of your choice
   Authorized redirect URIs	Enter the following value: https://portal.trustlogin.com/id_prov_callback

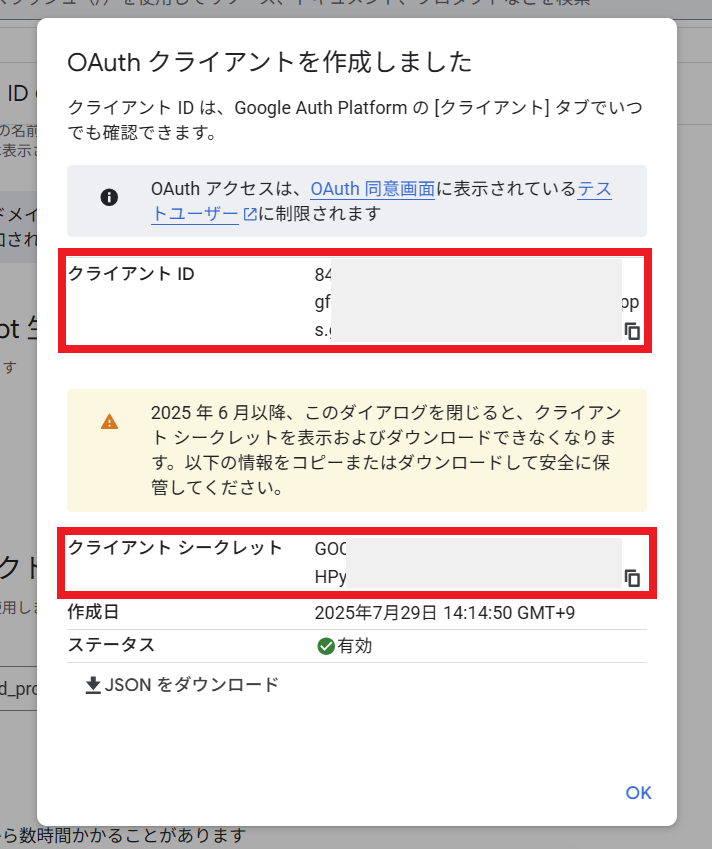

5. From the window that is displayed, copy the following values.

   • Client ID
   • Client secret





This completes the preliminary preparation on the Google side. Next, configure the settings on the TrustLogin side.

TrustLogin Settings

1. Log in to the TrustLogin Admin Page, and from the "Admin Page > Settings > Optional Features" menu,
   open "Settings" next to "Identity Provisioning".



2. Click "Add Service".

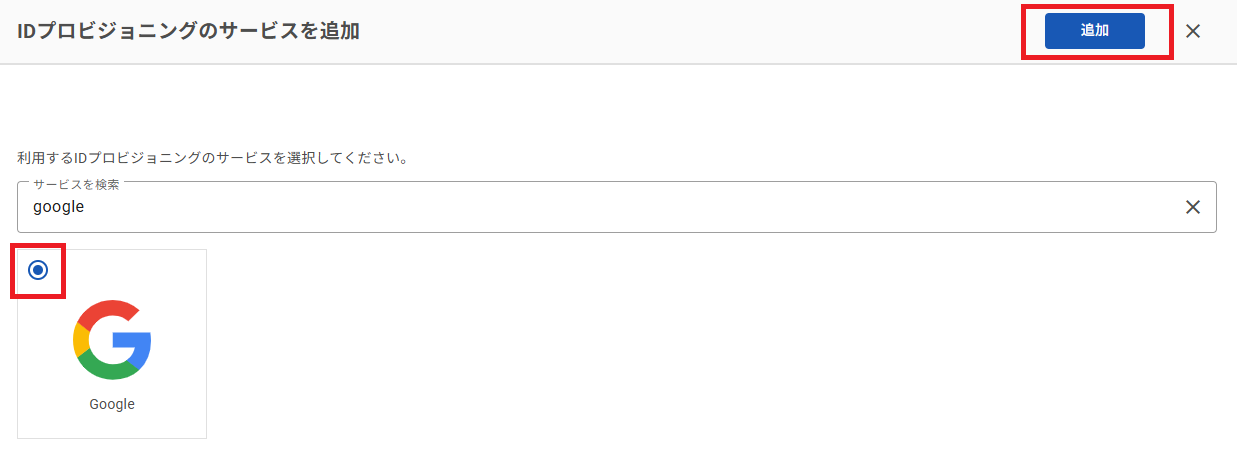

3. Search for "Google", select it, and click the "Add" button.

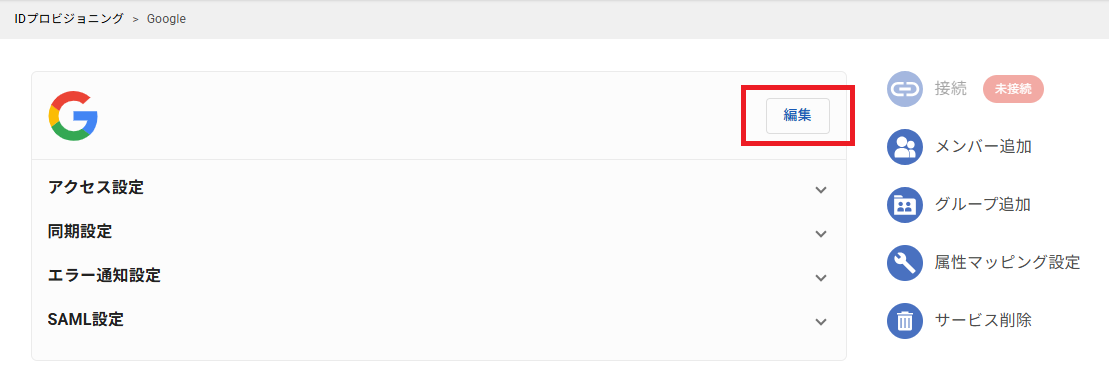

4. You will be redirected to the "Identity Provisioning > Google" page.
   Click the "Edit" button.

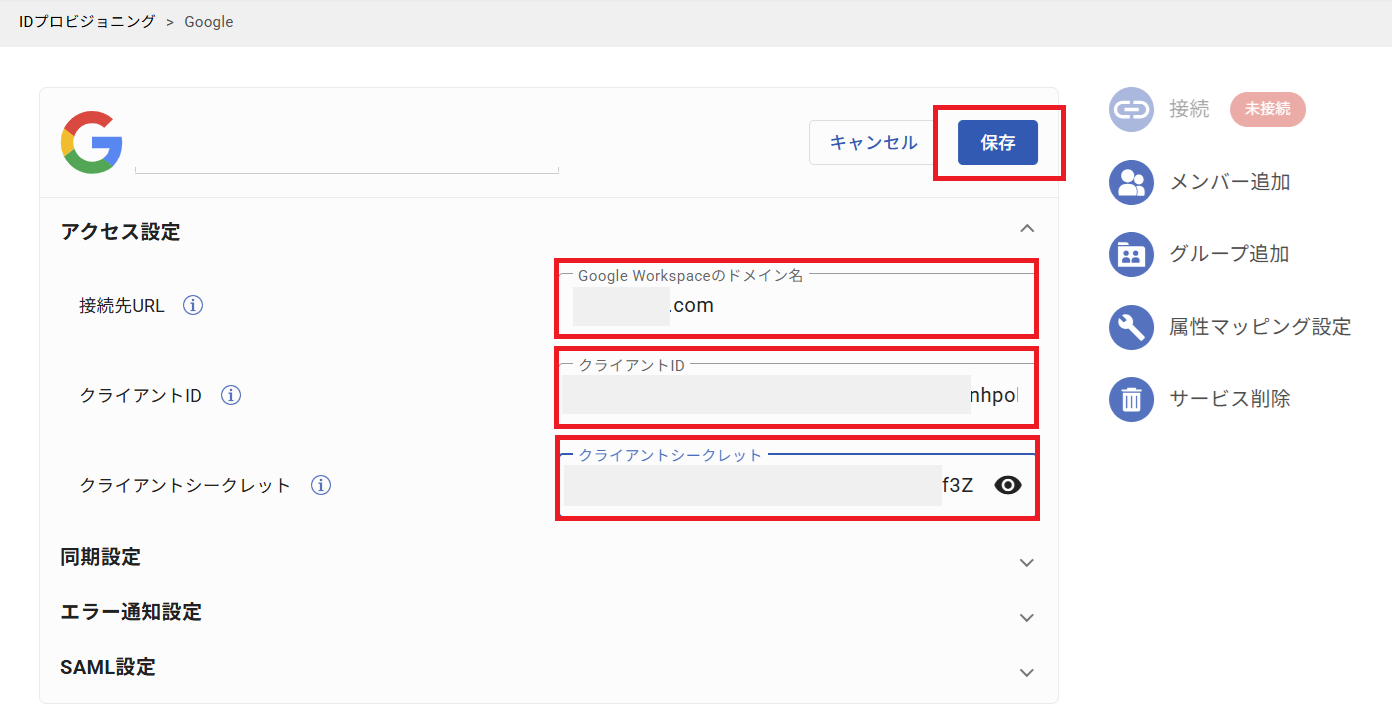

5. Open "Access Settings", enter the following values for each setting item, and click "Save".

   Connection URL	The verified Google Workspace domain name
   Client ID	Issued and copied in Google Settings > Step 5
   Client secret	Issued and copied in Google Settings > Step 5

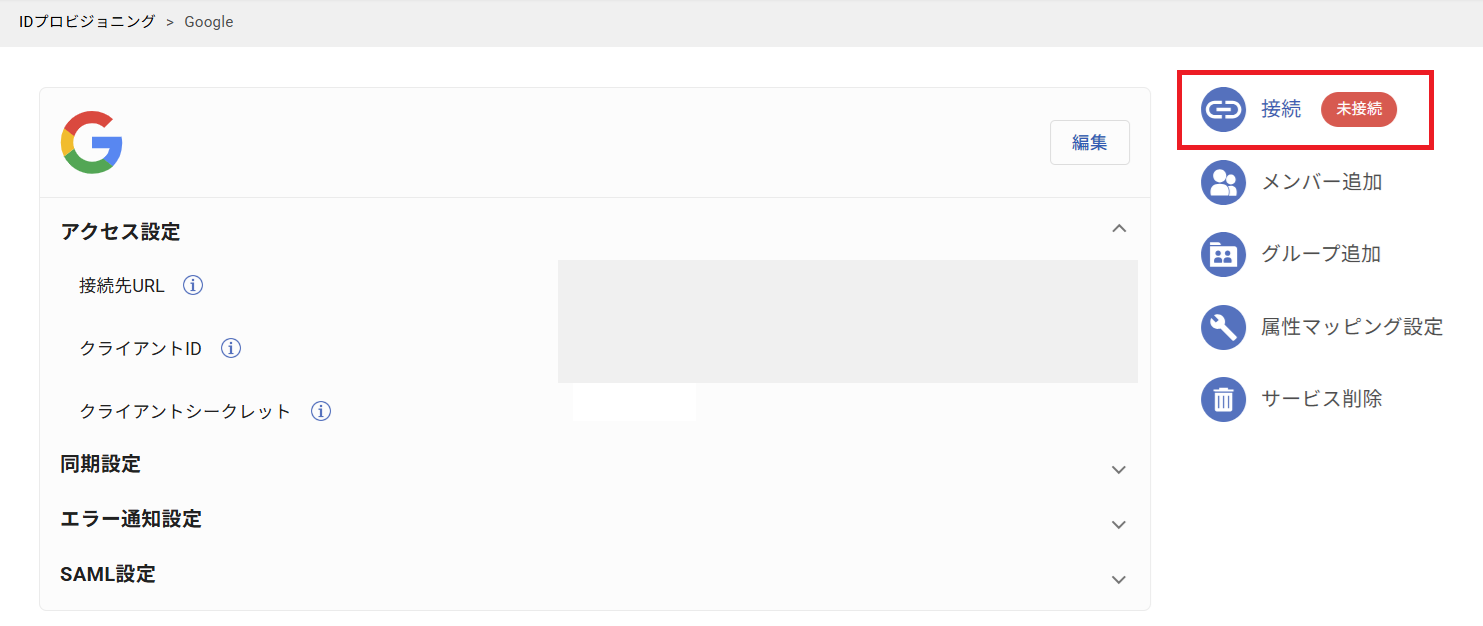

6. Click the "Connect" button.

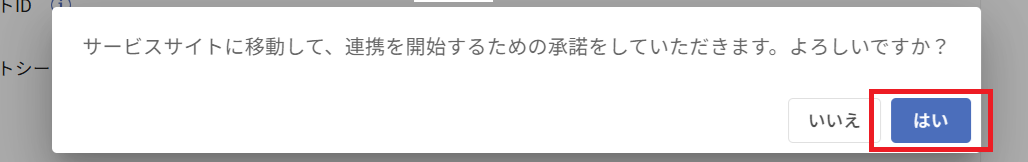

7. Click "Yes".

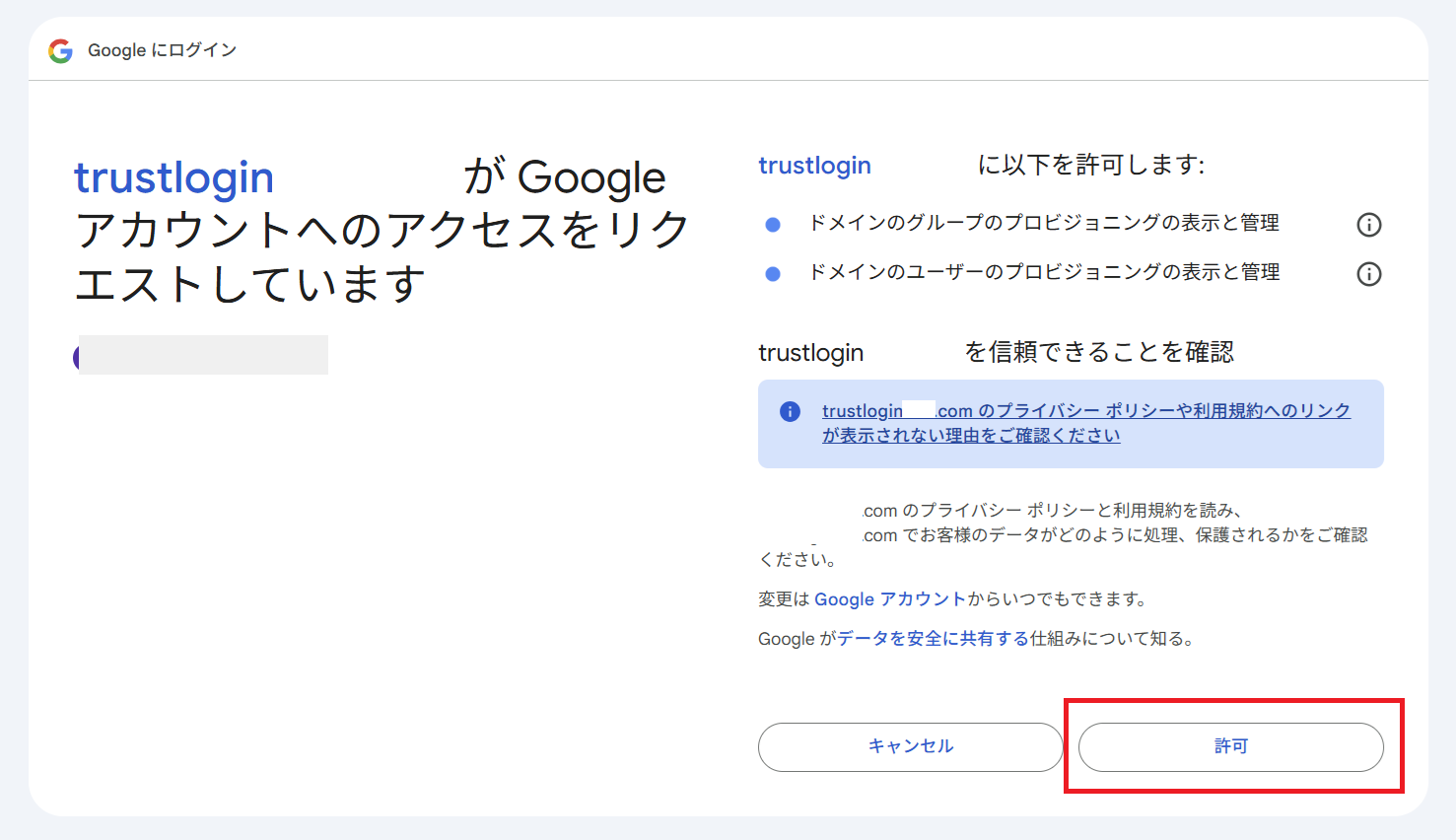

8. You will be redirected to the Google page.
   Click "Allow". (Super administrator privileges are required.)

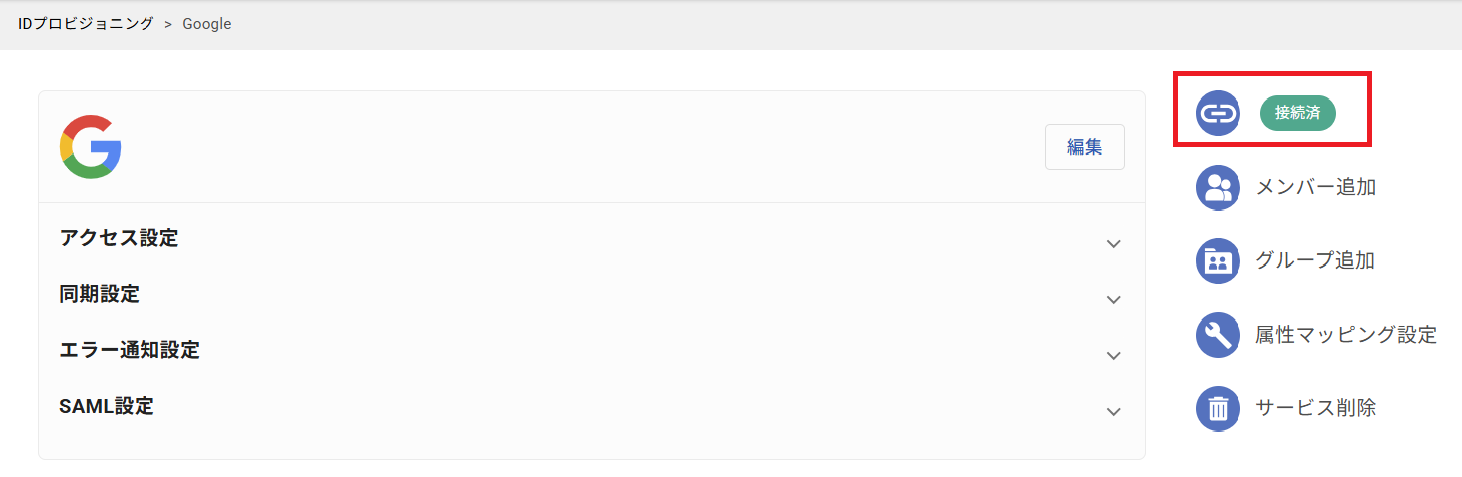

9. Once the button status updates to "Connected", the initial setup is complete.



Next step: The manual for configuring user synchronization is available here

Values You Can Configure in Attribute Mapping

The values that can be specified as Google's default functions are as follows.

Note: For an overview of the attribute mapping feature and how to configure it, please see here.
