TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button at the top right of the screen.

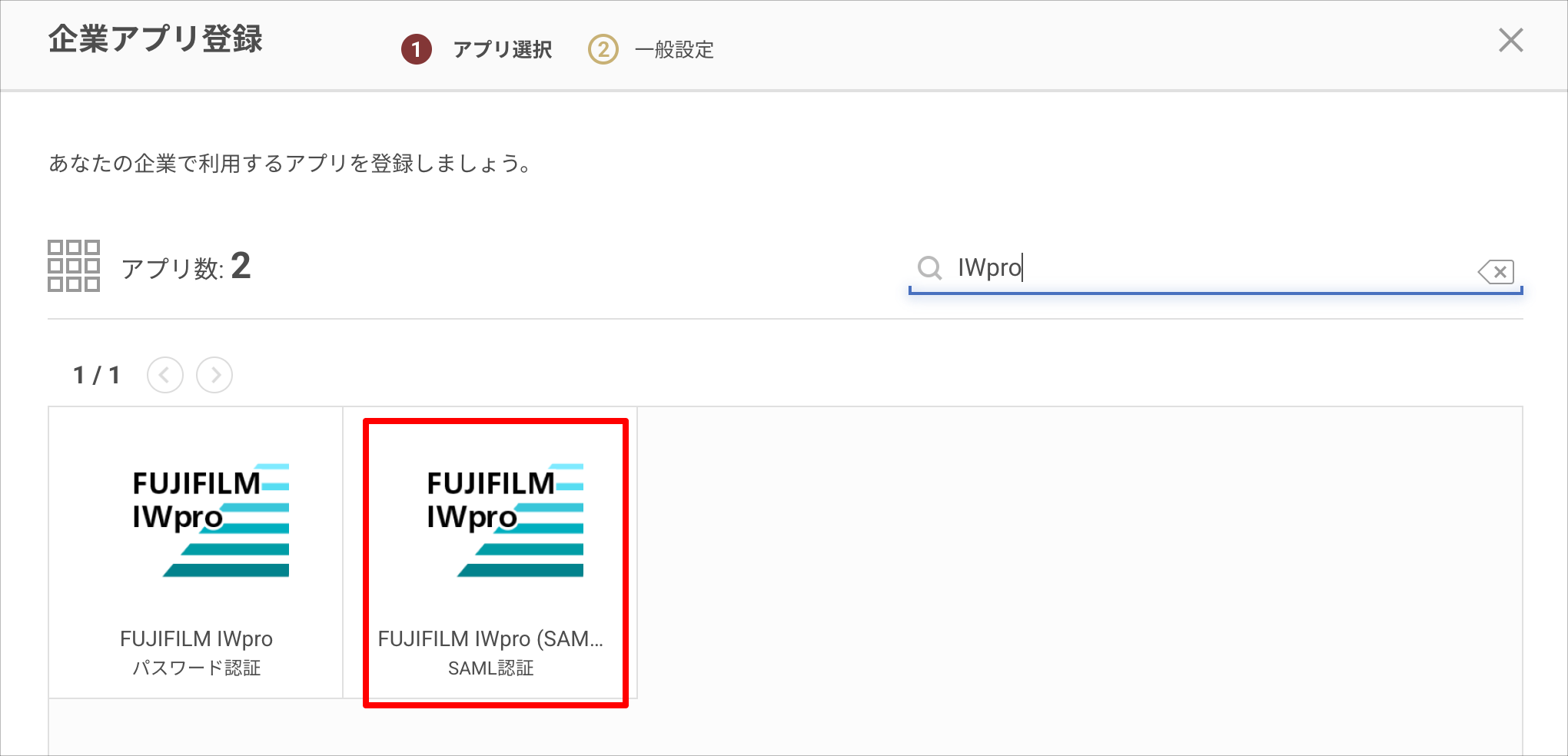

2. On the "Register Company App" screen, search and select "FUJIFILM IWpro (SAML)".


3. Under "Identity Provider Information", note down the value of "Identity Provider URL", and download the certificate using the "Get Certificate" button.



Now, switch to configuring the FUJIFILM IWpro side.
Without clicking the "Save" button, open FUJIFILM BI Direct in a separate window.



FUJIFILM IWpro Settings

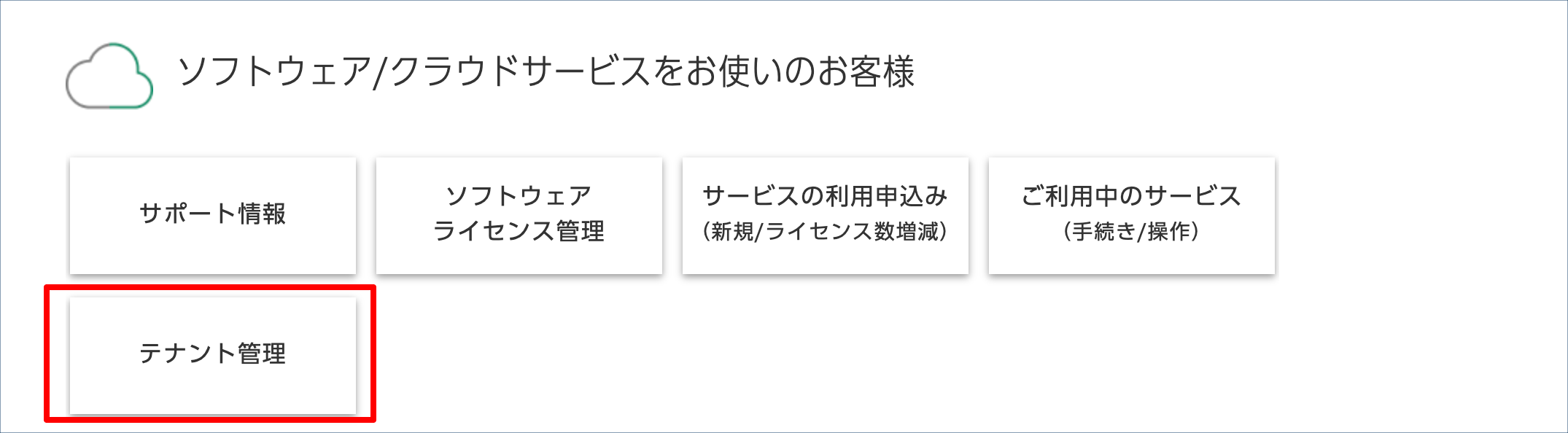

1. Log in to FUJIFILM BI Direct with an account that has system administrator privileges, and open "Tenant Management".

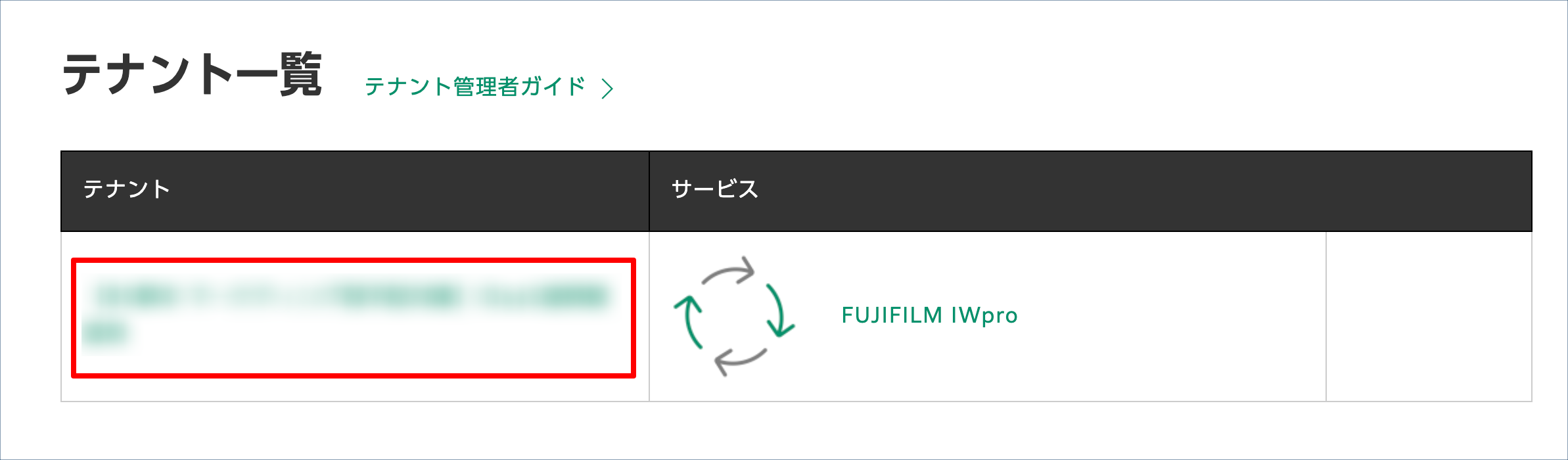

2. Click the tenant name of the target tenant.

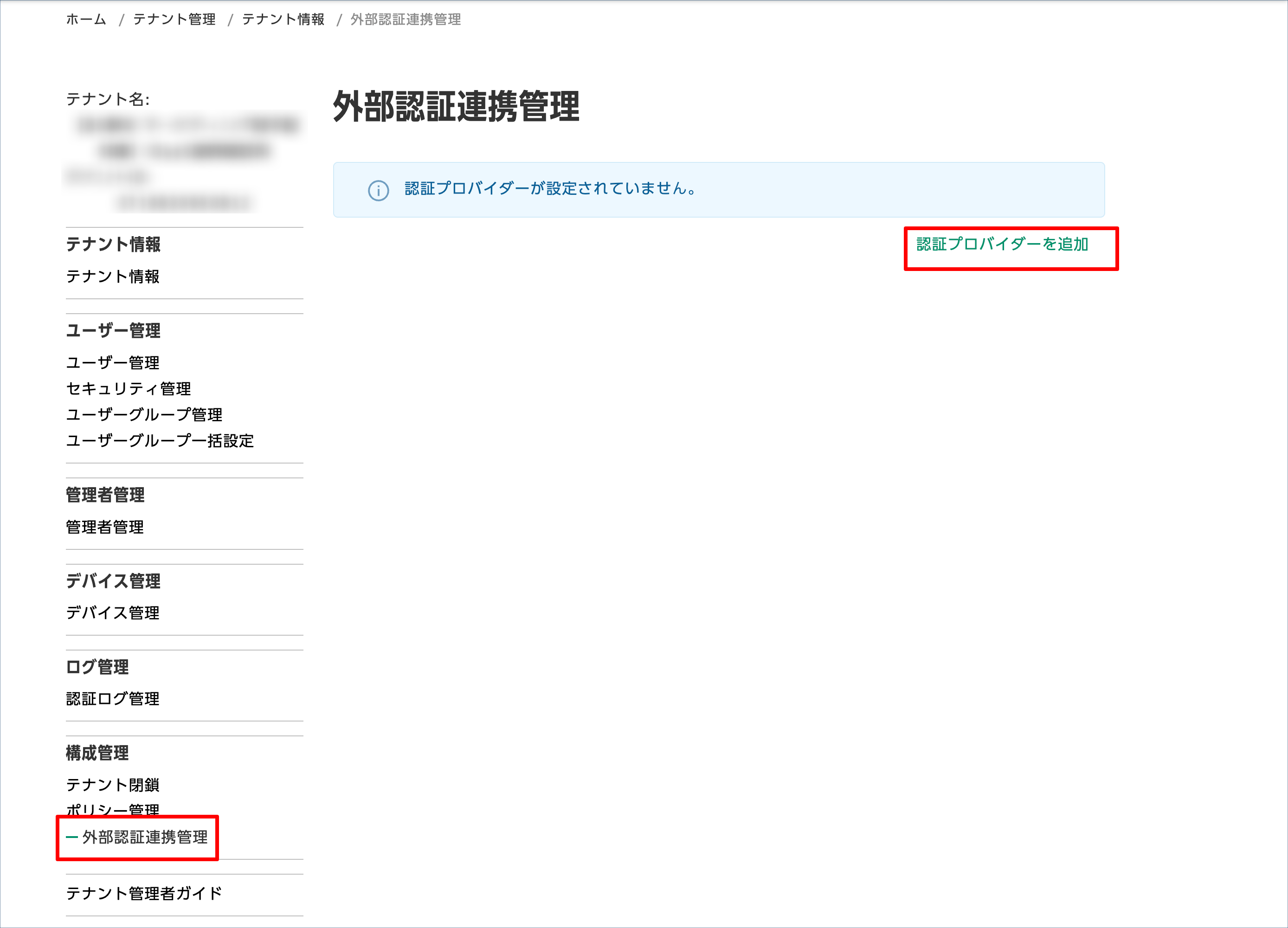

3. Open "External Authentication Integration Management" and click "Add Authentication Provider".

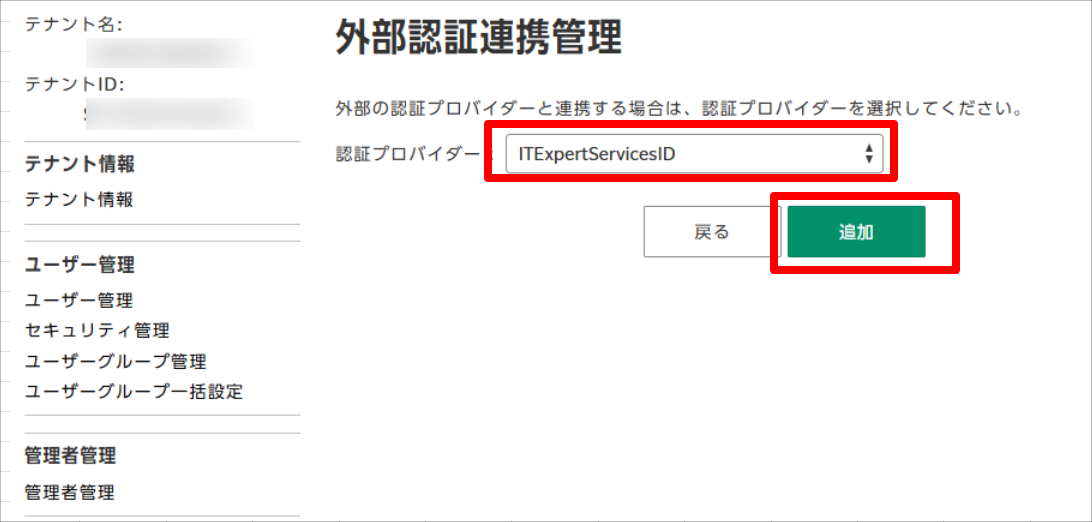

4. For the authentication provider, select "ITExpertServicesID" and click "Add".

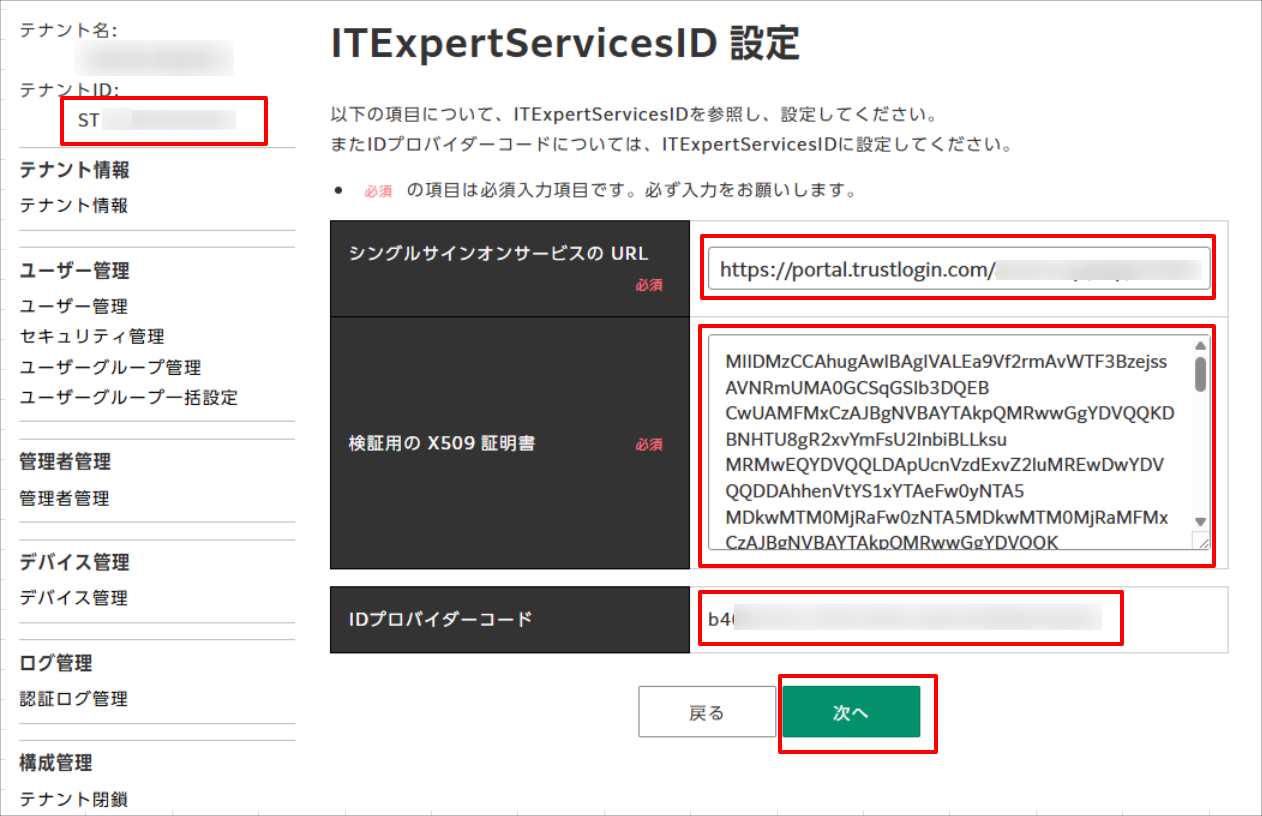

5. Configure "ITExpertServicesID Settings" as follows, and click "Next".

   Tenant ID	Copy the value and note it down
   Single Sign-On Service URL	The "Identity Provider URL" obtained from TrustLogin
   X.509 Certificate for Verification	The contents of the "Certificate" obtained from TrustLogin Note: Remove the first line "-----BEGIN CERTIFICATE-----" and the last line "-----END CERTIFICATE-----"
   Identity Provider Code	Copy the value and note it down

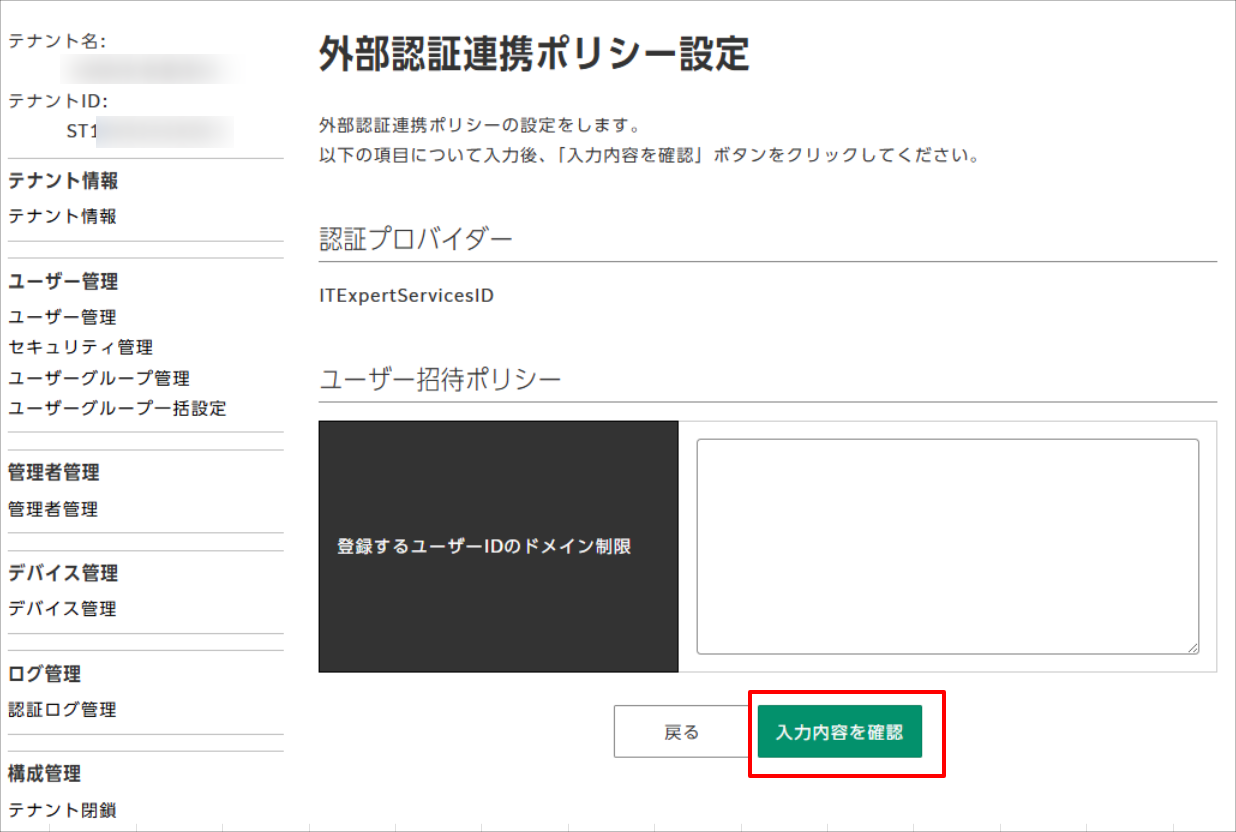

6. If you want to set a "Domain Restriction for Registered User IDs", configure it (optional), and click "Confirm Entries".

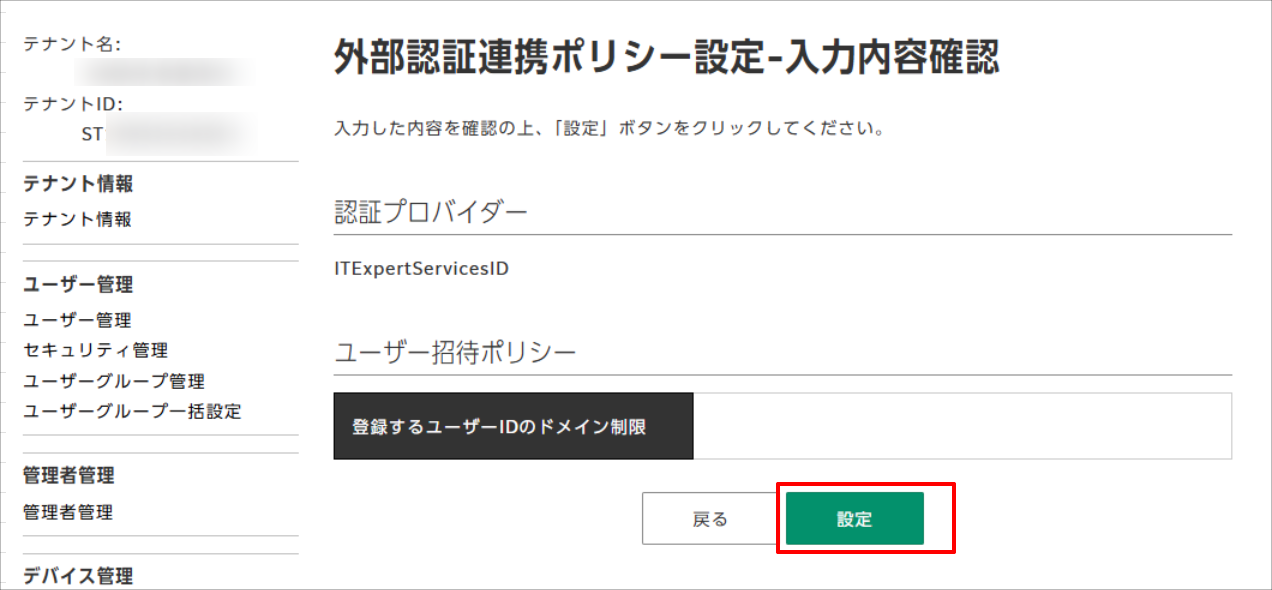

7. Click "Configure" to save.


Return to the TrustLogin Admin Page again.

TrustLogin Admin Page Settings (Continued)

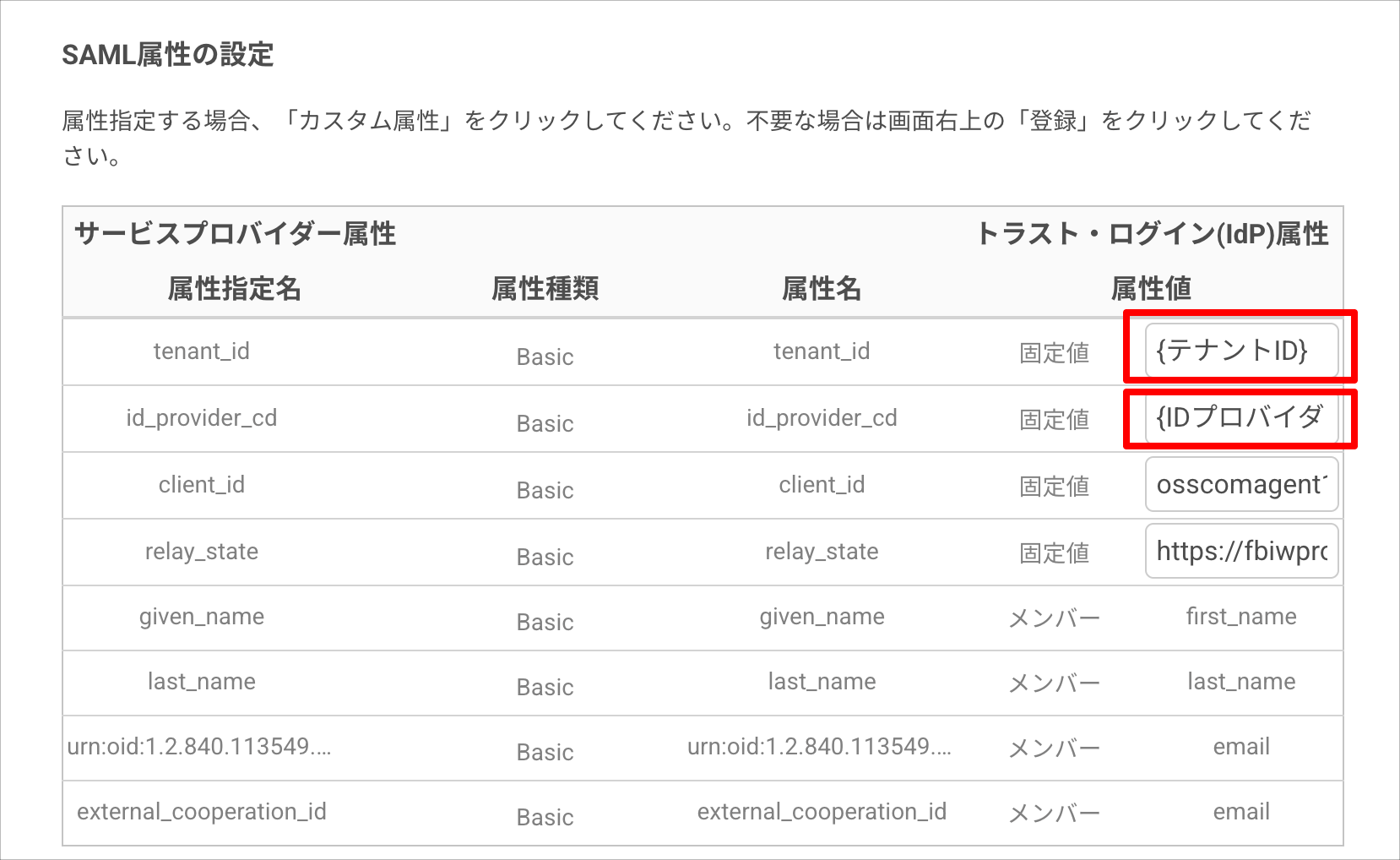

1. Configure the fields under "SAML Attribute Settings" as follows.

   Attribute Name	Attribute Value
   tenant_id	Delete {Tenant ID} and overwrite it with the "Tenant ID" obtained from FUJIFILM BI Direct
   id_provider_cd	Delete {Identity Provider Code} and overwrite it with the "Identity Provider Code" obtained from FUJIFILM BI Direct
   client_id	osscomagent1 Note: No change needed; leave as the default value
   relay_state	https://fbiwpro.fujifilm.com/ Note: No change needed; leave as the default value





2. Click the "Register" button to save.

TrustLogin User Settings

① When a User Adds the App from My Page

Note: The SAML app must be configured by the Administrator in advance.

1. On "My Page", click the "Add App" button.
2. On the "Register App" screen, select "", and click the "Next" button at the top right of the screen.
3. If you want to change the "Display Name", enter it and click the "Save" button.

② When an Administrator Adds Members

1. In the "Admin Page > App" menu, search for and click the "FUJIFILM IWpro (SAML)" app.
2. Click "Add Member", select the user to add from the member list, and click the "Save" button to add them.

How to Log In

① First Login via SAML Authentication

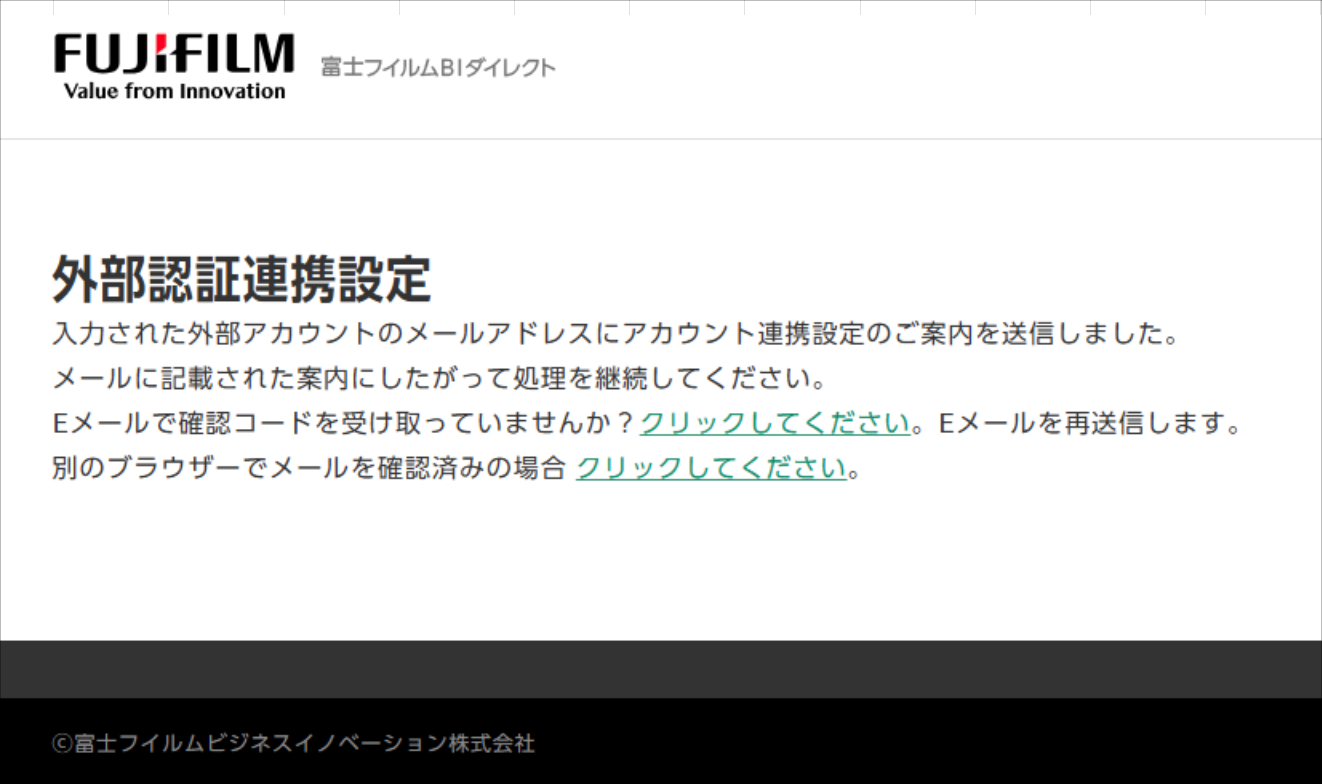

1. When you click the app from My Page, the following screen is displayed, and you will receive an email titled "Notice of FUJIFILM BI Direct External Authentication Integration Settings".



2. Open the link in the received email (【External Authentication Integration Setting Confirmation URL】).

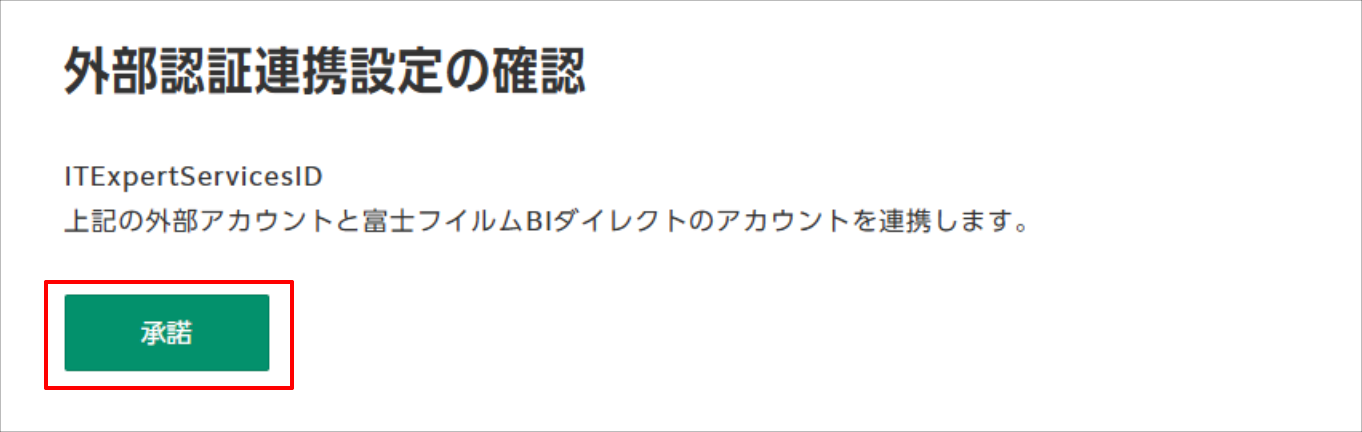

3. Click "Accept" to complete the login.



Note: The above steps are not required for subsequent logins.



② How to Log In via SP-Initiated SSO

You can also log in from the FUJIFILM IWpro login screen by following the steps below.

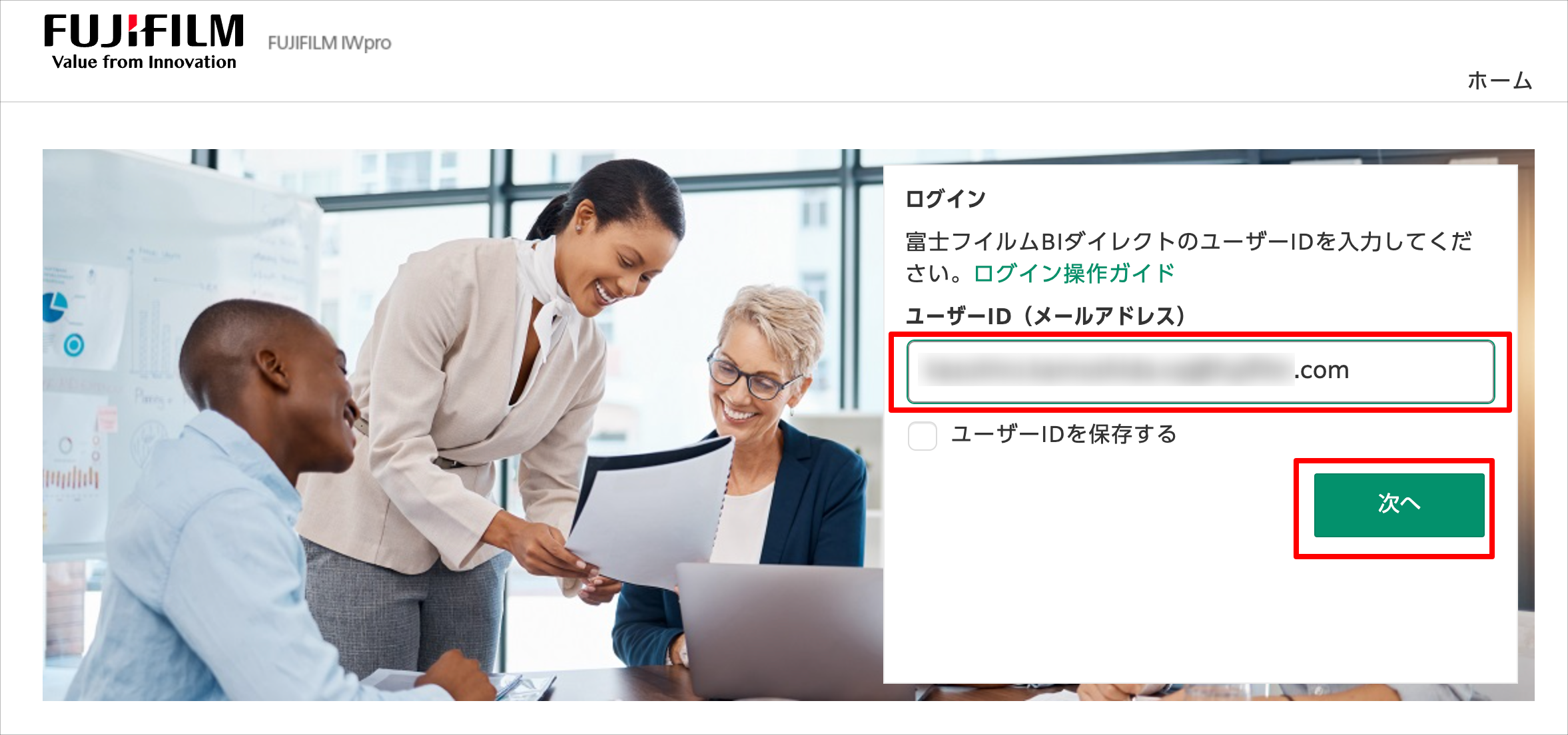

1. On the FUJIFILM IWpro login screen, enter your "User ID (email address)" and proceed by clicking the "Next" button.

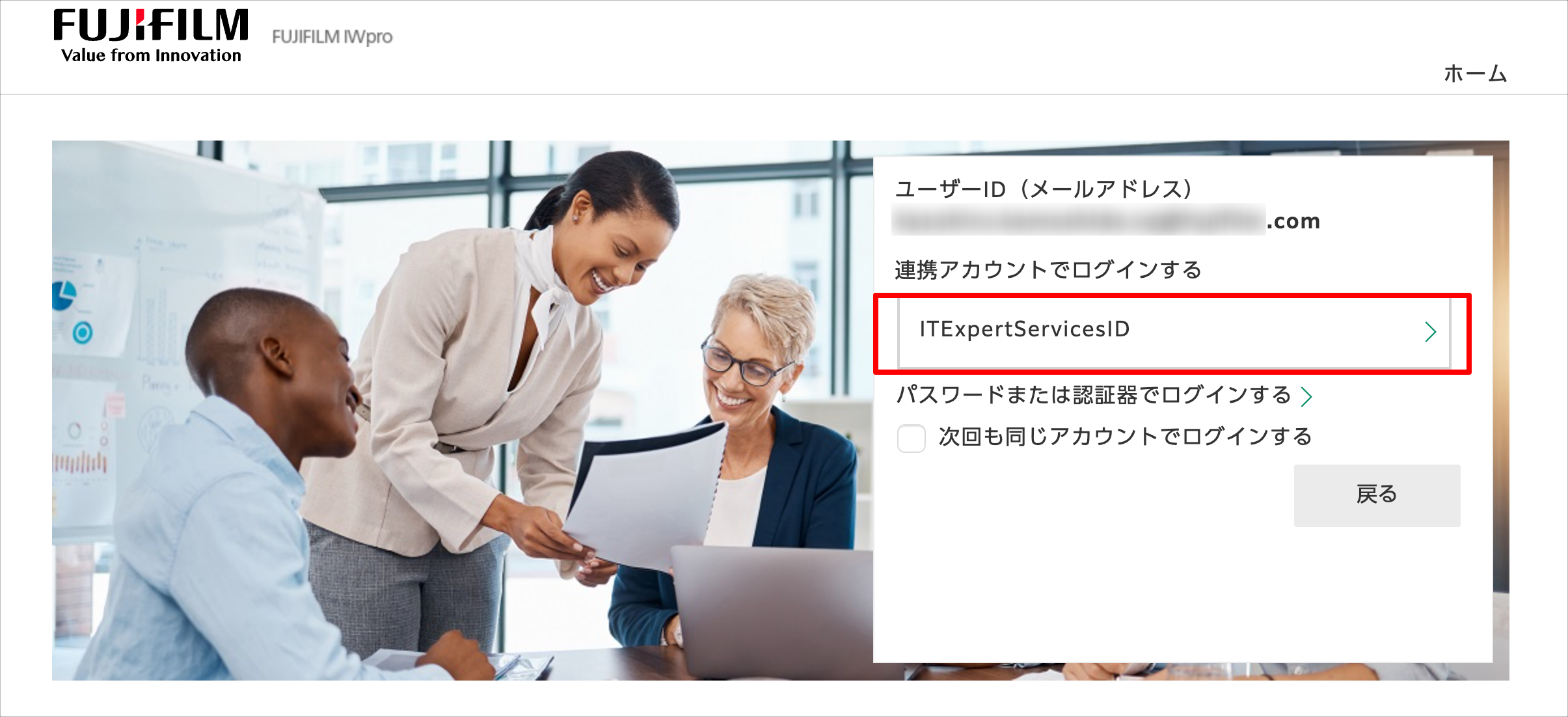

2. Under "Log in with a Linked Account", click "ITExpertServicesID".



3. If you are already logged in to TrustLogin, you will be logged in to FUJIFILM IWpro immediately.
   If you are not logged in to TrustLogin, the TrustLogin login screen will be displayed, and after authentication, you will be logged in to FUJIFILM IWpro.



③ How to Log In via the Native App

1. Open the native app and go to the login screen.
   Tap "Log in with a Linked Account > ITExpertServicesID".

2. Enter your "User ID (email address)" and tap "Next".

3. The TrustLogin login screen will be displayed, and after authentication, you will be logged in to FUJIFILM IWpro.
