This page describes the initial setup steps for using TrustLogin as the source of identity
to perform Identity Provisioning to Kaonavi.

Note: For detailed instructions on operating Kaonavi, please refer to the documentation provided by Kaonavi.

Setup Steps

Kaonavi Settings

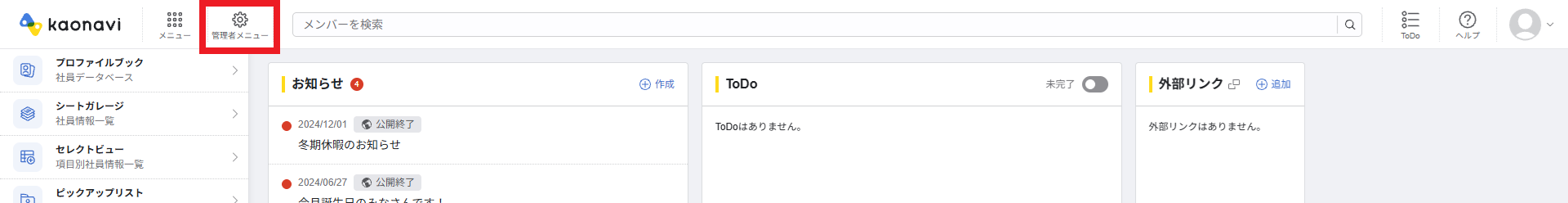

1. Log in to Kaonavi with administrator privileges and click "Admin Menu".

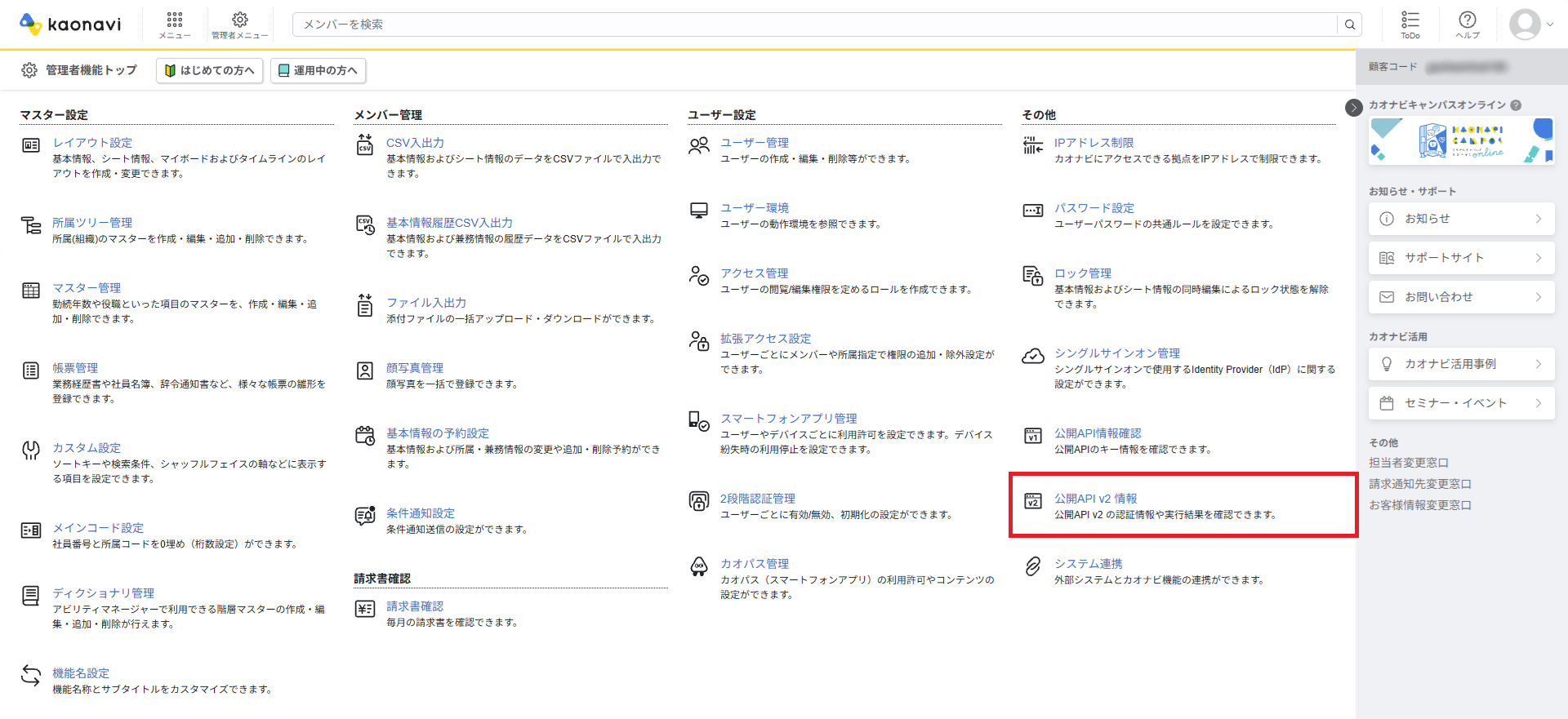

2. Click "Public API v2 Information" in the bottom right.

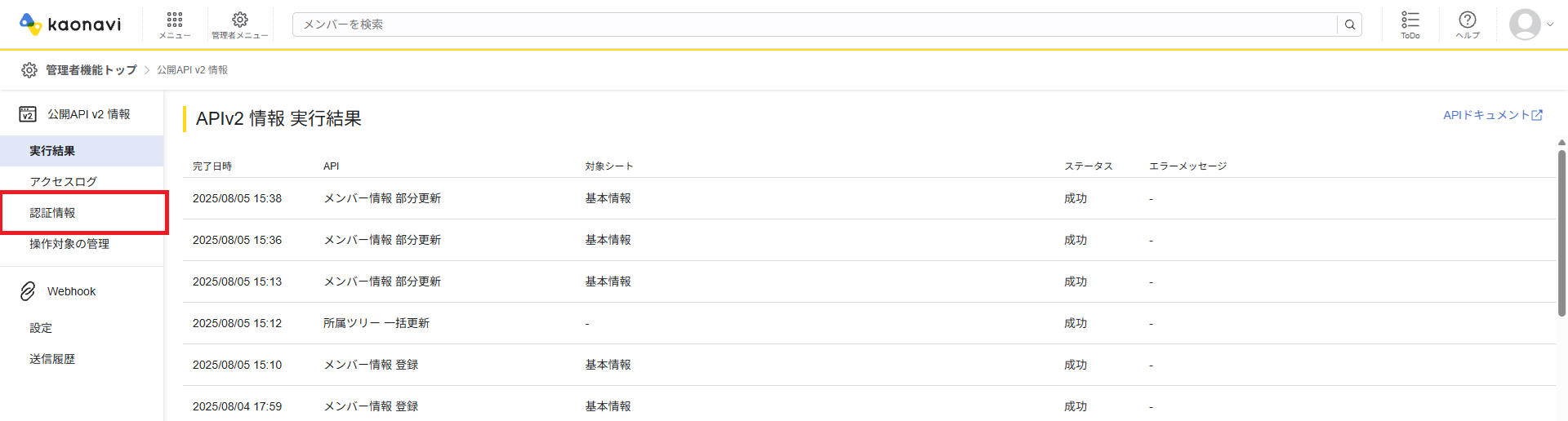

3. From the left-side menu, click "Authentication Information".

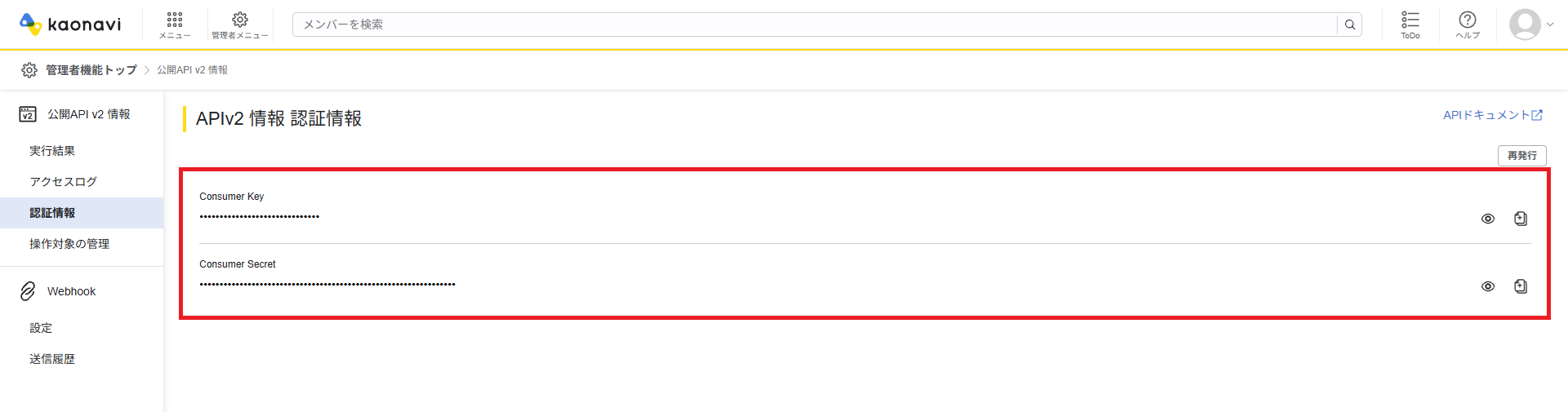

4. Copy the following authentication information that is displayed. (You will use this in the TrustLogin settings.)

   • Consumer Key
   • Consumer Secret



This completes the preparation on the Kaonavi side. Next, configure the settings on the TrustLogin side.

TrustLogin Settings

1. Log in to the TrustLogin Admin Page here, and from the "Admin Page > Settings > Optional Features" menu,
   open "Settings" next to "Identity Provisioning".




2. Click "Add Service".

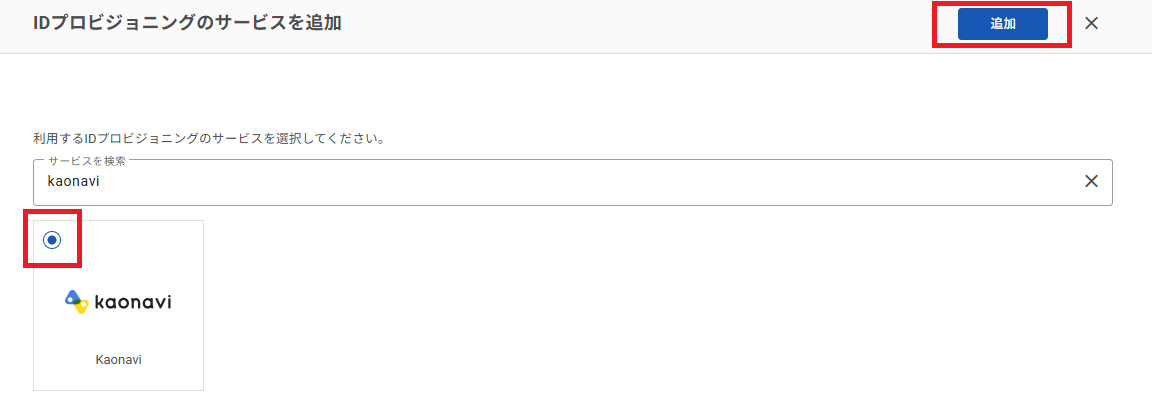

3. Search for "kaonavi", select it, and click the "Add" button.

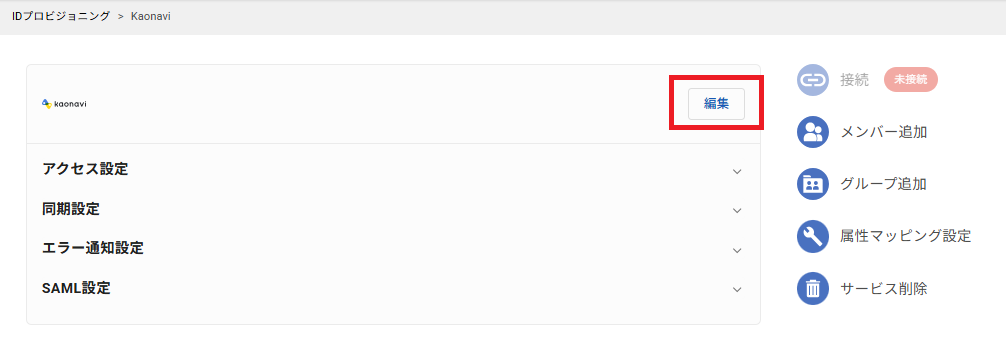

4. You will be redirected to the "Identity Provisioning > kaonavi" page.
   Click the "Edit" button.

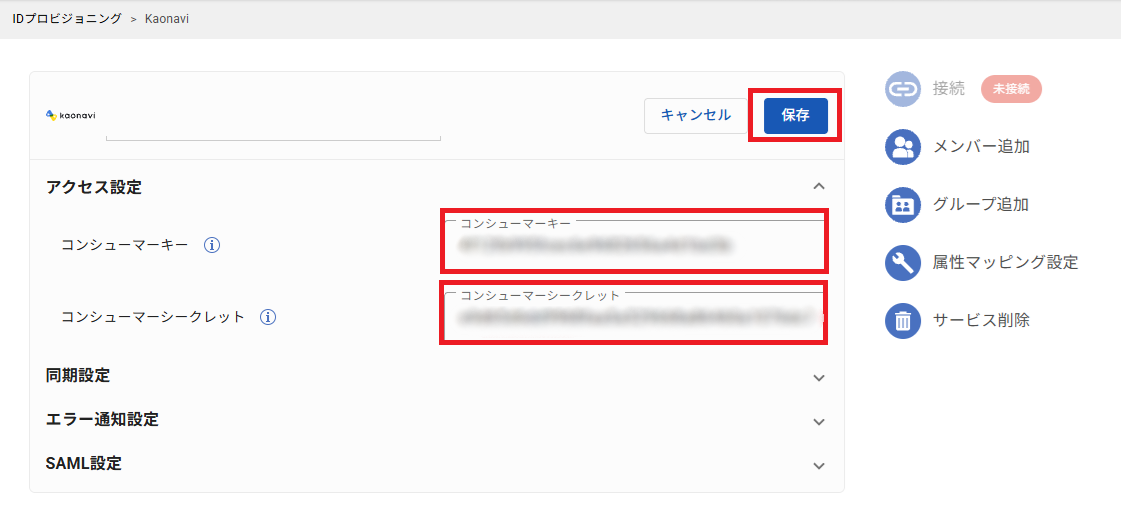

5. Open "Access Settings", enter the following values for each setting item, and click "Save".

   Consumer Key	The "Consumer Key" you copied in step 4 of Kaonavi Settings
   Consumer Secret	The "Consumer Secret" you copied in step 4 of Kaonavi Settings

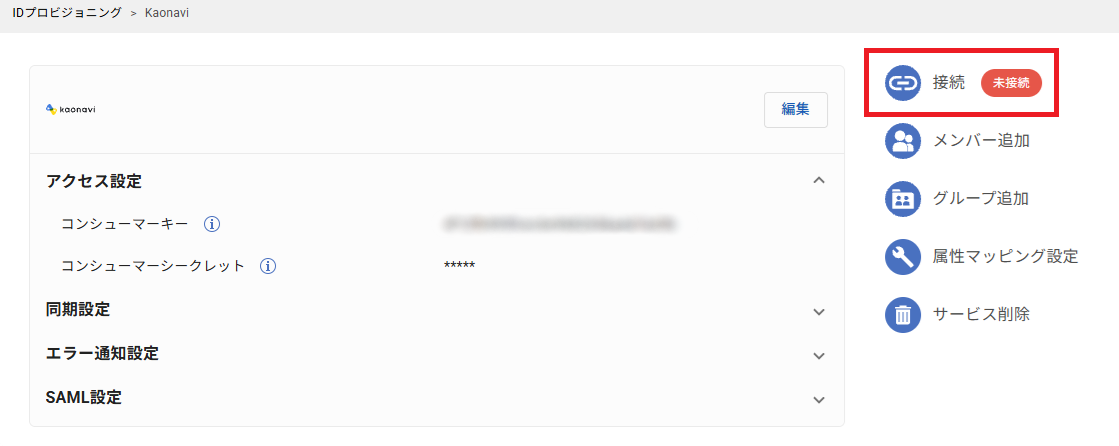

6. Click the "Connect" button.

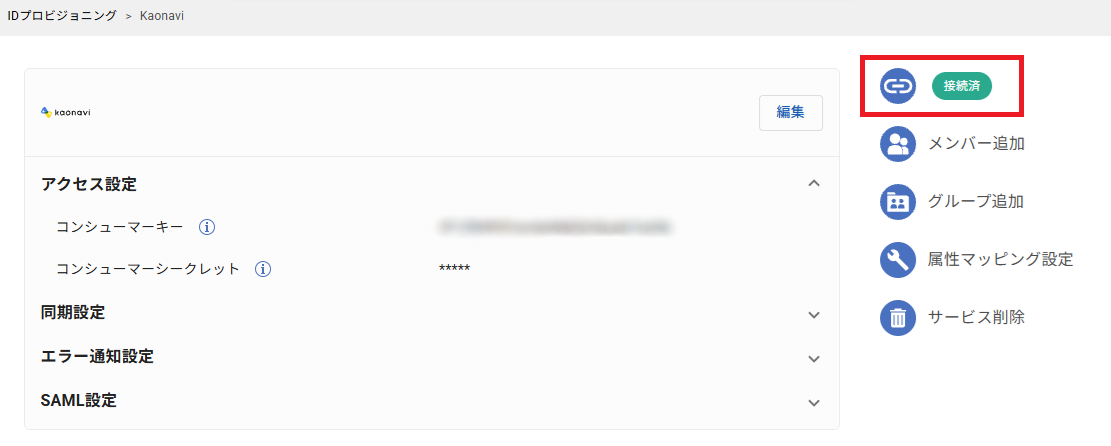

7. Once the button status updates to "Connected", the initial setup is complete.



Next step: The manual for configuring user synchronization is available here

Values You Can Configure in Attribute Mapping

The values that can be specified as Kaonavi's default functions are as follows.

Note: For an overview of the attribute mapping feature and how to configure it, please see here.
