TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

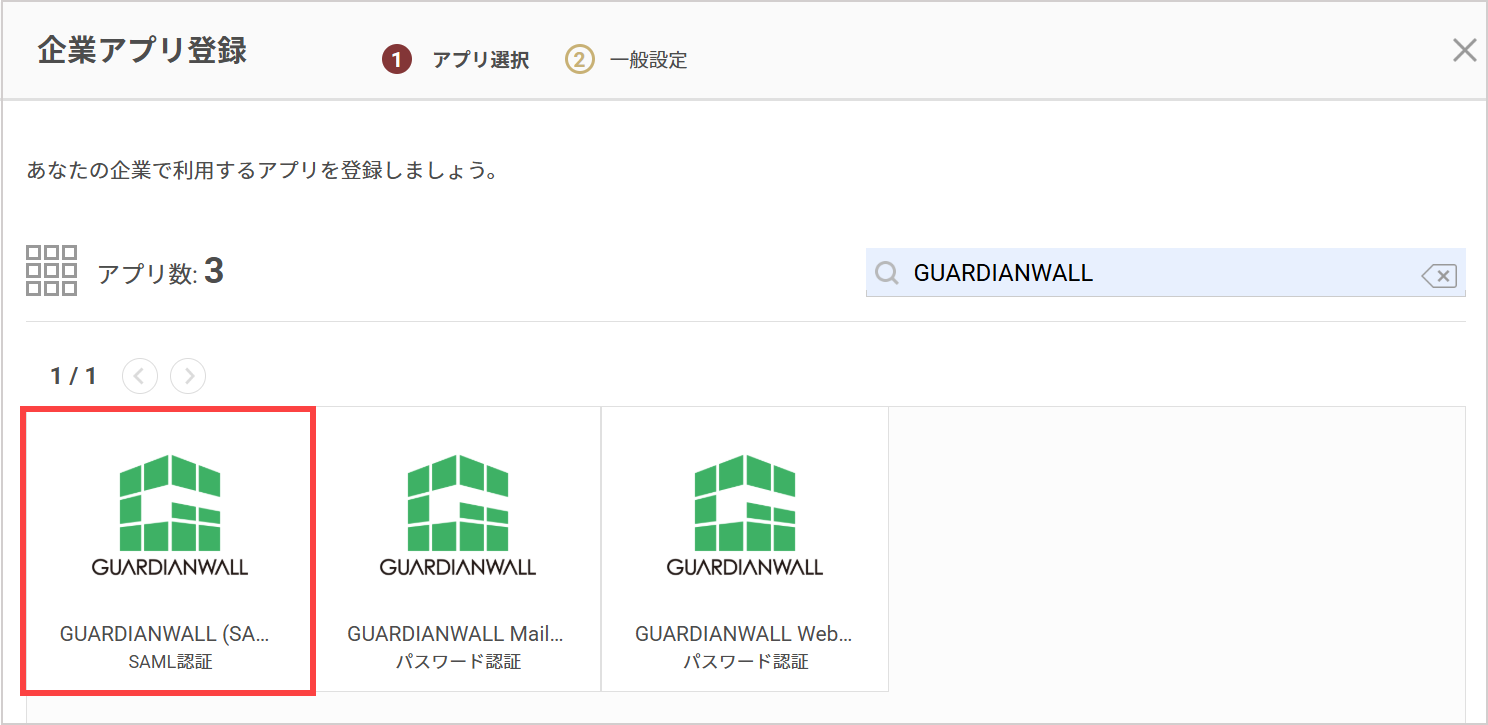

2. Search on the "Register Company App" screen and select "GUARDIANWALL (SAML)".


3. Download the metadata using the "Download Metadata" button under "Identity Provider Information".

   Now, proceed to the GUARDIANWALL settings.
   Do not click the "Register" button yet; open GUARDIANWALL in a separate window.



GUARDIANWALL Settings

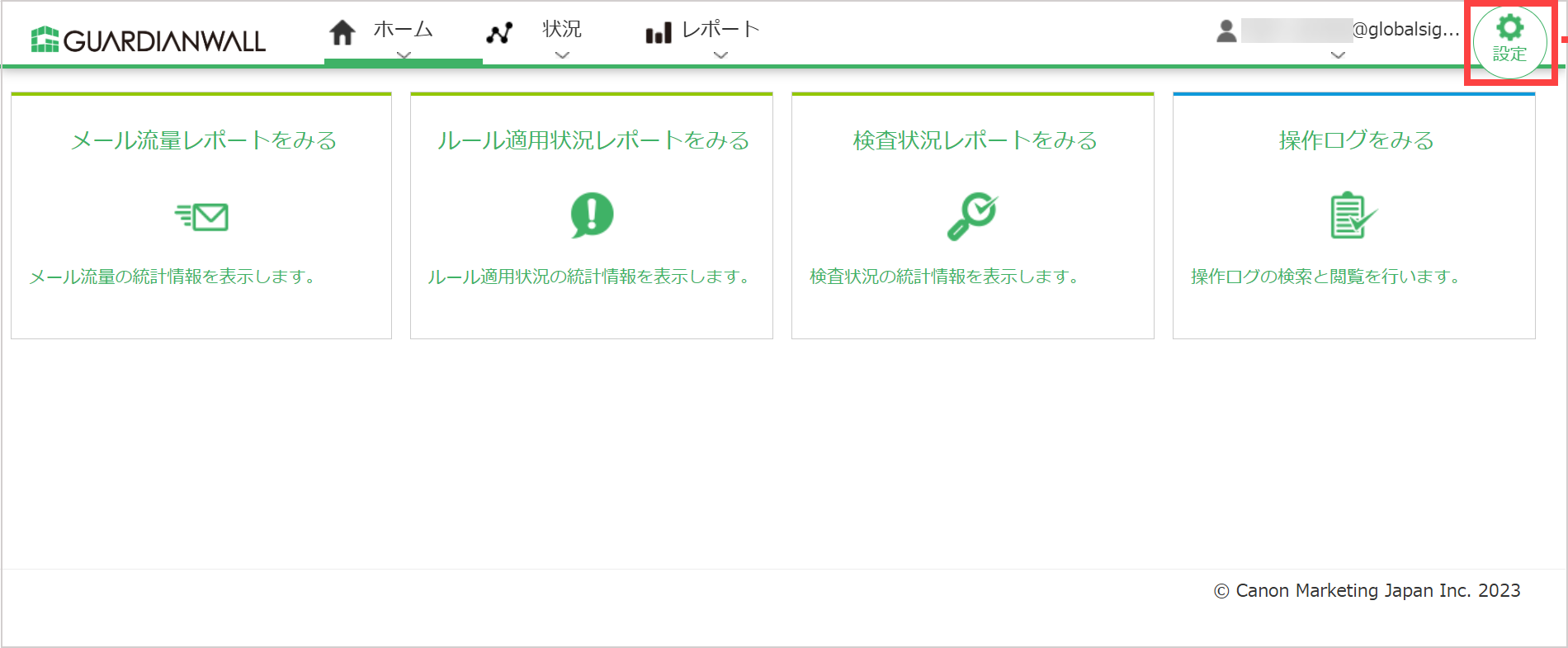

1. Log in to the admin screen and click "Settings" in the upper right of the screen.

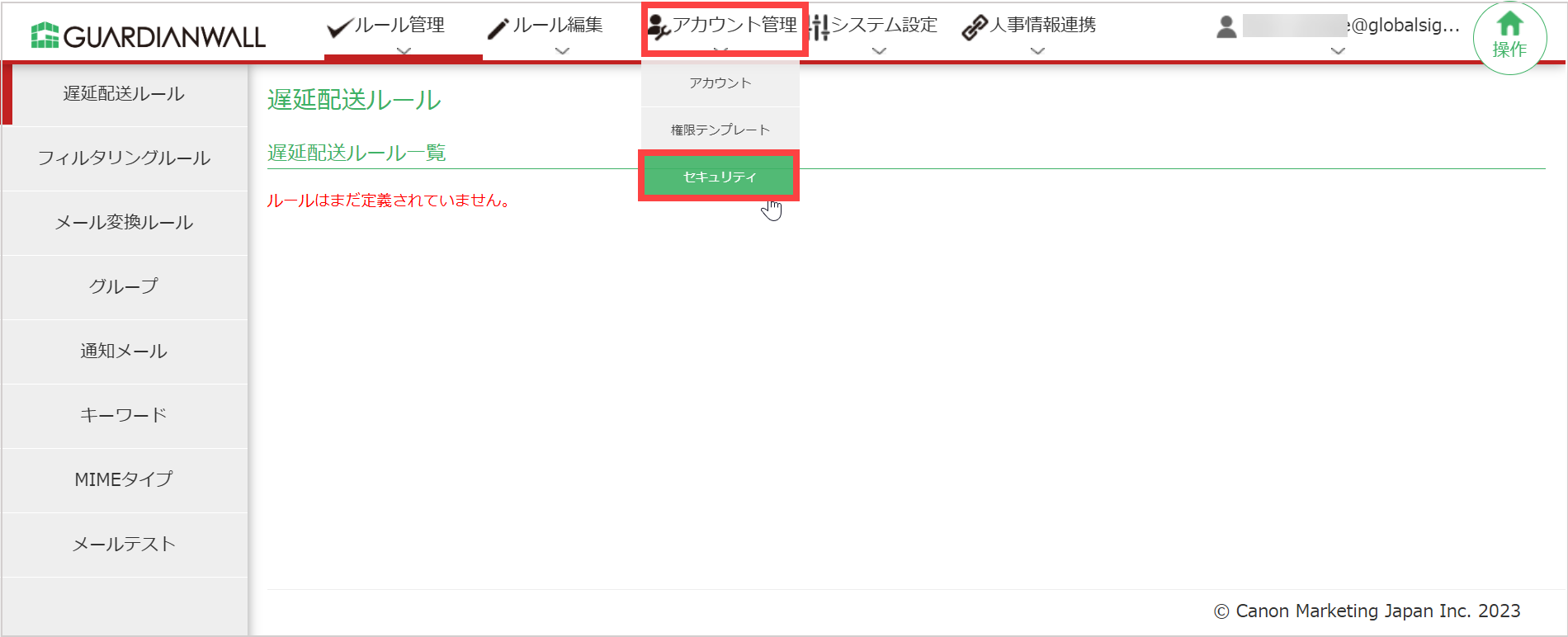

2. Click "Account Management > Security".

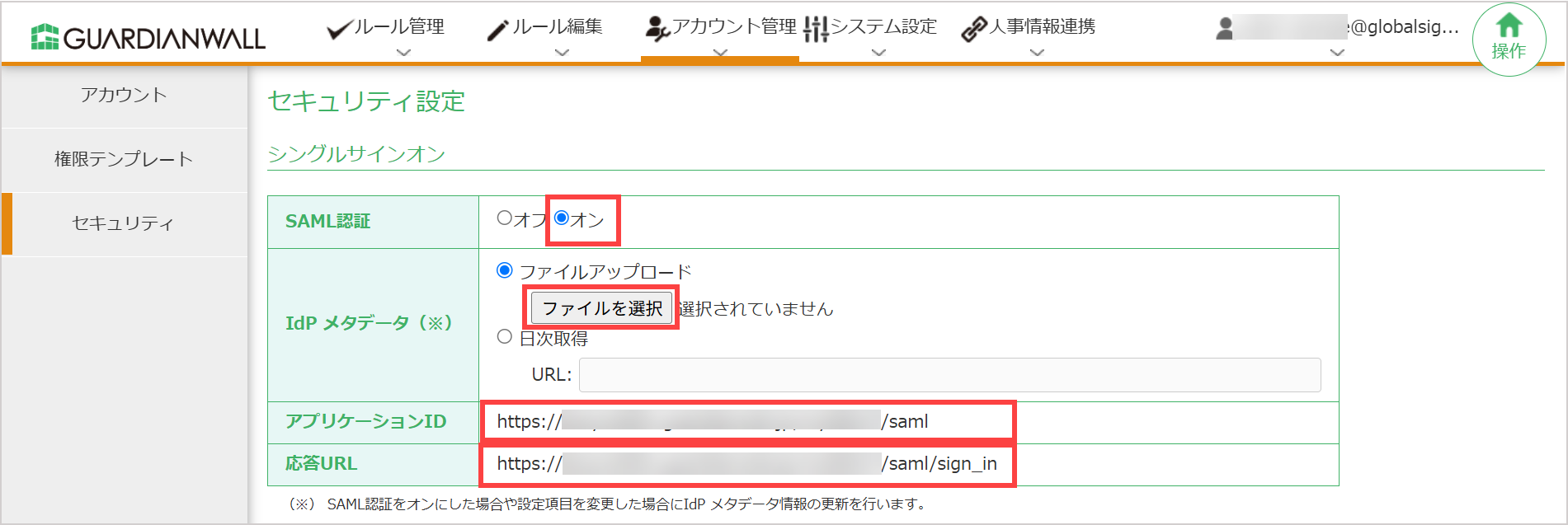

3. Copy and note down the "Application ID" and "Response URL" under "Single Sign-On", and configure each item as follows.


   SAML Authentication	Change to "On"
   IdP Metadata (Note:)	Upload the metadata obtained from TrustLogin via "Choose File"

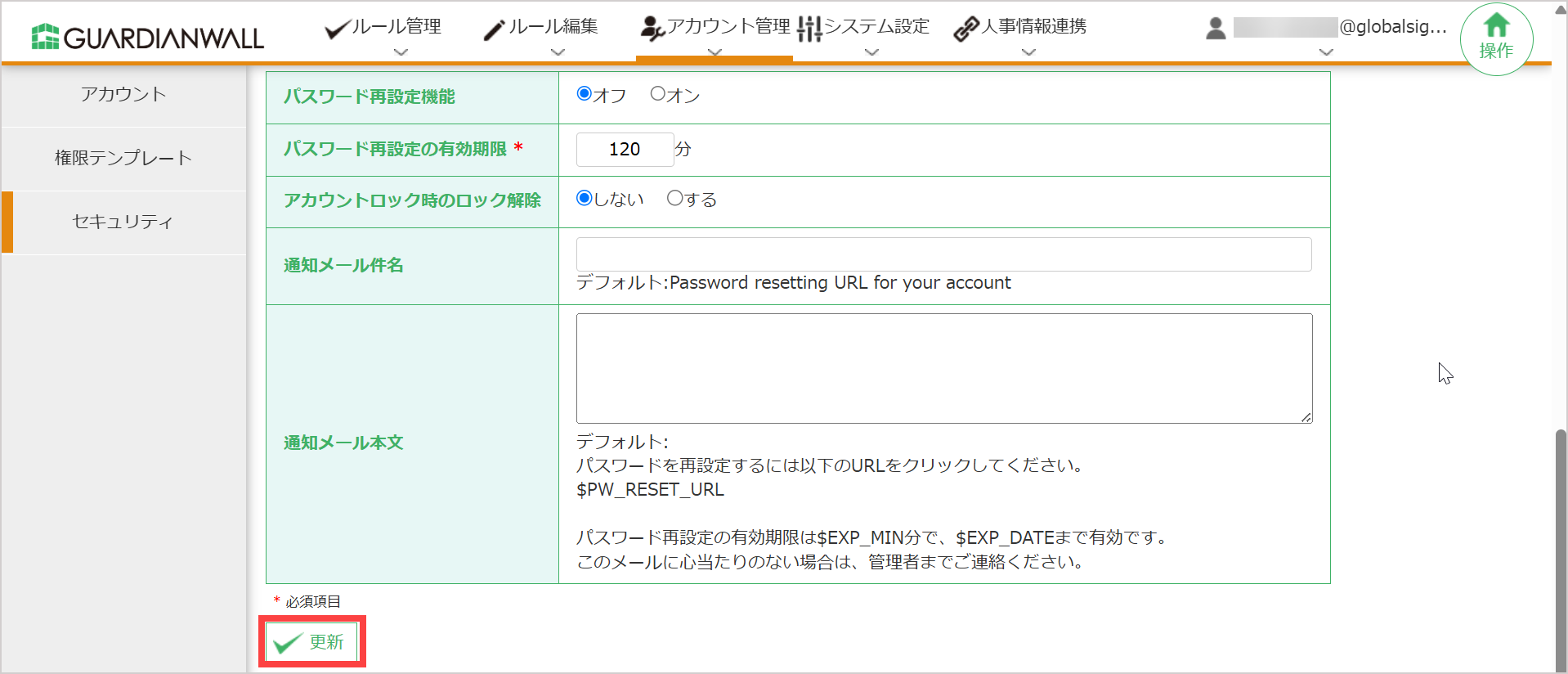

4. Save by clicking the "Update" button.

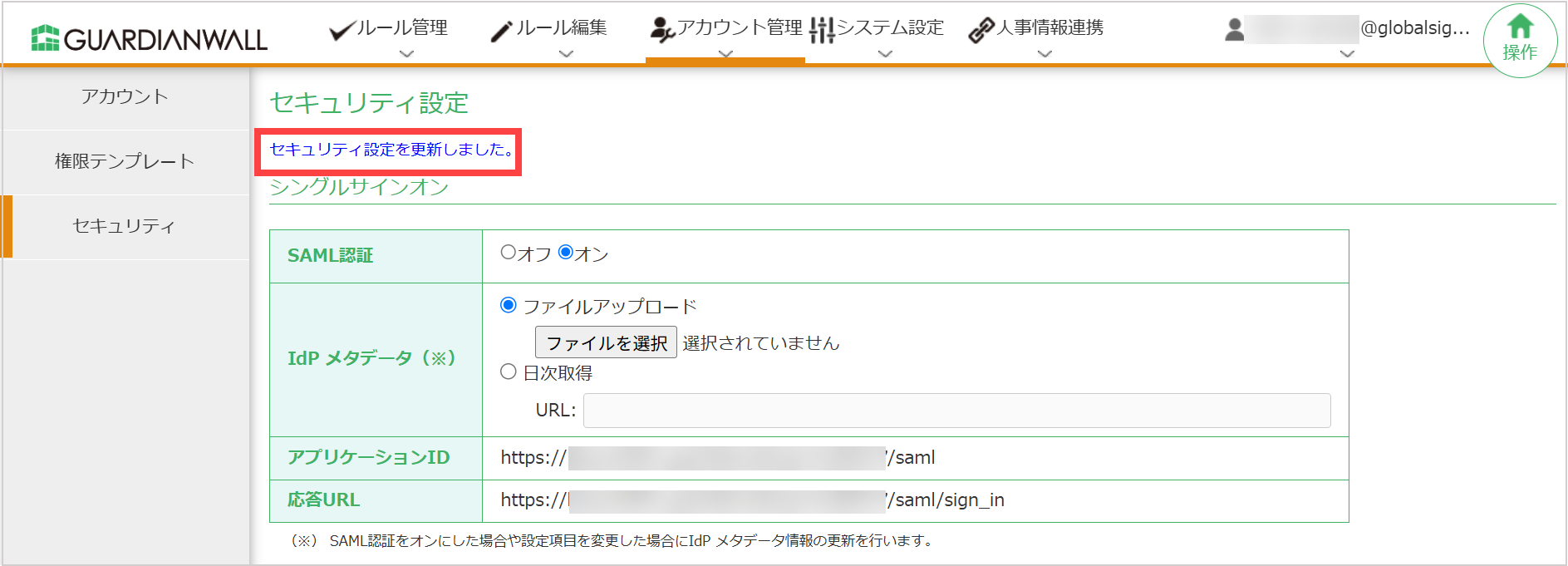

5. Confirm that "Security settings updated." is displayed.

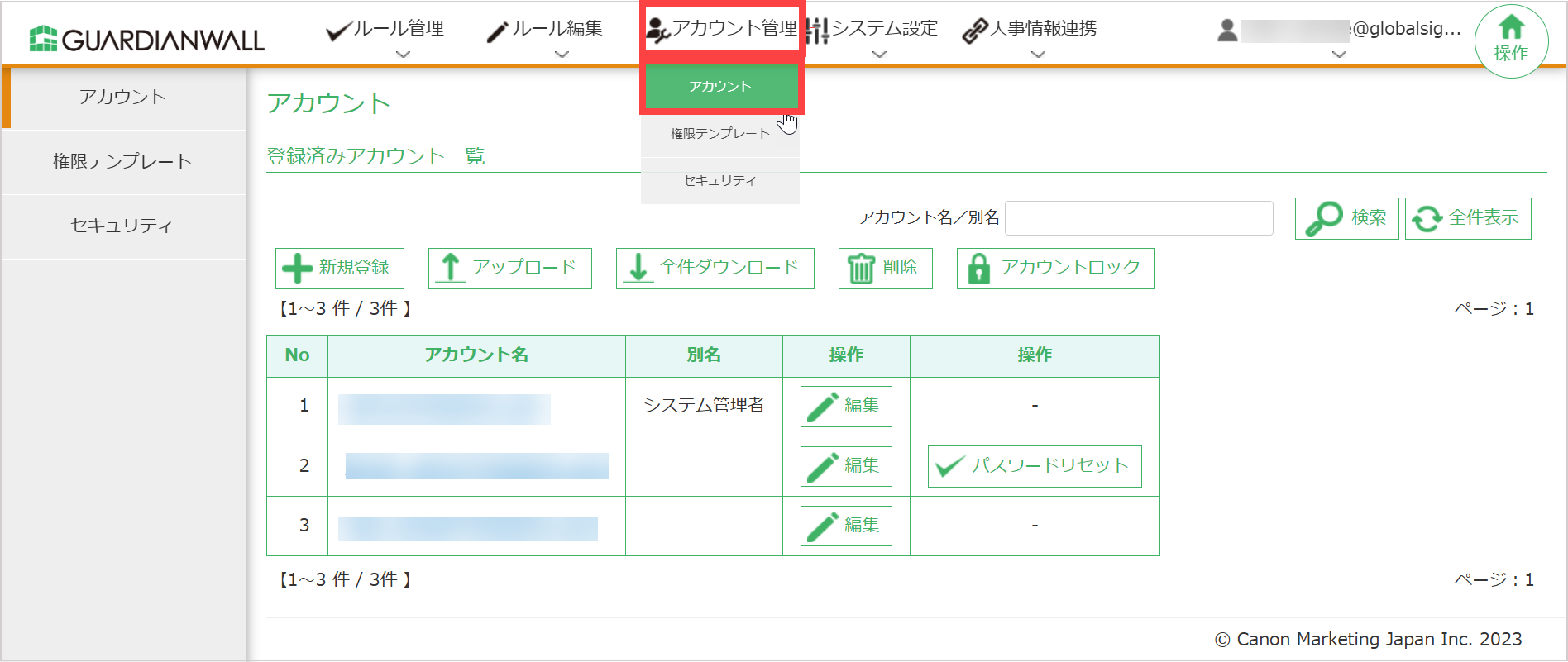

6. Click "Account Management > Account".

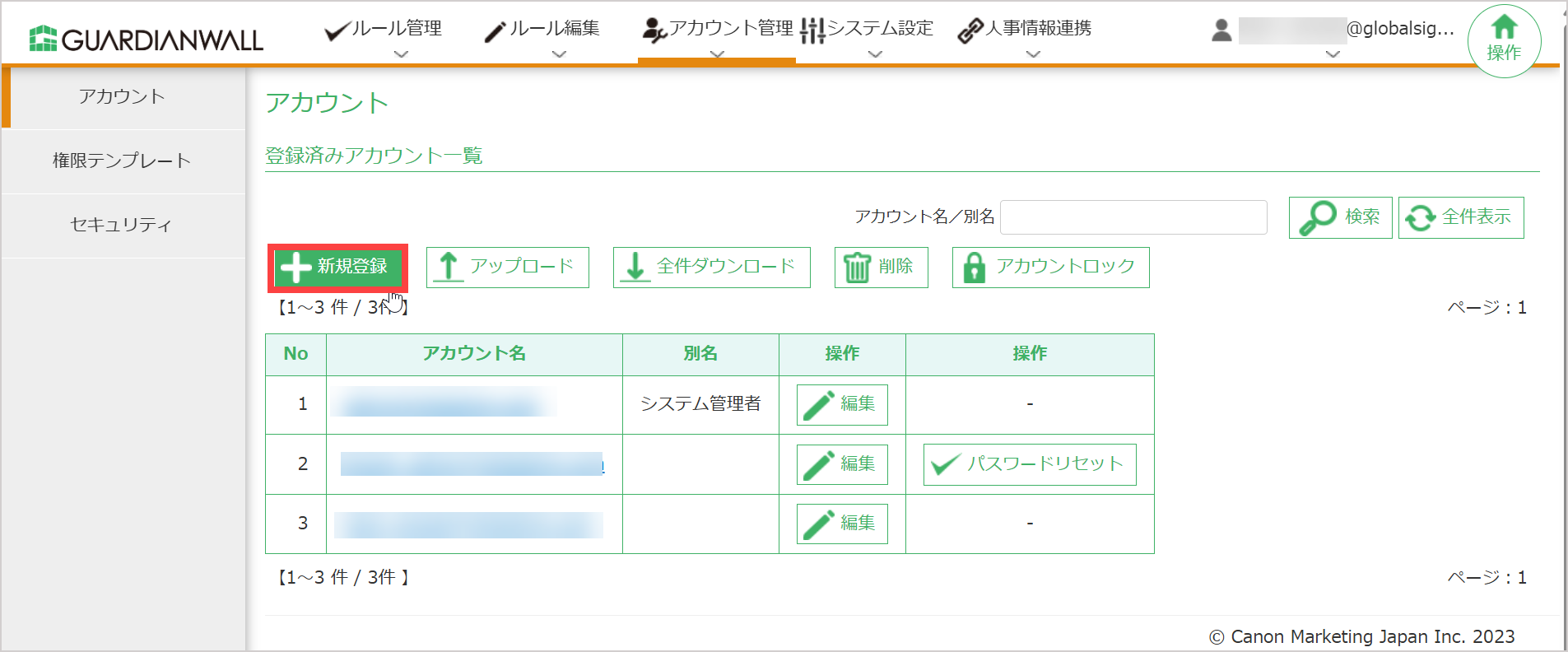

7. Click "New Registration".

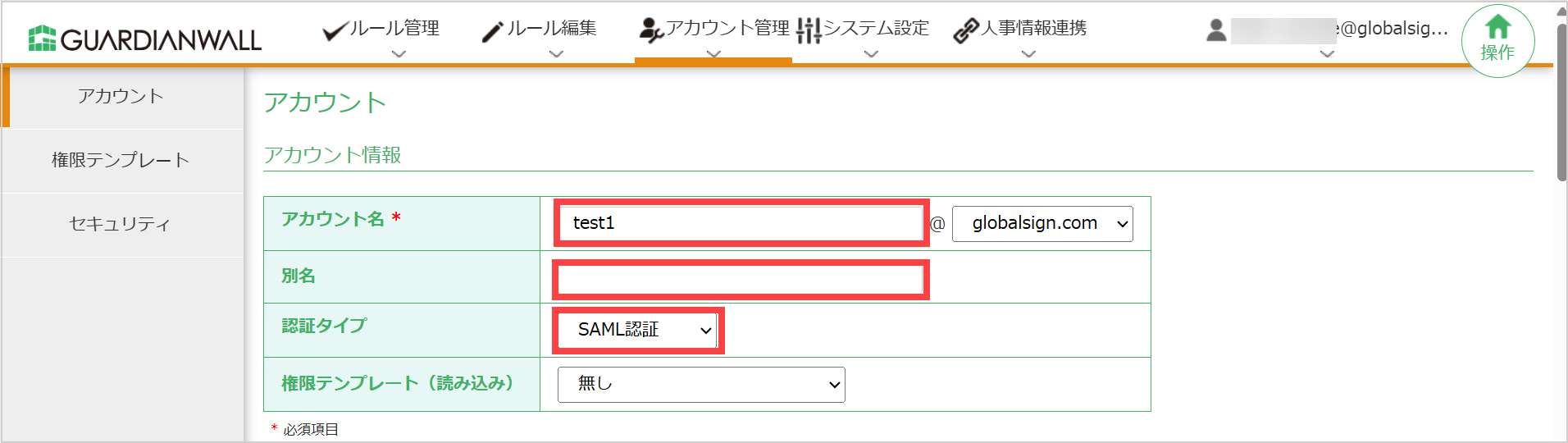

8. Configure "Account Information" as follows.


   Account Name	An account with the same email address as your TrustLogin account
   Alias	Optional
   Authentication Type	Select "SAML Authentication"

   Note: Please configure the various permission settings to match your environment.

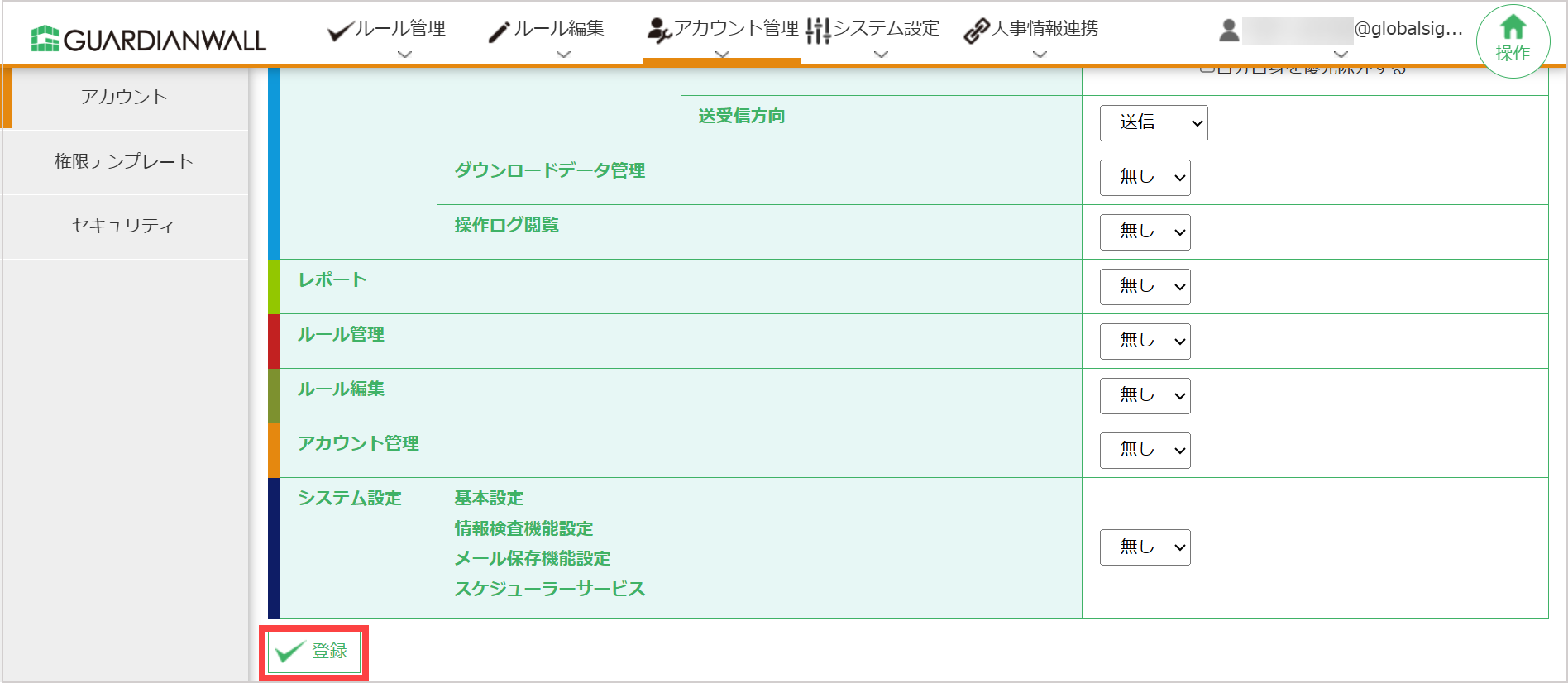

9. Save by clicking the "Register" button.

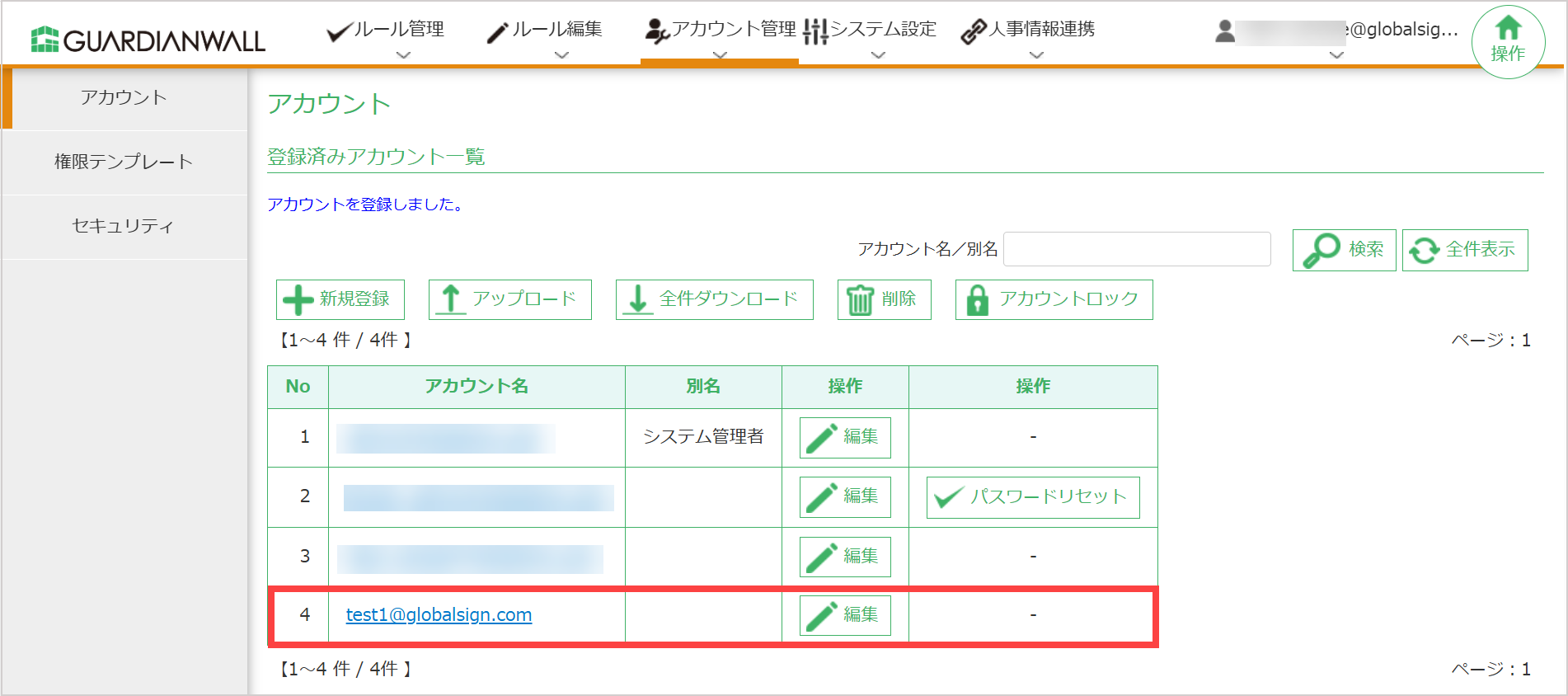

10. Confirm that the account has been registered.

Now, return to the TrustLogin Admin Page.

TrustLogin Admin Page Settings (Continued)

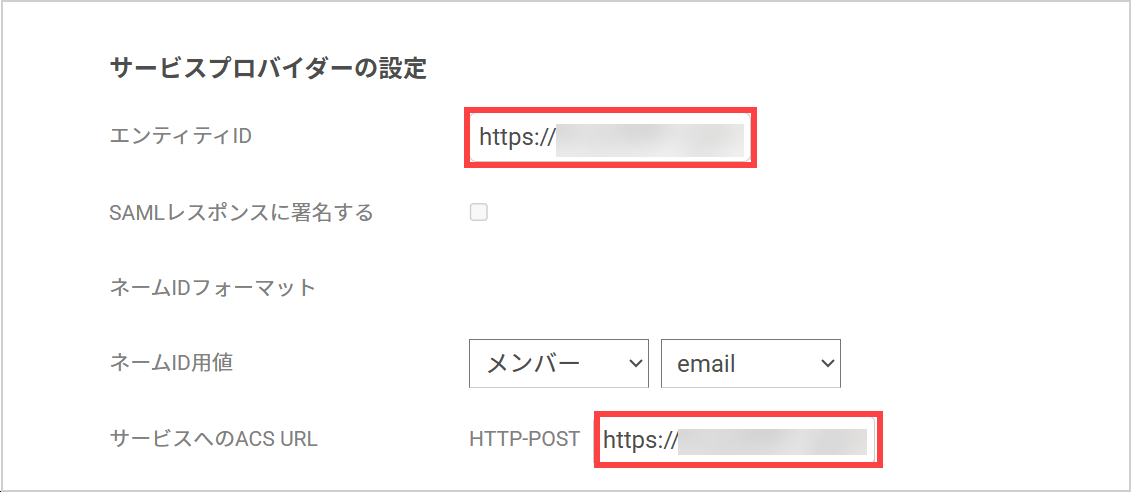

1. Configure the "Service Provider Settings" as follows.


   Entity ID	The "Application ID" noted from GUARDIANWALL
   ACS URL to the Service	The "Response URL" noted from GUARDIANWALL





2. Save by clicking the "Register" button.



TrustLogin User Settings

① When a User Adds the App from My Page

1. Click the "Add App" button on "My Page".
2. On the "App Registration" screen, select "GUARDIANWALL (SAML)" and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it and click the "Register" button.

② When an Administrator Adds Members

1. Search for and click the "GUARDIANWALL (SAML)" app in the "Admin Page > App" menu.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
