TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

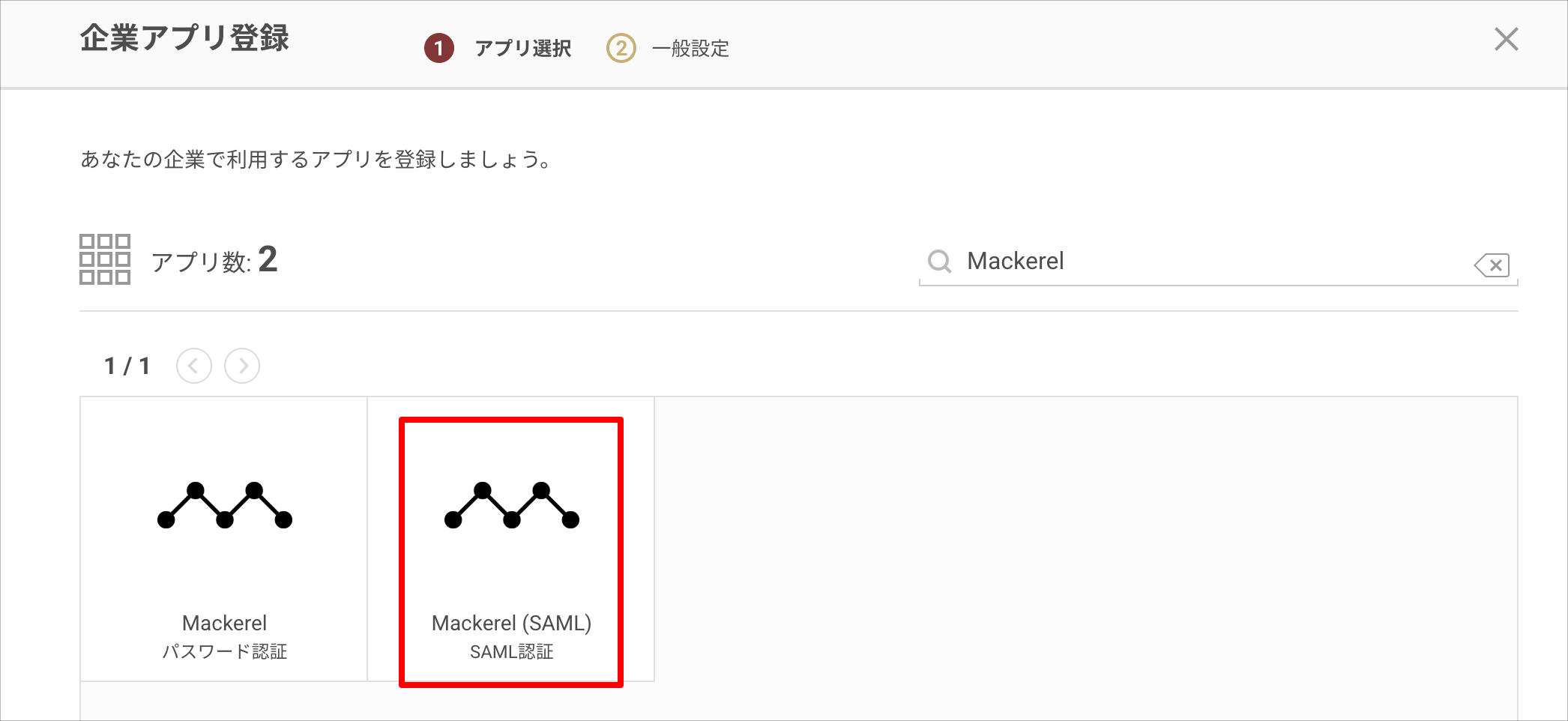

2. Search on the "Register Company App" screen and select "Mackerel (SAML)".



3. Download the metadata using the "Download Metadata" button under "Identity Provider Information".



4. Save by clicking the "Register" button.

Mackerel Settings

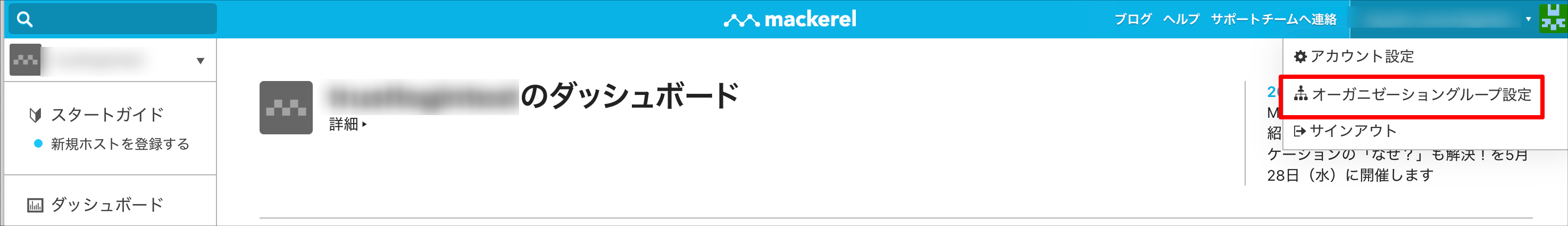

1. Log in with an administrator account, click the account display in the upper right, and open "Organization Group Settings."

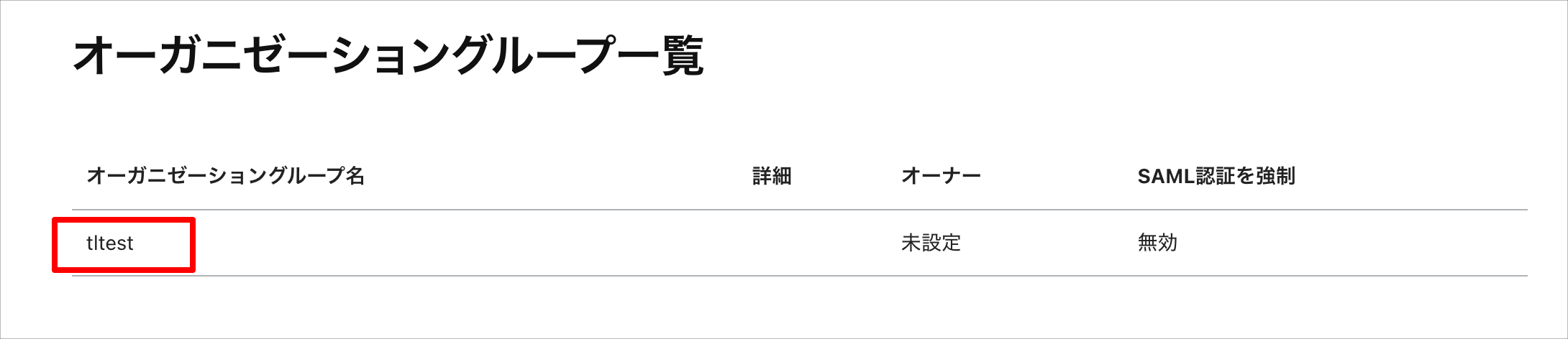

2. Click the target organization group.

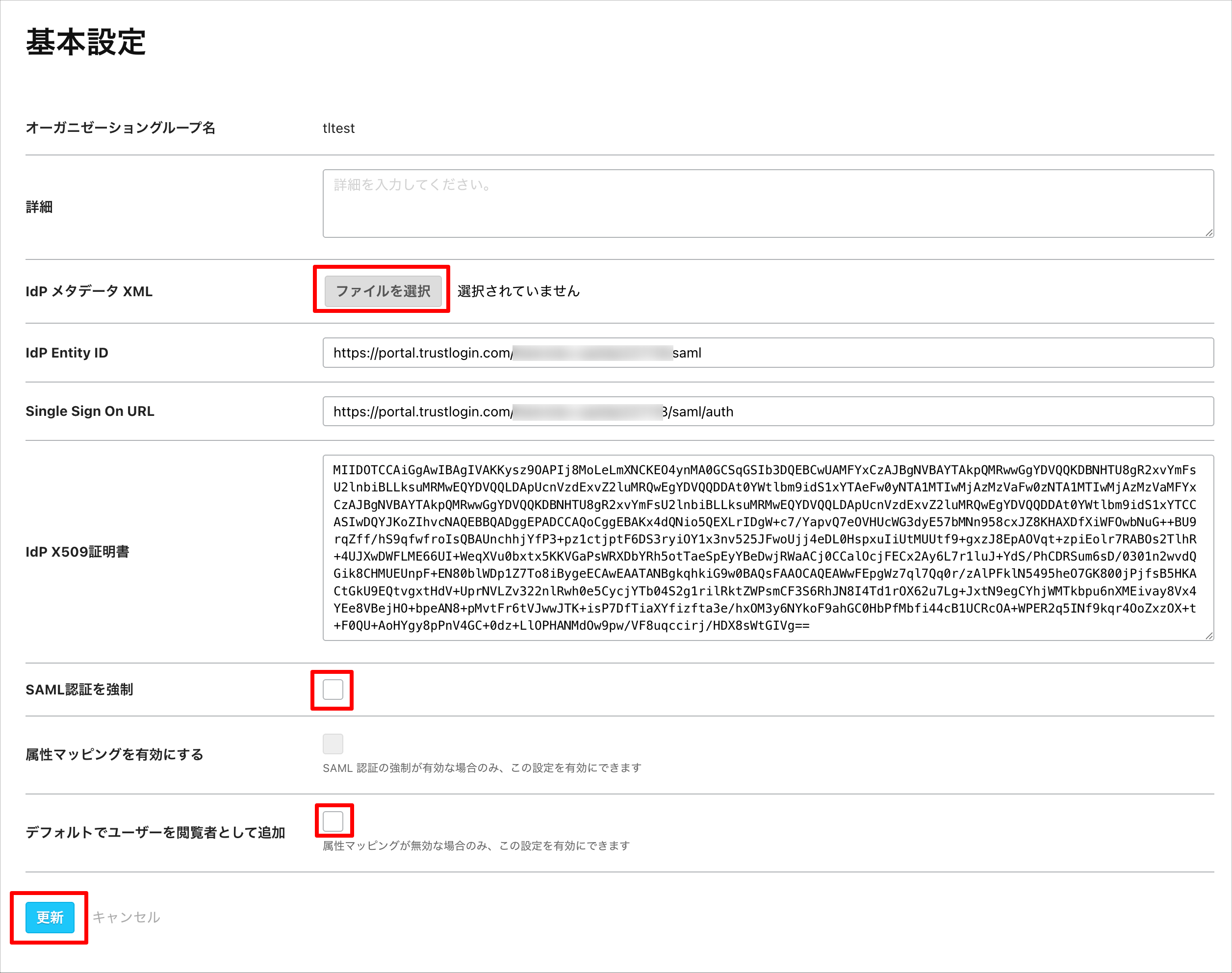

3. Configure each item as follows, then save by clicking the "Update" button at the end.


   IdP Metadata XML	Upload the metadata obtained from TrustLogin. Once it loads successfully, the values for "IdP Entity ID," "Single Sign On URL," and "IdP X509 Certificate" will be filled in automatically.
   Enforce SAML Authentication	You can restrict the login method to SAML authentication only. We recommend leaving this OFF during the initial SAML setup, and turning it ON after you have verified that SAML SSO works correctly and notified your users.
   Add Users as Viewers by Default	OFF




TrustLogin User Settings

① When a User Adds the App from My Page

1. Click the "Add App" button on "My Page."
2. On the "Register App" screen, select "Mackerel (SAML)" and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name," enter it and click the "Register" button.

② When an Administrator Adds Members

1. Search for and click the "Mackerel (SAML)" app in the "Admin Page > App" menu.
2. Click "Add Member," select the user to add from the member list, and click the "Register" button to add them.
