Item |
Details |
|
|---|---|---|
|
Pre-check |
|
|
|
Name ID |
〇 |
Email address |
|
Custom attribute Note: For how to configure custom attributes, see here |
||
|
SP Configuration |
〇 |
Configured by the Administrator |
|
Request SP to configure |
||
|
Provisioning |
API-based Provisioning supported (Account management available in TrustLogin) |
|
|
SAML JIT Provisioning supported (Account management available in TrustLogin; user deletion not available) |
||
|
〇 |
None (accounts created in each system) |
|
|
Access Method |
〇 |
SP-Initiated SSO |
|
|
IdP-Initiated SSO |
|
|
Device Compatibility |
ー |
PC - Browser |
|
ー |
PC - Desktop App |
|
|
ー |
iOS - Default Browser (Safari) |
|
|
ー |
iOS - TrustLogin Mobile App In-App Browser |
|
|
〇 |
iOS - Native App |
|
|
ー |
Android - Default Browser (Chrome) |
|
|
ー |
Android - TrustLogin Mobile App In-App Browser |
|
|
〇 |
Android - Native App |
|
|
SAML Authentication Scope |
ー |
Enabled for all users (SAML authentication only) |
| 〇 |
Other: Enabled only for users for whom SAML authentication has been applied on the SP side (you can choose to use both SAML authentication and password authentication together) |
|
|
Notes |
Please also refer to the following.
Please refer to the manual below for instructions on consolidating SAML settings into a single app. |
|
|
Table of Contents: |
TrustLogin Admin Page Settings
-
Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

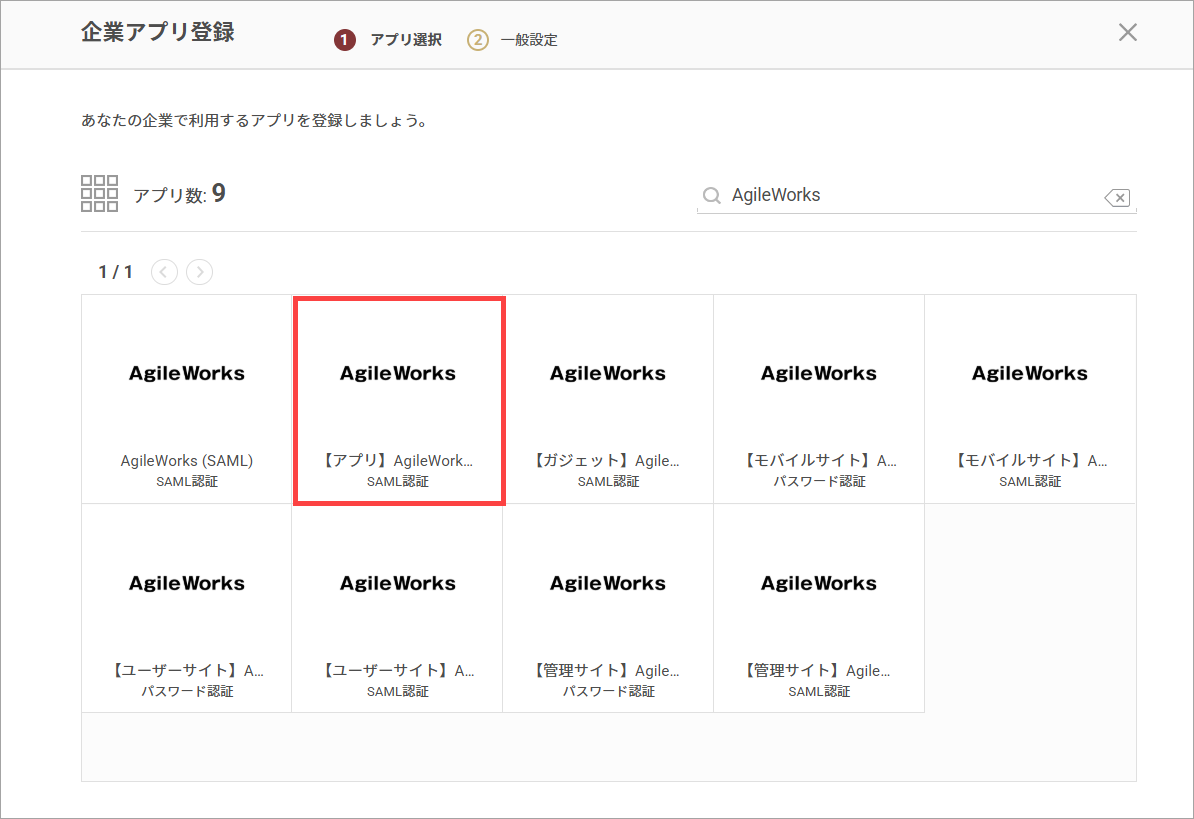

- Search on the "Register Company App" screen and select "[App] AgileWorks (SAML)".
- Note down the value of "Identity Provider URL" under "Identity Provider Information", and download the certificate using the "Get Certificate" button.

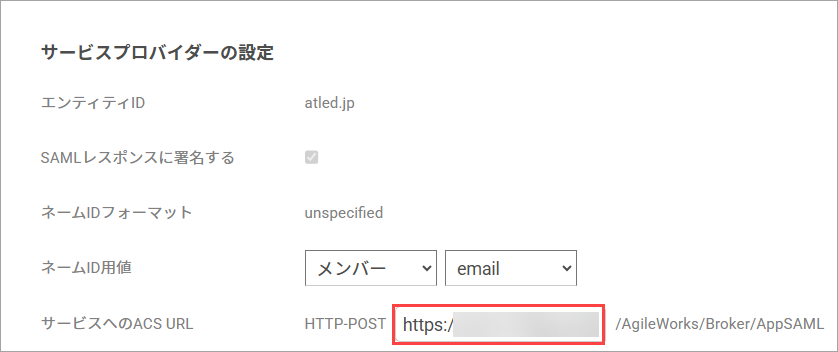

- In "Service Provider Settings > ACS URL of the Service", enter the AgileWorks URL in the format "https://xxxx.atledcloud.jp".
- Save by clicking the "Register" button.
AgileWorks Settings

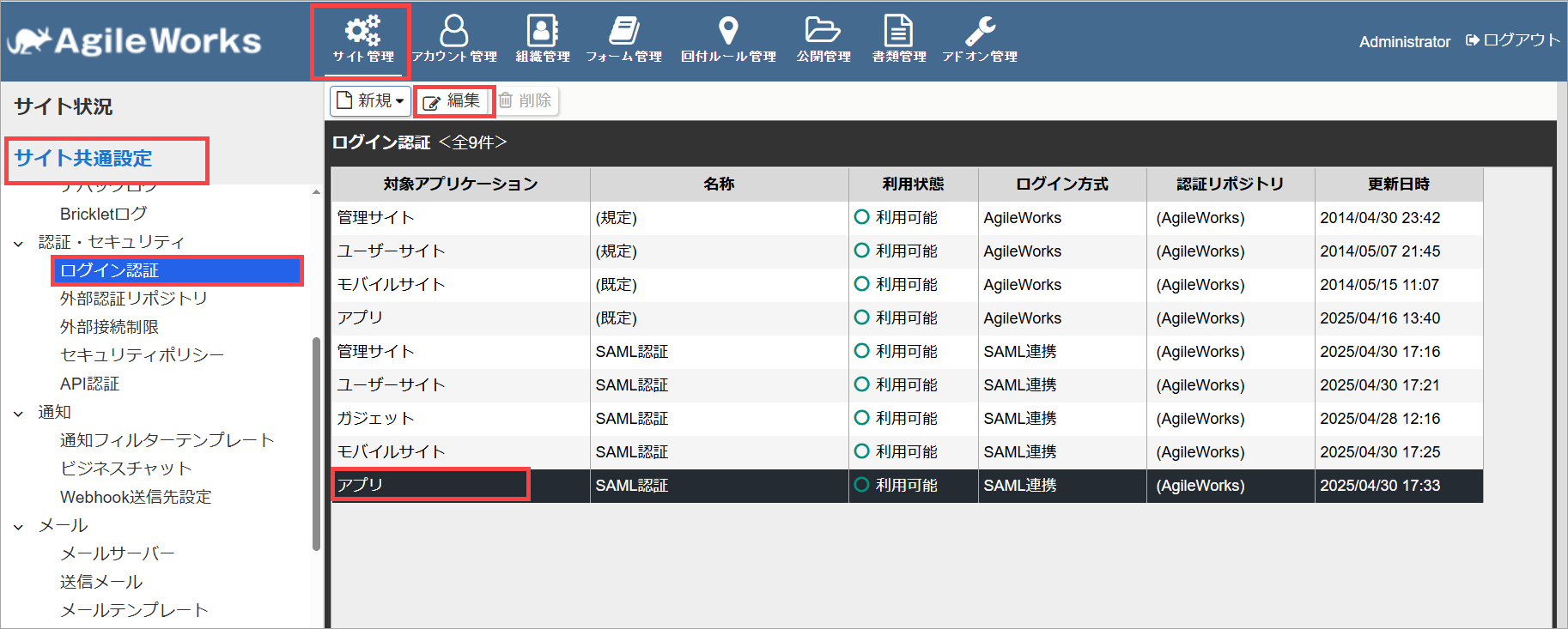

- Log in to the Admin Site, select "Site Management > Site Common Settings > Login Authentication > App", and click "Edit".

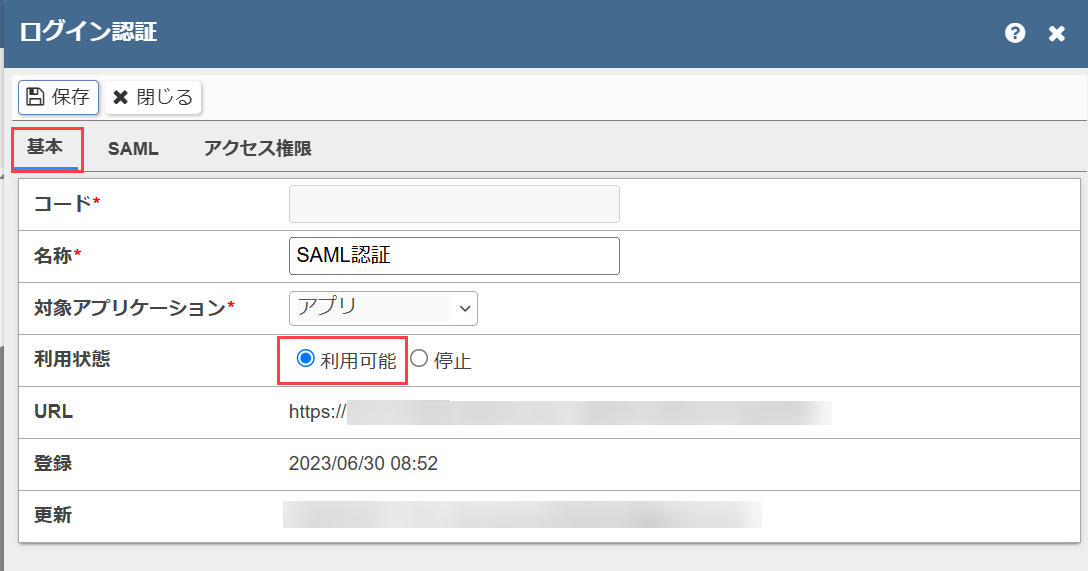

- Open the "Basic" tab and select "Available" for "Usage Status".

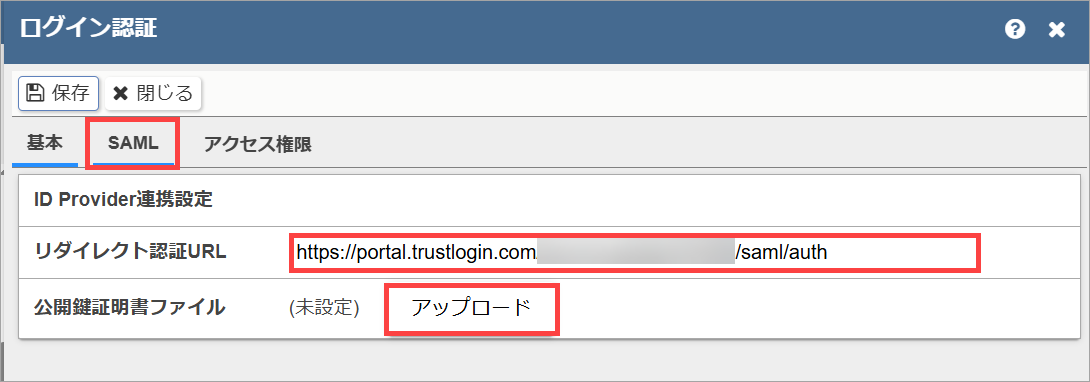

- Open the "SAML" tab and configure as follows.
Redirect Authentication URL The "Identity Provider URL" noted down from TrustLogin Public Key Certificate File Upload the "Certificate" obtained from TrustLogin
- Configure "Access Permissions" according to your company's operational policy.
- Save the settings by clicking "Save".
TrustLogin User Settings
① When a User Adds the App from My Page
- Click the "Add App" button on "My Page".
- On the "Register App" screen, select "[App] AgileWorks (SAML)" and click the "Next" button in the upper right of the screen.
- If you want to change the "Display Name", enter it and click the "Register" button.
② When an Administrator Adds Members
- Search for and click the "[App] AgileWorks (SAML)" app in the "Admin Page > App" menu.
- Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
Native App Login Method

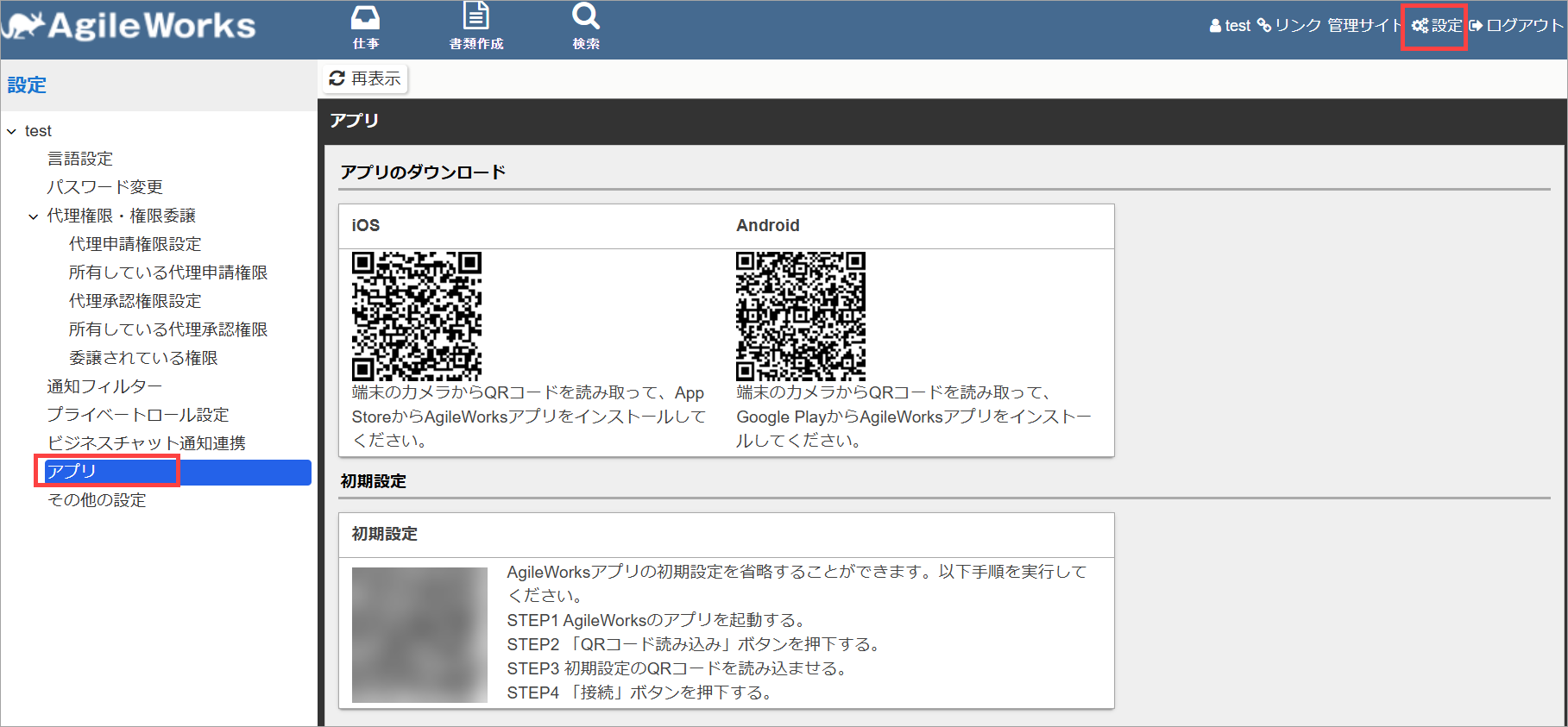

- Log in to the User Site using a PC browser and open "Settings > App".

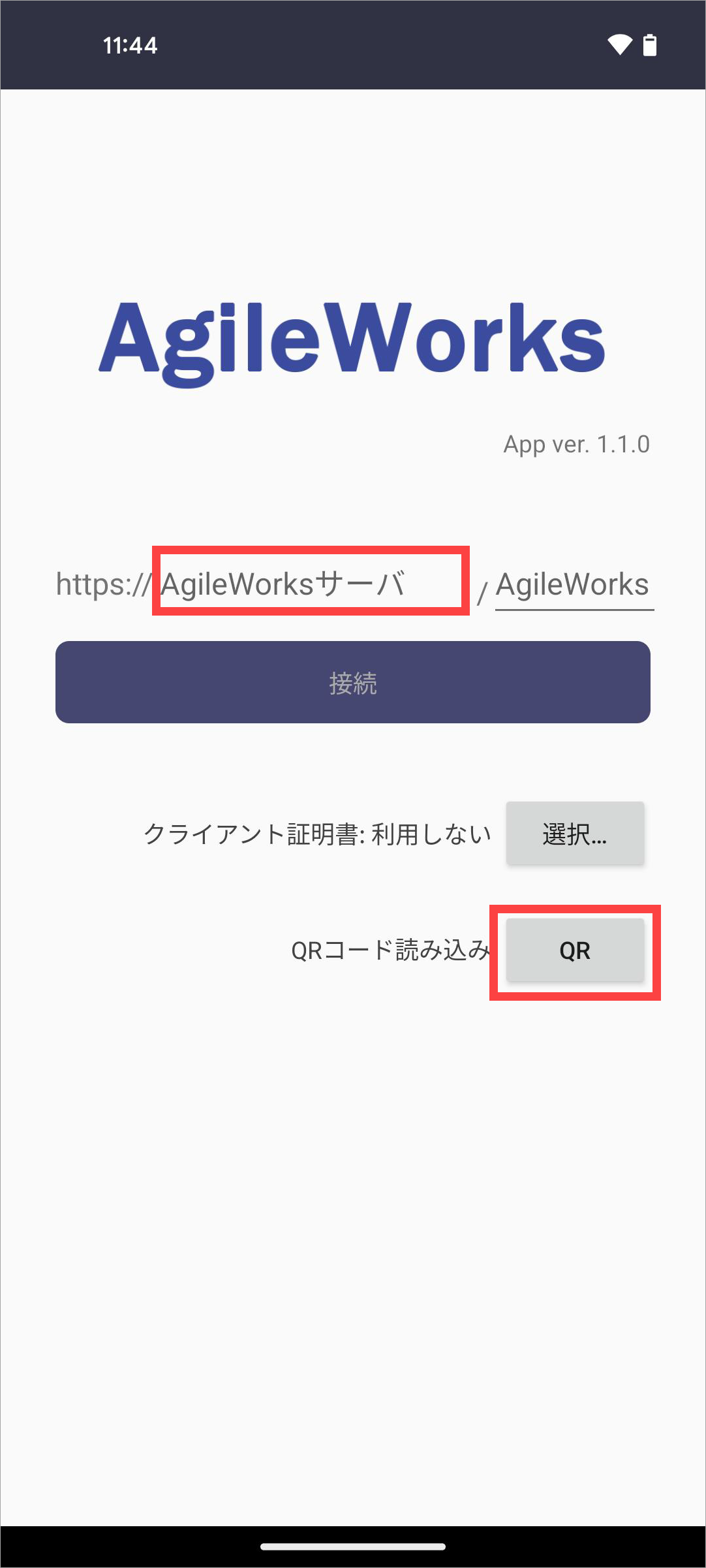

- Install the native app and tap "Scan QR Code".

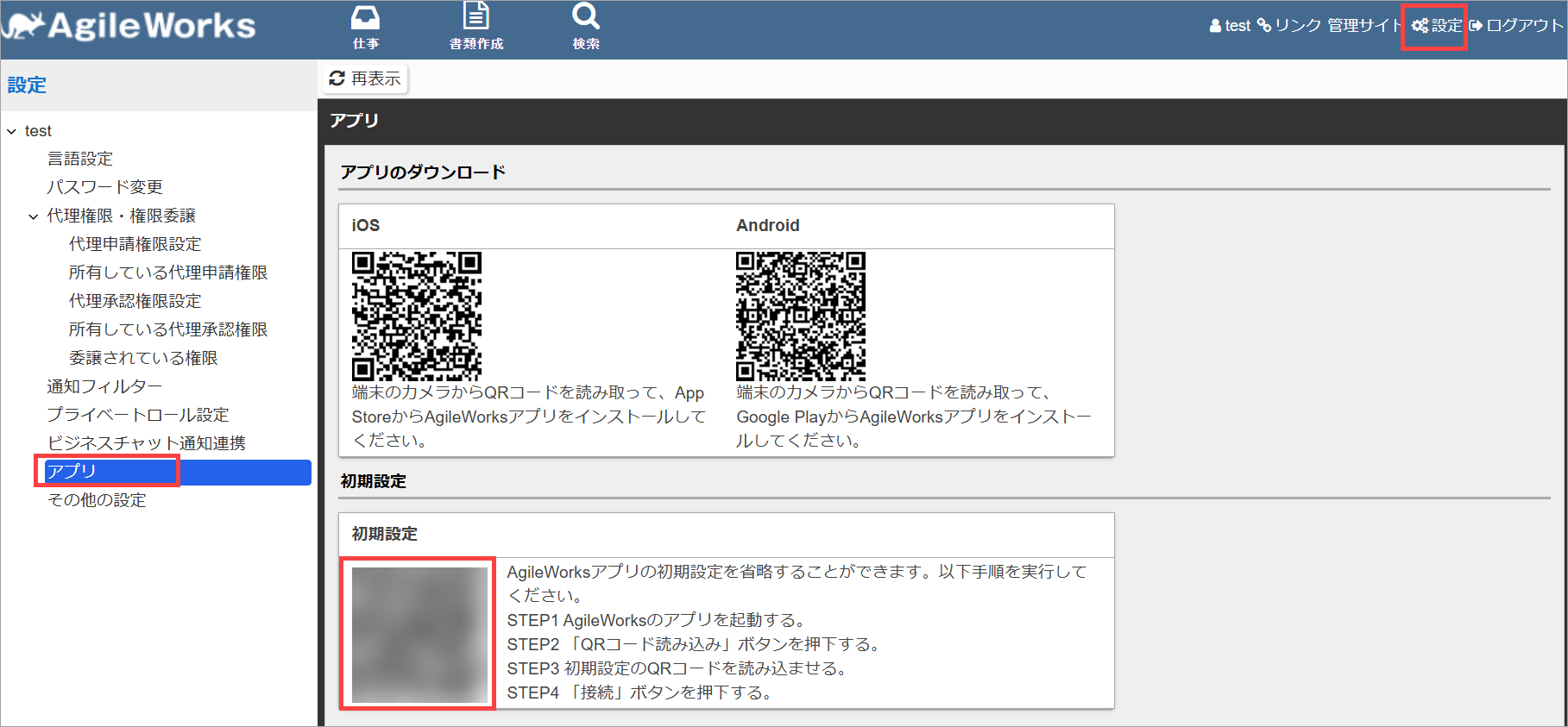

- Scan the QR code for "Initial Setup" displayed in the PC browser.
- Confirm that the AgileWorks server is entered, and tap "Connect".

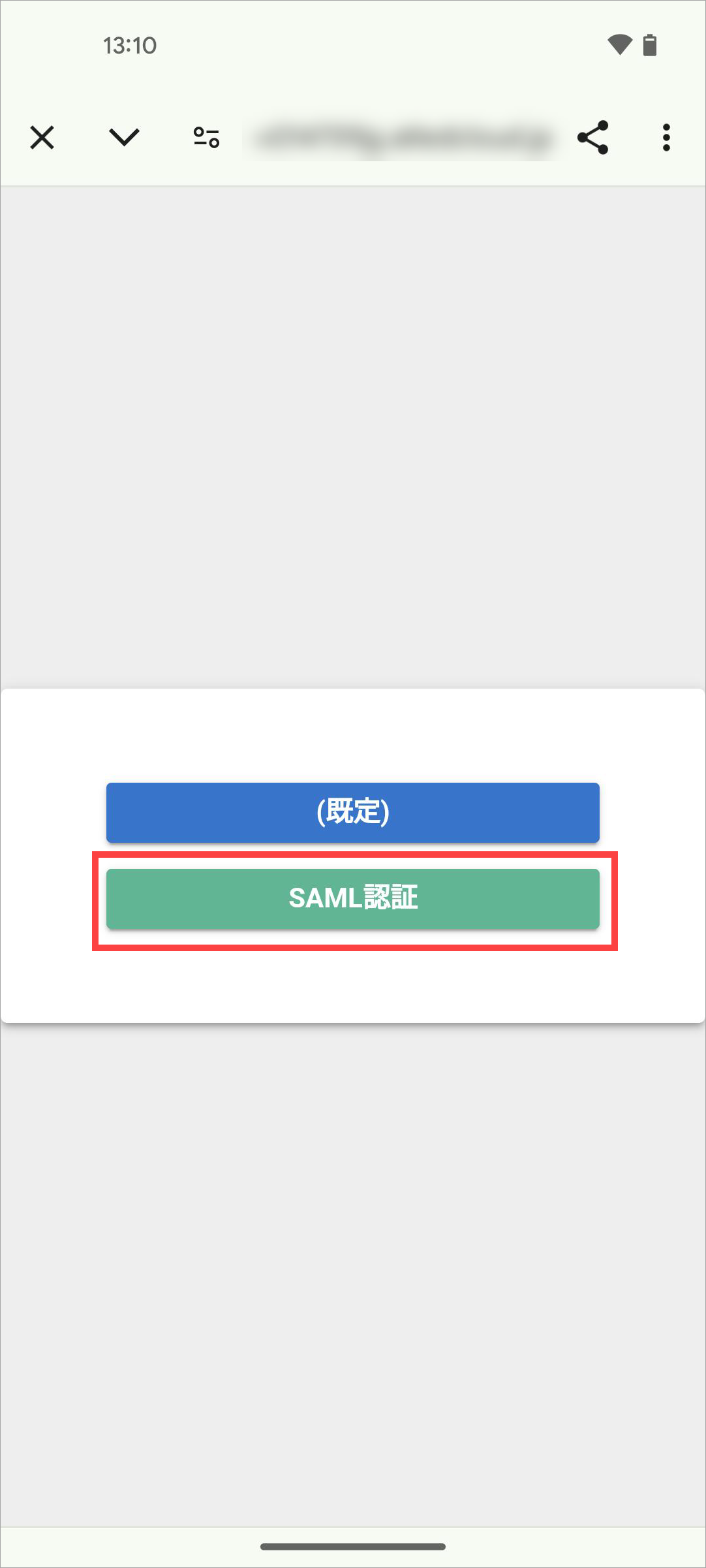

Note: If using a client certificate, tap "Select" to choose the certificate before connecting. The client certificate selection button is only available on Android devices. - Tap "SAML Authentication" and log in via SSO.
