Item	Details
Pre-check	Prior configuration in Keihi BANK is required. The "SSO Email Address" in Keihi BANK must match your TrustLogin email address. For the latest setup instructions, please check the manual provided by Keihi BANK.
Name ID	〇	Email address
		Custom attribute　Note: For instructions on how to configure a custom attribute, click here
SP Configuration		Configured by the administrator
	〇	Request configuration from the SP
Provisioning		API-based Provisioning supported (account management possible in TrustLogin)
		SAML JIT provisioning supported (account management possible in TrustLogin; user deletion not supported)
	〇	None (accounts created in each system)
Access Method	〇	SP-Initiated SSO
	ー	IdP-Initiated SSO
Device Compatibility	〇	PC - Browser
	ー	PC - Desktop App
	〇	iOS - Standard Browser (Safari)
	〇	iOS - TrustLogin Mobile App In-App Browser
	ー	iOS - Native App
	〇	Android - Standard Browser (Chrome)
	〇	Android - TrustLogin Mobile App In-App Browser
	ー	Android - Native App
SAML Authentication Scope	ー	Enabled for all users (SAML authentication only)
	〇	Other: Enabled only for users to whom the SP has applied SAML authentication (SAML authentication only)
Notes	None in particular

Table of Contents: Preparation TrustLogin Admin Page Settings TrustLogin User Settings Keihi BANK Configuration How to Log In

Preparation

1. Please submit the SSO usage application and the interview sheet to SBI Business Solutions Co., Ltd.


2. Receive the Keihi BANK metadata via the file-sharing service provided by SBI Business Solutions Co., Ltd.



TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

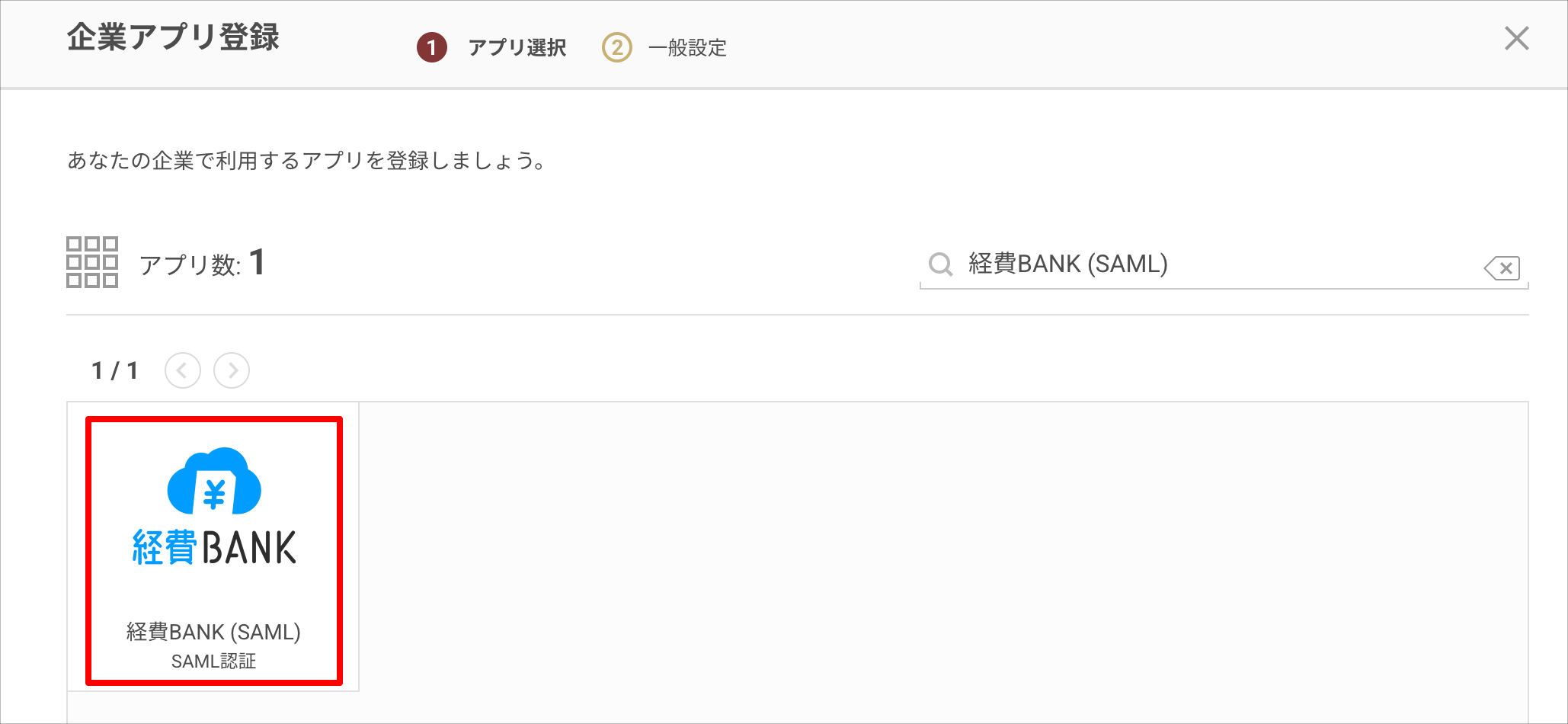

2. Search on the "Register Company App" screen and select "Keihi BANK (SAML)".




3. Download the metadata from the "Download Metadata" button under "Identity Provider Information".

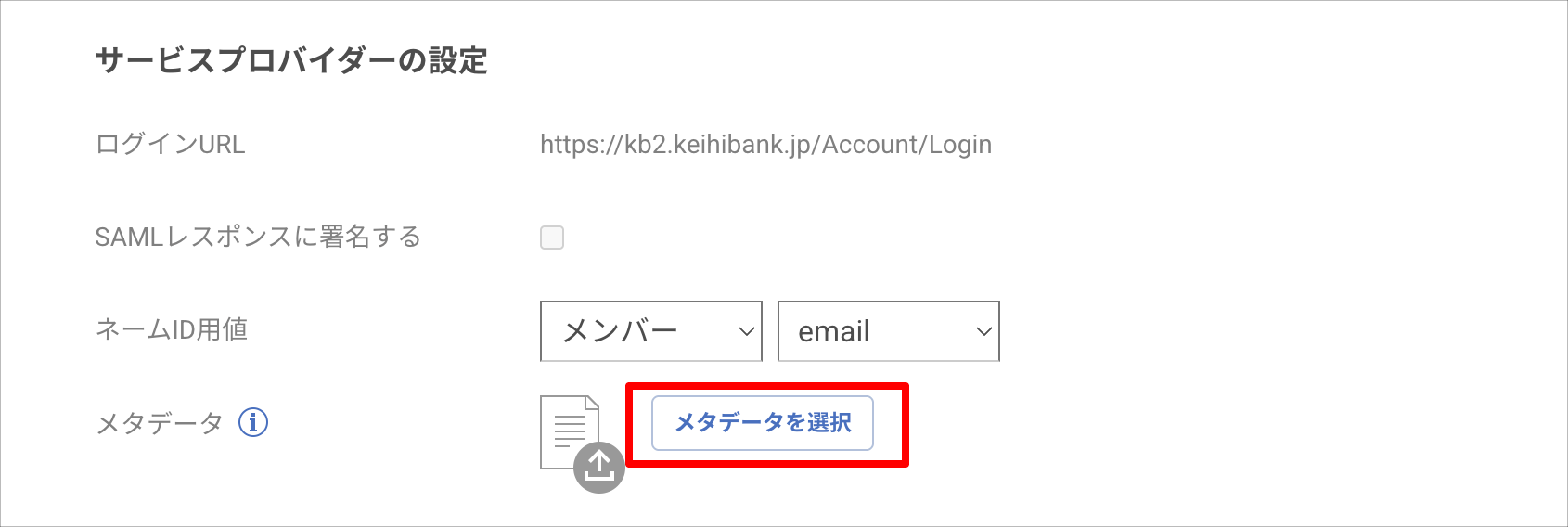

4. Upload the metadata received from Keihi BANK using the "Select Metadata" button in "Service Provider Settings".



5. Save by clicking the "Register" button.


6. Upload the "metadata" obtained from TrustLogin to the file-sharing service designated by SBI Business Solutions Co., Ltd.



TrustLogin User Settings

① When a User Adds the App from My Page

1. Click the "Add App" button on "My Page".
2. On the "Register App" screen, select "Keihi BANK (SAML)" and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it, then click the "Register" button.

② When an Administrator Adds Members

1. Search for and click the "Keihi BANK (SAML)" app in the "Admin Page > App" menu.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.

Keihi BANK Configuration

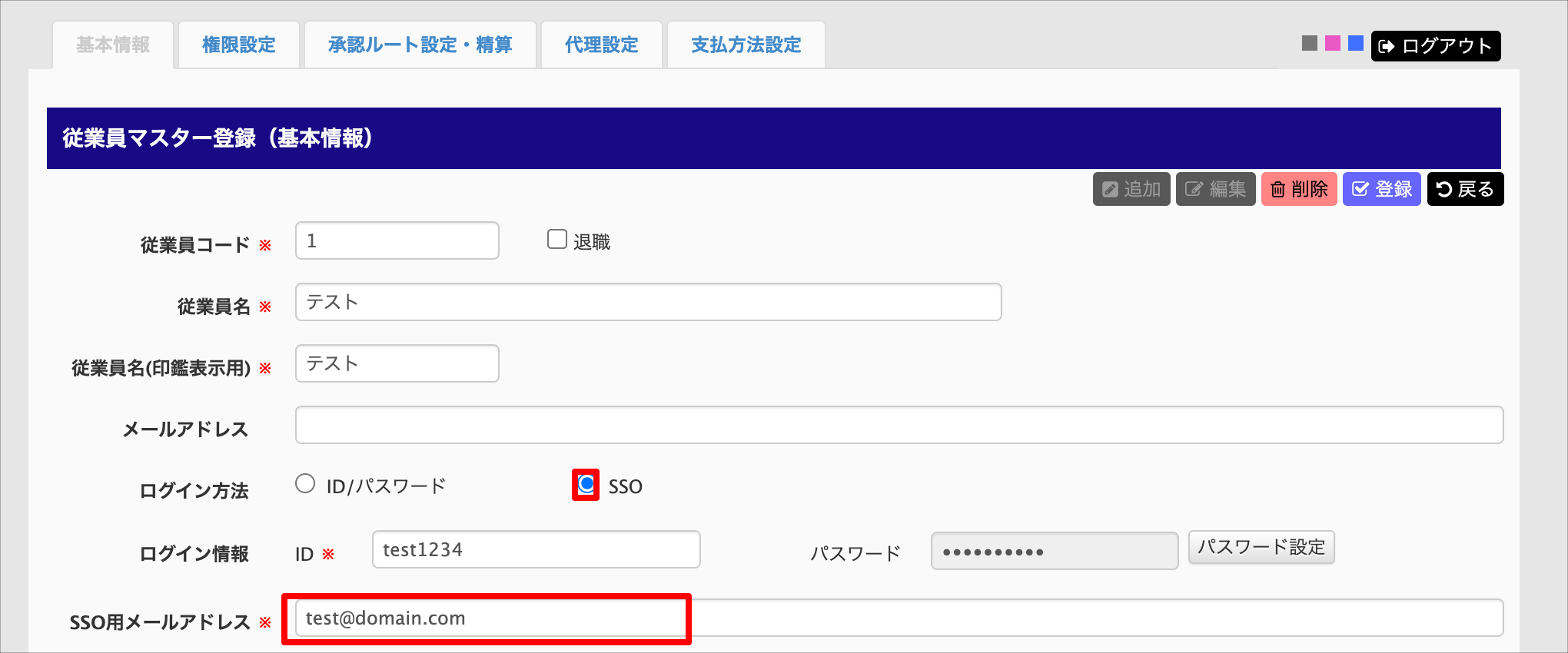

1. Once you receive notification from SBI Business Solutions Co., Ltd. that SSO has been enabled, configure SSO for employees under "System Administration > Master Settings I > Employee Master".
   Open the edit screen for the employee to whom SSO will be applied from the Employee Master, set "Login Method" to "SSO", and set the "SSO Email Address" to the employee's TrustLogin email address.



2. Save by clicking the "Register" button.

How to Log In

① When Logging In via "Keihi BANK (SAML)"

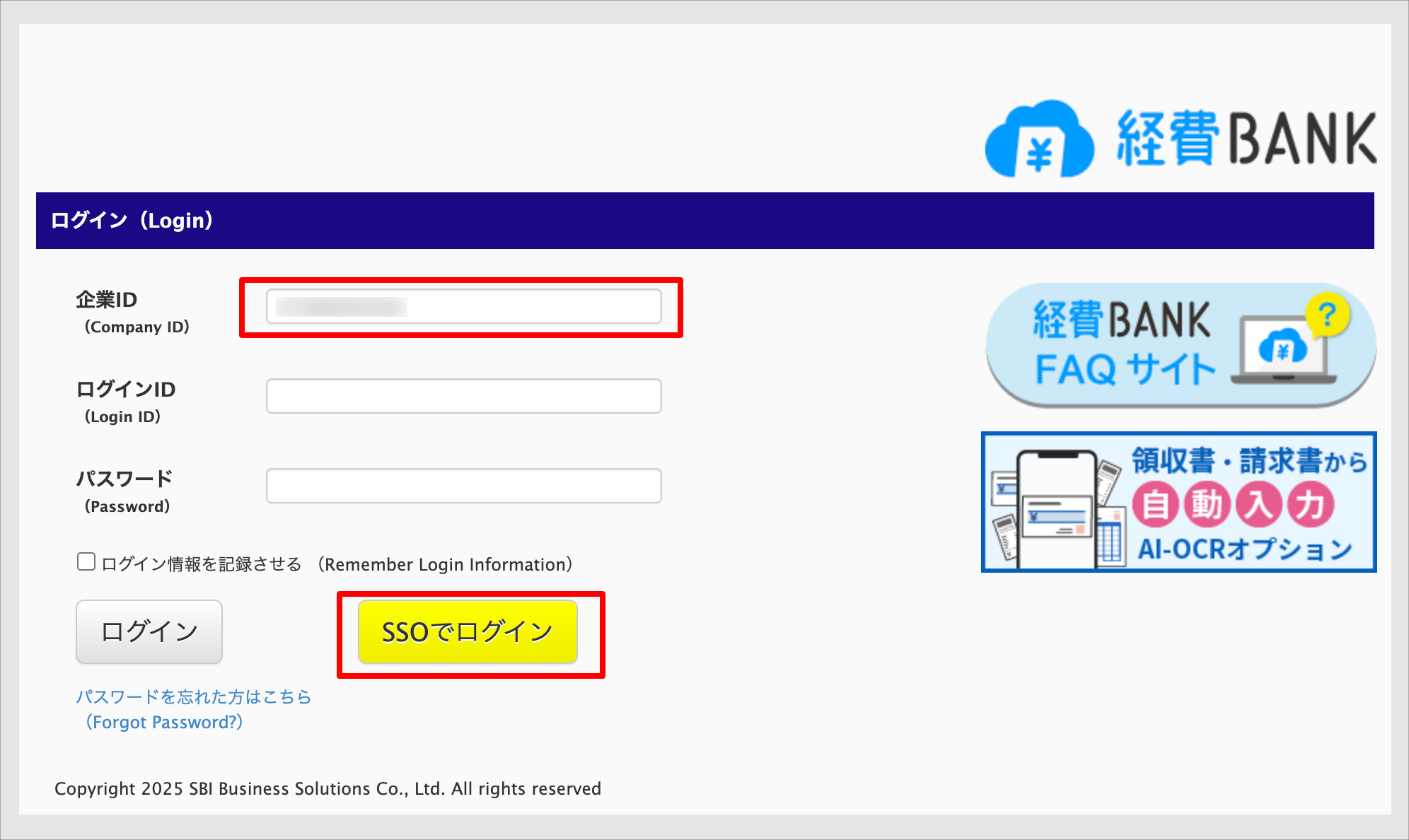

1. Run "Keihi BANK (SAML)" from your TrustLogin My Page or browser extension, and you will be redirected to the Keihi BANK login screen.


2. Enter the "Company ID" and move the cursor away; the "Log In with SSO" button will then appear. Click "Log In with SSO" to complete login.



② When Using the Helper App

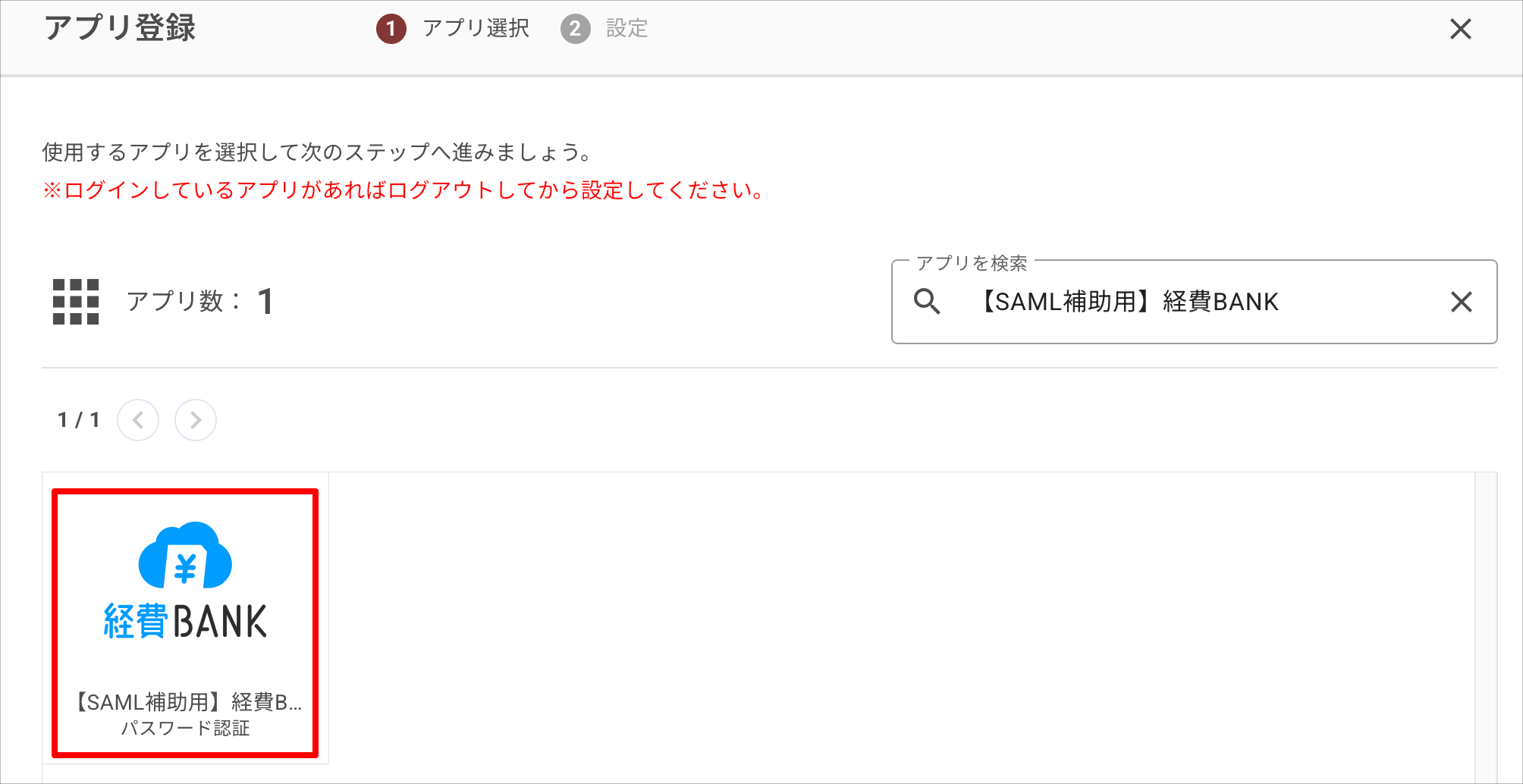

We also provide a helper app that lets you skip entering the "Company ID" and clicking the "Log In with SSO" button, as described in ①. Please register "[SAML Helper] Keihi BANK" as an app to use it.

Note: The helper app is not available on iOS - External Browser. Also, on Android - External Browser, you will need to manually click the "Log In with SSO" button.

Add and register the app following the same steps as for a regular app registration, whether you are the administrator or the user yourself.

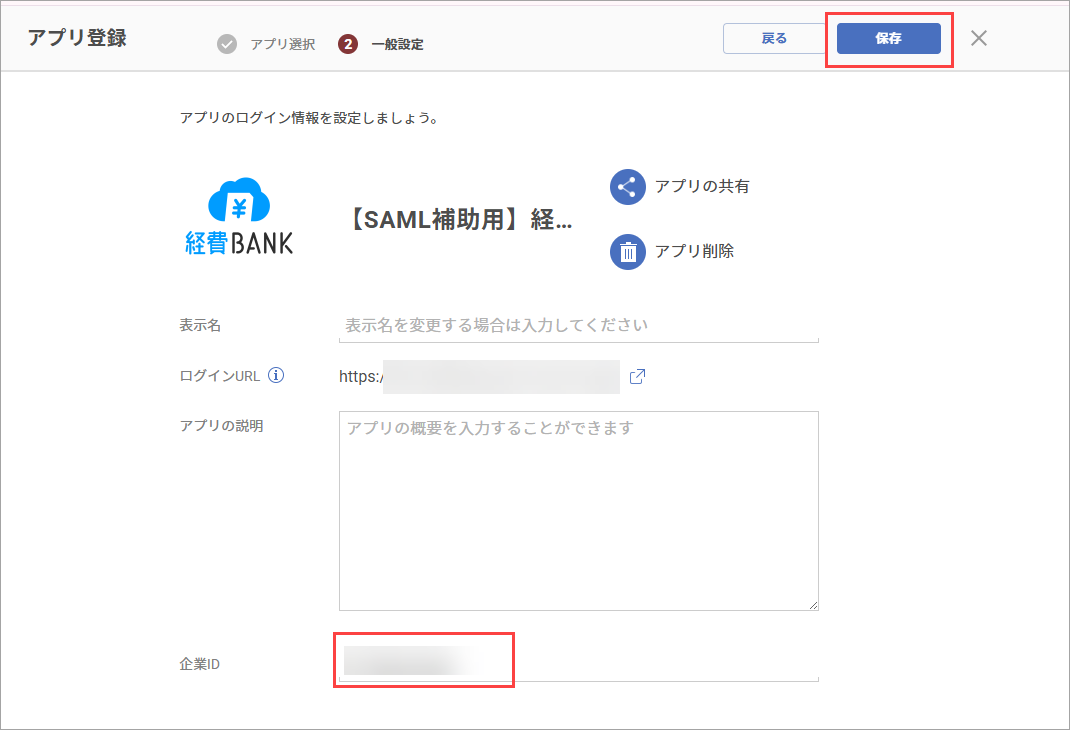

Enter the Keihi BANK company ID in "Company ID" and click "Save".
