Note: Prior configuration is required in WorkstyleOS.
Note: The user's login ID in WorkstyleOS must be set to the same email address as in TrustLogin.
Note: For the latest configuration instructions, please refer to the manual provided by WorkstyleOS.
TrustLogin Admin Page Settings
- Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button at the top right of the screen.

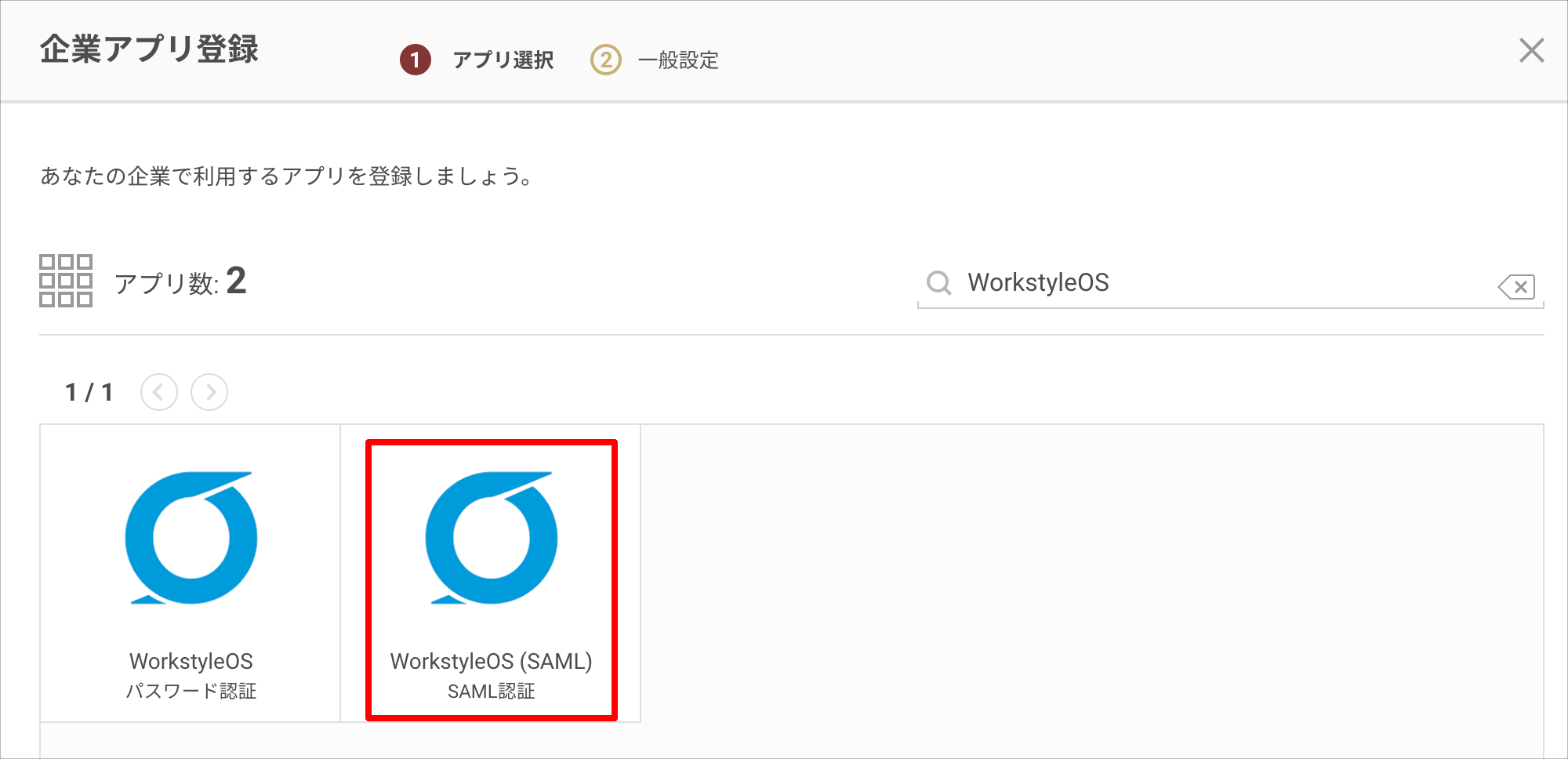

- Search on the "Register Corporate App" screen and select "WorkstyleOS (SAML)".

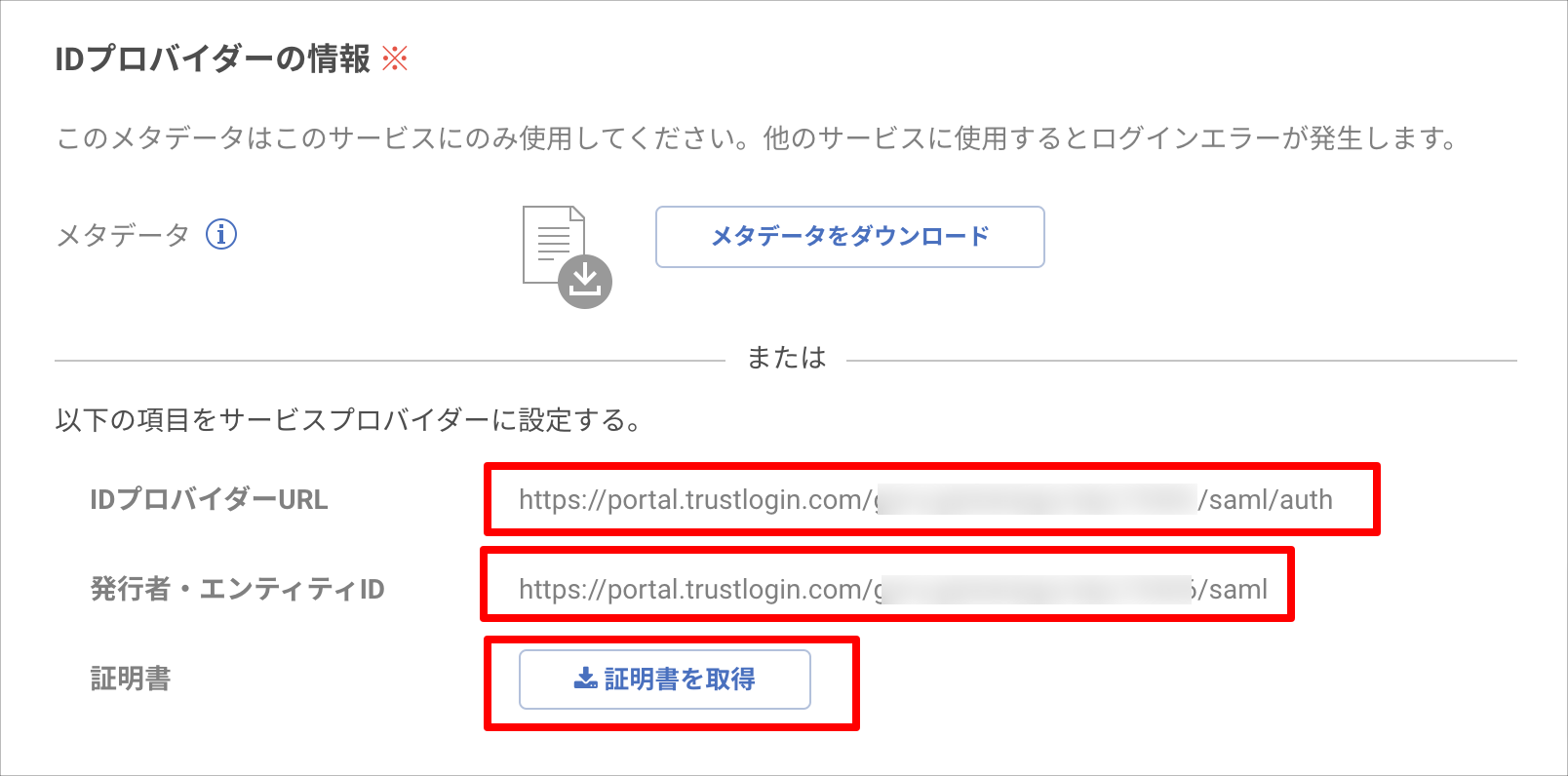

- Note down the "IdP URL" and "Issuer/Entity ID" under "Identity Provider Information". Also, download the certificate via "Get Certificate".
- Click the "Register" button to save the settings.

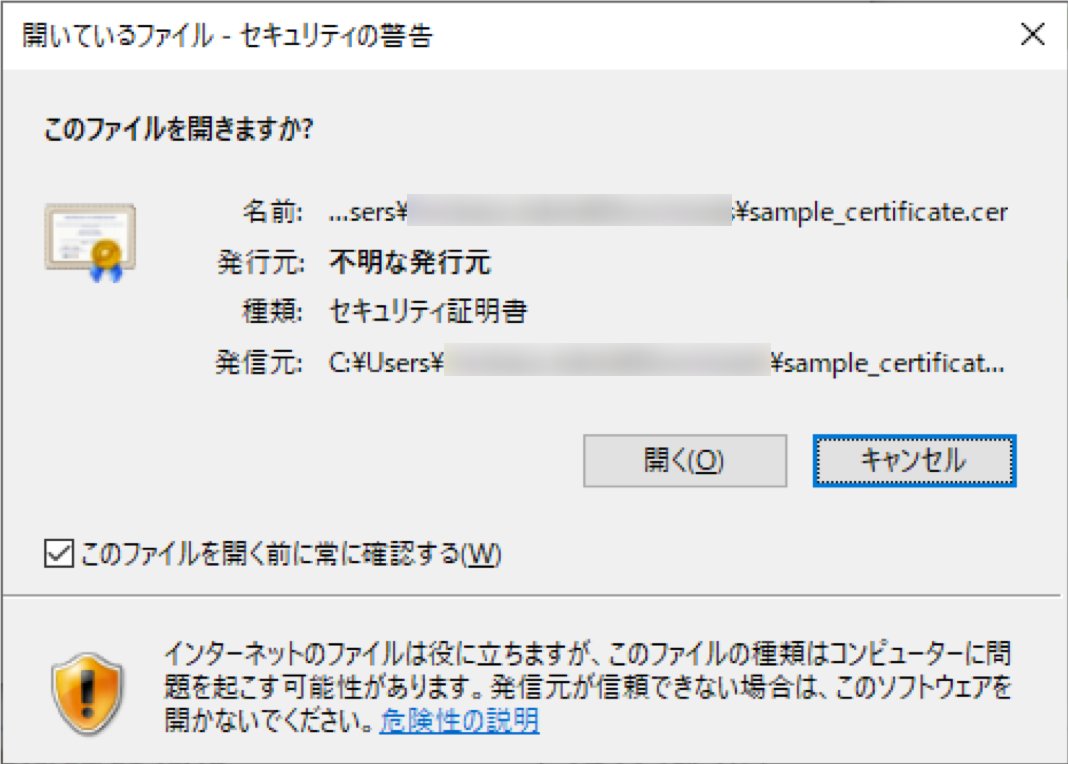

- Change the extension of the downloaded certificate to [.cer], and open the file.

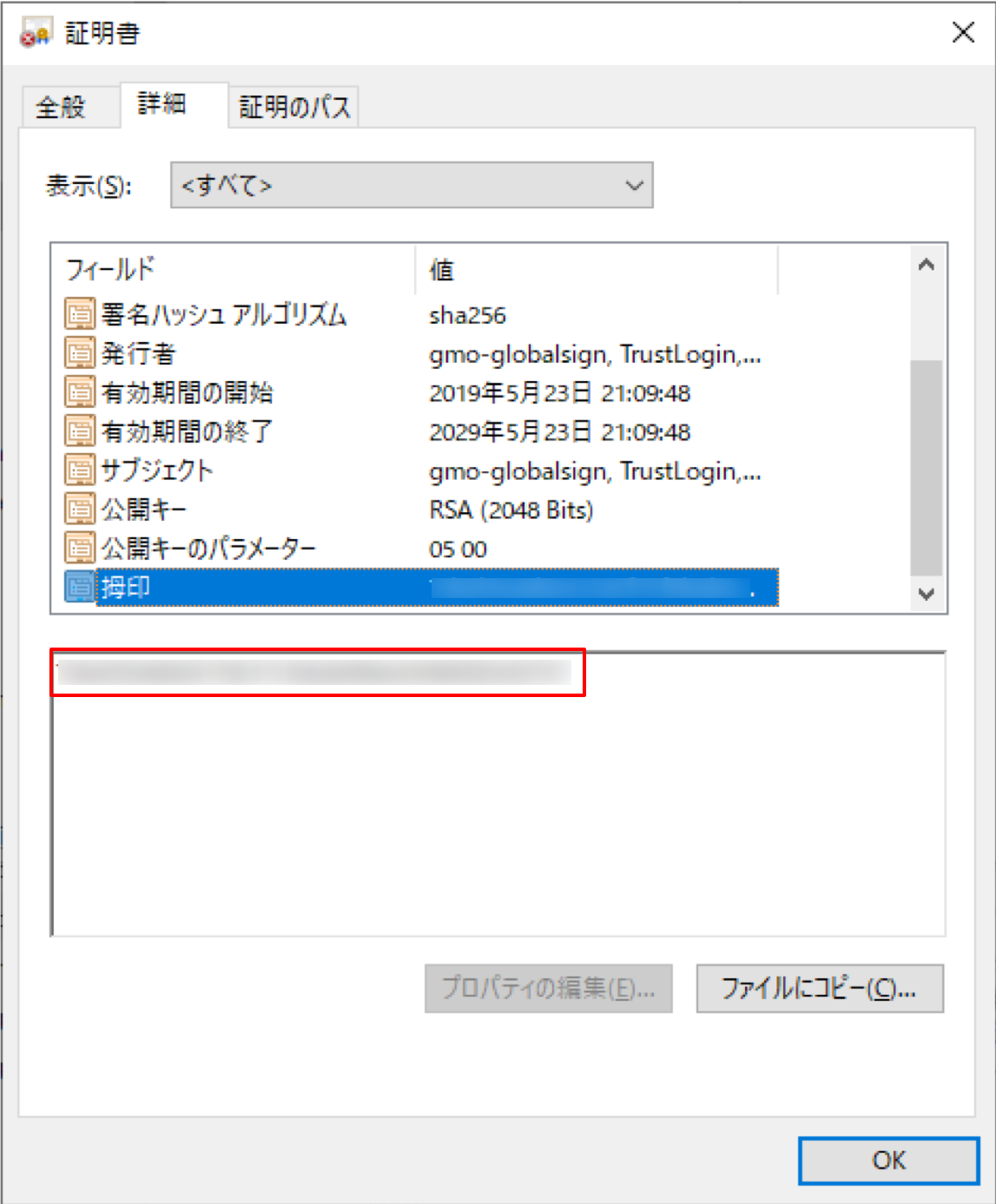

Note down the value of the "Thumbprint" field on the "Details" tab.
- Send the "IdP URL" and "Issuer/Entity ID" noted in step 3, and the "Thumbprint" obtained in step 5, to your WorkstyleOS representative, and request SAML configuration.
- When WorkstyleOS notifies you that the SAML configuration is complete, you will receive an "ACS URL".

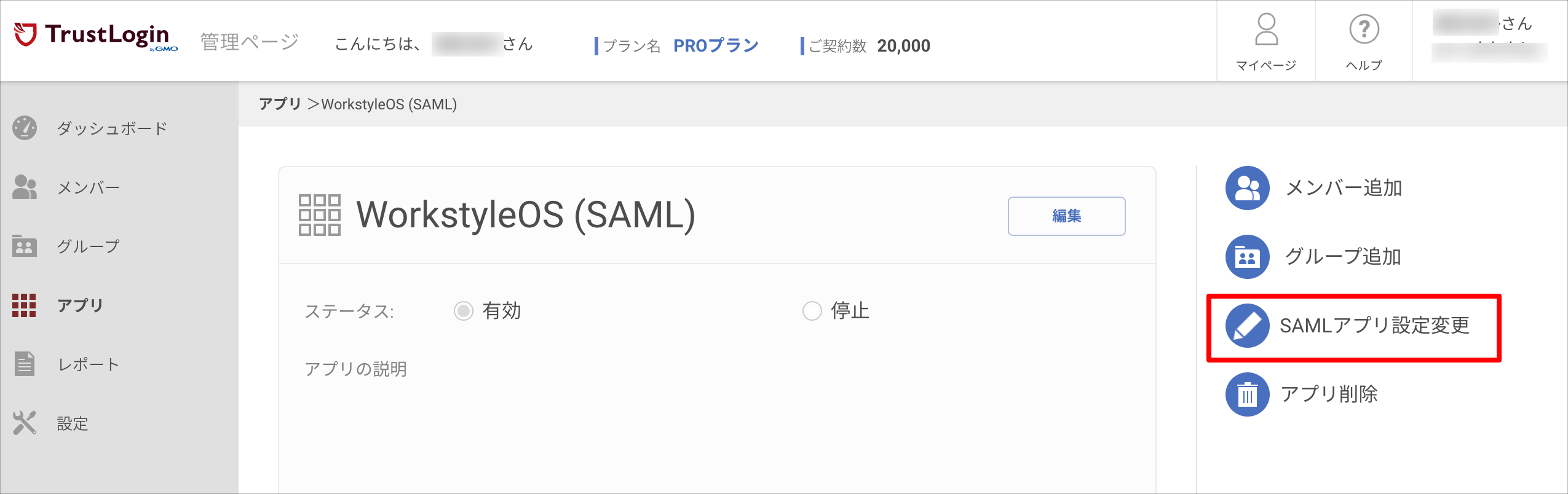

Open "Admin Page > Apps > Search for WorkstyleOS (SAML) > App Details screen > Change SAML App Settings" again.

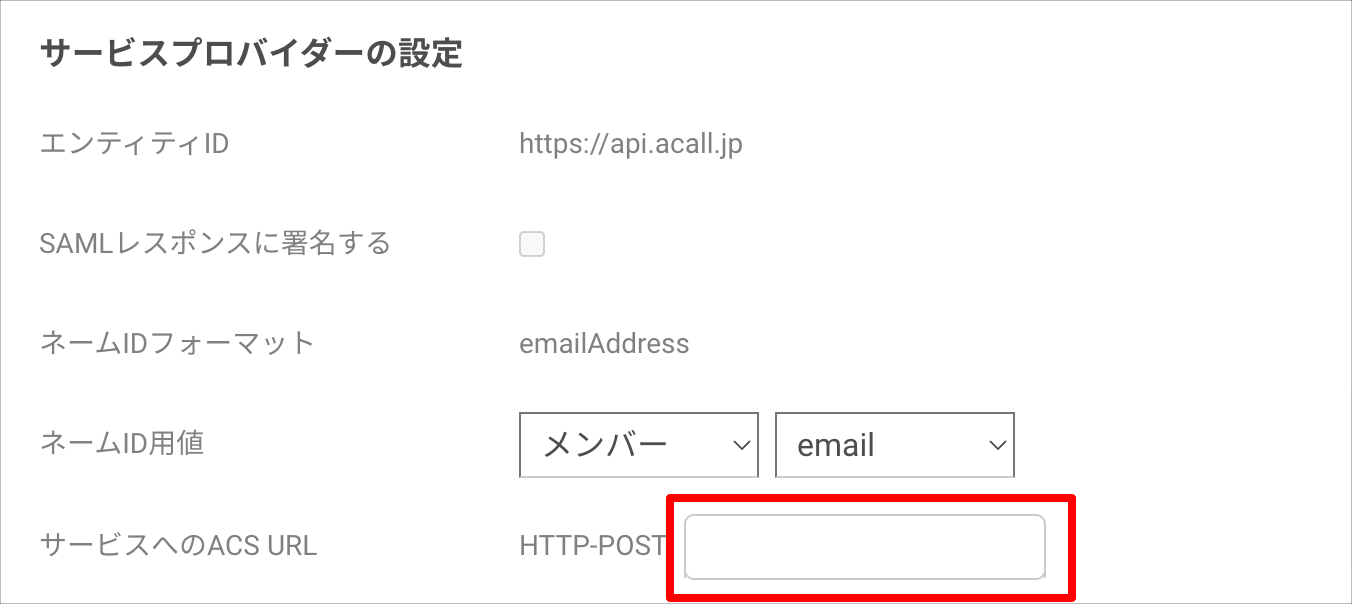

- Enter the ACS URL provided by WorkstyleOS into the "ACS URL to Service" field under "Service Provider Settings".
- Click the "Register" button again to save the settings.
TrustLogin User Settings
① When a User Adds the App via My Page
- Click the "Add App" button in "My Page".
- Select "WorkstyleOS (SAML) " on the "Register App" screen, and click the "Next" button at the top right of the screen.

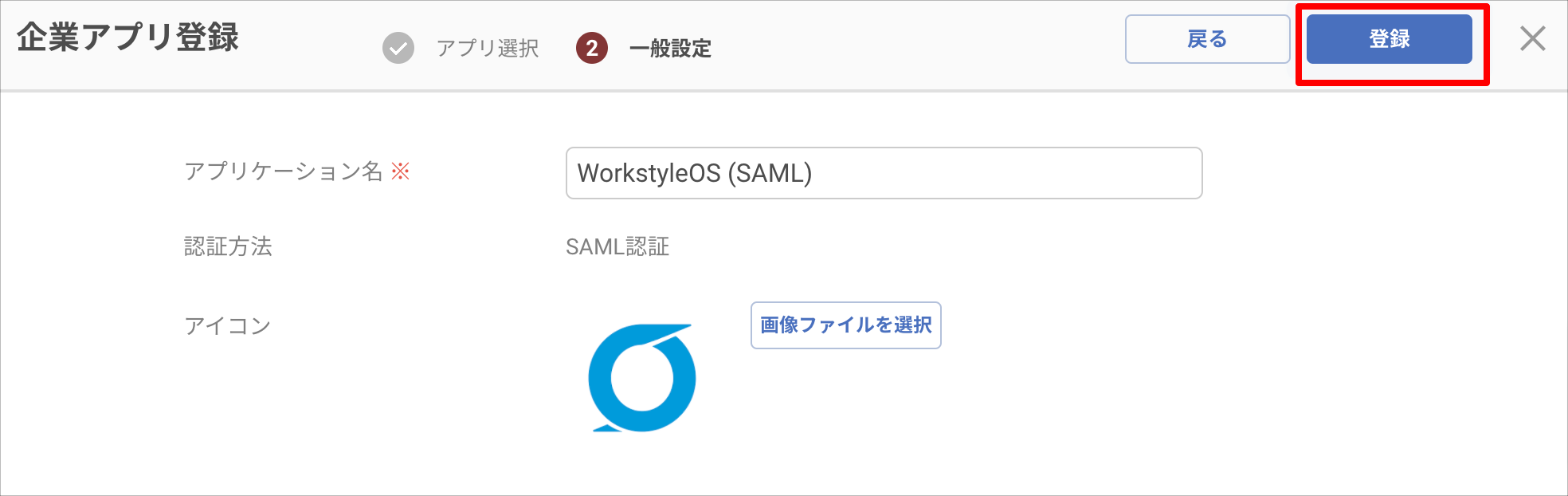

- If you want to change the "Display Name", enter it, then click the "Register" button.
② When an Administrator Adds a Member
- Search for and click the "WorkstyleOS (SAML)" app in the "Admin Page > Apps" menu.
- Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
