Note: Prior configuration in Bugyo Cloud is required.
Note: You need to create an account in Bugyo Cloud with "OBCiD" set to the same email address as your TrustLogin (formerly SKUID) account.
Note: For the most up-to-date setup instructions, please refer to the manual provided by Bugyo Cloud.
If you use multiple services linked to Bugyo Cloud, after completing the SAML configuration in this manual, please also refer to the following manual.
How to Use a Single SAML Authentication Configuration Across Multiple Apps
TrustLogin Admin Page Settings
- Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

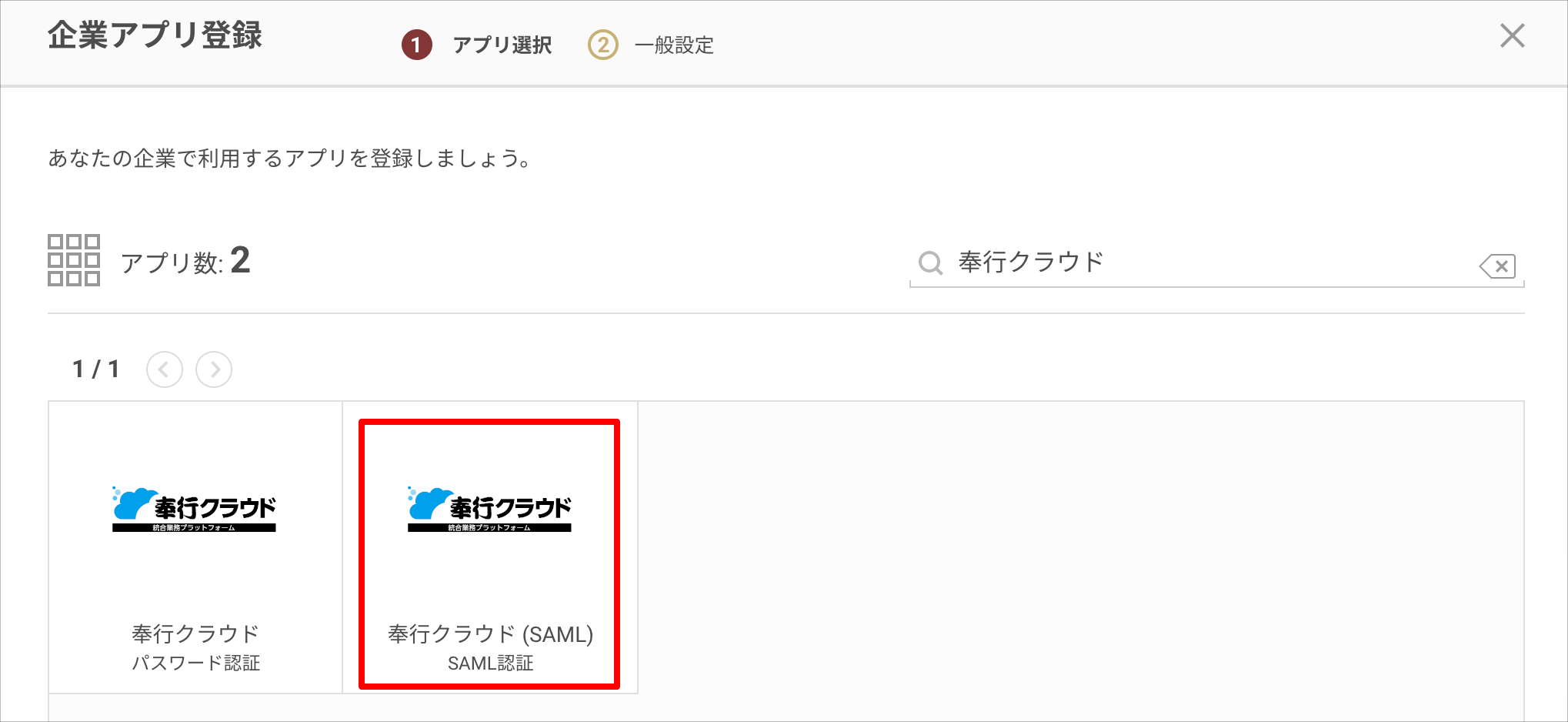

- On the "Register Company App" screen, search for and select "Bugyo Cloud (SAML)".

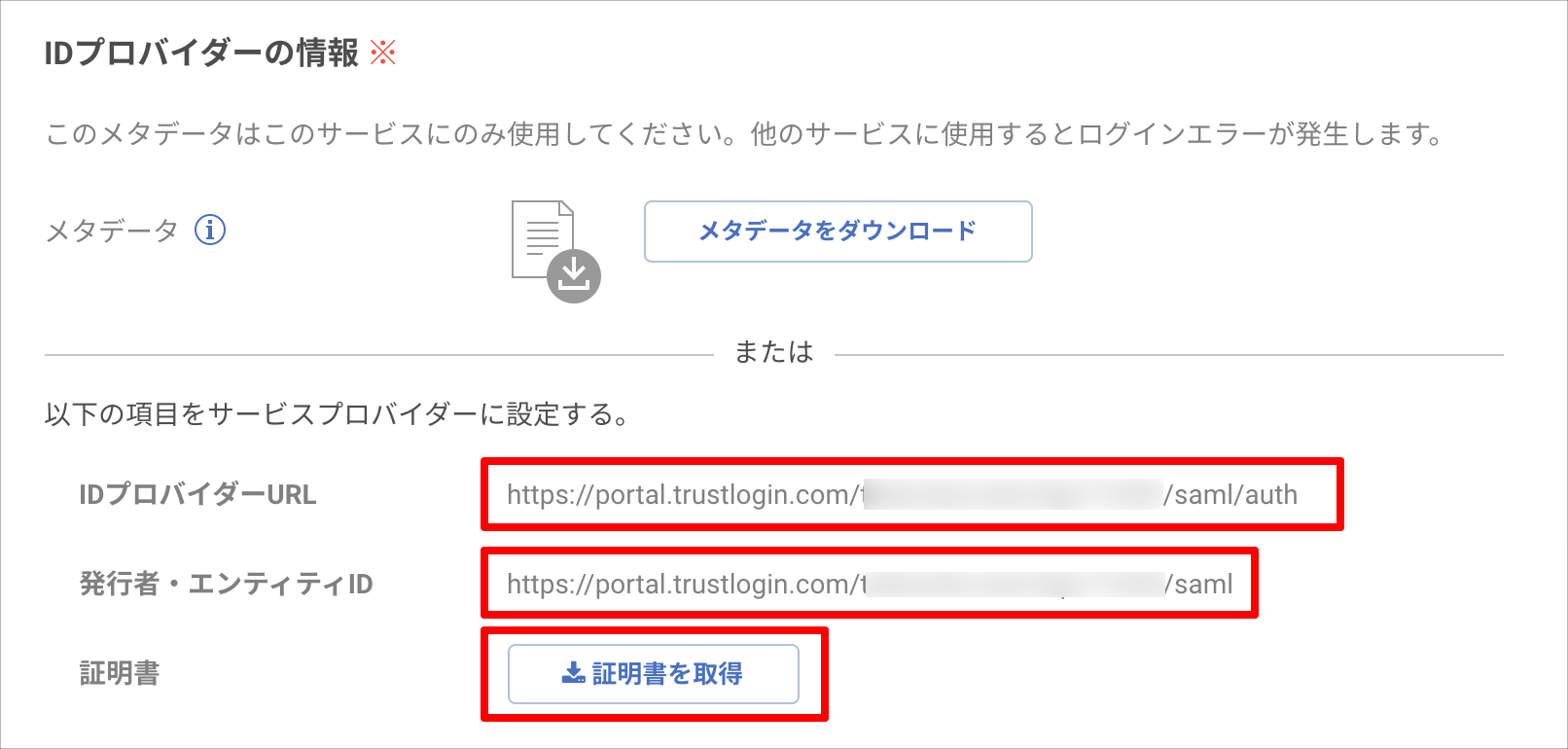

- Note the "IdP URL" and "Issuer / Entity ID" under "Identity Provider Information". Also, download the certificate using "Get Certificate".

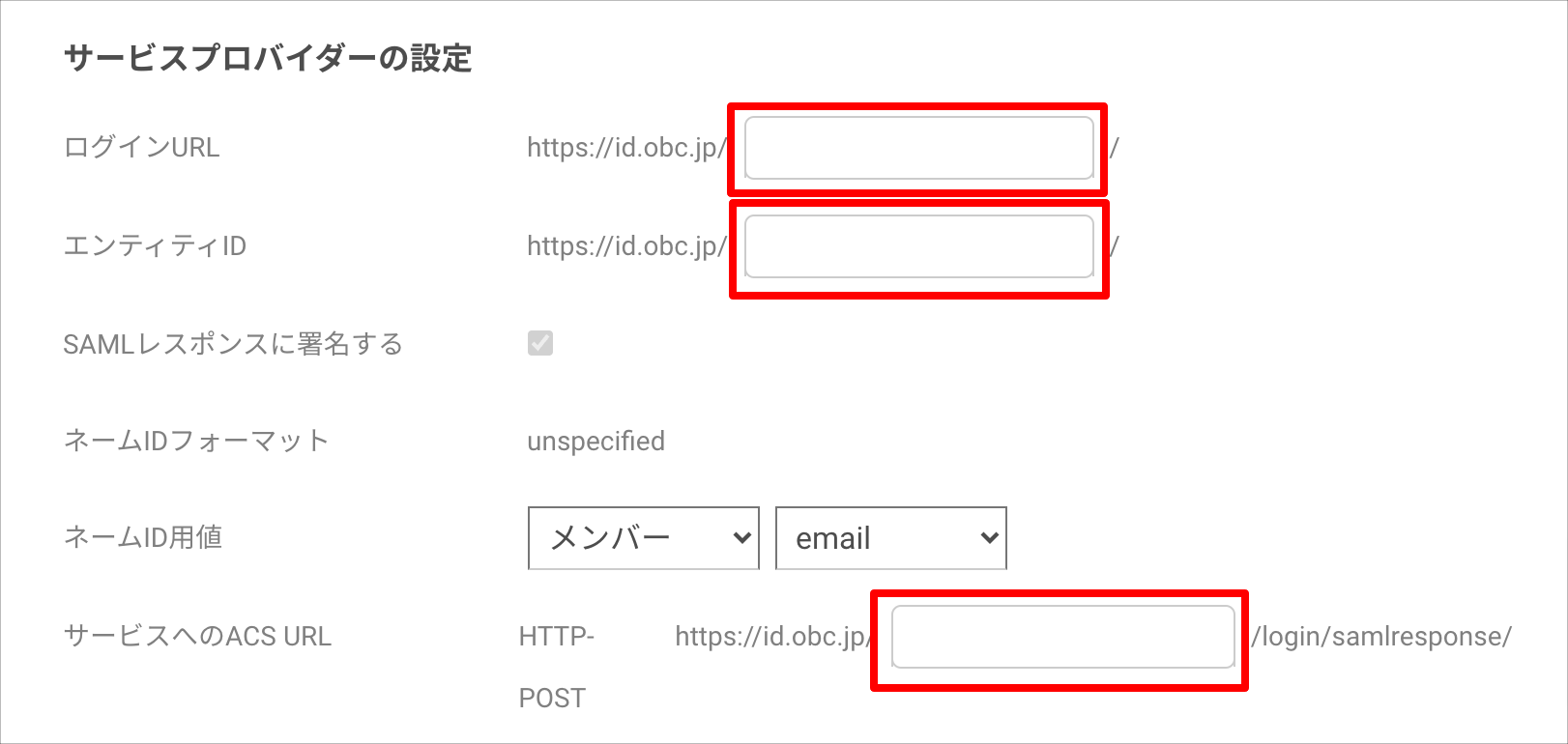

- In the three blank fields under "Service Provider Settings", enter your Bugyo Cloud-specific information (the "*********" portion of your Bugyo Cloud login URL 【https://id.obc.jp/*********】).
- Click the "Register" button to save.
Bugyo Cloud Settings

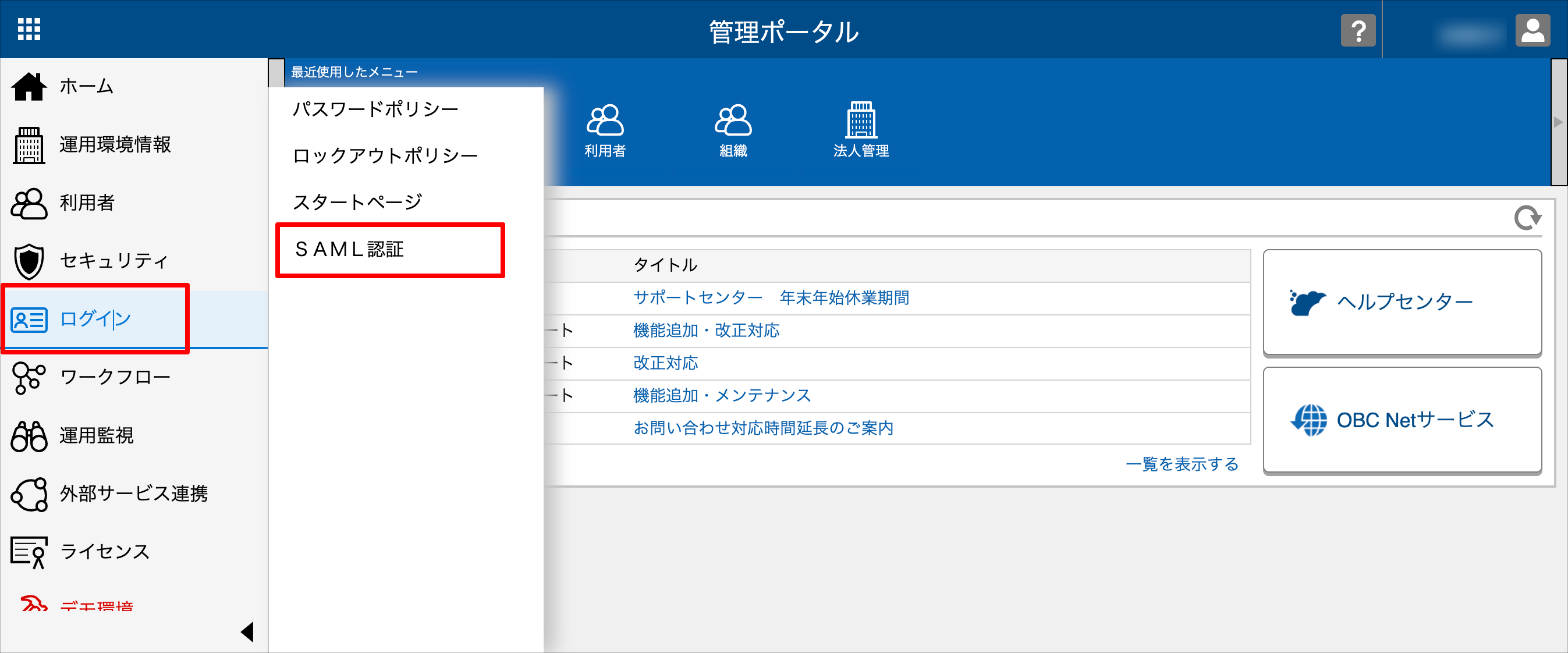

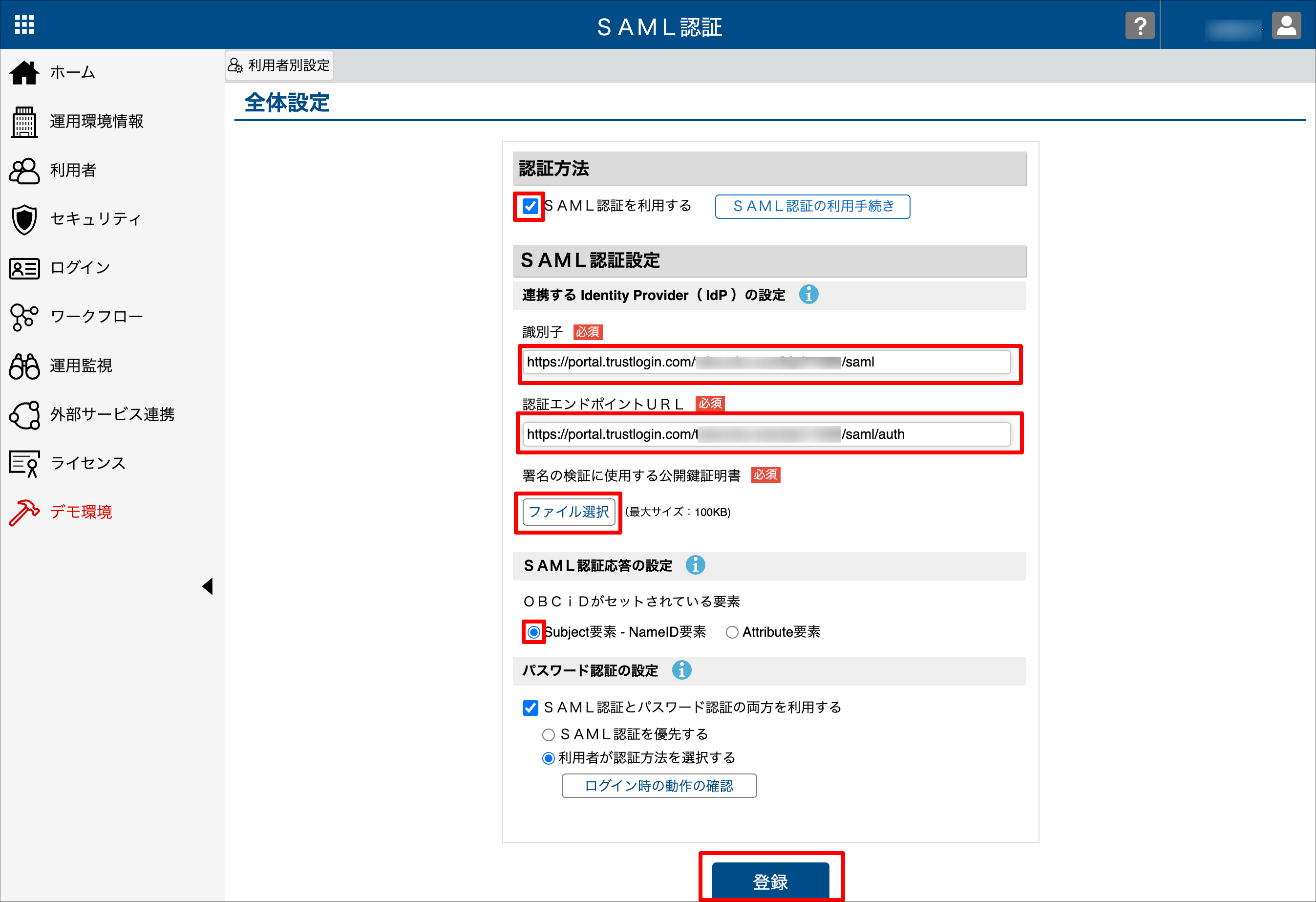

- Log in to the admin portal and open "Login > SAML Authentication".
- Configure each item as follows, then click the "Register" button to save your changes.
Use SAML authentication Check the box Identifier The "Issuer / Entity ID" obtained from TrustLogin Authentication endpoint URL The "IdP URL" obtained from TrustLogin Public key certificate used to verify the signature Upload the certificate downloaded from TrustLogin Element in which OBCiD is set Select the Subject element - NameID element
Password authentication settings Configure according to your operational needs
Note: We recommend keeping this set to "Use both SAML authentication and password authentication > User selects the authentication method" until you have confirmed that SAML authentication is working correctly.

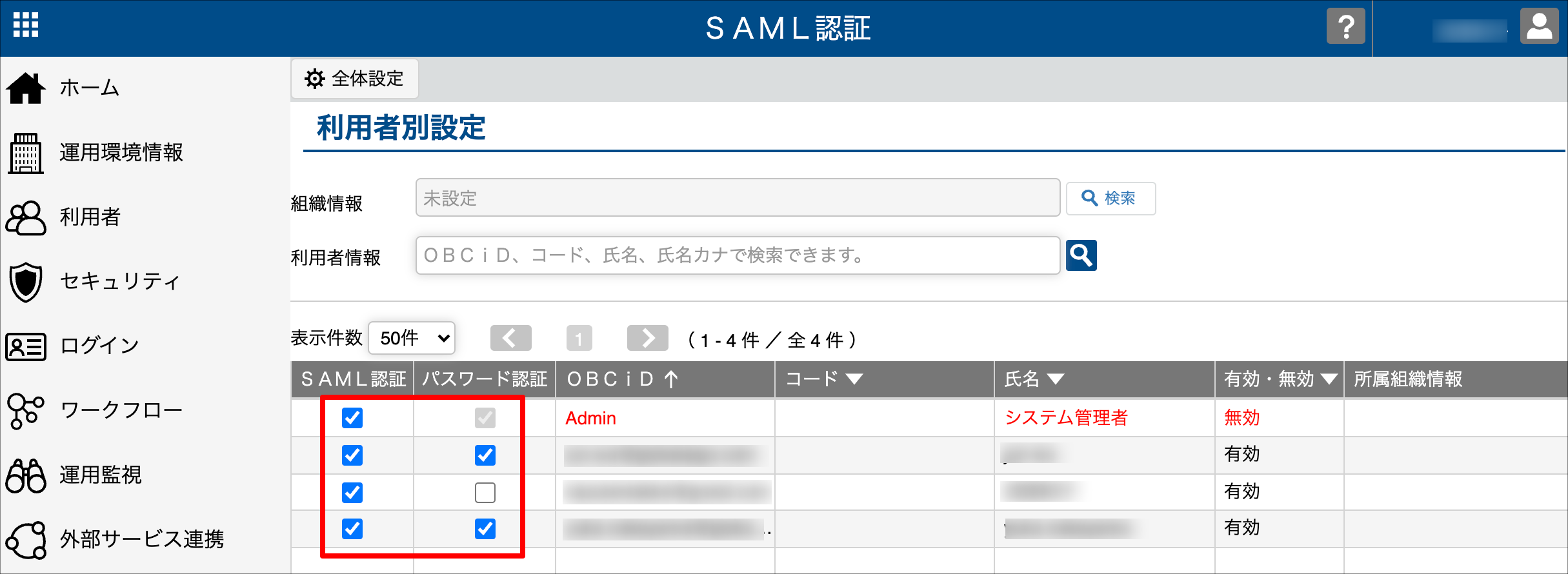

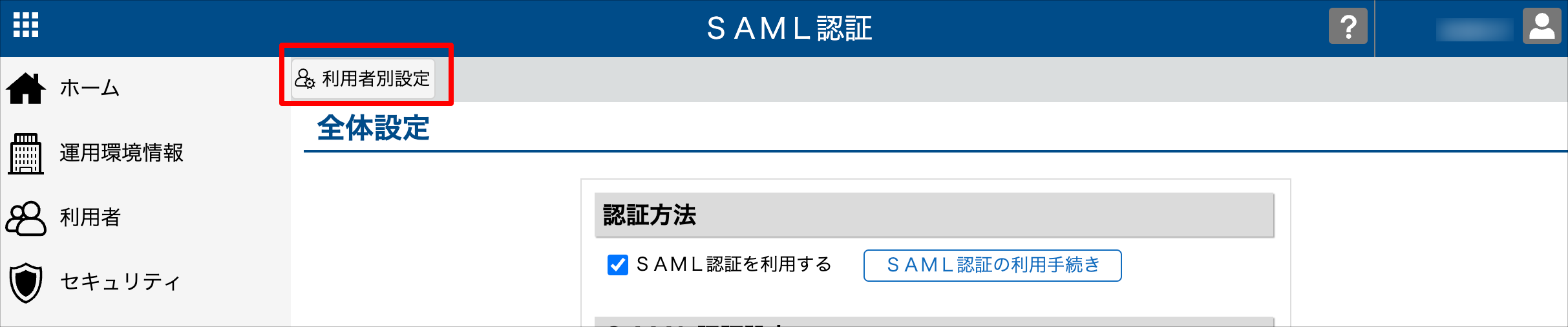

- Open "User-Specific Settings" and configure the login method for each user.
TrustLogin User Settings
① When a User Adds the App from My Page
- Click the "Add App" button on "My Page".
- On the "Register App" screen, select "Bugyo Cloud (SAML)" and click the "Next" button in the upper right of the screen.
- If you want to change the "Display Name", enter it, then click the "Register" button.
② When an Administrator Adds Members
- From the "Admin Page > Apps" menu, search for and click the "Bugyo Cloud (SAML)" app.
- Click "Add Member", select the users to add from the member list, and click the "Register" button to add them.
How to Log In to Bugyo Cloud
① Logging In from the Bugyo Cloud Login Page

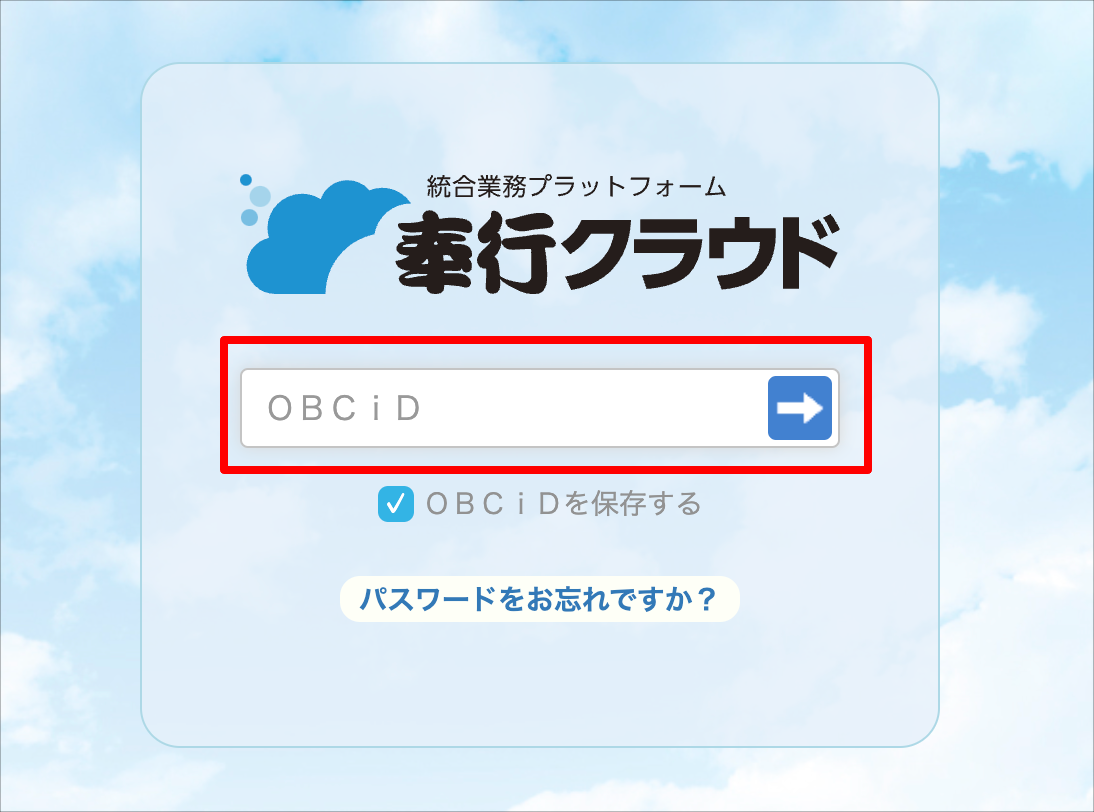

- Enter your OBCiD and proceed.

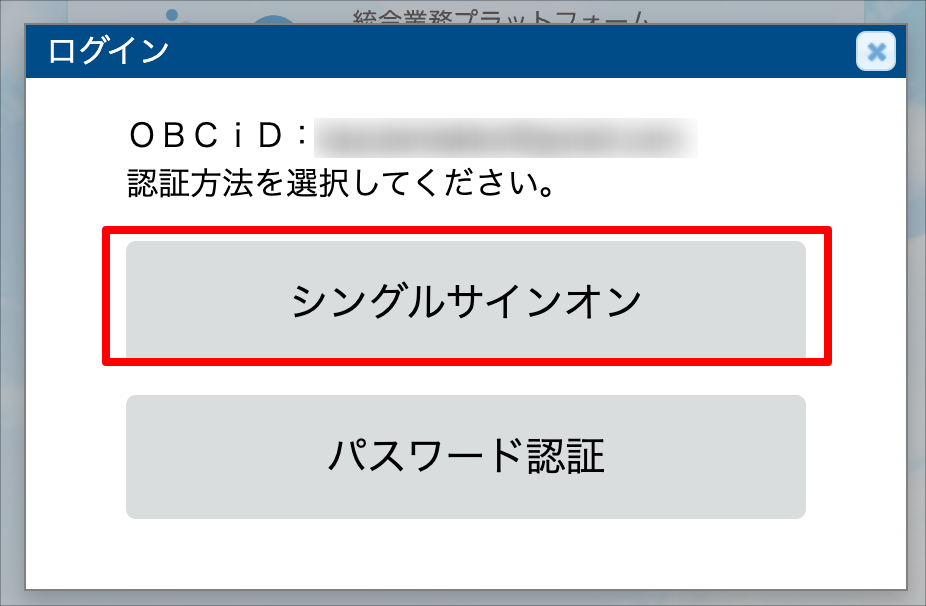

- If your SAML authentication settings are set to both "Use both SAML authentication and password authentication" and "User selects the authentication method", the authentication method selection screen will be displayed. In this case, select "Single Sign-On".
- If you are already logged in to TrustLogin, you will be logged in to Bugyo Cloud as-is.
If you are not logged in to TrustLogin, you will be redirected to the TrustLogin login page, and once authentication is complete, you will be logged in to Bugyo Cloud.
② Logging In from TrustLogin
From TrustLogin's My Page or the browser extension, click "Bugyo Cloud (SAML)" to be redirected to the Bugyo Cloud login page.
Follow the same steps as in "① Logging In from the Bugyo Cloud Login Page", starting from entering your OBCiD.
