Item |
Details |
|
|---|---|---|
|
Prior Confirmation |
|
|
|
Name ID |
〇 |
Email address |
|
Custom attribute Note: For instructions on how to configure a custom attribute, click here |
||
|
SP-side Configuration |
〇 |
Configured by the administrator |
|
Request configuration from the SP |
||
|
Provisioning |
API-based Provisioning supported (account management available in TrustLogin) |
|
|
SAML JIT Provisioning supported (account management available in TrustLogin; user deletion not supported) |
||
|
〇 |
None (accounts created in each system) |
|
|
Access Method |
〇 |
SP-Initiated SSO |
|
ー |
IdP-Initiated SSO |
|
|
Verified Operation by Device |
〇 |
PC - Browser |
|
ー |
PC - Desktop App |
|
|
〇 |
iOS - Standard Browser (Safari) |
|
|
〇 |
iOS - TrustLogin Mobile App In-App Browser |
|
|
ー |
iOS - Native App |
|
|
〇 |
Android - Standard Browser (Chrome) |
|
|
〇 |
Android - TrustLogin Mobile App In-App Browser |
|
|
ー |
Android - Native App |
|
|
SAML Authentication Scope |
ー |
Enabled for all users (SAML authentication only) |
| 〇 |
Other: Enabled for all users (both SAML authentication and password authentication available) |
|
|
Notes |
None in particular. |
|
|
Table of Contents: TrustLogin Admin Page Settings |
TrustLogin Admin Page Settings
-
Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

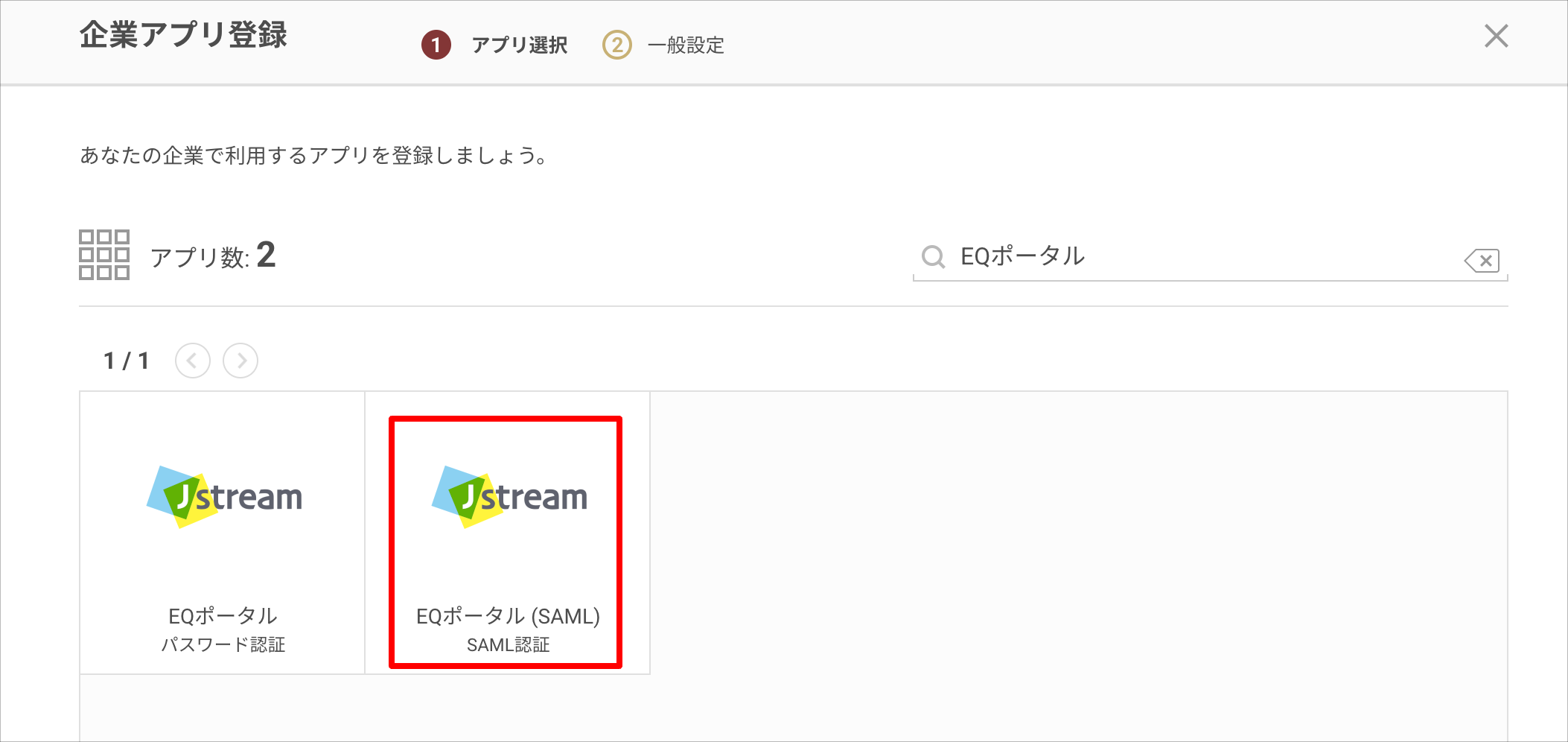

- Search on the "Register Company App" screen and select "EQ Portal (SAML)".
- Note down the value of "Identity Provider URL" under "Identity Provider Information", and download the certificate from the "Get Certificate" button.
Now, switch to configuring the EQ Portal side.
Do not click the "Register" button yet — open the EQ Portal site in a separate window.
EQ Portal Settings

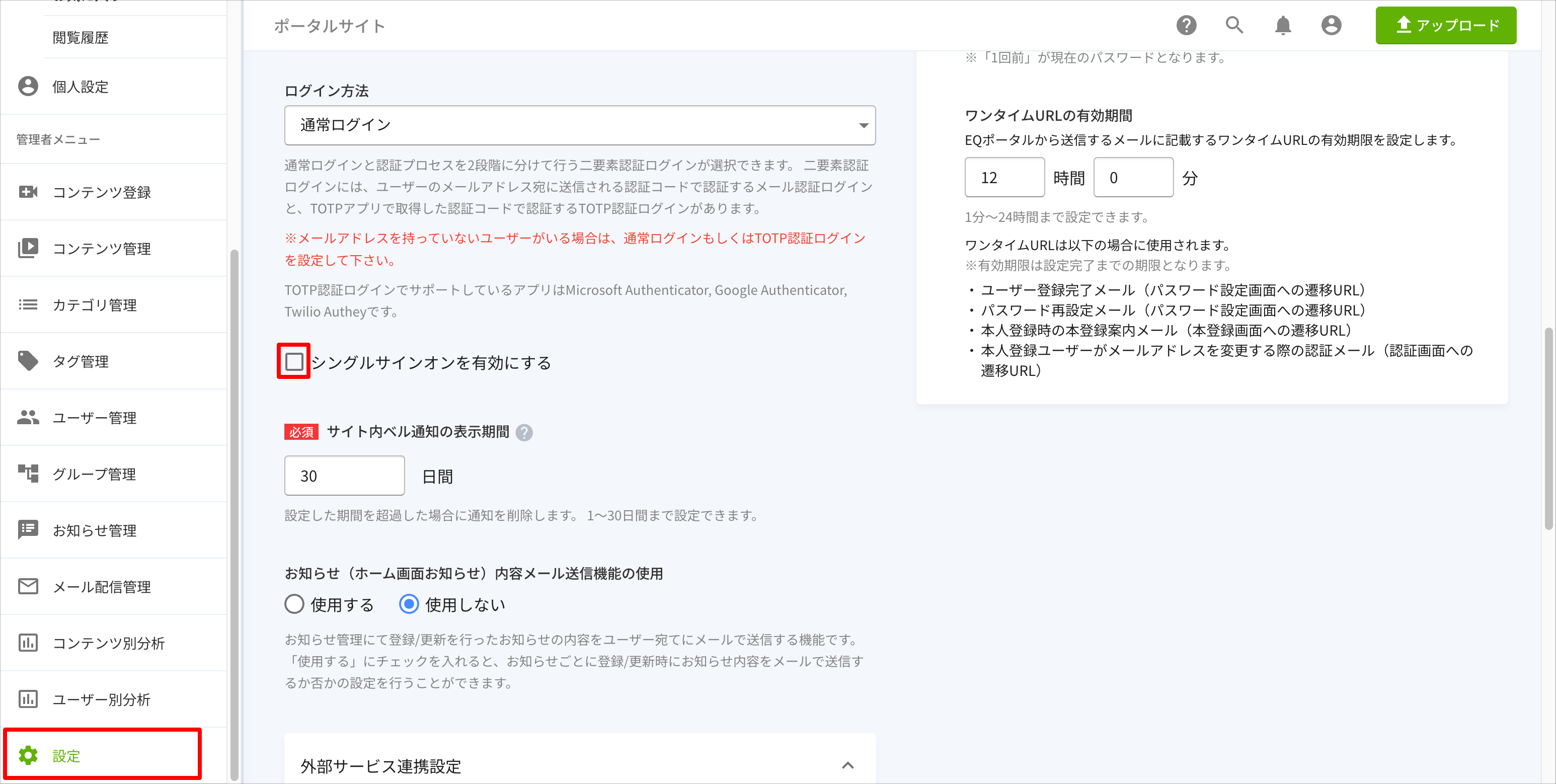

- Open "Settings" in the left menu and turn on the checkbox for "Enable Single Sign-On".

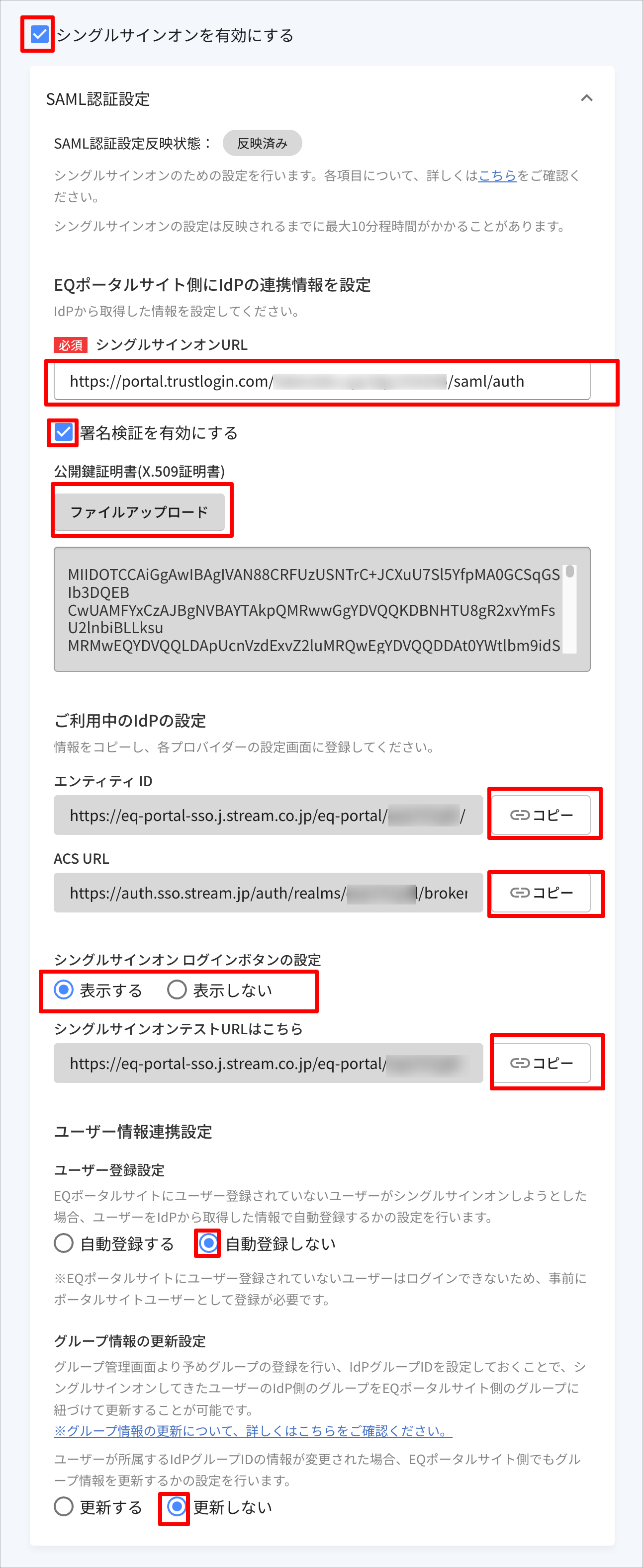

- When you turn on "Enable Single Sign-On", the "SAML Authentication Settings" section expands. Configure each item as follows.
Single Sign-On URL The "Identity Provider URL" obtained from TrustLogin Enable Signature Verification Turn on the checkbox and upload the "Certificate" obtained from TrustLogin using "File Upload" Entity ID Make a note of the value using the "Copy" button ACS URL
Make a note of the value using the "Copy" button Single Sign-On Login Button Settings You can choose whether to display the Single Sign-On login button on the EQ Portal login screen. Please select according to your operational needs. Single Sign-On Test URL Make a note of the value using the "Copy" button User Registration Settings Select "Do Not Automatically Register" Group Information Update Settings Select "Do Not Update"

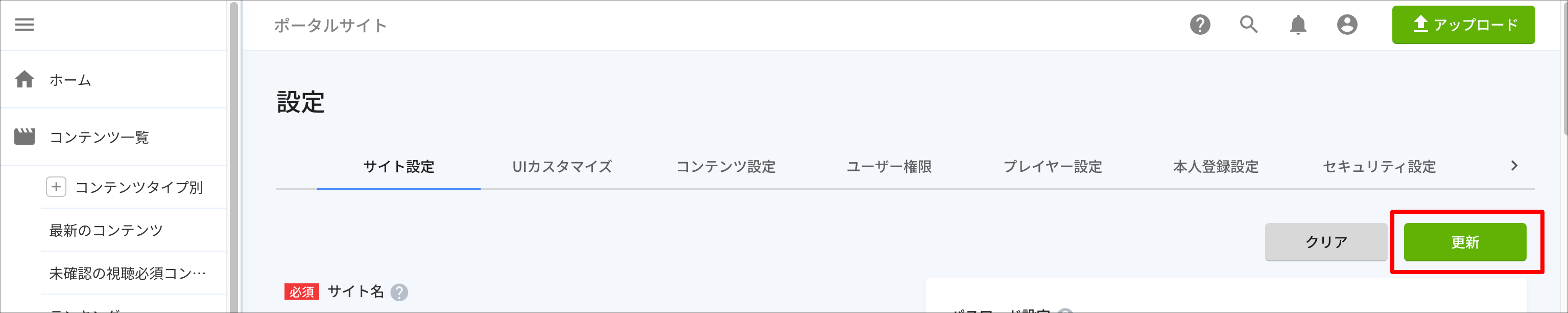

- Click the "Update" button to save.
Now return to the TrustLogin Admin Page again.
TrustLogin Admin Page Settings (Continued)

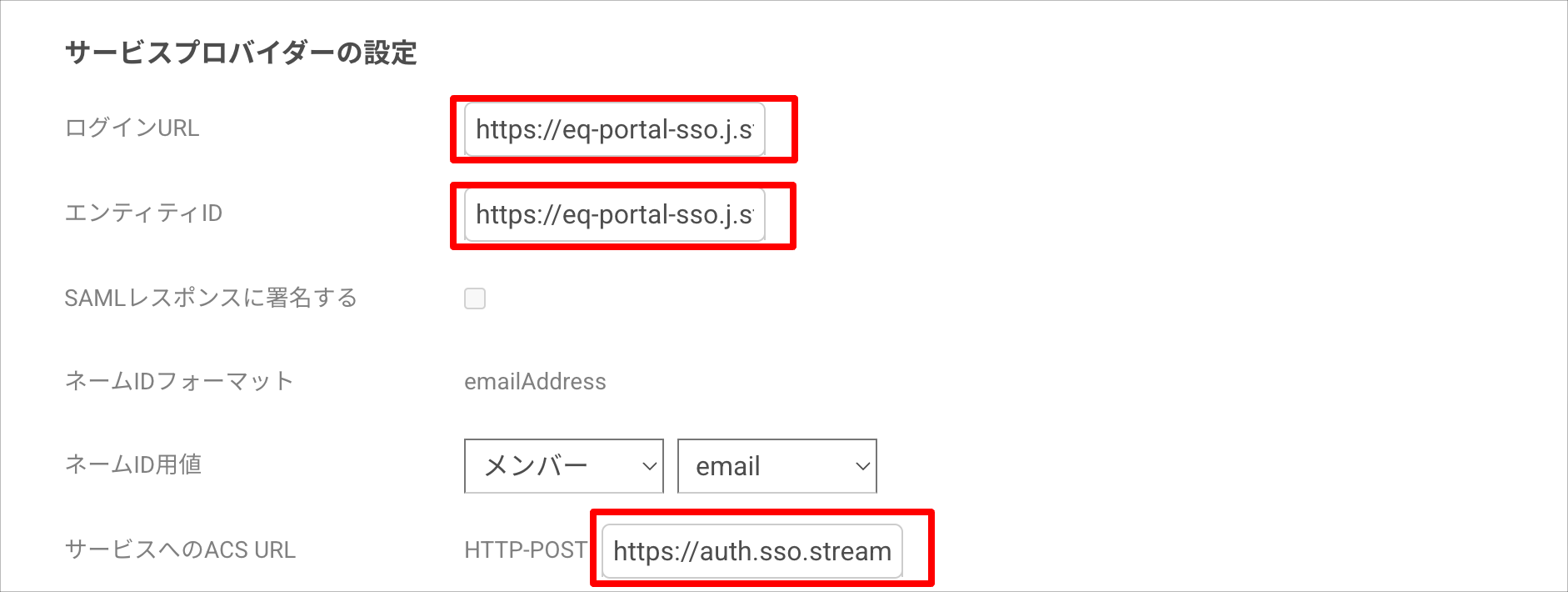

- Configure "Service Provider Settings" as follows.
Login URL The "Single Sign-On Test URL" obtained from EQ Portal
Entity ID The "Entity ID" obtained from EQ Portal ACS URL to Service The "ACS URL" obtained from EQ Portal
- Click the "Register" button to save your settings.
TrustLogin User Settings
① When a User Adds the App via My Page
- Click the "Add App" button on "My Page".
- On the "Register App" screen, select "EQ Portal (SAML)" and click the "Next" button in the upper right of the screen.
- If you want to change the "Display Name", enter it, then click the "Register" button.
② When an Administrator Adds a Member
- Search for and click the "EQ Portal (SAML)" app in the "Admin Page > App" menu.
- Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
